BluePrint Engines MLL-BPMS396CTF BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine
£10,138.95 Inc VAT
Availability: 2 in stock
BluePrint MLL-BPMS396CTF BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine
Please contact our technical team to discuss your exact requirements before ordering
Please call to discuss delivery options

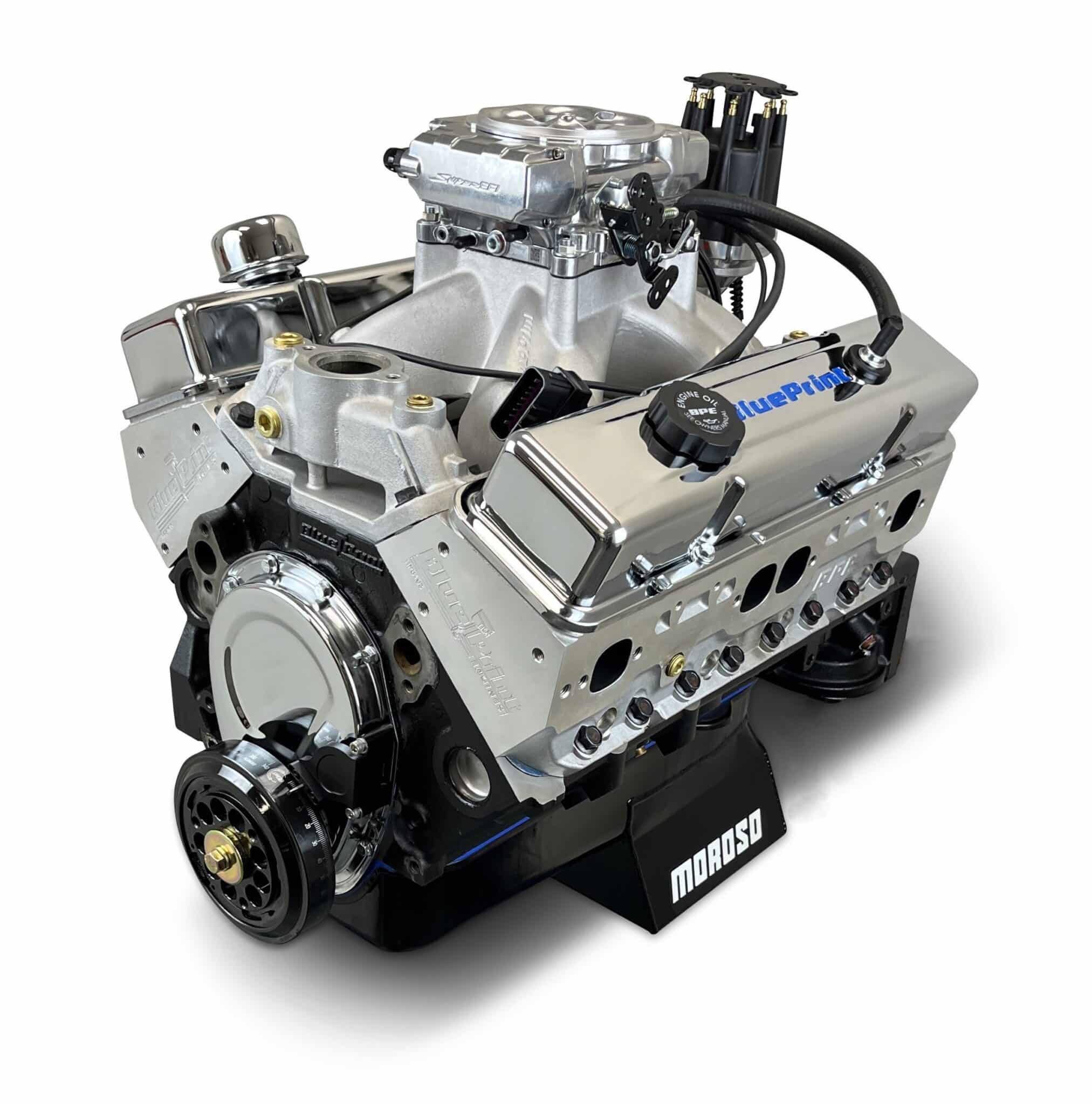

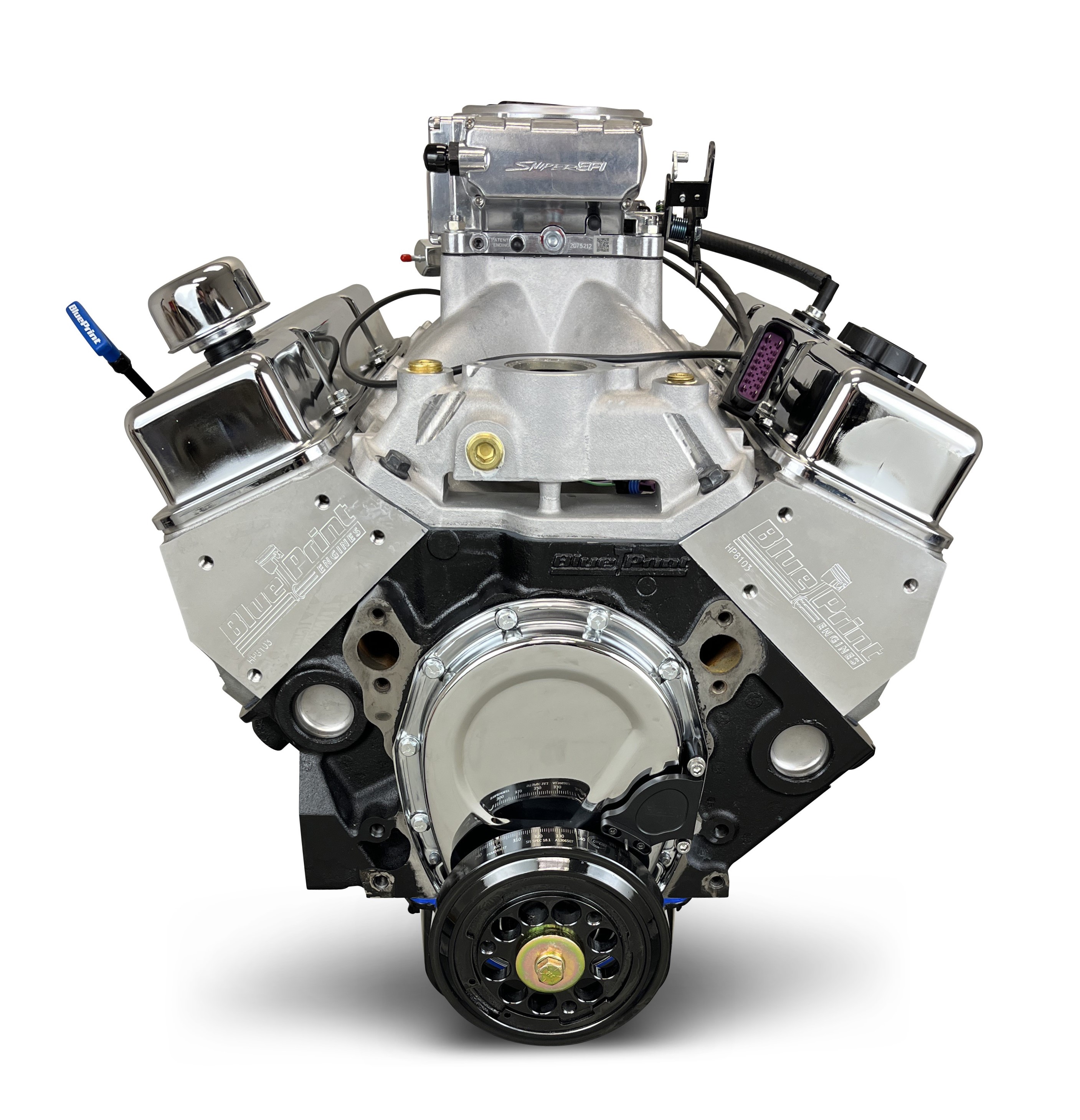

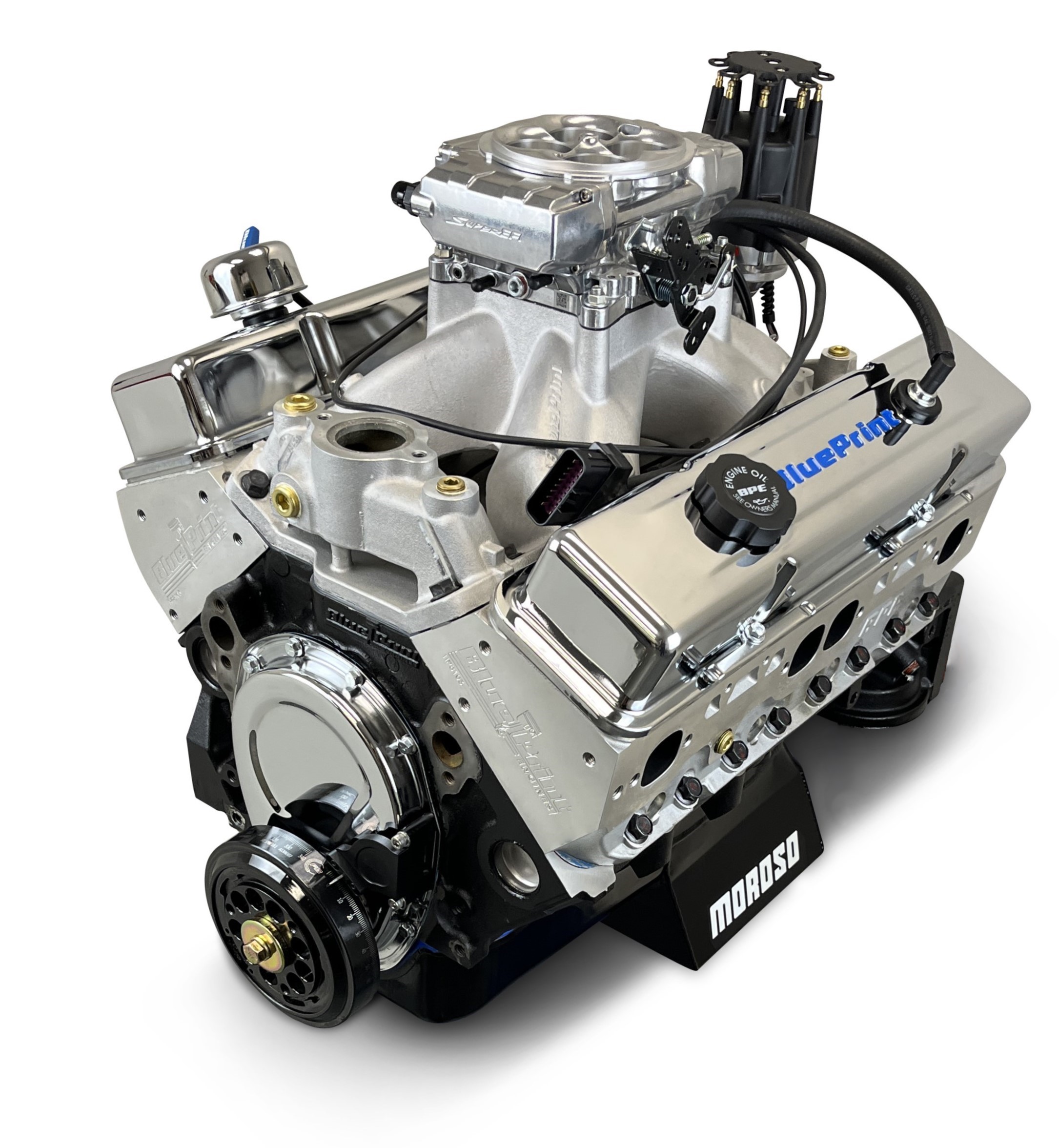

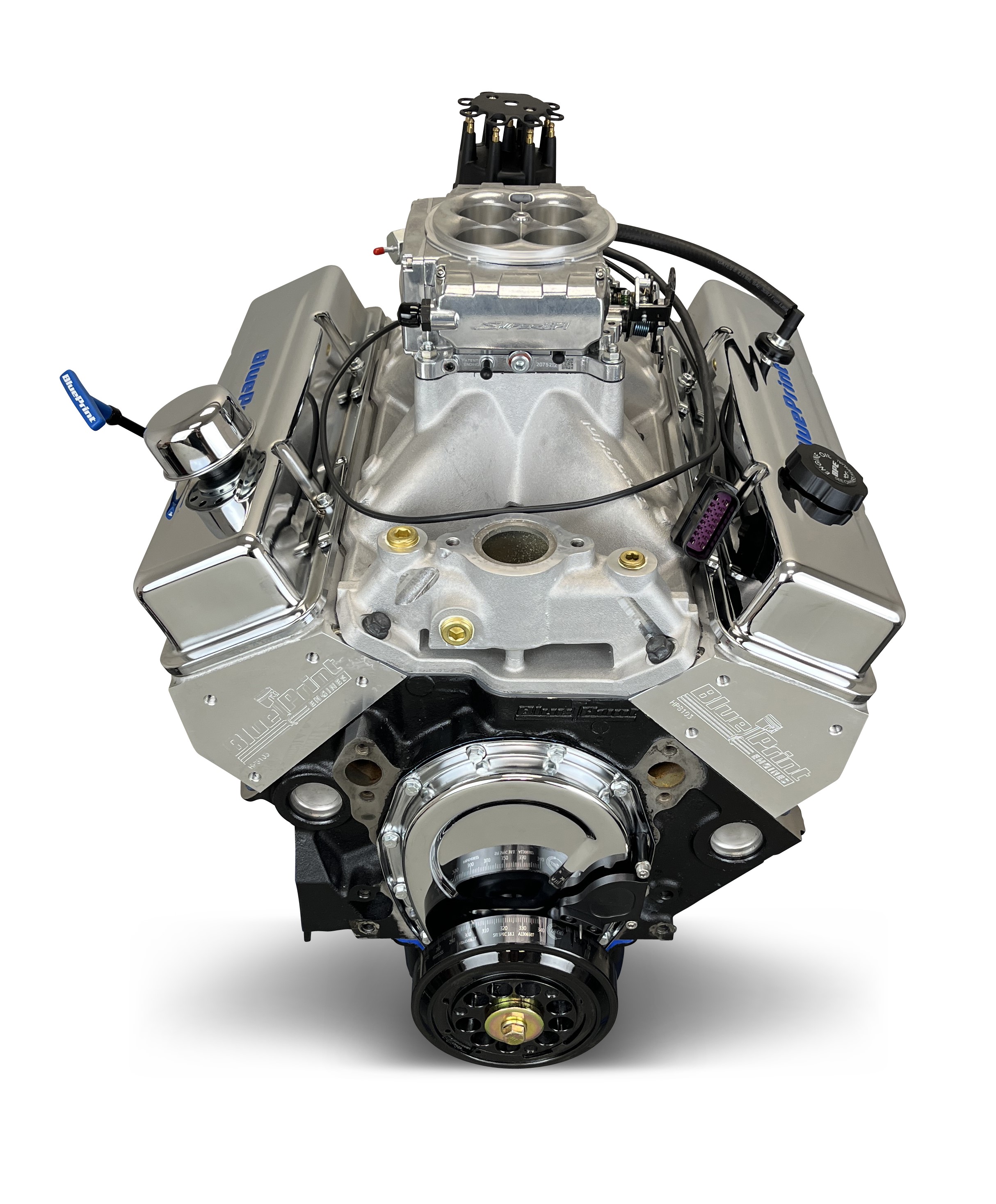

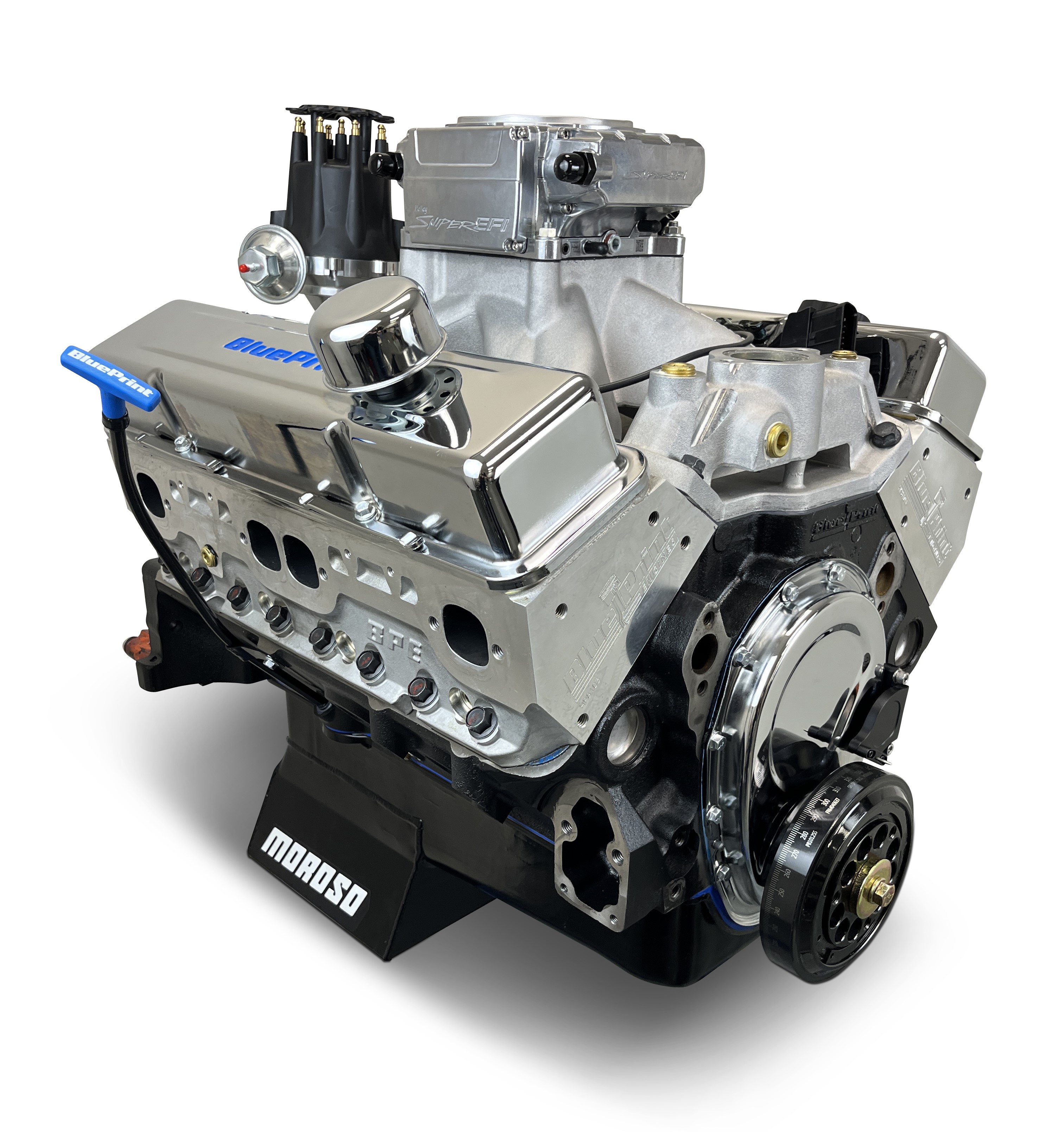

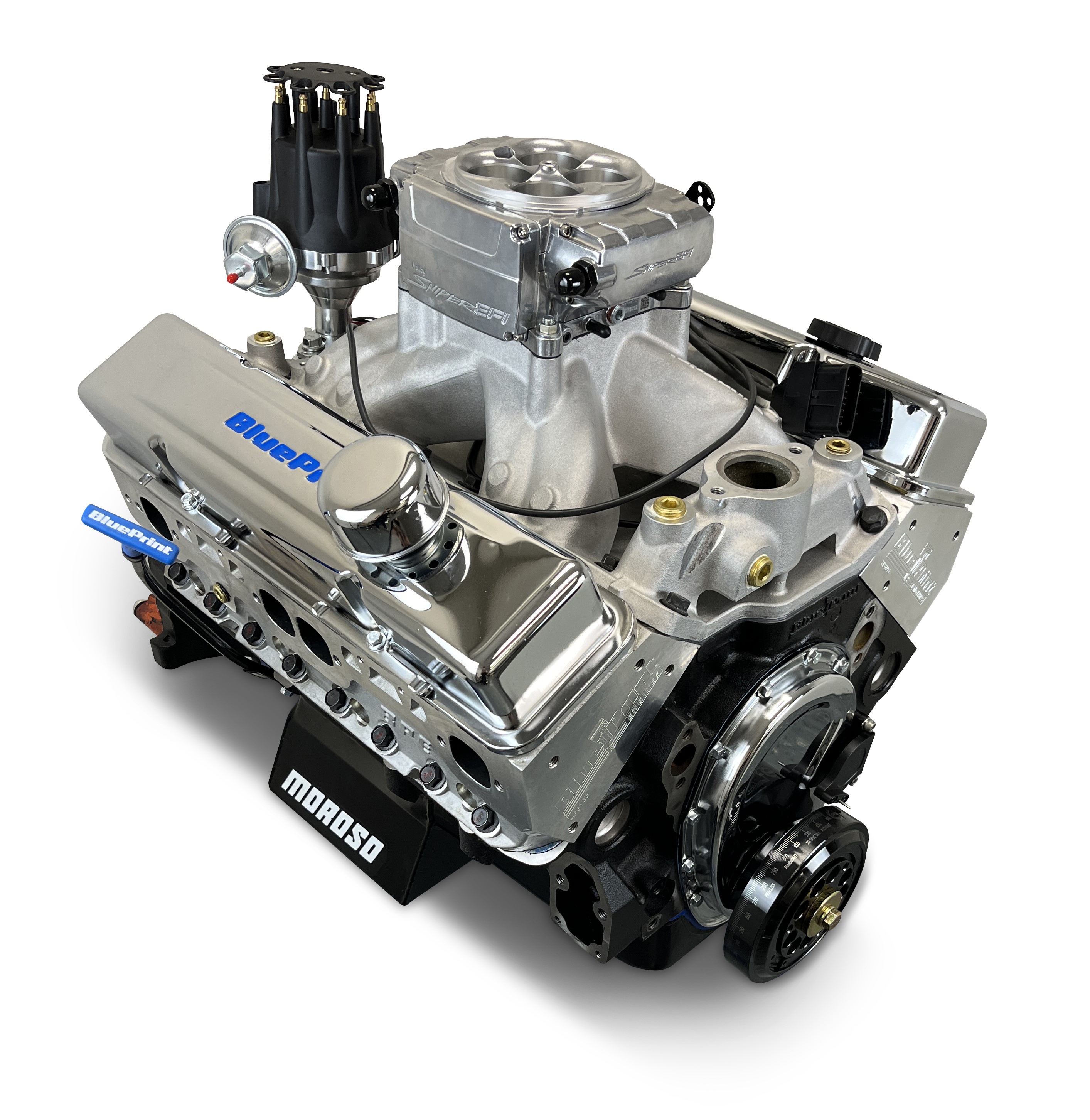

BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine – 530 Horsepower – Base Dressed – Fuel Injected
Features:
- BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine
Attributes:
| Firing Order | 1,8,4,3,6,5,7,2 |
| Spark Plug Wires Included | No |
| Recommended Spark Plug | BPP7938 – NGK 7938 BKR5E |
| Recommended Spark Plug Gap | .035 in. |
| Spark Plugs Included | No |
| Distributor Vendor | BluePrint Engines |
| Distributor Included | Yes |
| Recommended Octane Fuel | 100+ Octane |
| Carb/Fuel Injection Included | Yes |
| Fuel Delivery Vendor | Holley |
| Fuel Delivery Type | Holley Sniper 2 EFI – Self-Tuning Kit – Chrome |
| Intake Manifold Vendor | BluePrint Engines |
| Intake Manifold Type | Single Plane, Satin Aluminum |
| Intake Manifold Included | Yes |
| Valve Covers Included | Yes |
| Oil Pan Included | Yes-Rear Sump |
| Timing Cover Included | Yes |
| Timing Requirements | Initial Timing 10-16 – Total Timing 32-34 |
| Recommended Harmonic Balancer | BPP350 |
| Harmonic Balancer Included | No |
| Recommended Flexplate/Flywheel | BPP871006 – BPP399173 – BPP300116 |
| Title | BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine – 530 Horsepower – Base Dressed – Fuel Injected |
| Horsepower | 530 |
| Torque | 480 |
| Compression Ratio | 10.4:1 |
| Block Description | BluePrint Engines Cast Iron Block – 4 Bolt Main – 4.000″ Bore |
| Rear Main Seal Style | 1 Piece |
| Rotating Assembly | Forged Crank – 3.875 in. Stroke and 6 in. Rods |
| Cam | Hydraulic Roller – .638 Intake / .622 Exhaust Lift – 251 Intake / 259 Exhaust Duration -@ .050-114 LSA |
| Crankshaft Vendor | BluePrint Engines |
| Pistons | Forged 4032 High RPM Indurance |
| Engine Balance | Internally Balanced Front – Externally Balanced Rear |
| Cylinder Heads Included | Yes |
| Cylinder Heads | Aluminum Cylinder Heads |
| Cylinder Head Vendor | BluePrint Engines |
| Flexplate/Flywheel Included | No |
| Notes | BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied. This engine features a true 4-inch bore, which mathematically yields 389 CID with a 3.875-inch stroke. |
| Quantity | EA |
| Pulley Kit Included | No |
| Recommended Stall Converter | 2000-2400 RPM |
| Air Cleaner Included | No |
| Water Pump Included | No |
| Weight | 0.5 kg |
|---|
