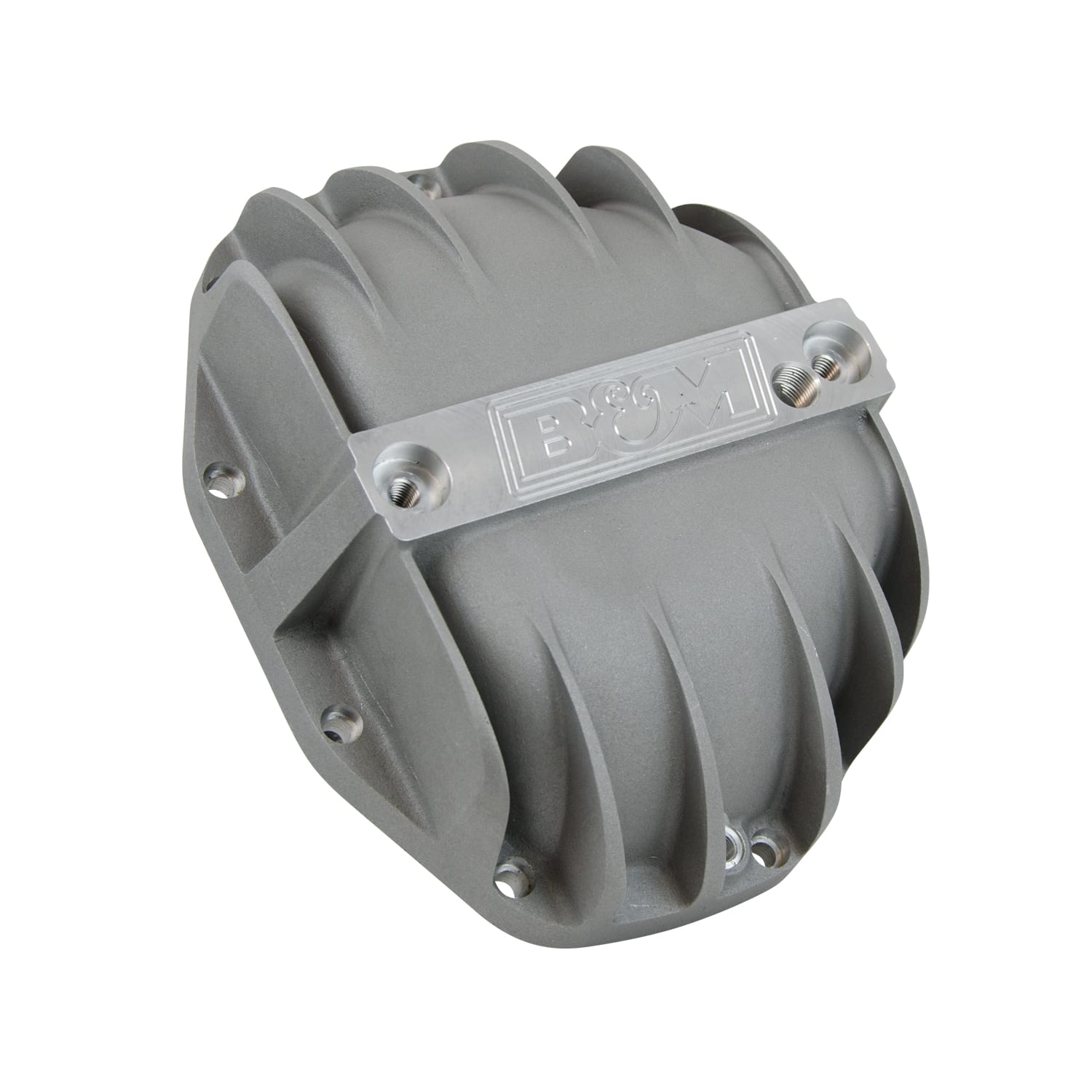

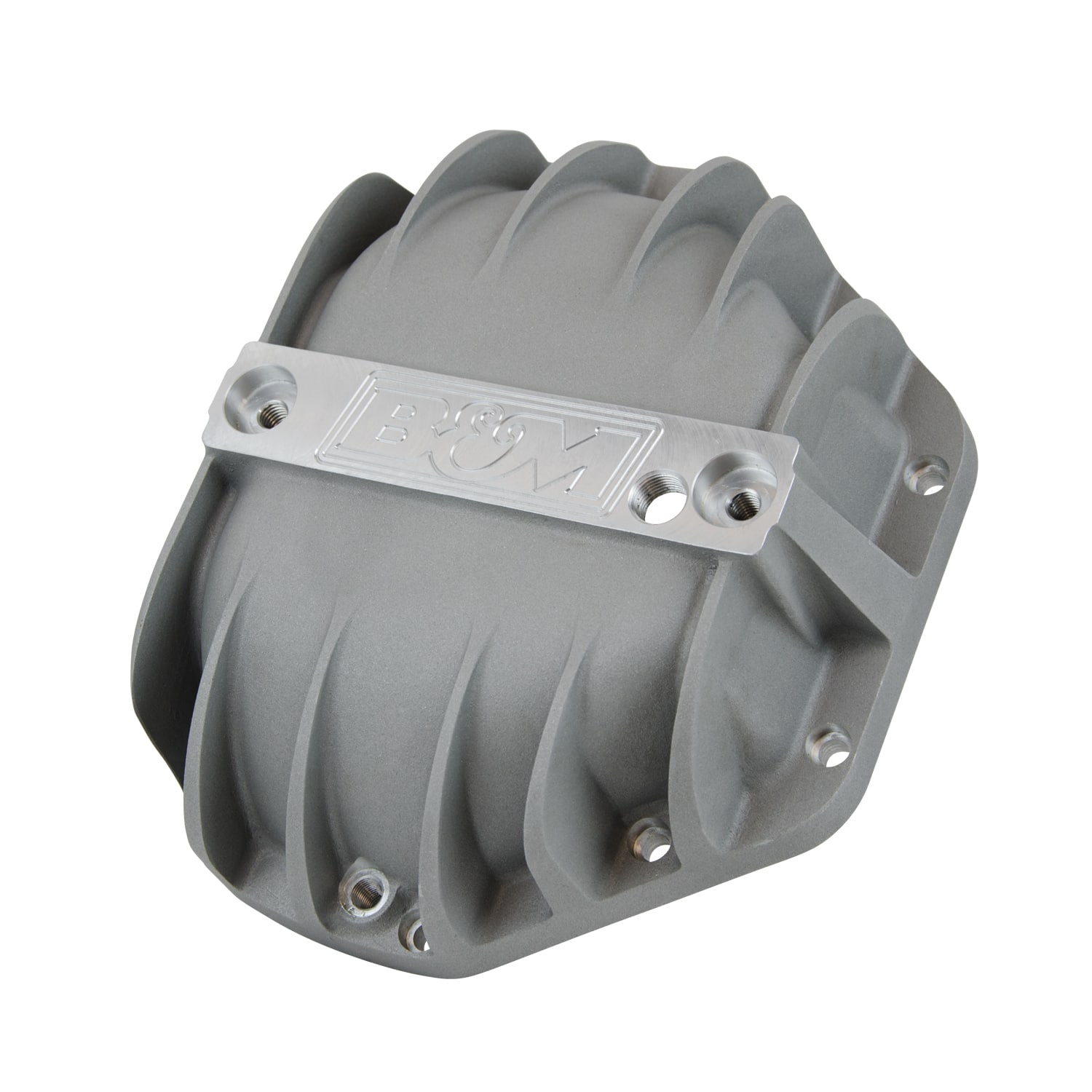

B&M BMM-10315 Hi-Tek Aluminum Differential Cover for Dana 80

B&M BMM-10315 Hi-Tek Aluminum Differential Cover for Dana 80

Dana 80 Differential Cover.

Features:

Additional .75-quart Fluid Capacity
Over 65 Years of B&M Quality
A356.0-T6 Aluminum Construction
Lifetime Limited Warranty
Machined B&M Logo
Magnetic Drain Plug for Easy Servicing
Load Bolts Provide Additional Support to Bearing Caps

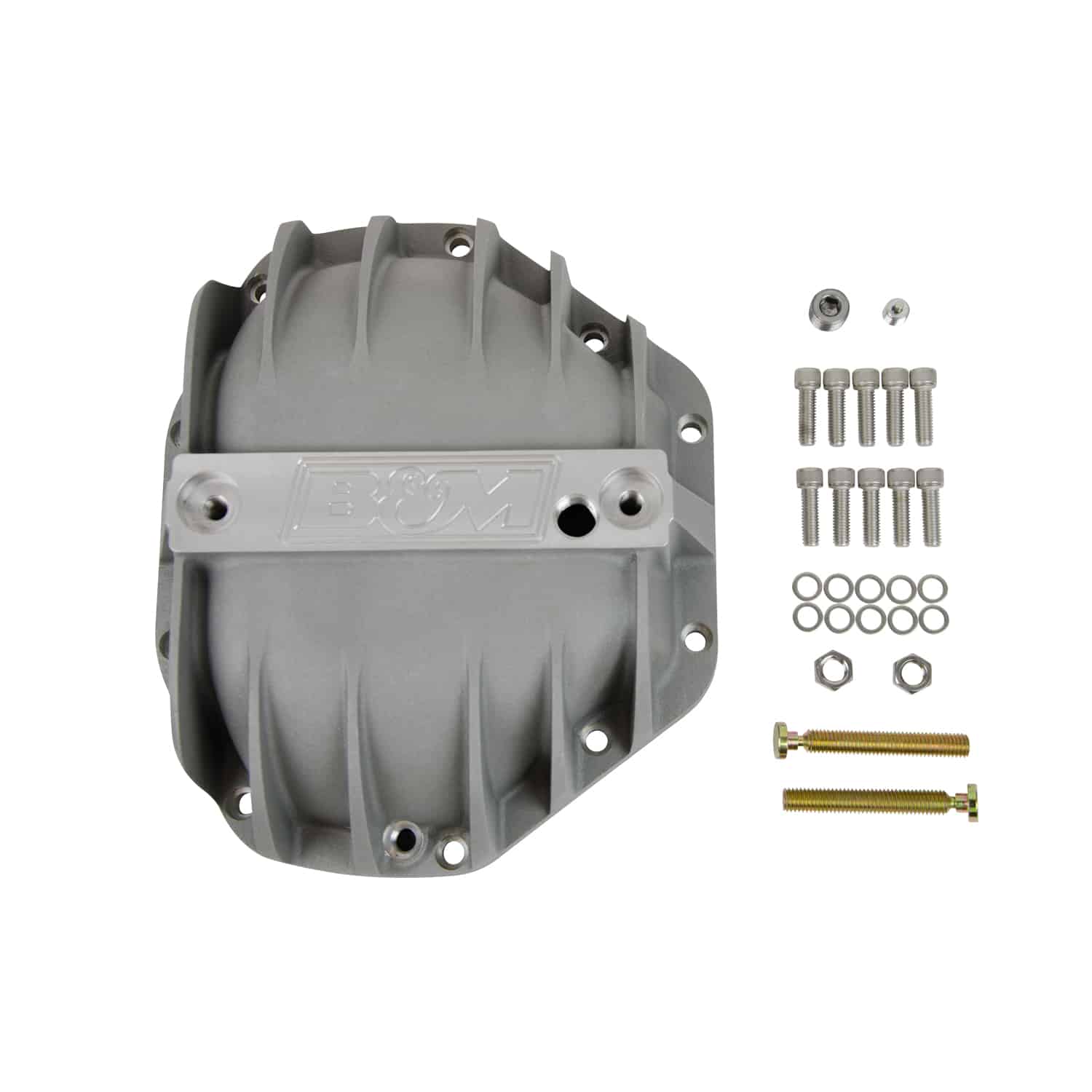

Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, machined B&M logo and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included.

Attributes:

Category	Driveline and Axles
Material	A356.0-T6 Aluminum
Bolt Pattern	Dana 80
Bolt Count	10
Additonal Fluid Capacity (qts)	No
Additional Fluid Capacity (qts)	No
Product Type	Differential Cover
Studs Included	Yes
Sub Category	Differential
Grade Type	Performance

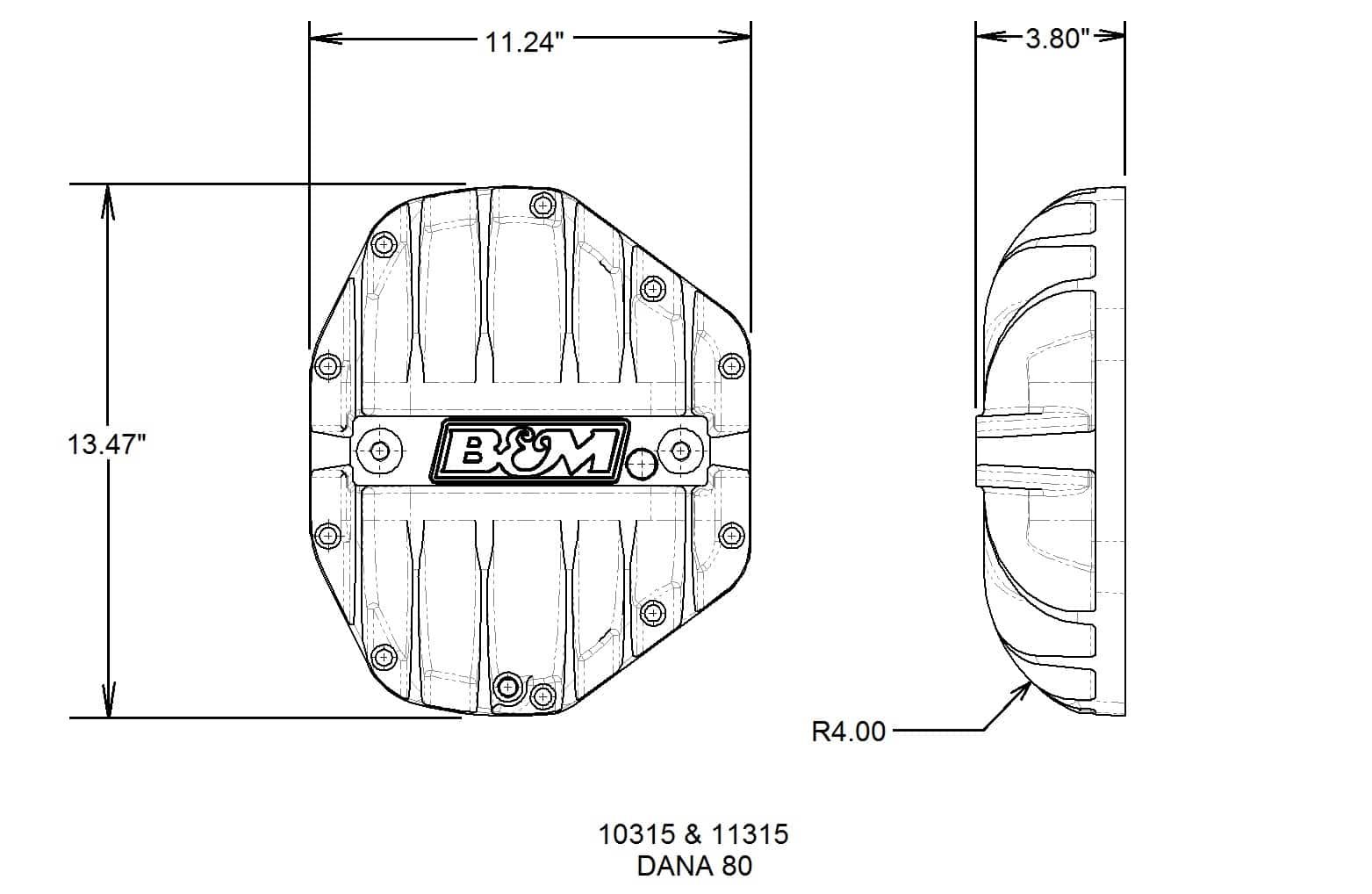

Thickness (in)	3.8
Mounting Bolt Hole Quantity	10
Mounting Bolts Included	Yes
Bolt Quantity	10
Carrier Main Cap Support	Yes
Call Out Size (in)	3.8
Brand	B&M
Bolt/Studs Included	Yes
Gaskets Included	No
Gasket Or Seal Included	No
Gasket Included	No
Finish	Cast Aluminum
Filler Plug Included	Yes
Emission Code	5
Drain Plug Included	Yes
Color/Finish	Raw Aluminum
