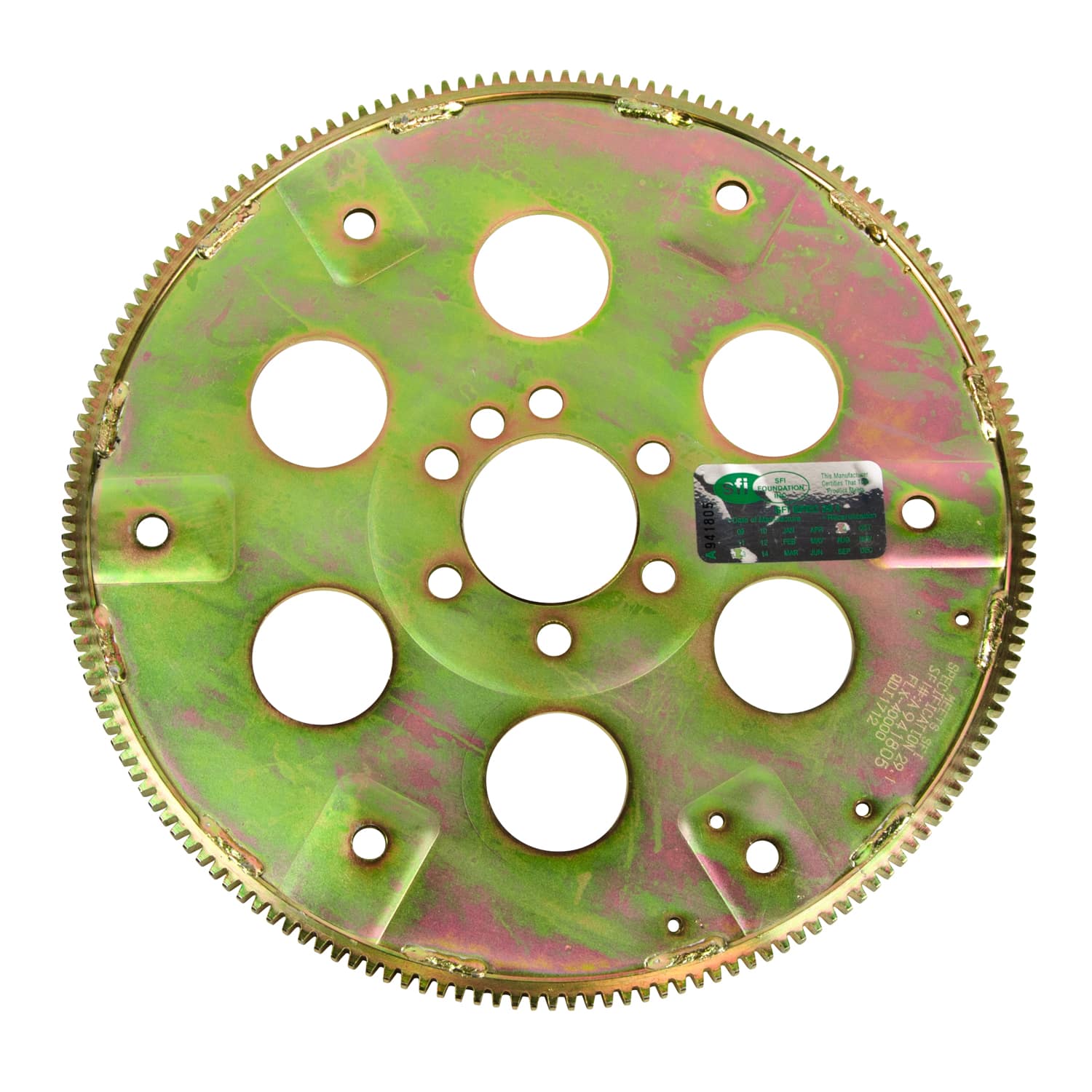

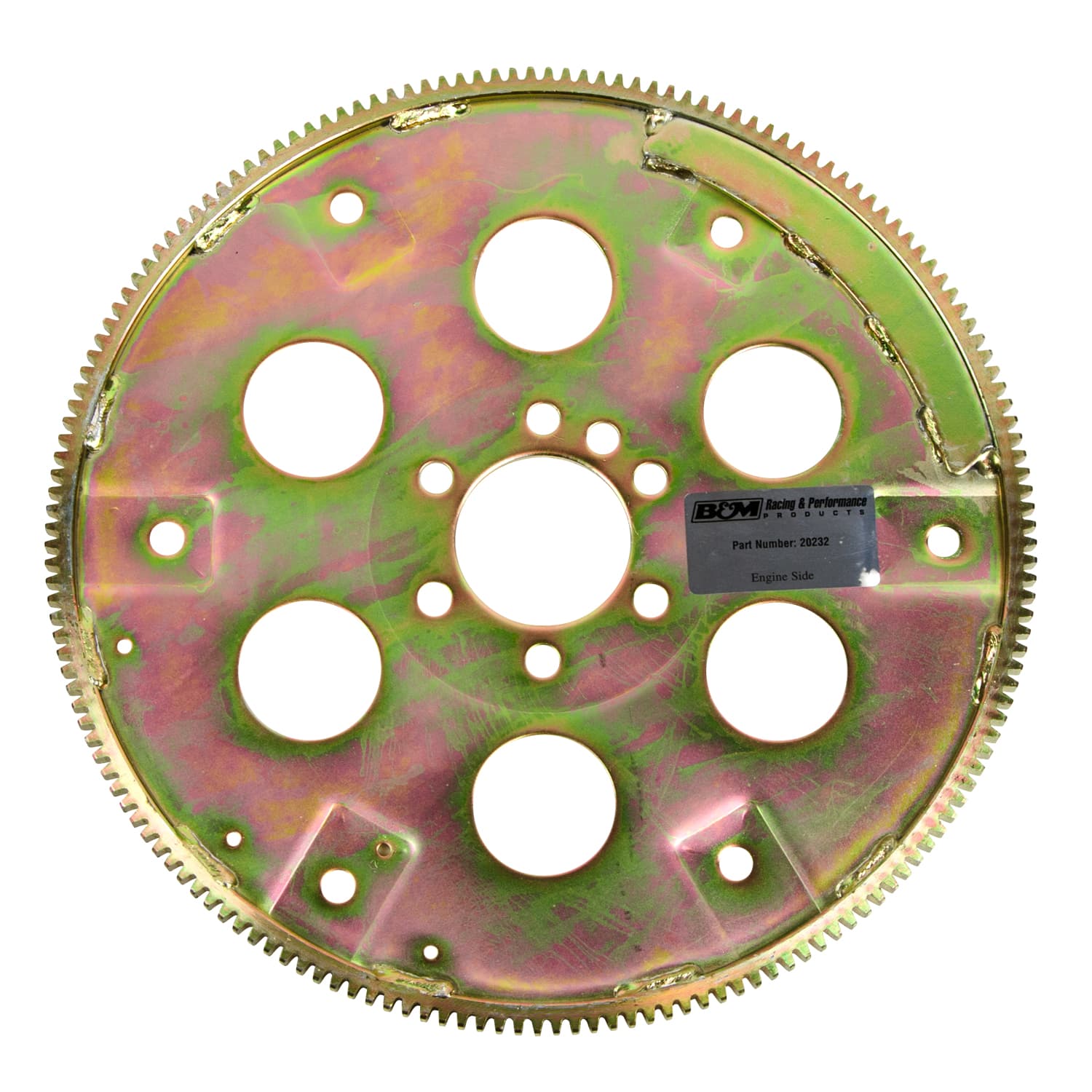

B&M BMM-20232 Steel SFI Certified Flexplate – Small Block Chevrolet
1970-1980 Chevrolet 400 Small Block, 168-Tooth for externally balanced engines.
Features:
- Includes SFI Certification Sticker
- NHRA and IHRA Legal For All Classes
- Dual Pattern 10.75 and 11.5-Inch
- Ideal For Street Applications
- Zinc Plated Chromate Finish
- To Extreme Duty Racing
- Proven B&M Quality
As performance levels increase, an O.E. style flexplate just won’t cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high performance flexplate designed for 1955-1985 400ci small block chevy V8 engines (externally balanced) with two piece rear main seal. Features include high tensile strength steel construction to resist elongation and cracking, dual bolt pattern 10.75 or 11.5-inch converter mounting locations, 168 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B&M has been delivering since 1953. Compatible with Powerglide, TH350, TH400 and TH700R4 automatic transmissions.
Attributes:
| SFI Approved | Yes |
| Weight (lb) | 6.25 |
| # of Teeth | 168 |
| Application | Chevrolet |
| Balance | External |
| Brand | B&M |
| Category | Transmission |
| Crankshaft Bolt Hole Count | 6 |
| Dual Pattern | No |
| Emission Code | 5 |
| Engine | Chevrolet Small Block Gen I |
| Grade Type | Performance |
| IHRA Legal | Yes |
| Material | Steel |
| Mounting Hole Quantity | 6 |
| NHRA Legal | Yes |
| Outside Diameter (In) | 14.1 |
| part type | Automatic Transmission Flexplate |
| Product Type | Flexplates |
| SFI Certification | 29.1 |
| SFI Certification Sticker | Included |
| Sub Category | Flexplate |
| Tooth Quantity | 168 |
Vehicle Applications:
| Make | Model | Years |
| Buick | Gran Sport | 1967 to 1967 |
| Buick | LeSabre | 1975 to 1975 |
| Buick | Skylark | 1967 to 1967 |
| Buick | Sportwagon | 1968 to 1969 |
| Chevrolet | Bel Air | 1975 to 1975 |
| Chevrolet | C10 | 1976 to 1980 |
| Chevrolet | C20 Suburban | 1976 to 1980 |
| Chevrolet | C20 | 1976 to 1980 |
| Chevrolet | C30 | 1976 to 1979 |
| Chevrolet | Caprice | 1975 to 1976 |
| Chevrolet | El Camino | 1975 to 1976 |
| Chevrolet | G10 | 1976 to 1976 |
| Chevrolet | G20 | 1975 to 1980 |
| Chevrolet | G30 | 1975 to 1980 |
| Chevrolet | Impala | 1975 to 1976 |
| Chevrolet | K10 Suburban | 1976 to 1979 |
| Chevrolet | K10 | 1975 to 1980 |
| Chevrolet | K20 Suburban | 1975 to 1980 |
| Chevrolet | K20 | 1975 to 1980 |
| Chevrolet | K30 | 1977 to 1980 |
| Chevrolet | K5 Blazer | 1975 to 1979 |
| Chevrolet | Laguna | 1975 to 1976 |
| Chevrolet | Malibu | 1975 to 1976 |
| Chevrolet | Monte Carlo | 1975 to 1976 |
| GMC | C1500 | 1979 to 1980 |
| GMC | C15 | 1976 to 1978 |
| GMC | C25 Suburban | 1978 to 1978 |
| GMC | C2500 Suburban | 1980 to 1980 |
| GMC | C2500 | 1979 to 1979 |
| GMC | C25 | 1976 to 1978 |
| GMC | C3500 | 1979 to 1979 |
| GMC | C35 | 1976 to 1978 |
| GMC | G1500 | 1979 to 1979 |
| GMC | G15 | 1976 to 1976 |
| GMC | G2500 | 1979 to 1980 |
| GMC | G25 | 1975 to 1978 |
| GMC | G3500 | 1979 to 1980 |
| GMC | G35 | 1975 to 1978 |
| GMC | Jimmy | 1975 to 1979 |
| GMC | K15 Suburban | 1975 to 1978 |
| GMC | K1500 Suburban | 1979 to 1980 |
| GMC | K1500 | 1979 to 1980 |
| GMC | K15 | 1975 to 1978 |
| GMC | K25 Suburban | 1975 to 1978 |
| GMC | K2500 Suburban | 1979 to 1980 |
| GMC | K2500 | 1979 to 1980 |
| GMC | K25 | 1975 to 1978 |
| GMC | K3500 | 1979 to 1980 |
| GMC | K35 | 1977 to 1978 |
| GMC | Sprint | 1975 to 1976 |
| Oldsmobile | 442 | 1968 to 1969 |
| Oldsmobile | 98 | 1975 to 1975 |
| Oldsmobile | Custom Cruiser | 1975 to 1975 |
| Oldsmobile | Cutlass | 1968 to 1968 |
| Oldsmobile | Delta 88 | 1975 to 1975 |
| Oldsmobile | Vista Cruiser | 1968 to 1969 |
| Pontiac | Bonneville | 1968 to 1978 |
| Pontiac | Catalina | 1967 to 1978 |
| Pontiac | Executive | 1968 to 1970 |
| Pontiac | Firebird | 1968 to 1979 |
| Pontiac | GTO | 1968 to 1973 |
| Pontiac | Grand Am | 1973 to 1975 |
| Pontiac | Grand LeMans | 1975 to 1977 |
| Pontiac | Grand Prix | 1968 to 1977 |
| Pontiac | Grand Safari | 1975 to 1978 |
| Pontiac | Grandville | 1972 to 1975 |
| Pontiac | LeMans | 1968 to 1977 |
| Pontiac | Tempest | 1968 to 1970 |
