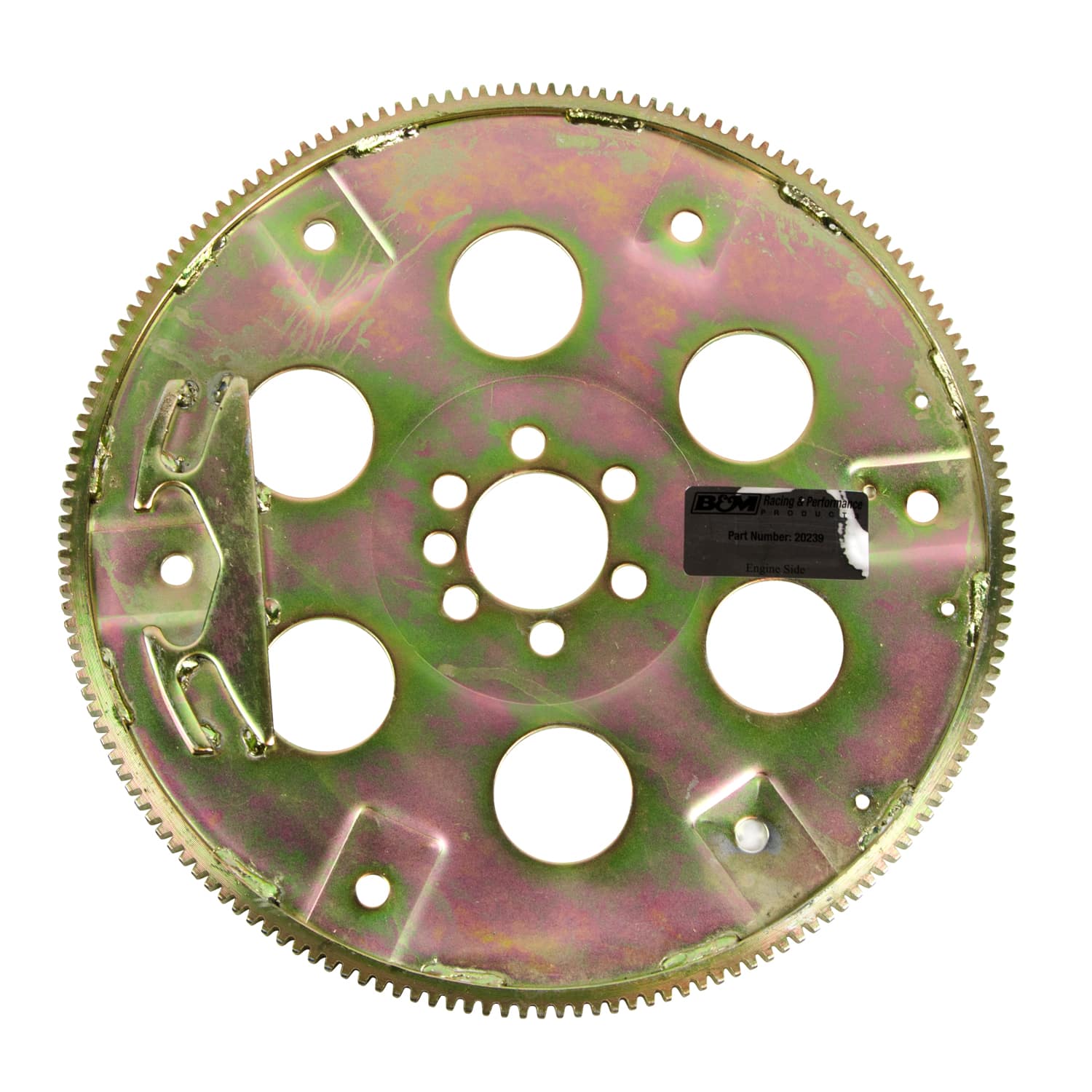

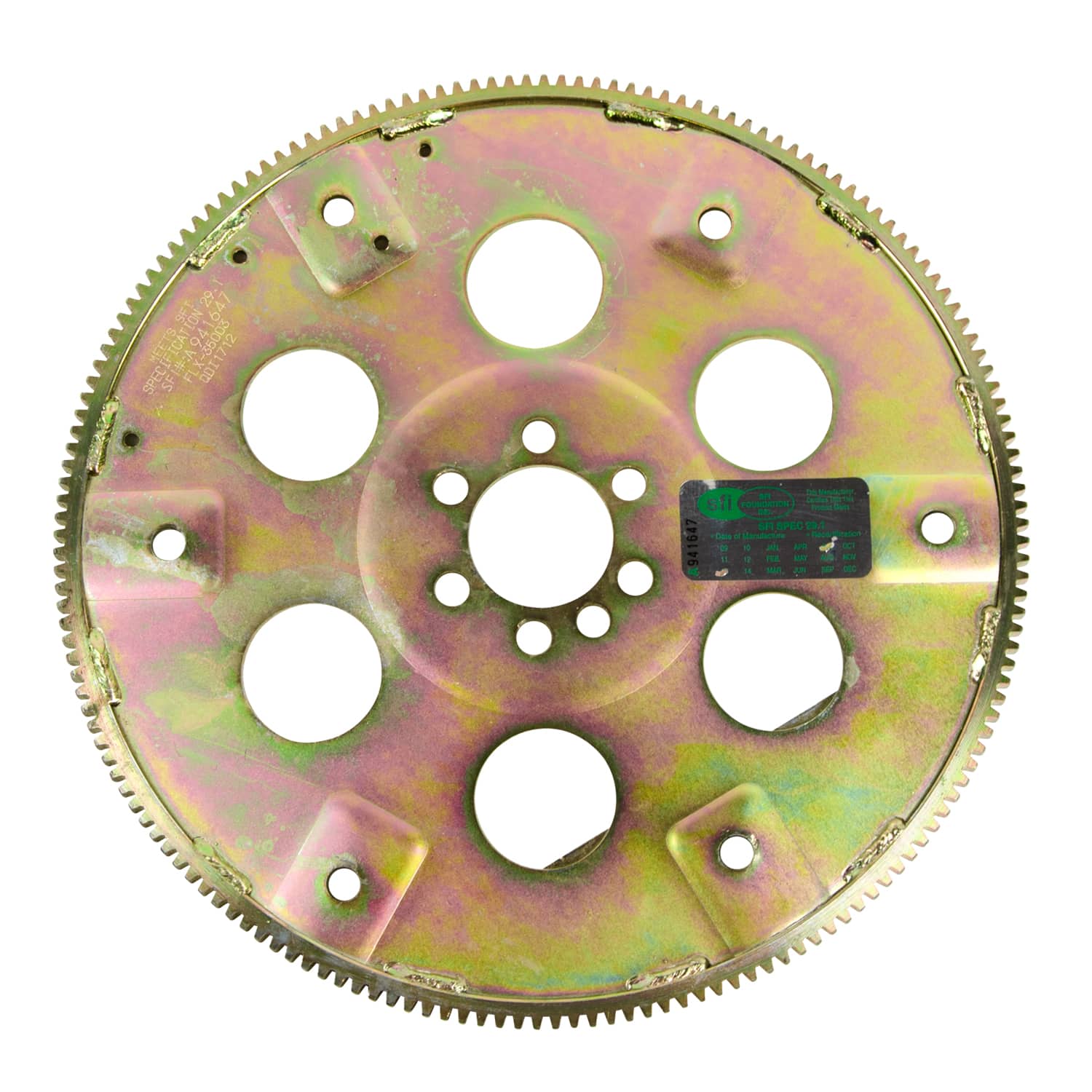

B&M BMM-20239 Steel SFI Certified Flexplate -Small Block Chevrolet and 90 Deg V6 Chevrolet
1986-1994 Chevrolet Small Block and 4.3L V6, 168-Tooth, External Balance
Features:
- Dual Pattern 10.75 or 11.5-inch
- Zinc Plated Chromate Finish
- Ideal For Street Applications
- Proven B&M QUality
- To Extreme Duty Racing
- NHRA and IHRA Legal For All Classes
- Includes SFI Certification Sticker
As performance levels increase, an O.E. style flexplate just won’t cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high performance flexplate designed for 1986-1994 GM (externally balanced) 4.3L V6 and GM small block V8 engines with one piece rear main seal. Features include high tensile strength steel construction to resist elongation and cracking, dual bolt pattern 10.75 or 11.5-inch torque converter mounting locations, 168 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B&M has been delivering since 1953. Compatible with Powerglide, TH350, TH400 and TH700R4 automatic transmissions.
Attributes:
| Tooth Quantity | 168 |
| Application | Chevrolet |
| Balance | External |
| Brand | B&M |
| Category | Transmission |
| Crankshaft Bolt Hole Count | 6 |
| Dual Pattern | Yes |
| Emission Code | 5 |
| Engine | Chevrolet Small Block Gen I |
| Grade Type | Performance |
| IHRA Legal | Yes |
| Material | Steel |
| Mounting Hole Quantity | 6 |
| NHRA Legal | Yes |
| Outside Diameter (In) | 14.1 |
| part type | Automatic Transmission Flexplate |
| Product Type | Flexplates |
| Register Diameter (in) | 2.069 |
| SFI Approved | Yes |
| SFI Certification | 29.1 |
| SFI Certification Sticker | Included |
| Sub Category | Flexplate |
| Tooth Count | 168 |
| Weight (lb) | 6.5 |
