B&M BMM-71504 Hi-Tek Aluminum Differential Cover for GM 8.875-inch 12-bolt Truck – Black

B&M BMM-71504 Hi-Tek Aluminum Differential Cover for GM 8.875-inch 12-bolt Truck – Black

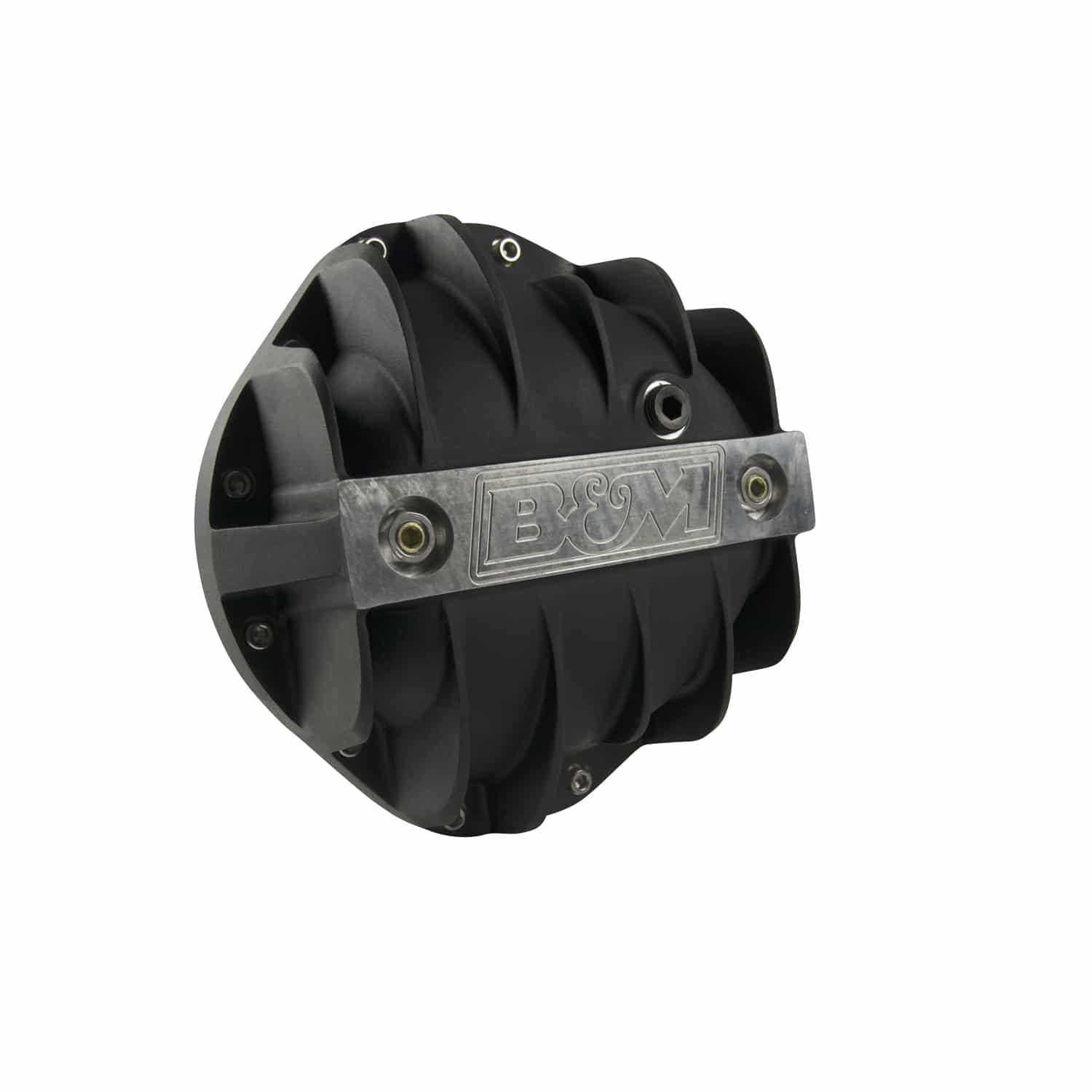

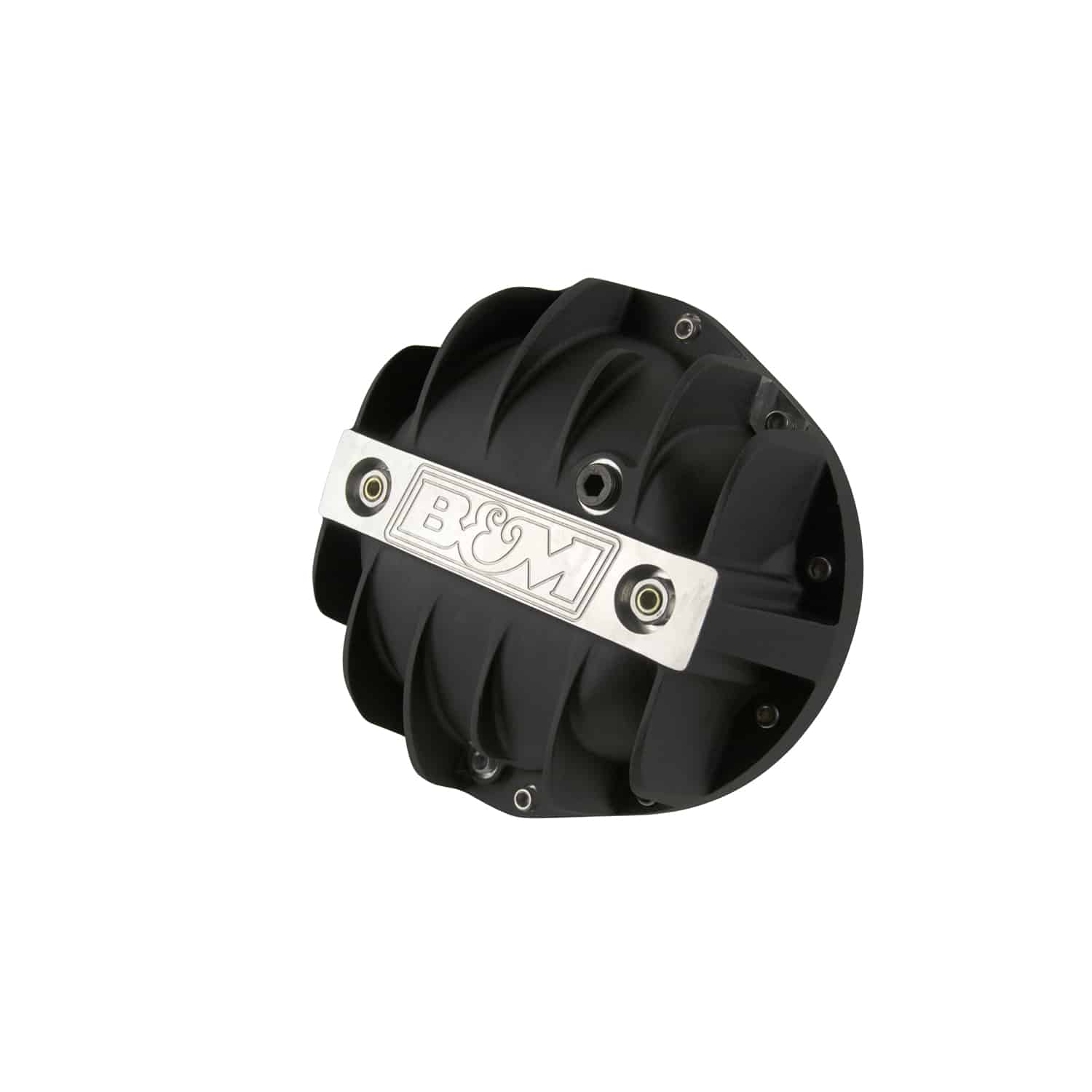

GM 8.875-inch 12-bolt Truck Differential Cover.

Features:

• A356.0-T6 Aluminum Construction
• Magnetic Drain Plug for Easy Servicing
• Load Bolts Provide Additional Support to Bearing Caps
• Machined B&M Logo
• Lifetime Limited Warranty
• Over 65 Years of B&M Quality
• MIL-Spec Black Anodized Finish
• Additional .5-quart Fluid Capacity

Product Video – YouTube

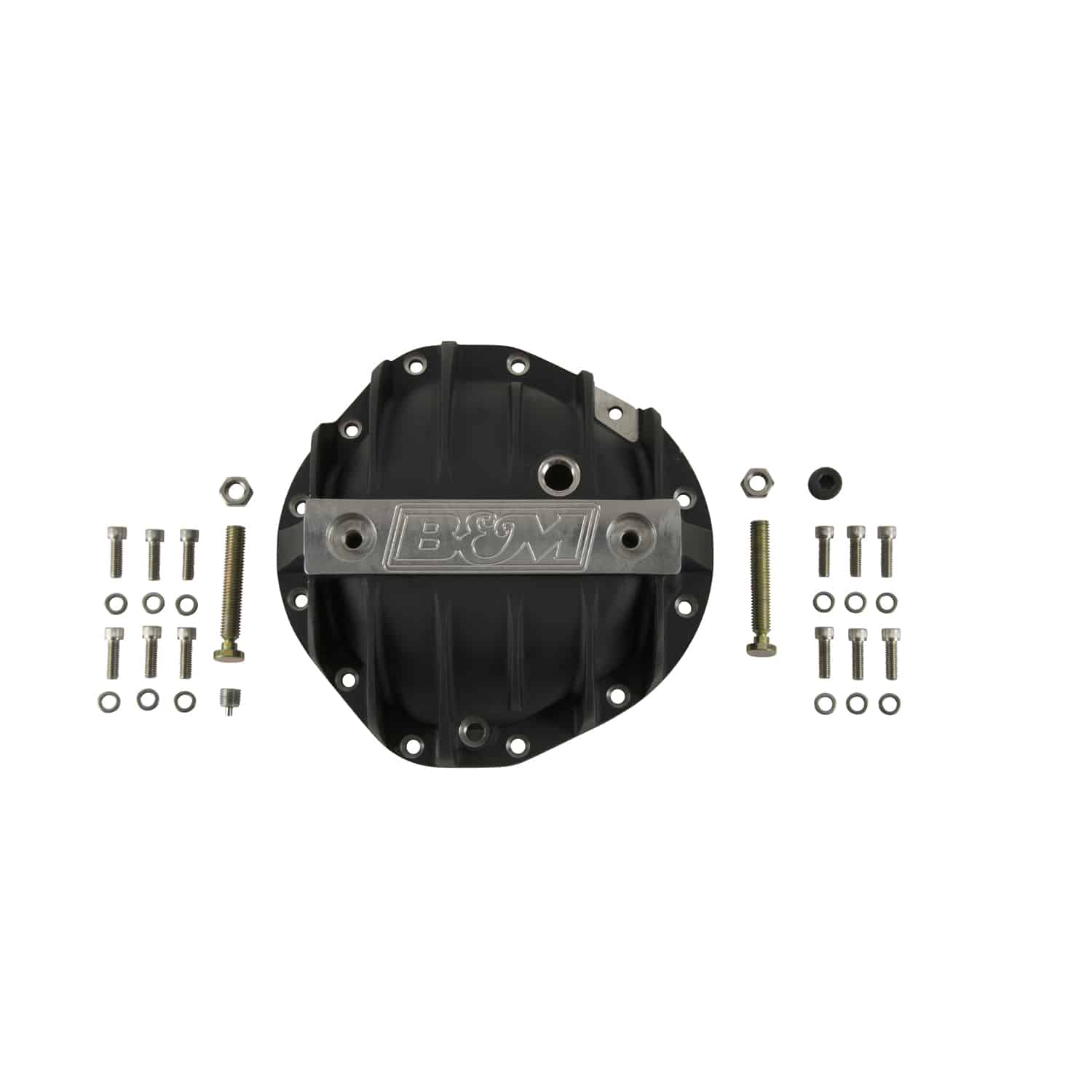

Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate and cool the bearings and ring & pinion gears. Additional features include a magnetic drain plug for catching ferrous metal particles, MIL-Spec (MIL-A-8625) black anodized finish, machined B&M logo, and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included.

Attributes:

Vehicle Applications:
