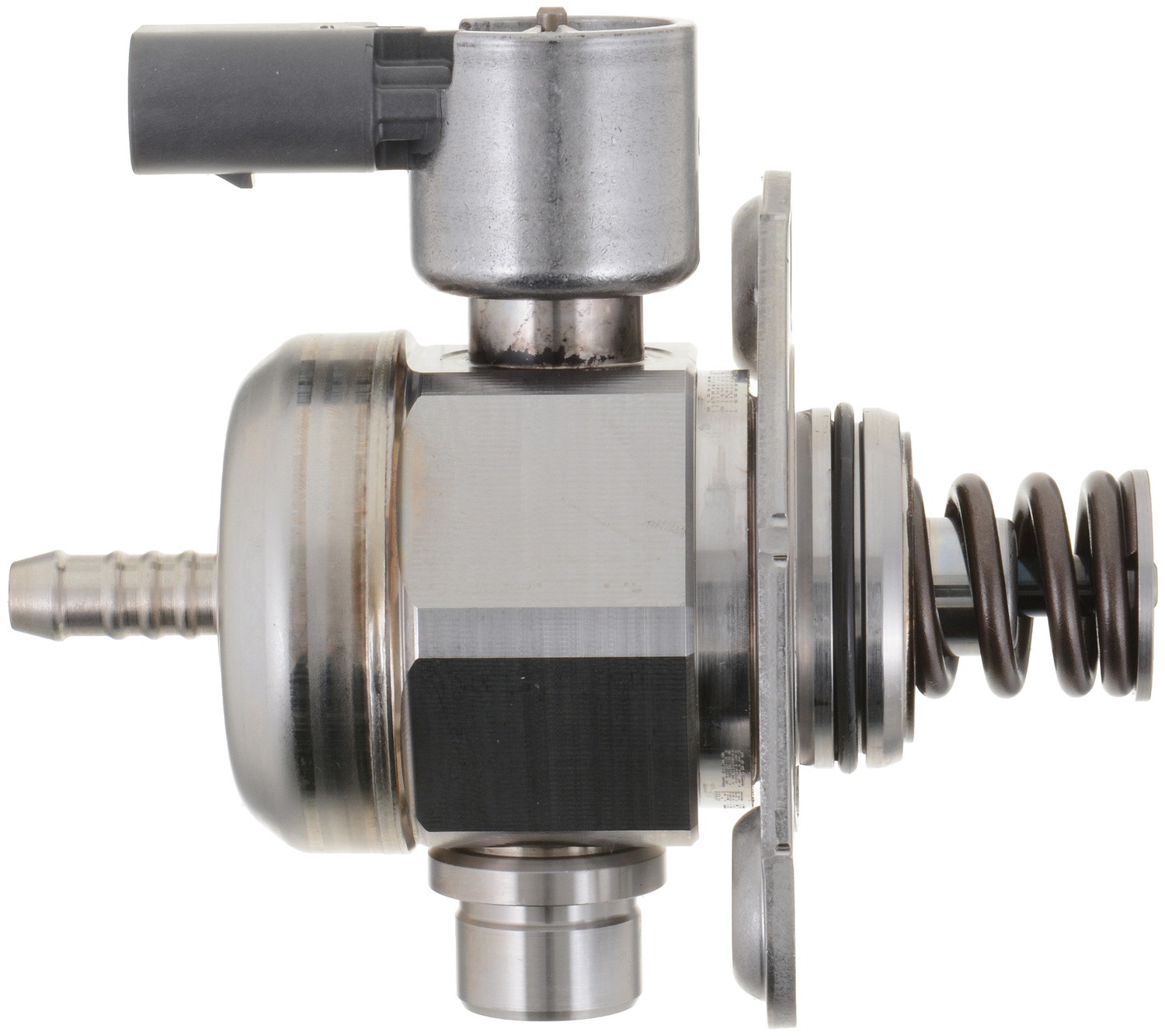

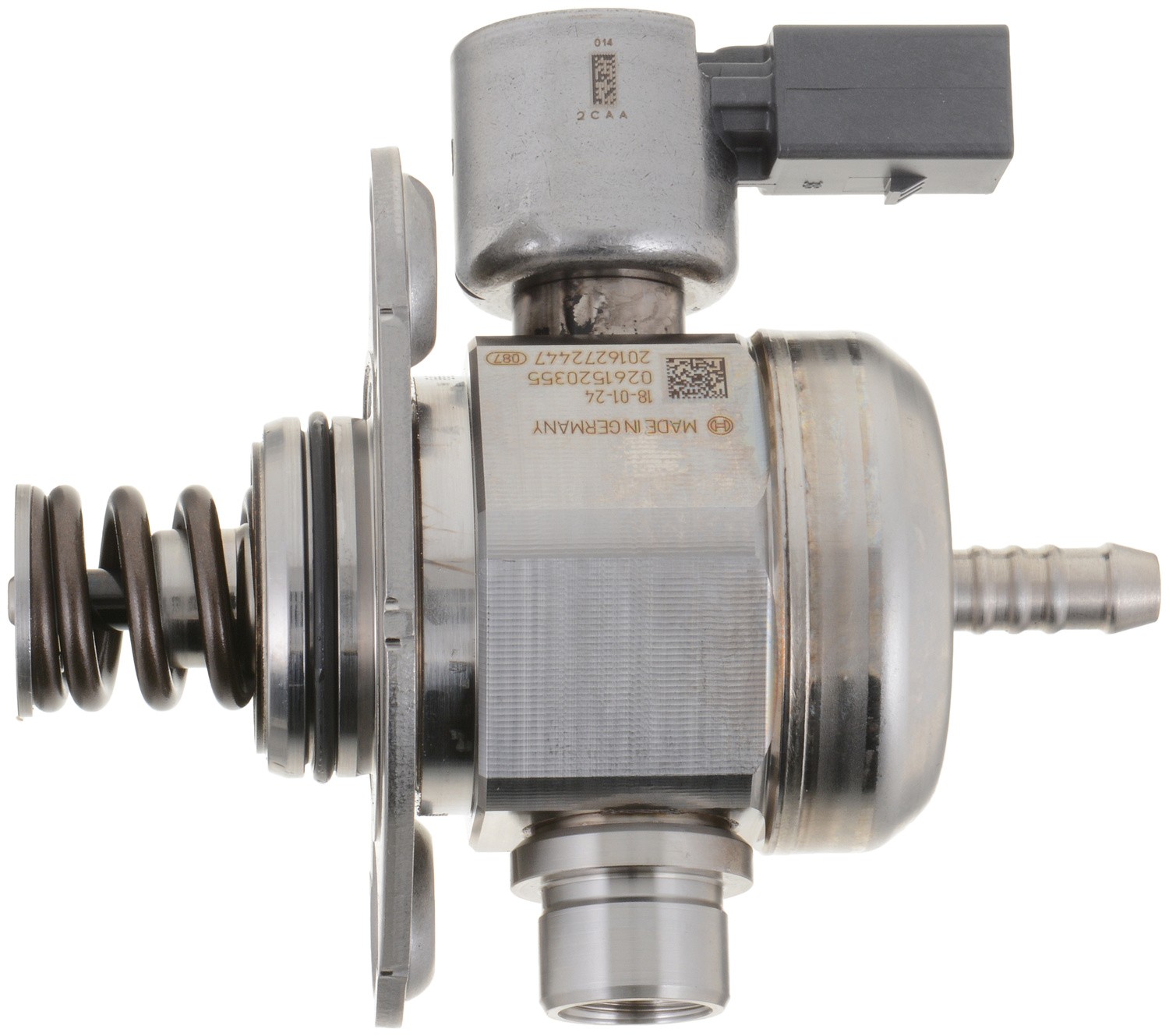

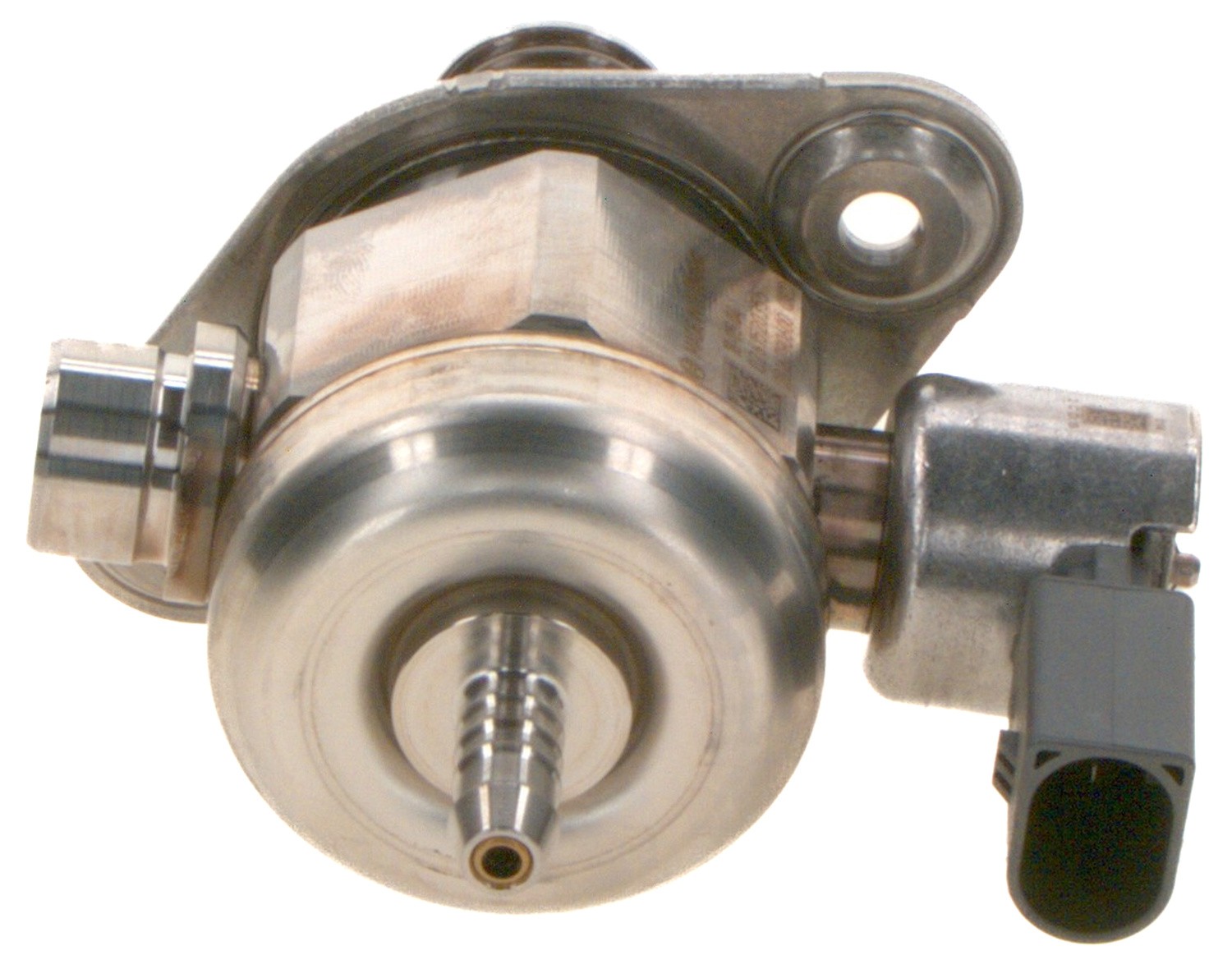

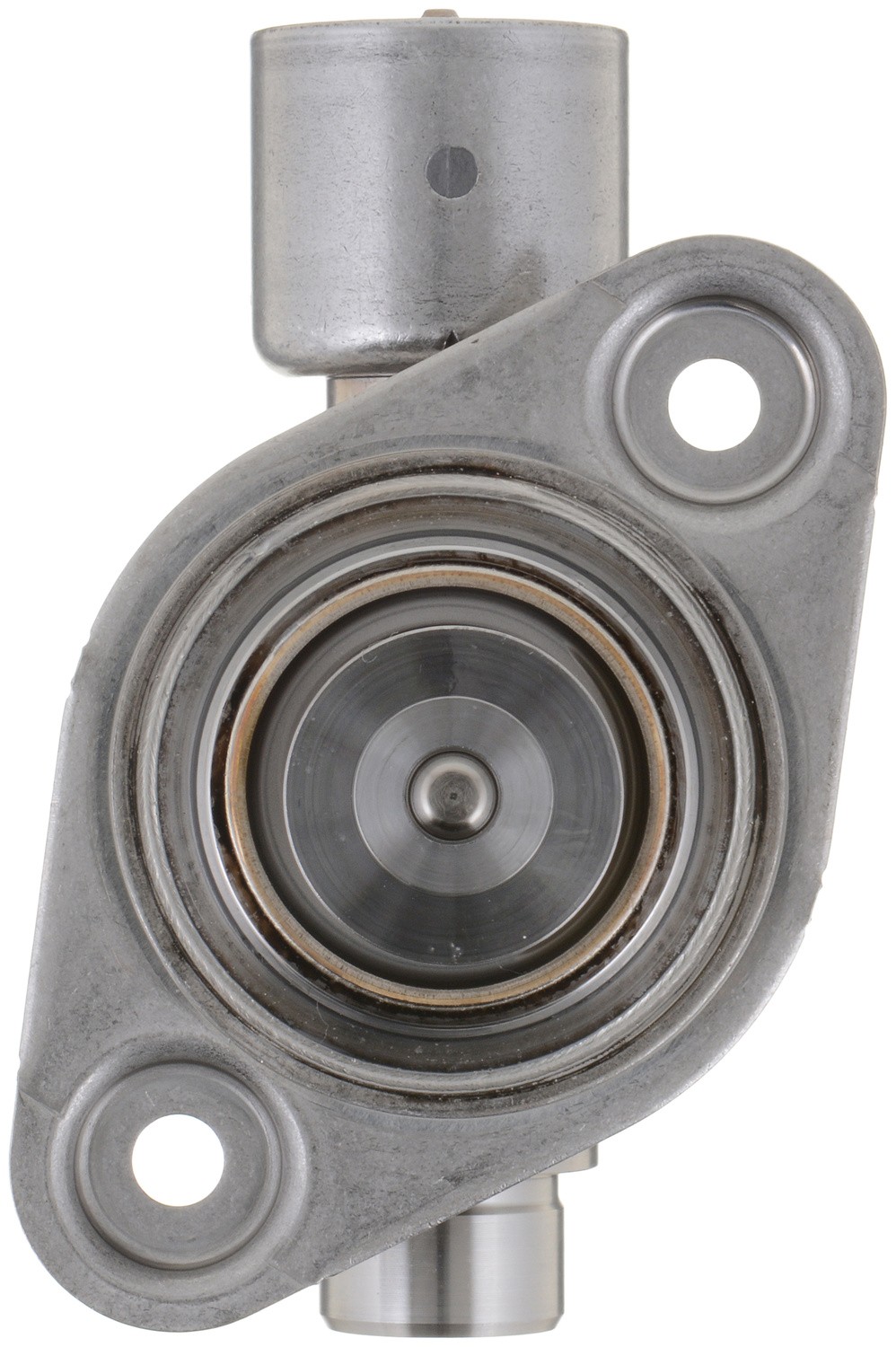

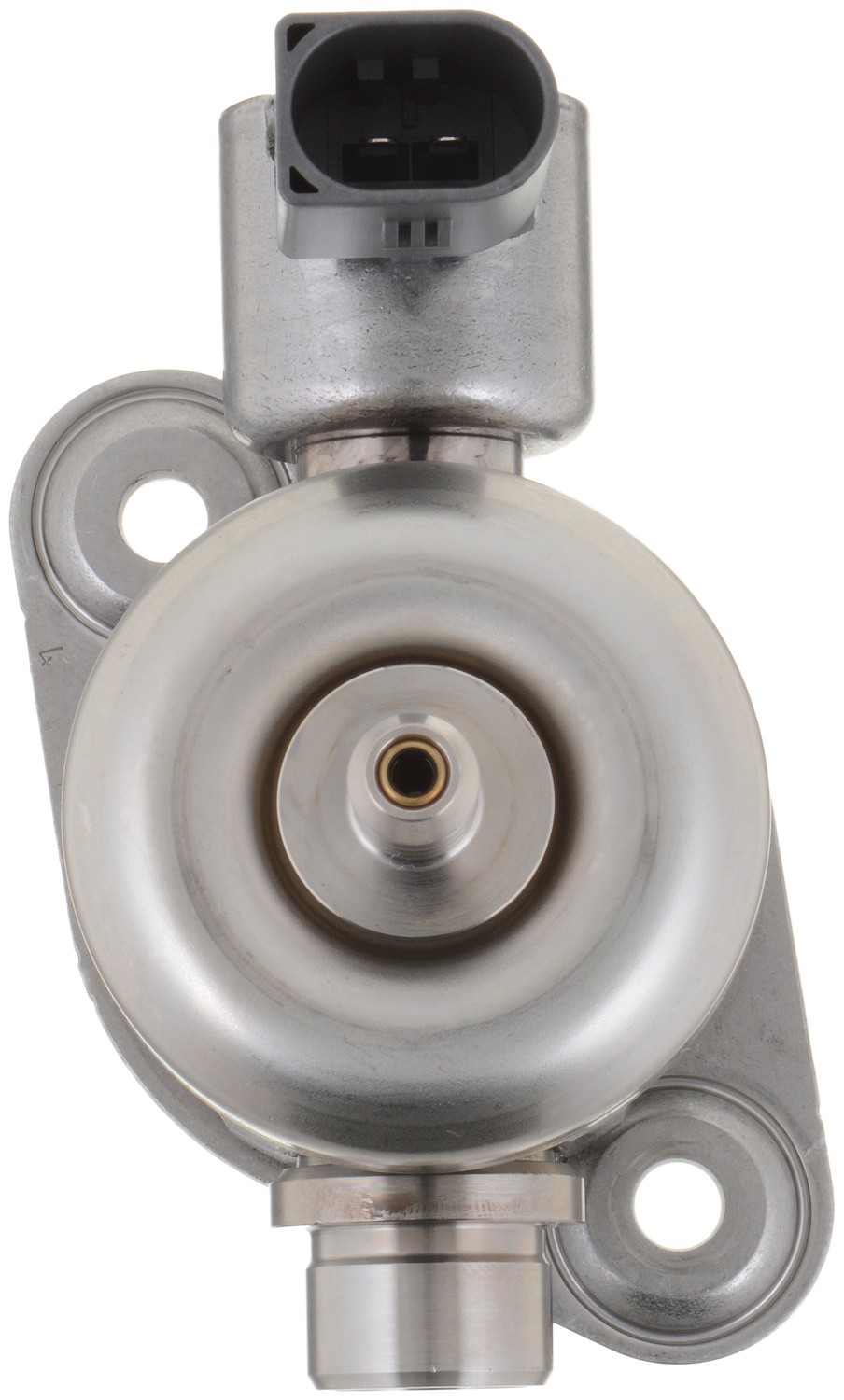

Bosch 6805 High Pressure Fuel Pump for Gasoline Direct Injection

Bosch 6805 High Pressure Fuel Pump for Gasoline Direct Injection

Features:

[TECHNOLOGY]: Most new gasoline vehicles today are equipped with a GDI system. Of those vehicles, nearly half are equipped with a Bosch GDI system. Due to increased volumes of hybrid vehicles in the market, the market for GDI Pumps will con
[ORIGINAL EQUIPMENT] – Bosch Original Equipment GDI Pumps are backed by extensive series-production experience. They are the pumps vehicles were built with when new, ensuring perfect fit and superior performance
[OPTIMAL PERFORMANCE] – Designed to operate under extreme temperatures and low fuel conditions to ensure reliable performance and an extended service life
[FACTORY TESTED] – Every Bosch fuel pump is “end-of-line” function tested before leaving the manufacturing facility to ensure highest quality and performance for superior customer satisfaction
[KEY FEATURES] – Key features of Bosch GDI Fuel Pumps include: stainless steel construction; Integrated pressure limiter valve; compact, light-weight design; and integrated pressure damper capable of variable feed pressure
[BENEFITS] – Bosch GDI Pumps enable better, more efficient engine performance with on-demand quantity control for minimized fuel consumption, increased torque, and fewer carbon emissions
[IN-HOUSE PRODUCTION]- Bosch GDI Pumps are never sourced or reverse-engineered, meaning installation is simple and hassle-free with an OE direct-fit replacement
[READY TO INSTALL] – Designed for simple plug-and-play installation

Our team of Bosch Engineers brings the benefits of premium fuel pumps to the Automotive Aftermarket. Bosch fuel pumps are produced in the same production lines and are built then tested to the same exacting quality standards as Bosch OE fuel pumps to ensure a long, reliable service life. Get the job done right the first time, every time, with Bosch Premium fuel pumps.

Attributes:

Terminal Quantity	2
Suction Pipe Included	No
Strainer Included	No
Static Ground Terminal	No
Gasket Or Seal Material	Synthetic or NBR Rubber
Gasket Or Seal Included	Yes
Fuel Type (Fuel Pump)	Gas
Fuel Tank Pressure Sensor Included	No
Fuel Sending Unit Included	No
Fuel Filter Included	Yes
Fuel Delivery Type	Fuel Injection
Connector Quantity	1
Automotive Item Weight (lbs)	2.006207 lb
7617	External
958	Electric
900	Yes
Self Priming	Yes
Seal Type	o-ring
Seal And Lock Ring Included	No
Rim Shape	Round
Regulator Included	Yes
Pump Type	Mechanical
Pumping Transfer Method	Piston
Pump Design	Mechanical
Prop 65 Warning Label Required?	No
Power Source	Battery
Power Cord Length	0 ft
Port Quantity	2
Package Contents	1 High Pressure Pump
Outside Diameter	16 mm
Outlet Size	14 mm
Outlet Fitting Thread Size	M16 x 1.5
O-Ring Included	Yes
Nozzle Type	Fixed
Nozzle Shut Off Valve Included	No
Metered	Yes
Material	Steel
Lock Ring Included	No
Terminal Type	Blade
Inlet Outside Diameter	14 MM
Mounting Hardware Included	No
Outlet Outside Diameter	14 MM
899	Yes
In Tank Or External	External
Inside Diameter	6 mm
In-Line Pump	Y
Inlet Type	Threaded or quick connect
Inlet Size	9 mm
Inlet Fitting Thread Size	Barb
Inlet Count	1
Housing Width	51 mm
Housing Material	Metal
Hose Length (Fuel Pump)	0 ft
Grade Type (Premium)	Premium
Fuel Type	Gas
Outlet Quantity	1
Outlet Type	Compression
Wiring Harness Included	No
Gasket Or Seal Included	No
Connector Shape:	Square/Rectangle
Mounting Type	Bolt On
Terminal Gender:	Male
Connector Gender:	Female
New Or Remanufactured	New
Wiring Harness Length	0 mm
Wire Quantity	0
Wire Harness Included	No
Wire Gauge Measurement	0 ga.
Voltage	12 V
Thickness	1 mm
