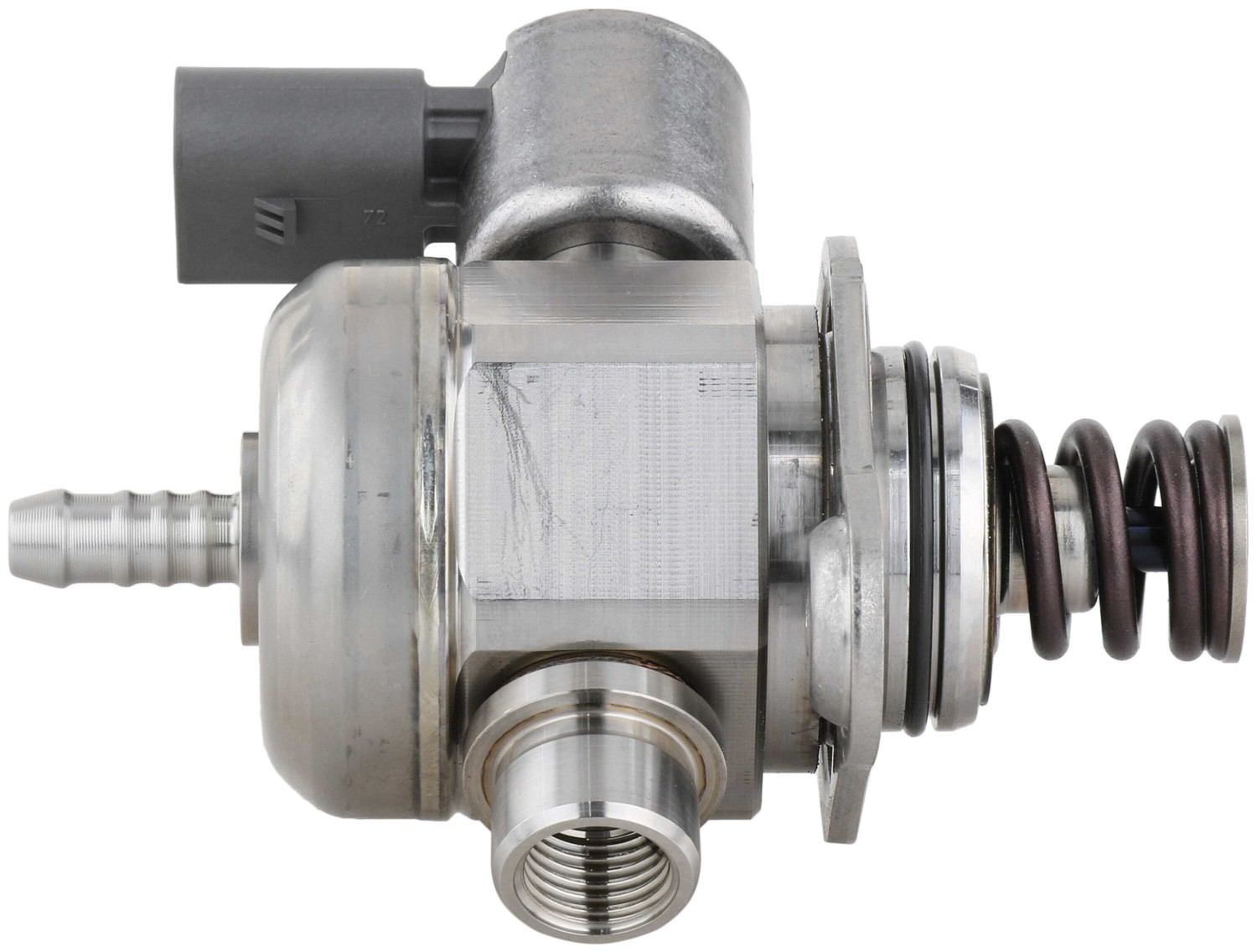

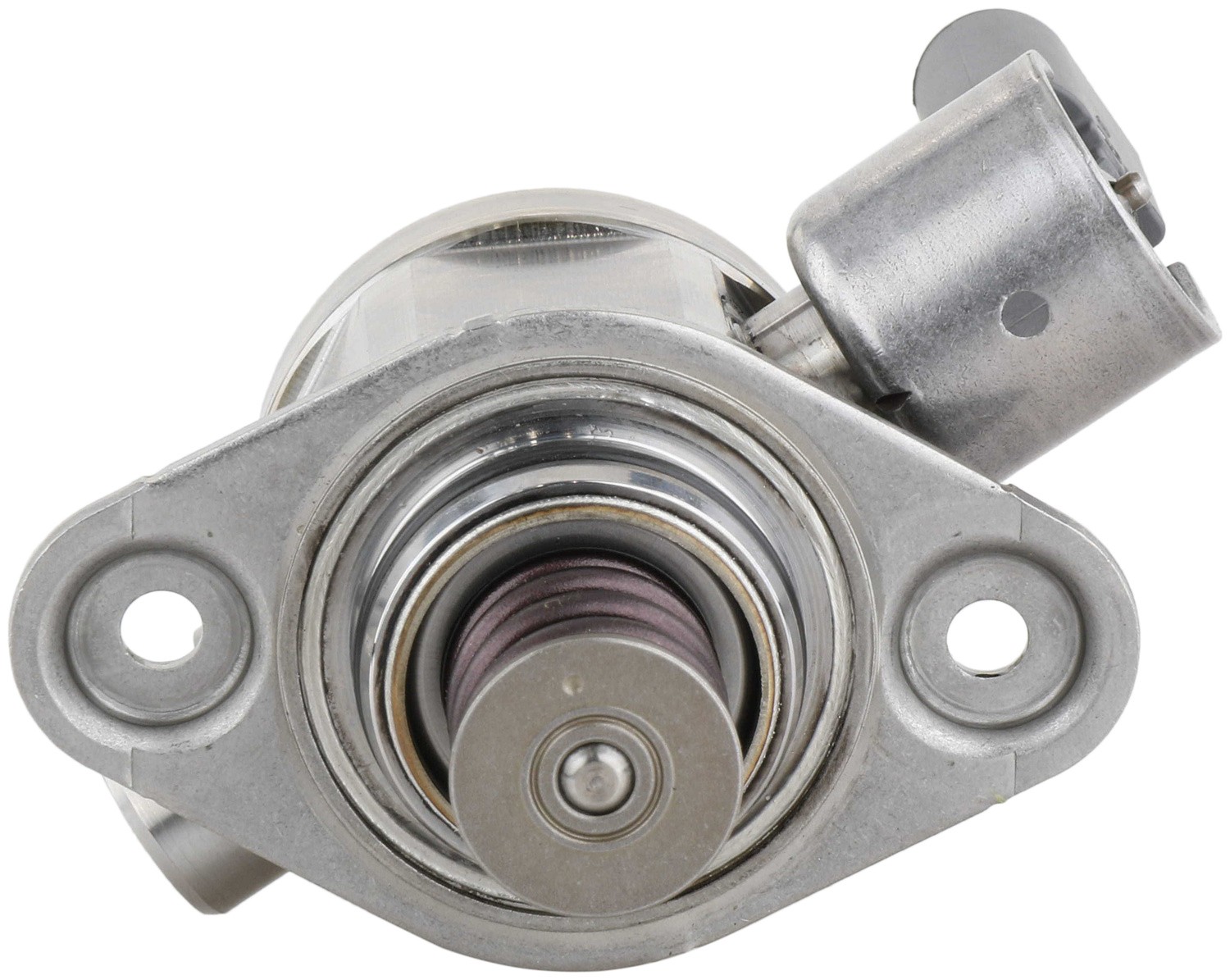

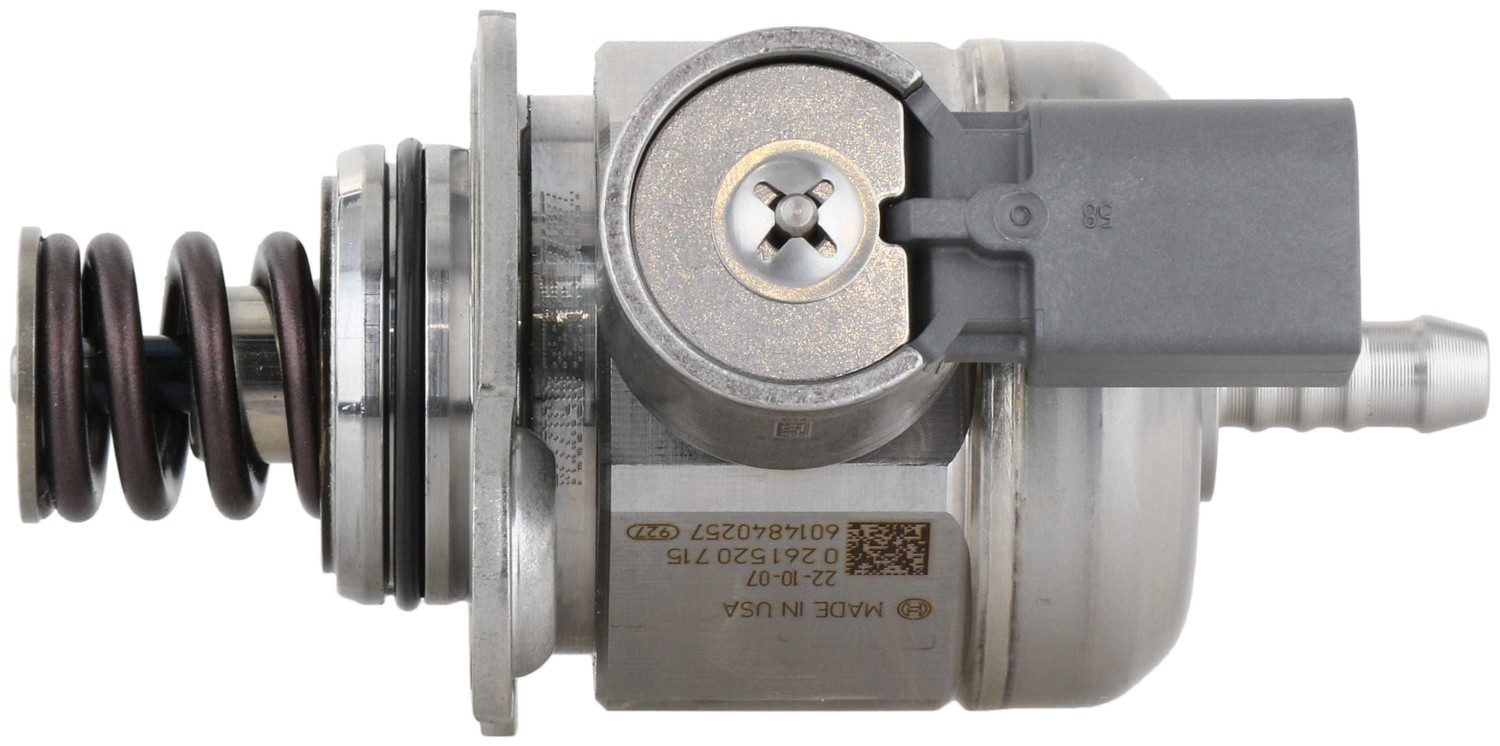

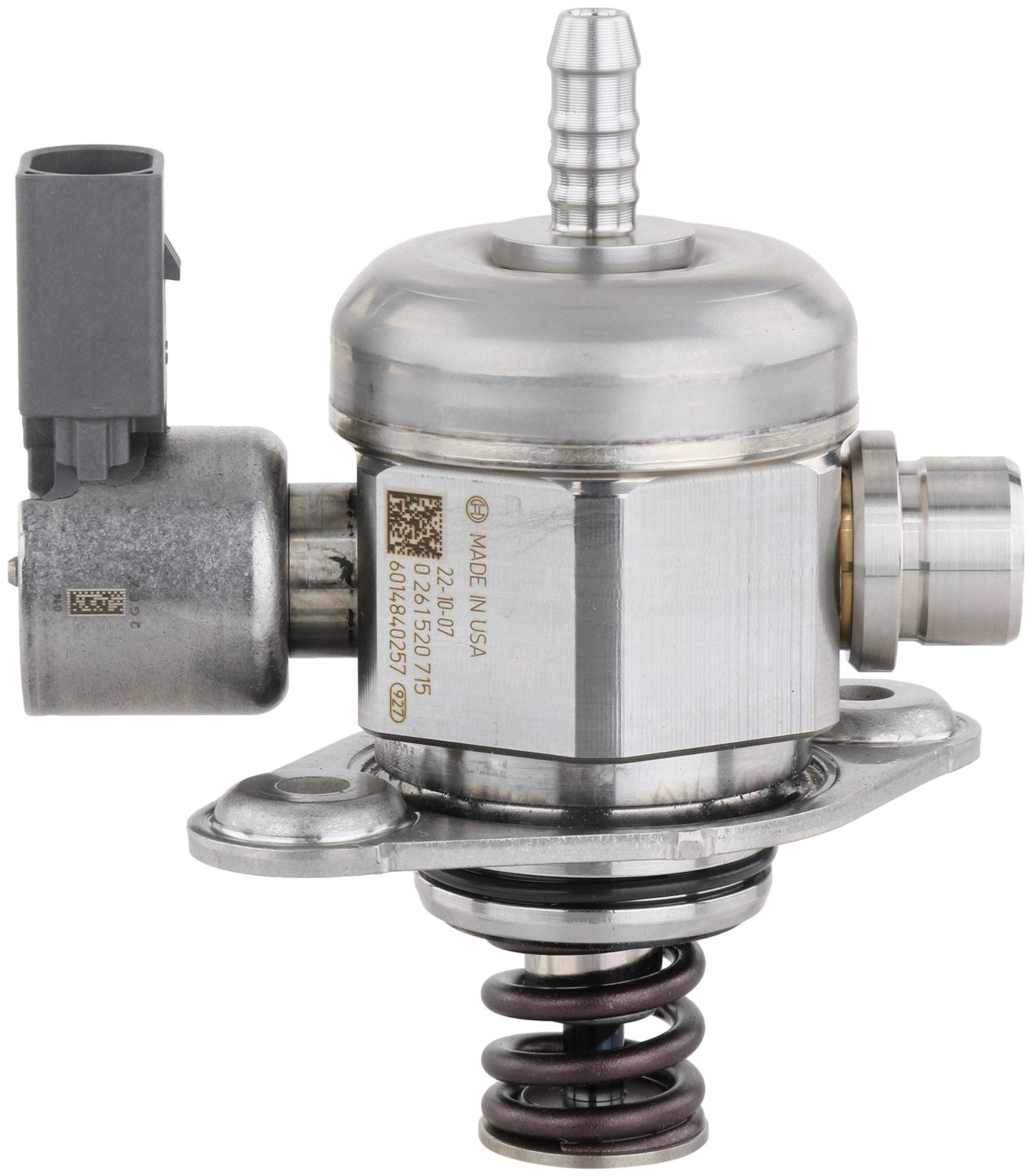

Bosch 6830 High Pressure Fuel Pump for Gasoline Direct Injection
Features:
- [ORIGINAL EQUIPMENT] – Bosch Original Equipment GDI Pumps are backed by extensive series-production experience. They are the pumps vehicles were built with when new, ensuring perfect fit and superior performance
- [OPTIMAL PERFORMANCE] – Designed to operate under extreme temperatures and low fuel conditions to ensure reliable performance and an extended service life
- [FACTORY TESTED] – Every Bosch fuel pump is “end-of-line” function tested before leaving the manufacturing facility to ensure highest quality and performance for superior customer satisfaction
- [KEY FEATURES] – Key features of Bosch GDI Fuel Pumps include: stainless steel construction; Integrated pressure limiter valve; compact, light-weight design; and integrated pressure damper capable of variable feed pressure
- [BENEFITS] – Bosch GDI Pumps enable better, more efficient engine performance with on-demand quantity control for minimized fuel consumption, increased torque, and fewer carbon emissions
- [IN-HOUSE PRODUCTION]- Bosch GDI Pumps are never sourced or reverse-engineered, meaning installation is simple and hassle-free with an OE direct-fit replacement
- [TECHNOLOGY]: Most new gasoline vehicles today are equipped with a GDI system. Of those vehicles, nearly half are equipped with a Bosch GDI system. Due to increased volumes of hybrid vehicles in the market, the market for GDI Pumps will con
- [READY TO INSTALL] – Designed for simple plug-and-play installation
Our team of Bosch Engineers brings the benefits of premium fuel pumps to the Automotive Aftermarket. Bosch fuel pumps are produced in the same production lines and are built then tested to the same exacting quality standards as Bosch OE fuel pumps to ensure a long, reliable service life. Get the job done right the first time, every time, with Bosch Premium fuel pumps.
Attributes:
| Connector Quantity | 1 |
| Static Ground Terminal | No |
| Material | Steel |
| Wire Quantity | 0 |
| Wiring Harness Length | 0 mm |
| New Or Remanufactured | New |
| Self Priming | Yes |
| Seal Type | o-ring |
| Seal And Lock Ring Included | No |
| Rim Shape | Round |
| Regulator Included | Yes |
| Pump Type | Mechanical |
| Pumping Transfer Method | Piston |
| Pump Design | Mechanical |
| Prop 65 Warning Label Required? | No |
| Power Source | Battery |
| Power Cord Length | 0 ft |
| Port Quantity | 2 |
| Package Contents | 1 High Pressure Pump |
| Outside Diameter | 16 mm |
| Outlet Size | 14 mm |
| Outlet Fitting Thread Size | M16 x 1.5 |
| Outlet Outside Diameter | 14 MM |
| Inlet Outside Diameter | 14 MM |
| Wire Gauge Measurement | 0 ga. |
| Wire Harness Included | No |
| O-Ring Included | Yes |
| Nozzle Type | Fixed |
| Nozzle Shut Off Valve Included | No |
| Metered | Yes |
| Lock Ring Included | No |
| In Tank Or External | External |
| Inside Diameter | 6 mm |
| In-Line Pump | Y |
| Inlet Type | Threaded or quick connect |
| Inlet Size | 9 mm |
| Inlet Fitting Thread Size | Barb |
| Inlet Count | 1 |
| Housing Width | 51 mm |
| Housing Material | Metal |
| Hose Length (Fuel Pump) | 0 ft |
| Grade Type (Premium) | Premium |
| Gasket Or Seal Material | Synthetic or NBR Rubber |
| 7617 | External |
| 958 | Electric |
| 900 | Yes |
| 899 | Yes |
| Fuel Type | Gas |
| Outlet Quantity | 1 |
| Outlet Type | Compression |
| Wiring Harness Included | No |
| Gasket Or Seal Included | No |
| Connector Shape: | Square/Rectangle |
| Mounting Type | Bolt On |
| Terminal Gender: | Male |
| Automotive Item Weight (lbs) | 1.609375 lb |
| Fuel Delivery Type | Fuel Injection |
| Fuel Sending Unit Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type (Fuel Pump) | Gas |
| Gasket Or Seal Included | Yes |
| Connector Gender: | Female |
| Mounting Hardware Included | No |
| Terminal Type | Blade |
| Voltage | 12 V |
| Thickness | 1 mm |
| Terminal Quantity | 2 |
| Suction Pipe Included | No |
| Strainer Included | No |
Vehicle Applications:
| Make | Model | Years |
| Volkswagen | Beetle | 2014 to 2017 |
| Volkswagen | Golf Alltrack | 2017 to 2019 |
| Volkswagen | Golf SportWagen | 2015 to 2019 |
| Volkswagen | Golf | 2015 to 2018 |
| Volkswagen | Jetta | 2014 to 2018 |
| Volkswagen | Passat | 2014 to 2017 |
