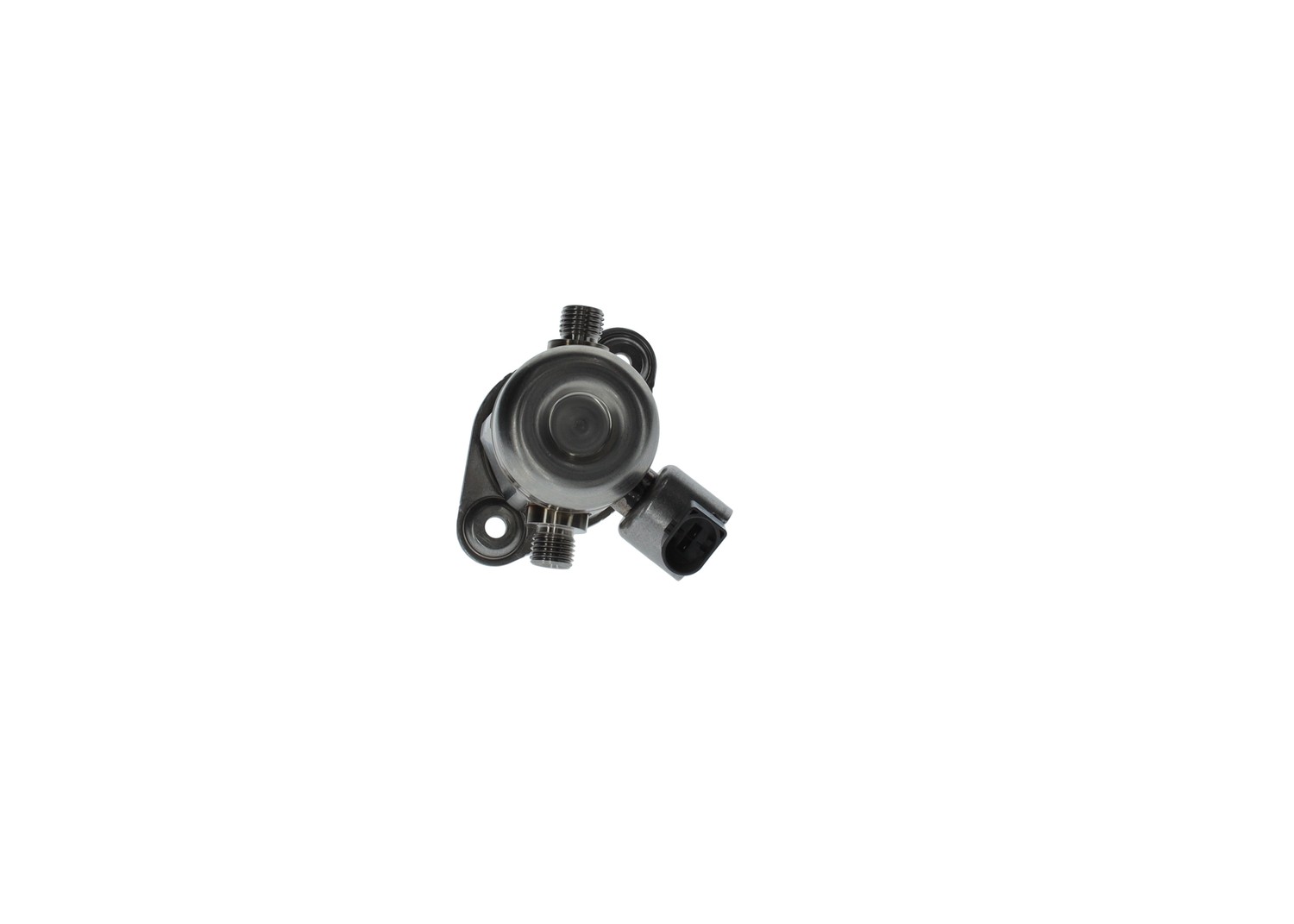

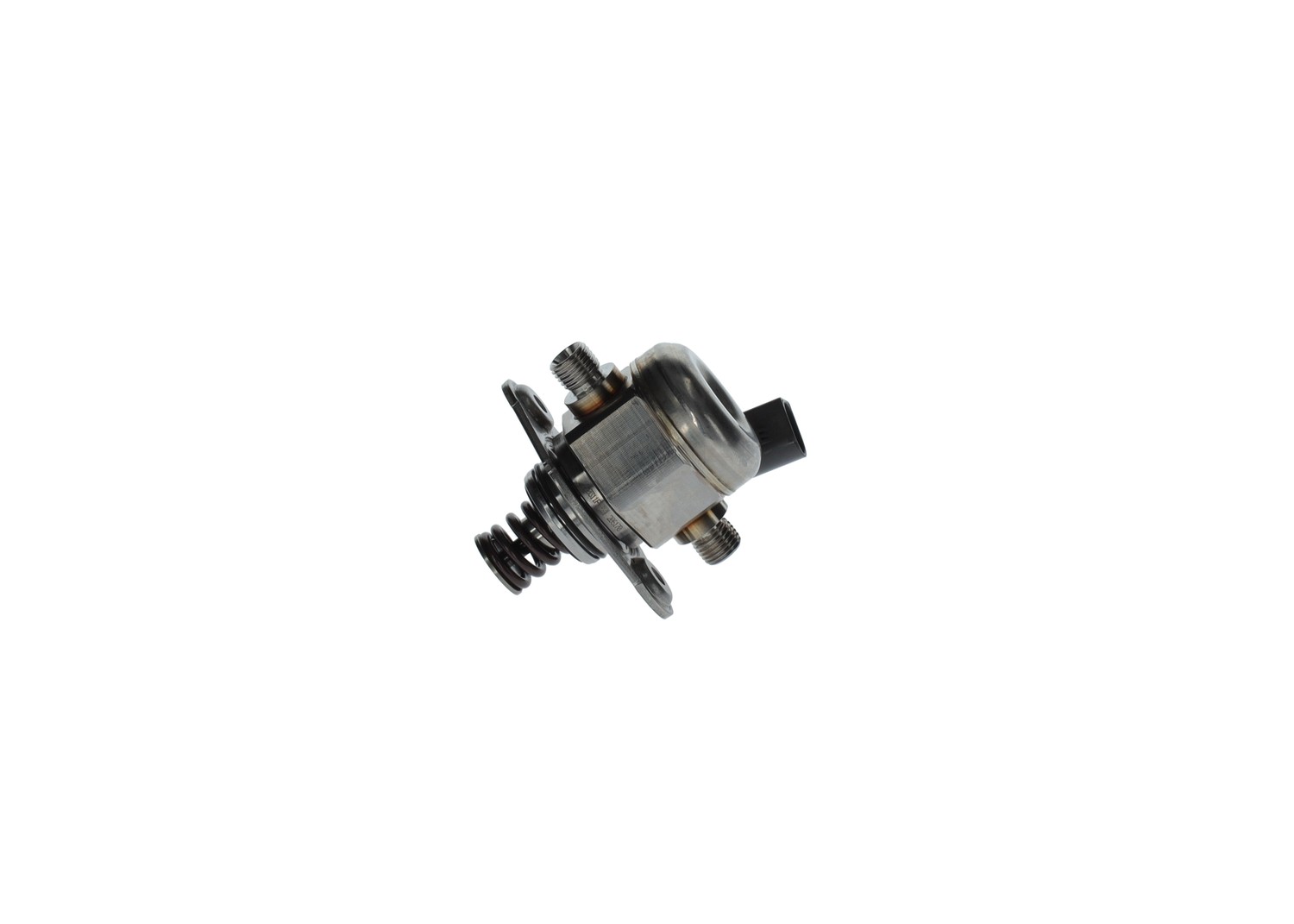

Bosch 6866 High Pressure Fuel Pump for Gasoline Direct Injection
Features:
- [ORIGINAL EQUIPMENT] – Bosch Original Equipment GDI Pumps are backed by extensive series-production experience. They are the pumps vehicles were built with when new, ensuring perfect fit and superior performance
- [OPTIMAL PERFORMANCE] – Designed to operate under extreme temperatures and low fuel conditions to ensure reliable performance and an extended service life
- [FACTORY TESTED] – Every Bosch fuel pump is “end-of-line” function tested before leaving the manufacturing facility to ensure highest quality and performance for superior customer satisfaction
- [KEY FEATURES] – Key features of Bosch GDI Fuel Pumps include: stainless steel construction; Integrated pressure limiter valve; compact, light-weight design; and integrated pressure damper capable of variable feed pressure
- [READY TO INSTALL] – Designed for simple plug-and-play installation
- [BENEFITS] – Bosch GDI Pumps enable better, more efficient engine performance with on-demand quantity control for minimized fuel consumption, increased torque, and fewer carbon emissions
- [TECHNOLOGY]: Most new gasoline vehicles today are equipped with a GDI system. Of those vehicles, nearly half are equipped with a Bosch GDI system. Due to increased volumes of hybrid vehicles in the market, the market for GDI Pumps will con
- [IN-HOUSE PRODUCTION]- Bosch GDI Pumps are never sourced or reverse-engineered, meaning installation is simple and hassle-free with an OE direct-fit replacement
Our team of Bosch Engineers brings the benefits of premium fuel pumps to the Automotive Aftermarket. Bosch fuel pumps are produced in the same production lines and are built then tested to the same exacting quality standards as Bosch OE fuel pumps to ensure a long, reliable service life. Get the job done right the first time, every time, with Bosch Premium fuel pumps.
Attributes:
| Outlet Fitting Thread Size | M14 x 1.5 |
| Outlet Size | 14 mm |
| Outside Diameter | 16 mm |
| Package Contents | 1 High Pressure Pump |
| Port Quantity | 2 |
| Power Cord Length | 0 ft |
| Power Source | Battery |
| Prop 65 Warning Label Required? | No |
| Pump Design | Mechanical |
| Pumping Transfer Method | Piston |
| Pump Type | Mechanical |
| Fuel Type (Fuel Pump) | Gas |
| Gasket Or Seal Included | Yes |
| Gasket Or Seal Material | Synthetic or NBR Rubber |
| Grade Type (Premium) | Premium |
| Regulator Included | Yes |
| Outlet Outside Diameter | 14 MM |
| Inlet Outside Diameter | 14 MM |
| Hose Length (Fuel Pump) | 0 ft |
| Housing Material | Metal |
| Rim Shape | Round |
| Seal And Lock Ring Included | No |
| Seal Type | o-ring |
| Self Priming | Yes |
| Static Ground Terminal | No |
| Strainer Included | No |
| Suction Pipe Included | No |
| Terminal Quantity | 2 |
| Thickness | 1.5 mm |
| Voltage | 12 V |
| Wire Gauge Measurement | 0 ga. |
| Wire Harness Included | No |
| Wire Quantity | 0 |
| Wiring Harness Length | 0 mm |
| New Or Remanufactured | New |
| Housing Width | 51 mm |
| Inlet Count | 1 |
| Inlet Fitting Thread Size | Compression |
| Inlet Size | 14 mm |
| Inlet Type | Threaded or quick connect |
| In-Line Pump | Y |
| Fuel Delivery Type | Fuel Injection |
| Inside Diameter | 6 mm |
| In Tank Or External | External |
| 899 | Yes |
| 900 | Yes |
| 7617 | External |
| Automotive Item Weight (lbs) | 1.962114 lb |
| Connector Quantity | 1 |
| Fuel Sending Unit Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type | Gas |
| Outlet Quantity | 1 |
| Outlet Type | Compression |
| Wiring Harness Included | No |
| Gasket Or Seal Included | No |
| Connector Shape: | Square/Rectangle |
| Mounting Type | Bolt On |
| Terminal Gender: | Male |
| Connector Gender: | Female |
| Mounting Hardware Included | No |
| Terminal Type | Blade |
| Lock Ring Included | No |
| 958 | Electric |
| Material | Steel |
| Metered | Yes |
| Nozzle Shut Off Valve Included | No |
| Nozzle Type | Fixed |
| O-Ring Included | Yes |
Vehicle Applications:
| Make | Model | Years |
| BMW | 135i | 2012 to 2013 |
| BMW | 335i GT xDrive | 2014 to 2014 |
| BMW | 335i xDrive | 2012 to 2014 |
| BMW | 335i | 2012 to 2014 |
| BMW | 435i xDrive | 2014 to 2014 |
| BMW | 435i | 2014 to 2014 |
| BMW | 535i GT xDrive | 2012 to 2014 |
| BMW | 535i GT | 2012 to 2014 |
| BMW | 535i xDrive | 2012 to 2014 |
| BMW | 535i | 2012 to 2014 |
| BMW | 640i Gran Coupe | 2013 to 2014 |
| BMW | 640i xDrive Gran Coupe | 2014 to 2014 |
| BMW | 640i xDrive | 2014 to 2014 |
| BMW | 640i | 2012 to 2014 |
| BMW | 740Li xDrive | 2013 to 2014 |
| BMW | 740Li | 2013 to 2014 |
| BMW | 740i | 2013 to 2014 |
| BMW | ActiveHybrid 3 | 2013 to 2015 |
| BMW | ActiveHybrid 5 | 2012 to 2014 |
| BMW | ActiveHybrid 7 | 2013 to 2015 |
| BMW | M235i | 2014 to 2014 |
| BMW | X1 | 2013 to 2014 |
| BMW | X3 | 2012 to 2014 |
| BMW | X5 | 2012 to 2014 |
| BMW | X6 | 2012 to 2014 |
