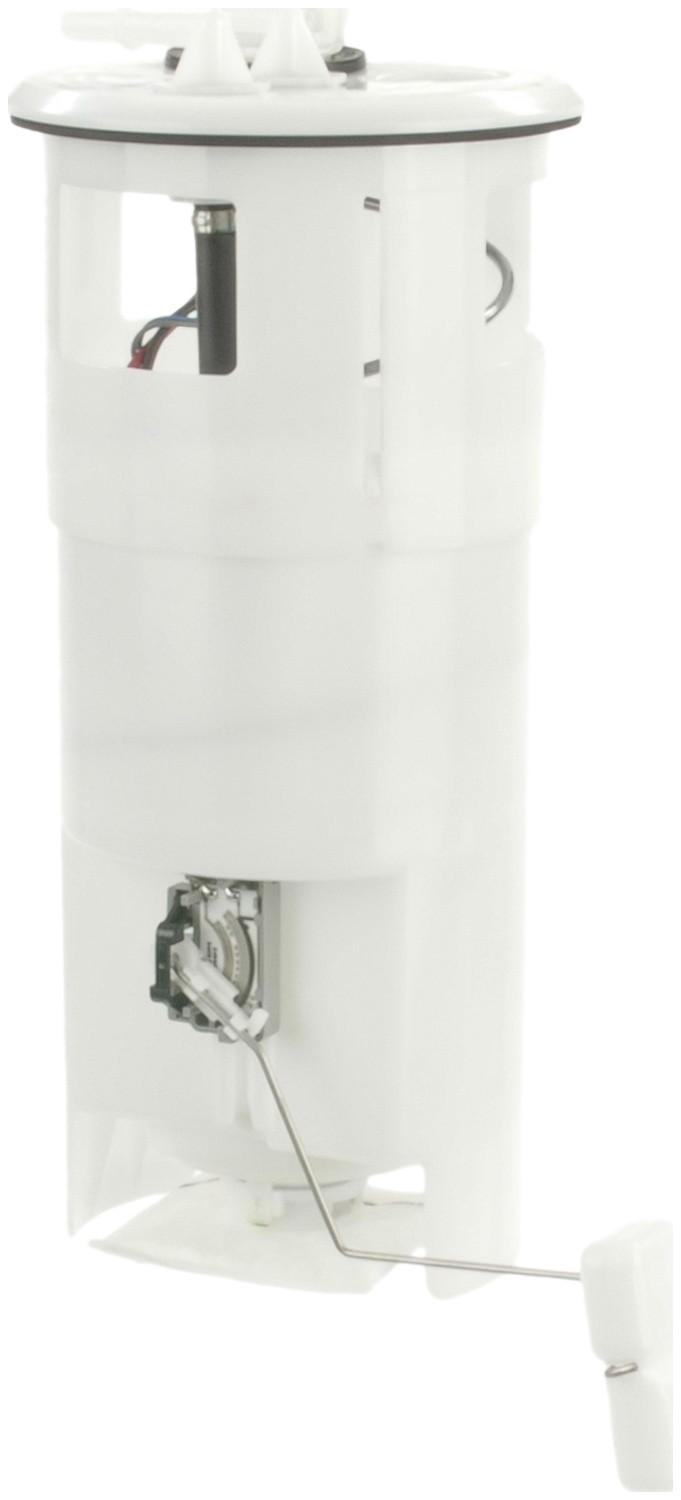

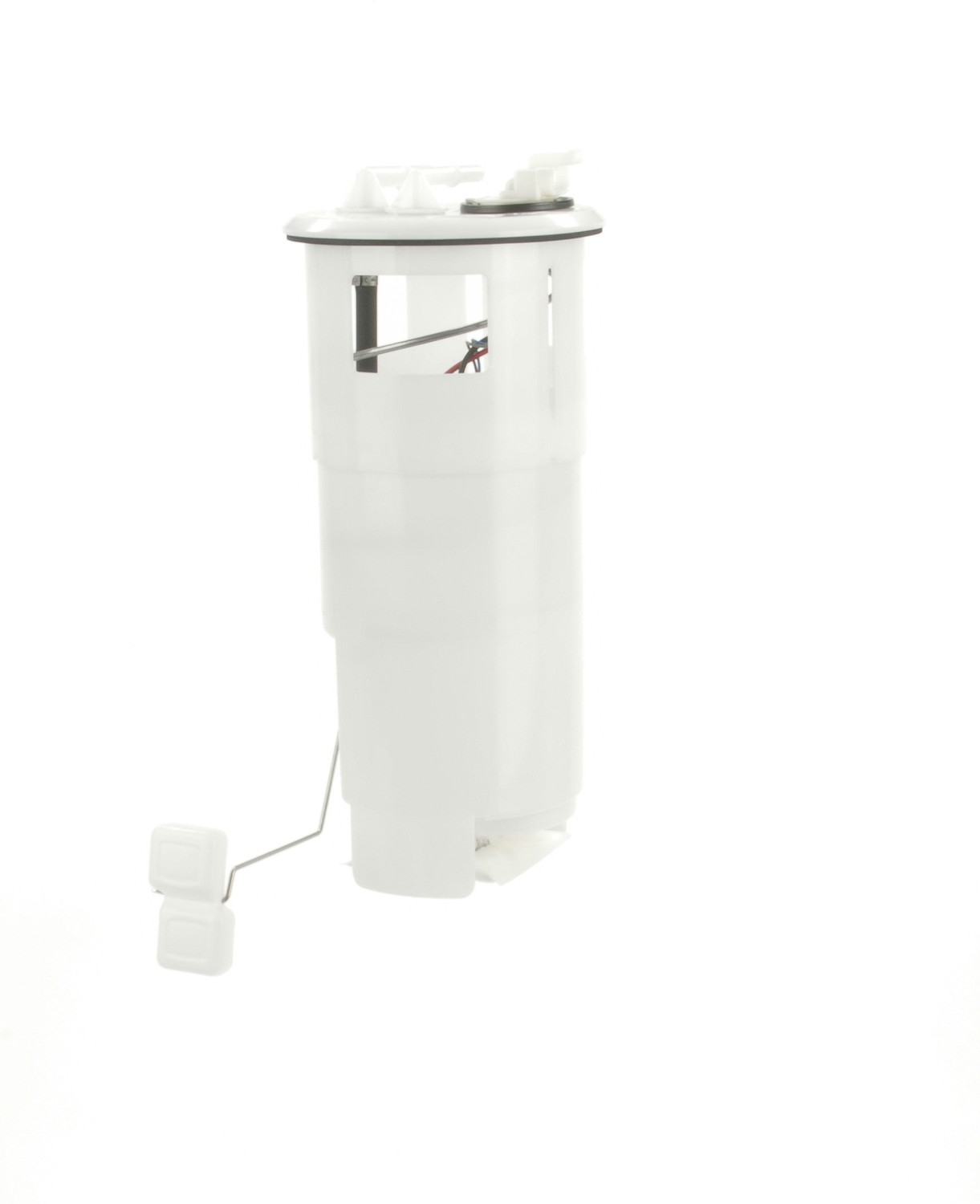

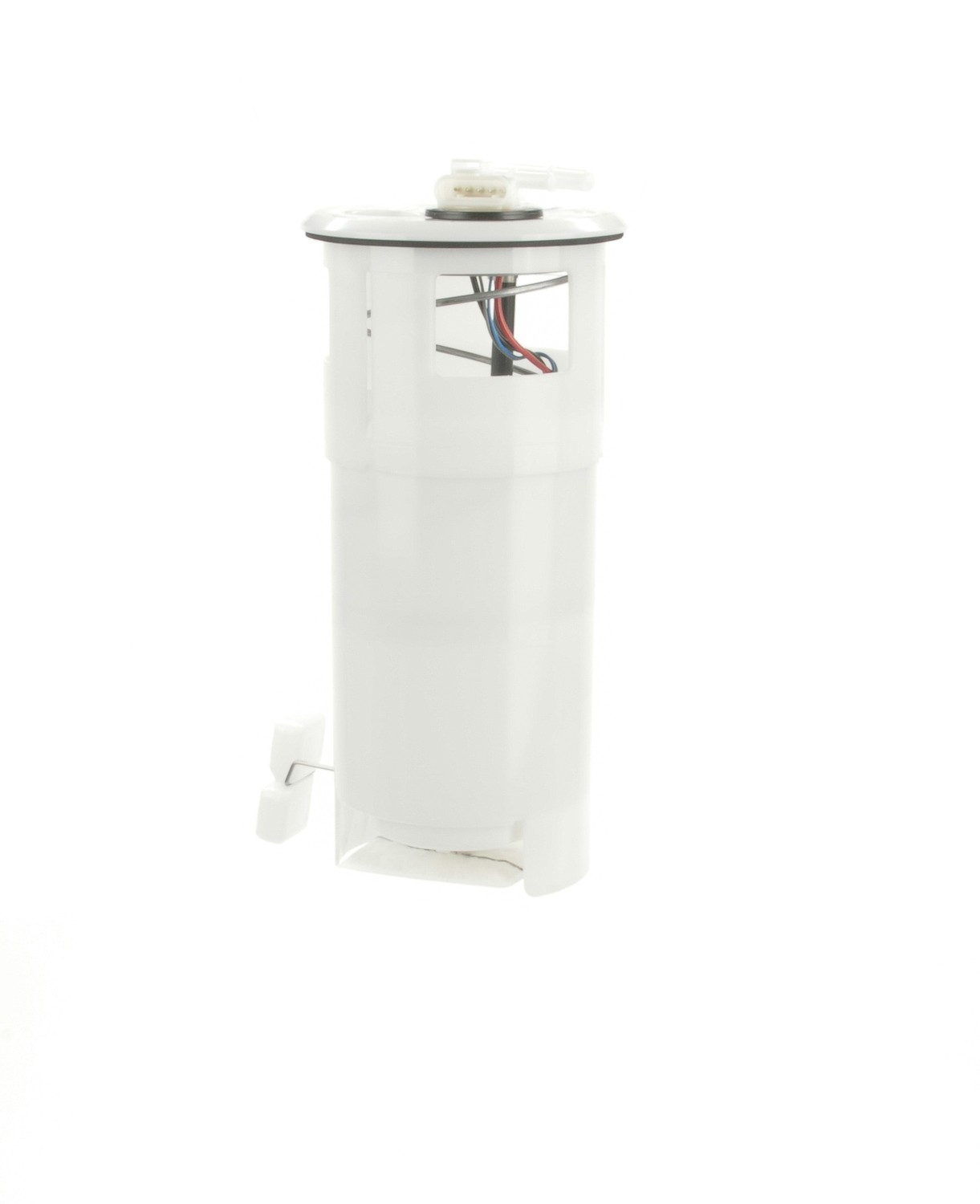

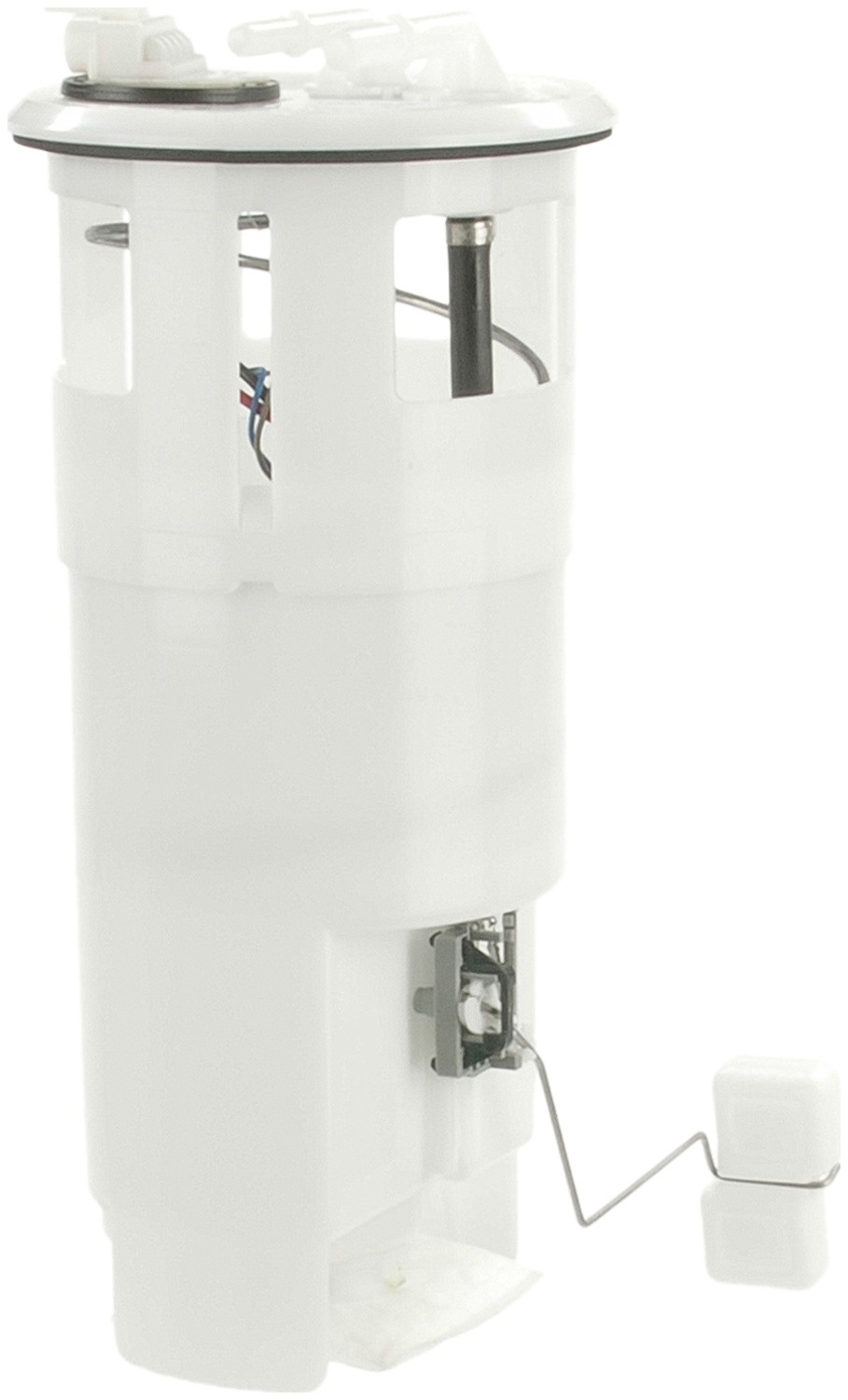

Bosch 7616 Fuel Pump Module Assembly

Bosch 7616 Fuel Pump Module Assembly

Features:

[FILTRATION] – Bosch OE Fuel Pump modules contain 2 layers of filtration to protect the pump from debris and prevent fuel system contamination — the #1 cause of fuel pump failure
Bosch “Better than OE design”, improves upon ease of installation, drivability of your vehicle and extends the life of the vehicle
[OE EXPERTISE] – Bosch supplied the industry’s 1st fuel injection system with a high pressure electric fuel pump in 1967, meaning Bosch fuel pumps are backed by 50+ years of engineering expertise in fuel-delivery technology that you can tru
[INNOVATIVE TECHNOLOGY] – Patented Turbine Pump technology virtually eliminates the fuel pulsation, noise, and hot-start problems associated with older pump designs, leading to improved drivability
[OPTIMAL PERFORMANCE] – Designed to operate in extreme temperatures and under low fuel conditions to ensure reliable performance and an extended service life
[FACTORY TESTED] – Every Bosch fuel pump is “end-of-line” function tested to ensure the highest quality, performance, and durability for superior customer satisfaction
[BENEFITS] Electromagnetic shielding prevents on-board electronic interference from fuel pump
[READY TO INSTALL] – Designed for simple plug-and-play installation

Our team of Bosch Engineers brings the benefits of premium fuel pumps to the Automotive Aftermarket. Bosch fuel pumps are produced in the same production lines and are built then tested to the same exacting quality standards as Bosch OE fuel pumps to ensure a long, reliable service life. Get the job done right the first time, every time, with Bosch Premium fuel pumps.

Attributes:

Housing Material	Polymer / Plastic
Thickness	1.5 mm
Universal	No
Wiring Harness Included	No
New Or Remanufactured	New
7246	Yes
Inlet Outside Diameter	810 mm
Terminal Gender	Male
Suction Pipe Included	No
9103	No
Inlet Outside Diameter	11.1 MM
8934	No
Outside Diameter	100140 mm
Wire Gauge Measurement	0 GU
Wiring Harness Length	0 MM
Housing Width	0 MM
Outlet Outside Diameter	11.1 MM
Strainer Used With Pump	Yes
Strainer Included	Yes
Static Ground Terminal	No
Self Priming	Yes
Seal And Lock Ring Included	No
Rim Shape	Round
Hose Length (Fuel Pump)	0 ft
Gasket Or Seal Material	Synthetic or NBR Rubber
Gasket Or Seal Included	Yes
Pump Type	Electric
Pump Only Or Module	Module
Pump Design	Electric
Fuel Sending Unit Included	Yes
Fuel Delivery Type	Fuel Injection
Filter Included	Yes
Electrical	Yes
Connector Gender	Female
Automotive Item Weight (lbs)	2.186986 lb
Attachment Type (Fuel Pump Strainer)	Push On
Prop 65 Warning Label Required?	No
Power Source	Battery
In-Line Pump	N
Inside Diameter	6 mm
In Tank Or External	Internal
Lock Ring Included	No
Material	Mixed
Metered	No
Mounting Type	In-tank
Nozzle Shut Off Valve Included	No
Nozzle Type	Fixed
O-Ring Included	Yes
Outlet Outside Diameter	810 mm
Grade Type	Premium
Universal Or Specific Fit	Specific
Fuel Type	Gas
Outlet Quantity	1
Inlet Quantity	1
Outlet Type	SAE
Inlet Type	OE Type
Power Cord Length	0 ft
Port Quantity	2
Package Contents	1 Module Assembly
Voltage	12 2H
958	Electric
1154	No
Terminal Type	Blade
Mounting Hardware Included	No
Terminal Quantity	4
Regulator Included	Yes
Wire Quantity	0
Connector Quantity:	1
Connector Shape:	Square/Rectangle
Gasket Or Seal Included	Yes

Vehicle Applications:

Make	Model	Years
Chrysler	Concorde	1993 to 1995
Chrysler	Intrepid	1993 to 1995
Chrysler	LHS	1994 to 1995
Chrysler	New Yorker	1994 to 1995
Dodge	Intrepid	1993 to 1995
Eagle	Vision	1993 to 1995
