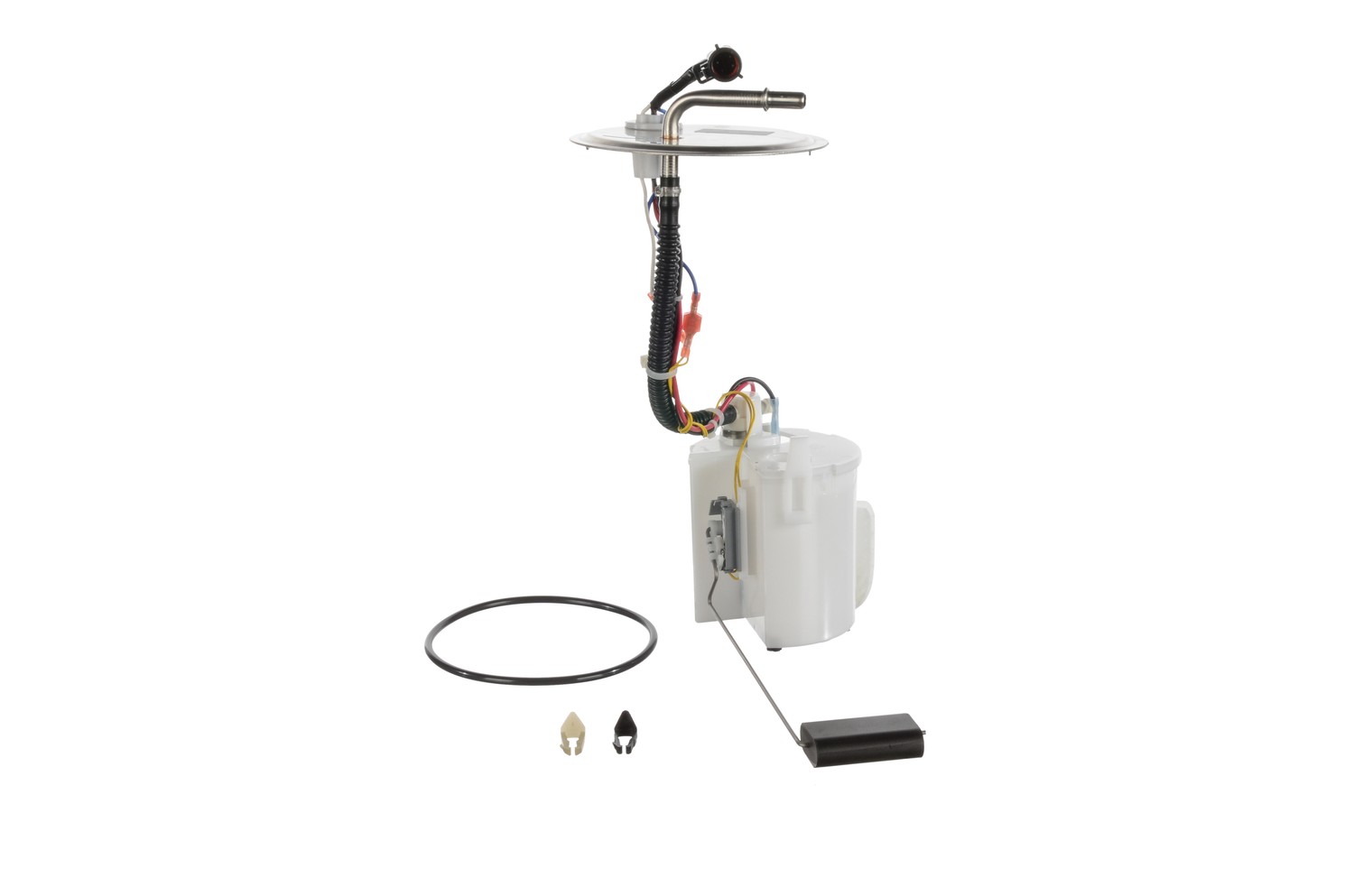

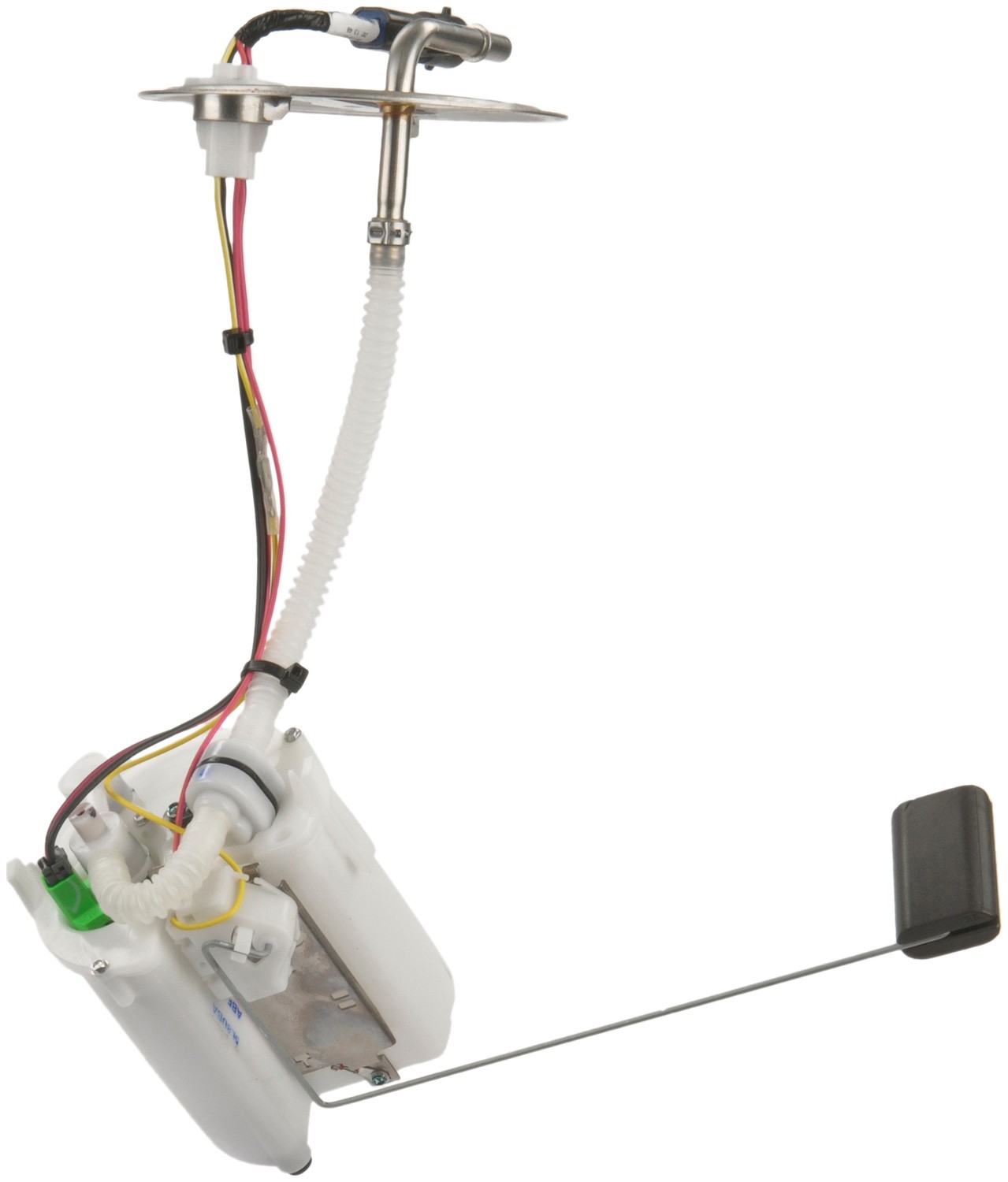

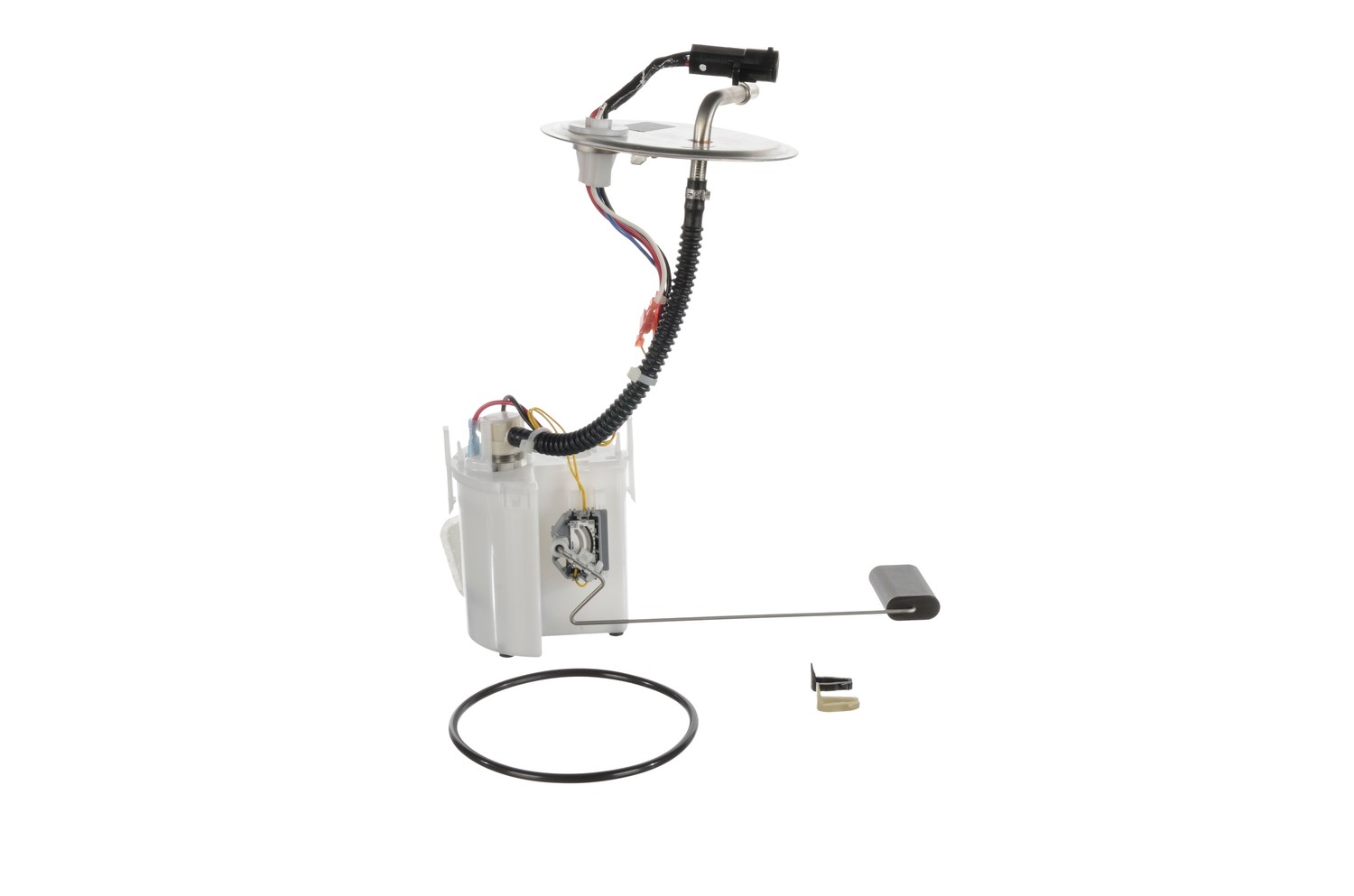

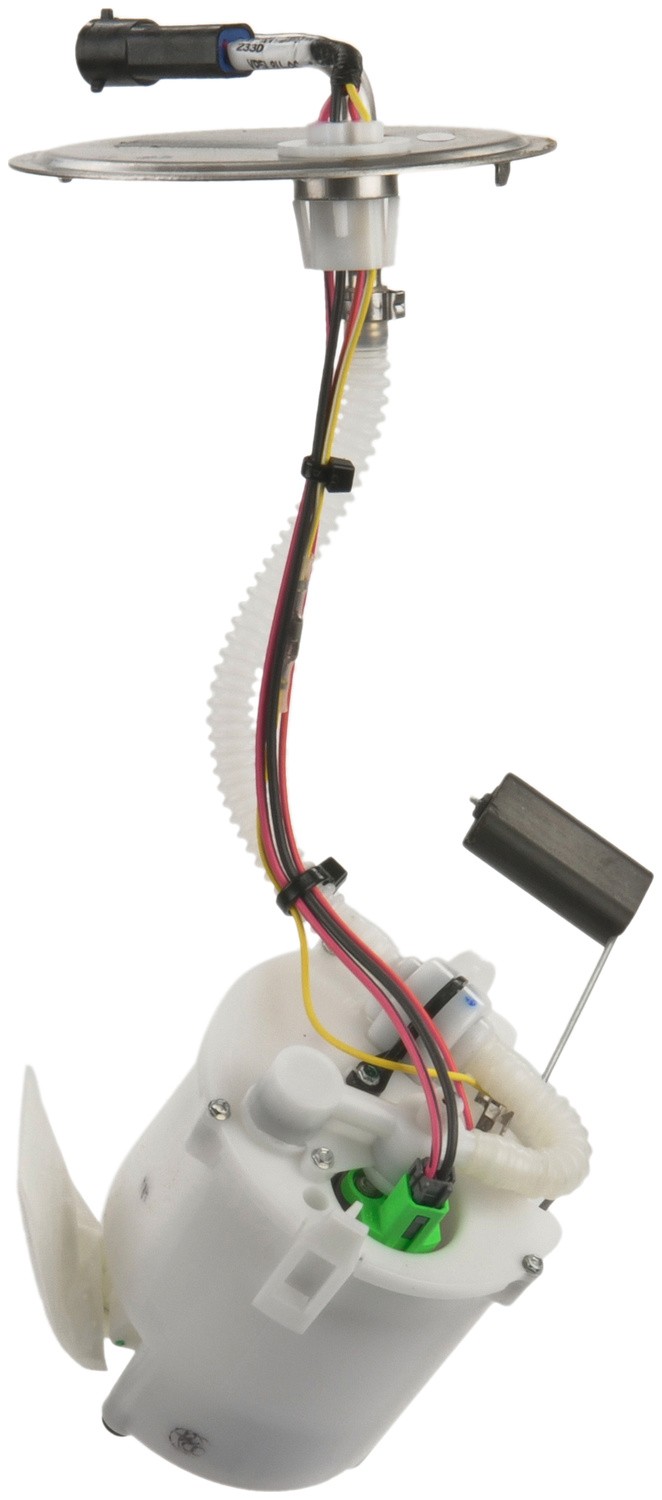

Bosch 9169 Fuel Pump Module Assembly

Bosch 9169 Fuel Pump Module Assembly

Features:

[FILTRATION] – Bosch OE Fuel Pump modules contain 2 layers of filtration to protect the pump from debris and prevent fuel system contamination — the #1 cause of fuel pump failure
[READY TO INSTALL] – Designed for simple plug-and-play installation
[BENEFITS] Electromagnetic shielding prevents on-board electronic interference from fuel pump
[FACTORY TESTED] – Every Bosch fuel pump is “end-of-line” function tested to ensure the highest quality, performance, and durability for superior customer satisfaction
[OPTIMAL PERFORMANCE] – Designed to operate in extreme temperatures and under low fuel conditions to ensure reliable performance and an extended service life
[INNOVATIVE TECHNOLOGY] – Patented Turbine Pump technology virtually eliminates the fuel pulsation, noise, and hot-start problems associated with older pump designs, leading to improved drivability
[OE EXPERTISE] – Bosch supplied the industry’s 1st fuel injection system with a high pressure electric fuel pump in 1967, meaning Bosch fuel pumps are backed by 50+ years of engineering expertise in fuel-delivery technology that you can tru
Bosch “Better than OE design”, improves upon ease of installation, drivability of your vehicle and extends the life of the vehicle

Our team of Bosch Engineers brings the benefits of premium fuel pumps to the Automotive Aftermarket. Bosch fuel pumps are produced in the same production lines and are built then tested to the same exacting quality standards as Bosch OE fuel pumps to ensure a long, reliable service life. Get the job done right the first time, every time, with Bosch Premium fuel pumps.

Attributes:

Seal And Lock Ring Included	No
Self Priming	Yes
Static Ground Terminal	No
Strainer Included	Yes
Strainer Used With Pump	Yes
Suction Pipe Included	No
Terminal Gender	Male
Thickness	1.5 mm
Universal	No
Wiring Harness Included	No
New Or Remanufactured	New
Voltage	12 2H
Mounting Hardware Included	No
Wire Gauge Measurement	0 GU
Wiring Harness Length	0 MM
Housing Width	0 MM
Outlet Outside Diameter	11.1 MM
Terminal Type	Blade
Wire Quantity	0
Terminal Quantity	4
Regulator Included	Yes
958	Electric
1154	No
7246	Yes
8934	No
9103	No
Attachment Type (Fuel Pump Strainer)	Push On
Automotive Item Weight (lbs)	1.615988 lb
Connector Gender	Female
Electrical	Yes
Filter Included	Yes
Fuel Delivery Type	Fuel Injection
Fuel Sending Unit Included	Yes
Gasket Or Seal Included	Yes
Gasket Or Seal Material	Synthetic or NBR Rubber
Hose Length (Fuel Pump)	0 ft
Grade Type	Premium
Universal Or Specific Fit	Specific
Fuel Type	Gas
Outlet Quantity	1
Inlet Quantity	1
Outlet Type	SAE
Inlet Type	OE Type
Housing Material	Polymer / Plastic
Gasket Or Seal Included	No
Connector Shape:	Square/Rectangle
Connector Quantity:	1
Inlet Outside Diameter	810 mm
In-Line Pump	N
Inside Diameter	6 mm
In Tank Or External	Internal
Lock Ring Included	No
Inlet Outside Diameter	11.1 MM
Material	Mixed
Metered	No
Mounting Type	In-tank
Nozzle Shut Off Valve Included	No
Nozzle Type	Fixed
O-Ring Included	Yes
Outlet Outside Diameter	810 mm
Outside Diameter	100140 mm
Package Contents	1 Module Assembly
Port Quantity	2
Power Cord Length	0 ft
Power Source	Battery
Prop 65 Warning Label Required?	No
Pump Design	Electric
Pump Only Or Module	Module
Pump Type	Electric
Rim Shape	Round
