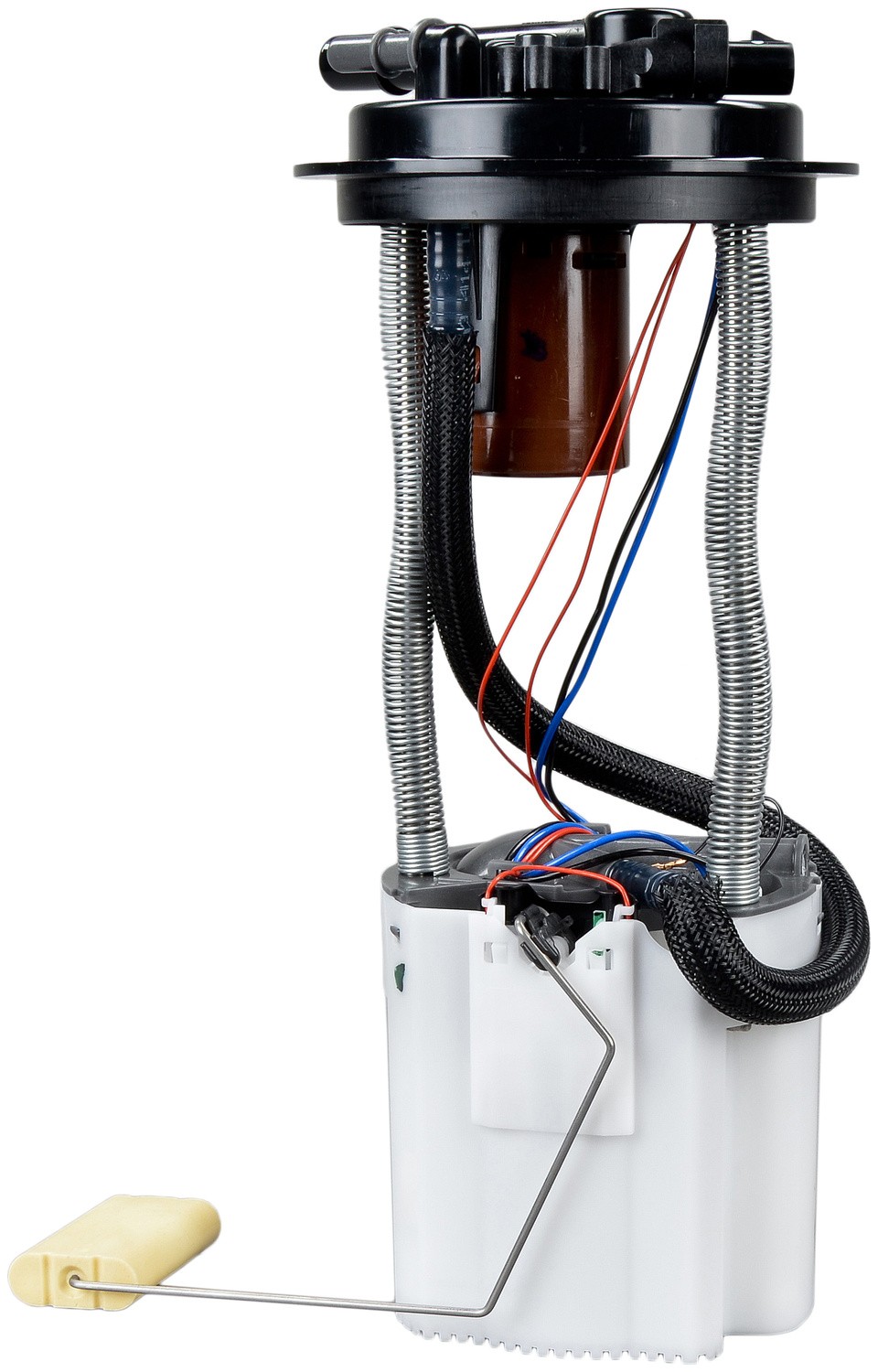

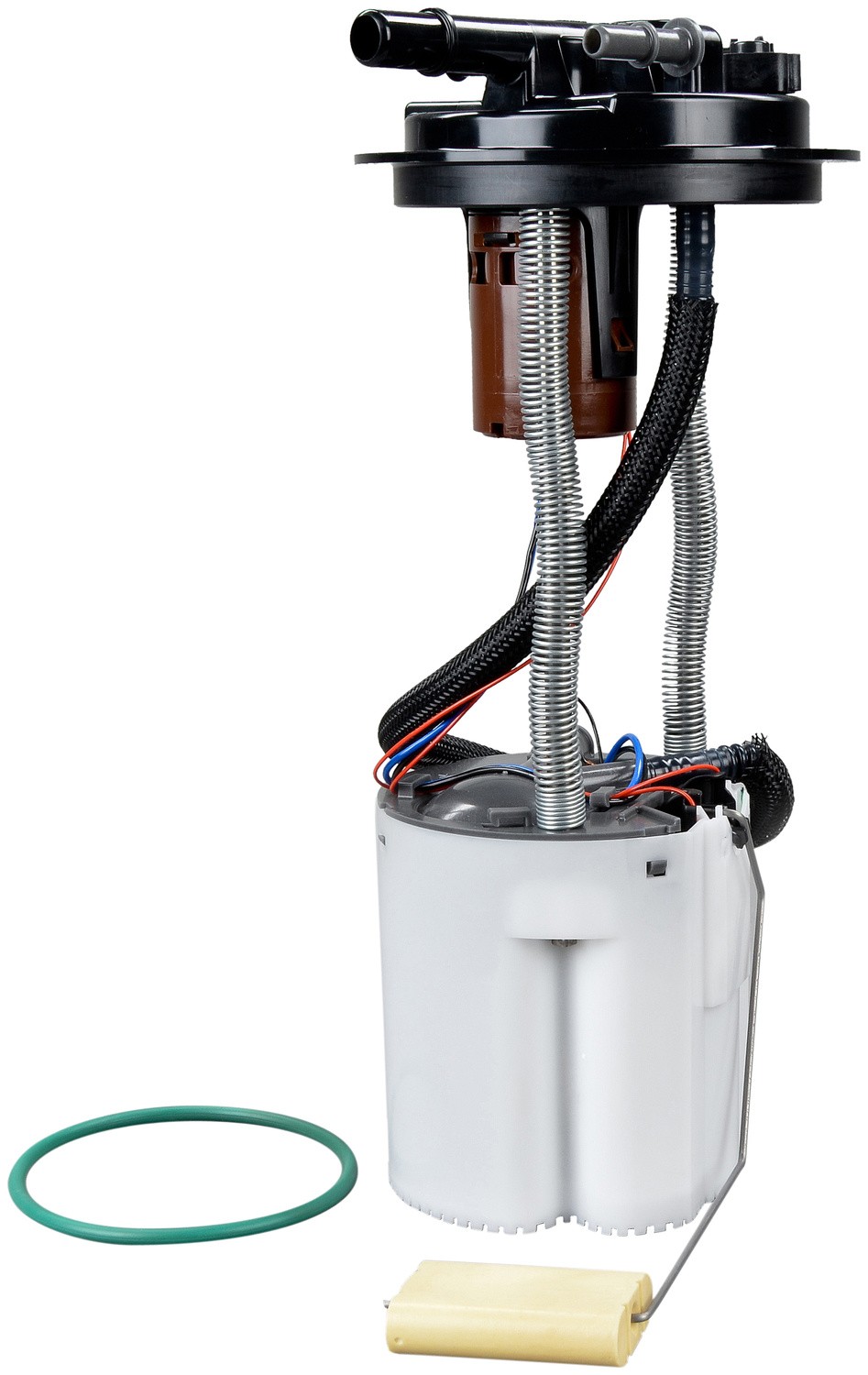

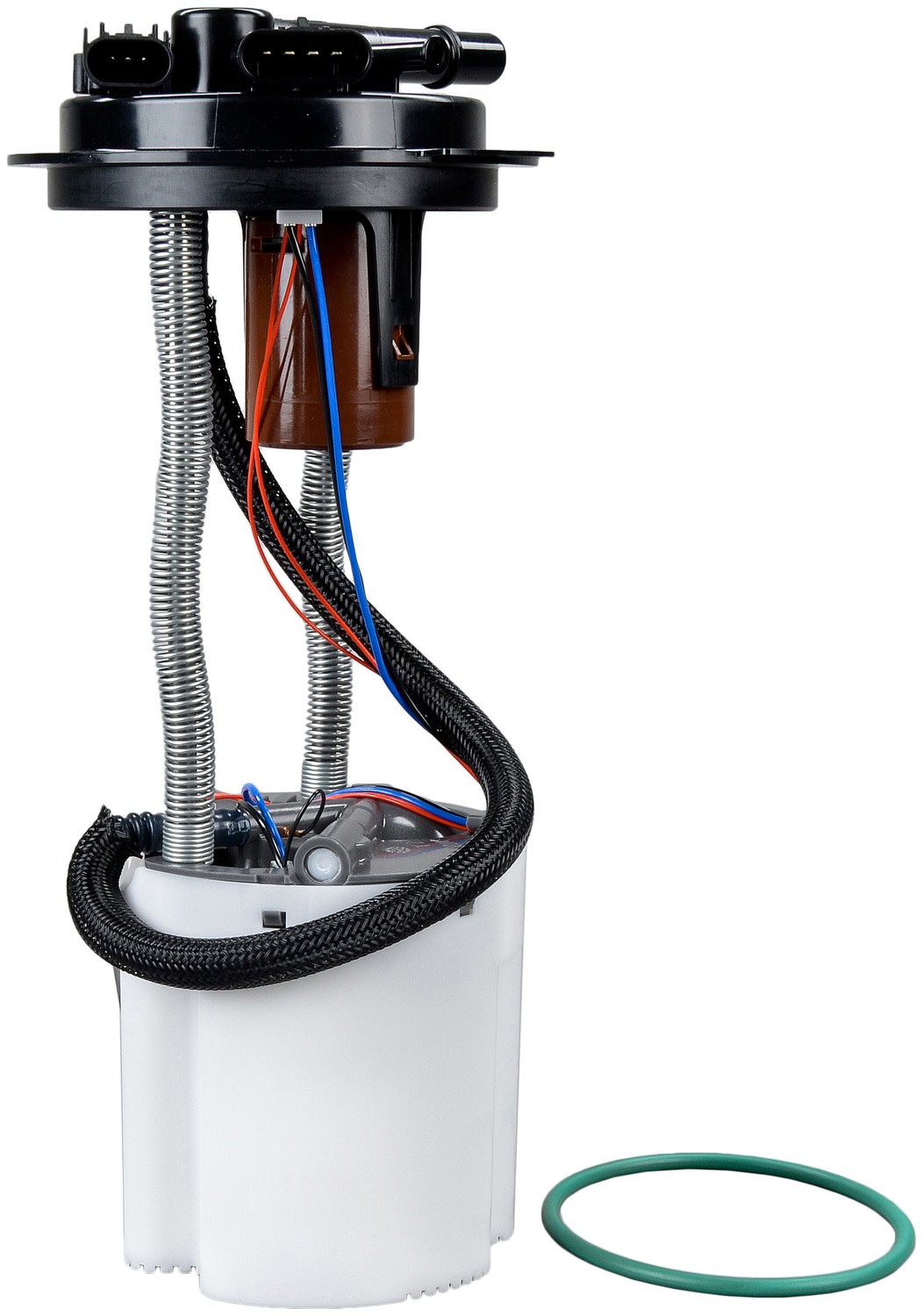

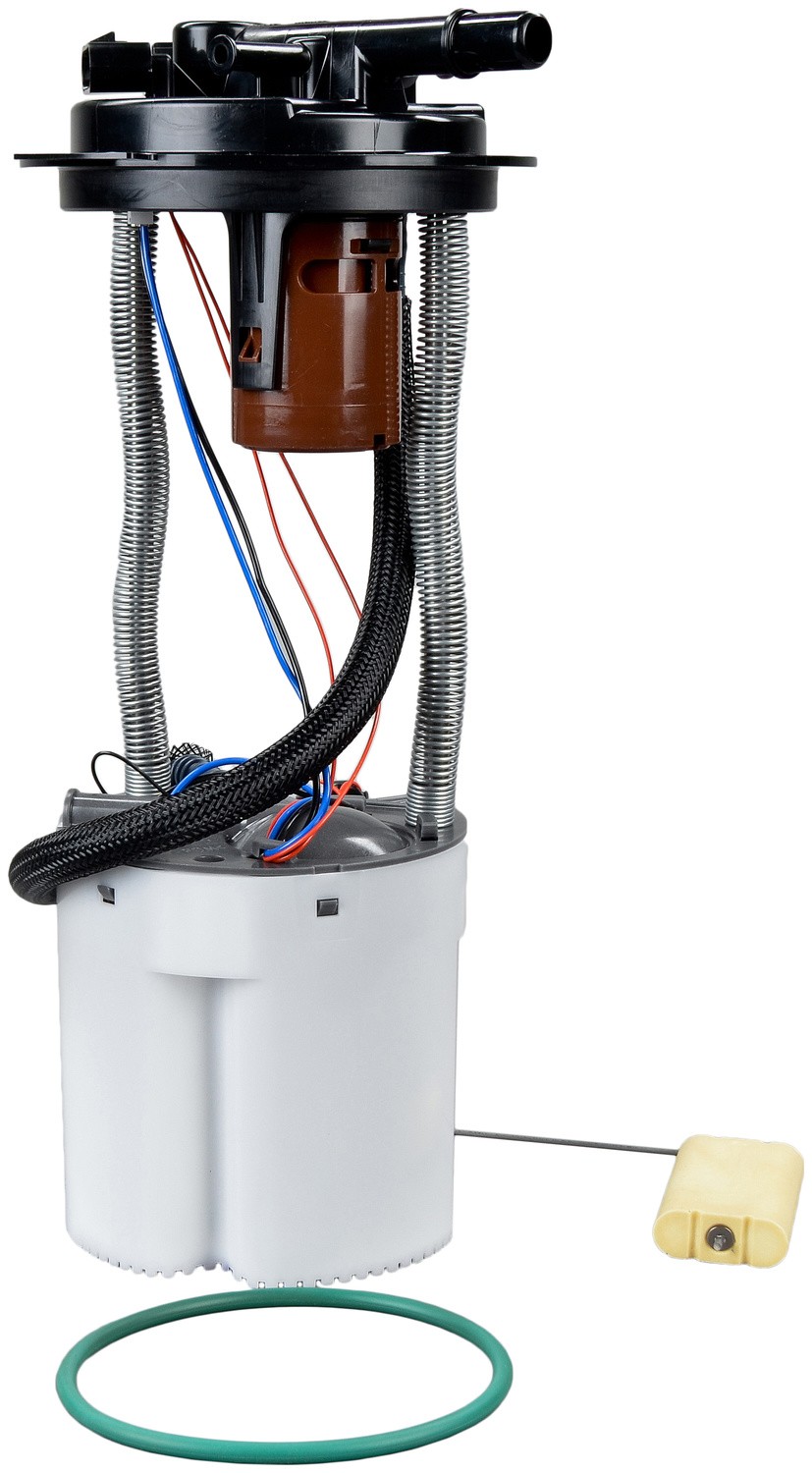

Bosch 9786 Fuel Pump Module Assembly

Bosch 9786 Fuel Pump Module Assembly

Features:

[BENEFITS] Electromagnetic shielding prevents on-board electronic interference from fuel pump
[FILTRATION] – Bosch OE Fuel Pump modules contain 2 layers of filtration to protect the pump from debris and prevent fuel system contamination — the #1 cause of fuel pump failure
[FACTORY TESTED] – Every Bosch fuel pump is “end-of-line” function tested to ensure the highest quality, performance, and durability for superior customer satisfaction
[OPTIMAL PERFORMANCE] – Designed to operate in extreme temperatures and under low fuel conditions to ensure reliable performance and an extended service life
[INNOVATIVE TECHNOLOGY] – Patented Turbine Pump technology virtually eliminates the fuel pulsation, noise, and hot-start problems associated with older pump designs, leading to improved drivability
[OE EXPERTISE] – Bosch supplied the industry’s 1st fuel injection system with a high pressure electric fuel pump in 1967, meaning Bosch fuel pumps are backed by 50+ years of engineering expertise in fuel-delivery technology that you can tru
Bosch “Better than OE design”, improves upon ease of installation, drivability of your vehicle and extends the life of the vehicle
[READY TO INSTALL] – Designed for simple plug-and-play installation

Our team of Bosch Engineers brings the benefits of premium fuel pumps to the Automotive Aftermarket. Bosch fuel pumps are produced in the same production lines and are built then tested to the same exacting quality standards as Bosch OE fuel pumps to ensure a long, reliable service life. Get the job done right the first time, every time, with Bosch Premium fuel pumps.

Attributes:

Electrical	Yes
Fuel Sending Unit Included	Yes
Fuel Delivery Type	Fuel Injection
Attachment Type (Fuel Pump Strainer)	Push On
Nozzle Type	Fixed
Mounting Type	In-tank
Metered	No
Material	Mixed
Lock Ring Included	No
Grade Type	Premium
Universal Or Specific Fit	Specific
Fuel Type	Gas
Outlet Quantity	1
Inlet Quantity	1
Outlet Type	SAE
Inlet Type	OE Type
Housing Material	Polymer / Plastic
Gasket Or Seal Included	Yes
Connector Shape:	Square/Rectangle
Connector Quantity:	1
Wire Quantity	2
Regulator Included	Yes
Terminal Quantity	4
Mounting Hardware Included	No
Terminal Type	Blade
In Tank Or External	Internal
In-Line Pump	N
Hose Length (Fuel Pump)	0 ft
Gasket Or Seal Material	Synthetic or NBR Rubber
Gasket Or Seal Included	Yes
958	Electric
1154	No
7246	Yes
Wiring Harness Length	0 MM
Housing Width	0 MM
Outlet Outside Diameter	11.1 MM
Inlet Outside Diameter	11.1 MM
Voltage	12 2H
Filter Included	Yes
Connector Gender	Female
Automotive Item Weight (lbs)	2.711686 lb
9103	Yes
8934	No
Nozzle Shut Off Valve Included	No
O-Ring Included	Yes
Outside Diameter	10 mm
Package Contents	1 Module Assembly
Port Quantity	2
Power Source	Battery
Prop 65 Warning Label Required?	No
Pump Design	Electric
Pump Only Or Module	Module
Pump Type	Electric
Rim Shape	Round
Seal And Lock Ring Included	No
Self Priming	Yes
Static Ground Terminal	No
Strainer Included	Yes
Strainer Used With Pump	Yes
Suction Pipe Included	No
Terminal Gender	Male
Thickness	1.5 mm
Universal	No
Wiring Harness Included	No
New Or Remanufactured	New
