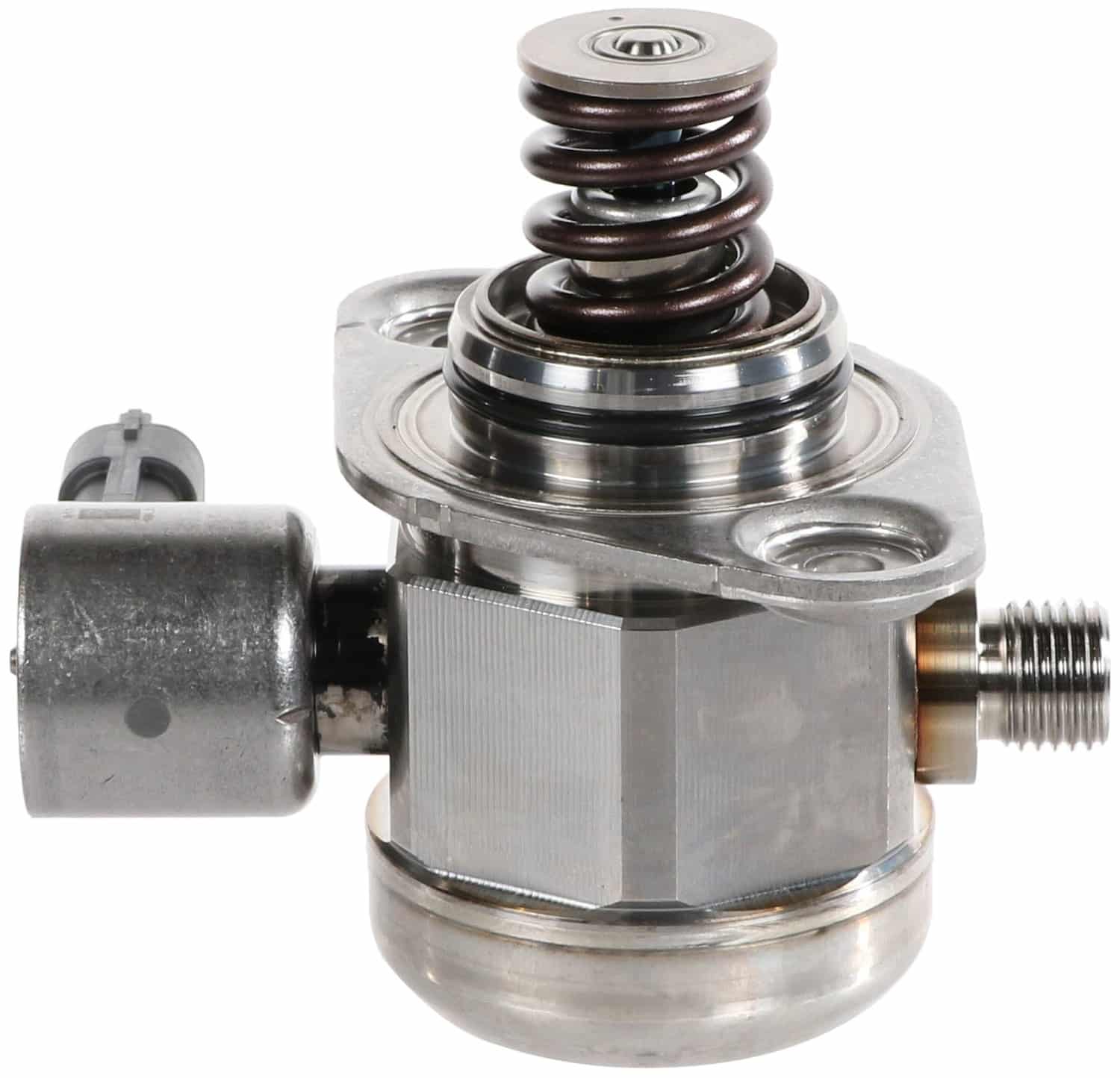

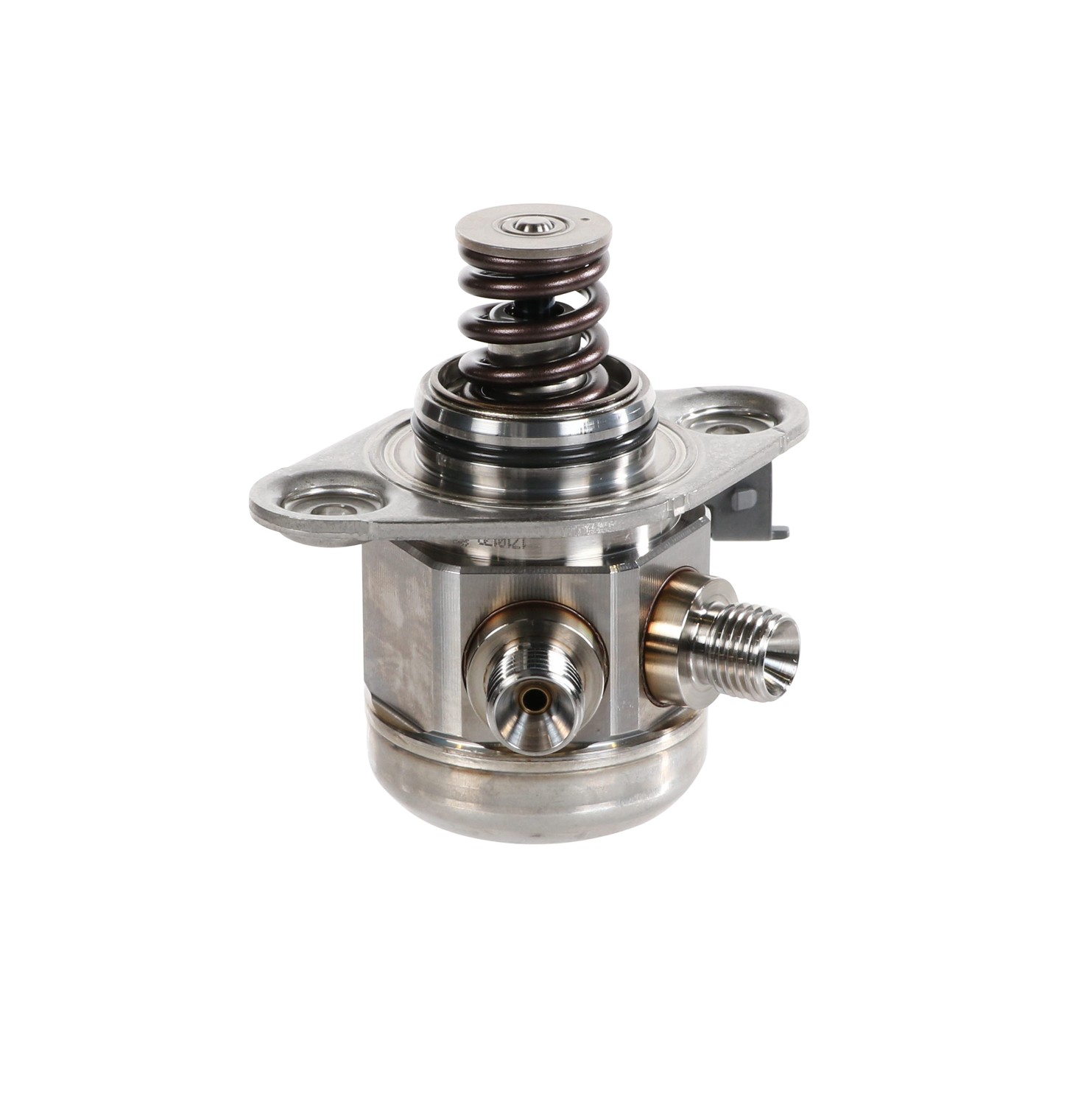

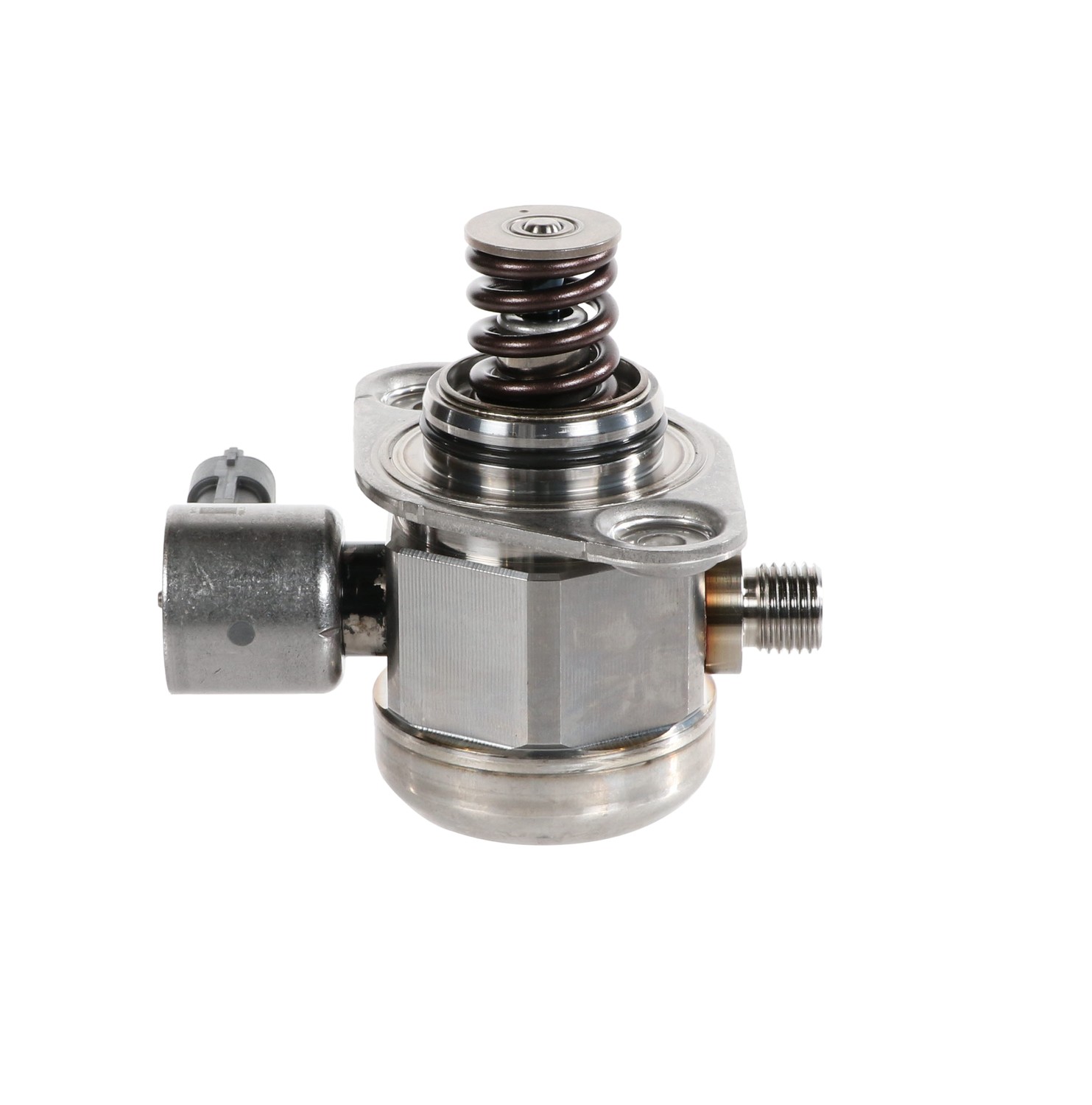

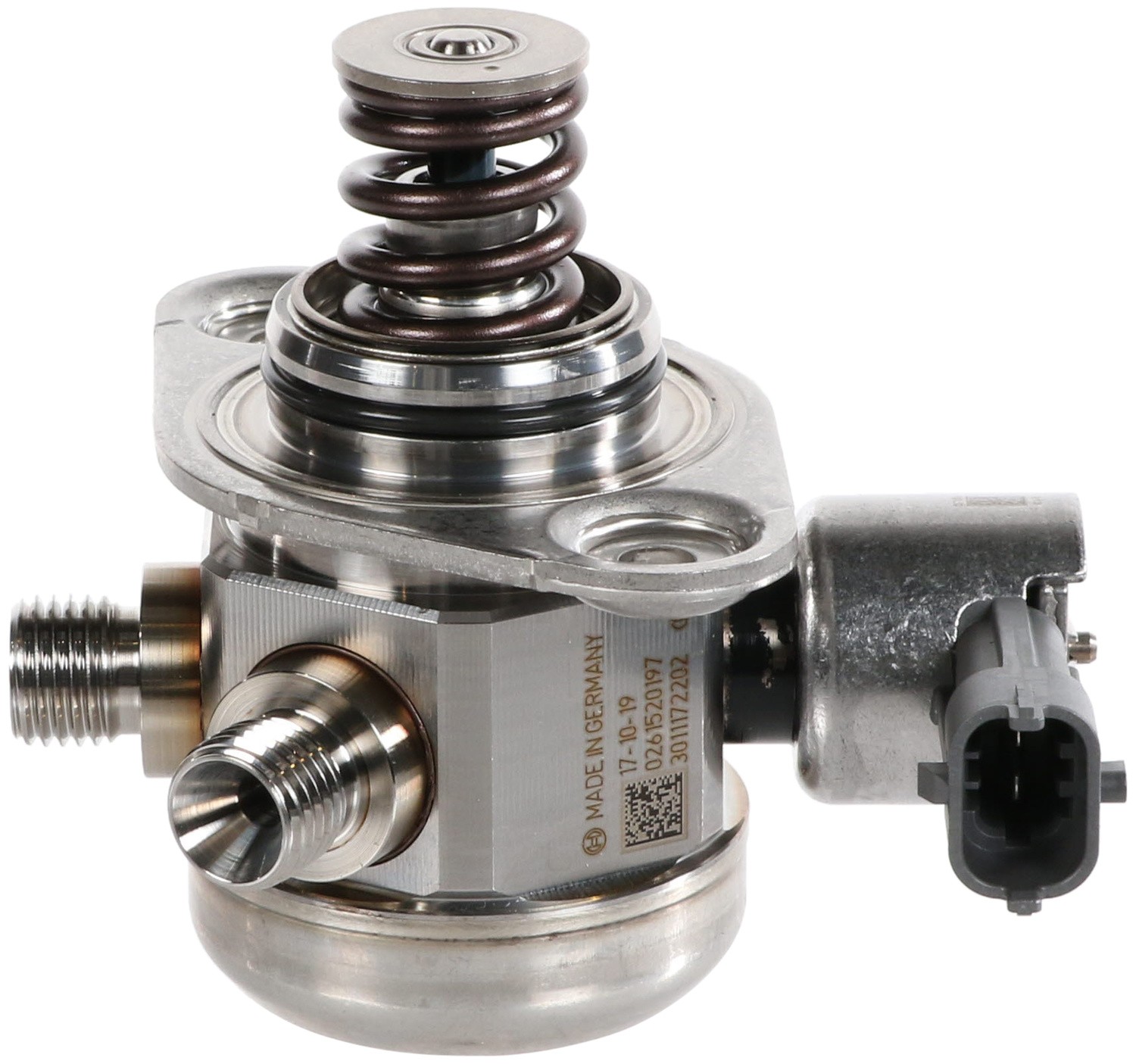

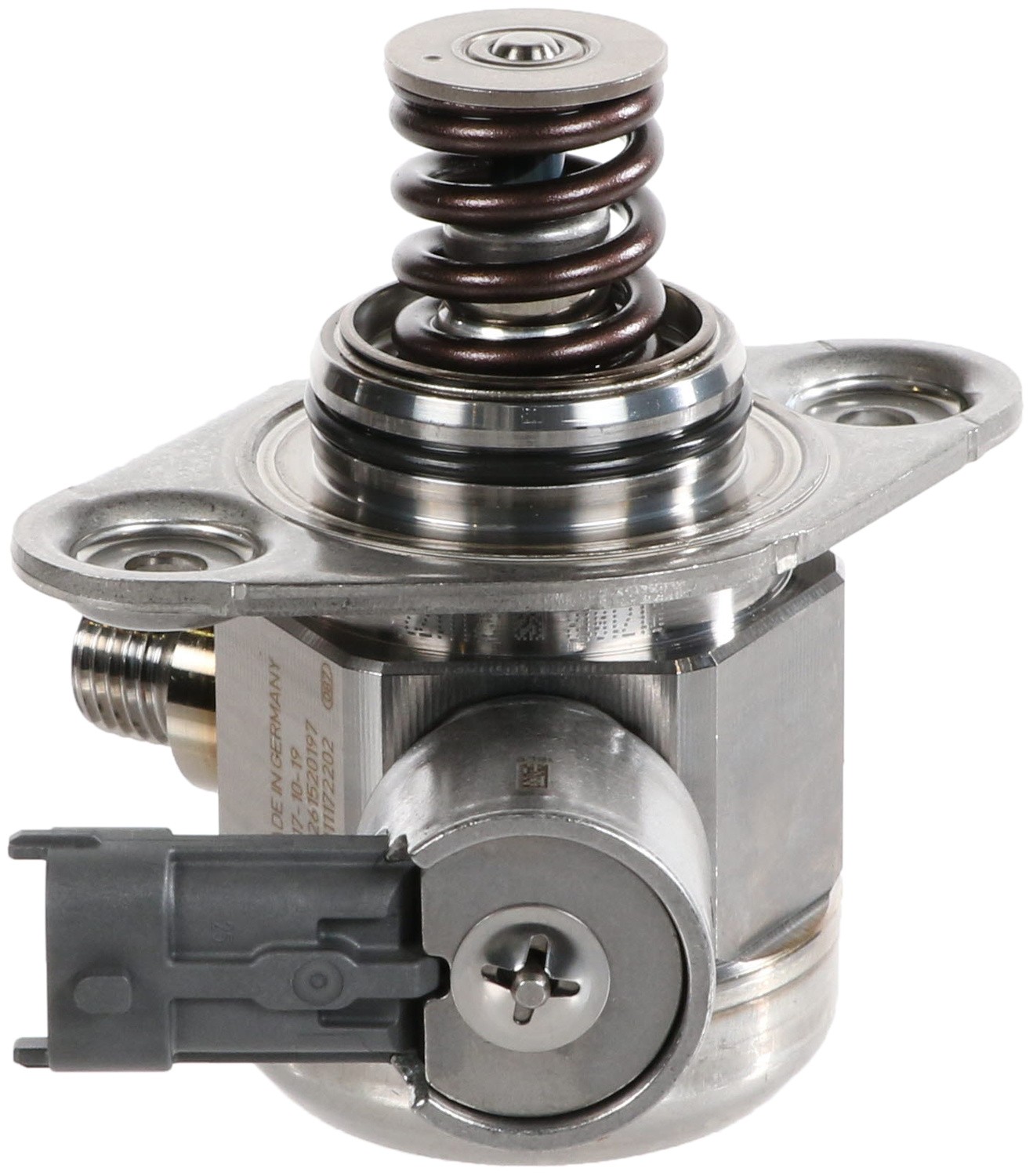

Bosch BOS-66806

Bosch BOS-66806

Features:

On-demand quantity control for minimized fuel consumption
Integrated pressure limiter valve
Best-in-class regarding possible design variants
Bosch has extensive series-production experience

Our team of Bosch Engineers brings the benefits of premium fuel pumps to the Automotive Aftermarket. Bosch fuel pumps are produced in the same production lines and are built then tested to the same exacting quality standards as Bosch OE fuel pumps to ensure a long, reliable service life. Get the job done right the first time, every time, with Bosch Premium fuel pumps.

Attributes:

Pump Type	Mechanical
Regulator Included	Yes
Rim Shape	Round
Seal And Lock Ring Included	No
Voltage	12 V
Thickness	1 mm
Pump Design	Mechanical
Prop 65 Warning Label Required?	No
Power Source	Battery
Power Cord Length	0 ft
900	Yes
899	Yes
Mounting Type	Bolt On
Terminal Gender:	Male
Fuel Type	Gas
Outlet Outside Diameter	14
Inlet Outside Diameter	14
Outlet Quantity	1
Outlet Type	Compression
Wiring Harness Included	No
Gasket Or Seal Included	No
Port Quantity	2
Package Contents	1 High Pressure Pump
Outside Diameter	16 mm
Outlet Size	14 mm
O-Ring Included	Yes
Nozzle Type	Fixed
Nozzle Shut Off Valve Included	No
Metered	Yes
Material	Steel
Lock Ring Included	No
In Tank Or External	External
Inside Diameter	6 mm
In-Line Pump	Y
Inlet Type	Threaded or quick connect
Inlet Size	14 mm
Inlet Count	1
Housing Width	51 mm
Housing Material	Metal
Hose Length (Fuel Pump)	0 ft
Grade Type (Premium)	Premium
Gasket Or Seal Material	Synthetic or NBR Rubber
Gasket Or Seal Included	Yes
Fuel Type (Fuel Pump)	Gas
Fuel Tank Pressure Sensor Included	No
Fuel Sending Unit Included	No
Fuel Filter Included	Yes
Fuel Delivery Type	Fuel Injection
Connector Quantity	1
Mounting Hardware Included	No
Connector Gender:	Female
Connector Shape:	Square/Rectangle
Terminal Quantity	2
Suction Pipe Included	No
Strainer Included	No
Static Ground Terminal	No
Self Priming	Yes
Terminal Type	Blade
New Or Remanufactured	New
Wiring Harness Length (mm)	0 mm
Wire Quantity	0
Wire Harness Included	No
Wire Gauge Measurement	0 ga.
Seal Type	o-ring
8936	M14 x 1.5
8921	M14 x 15
7617	External
958	Electric
Pumping Transfer Method	Piston
