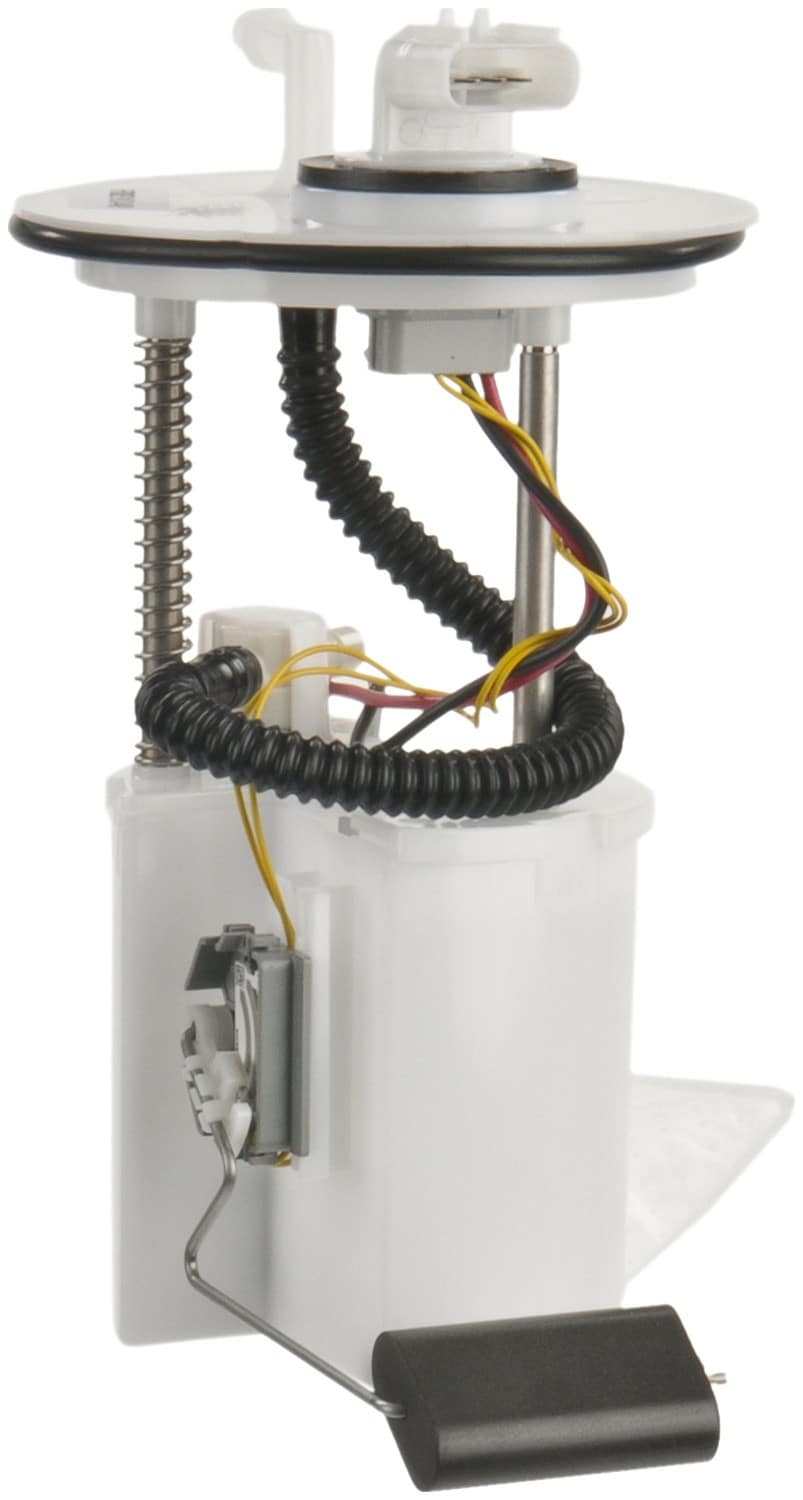

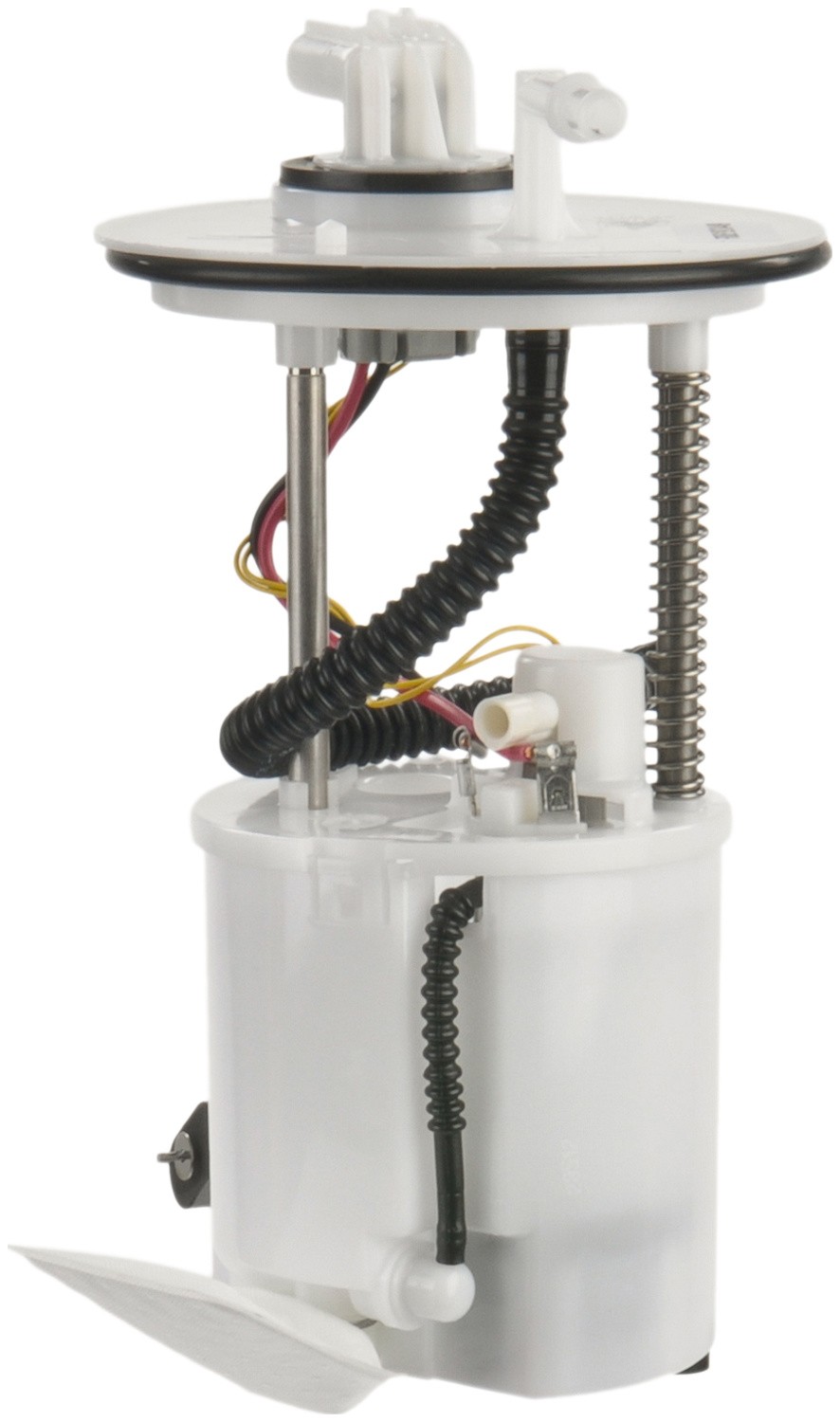

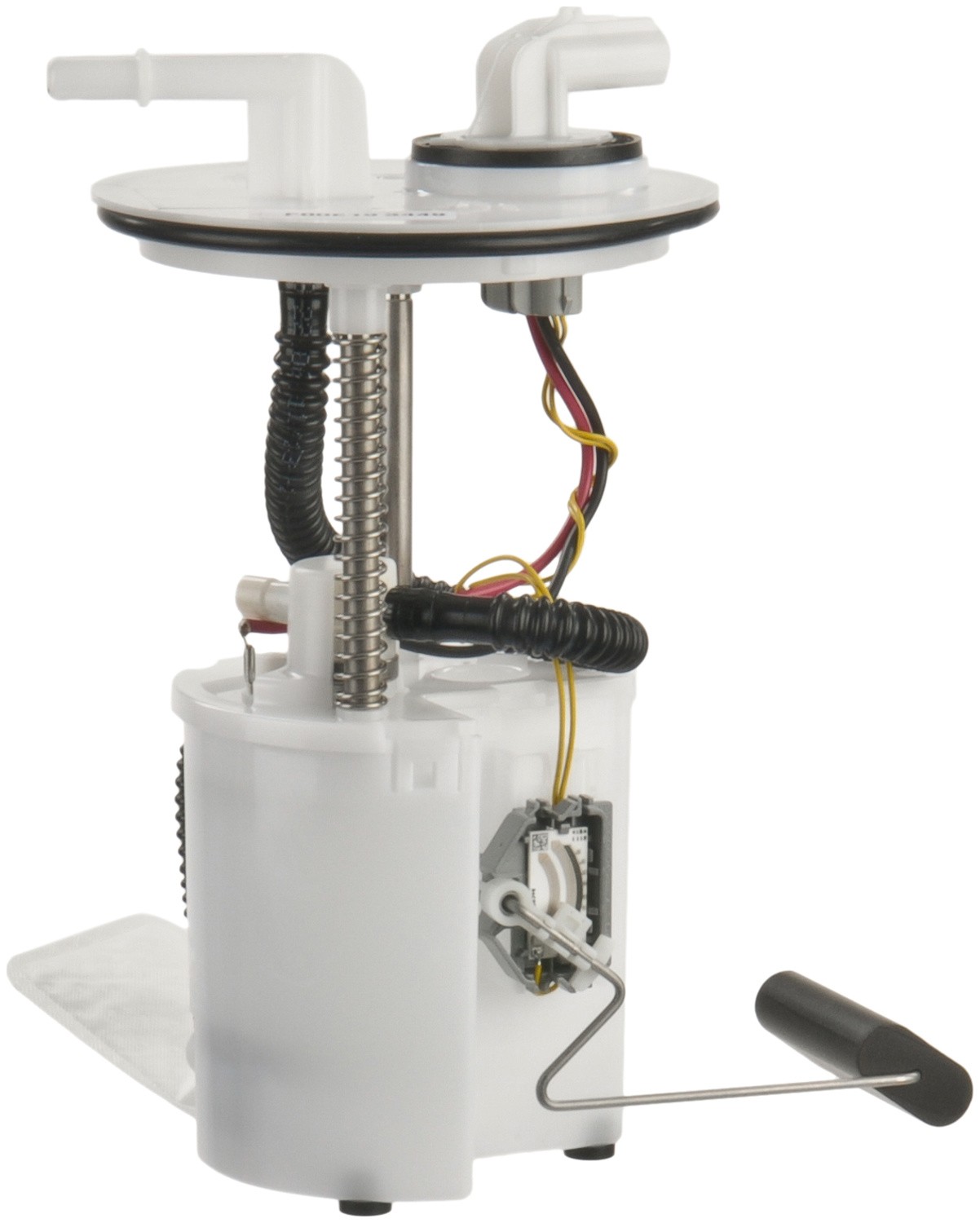

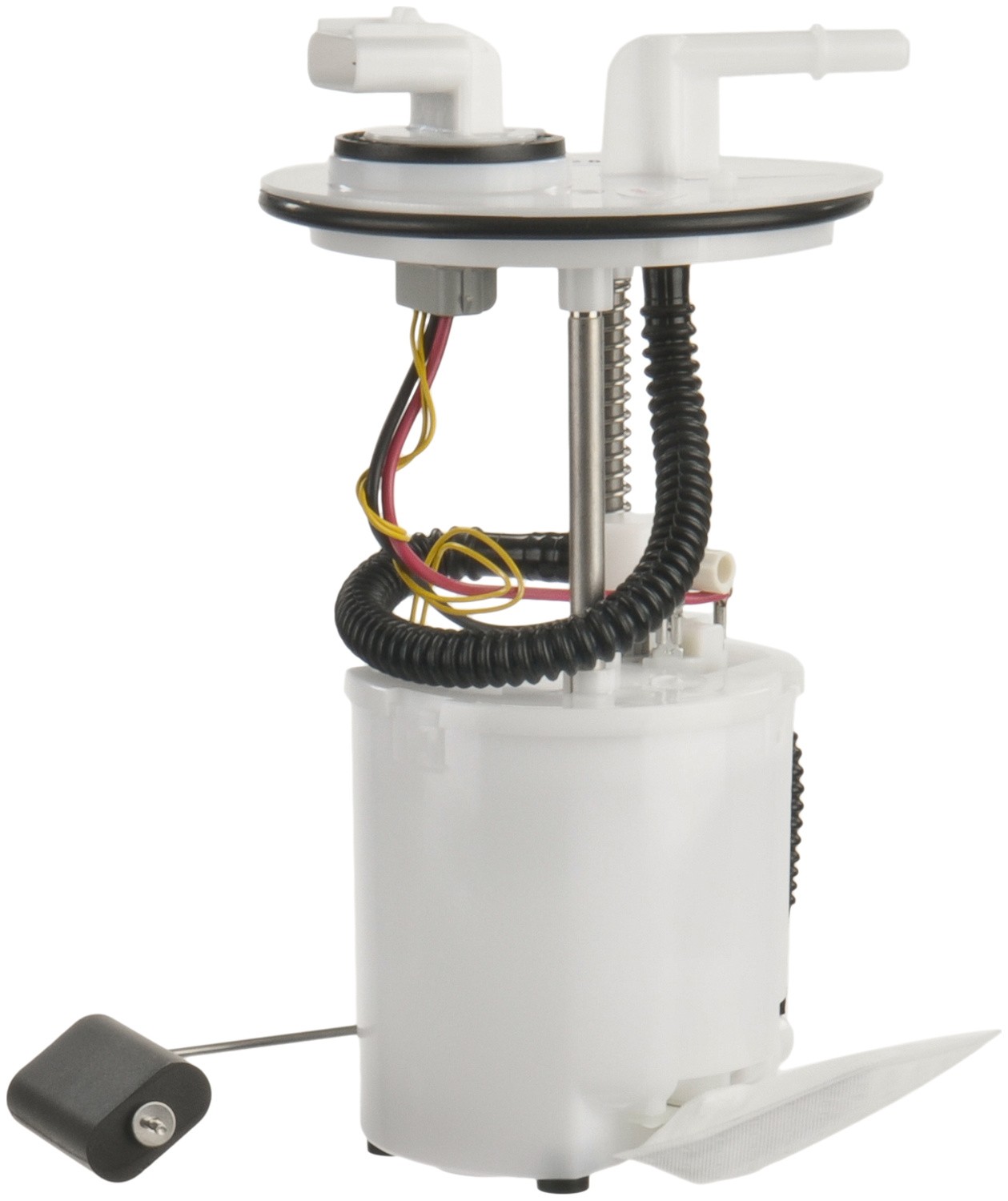

Bosch BOS-69154

Bosch BOS-69154

Features:

Bosch Aftermarket Fuel Assemblies are built and tested to the same rigorous quality standards as our OE fuel pumps to ensure a long, reliable service life
Designed to operate under extreme temperatures and under low fuel conditions while maintaining an extended service life
All Bosch fuel pumps are ‘end-of-line’ function tested in order to ensure highest quality and performance of all pumps in our program.
Bosch “Better than OE design”, improves upon ease of installation, drivability of your vehicle and extends the life of the vehicle
Patented Turbine Pump technology virtually eliminates fuel pulsation, noise, and reduces hot-start problems

Our team of Bosch Engineers brings the benefits of premium fuel pumps to the Automotive Aftermarket. Bosch fuel pumps are produced in the same production lines and are built then tested to the same exacting quality standards as Bosch OE fuel pumps to ensure a long, reliable service life. Get the job done right the first time, every time, with Bosch Premium fuel pumps.

Attributes:

Outlet Type	SAE
Outlet Outside Diameter	11.1
Inlet Outside Diameter	11.1
Outlet Quantity	1
Inlet Quantity	1
Inlet Type	OE Type
Housing Material	Polymer / Plastic
Gasket Or Seal Included	Yes
Connector Shape:	Square/Rectangle
Connector Quantity:	1
Wire Quantity	0
Regulator Included	Yes
Voltage	12
Terminal Quantity	4
Mounting Hardware Included	No
Grade Type	Premium
Terminal Type	Blade
958	Electric
1154	No
7246	Yes
8934	No
9103	No
Attachment Type (Fuel Pump Strainer)	Push On
Connector Gender	Female
Electrical	Yes
Filter Included	Yes
Fuel Delivery Type	Fuel Injection
Fuel Sending Unit Included	Yes
Gasket Or Seal Included	Yes
Gasket Or Seal Material	Synthetic or NBR Rubber
Hose Length (Fuel Pump)	0 ft
Inlet Outside Diameter	810 mm
In-Line Pump	N
Inside Diameter	6 mm
In Tank Or External	Internal
Lock Ring Included	No
Material	Mixed
Metered	No
Mounting Type	In-tank
Nozzle Shut Off Valve Included	No
Nozzle Type	Fixed
O-Ring Included	Yes
Outlet Outside Diameter	810 mm
Outside Diameter	100140 mm
Package Contents	1 Module Assembly
Port Quantity	2
Power Cord Length	0 ft
Power Source	Battery
Prop 65 Warning Label Required?	No
Pump Design	Electric
Pump Only Or Module	Module
Pump Type	Electric
Rim Shape	Round
Seal And Lock Ring Included	No
Self Priming	Yes
Static Ground Terminal	No
Strainer Included	Yes
Strainer Used With Pump	Yes
Suction Pipe Included	No
Terminal Gender	Male
Thickness	1.5 mm
Universal	No
Wiring Harness Included	No
New Or Remanufactured	New
Fuel Type	Gas
Housing Width	0
Wiring Harness Length	0
Wire Gauge Measurement	0
