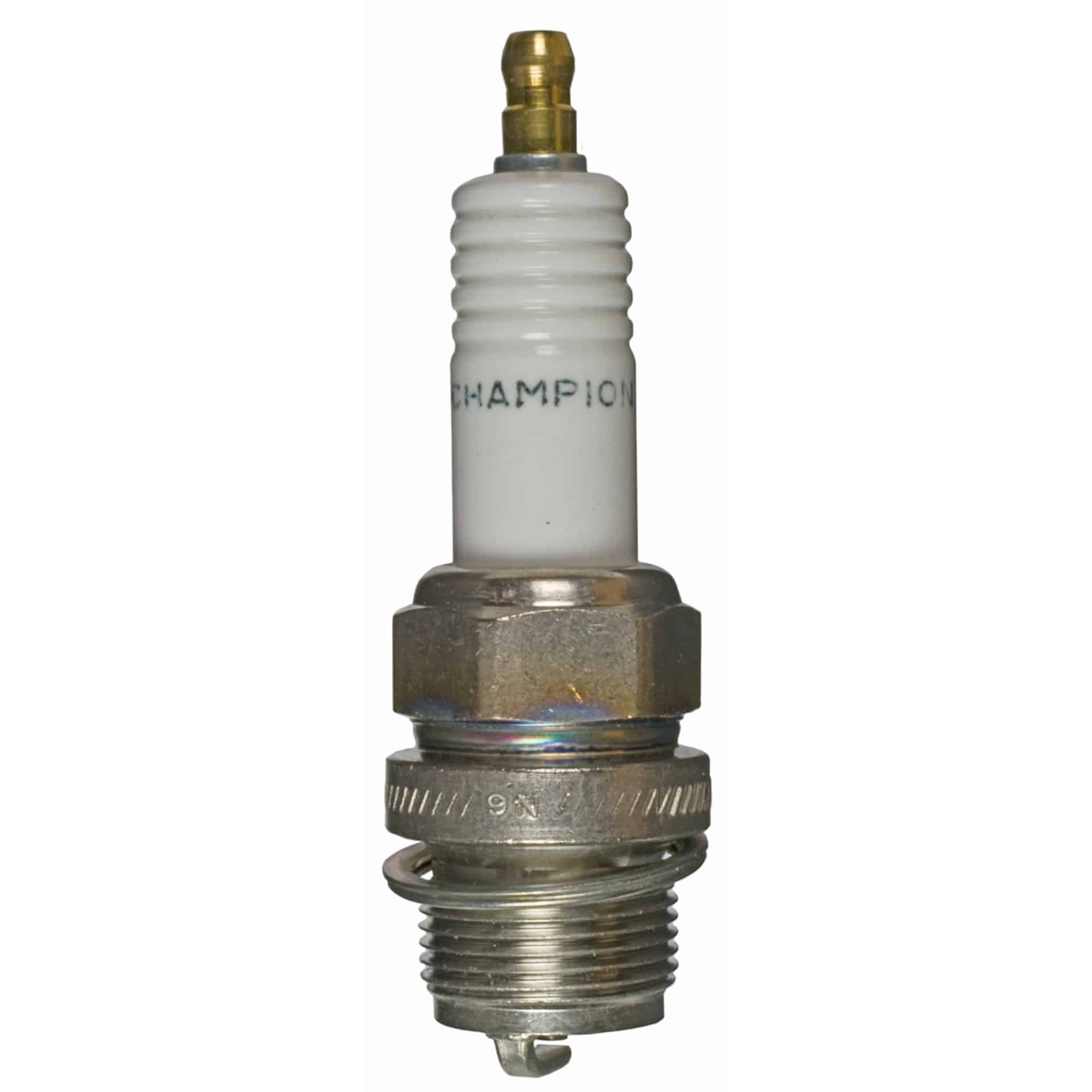

Copper Plus Spark Plug W20

CSP-520 Copper Plus Spark Plug W20

Champion Copper Plus 520 Spark Plug W20 for Agriculture and Industrial

Features:

Manufactured for long-lasting durability
Designed for high compression and aggressive environments
Backed by global engineering from Federal-Mogul
Superior performance and long lasting durability

Champion® industrial and agricultural spark plugs are backed by global engineering from Federal-Mogul. Precious metals, FISS and Hot Lock designs allow us to provide a plug that Withstands today’s high-temperature/high load service environments.

Atributes:

Thread Diameter	22.225
Part Description	Spark Plug
Seat Type	Flat
Manufacturer Heat Range	20
Center Electrode Design	Standard
Indexed	No
Classification	Champion Agricultural Plugs
Hex Size	0.938
Hex Size	23.83
Center Electrode Tip Material	Nickel
Resistor Type	No
Washer Included	Yes
Ground Electrode Tip Material	Nickel
Reach	0.625
Plug Type	W20
Washer Type	Crush
Hex Type	Hex
Ground Electrode Quantity	1
Thread Diameter	0.875
Ground Electrode Core Material	Nickel
Pre-Gap Size	0.025
Pre-Gap Size	0.65
Grade Type	Premium

Vehicle Applications:

Make	Model	Years
Cadillac	341 A	1928 to 1928
Cadillac	341	1926 to 1927
Cadillac	Model 30	1909 to 1914
Cadillac	Model A	1903 to 1904
Cadillac	Model B	1904 to 1905
Cadillac	Model C	1905 to 1905
Cadillac	Model D	1905 to 1905
Cadillac	Model G	1907 to 1908
Cadillac	Model H	1906 to 1908
Cadillac	Model K	1906 to 1907
Cadillac	Model L	1906 to 1906
Cadillac	Model M	1906 to 1908
Cadillac	Model S	1908 to 1908
Cadillac	Model T	1908 to 1909
Cadillac	Type 51	1915 to 1915
Cadillac	Type 53	1916 to 1916
Cadillac	Type 55	1917 to 1917
Cadillac	Type 57	1918 to 1919
Cadillac	Type 59	1920 to 1921
Cadillac	Type 61	1922 to 1923
Cadillac	V-63	1924 to 1925
Chevrolet	490	1921 to 1922
Chevrolet	FB	1921 to 1922
Chevrolet	Model G	1921 to 1923
Chevrolet	Model T	1921 to 1923
Chevrolet	Superior Truck	1924 to 1926
Chevrolet	Superior	1923 to 1926
Cleveland	Model 31	1925 to 1926
Cleveland	Model 40	1919 to 1920
Cleveland	Model 41	1921 to 1922
Cleveland	Model 42	1923 to 1924
Cleveland	Model 43	1925 to 1926
Nash	Light Six	1925 to 1926
Nash	Standard	1927 to 1928
