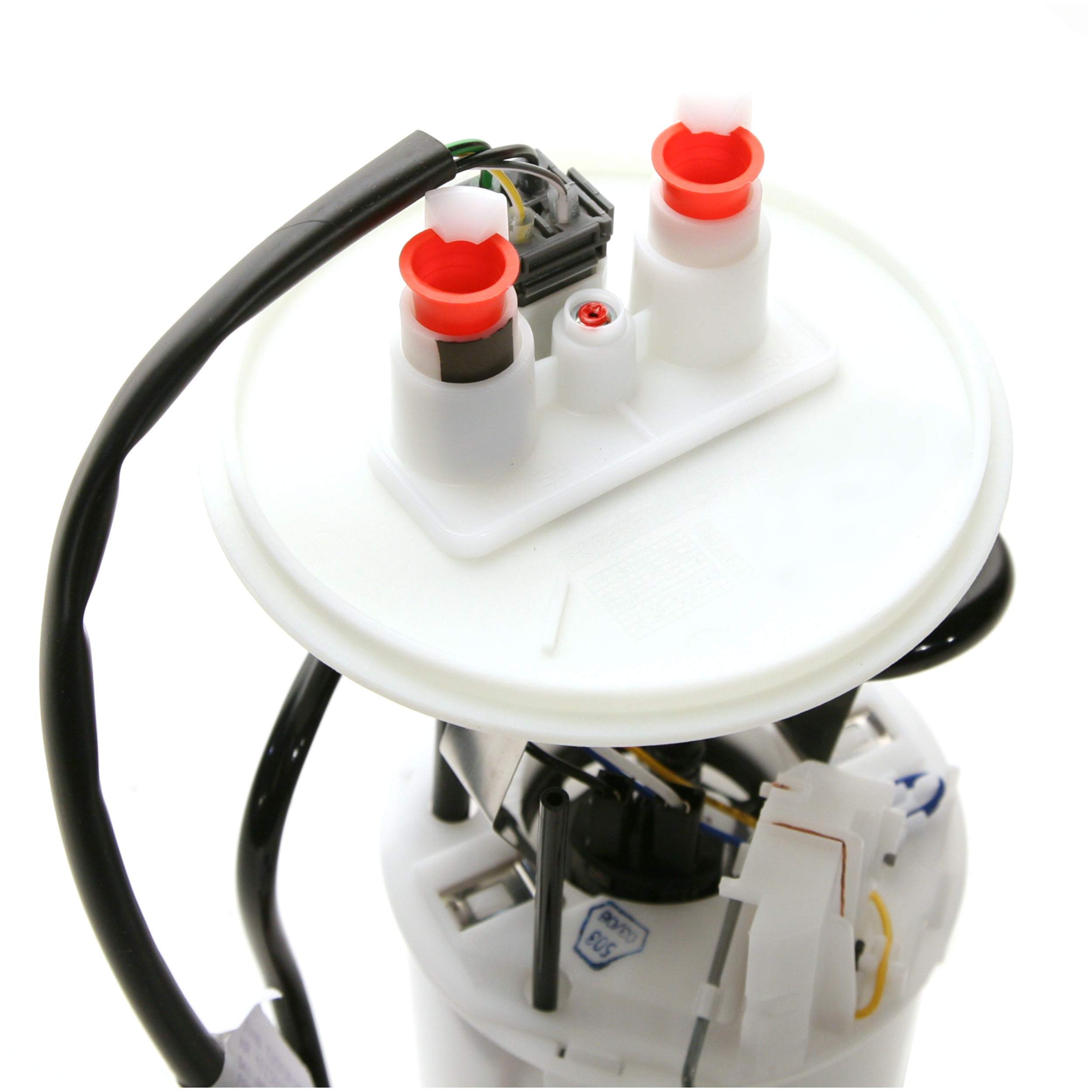

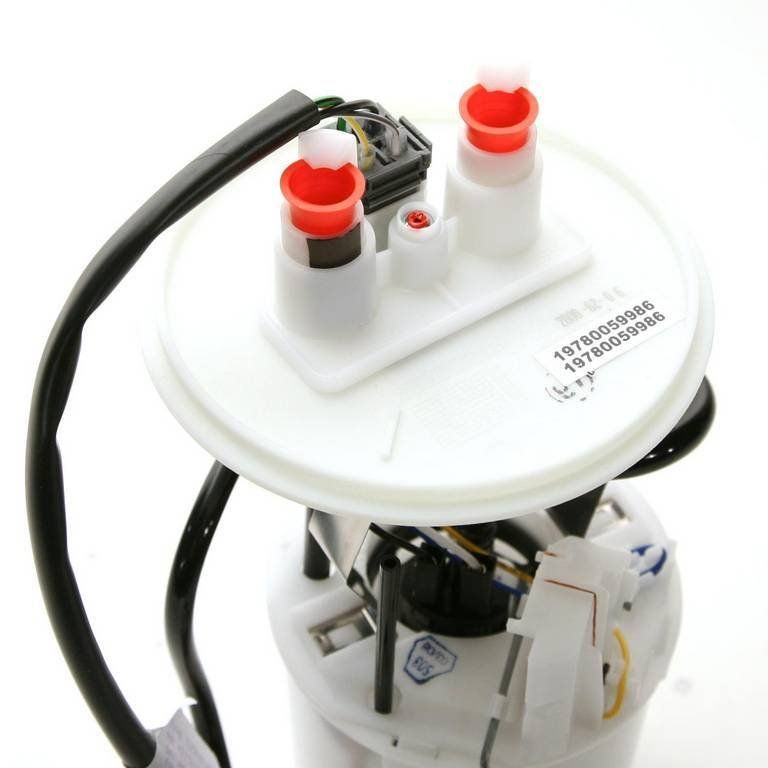

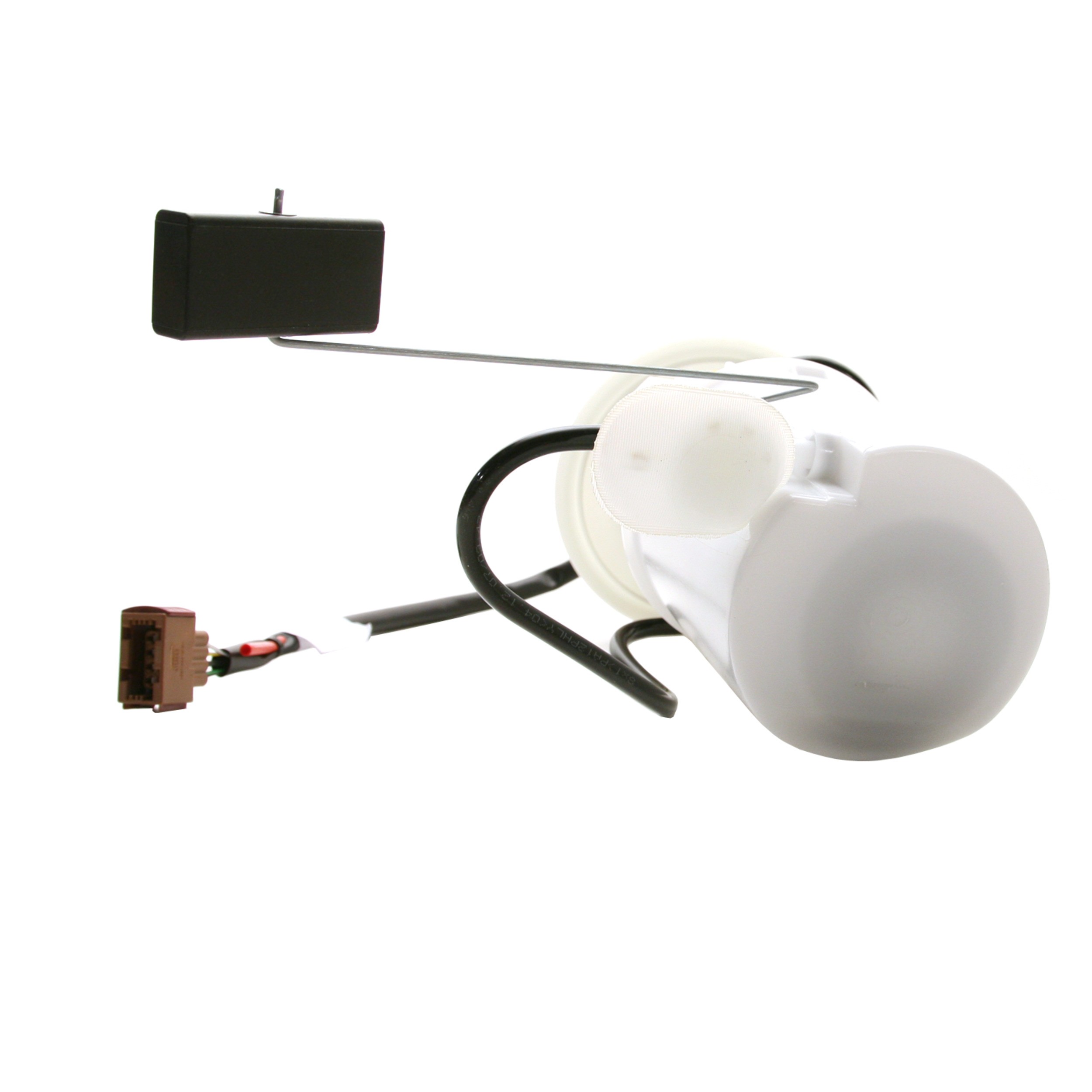

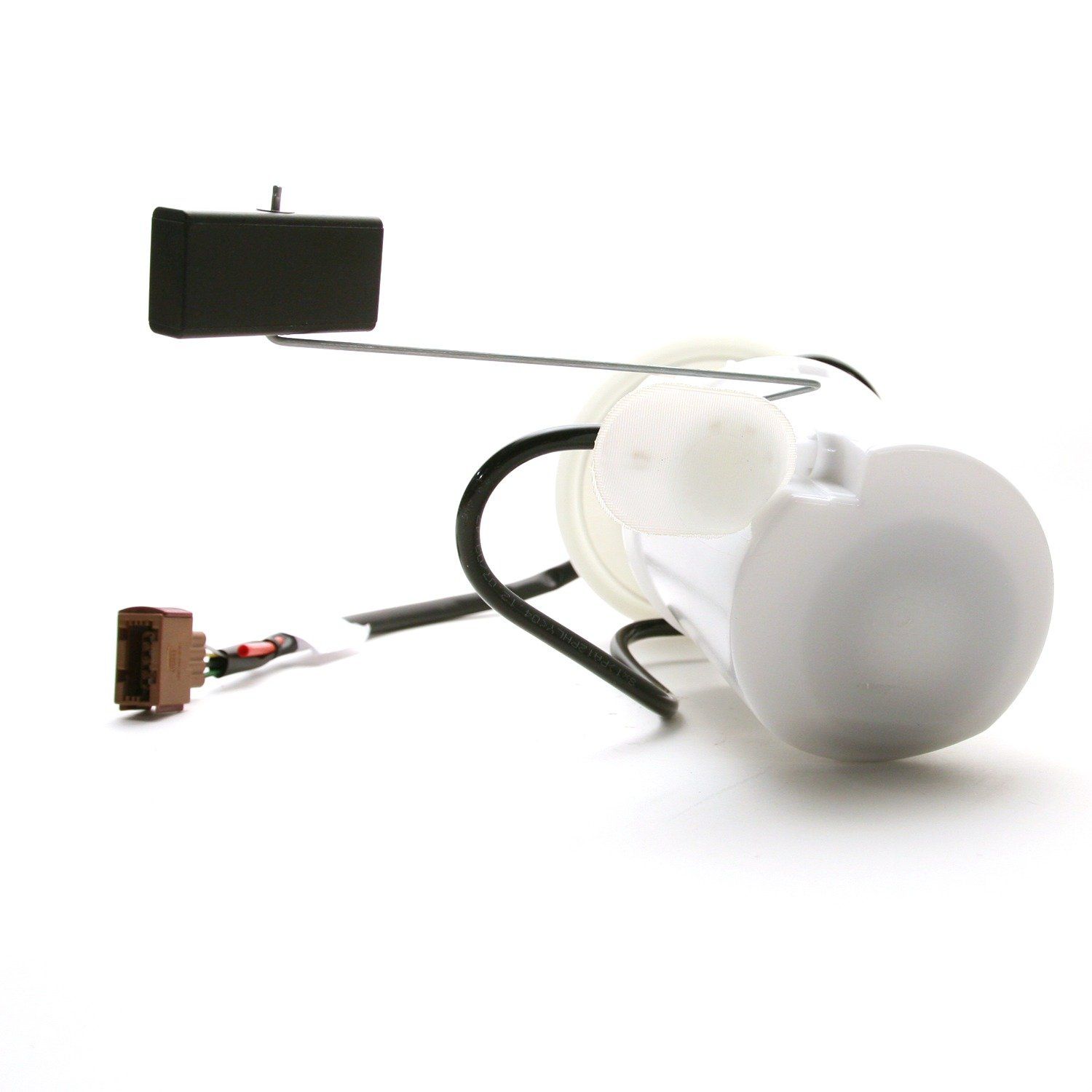

Delphi FG0513 Fuel Pump Module Assembly

Delphi FG0513 Fuel Pump Module Assembly

Features:

Part is validated, tested and matched to the right vehicle application
Always be sure to check and clean fuel tank to avoid unnecessary returns
Lower failure rates due to its innovative design and durability
Lower amperage draws less load on vehicle’s electrical system
Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
Delphi is a global OE manufacturer and all fuel pumps are built to Delphi’s OE standards

Delphi is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.

Attributes:

9133	32 GPH
Maximum Pressure	105 PS
Voltage	12 2H
Outlet Outside Diameter	0.375 IN
Outlet Quantity	2
Outlet Type	Female Quick Connect
Inlet Type	Strainer
Terminal Gender:	Male

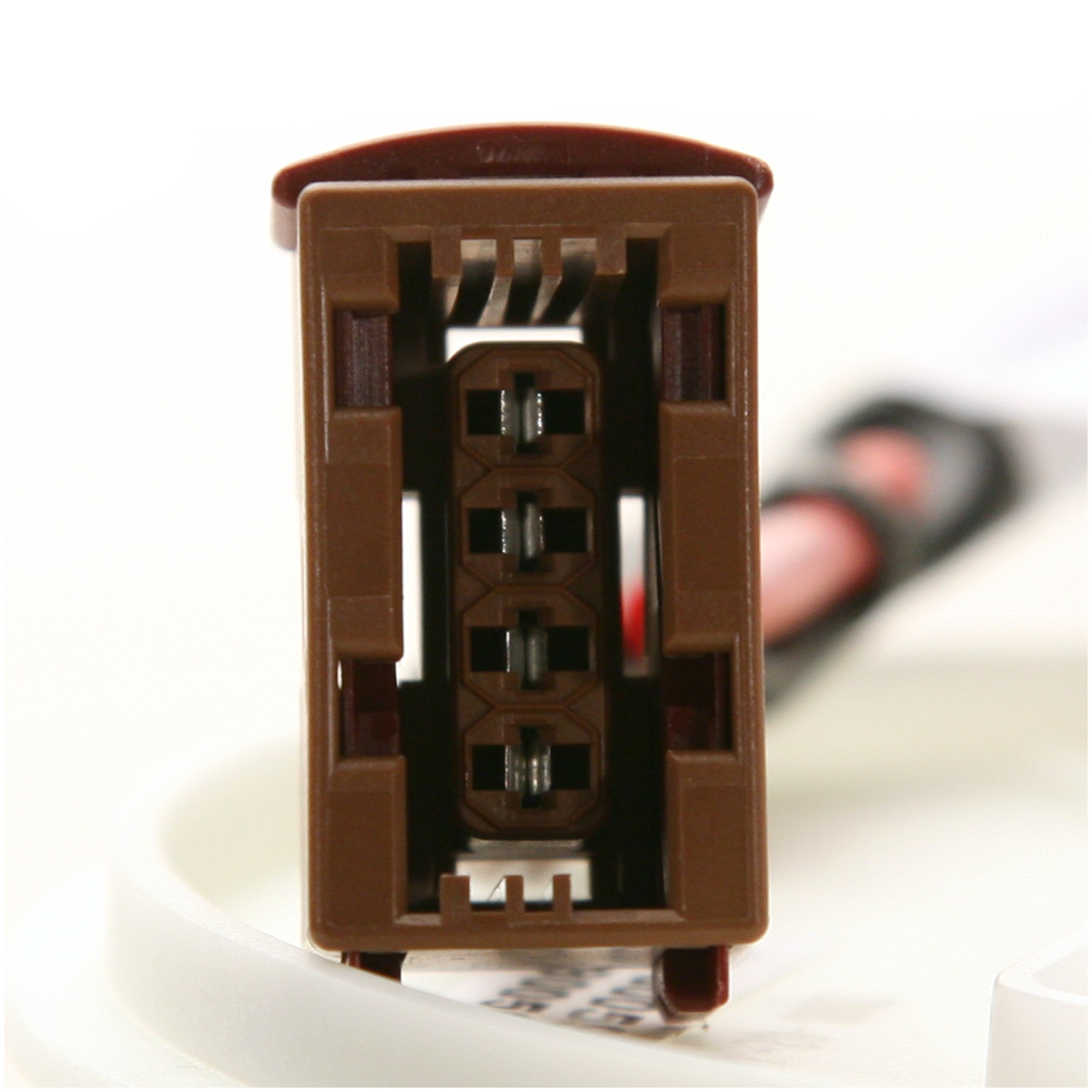

Connector Gender:	Female
Terminal Quantity	4
Installation Warnings	No
Housing Material	Plastic
Gasket Or Seal Included	Yes
Connector Shape:	Rectangle
Connector Quantity:	1
Grade Type	Premium
Universal Or Specific Fit	Specific
Mounting Hardware Included	No
Terminal Type	Pin
Regulator Included	No
Fuel Type	Gas
9102	12 68
8932	44 PS
8924	396 82
8923	52 82
518	Yes
4284	Yes
1154	No
1153	Yes

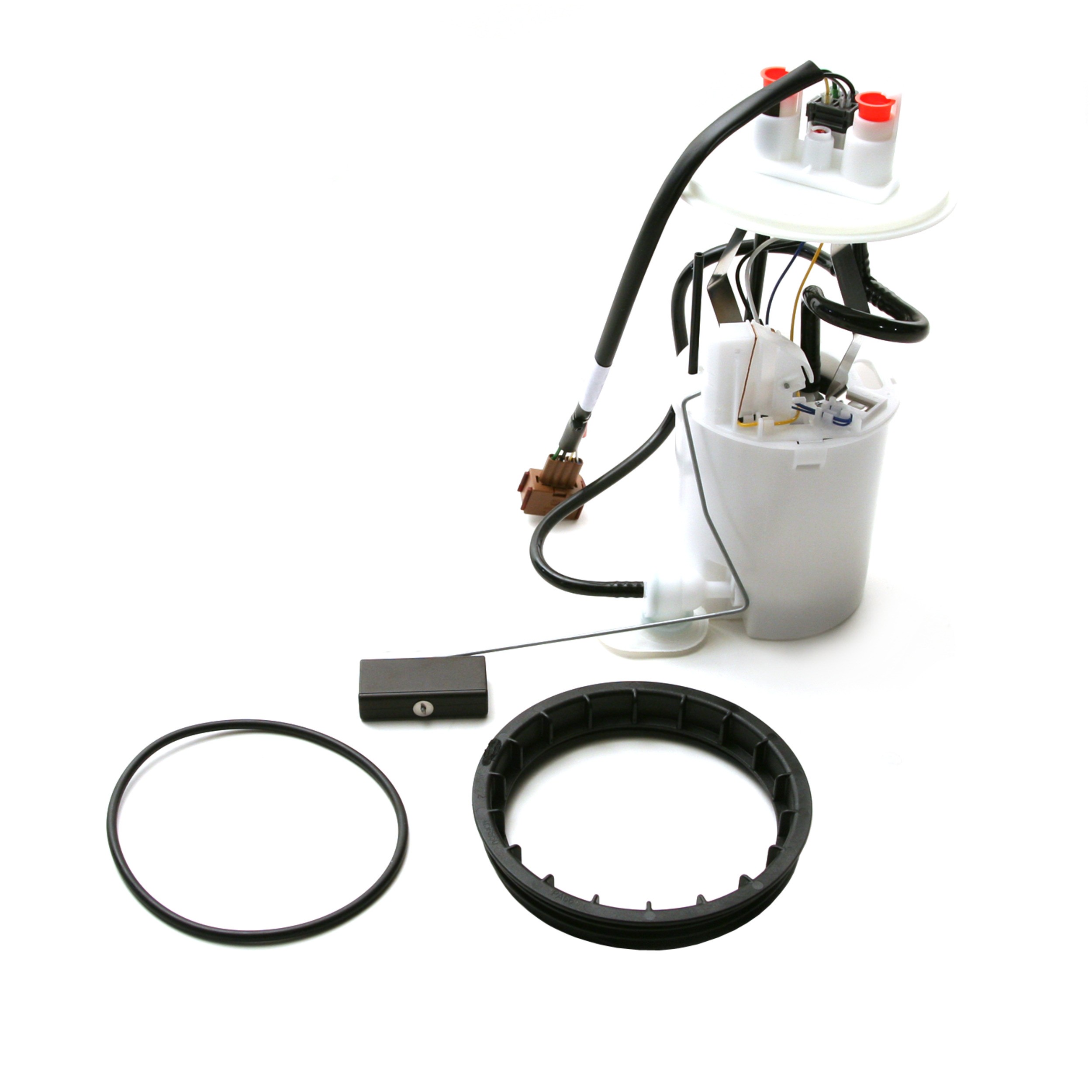

Package Contents	Fuel Pump Module Assembly w/Float Arm, Seal, Lock Ring, Instruction Sheet
7246	No
7617	In Tank
8930	Nitrile Rubber
8933	External
8934	No
9100	Turbine
9103	No
958	Electric
