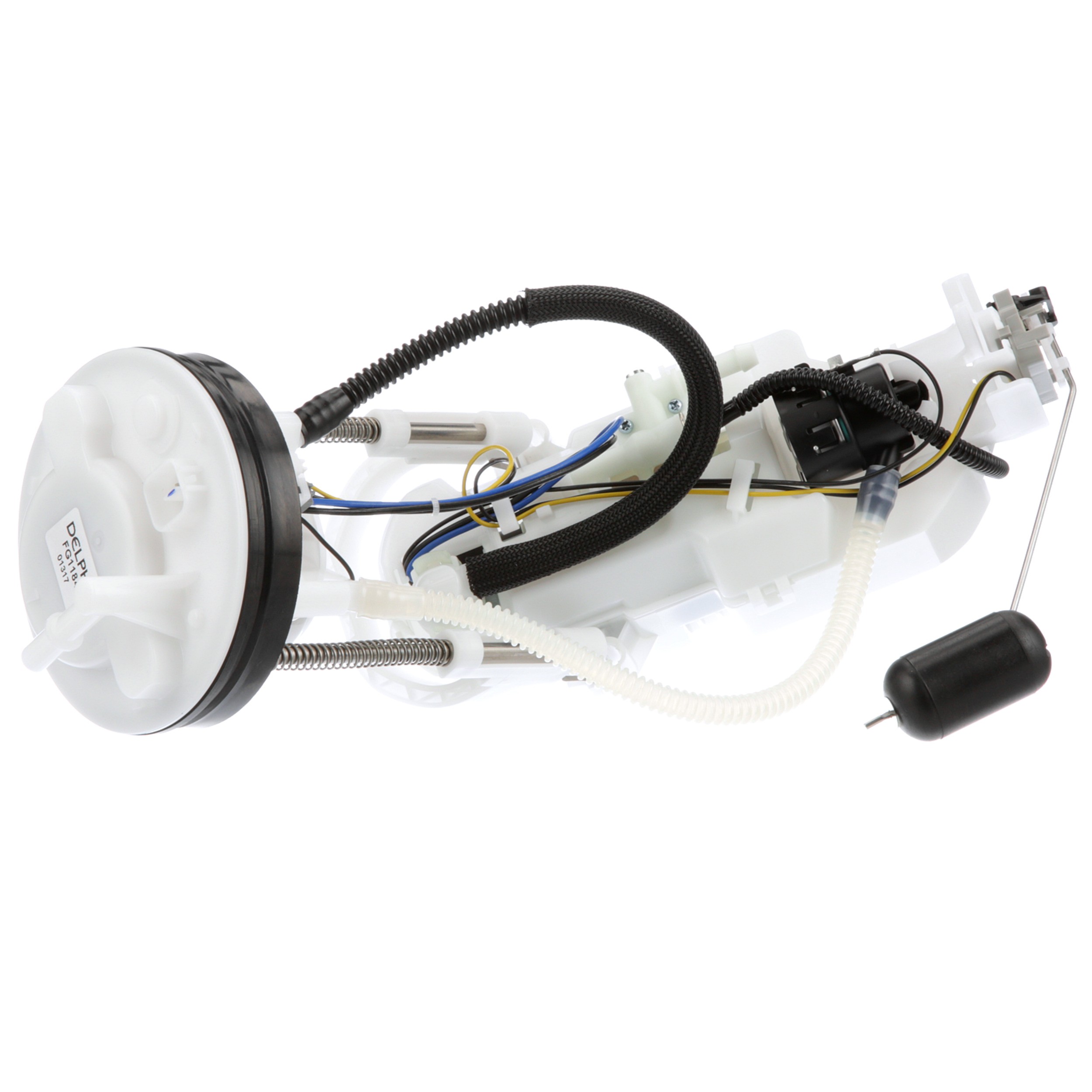

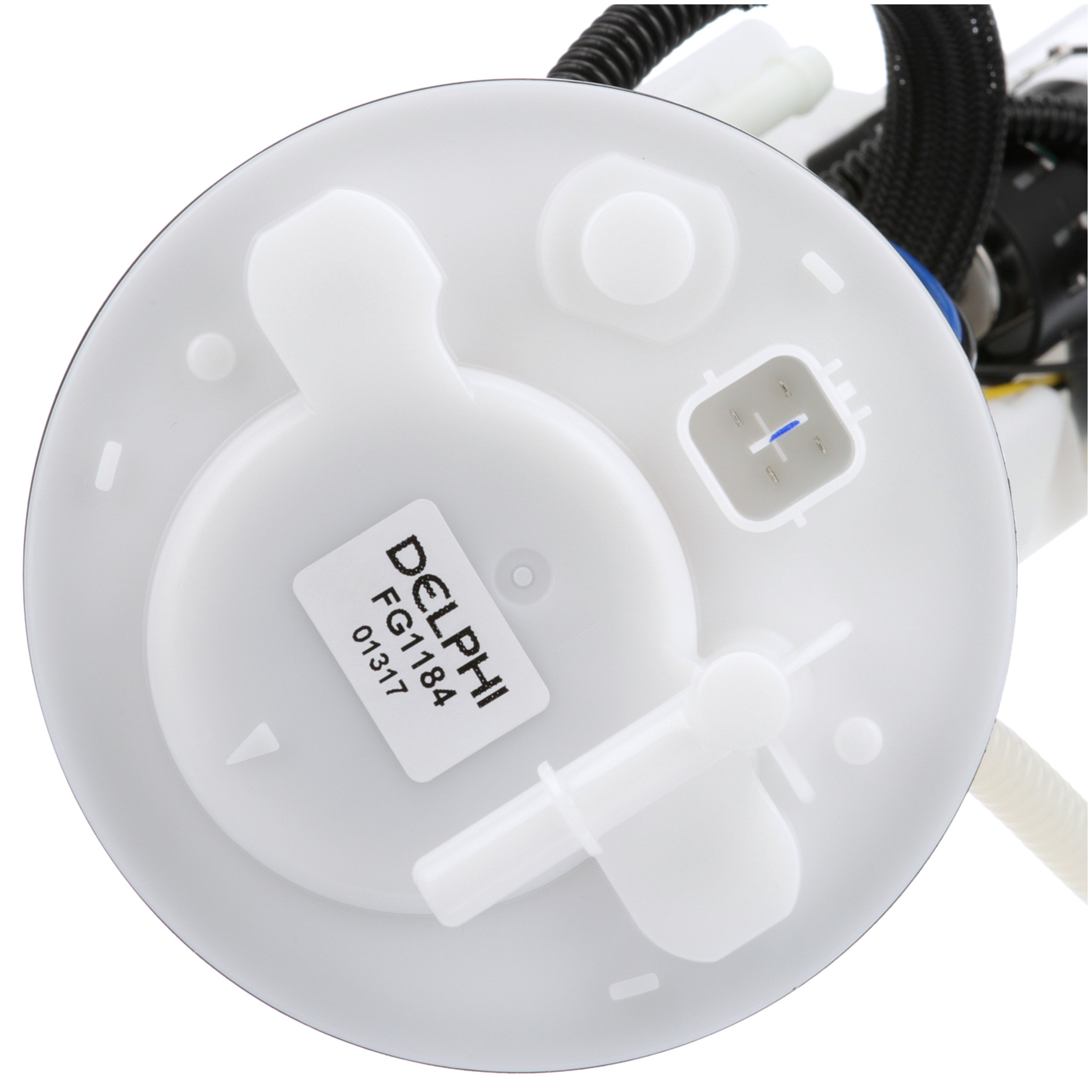

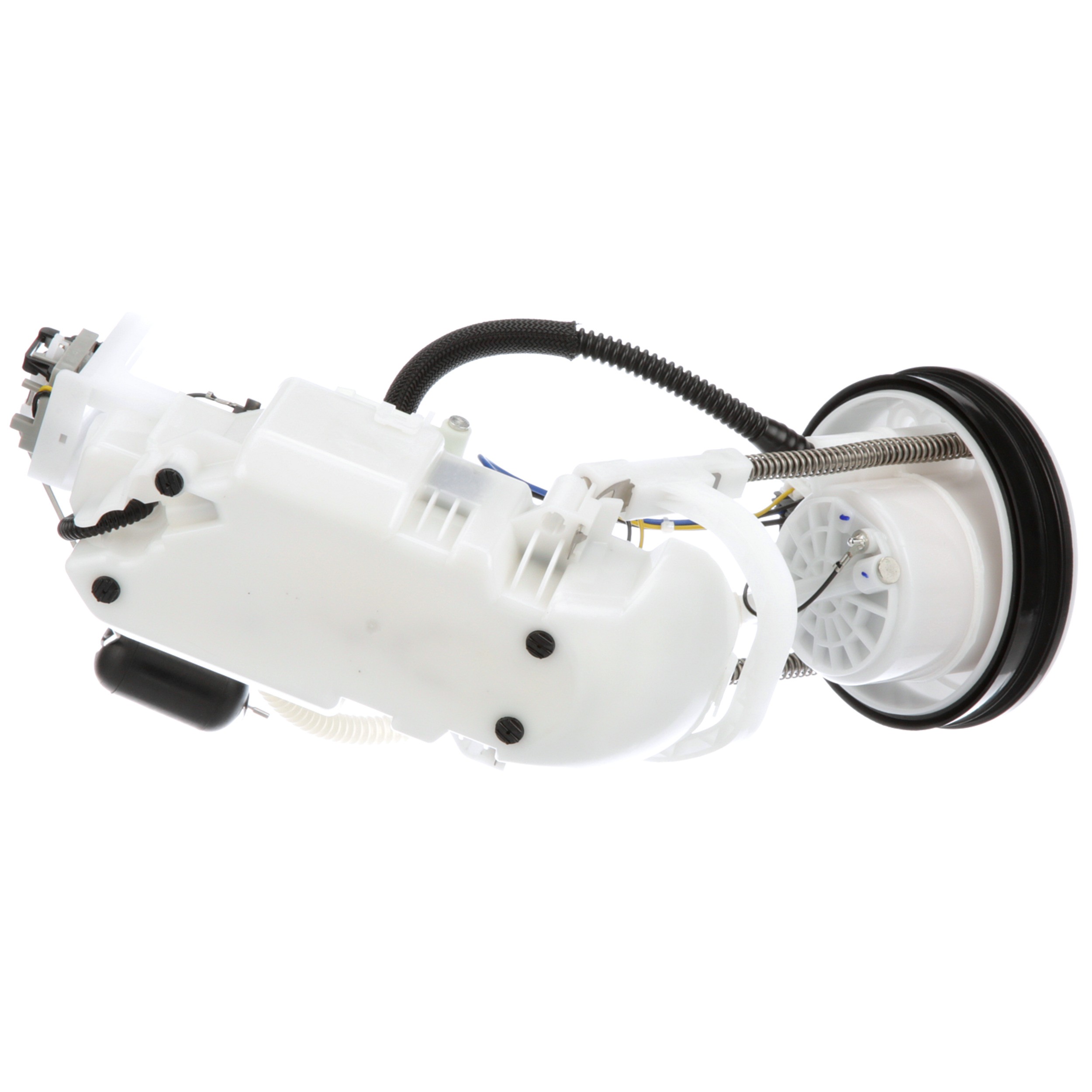

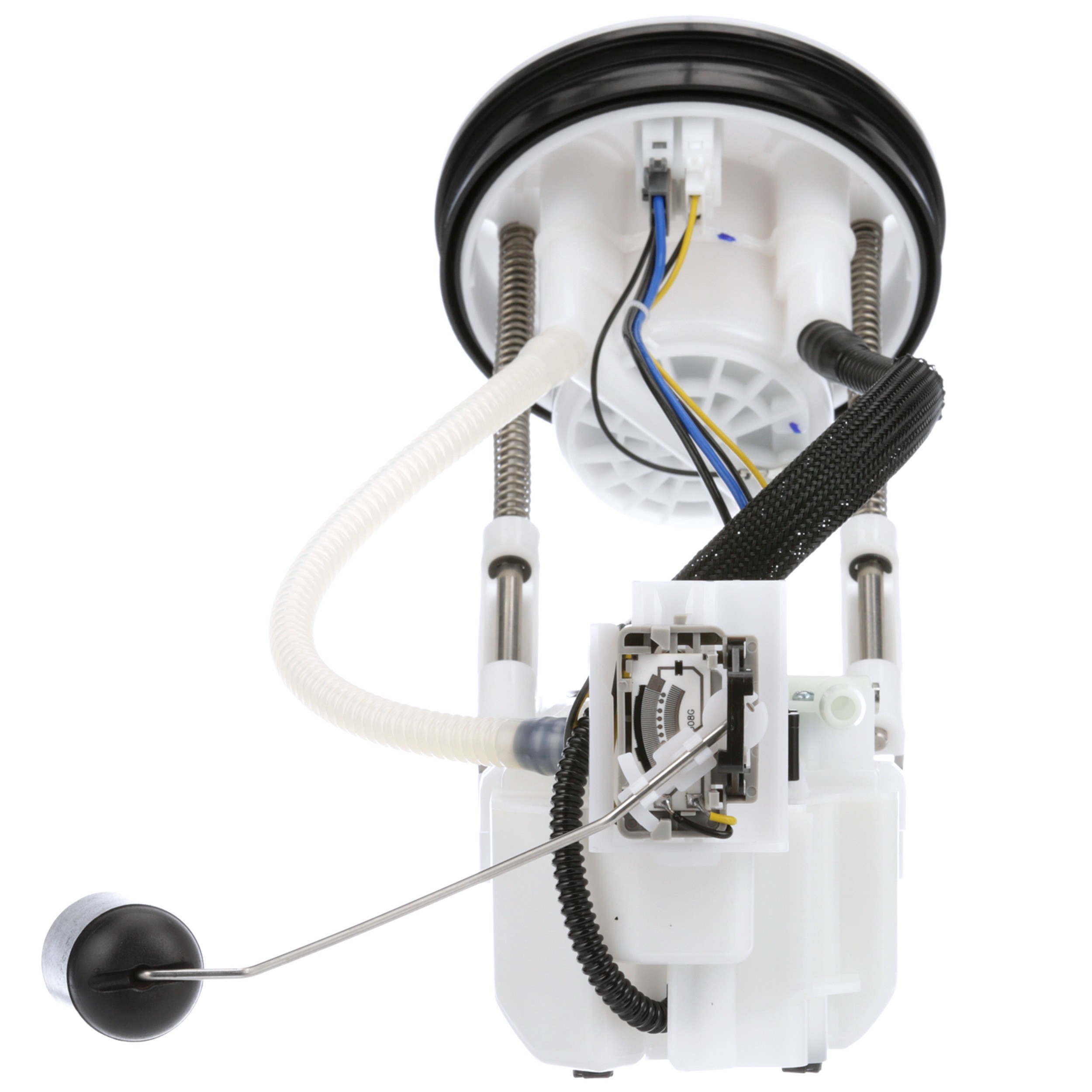

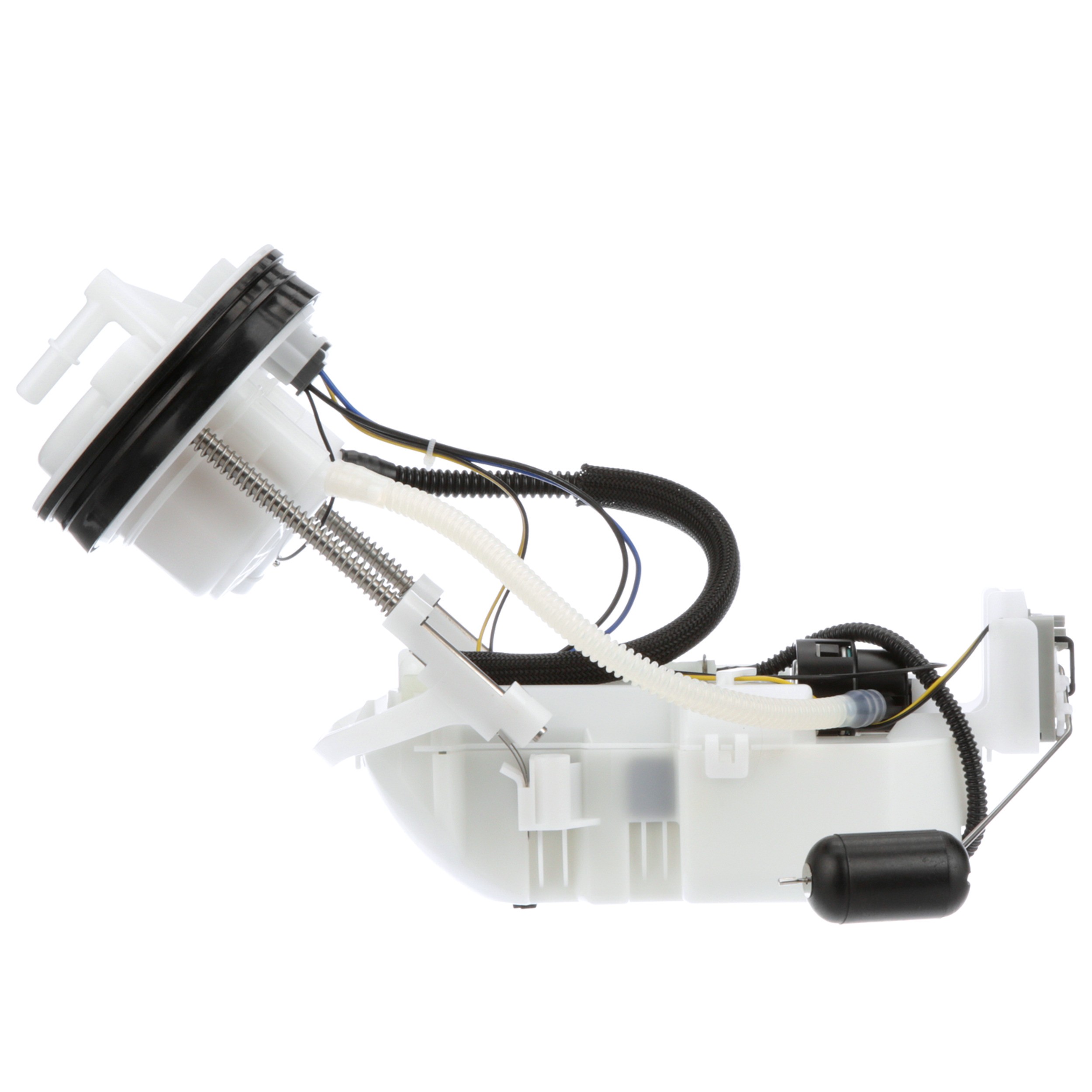

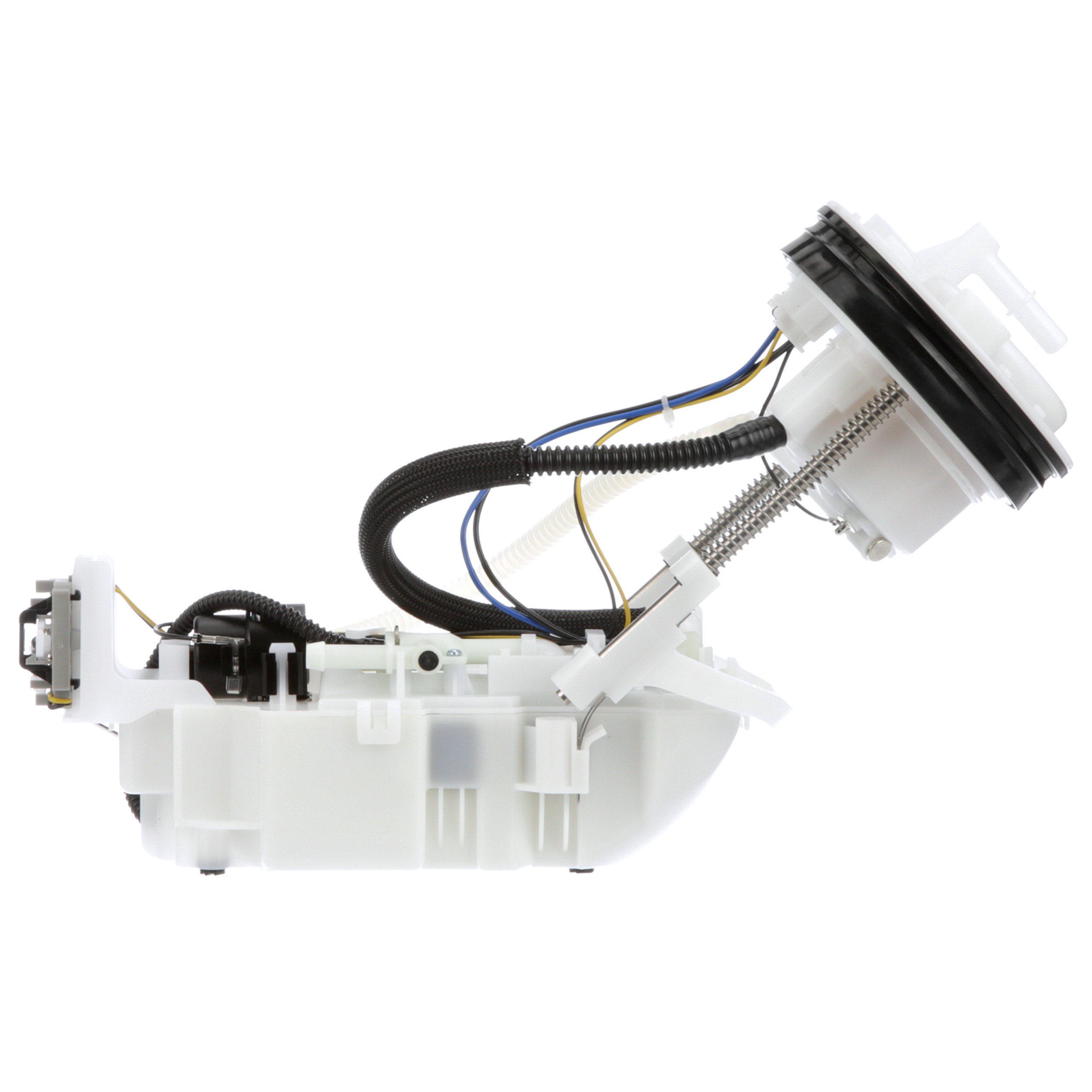

Delphi FG1184 Fuel Pump Module Assembly

Delphi FG1184 Fuel Pump Module Assembly

Features:

Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
Delphi is a global OE manufacturer and all fuel pumps are built to Delphi’s OE standards
Lower failure rates due to its innovative design and durability
Always be sure to check and clean fuel tank to avoid unnecessary returns
Part is validated, tested and matched to the right vehicle application
Lower amperage draws less load on vehicle’s electrical system

Delphi is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.

Attributes:

Gasket Or Seal Included	Yes
Housing Material	Plastic
Installation Warnings	No

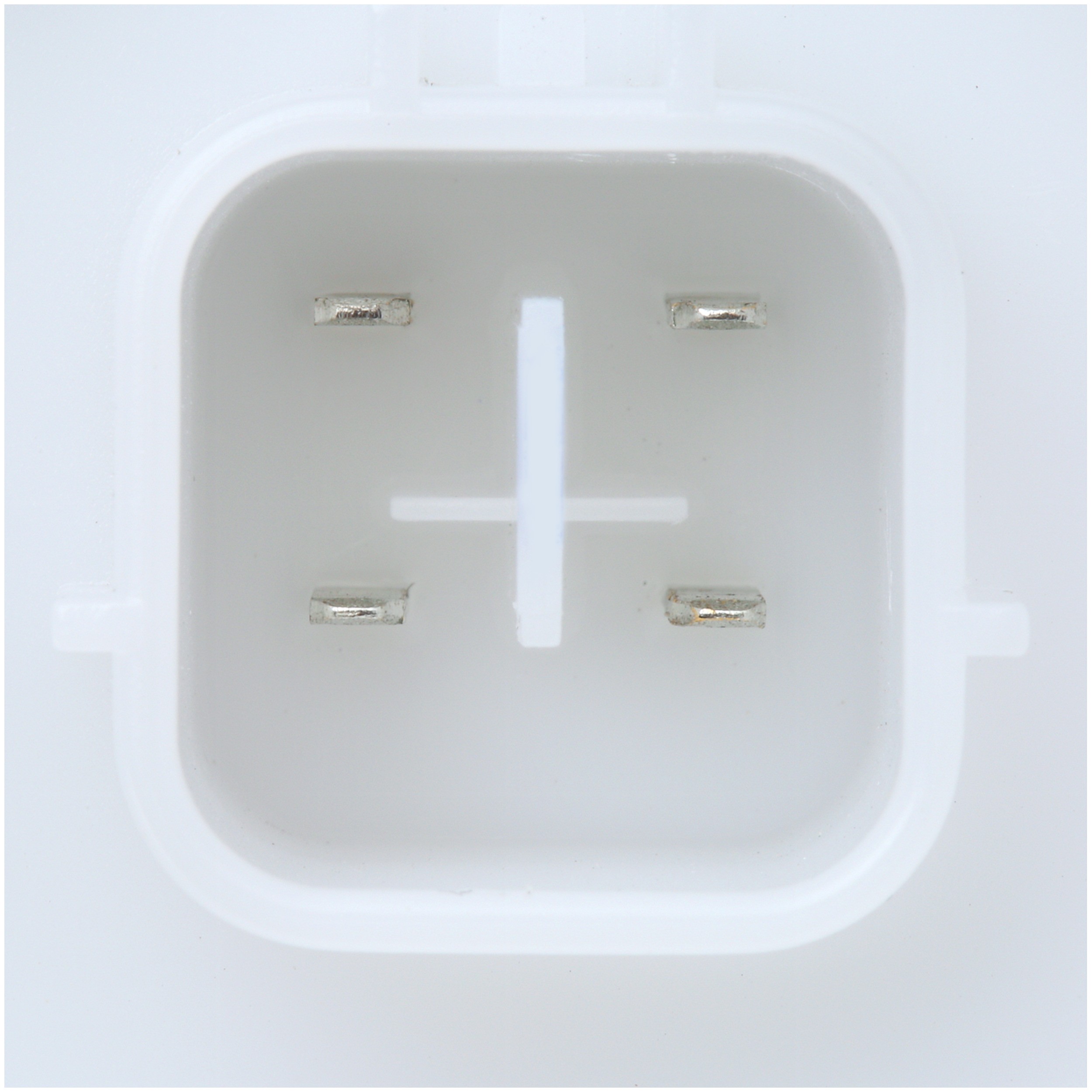

Terminal Quantity	4
Connector Gender:	Female
Terminal Gender:	Male
Inlet Type	Strainer
Outlet Type	Quick Connect
Outlet Quantity	1
Universal Or Specific Fit	Specific
Mounting Hardware Included	No
Terminal Type	Blade
Regulator Included	Yes
Fuel Type	Gas
958	Electric
9103	No
9100	Turbine
8934	No
8933	Internal
8930	Nitrile Rubber
7617	In Tank
7246	Yes
518	Yes
4284	Yes
1154	No
1153	Yes

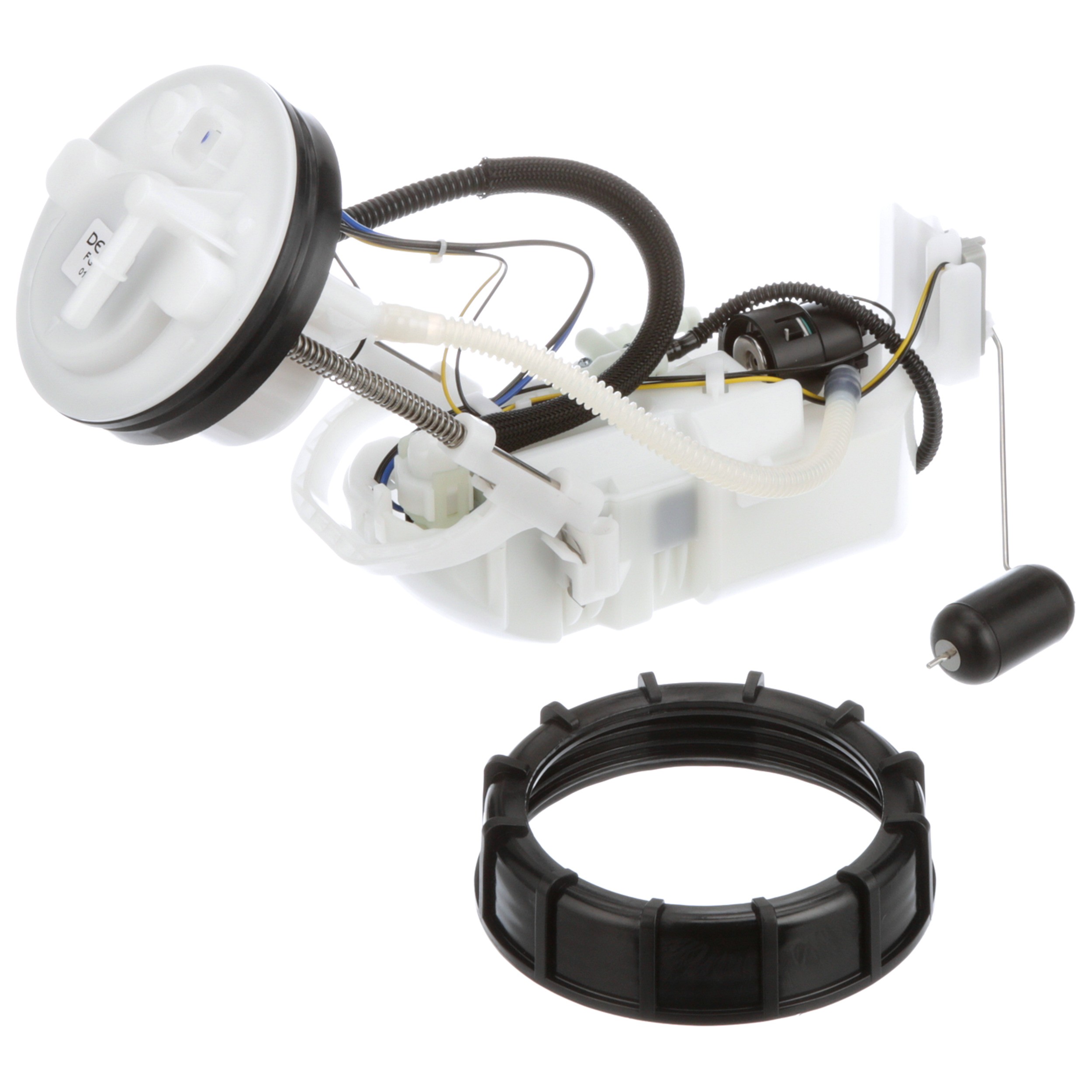

Package Contents	Fuel Pump Module Assembly w/Float Arm, Lock Ring, Instruction Sheet
Position(s)	Left
9133	34 GPH
9102	9 68
8932	58 PS
8924	10 82
8923	340 82
Outlet Outside Diameter	0.375 IN
Voltage	12 2H
Maximum Pressure	94 PS
Grade Type	Premium
Connector Quantity:	1
Connector Shape:	Rectangle
