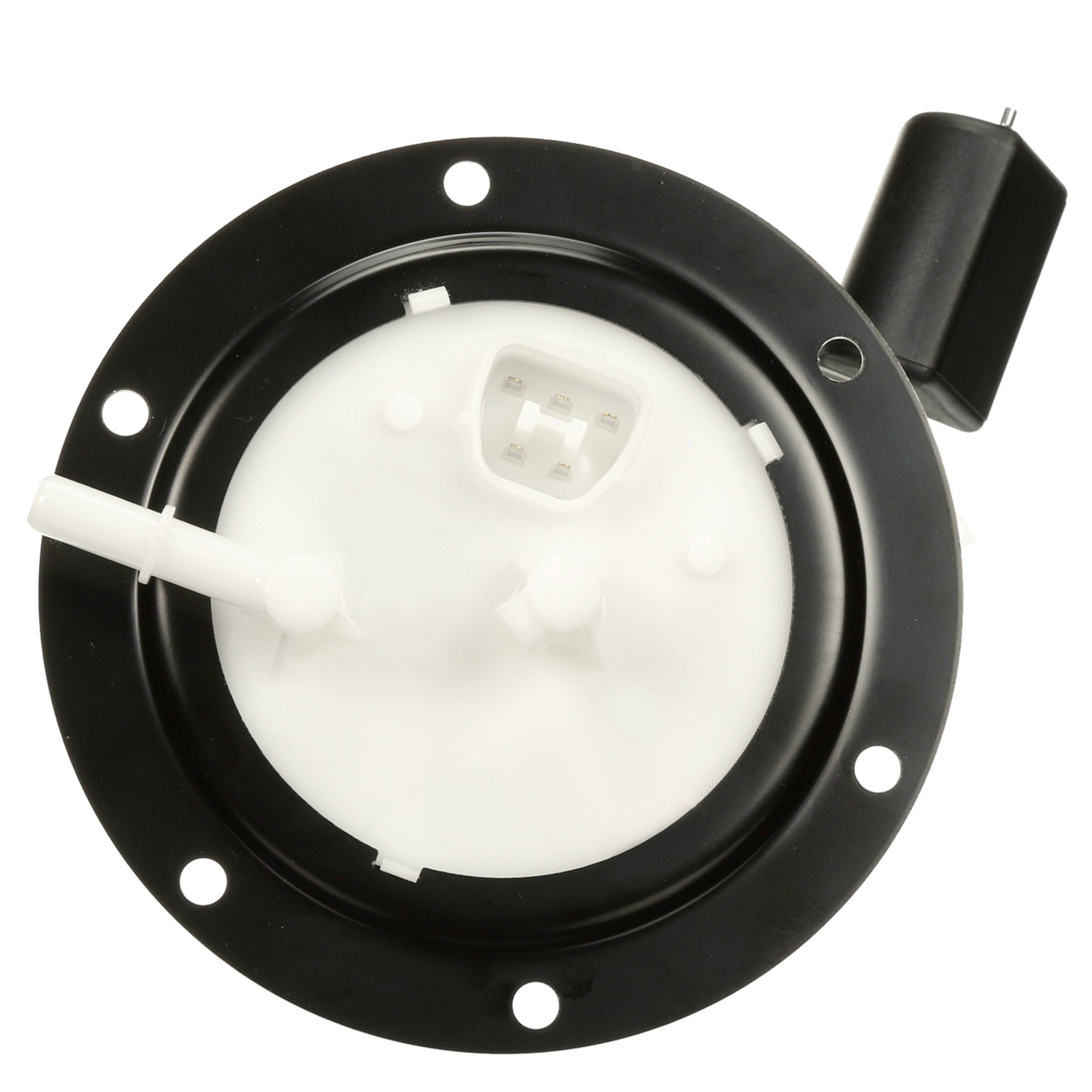

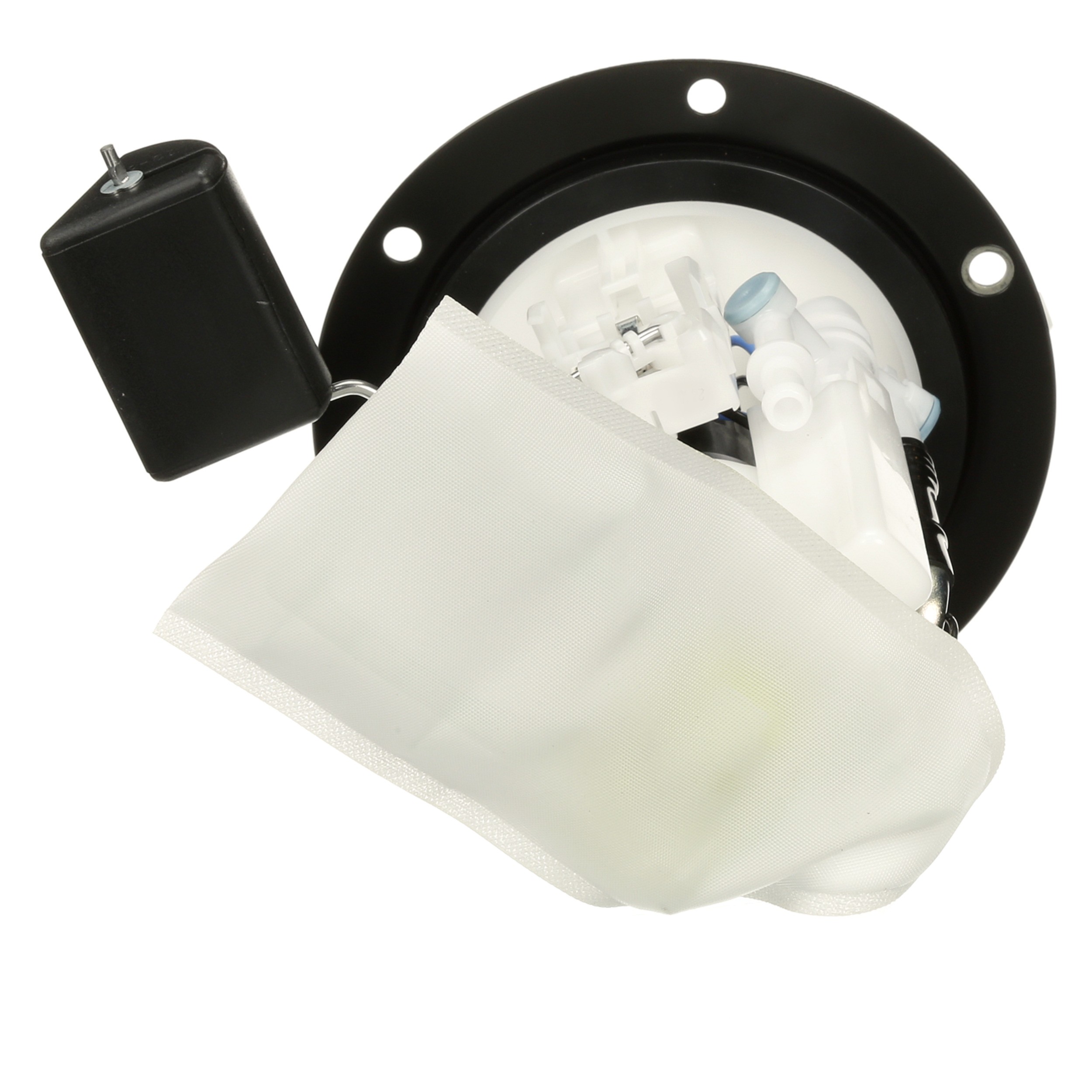

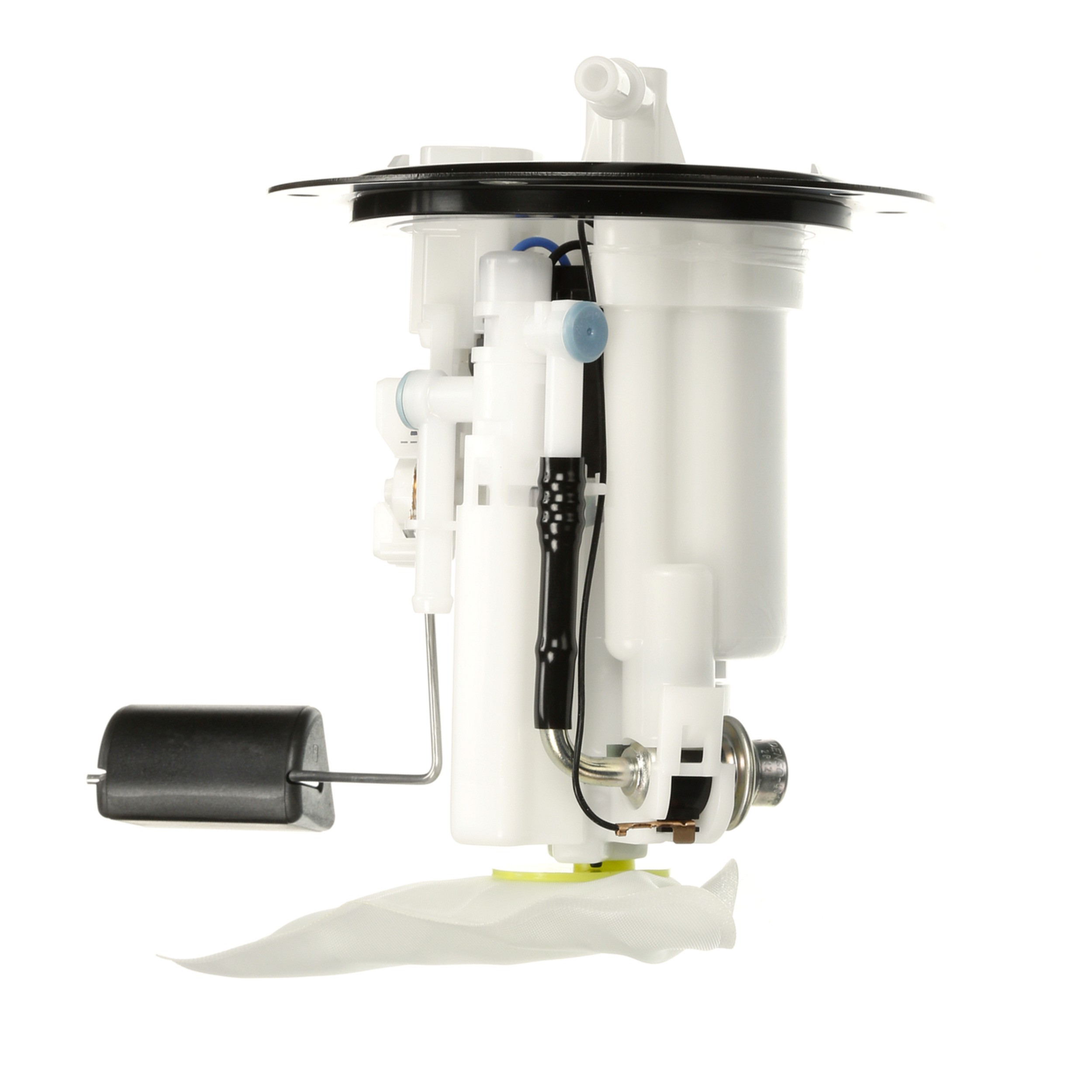

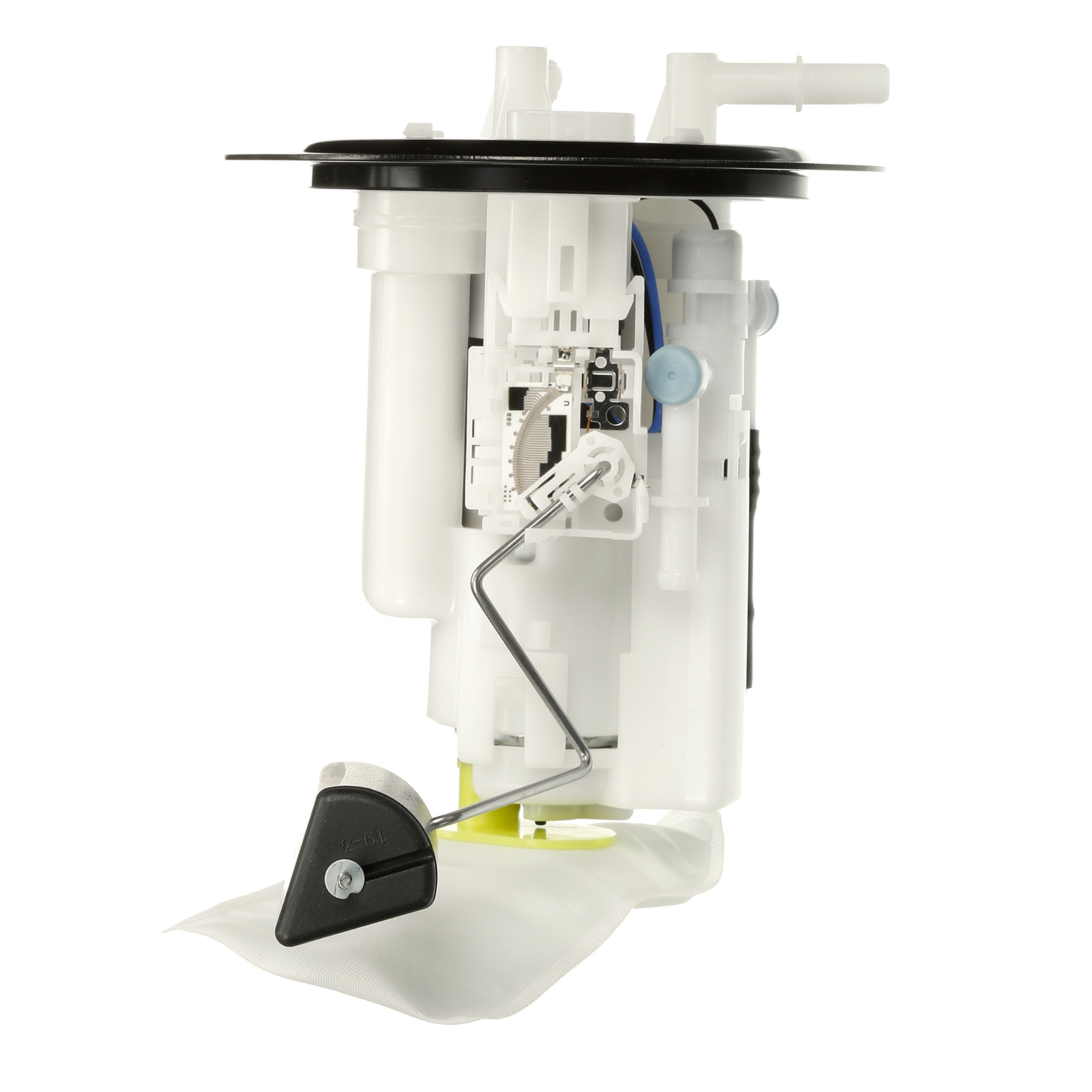

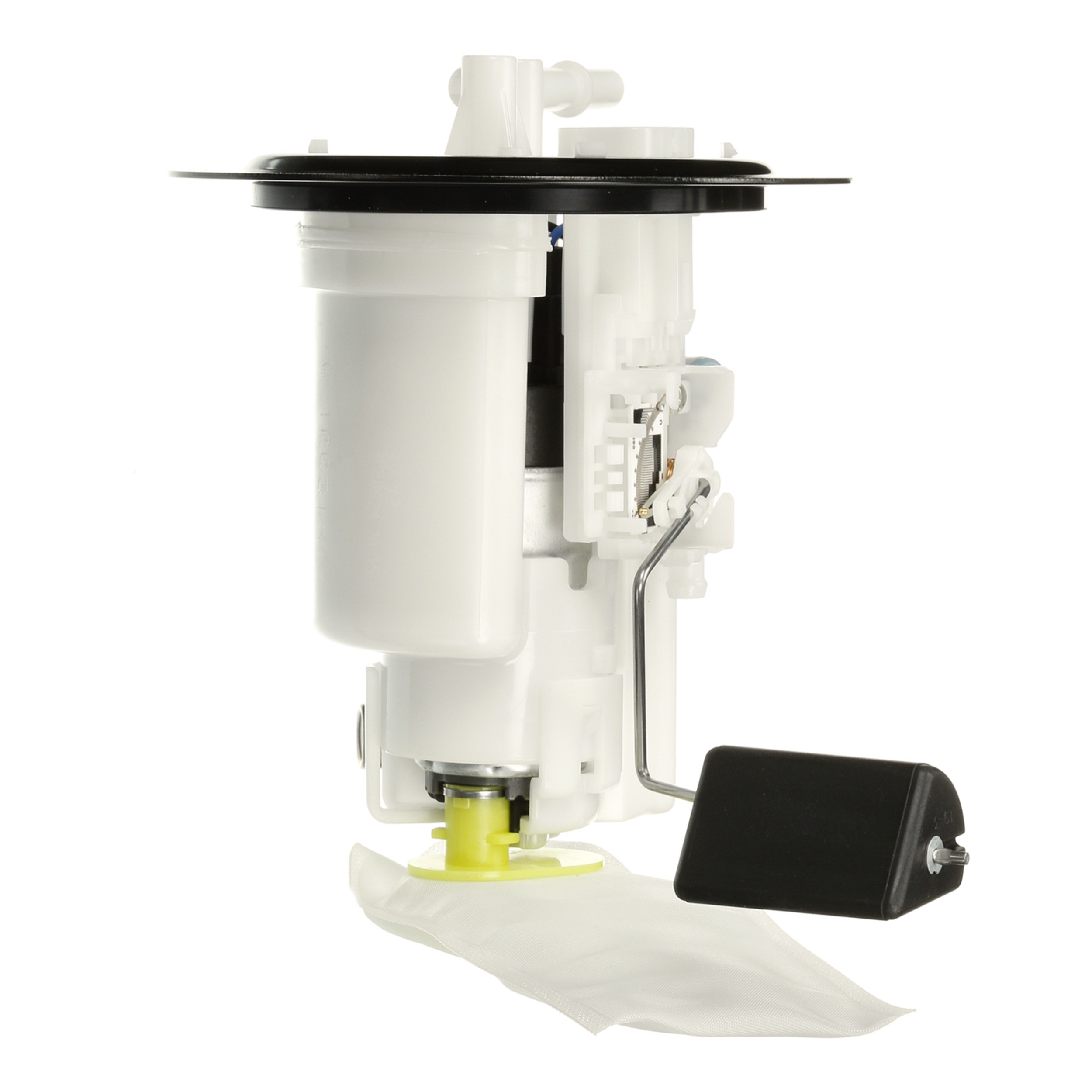

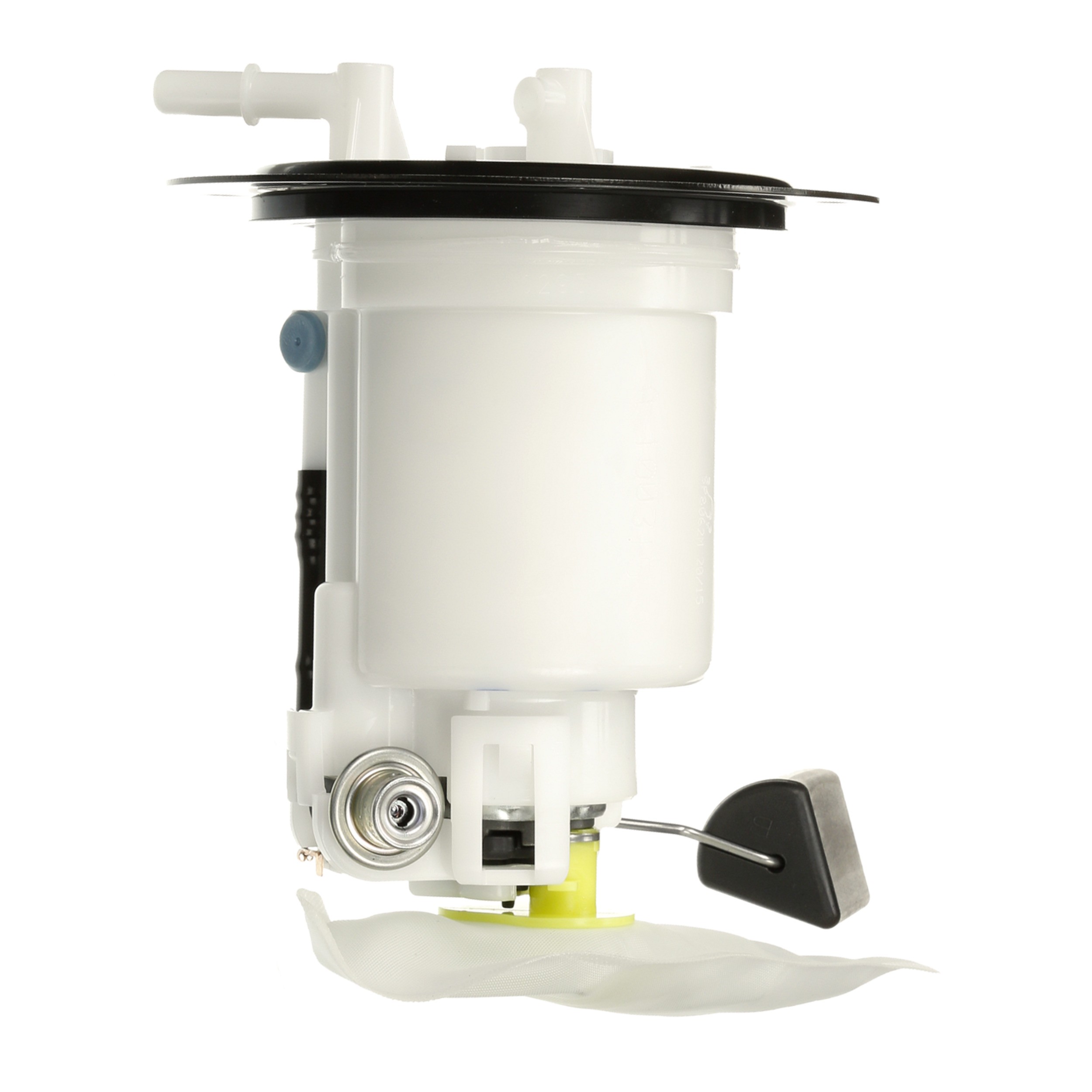

Delphi FG1649 Fuel Pump Module Assembly

Delphi FG1649 Fuel Pump Module Assembly

Features:

Part is validated, tested and matched to the right vehicle application
Always be sure to check and clean fuel tank to avoid unnecessary returns
Delphi is a global OE manufacturer and all fuel pumps are built to Delphi’s OE standards
Lower amperage draws less load on vehicle’s electrical system
Lower failure rates due to its innovative design and durability
Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading

Delphi is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.

Attributes:

Terminal Type	Blade
Voltage	12 2H
Maximum Pressure	65 PS
958	Electric
8923	289 82
8924	10 82
8932	58 PS
9102	10 68
9133	26 GPH
9103	No
9100	Turbine
8934	No
8933	External
8930	Nitrile Rubber
7617	In Tank
7246	Yes
518	Yes
4284	Yes
1154	No
1153	Yes
Package Contents	Fuel Pump Module Assembly w/Float Arm, Instruction Sheet
Fuel Type	Gas
Regulator Included	Yes
Outlet Outside Diameter	0.375 IN
Mounting Hardware Included	No
Universal Or Specific Fit	Specific
Grade Type	Premium

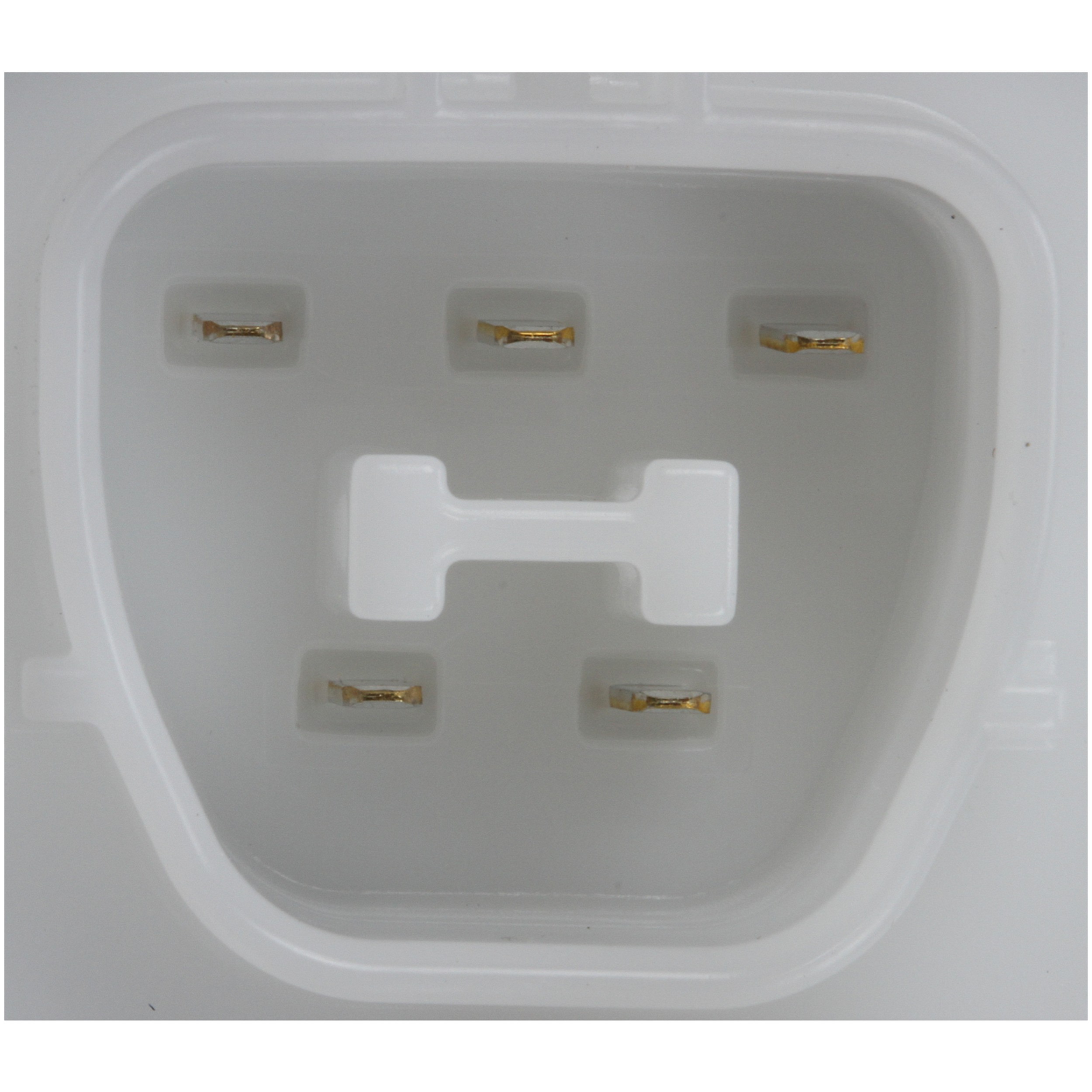

Connector Quantity:	1
Connector Shape:	Trapezoid
Gasket Or Seal Included	Yes
Housing Material	Plastic
Installation Warnings	No
Terminal Quantity	5
Connector Gender:	Female
Terminal Gender:	Male
Inlet Type	Strainer
Outlet Type	Quick Connect
Outlet Quantity	1
