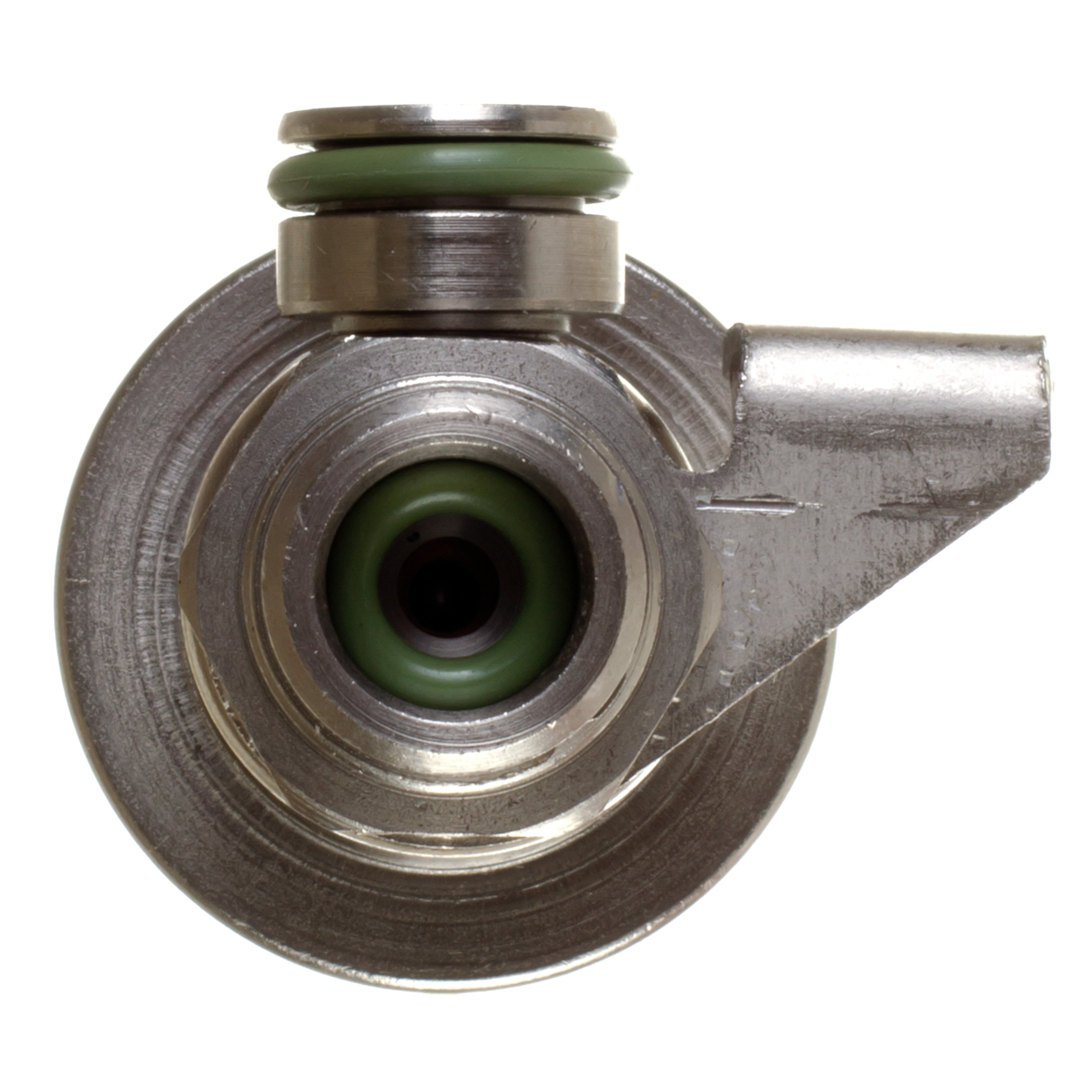

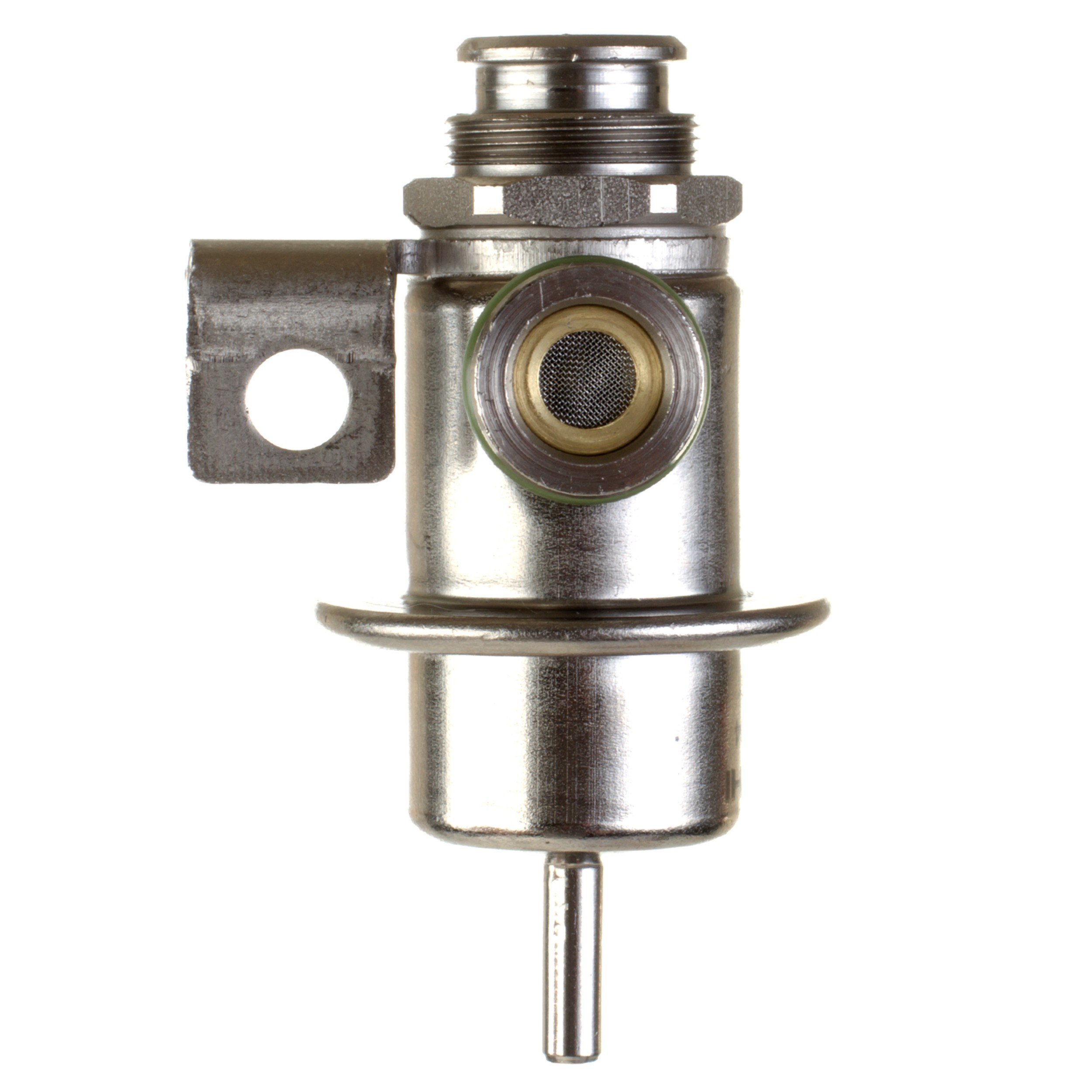

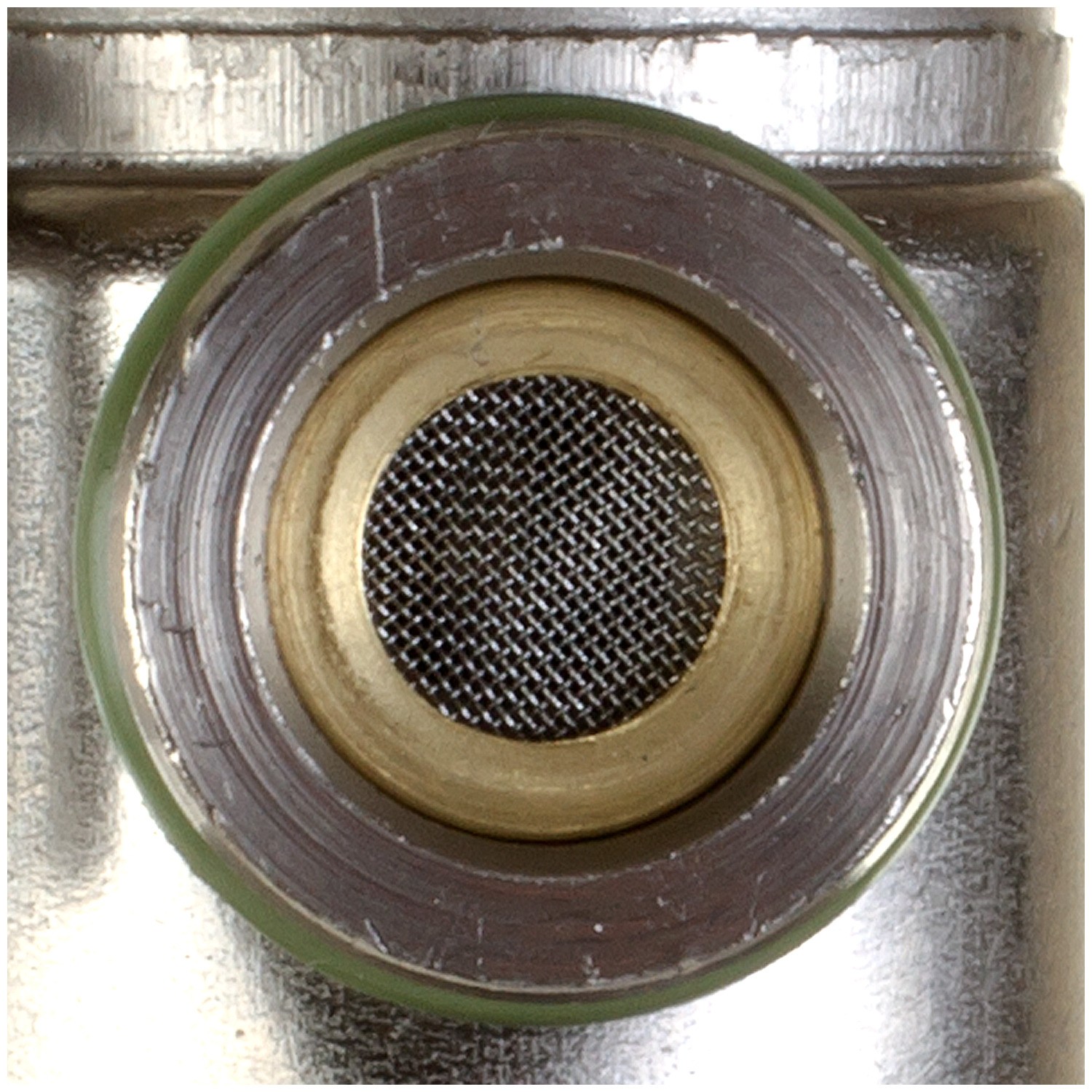

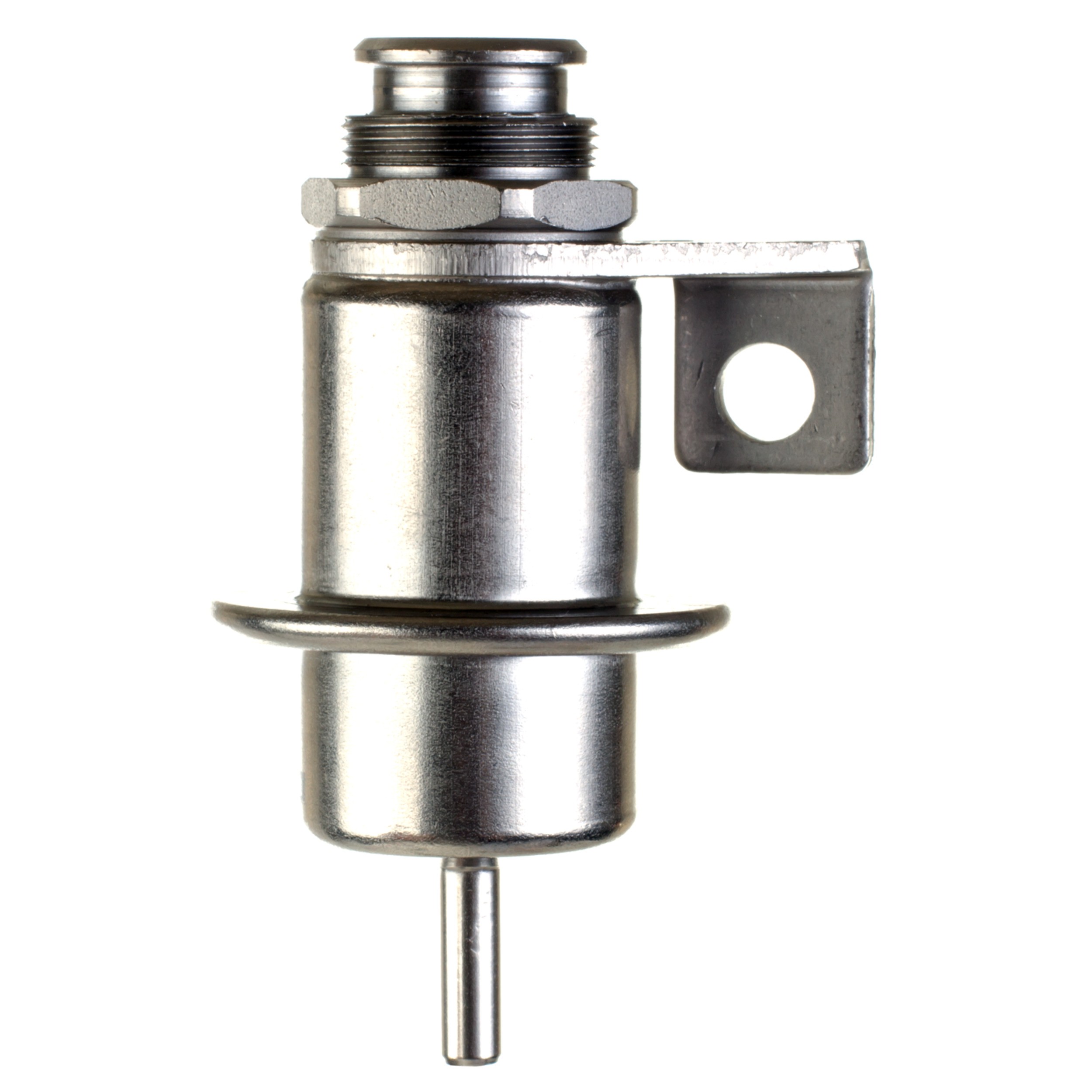

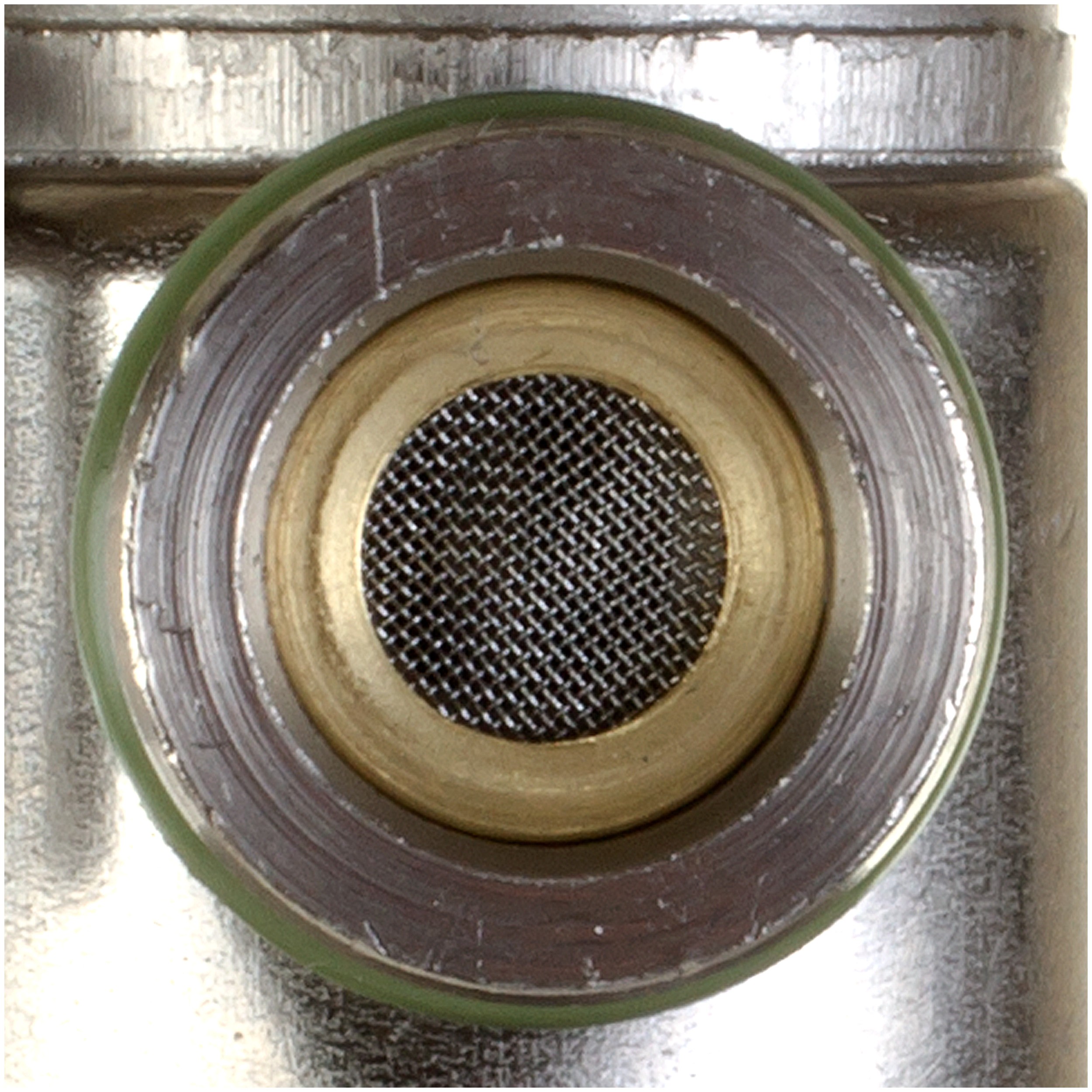

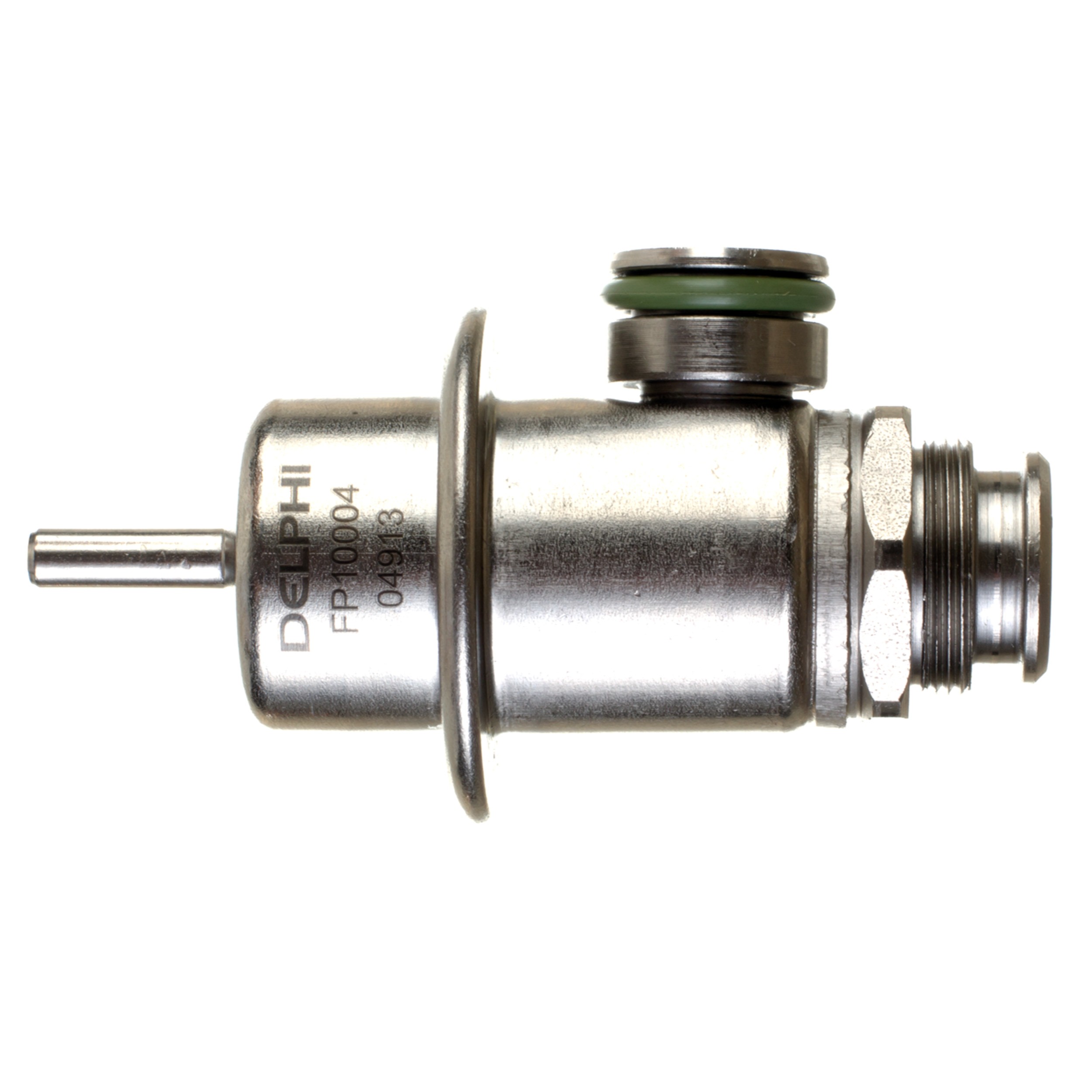

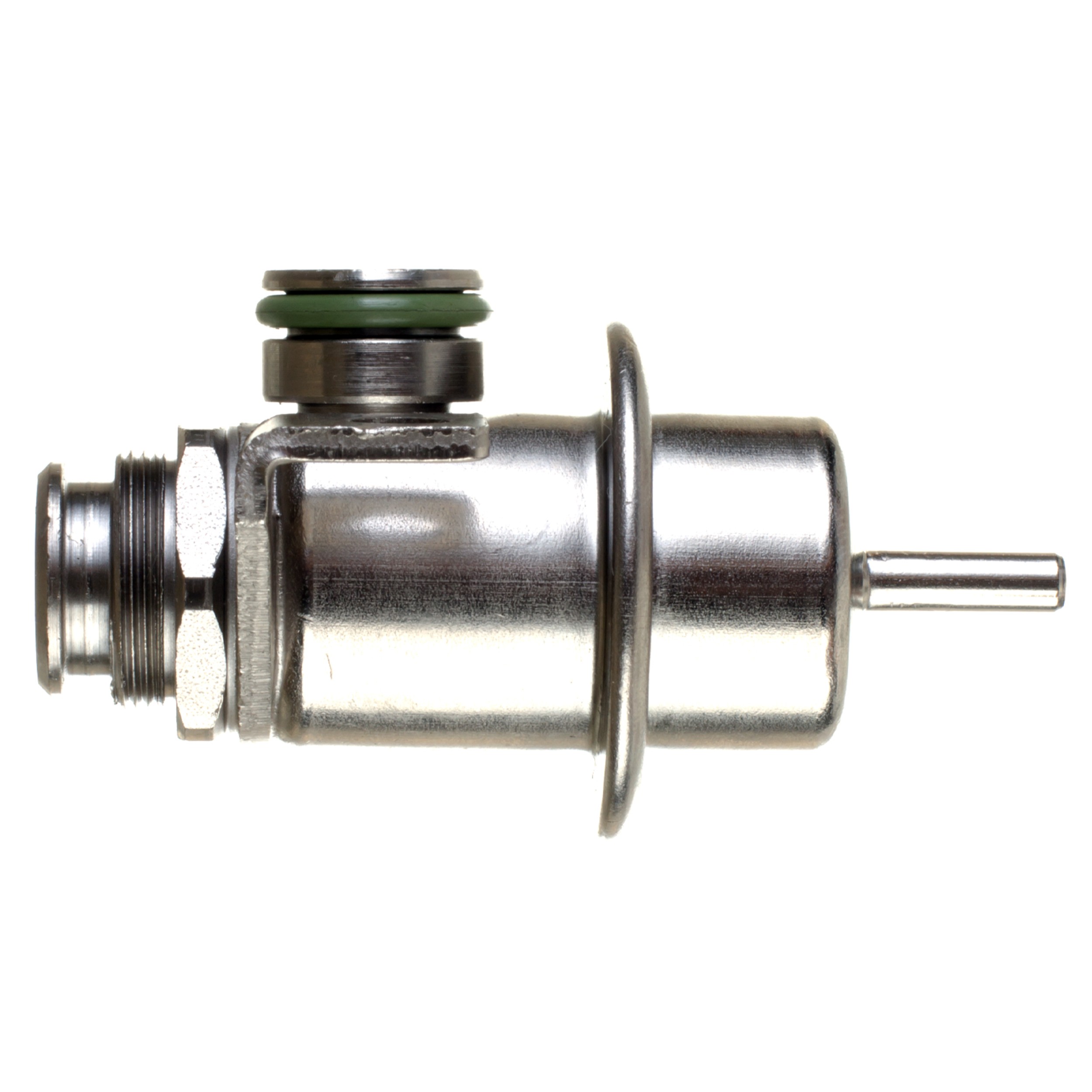

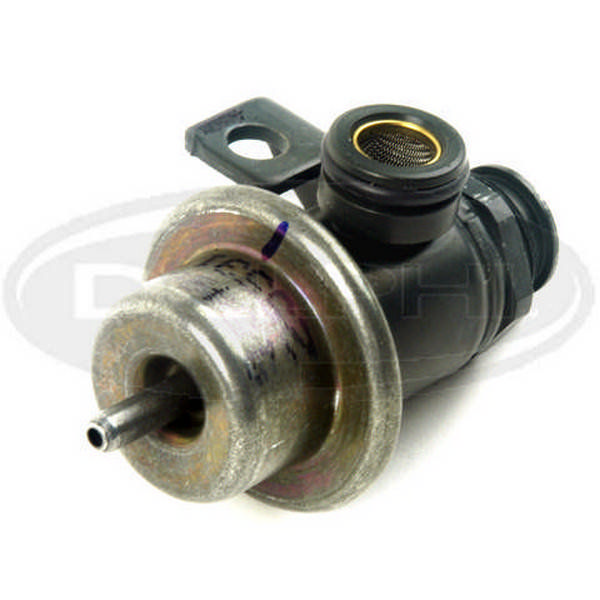

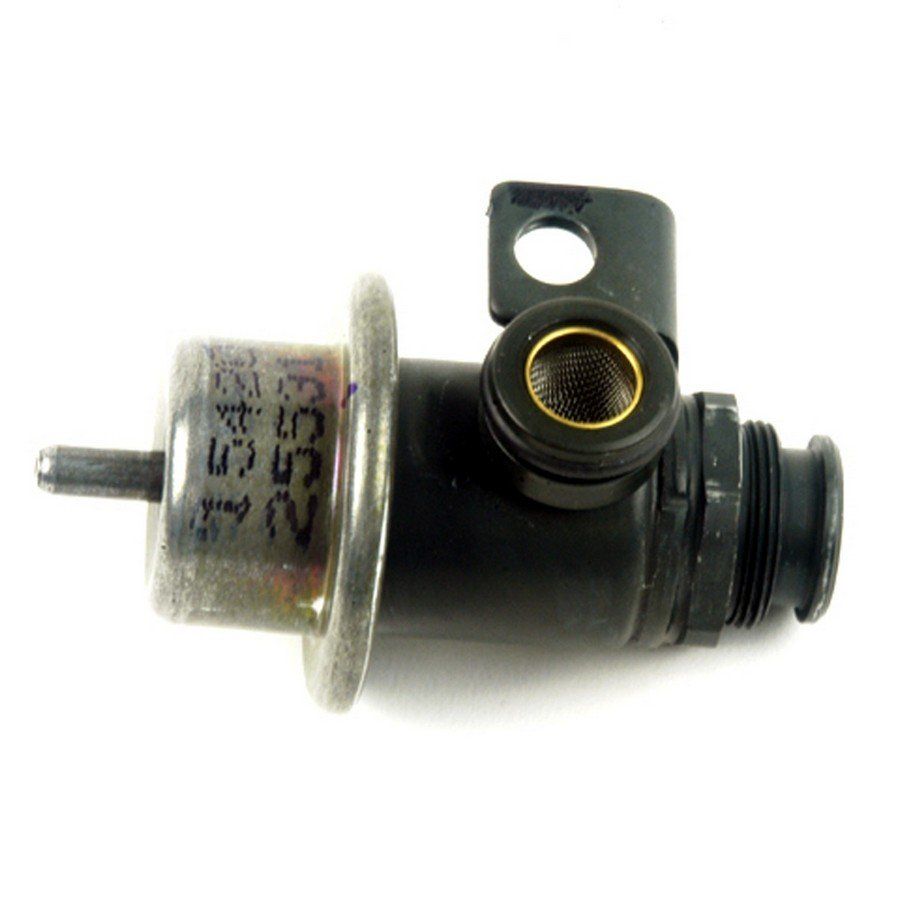

Delphi FP10004 Fuel Injection Pressure Regulator

Delphi FP10004 Fuel Injection Pressure Regulator

Features:

Precisely manufactured internal valves, diaphragms and springs means excellent performance under all engine operating conditions
Quiet operation, no audible regulator noise
Consistent and predictable fuel pressure throughout system range of control provides great drivability
Robust diaphragm materials means longer life, improved durability and compatibility with a wide range of fuels

Precision is key for the fuel pressure regulator on any vehicle. At Delphi, we use OE engineering to test our regulators and fuel technologies to ensure the utmost performance and durability. Our Nitrile™ diaphragms are resilient against high-ethanol fuels, and we utilize two designs to help meet emissions standards while covering a wide array of domestic vehicles. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi is regarded as a market leader in North American fuel management. Visit our Resource Center for helpful tips and tricks on fuel pumps technologies and more: https://www.delphiautoparts.com/usa/en-US/resource-center.

Attributes:

Adjustable	No
Grade Type	Standard Replacement
Mounting Hardware Included	No
Gauge Port	No
Mounting Type	Bolt
Outlet Quantity	1
Inlet Quantity	1
Outlet Type	Threaded
Inlet Type	Push In
Port Quantity	1
Material	Metal
System Pressure	51
Inlet Port Diameter	17.0 MM
Outlet Port Diameter	20.0 MM
Outlet Port Diameter	0.79 IN
Inlet Port Diameter	0.67 IN
Maximum Pressure Reading	51 psi

Vehicle Applications:

Make	Model	Years
Buick	Roadmaster	1994 to 1996
Cadillac	Commercial Chassis	1993 to 1996
Cadillac	Fleetwood	1993 to 1996
Chevrolet	Camaro	1994 to 1997
Chevrolet	Caprice	1994 to 1996
Chevrolet	Impala	1994 to 1996
Chevrolet	Monte Carlo	1995 to 1995
Pontiac	Firebird	1994 to 1997
