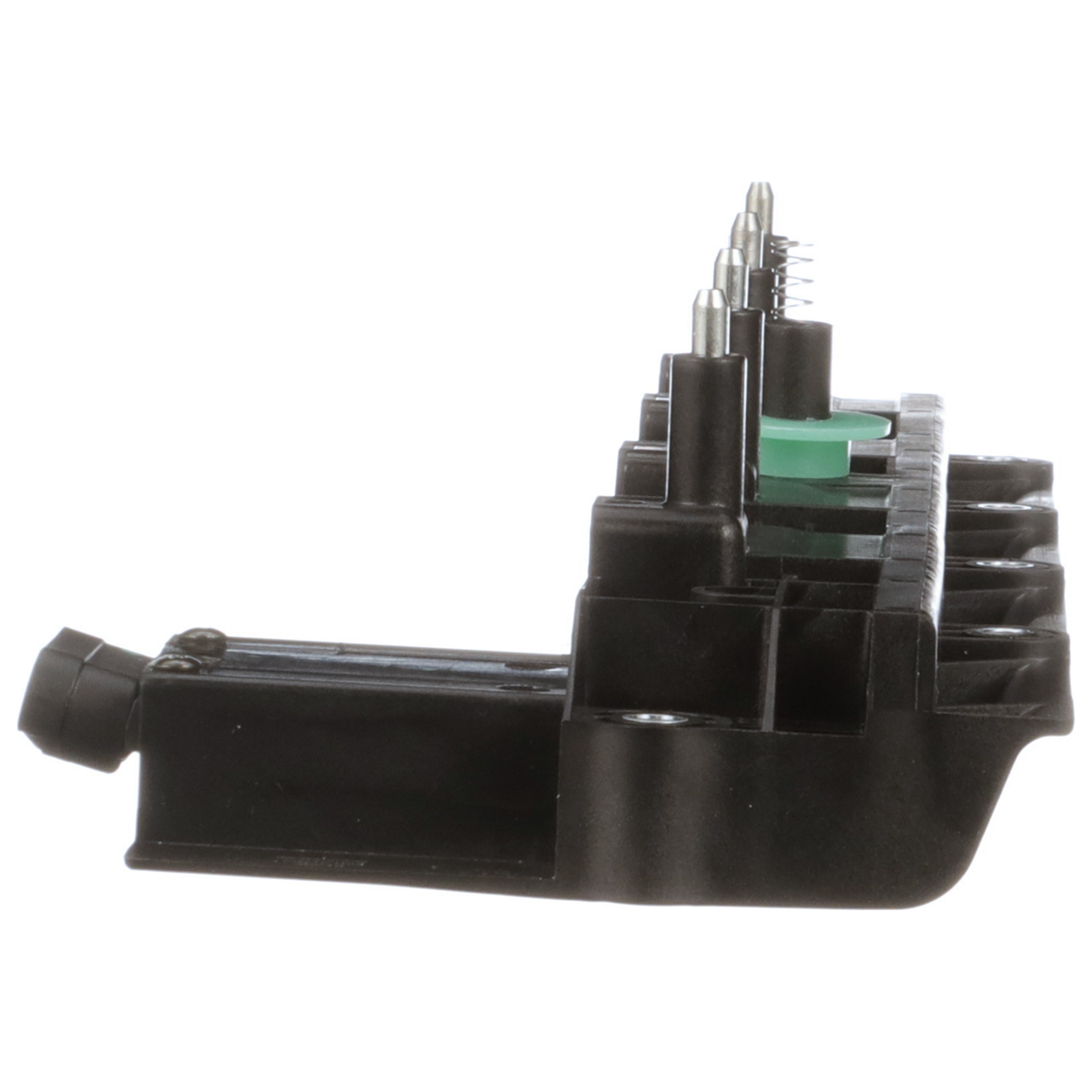

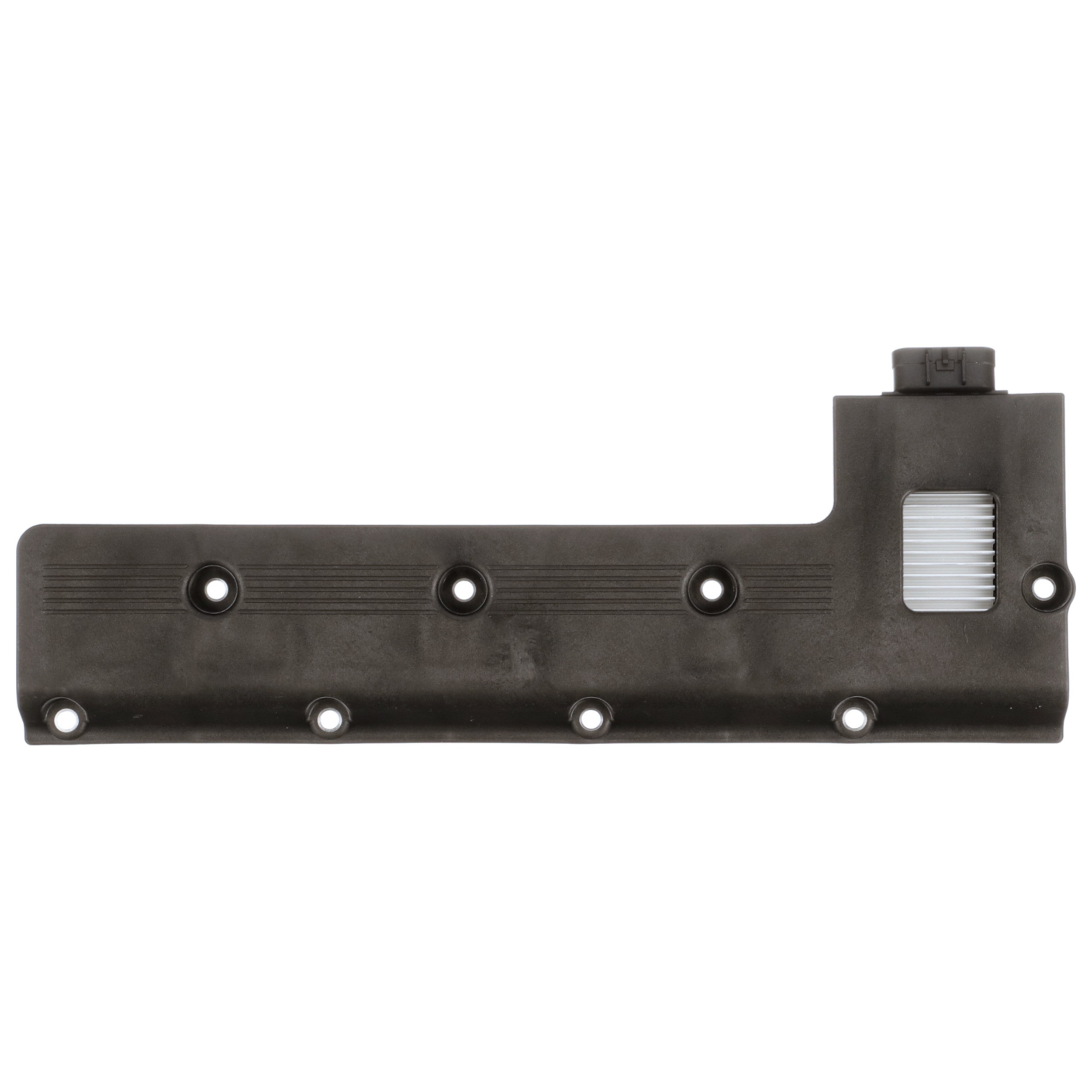

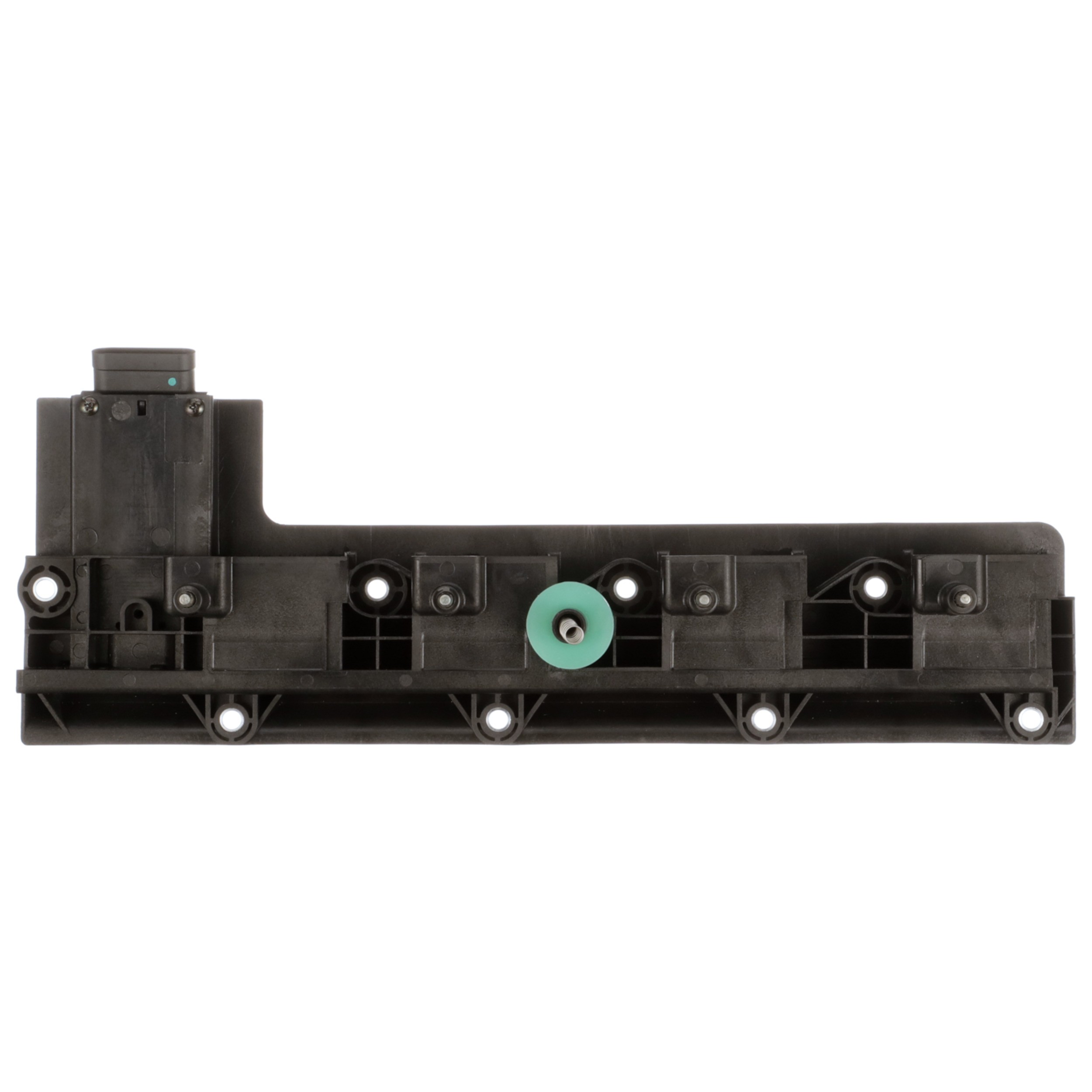

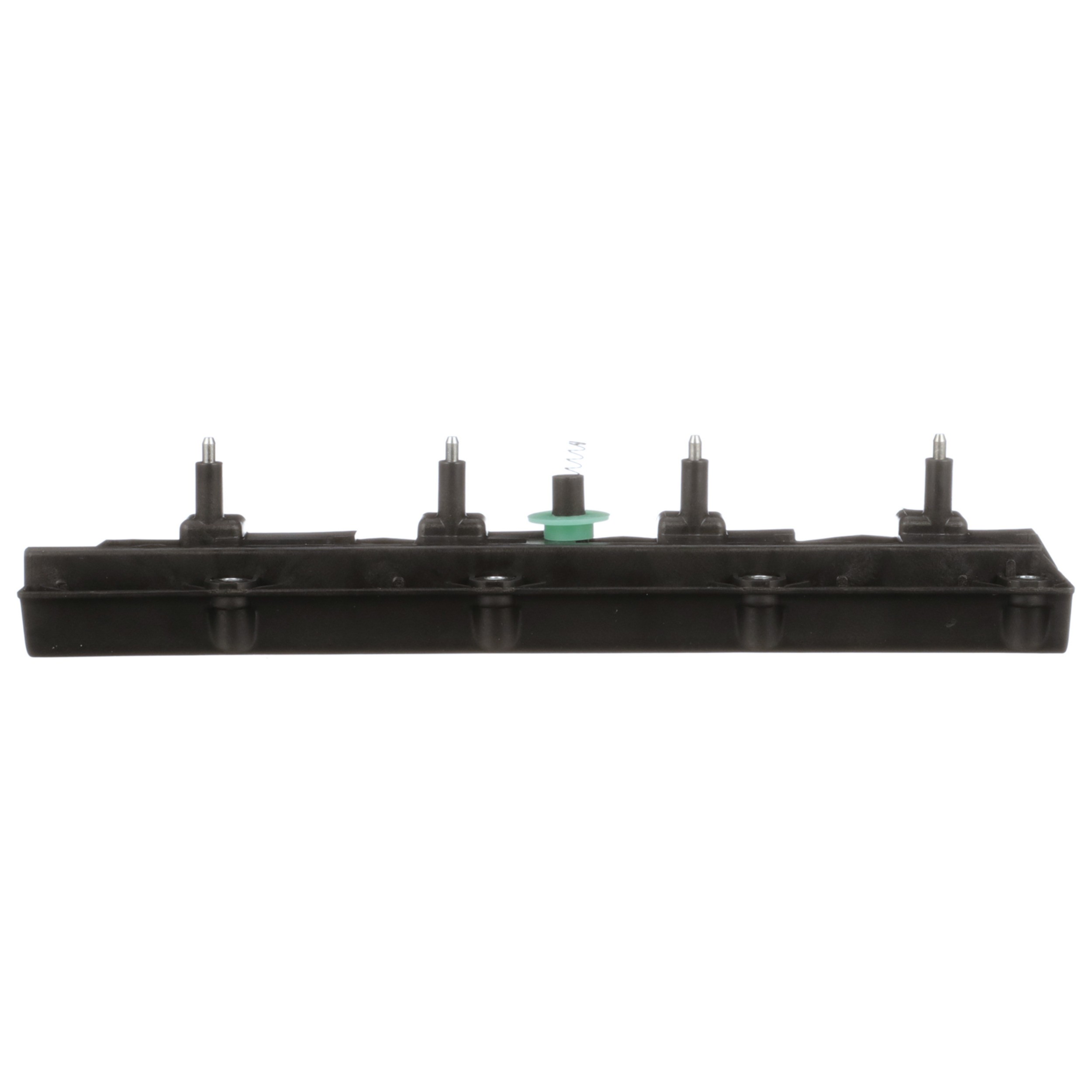

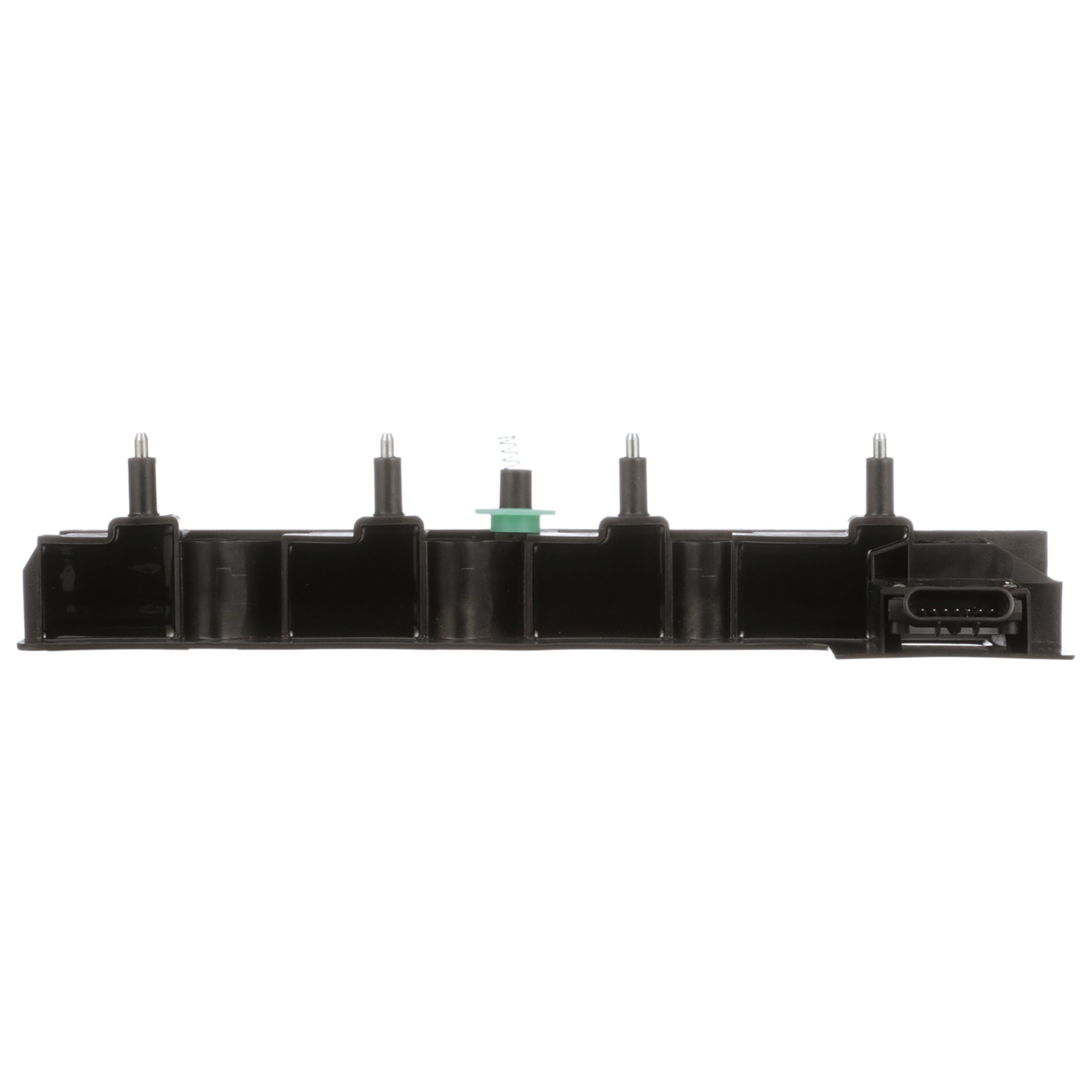

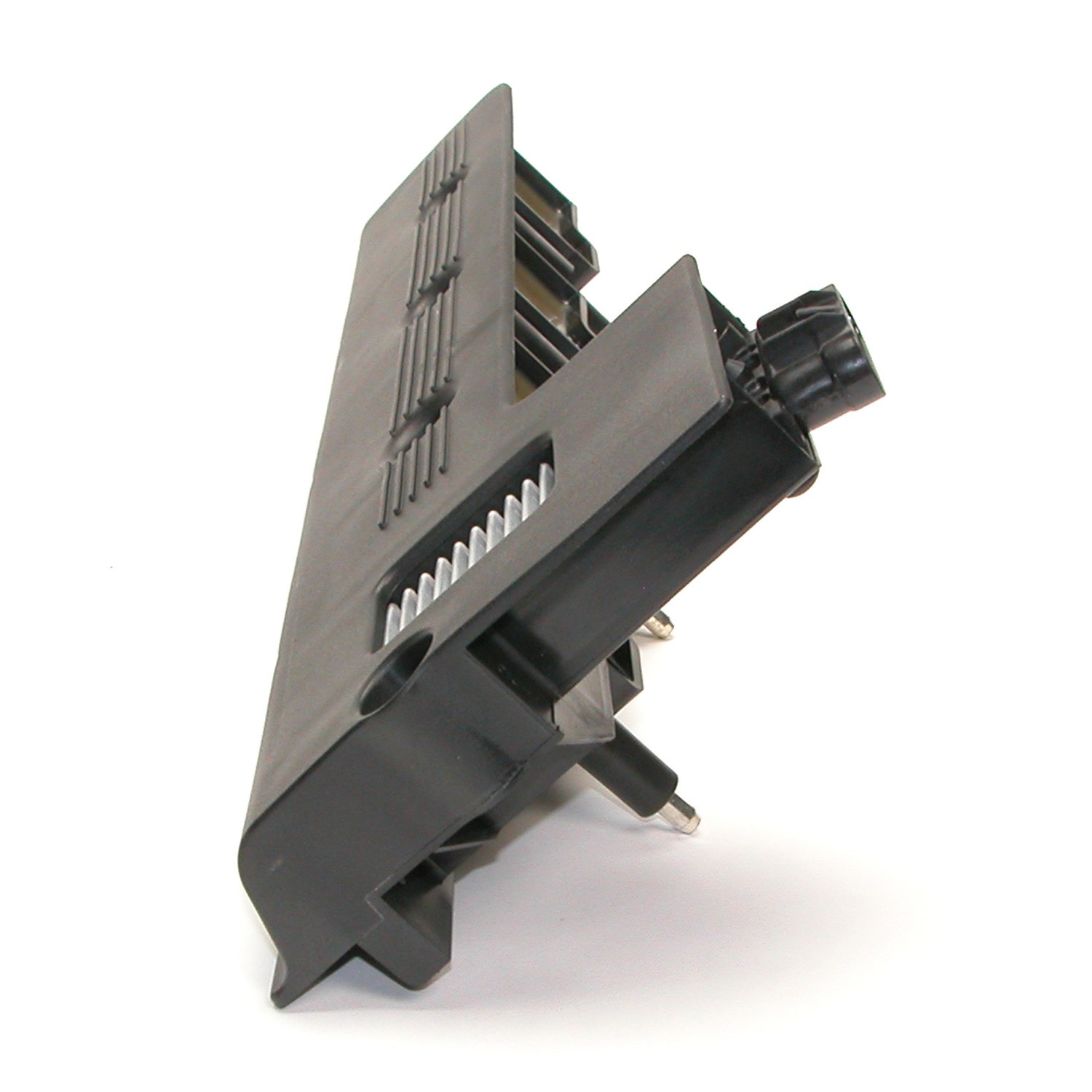

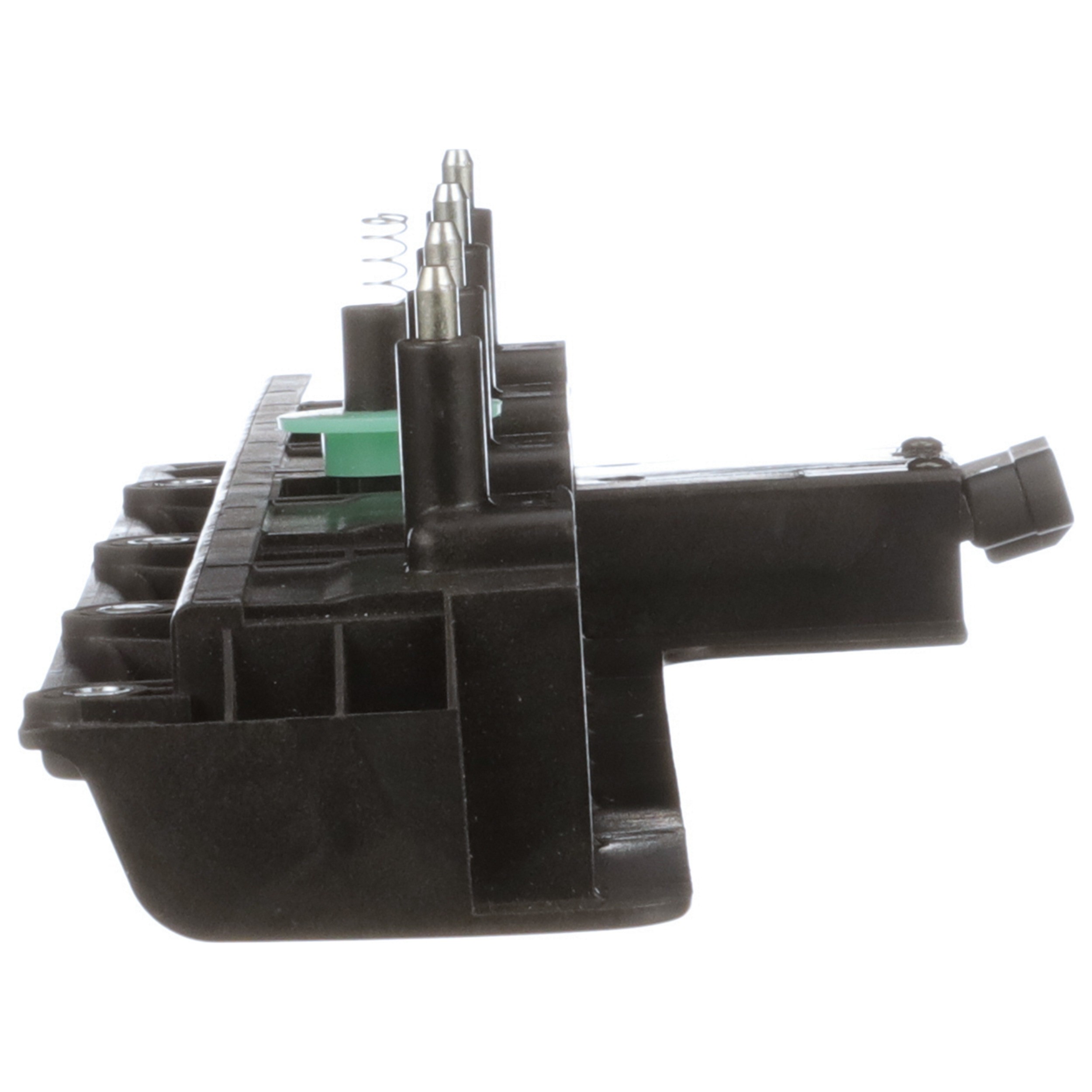

Delphi GN10109 Ignition Coil

Delphi GN10109 Ignition Coil

Features:

Delphi coils provide OE performance, durability and electromagnetic capacity level requirements
Delphi uses smart winding process techniques to controls wire lengths, keeping voltage the same
Delphi ignition coils are designed to insert power into spark plugs to ensure fast starts, consistent engine performance and optimized fuel efficiency
We manufacture our ignition coils with a high quality wire coating that resists imperfections that lead to failure

Every single Delphi ignition coil is designed and endurance tested using high quality materials. This ensures fast starts, consistent engine performance and optimized fuel efficiency. We makes more than 10 million ignition coils for North America each year, and each one is engineered to OE design specifications for vehicles from Ford, Toyota, Nissan, Lexus, GM, Mazda, Chrysler, Subaru, Acura and more.

Attributes:

Length	432 MM
Length	17 IN
Maximum Diameter	12.3 MM
Maximum Diameter	0.484 IN
Voltage	12.0 2H
Terminal Gender:	Male
Grade Type	Standard Replacement
Color	Black
Connector Quantity:	1
Connector Shape:	Elliptical
Terminal Type	Blade
Requires External Resistor	No
Oil Filled	No
Mounting Type:	8 Mounting Holes
Mounting Hole Quantity	8
Terminal Quantity	7
Connector Gender:	Female
Coil Type	Plug Top Coil (PTC)
Height	90.1 MM
Height	3.55 IN
Width	163.3 MM
Interface Description	6 Pin Sealed Connector, 4 HV Terminals, & Ground Spring
Position(s)	Right
Package Contents	Ignition Coil, Complete Assembly
Notes	PV8 Fully Integrated System has 4 Coils and 1 Module. Cassette color is Black
2252	No
Wire Quantity	0
Ignition Type	Electronic
Mounting Hardware Included	No
Width	6.43 IN
