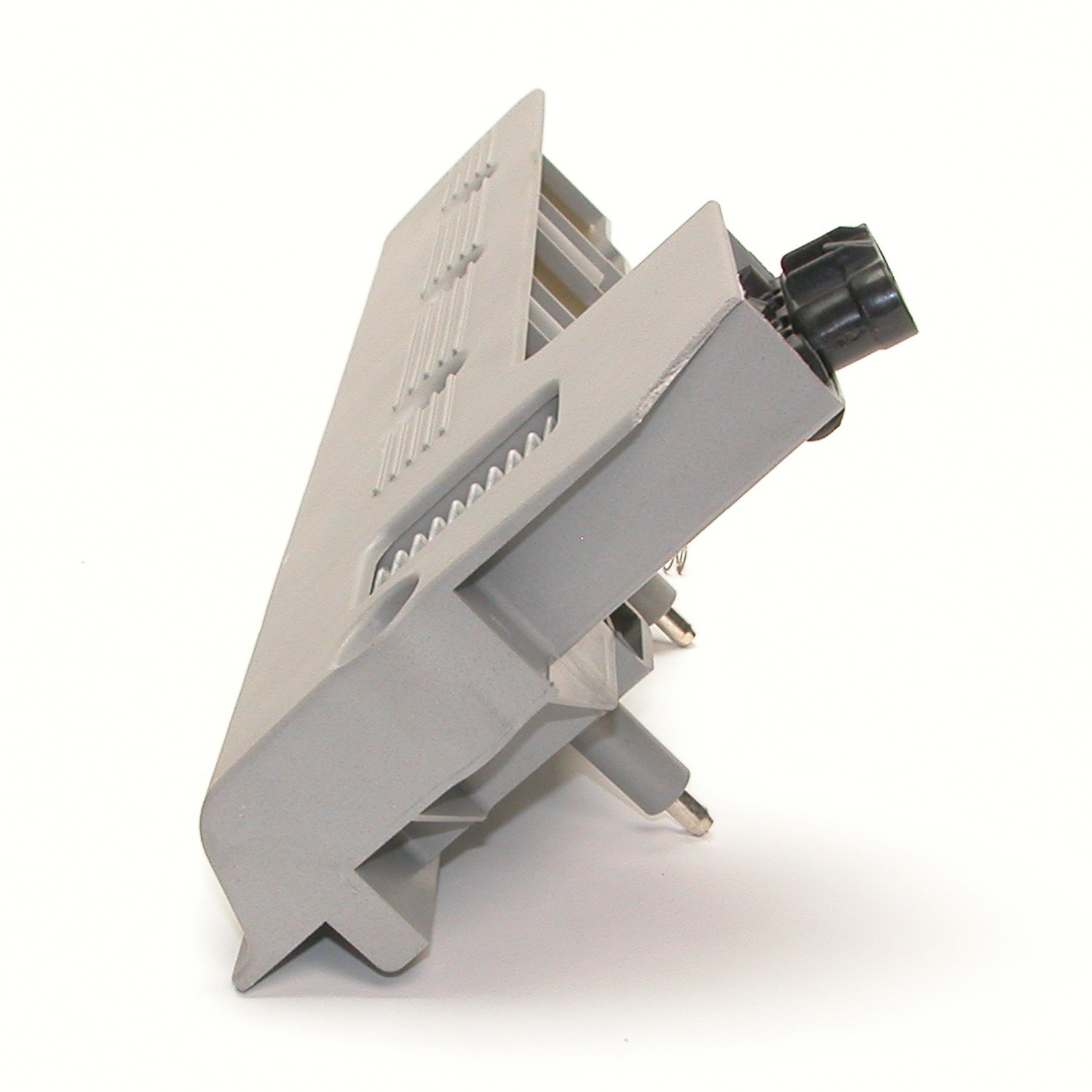

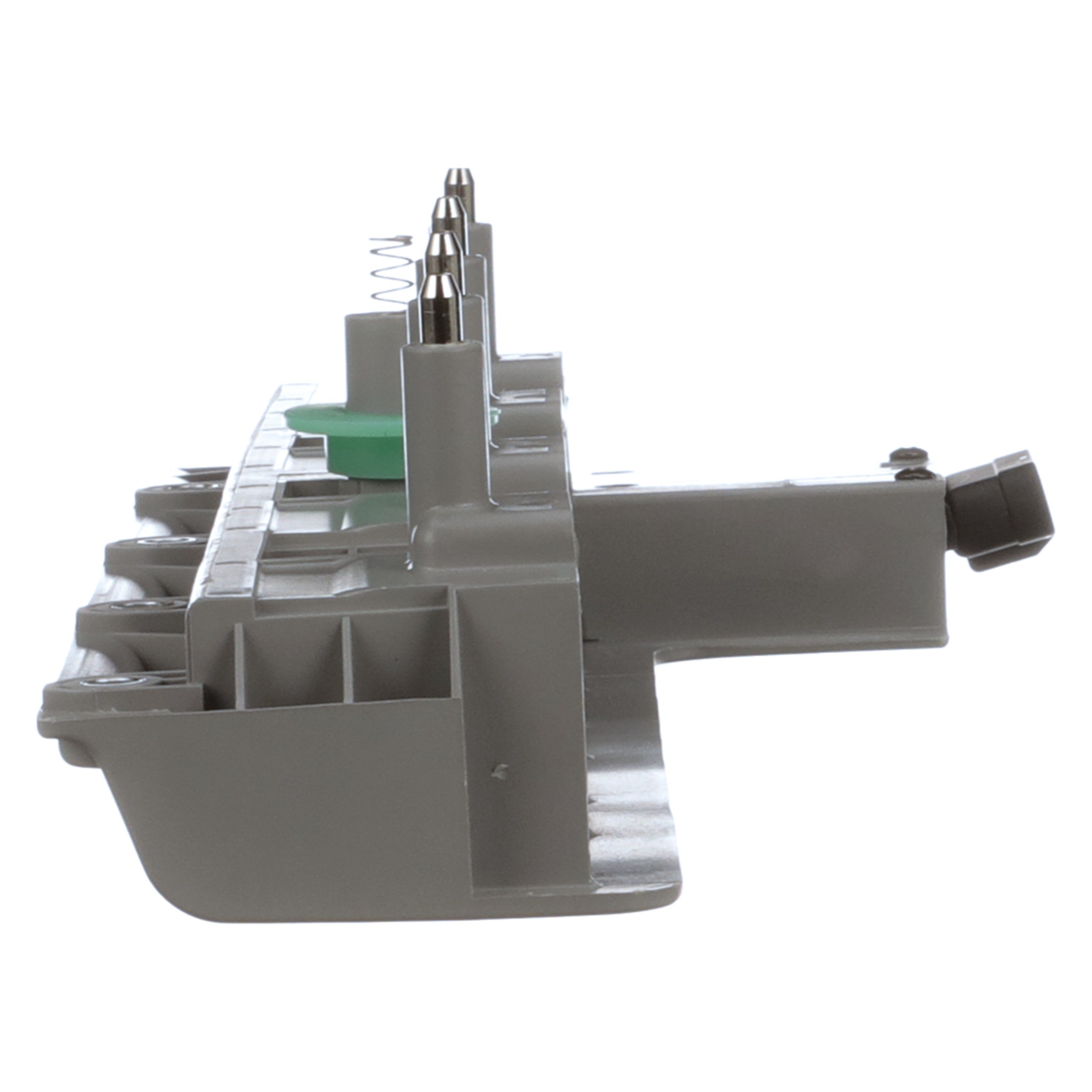

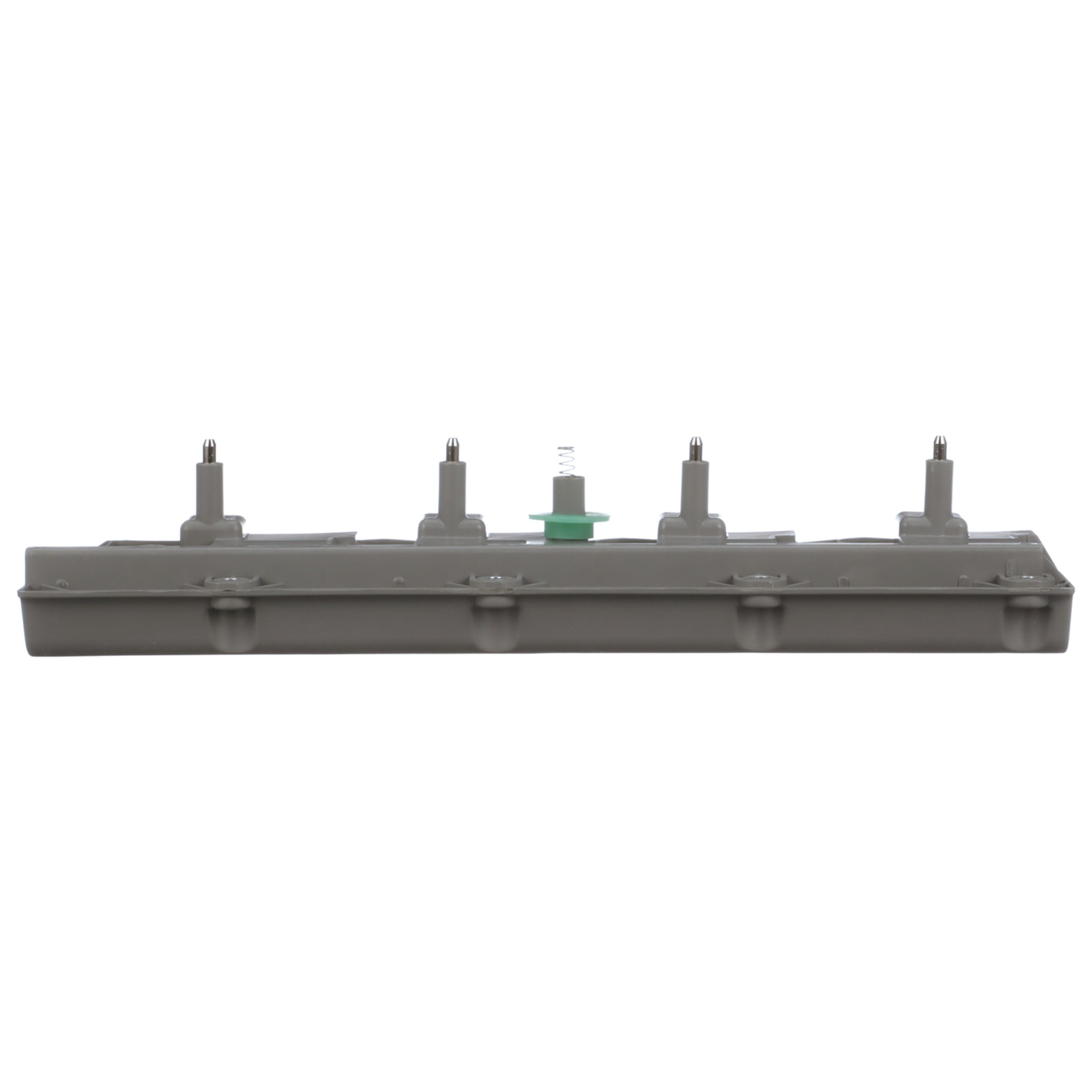

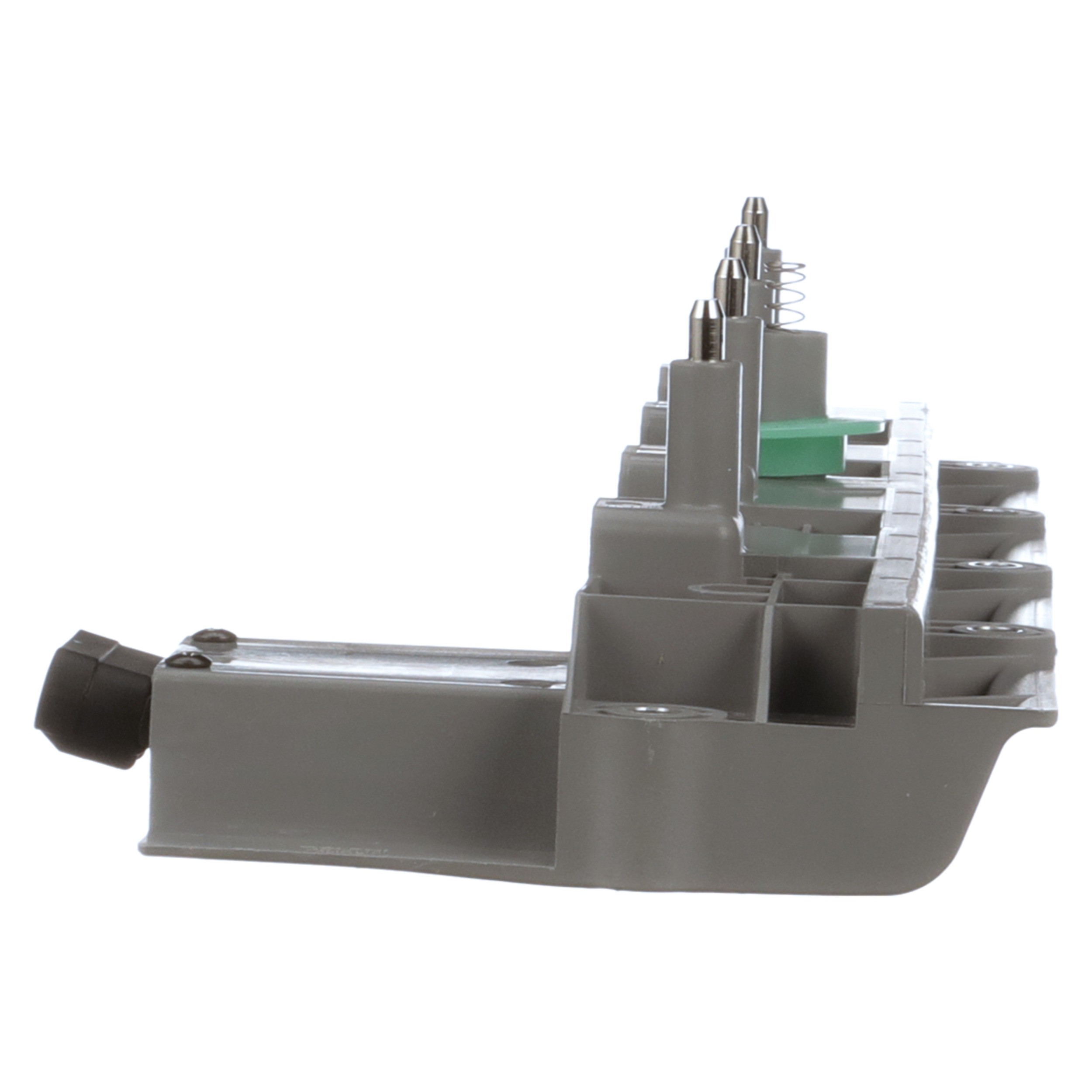

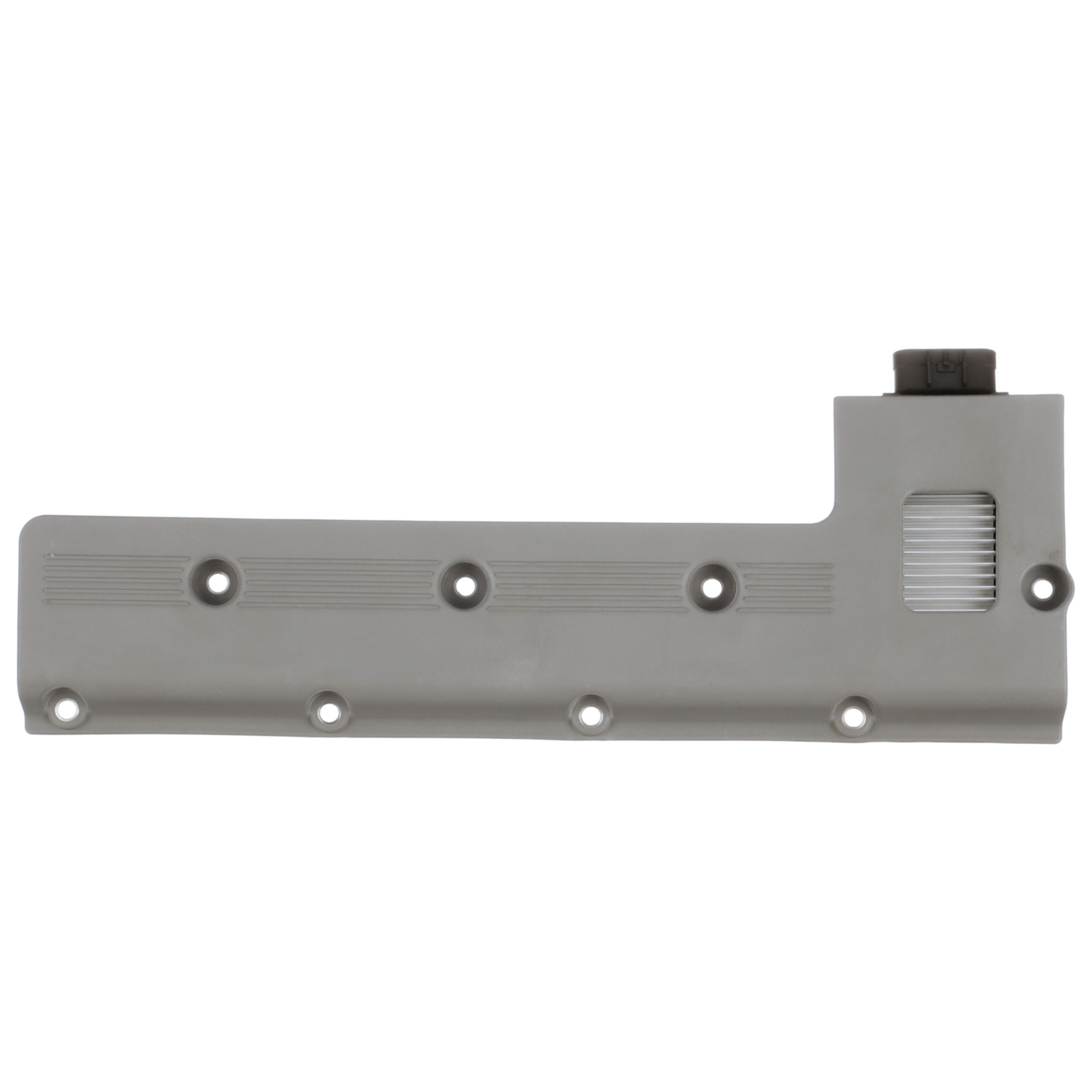

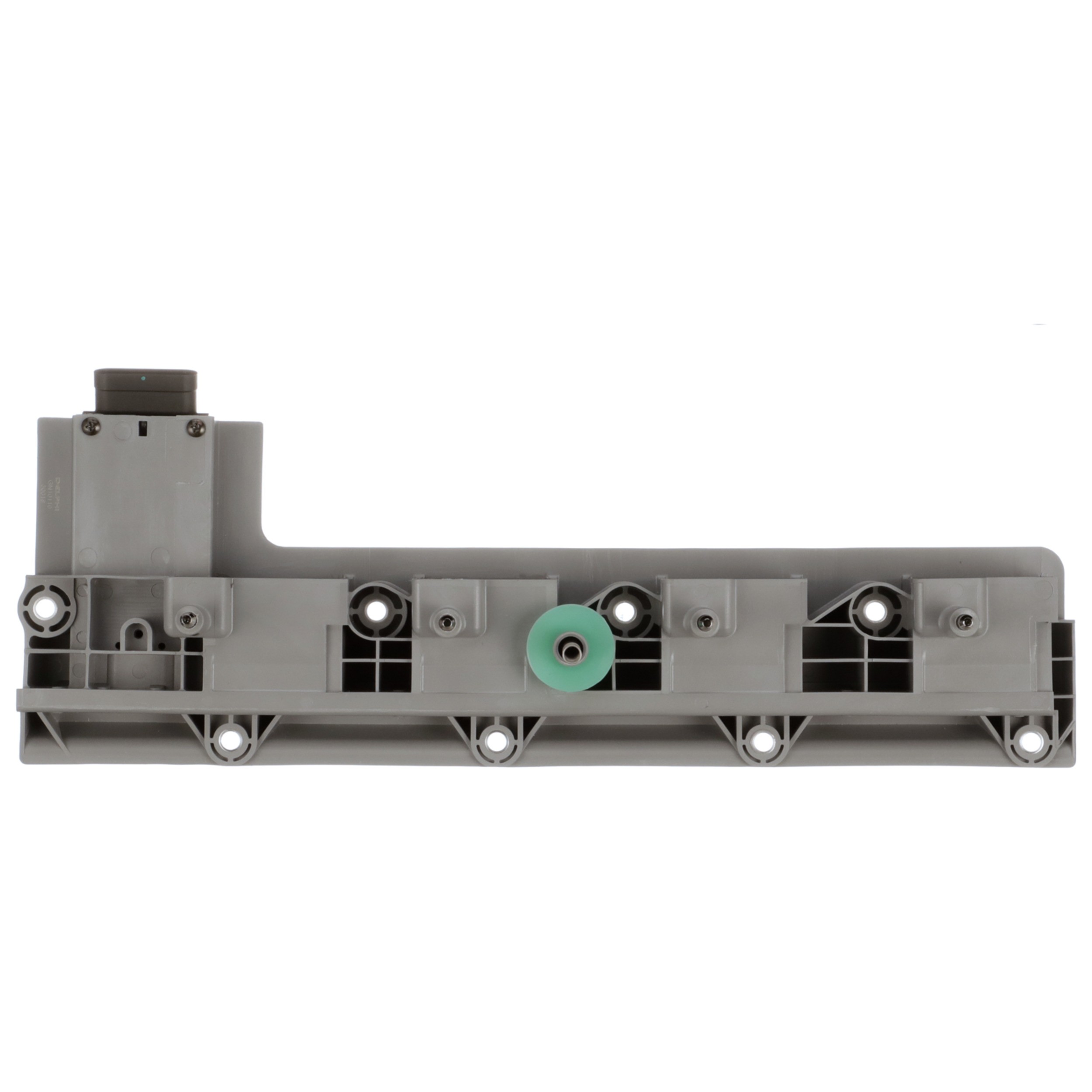

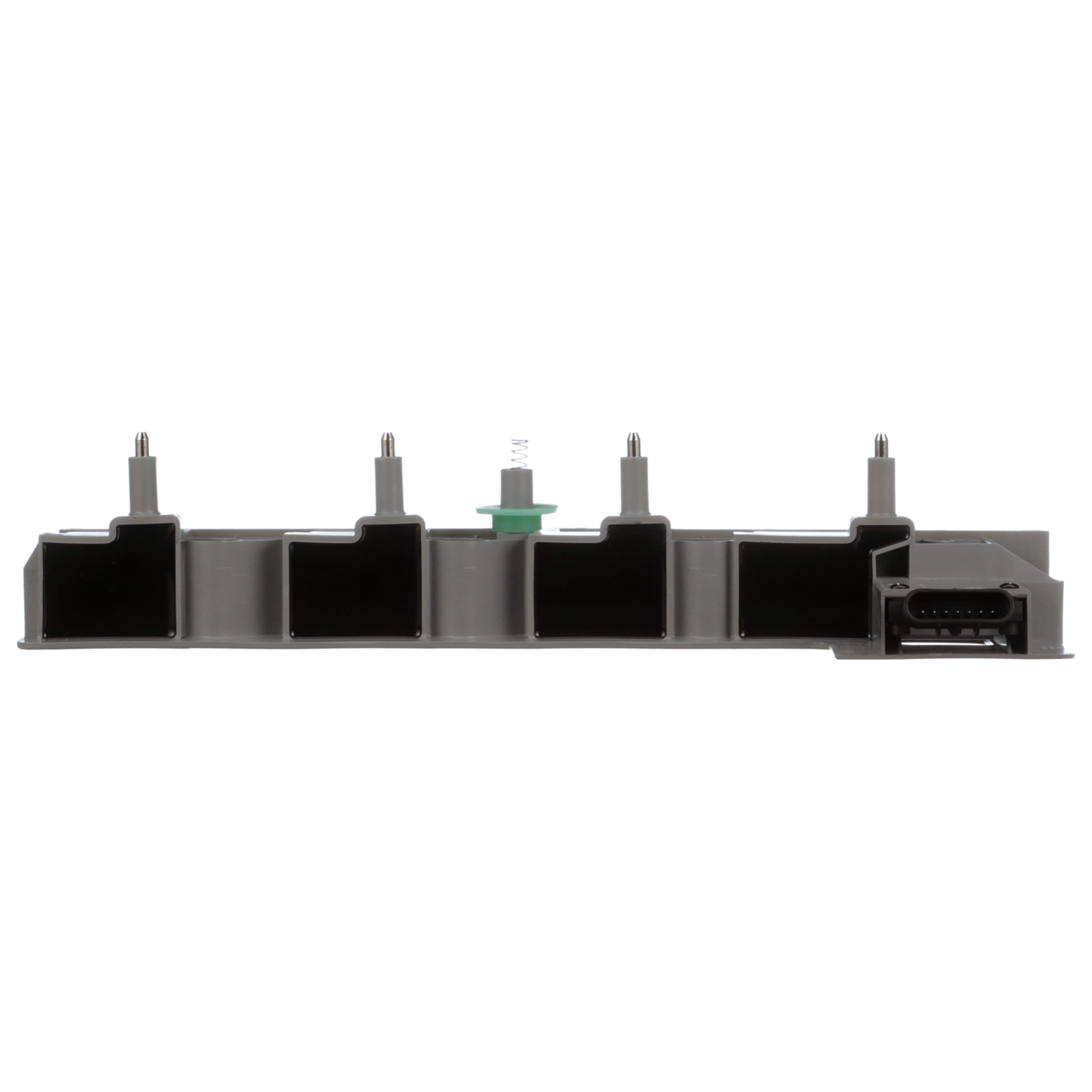

Delphi GN10110 Ignition Coil

Delphi GN10110 Ignition Coil

Features:

We manufacture our ignition coils with a high quality wire coating that resists imperfections that lead to failure
Delphi ignition coils are designed to insert power into spark plugs to ensure fast starts, consistent engine performance and optimized fuel efficiency
Delphi uses smart winding process techniques to controls wire lengths, keeping voltage the same
Delphi coils provide OE performance, durability and electromagnetic capacity level requirements

Every single Delphi ignition coil is designed and endurance tested using high quality materials. This ensures fast starts, consistent engine performance and optimized fuel efficiency. We makes more than 10 million ignition coils for North America each year, and each one is engineered to OE design specifications for vehicles from Ford, Toyota, Nissan, Lexus, GM, Mazda, Chrysler, Subaru, Acura and more.

Attributes:

2252	No
Requires External Resistor	No
Terminal Type	Blade
Mounting Hardware Included	No
Wire Quantity	0
Mounting Type:	8 Mounting Holes
Mounting Hole Quantity	8
Terminal Quantity	7
Connector Gender:	Female
Terminal Gender:	Male
Height	90.1 MM
Height	3.55 IN
Width	163.3 MM
Width	6.43 IN
Length	432 MM
Length	17 IN
Maximum Diameter	12.3 MM
Maximum Diameter	0.484 IN
Voltage	12.0 2H
Position(s)	Left
Package Contents	Ignition Coil, Complete Assembly
Notes	PV8 Fully Integrated System has 4 Coils and 1 Module. Cassette color is Grey
Interface Description	6 Pin Sealed Connector, 4 HV Terminals, & Ground Spring
Oil Filled	No
Connector Shape:	Elliptical
Connector Quantity:	1
Color	Black & Gray
Grade Type	Standard Replacement
Ignition Type	Electronic
Coil Type	Plug Top Coil (PTC)
