Delphi GN10189 Ignition Coil
Features:
- Delphi coils provide OE performance, durability and electromagnetic capacity level requirements
- Delphi ignition coils are designed to insert power into spark plugs to ensure fast starts, consistent engine performance and optimized fuel efficiency
- We manufacture our ignition coils with a high quality wire coating that resists imperfections that lead to failure
- Delphi uses smart winding process techniques to controls wire lengths, keeping voltage the same
Every single Delphi ignition coil is designed and endurance tested using high quality materials. This ensures fast starts, consistent engine performance and optimized fuel efficiency. We makes more than 10 million ignition coils for North America each year, and each one is engineered to OE design specifications for vehicles from Ford, Toyota, Nissan, Lexus, GM, Mazda, Chrysler, Subaru, Acura and more.
Attributes:
| Coil Type | HEI |
| Connector Gender: | Male |
| Terminal Quantity | 3 |
| Mounting Hole Quantity | 4 |
| Ignition Type | Standard |
| Voltage | 12.0 2H |
| Grade Type | Standard Replacement |
| Mounting Type: | 4 Mounting Holes |
| Wire Quantity | 0 |
| Mounting Hardware Included | No |
| Terminal Gender: | Male Female |
| Connector Shape: | 3 Wires to Connect |
| Connector Quantity: | 1 |
| Color | Black |
| 2252 | Yes |
| Package Contents | Ignition Coil |

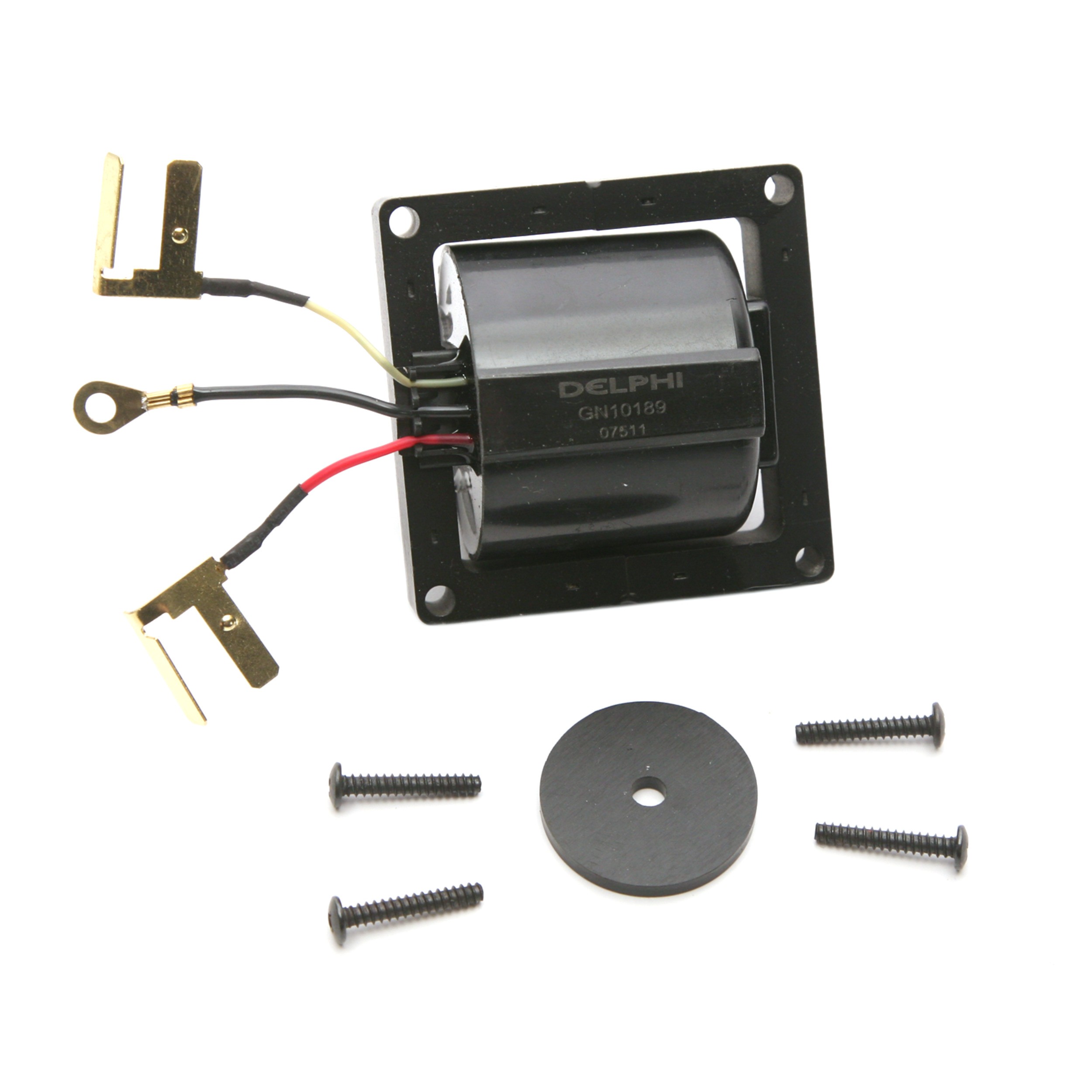

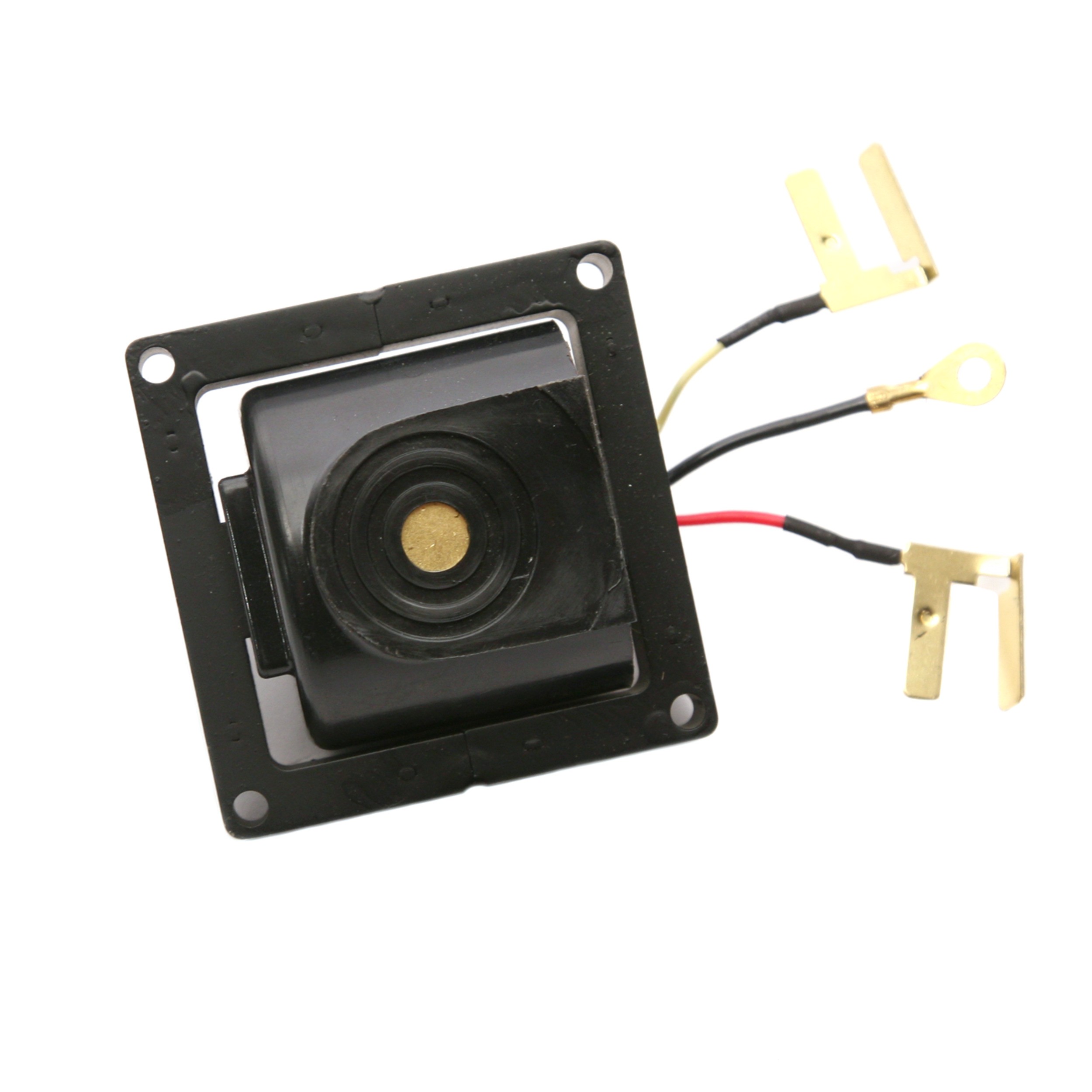

| Interface Description | 3 Wires; 1 HV Tower ( Flat Surfaced) |

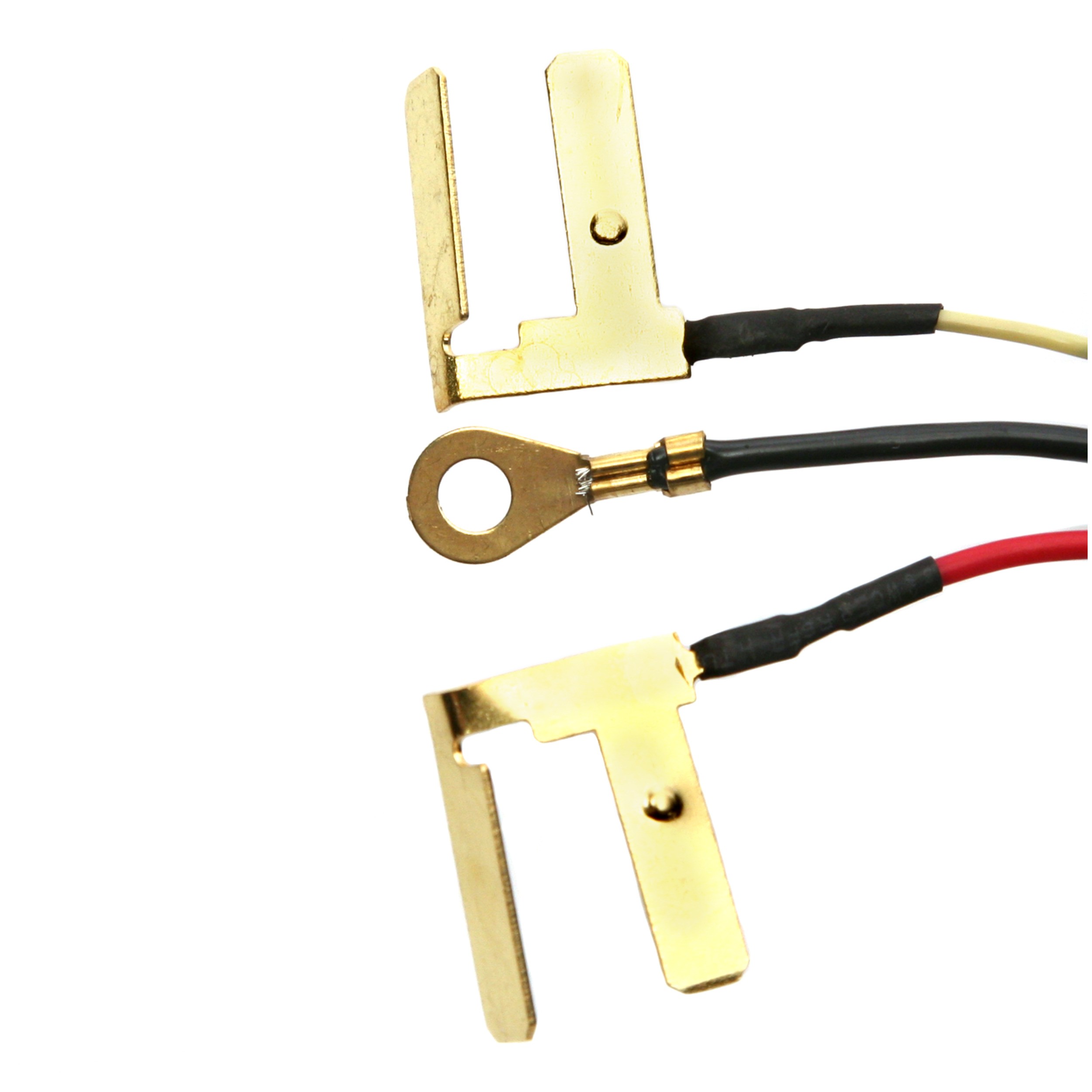

| Notes | 3 Wire Connectors; Black has Ring Terminal; Red & Yellow have U shape Terminals |
| Terminal Type | Ring |
| Requires External Resistor | No |
| Oil Filled | No |
Vehicle Applications:
| Make | Model | Years |
| Cadillac | Commercial Chassis | 1985 to 1990 |
| Cadillac | DeVille | 1985 to 1990 |
| Cadillac | Eldorado | 1985 to 1985 |
| Cadillac | Fleetwood | 1985 to 1990 |
| Cadillac | Seville | 1985 to 1985 |
| Chevrolet | Astro | 1985 to 1985 |
| Chevrolet | C10 Suburban | 1985 to 1986 |
| Chevrolet | C10 | 1985 to 1986 |
| Chevrolet | C20 Suburban | 1985 to 1986 |
| Chevrolet | C20 | 1985 to 1986 |
| Chevrolet | C30 | 1985 to 1986 |
| Chevrolet | Camaro | 1985 to 1986 |
| Chevrolet | Caprice | 1985 to 1986 |
| Chevrolet | El Camino | 1985 to 1986 |
| Chevrolet | G10 | 1985 to 1986 |
| Chevrolet | G20 | 1985 to 1986 |
| Chevrolet | G30 | 1985 to 1988 |
| Chevrolet | Impala | 1985 to 1985 |
| Chevrolet | K10 Suburban | 1985 to 1986 |
| Chevrolet | K10 | 1985 to 1986 |
| Chevrolet | K20 Suburban | 1985 to 1986 |
| Chevrolet | K20 | 1985 to 1986 |
| Chevrolet | K30 | 1985 to 1986 |
| Chevrolet | K5 Blazer | 1985 to 1986 |
| Chevrolet | Monte Carlo | 1985 to 1986 |
| Chevrolet | P20 | 1985 to 1986 |
| Chevrolet | P30 | 1985 to 1986 |
| Chevrolet | R20 | 1987 to 1988 |
| Chevrolet | R30 | 1987 to 1988 |
| Chevrolet | R3500 | 1989 to 1989 |
| Chevrolet | V20 | 1987 to 1987 |
| Chevrolet | V30 | 1987 to 1988 |
| Chevrolet | V3500 | 1989 to 1989 |
| GMC | C1500 Suburban | 1985 to 1986 |
| GMC | C1500 | 1985 to 1986 |
| GMC | C2500 Suburban | 1985 to 1986 |
| GMC | C2500 | 1985 to 1986 |
| GMC | C3500 | 1985 to 1986 |
| GMC | Caballero | 1985 to 1986 |
| GMC | G1500 | 1985 to 1986 |
| GMC | G2500 | 1985 to 1986 |
| GMC | G3500 | 1985 to 1988 |
| GMC | Jimmy | 1985 to 1986 |
| GMC | K1500 Suburban | 1985 to 1986 |
| GMC | K1500 | 1985 to 1986 |
| GMC | K2500 Suburban | 1985 to 1986 |
| GMC | K2500 | 1985 to 1986 |
| GMC | K3500 | 1985 to 1986 |
| GMC | P2500 | 1985 to 1986 |
| GMC | P3500 | 1985 to 1986 |
| GMC | R2500 | 1987 to 1988 |
| GMC | R3500 | 1987 to 1989 |
| GMC | Safari | 1985 to 1985 |
| GMC | V2500 | 1987 to 1987 |
| GMC | V3500 | 1987 to 1989 |
| Pontiac | Bonneville | 1985 to 1986 |
| Pontiac | Firebird | 1985 to 1986 |
| Pontiac | Grand Prix | 1985 to 1986 |
| Pontiac | Parisienne | 1985 to 1986 |
