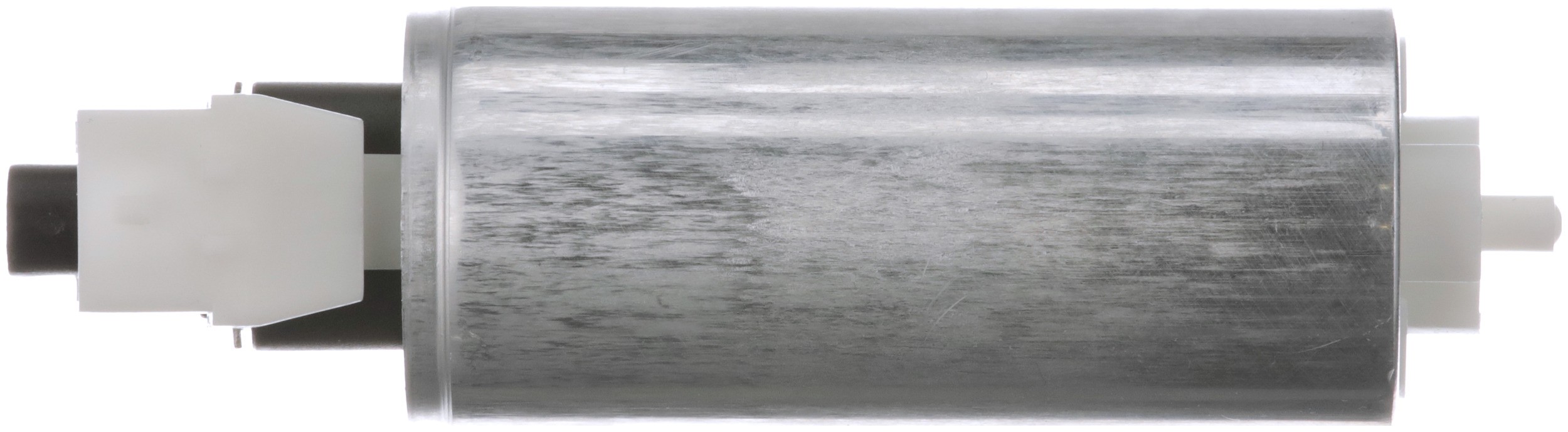

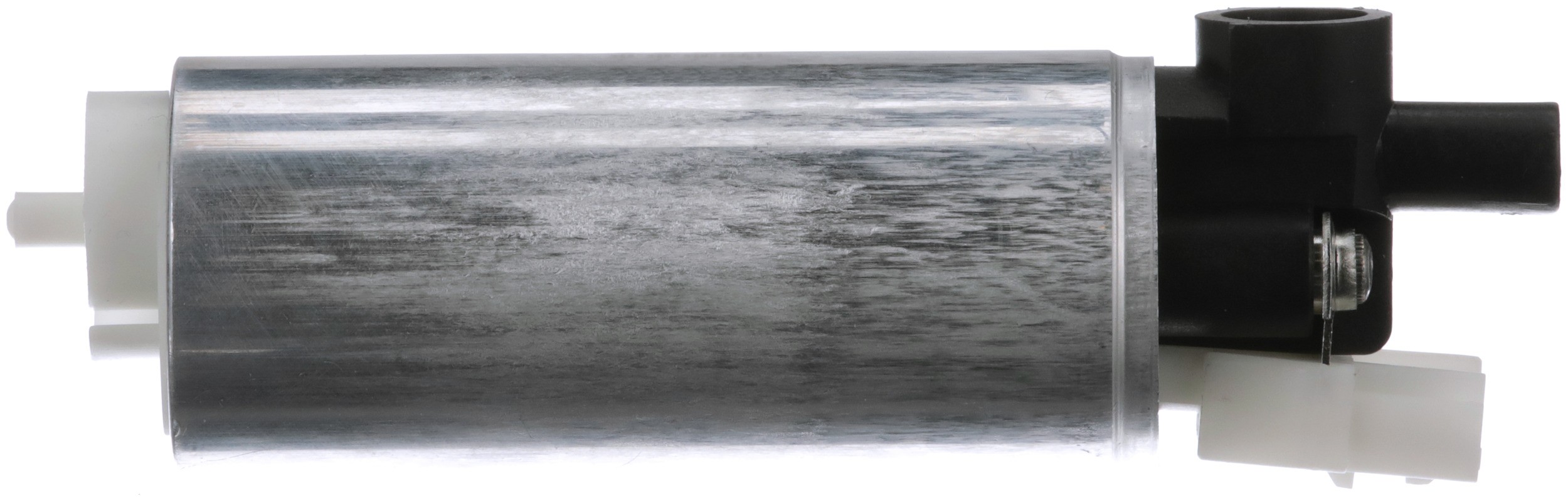

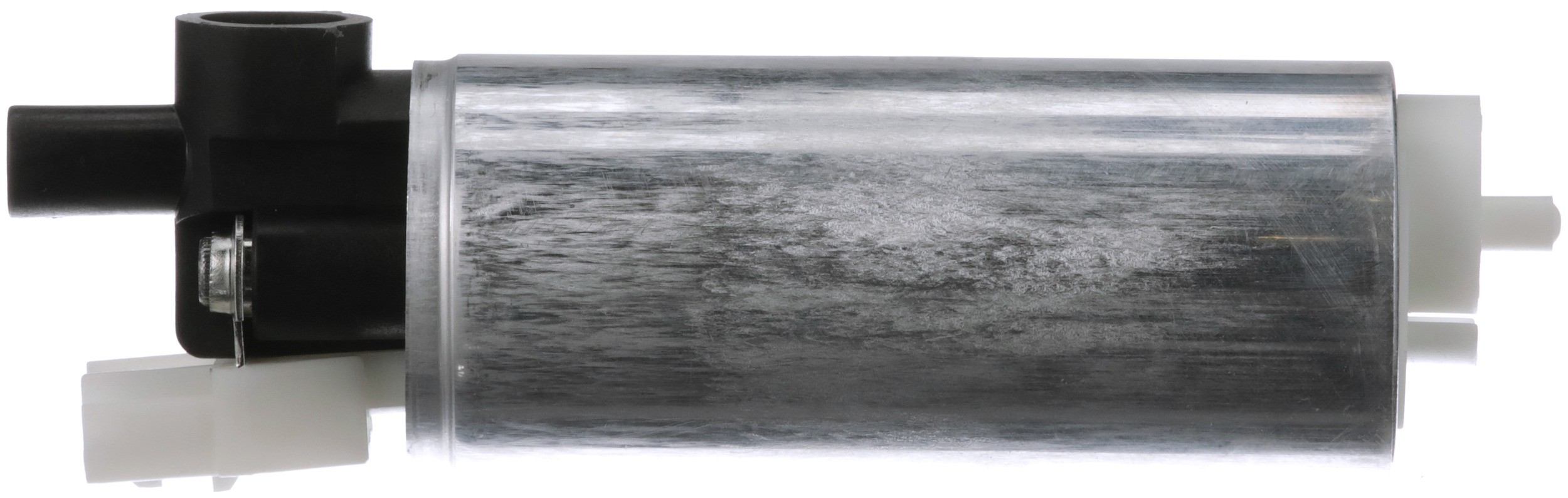

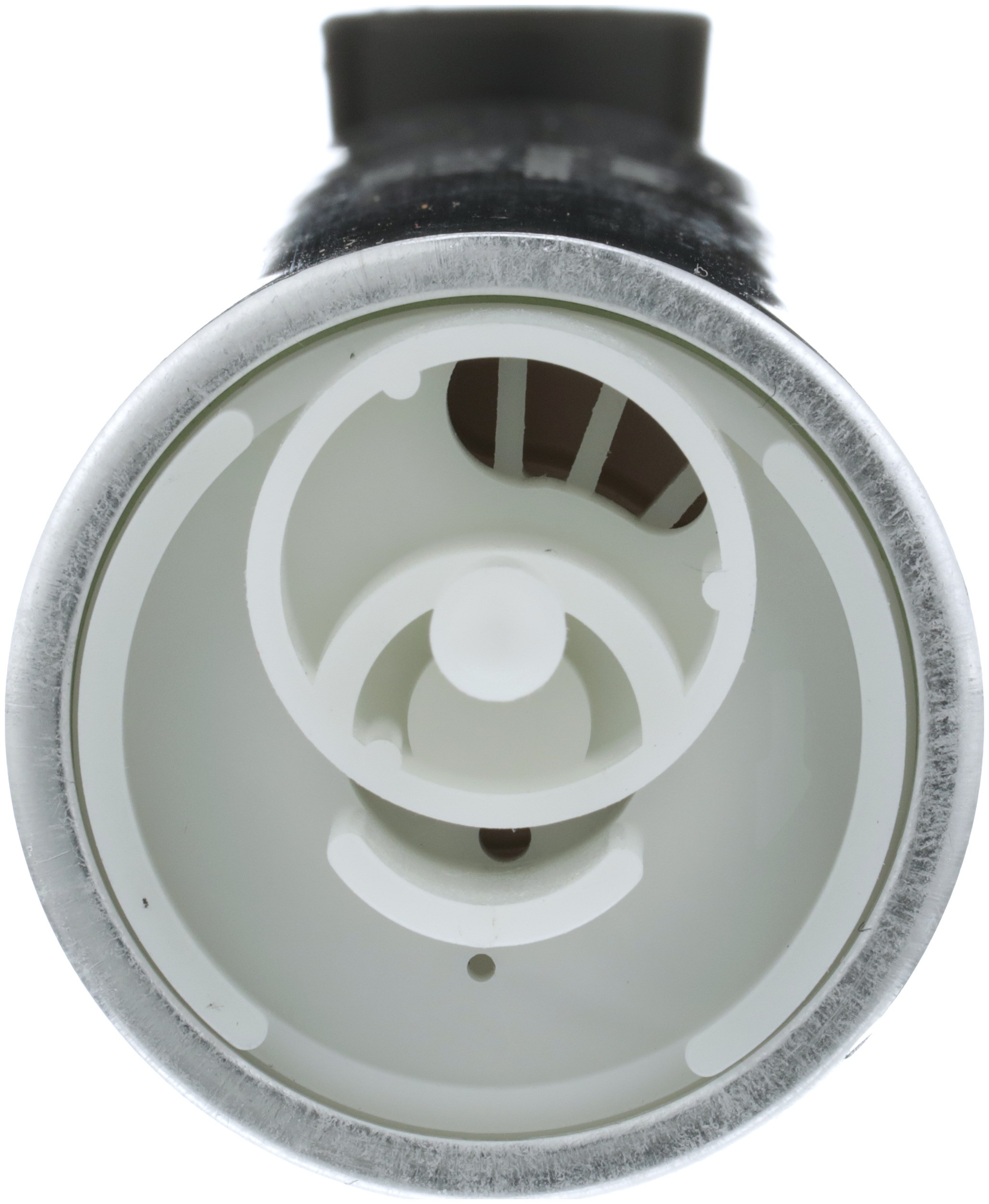

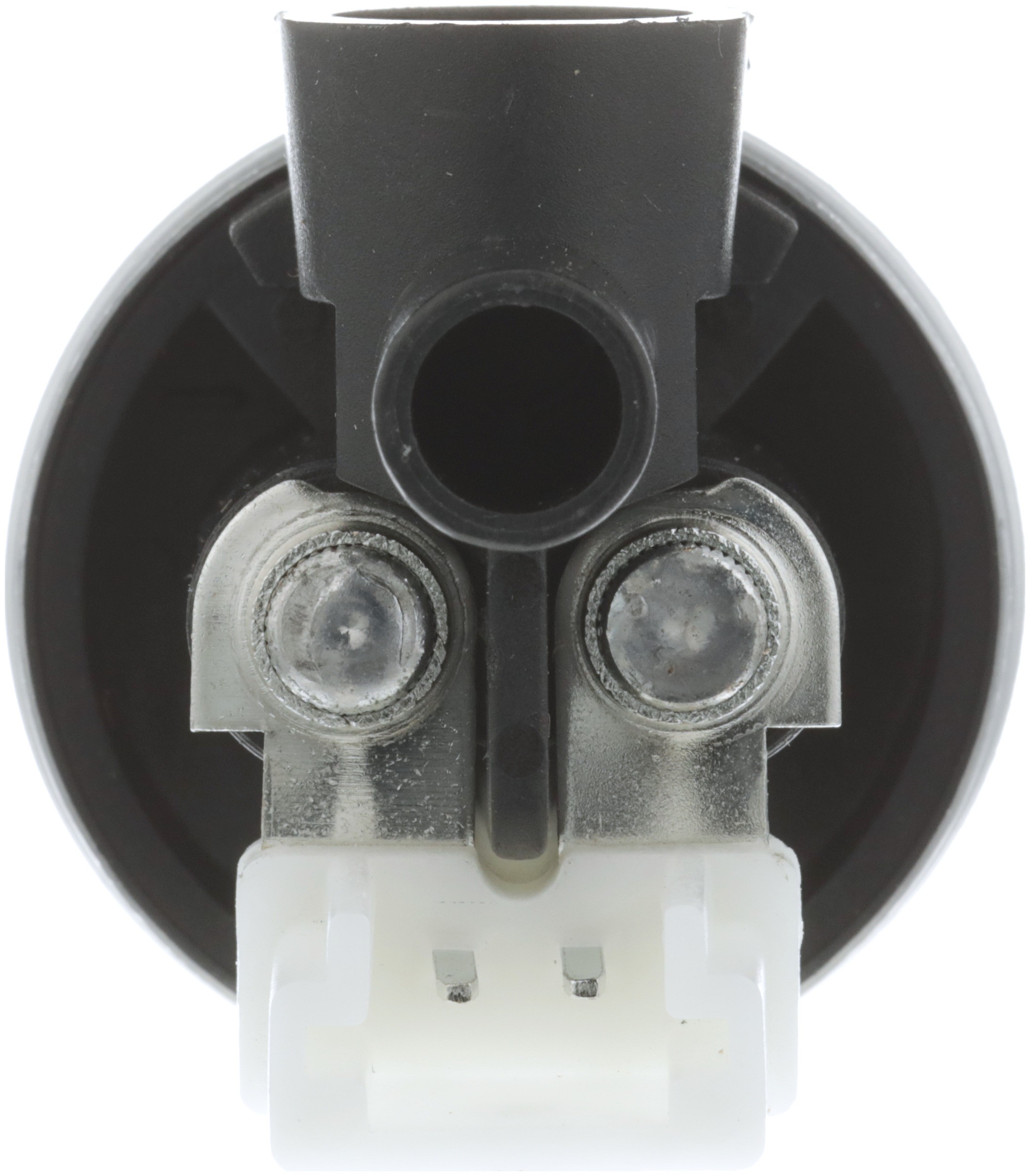

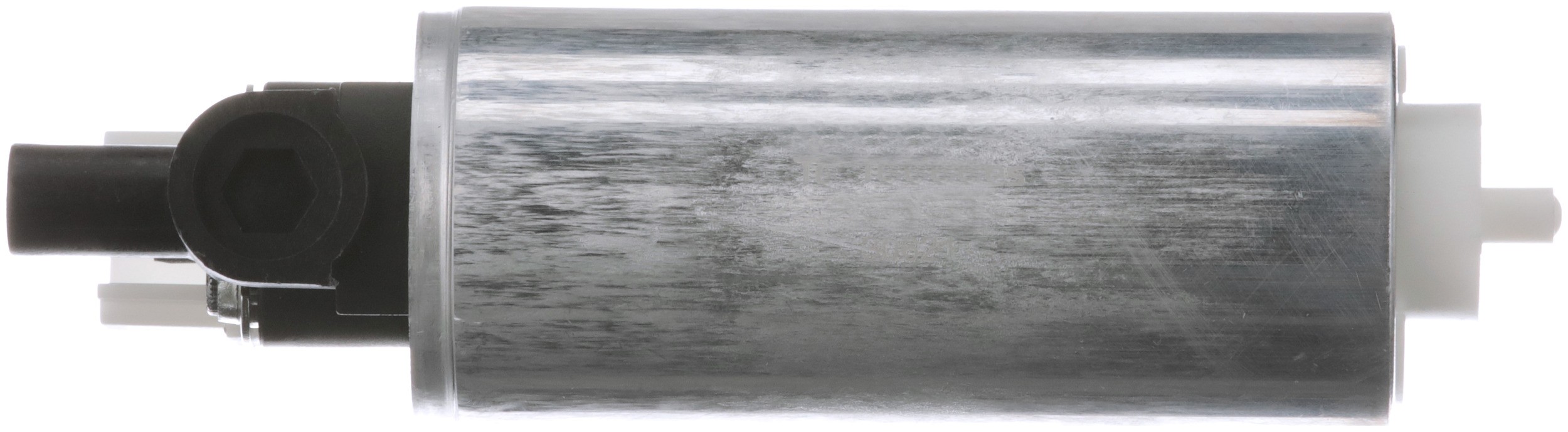

Delphi PN2036 Electric Fuel Pump

Delphi PN2036 Electric Fuel Pump

Features:

Always be sure to check and clean fuel tank to avoid returns
Instructional installation sheets included in every box
Each part undergoes testing to ensure the same fit, form, and function as the OE

Sparta, distributed by the only OE full-line fuel supplier Delphi, is specifically designed for higher mileage and earlier model vehicles. Turn to the brand backed by the OE experts, who know fit and performance better than anyone.

Attributes:

9102	4.0 68
Inlet Outside Diameter	19.0 MM
Outlet Outside Diameter	0.313 IN
Outlet Outside Diameter	7.9 MM
Voltage	14.0 2H
Length	133.0 MM
Mounting Bracket Included	No
518	No
4271	No
Mounting Hardware Included	Yes
Universal Or Specific Fit	Specific
2183	Internal
1154	No
1153	No
Position(s)	In-Tank

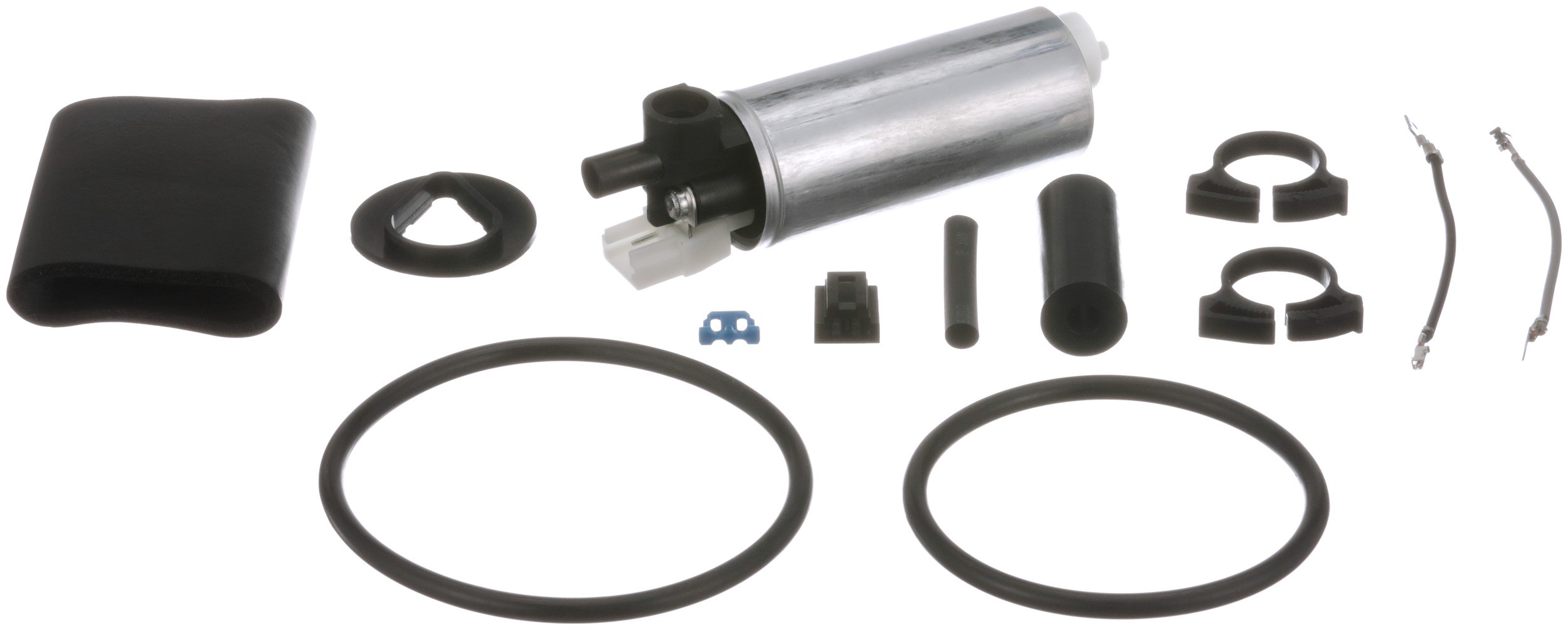

Package Contents	Electric Fuel Pump, Formed Tube Piece, (2) Hose Clips, Hose Piece, Lower Isolator, Isolator, Plastic Pump Retainer, Seal, Instruction Sheet
Outlet Quantity	1
Outlet Type	Hose
Inlet Type	Strainer
Wiring Harness Included	No
Terminal Gender:	Male
Connector Gender:	Female
Terminal Quantity	2
Gasket Or Seal Included	Yes

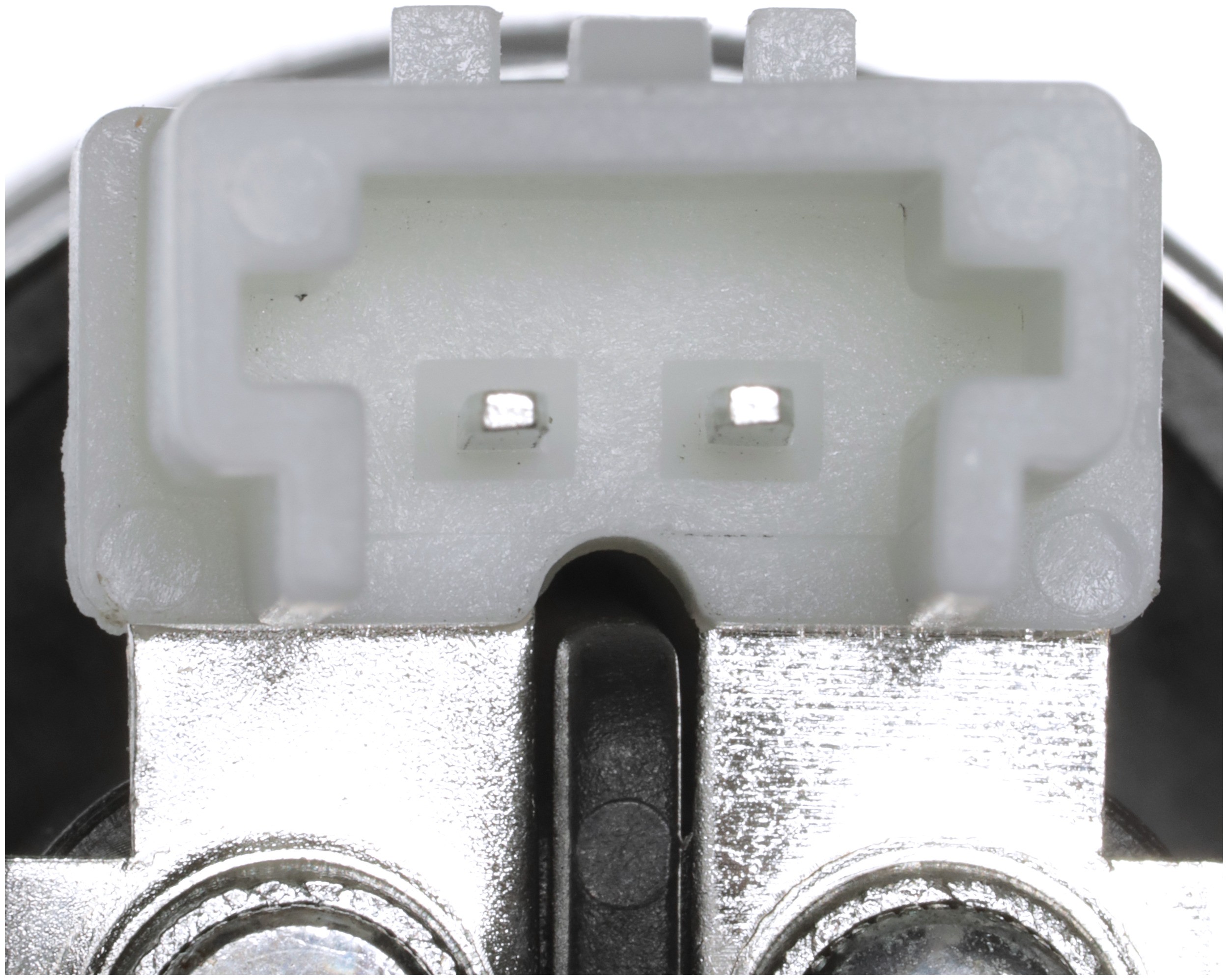

Connector Shape:	Square
Grade Type	Standard Replacement
Wire Quantity	0
Terminal Type	Blade
Regulator Included	No
9133	18.0 GPH
Fuel Type	Gas
Maximum Pressure	29.0 PS
9100	Turbine
8930	Nitrile Rubber
8932	12 PS
9050	4.0 68

Vehicle Applications:

Make	Model	Years
Buick	Commercial Chassis	1991 to 1993
Buick	Roadmaster	1991 to 1993
Cadillac	Commercial Chassis	1993 to 1993
Cadillac	Fleetwood	1993 to 1993
Chevrolet	Caprice	1991 to 1993
Oldsmobile	Custom Cruiser	1991 to 1992
