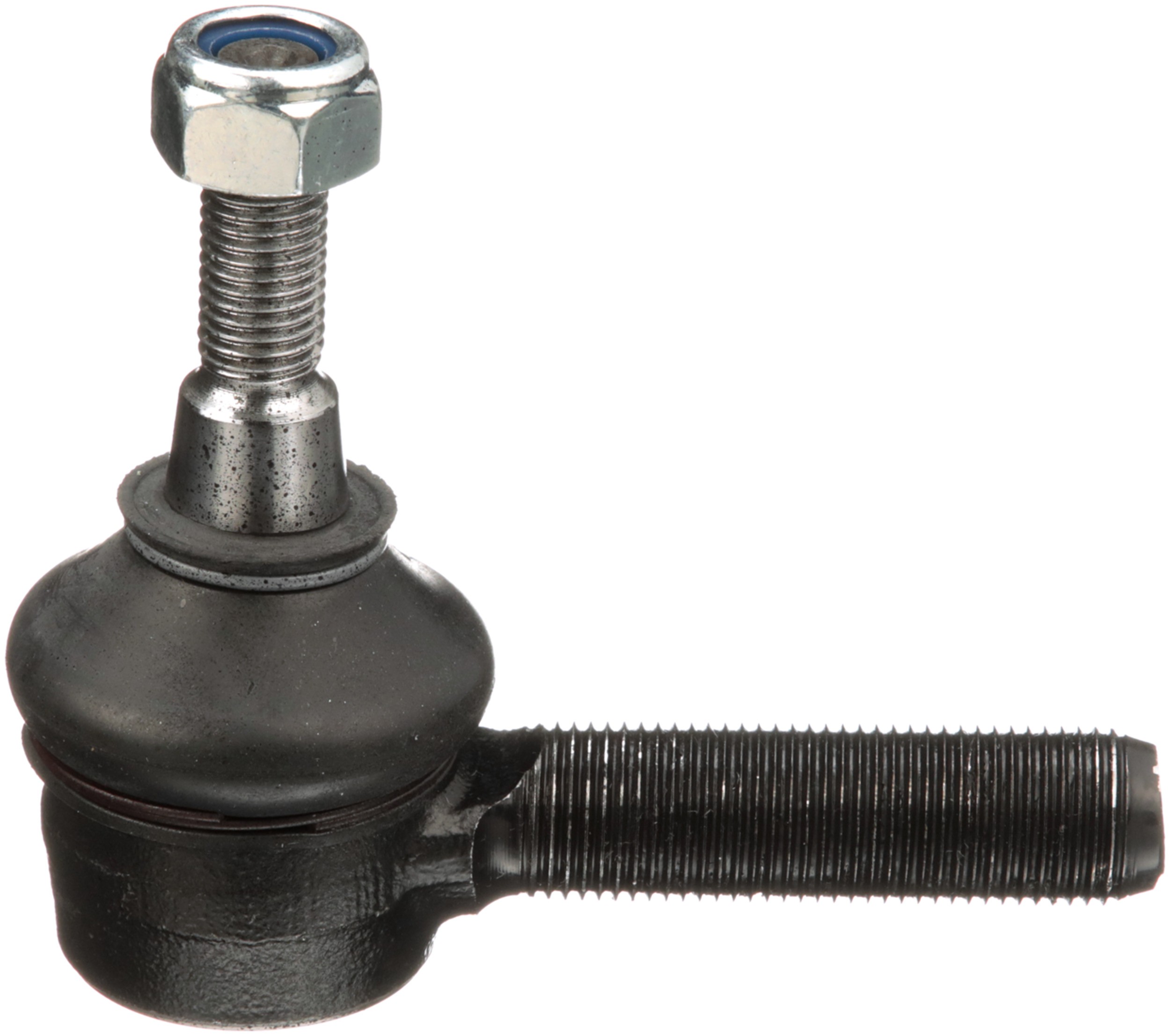

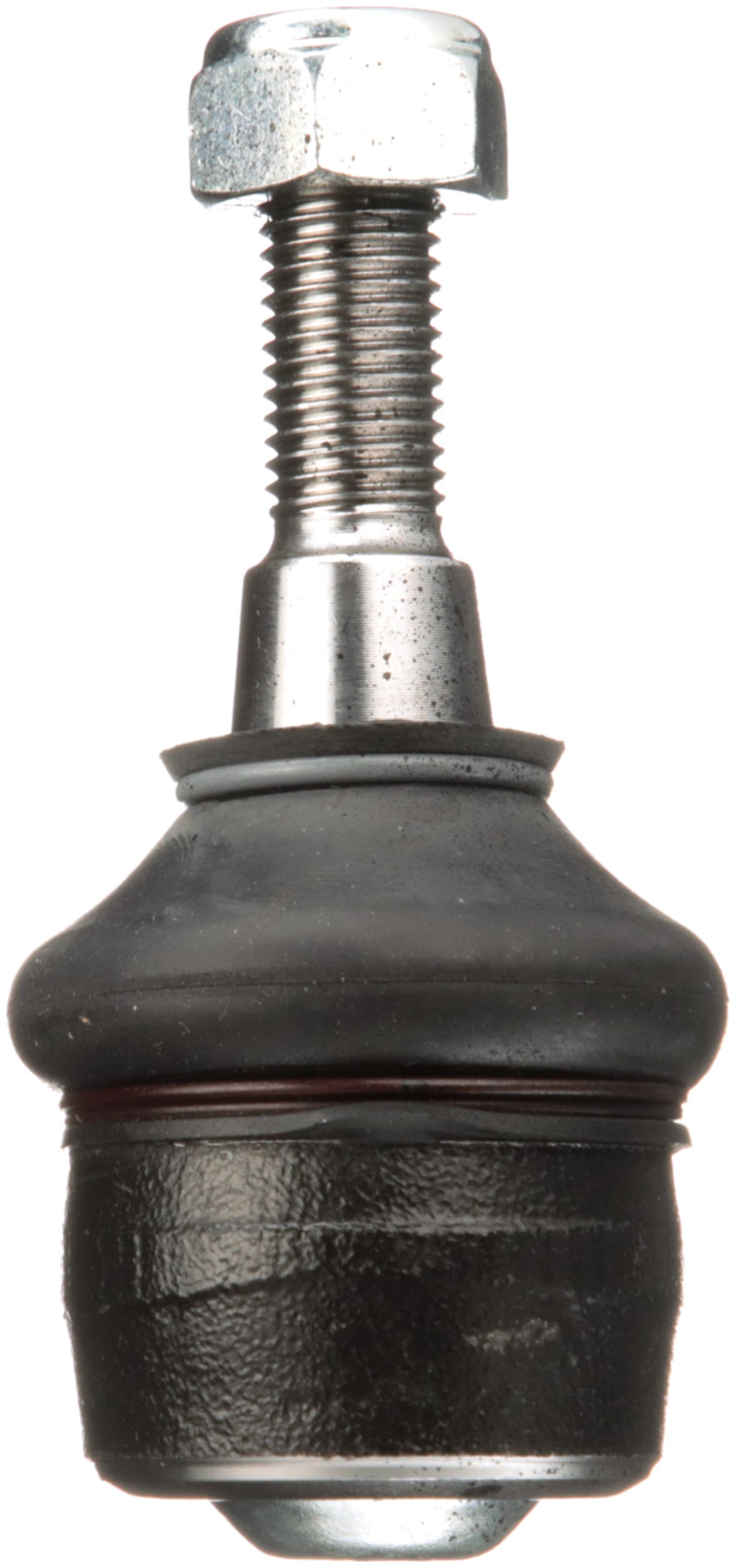

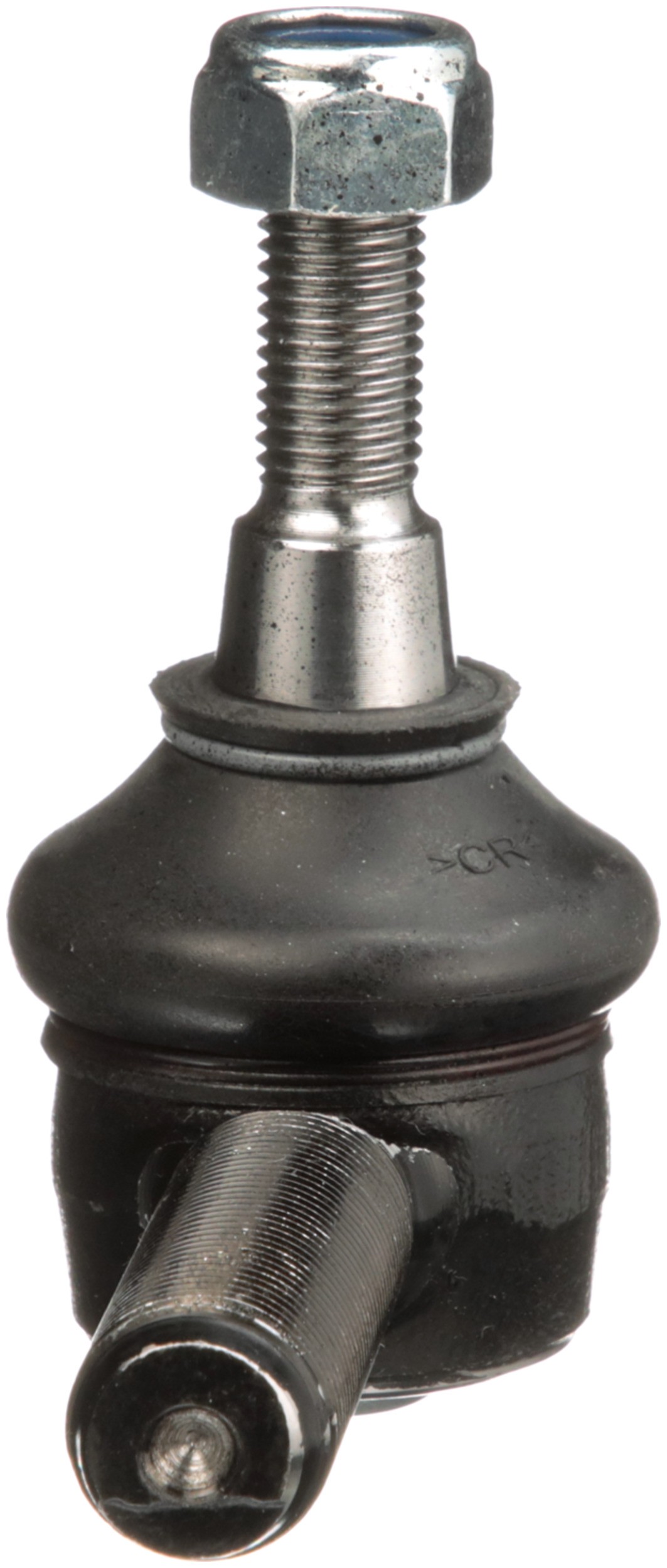

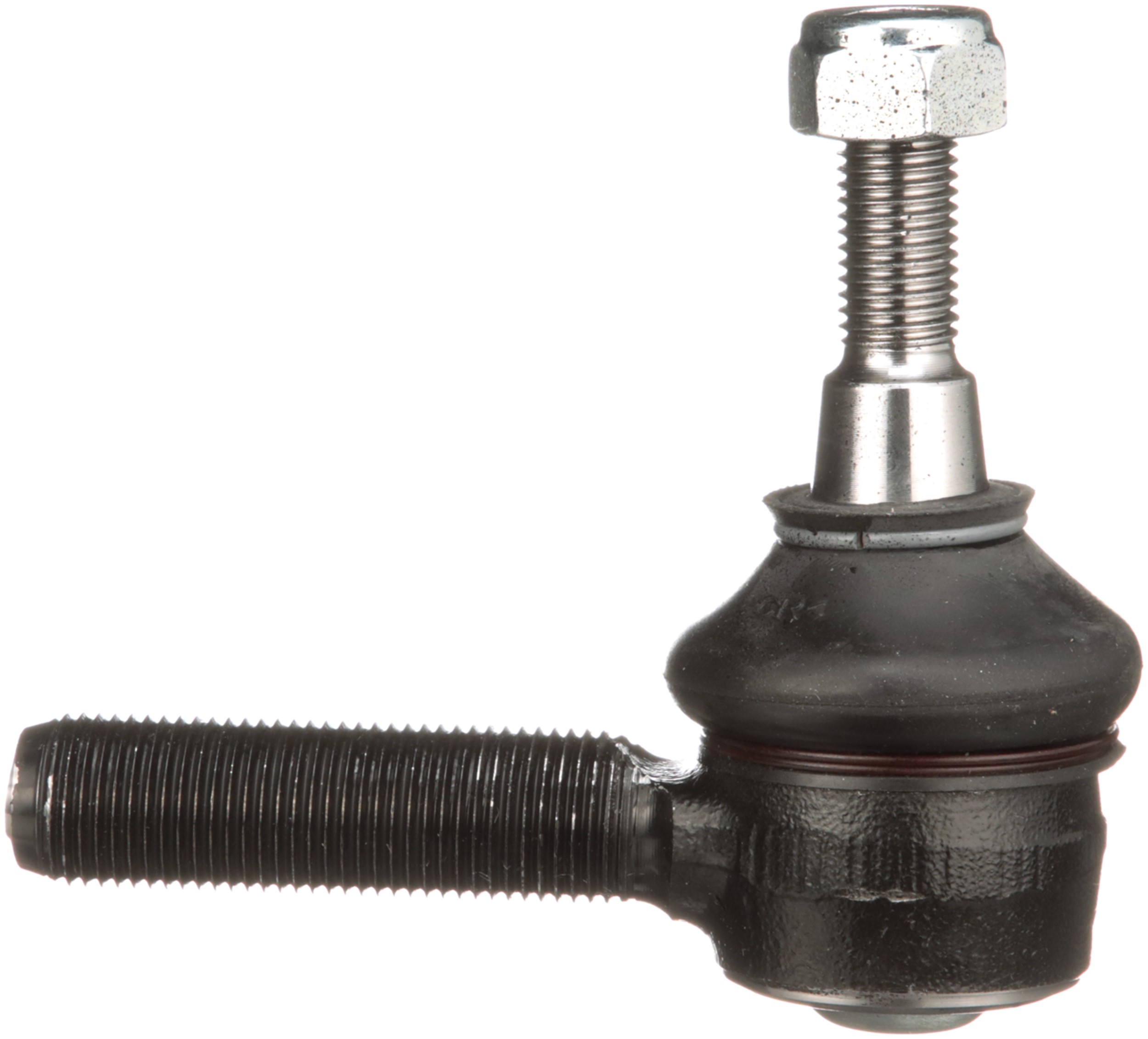

Delphi TA1002 Steering Tie Rod End

Delphi TA1002 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Housing Material	Steel
Adjustable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Counterclockwise (Left)
Dust Boot Included	Yes
1786	17.50 MM
1786	0.689 IN
662	17.50 MM
Position(s)	At Pitman Arm, Left Outer. For the position specific to your vehicle, refer to the Applications.
881	Threaded
9090	Rubber
9091	Steel
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Length – Stud Centre to End	86.00 MM
Length – Stud Centre to End	3.386 IN
Height	96.00 MM
Width	40 MM
Stud Length	0.689 IN
662	0.689 IN
627	1.07 LB
36	17.46 MM
36	0.688 IN
Stud Length	17.50 MM
