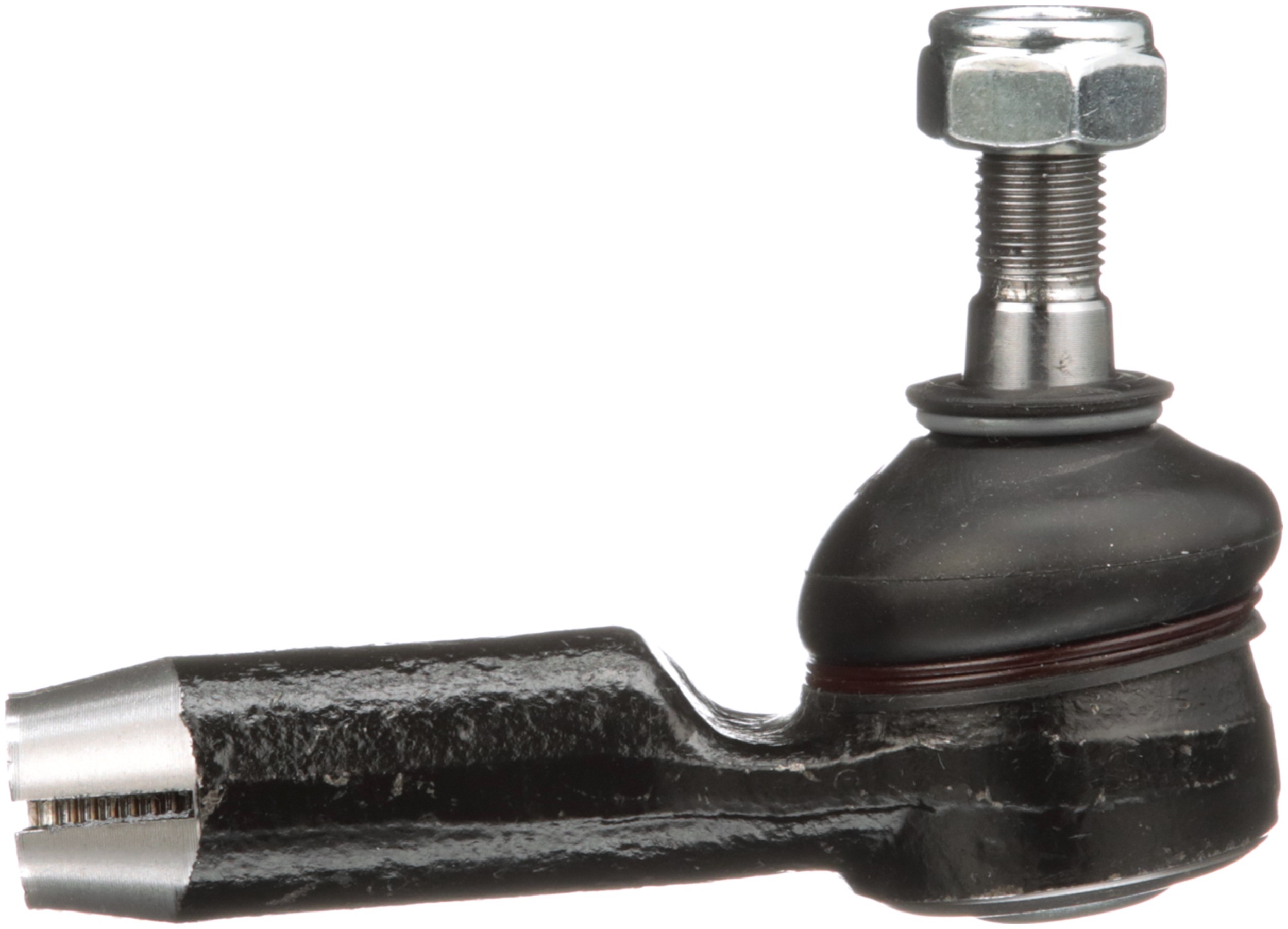

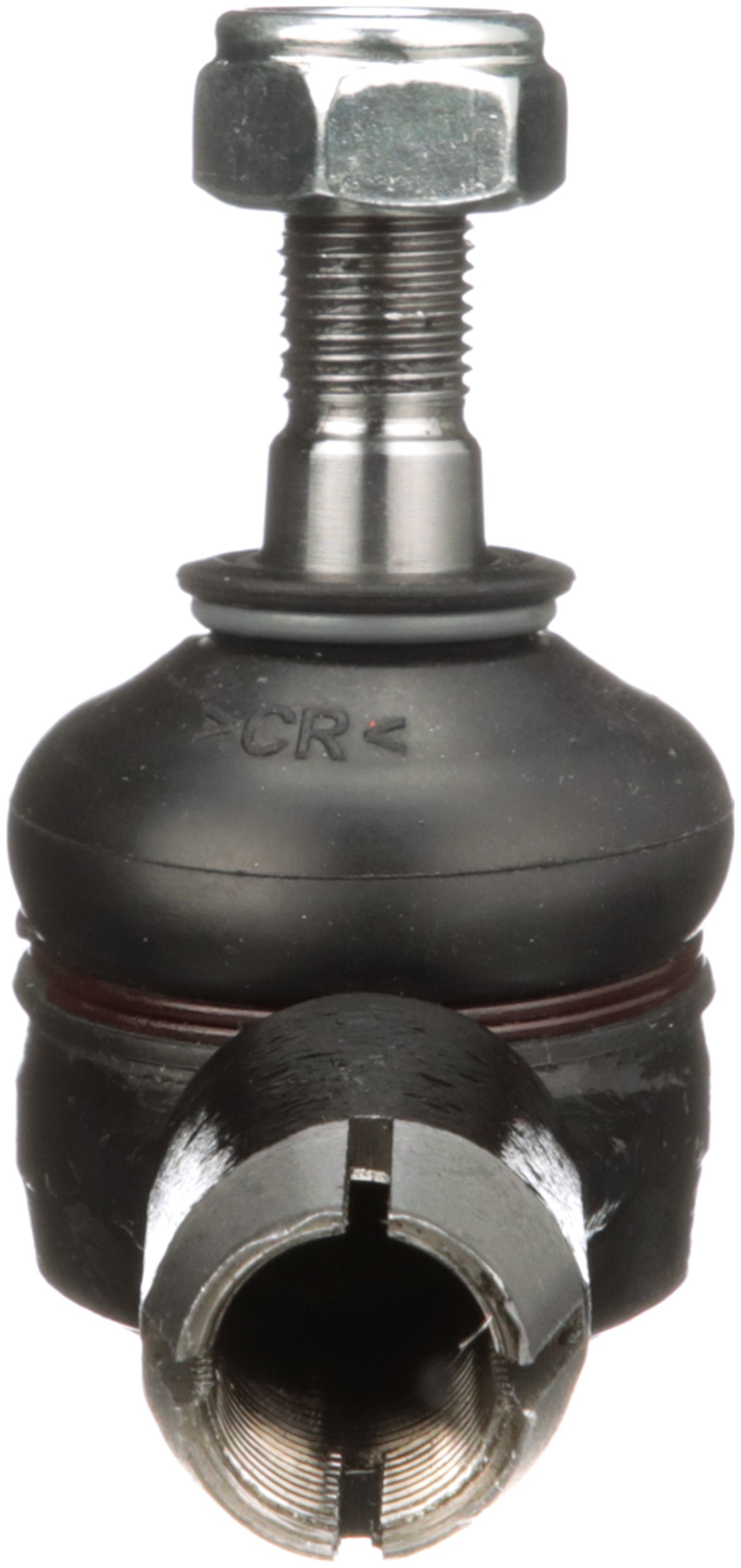

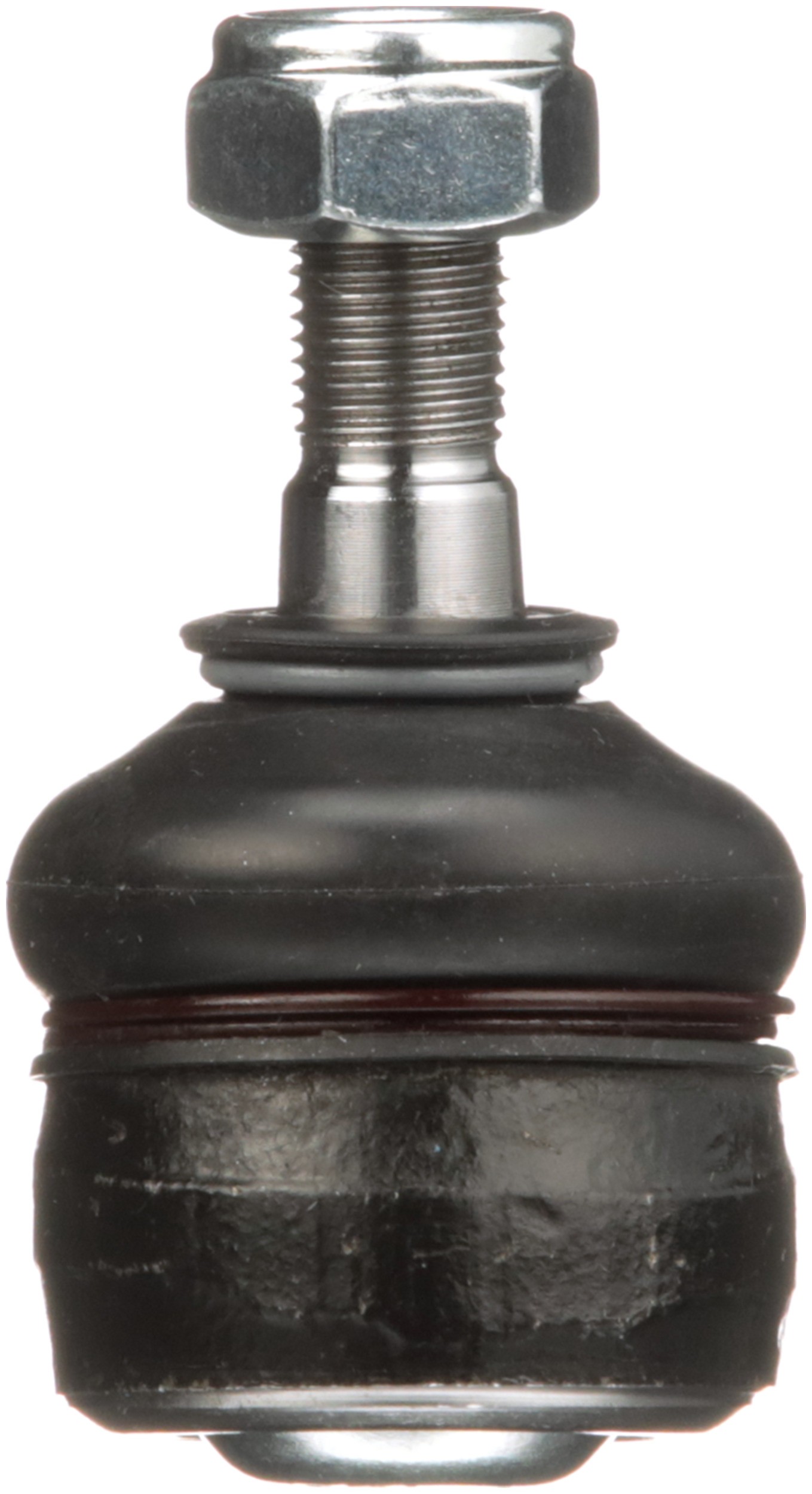

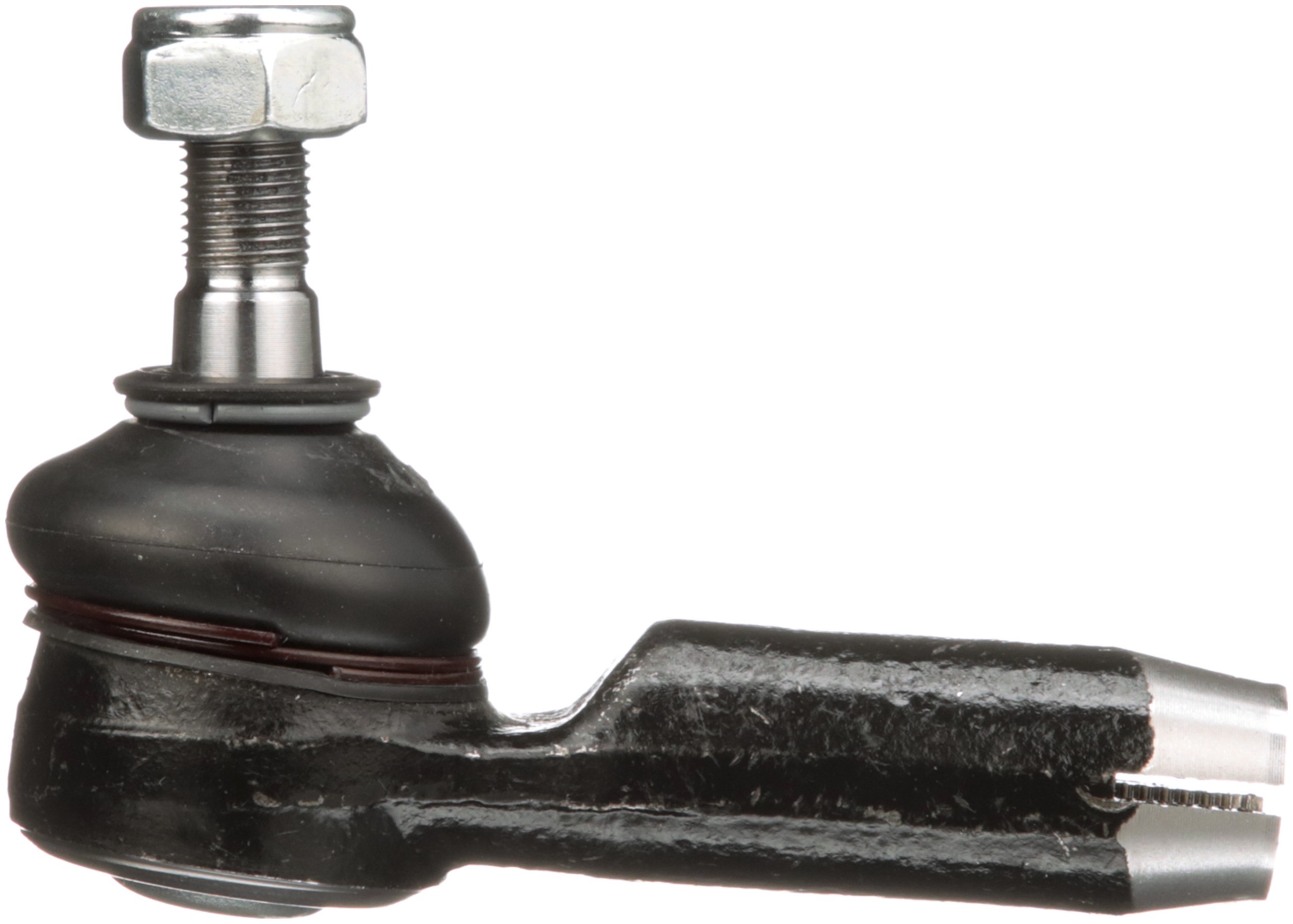

Delphi TA1069 Steering Tie Rod End

Delphi TA1069 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
627	0.63 LB
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
Stud Length	12.50 MM
Stud Length	0.492 IN
Width	35 MM
Height	64.00 MM
Length – Stud Centre to End	2.913 IN
Length – Stud Centre to End	74.00 MM
9090	Rubber
662	12.50 MM
Position(s)	Outer
662	0.492 IN
9091	Steel
1786	0.492 IN
Color	Black
36	20.00 MM
36	0.787 IN
1786	12.50 MM
881	Threaded
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic

Vehicle Applications:

Make	Model	Years
Audi	4000 Quattro	1986 to 1987
Audi	4000	1982 to 1987
Audi	80 Quattro	1988 to 1992
Audi	80	1988 to 1992
Audi	90 Quattro	1988 to 1995
Audi	90	1988 to 1995
Audi	Cabriolet	1994 to 1998
Audi	Coupe Quattro	1990 to 1991
Audi	Coupe	1981 to 1987
Audi	Quattro	1984 to 1985
Volkswagen	Quantum	1982 to 1988
