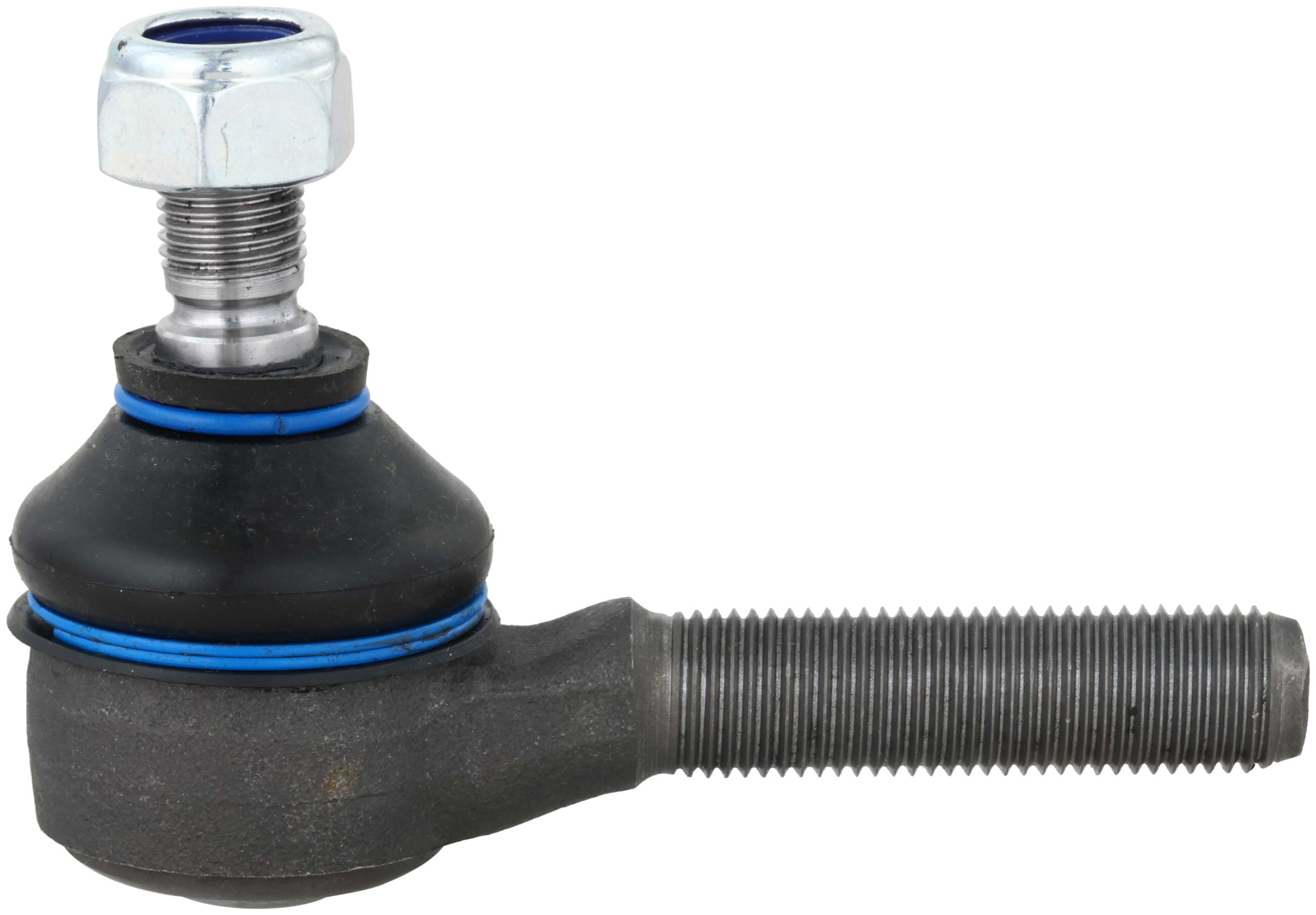

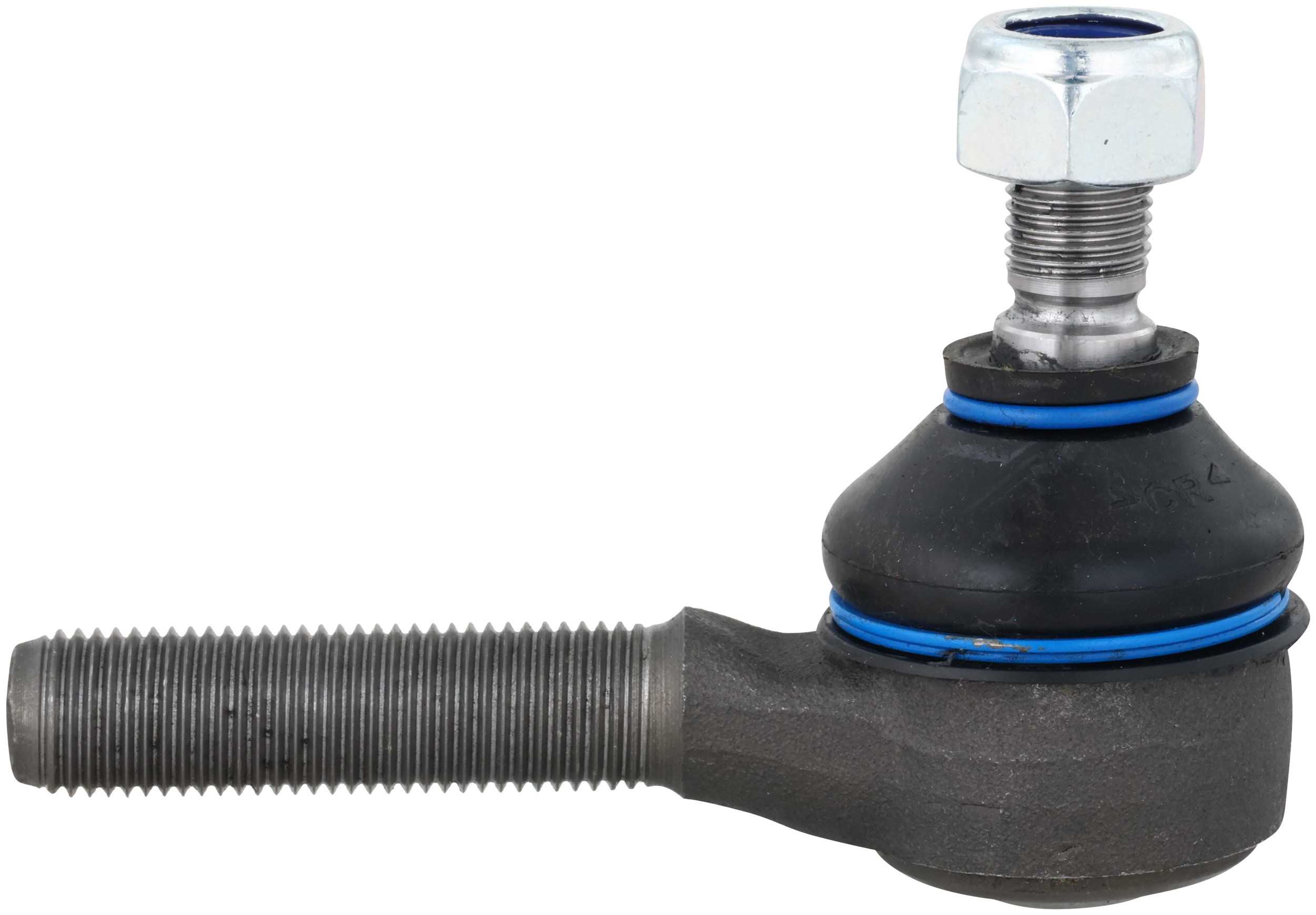

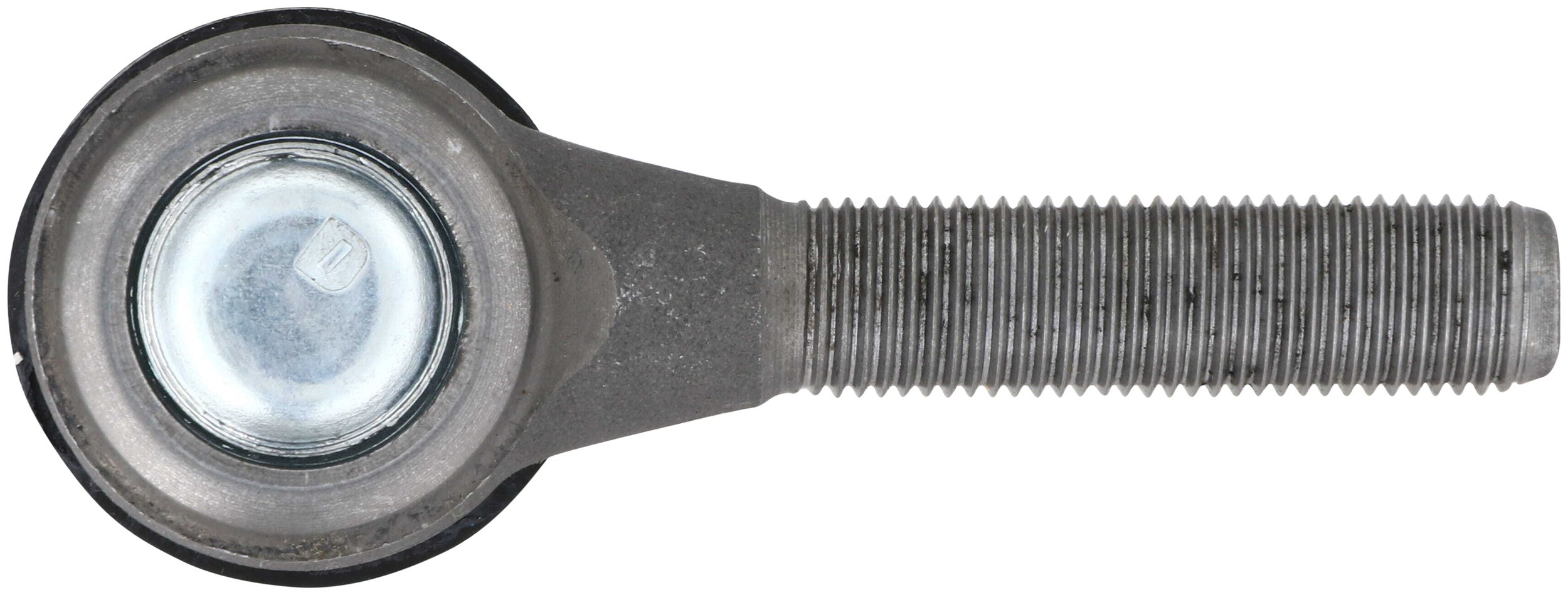

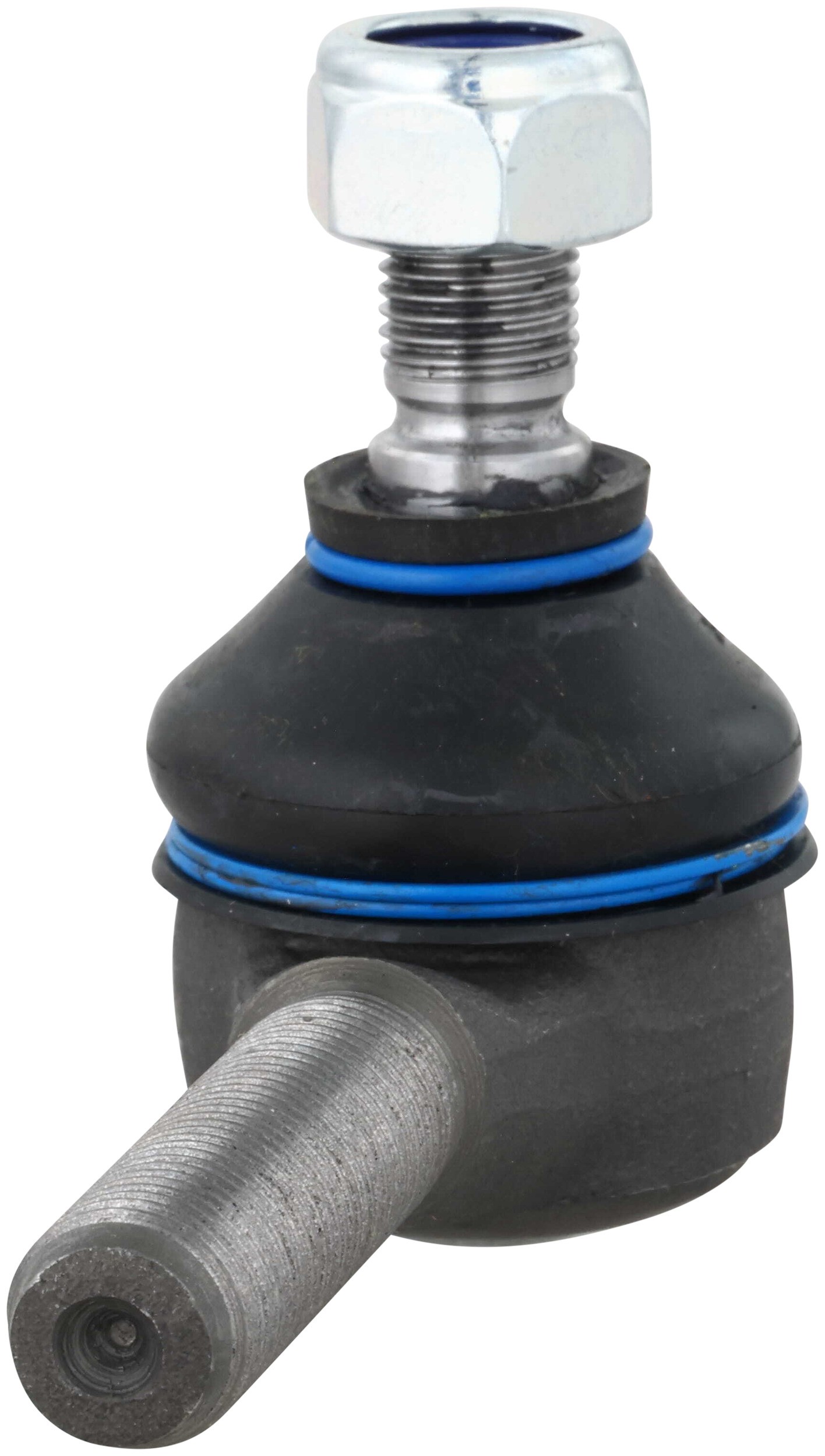

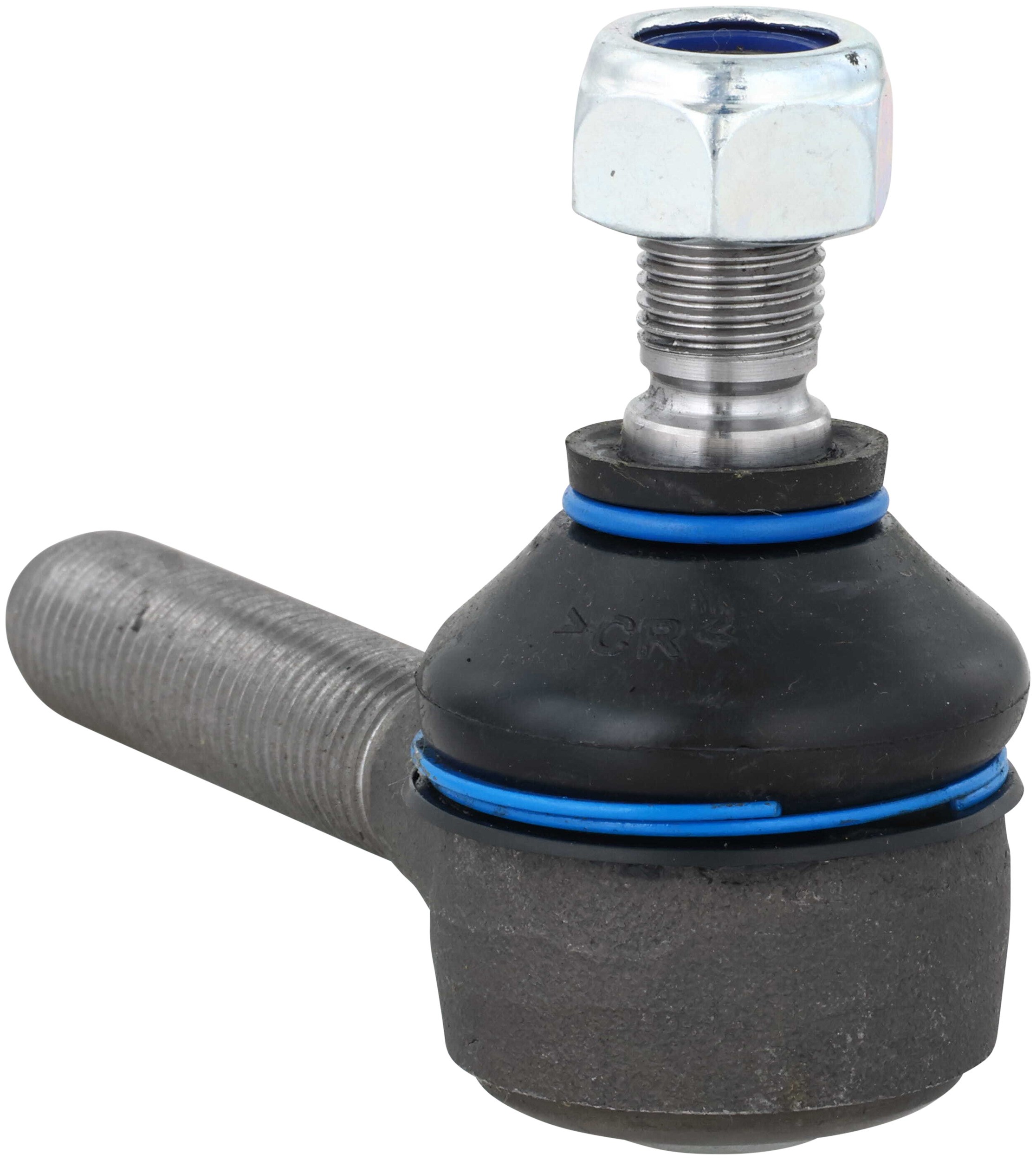

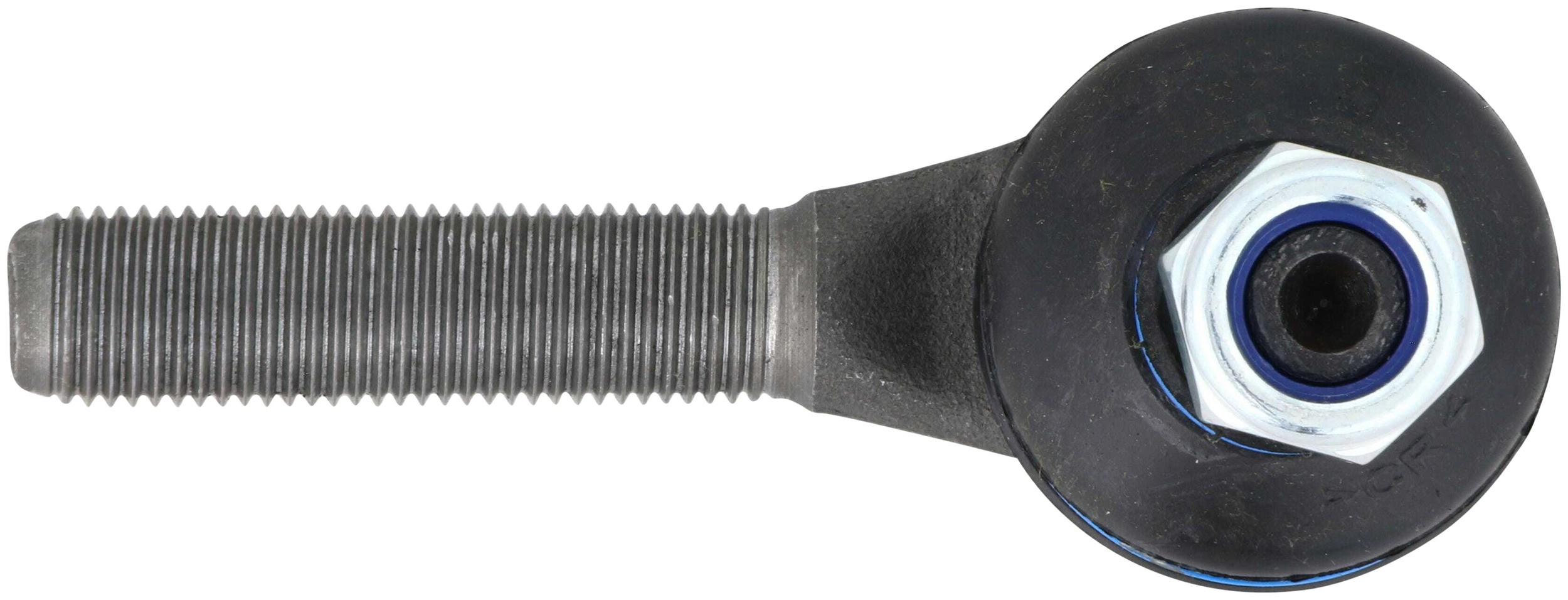

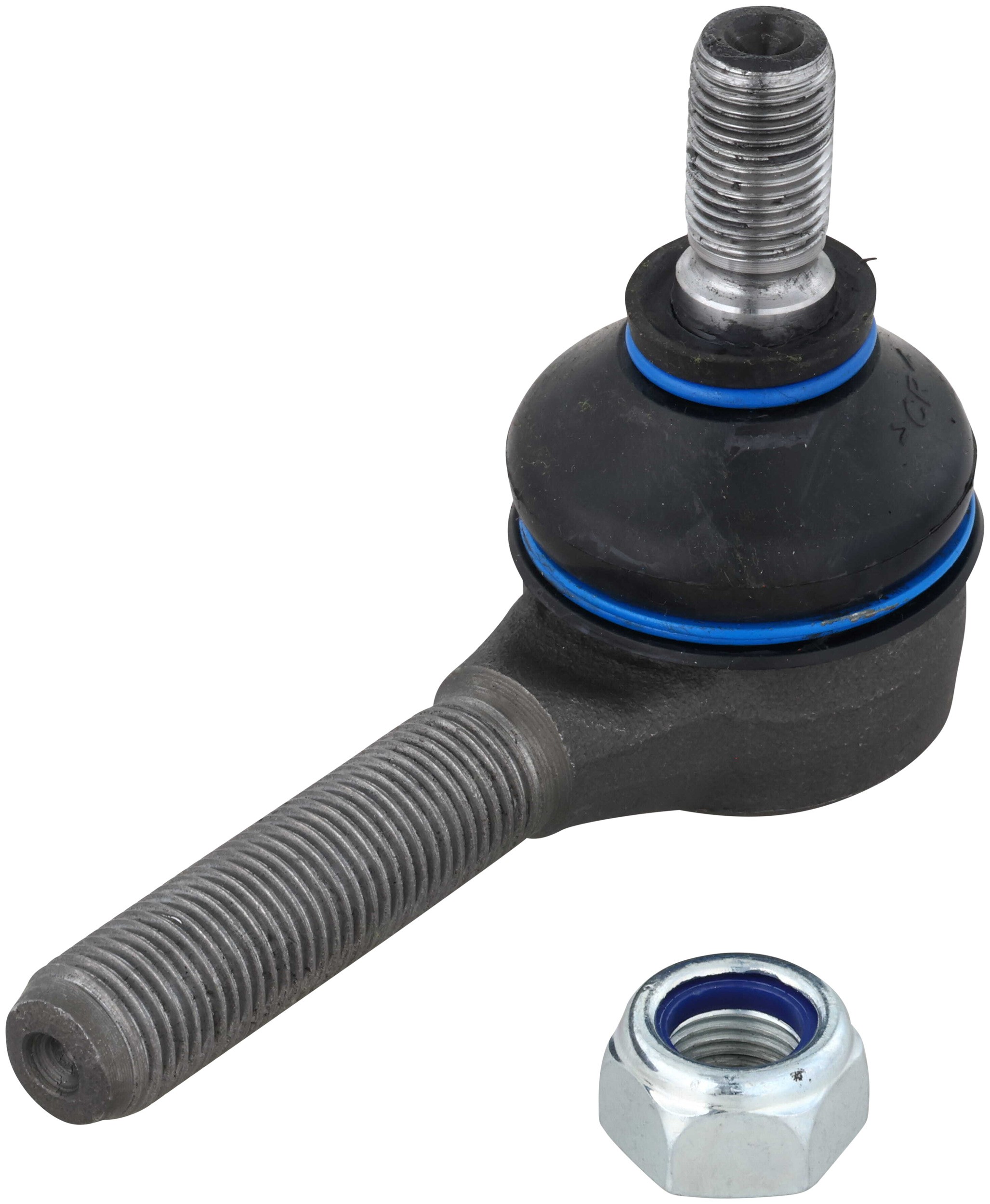

Delphi TA1128 Steering Tie Rod End

Delphi TA1128 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Type	Straight
End 1 Gender	Male
Position(s)	Outer
881	Threaded
9090	Rubber
9091	Steel
Color	Gray
End 2 Gender	Male
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
627	0.78 LB
End 1 Thread Direction	Counterclockwise (Left)
End 2 Thread Direction	Clockwise (Right)
Height	69.00 MM
Length	102.50 MM
Width	37 MM
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes

Vehicle Applications:

Make	Model	Years
Toyota	Carina	1972 to 1973
Toyota	Celica	1971 to 1981
Toyota	Corolla	1970 to 1982
Toyota	Corona	1972 to 1982
Toyota	Cressida	1978 to 1984
Toyota	Van	1984 to 1985
