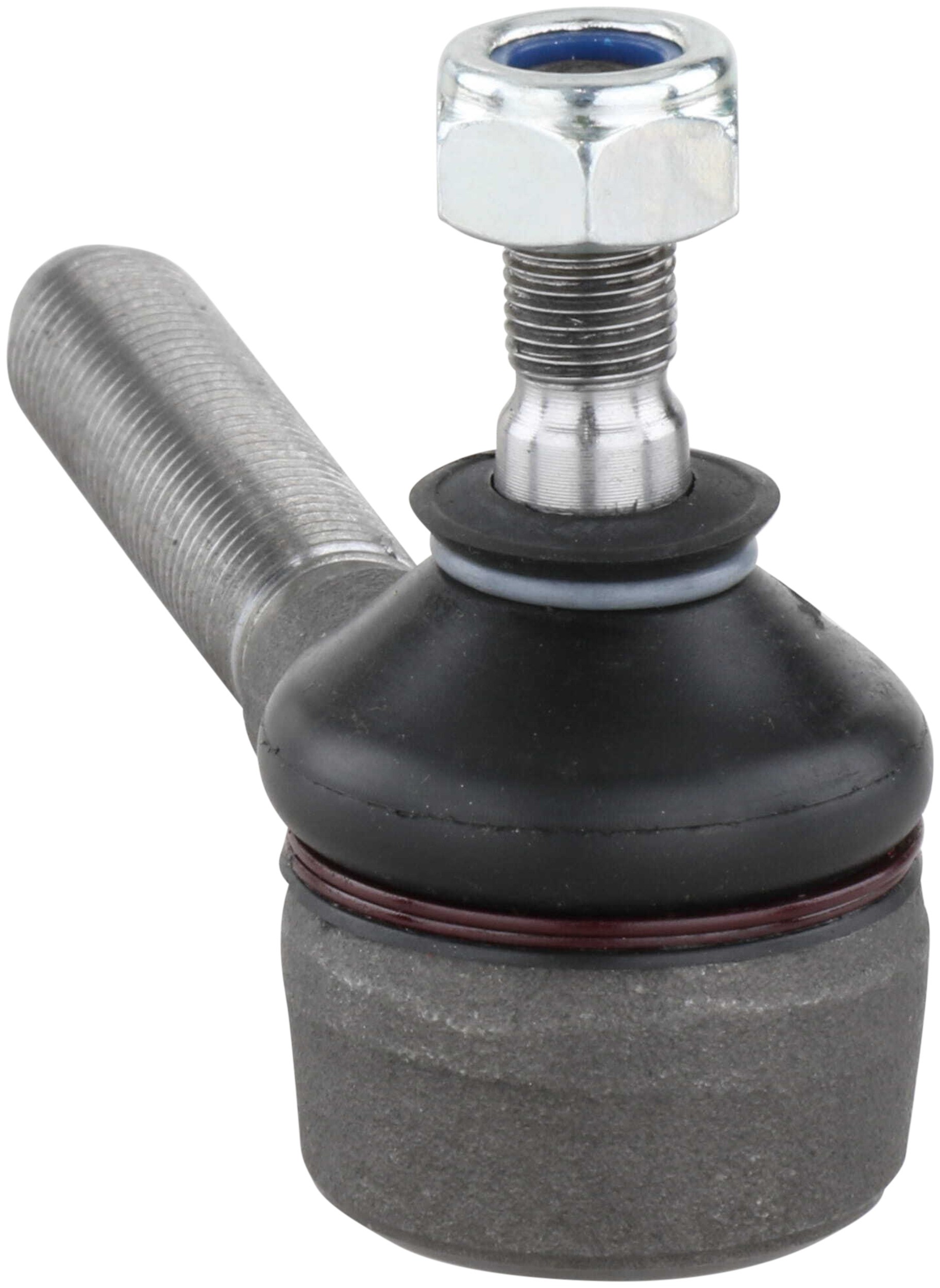

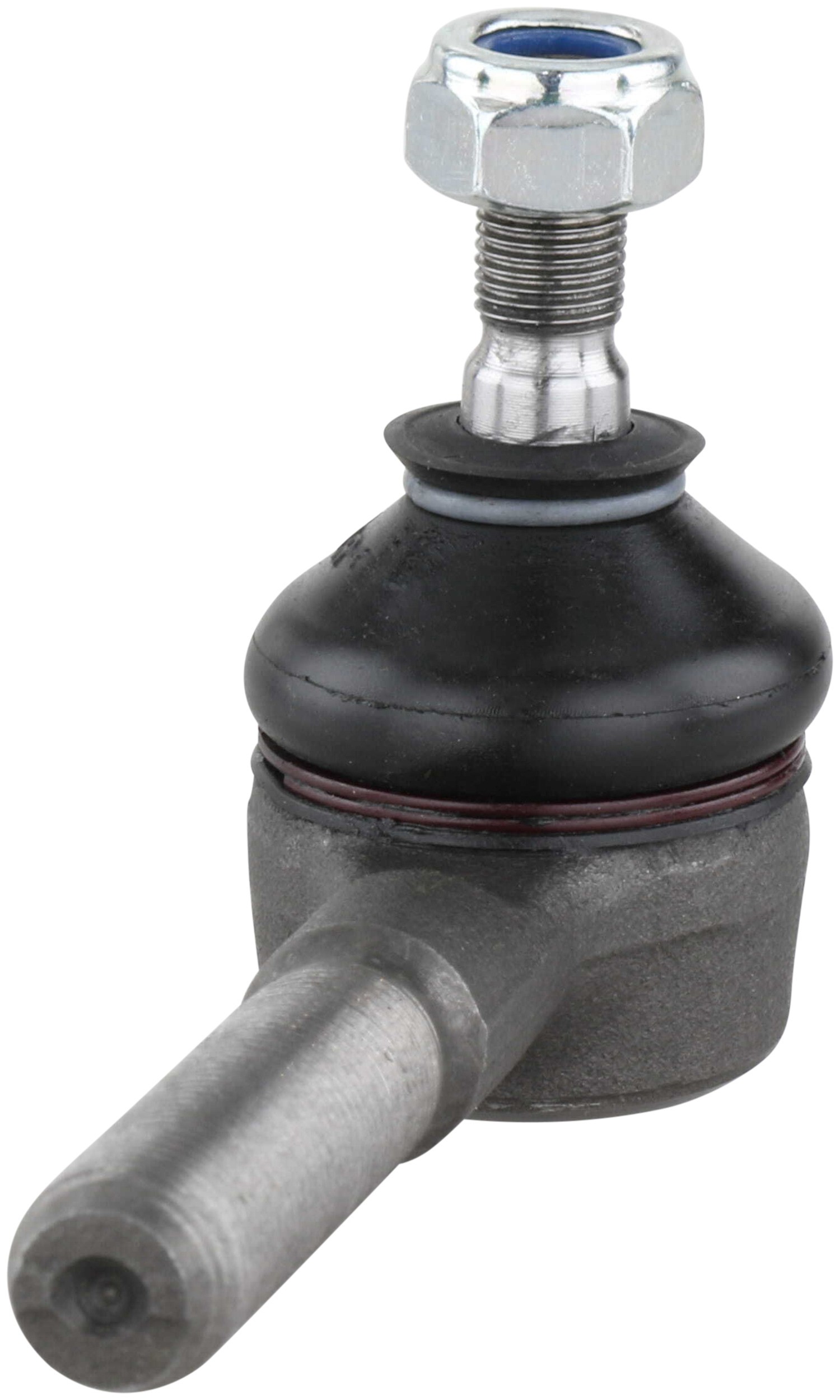

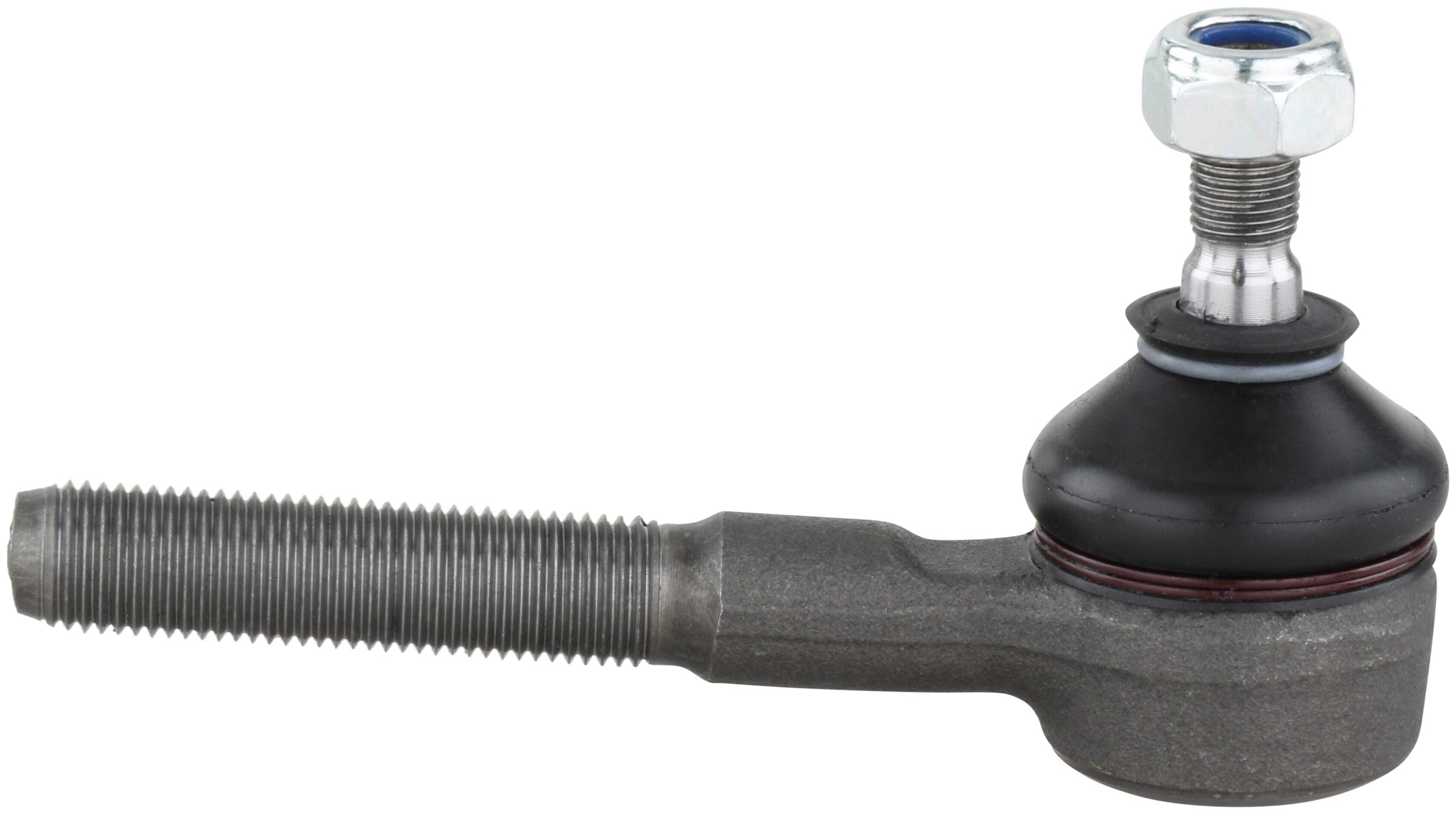

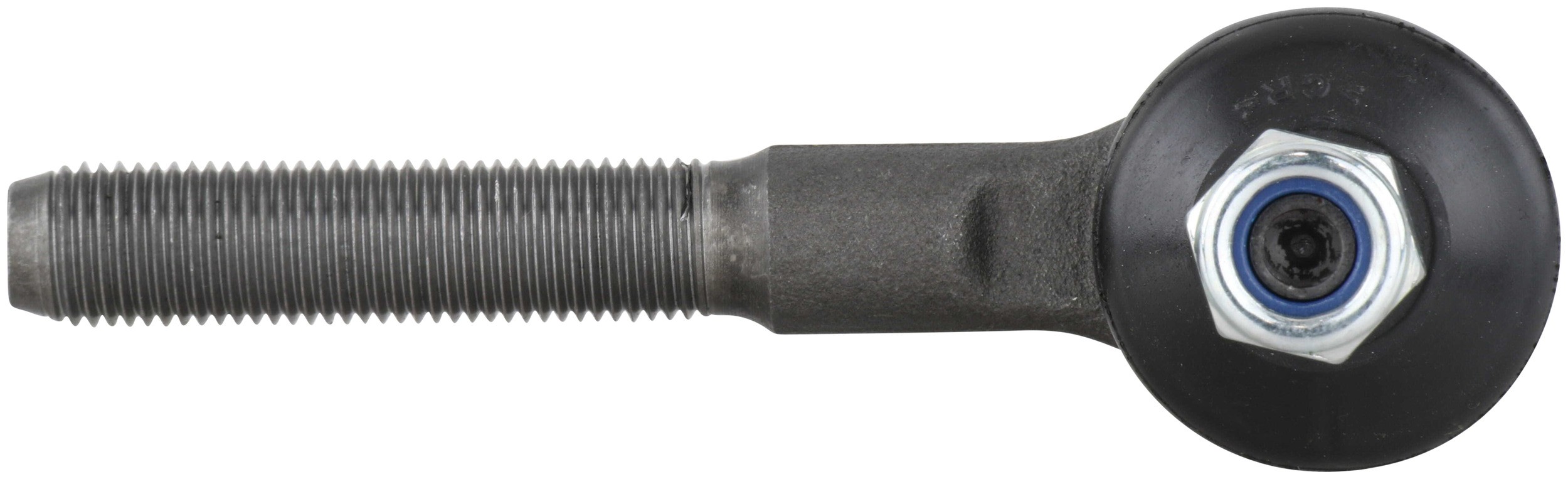

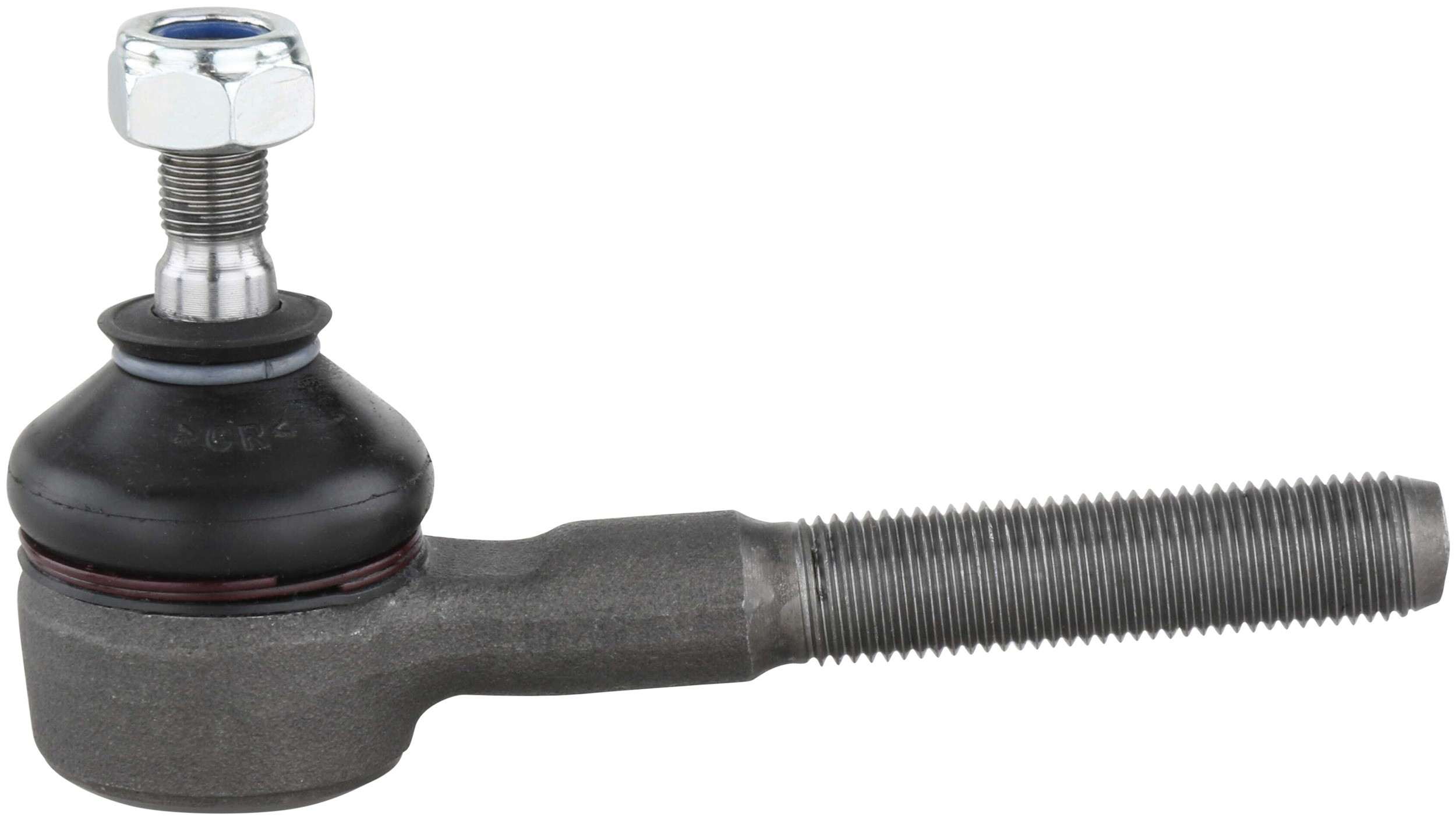

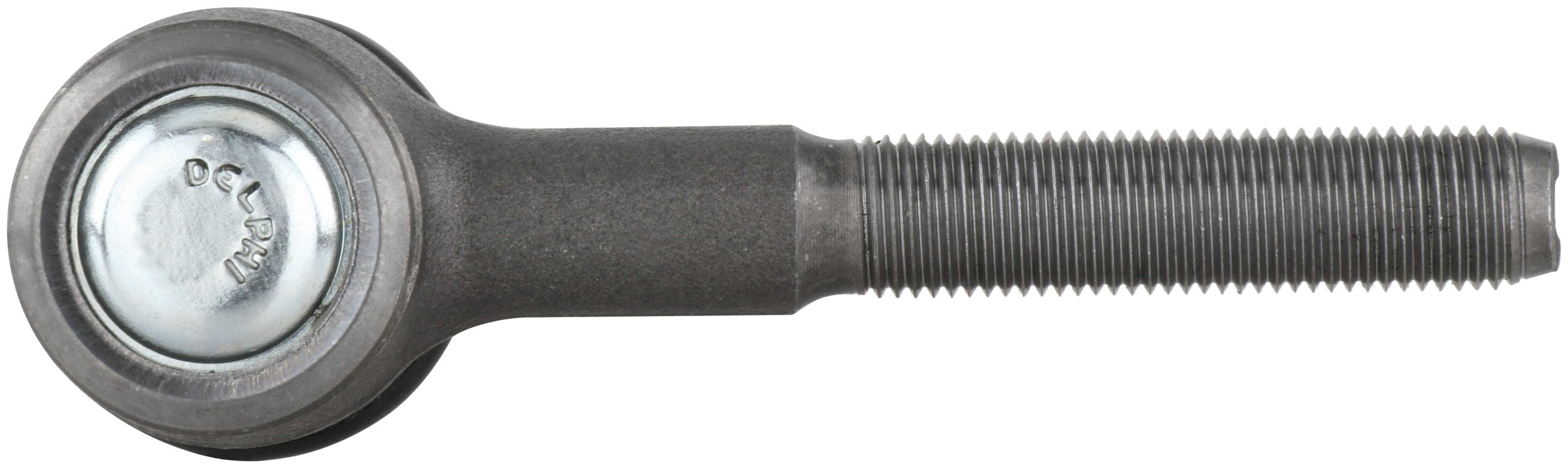

Delphi TA1132 Steering Tie Rod End

Delphi TA1132 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

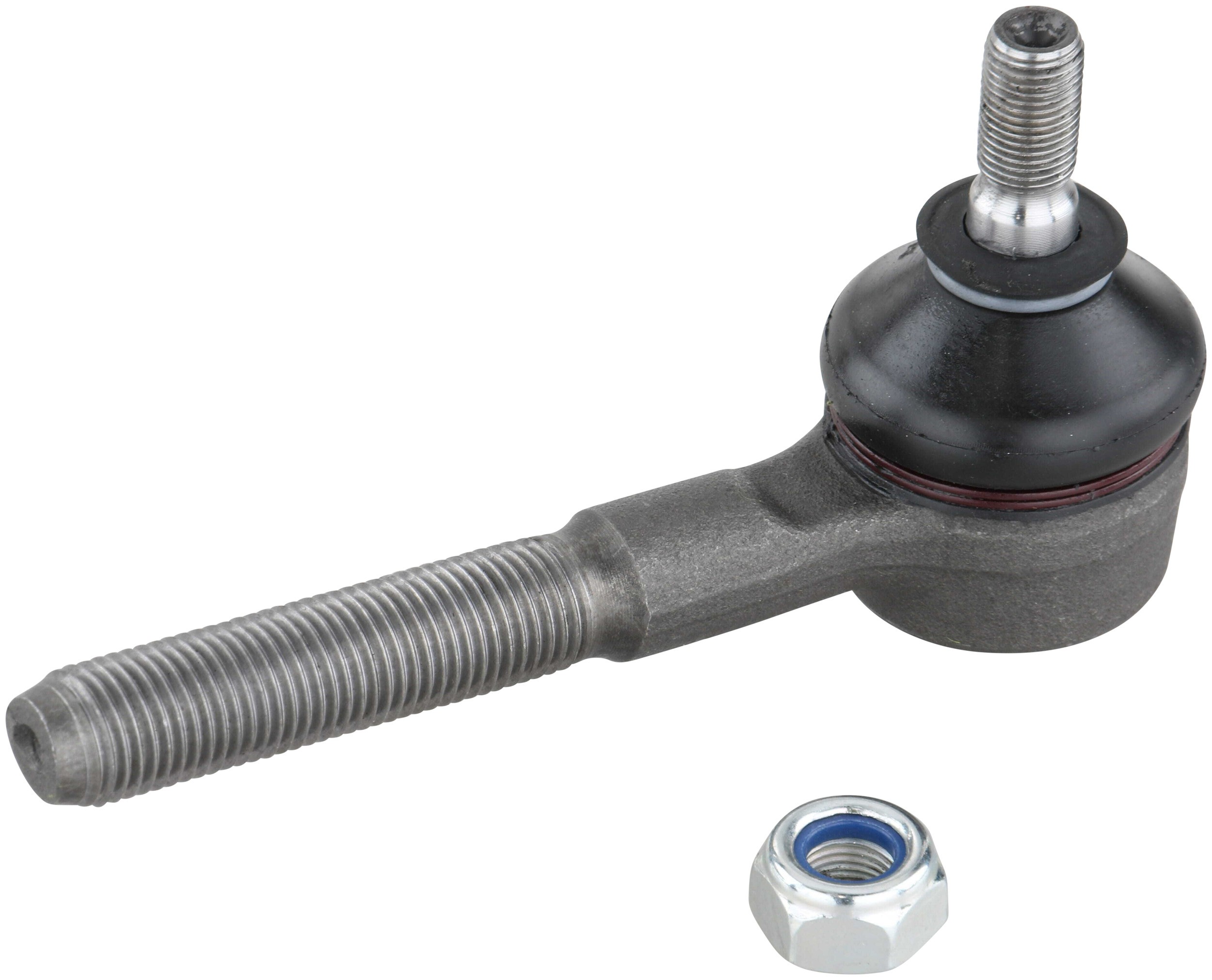

Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
881	Threaded
Position(s)	Outer
Color	Gray
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Length – Stud Centre to End	109.00 MM
Length – Stud Centre to End	4.291 IN
Height	68.70 MM
Width	37 MM
Stud Length	12.35 MM
Stud Length	0.486 IN
Type	Straight
Dust Boot Included	Yes
9091	Steel
Greaseable	No
Adjustable	No
662	12.35 MM
662	0.486 IN
627	0.83 LB
36	16.00 MM
36	0.630 IN
1786	12.35 MM
1786	0.486 IN
9090	Rubber
Bearing Material	Plastic

Vehicle Applications:

Make	Model	Years
Audi	4000 Quattro	1984 to 1987
Audi	4000	1981 to 1987
Audi	80	1988 to 1992
Audi	90	1988 to 1995
Audi	Coupe	1981 to 1987
Audi	Fox	1973 to 1979
Volkswagen	Dasher	1974 to 1981
Volkswagen	Quantum	1982 to 1988
