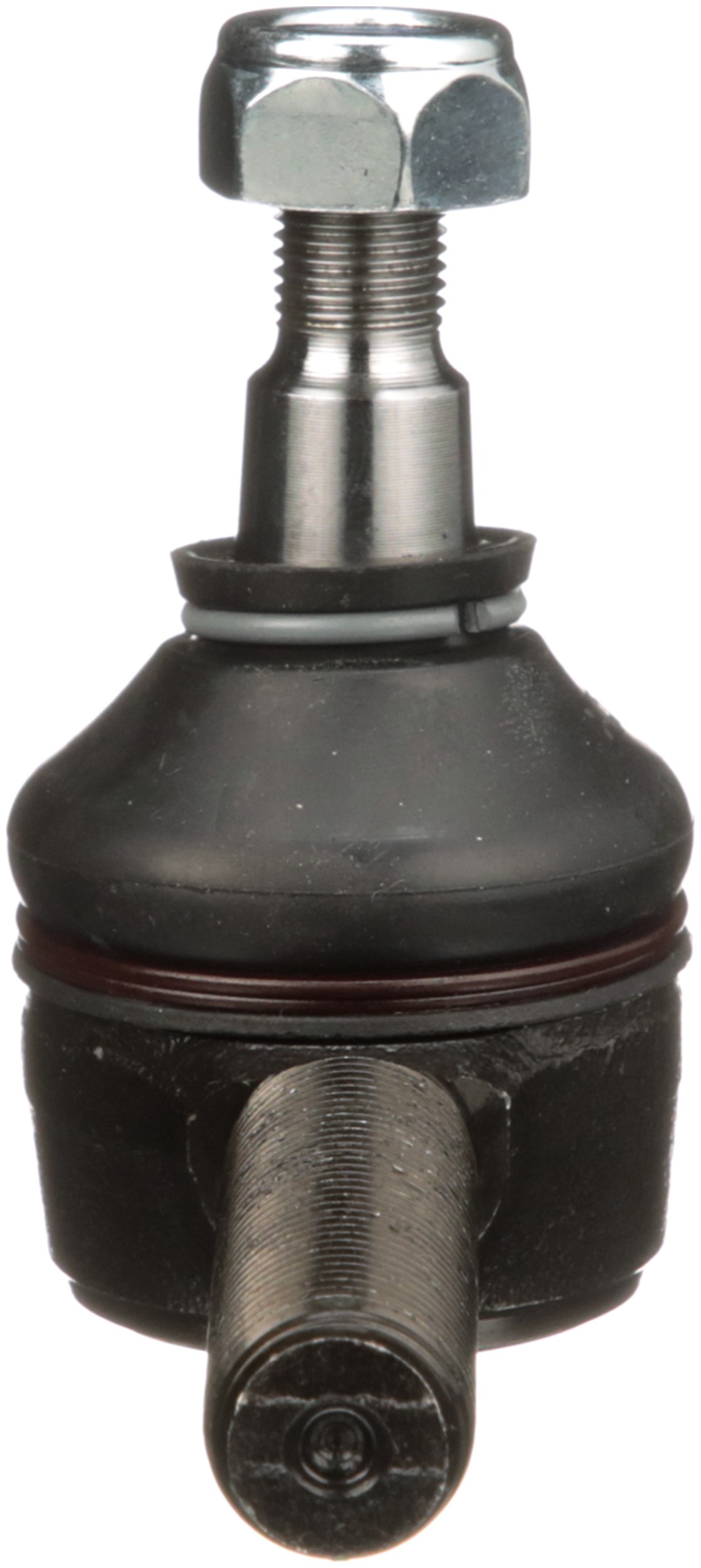

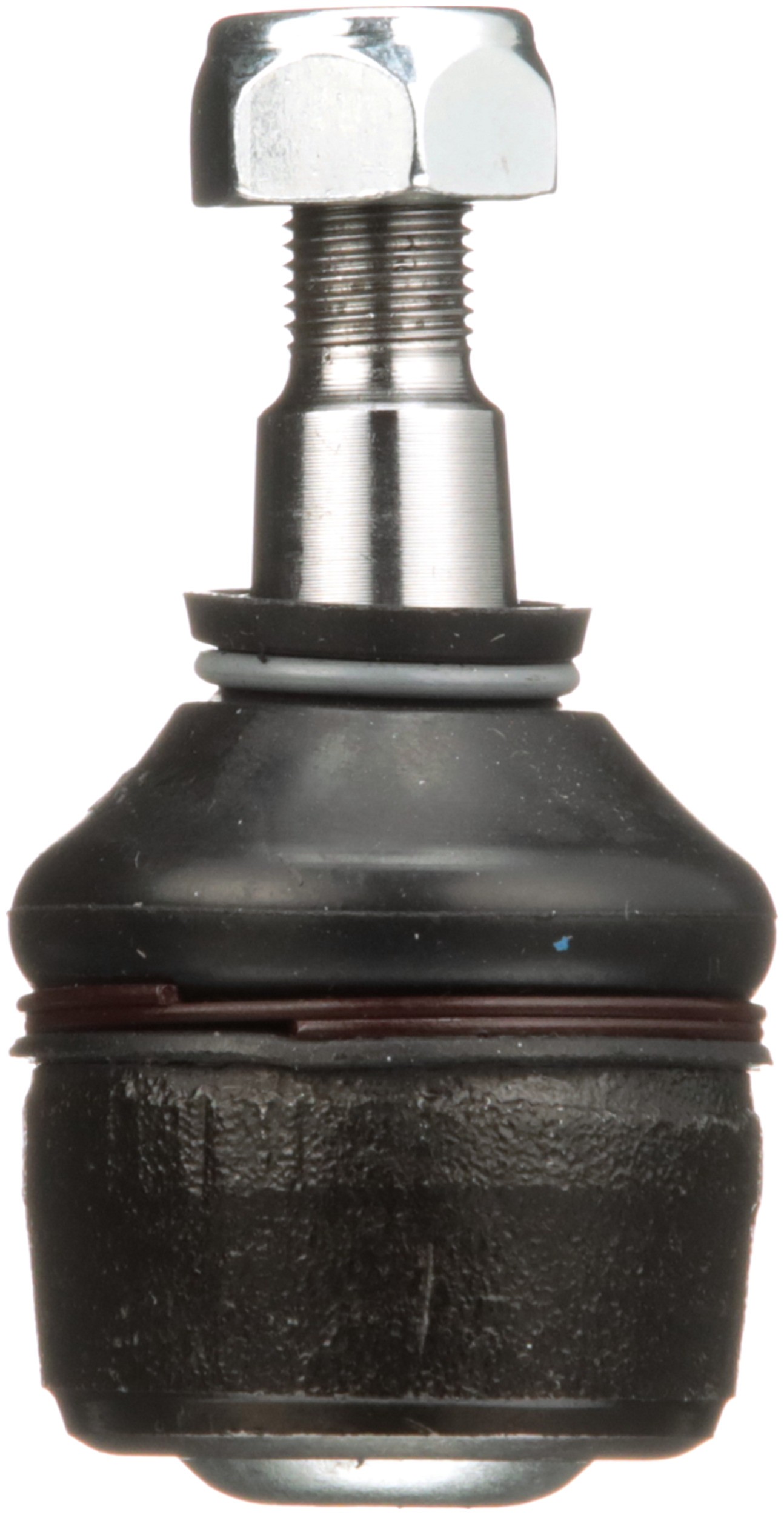

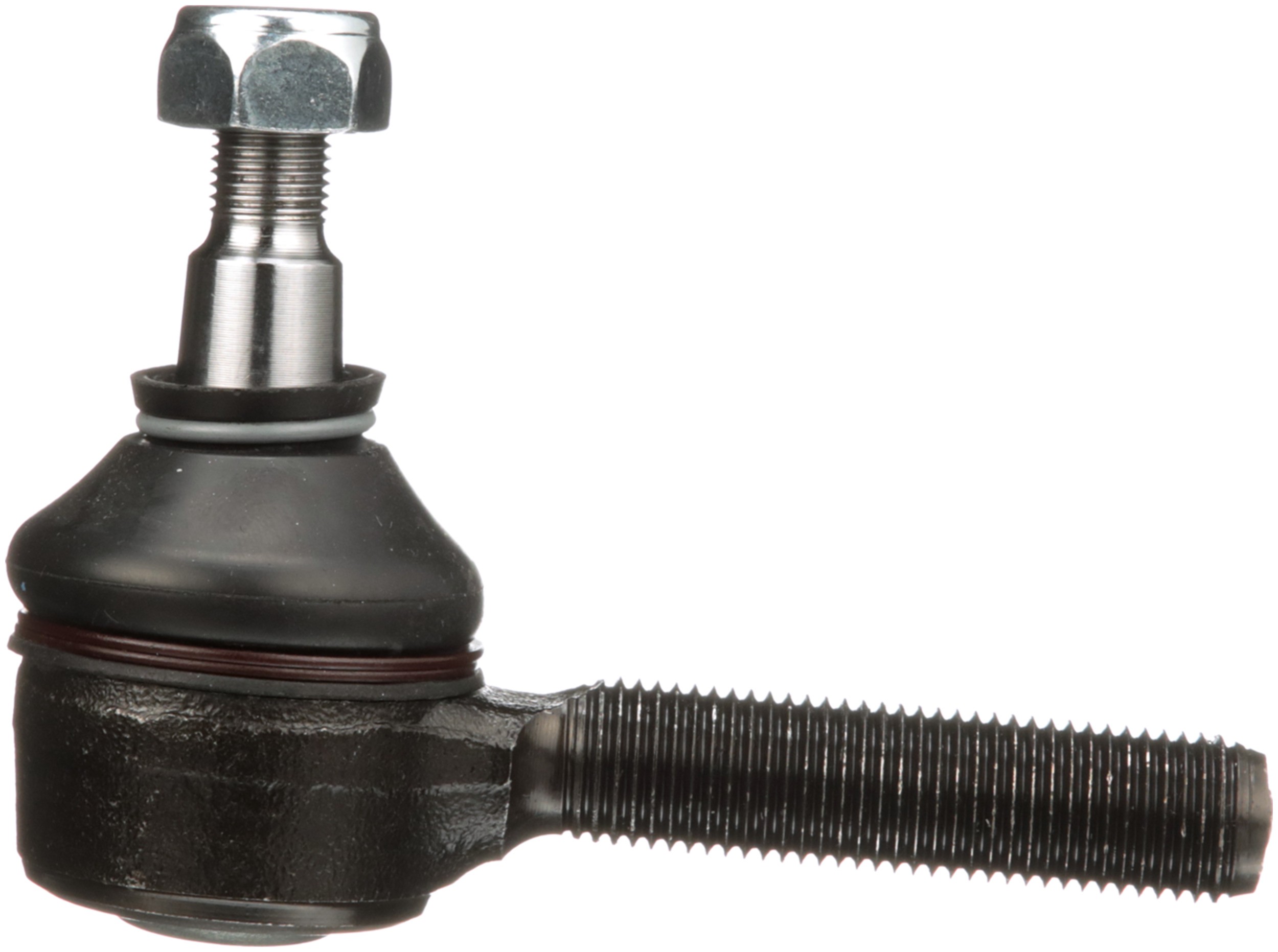

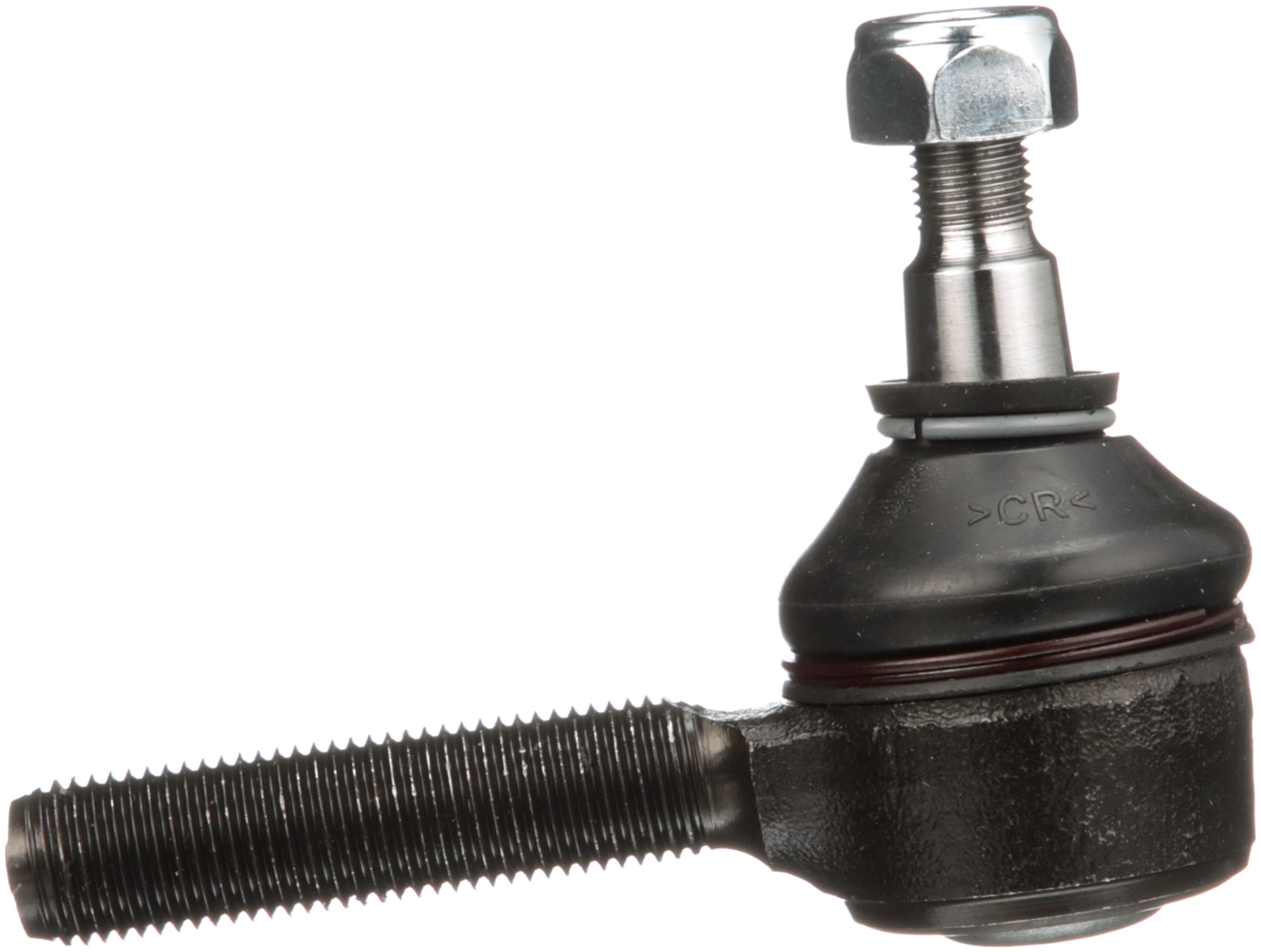

Delphi TA1152 Steering Tie Rod End
Features:
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
- Delphi tie rods are fatigue tested to avoid failure
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi includes the necessary accessories for a complete job
Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
Attributes:
| 1786 | 16.00 MM |
| 662 | 16.00 MM |
| 9090 | Rubber |
| 1786 | 0.630 IN |
| Grease Fitting Included | No |
| Pre-greased | Yes |
| End 2 Gender | Male |
| End 1 Gender | Male |
| Color | Black |
| Length – Stud Centre to End | 3.228 IN |
| Length – Stud Centre to End | 82.00 MM |
| Housing Material | Steel |
| 627 | 0.75 LB |
| 662 | 0.630 IN |
| 881 | Threaded |
| Adjustable | No |
| Greaseable | No |
| Stud Length | 0.630 IN |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| Position(s) | Left Inner, Right Outer. For the position specific to your vehicle, refer to the Applications. |
| Height | 72.30 MM |
| Width | 42.5 MM |
| Stud Length | 16.00 MM |
| End 2 Thread Direction | Clockwise (Right) |
| Grade Type | Standard Replacement |
| 36 | 14.00 MM |
| Mounting Hardware Included | Yes |
| Type | Straight |
| Dust Boot Included | Yes |
| 36 | 0.551 IN |
| 9091 | Steel |
Vehicle Applications:
| Make | Model | Years |
| BMW | 524td | 1985 to 1986 |
| BMW | 525i | 1989 to 1995 |
| BMW | 528e | 1982 to 1988 |
| BMW | 530i | 1994 to 1995 |
| BMW | 533i | 1983 to 1984 |
| BMW | 535i | 1985 to 1993 |
| BMW | 535is | 1988 to 1988 |
| BMW | 540i | 1994 to 1995 |
| BMW | 633CSi | 1983 to 1984 |
| BMW | 635CSi | 1985 to 1989 |
| BMW | 735i | 1987 to 1992 |
| BMW | 735iL | 1988 to 1992 |
| BMW | 740i | 1993 to 1994 |
| BMW | 740iL | 1993 to 1994 |
| BMW | 750iL | 1988 to 1994 |
| BMW | 840Ci | 1994 to 1997 |
| BMW | 850CSi | 1994 to 1995 |
| BMW | 850Ci | 1993 to 1997 |
| BMW | 850i | 1991 to 1992 |
| BMW | M5 | 1988 to 1993 |
| BMW | M6 | 1987 to 1988 |
