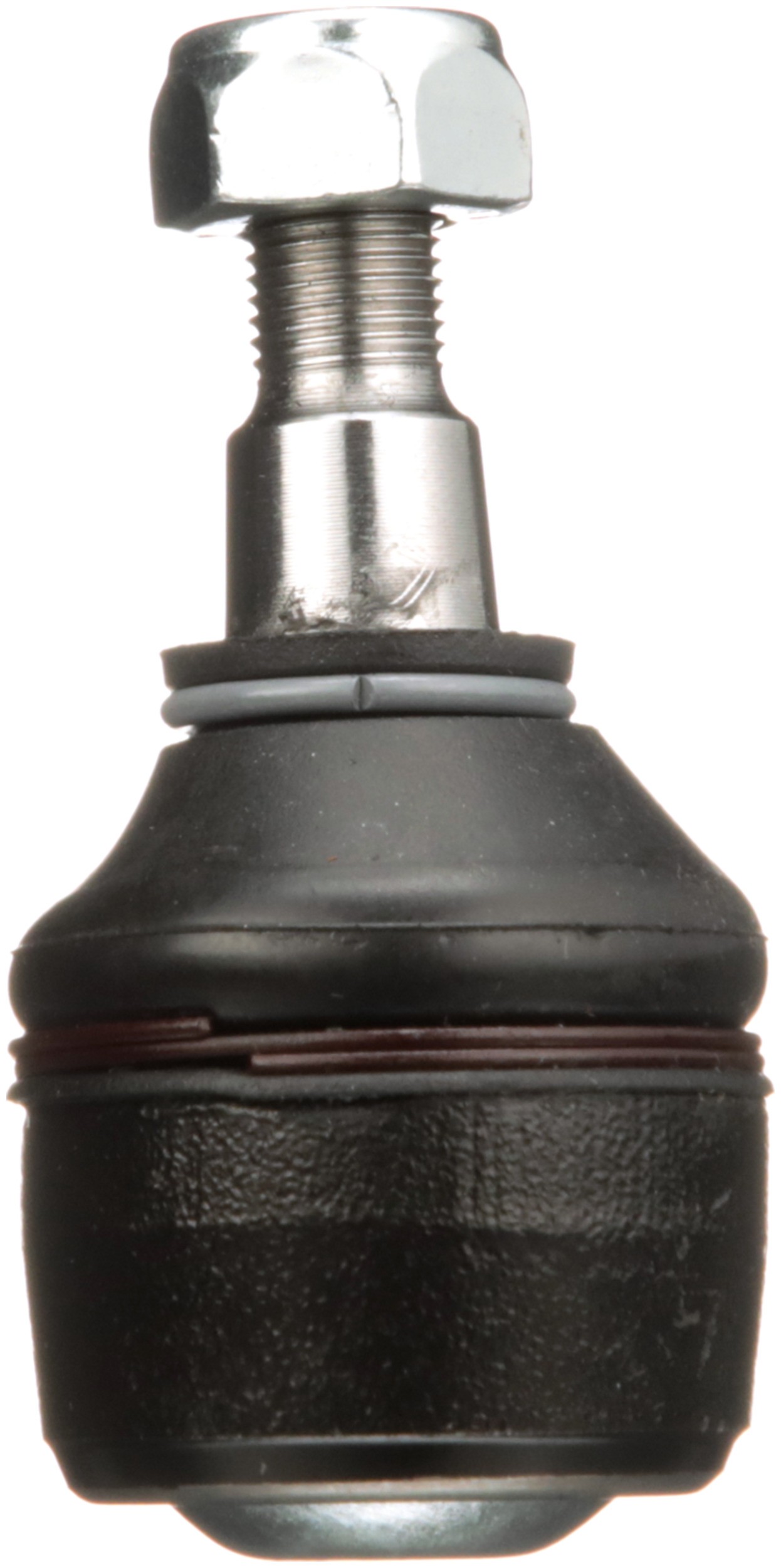

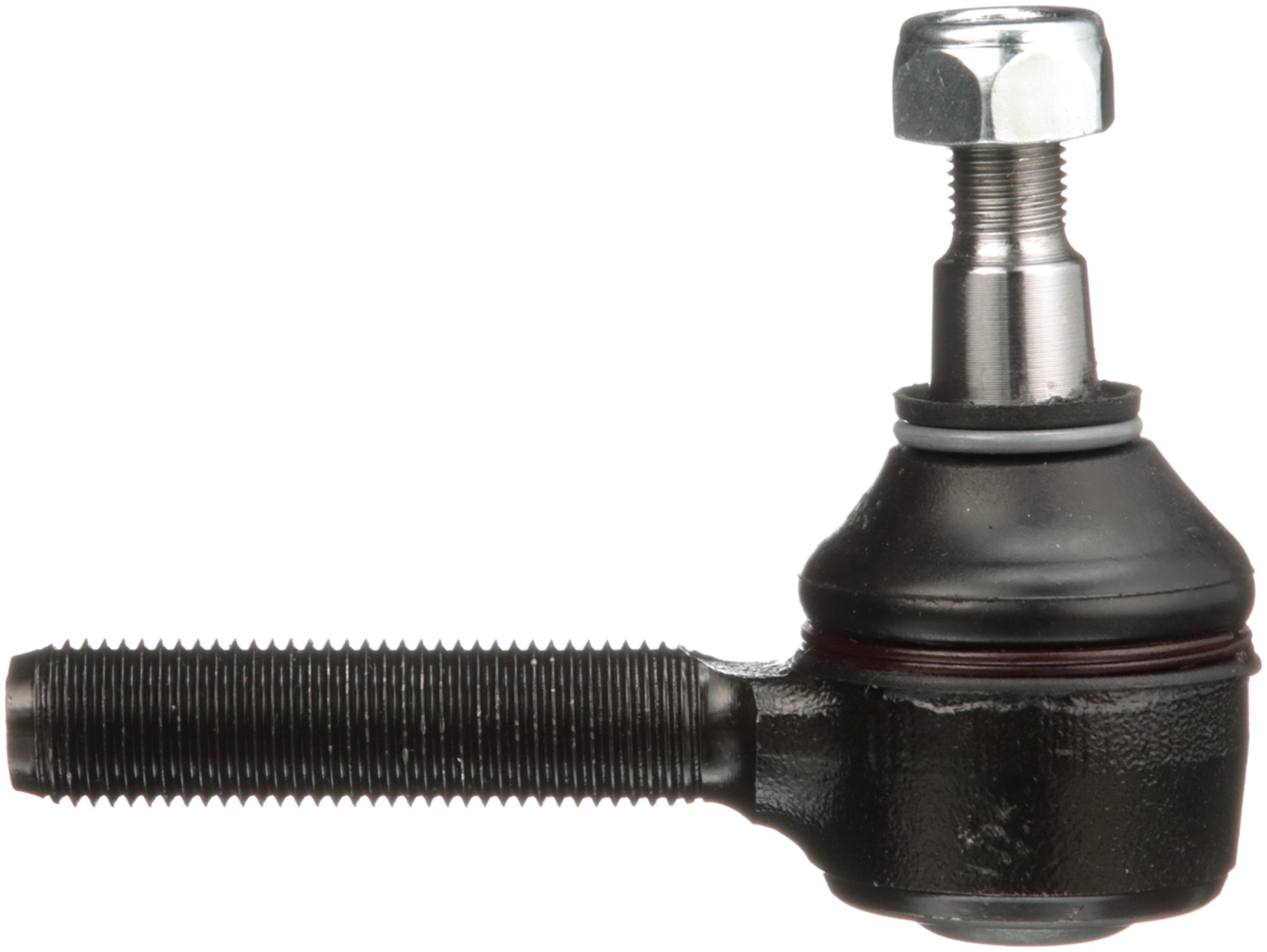

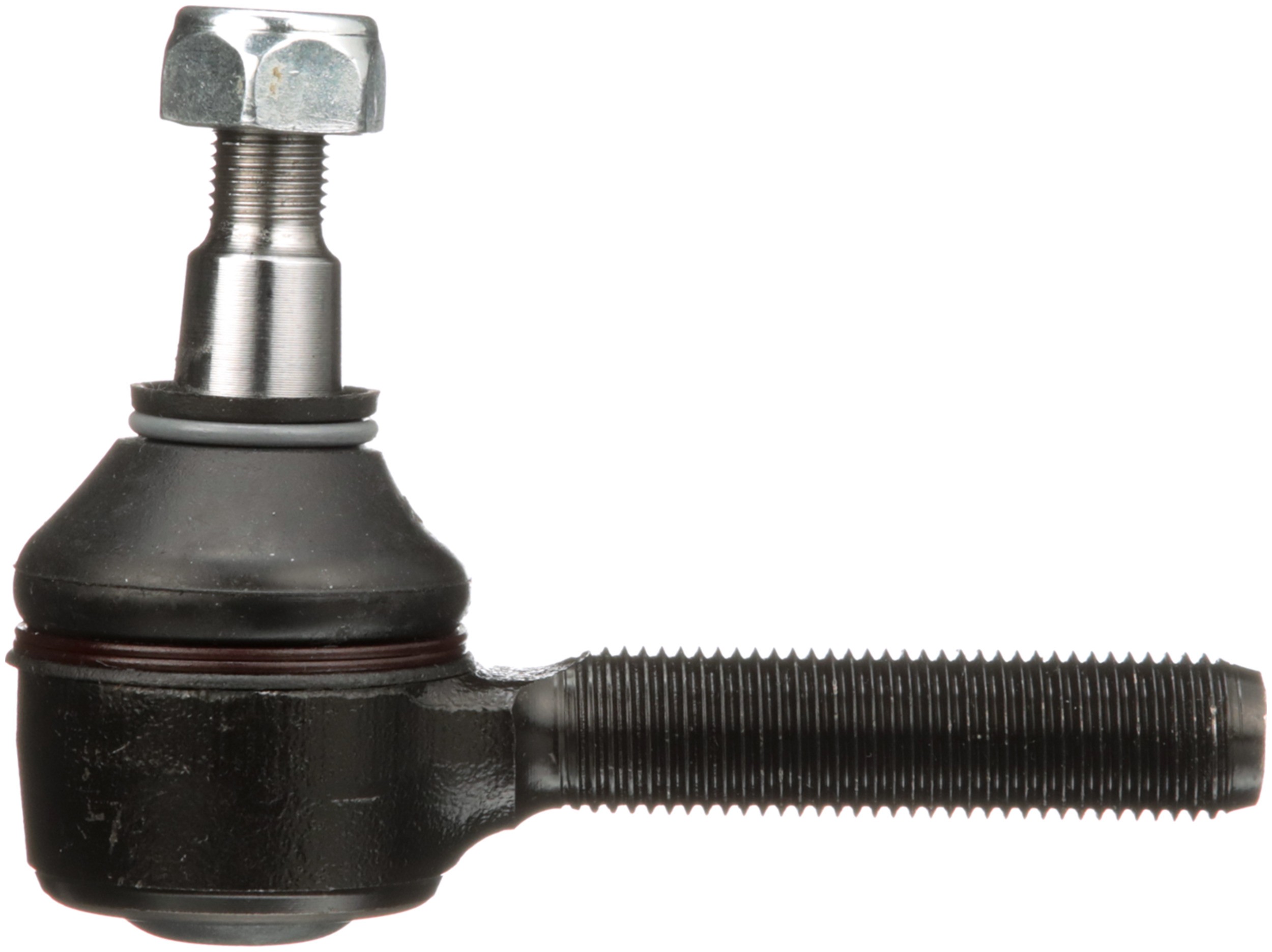

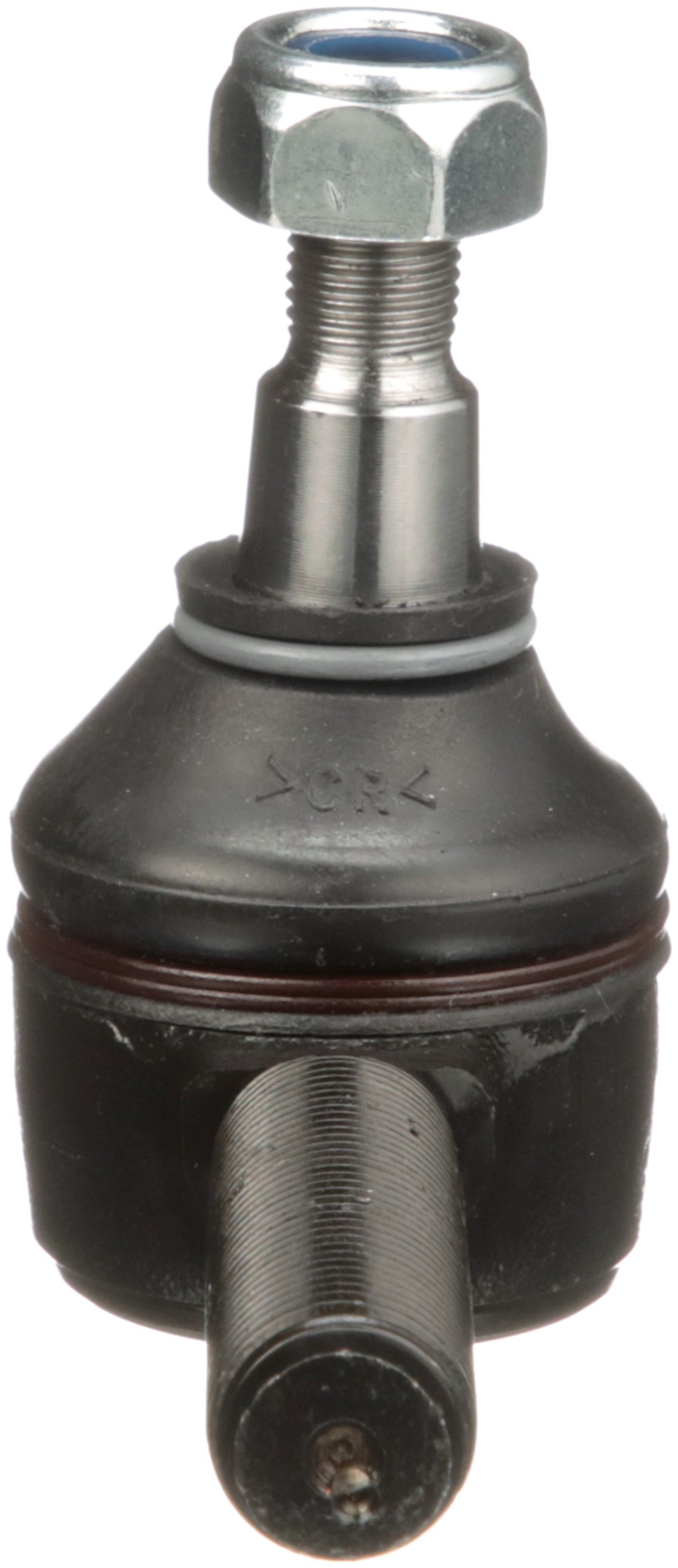

Delphi TA1180 Steering Tie Rod End

Delphi TA1180 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
End 2 Thread Direction	Clockwise (Right)
1786	0.630 IN
1786	16.00 MM
36	0.551 IN
36	14.00 MM
627	0.75 LB
662	0.630 IN
662	16.00 MM
Adjustable	No
Greaseable	No
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Position(s)	Outer
881	Threaded
9090	Rubber
9091	Steel
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Length – Stud Centre to End	82.00 MM
Length – Stud Centre to End	3.228 IN
Height	72.30 MM
Stud Length	0.630 IN
Stud Length	16.00 MM
Width	42.5 MM

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	240D	1983 to 1983
Mercedes-Benz	260E	1987 to 1989
Mercedes-Benz	300CD	1983 to 1985
Mercedes-Benz	300CE	1988 to 1993
Mercedes-Benz	300D	1983 to 1993
Mercedes-Benz	300E	1986 to 1993
Mercedes-Benz	300TD	1983 to 1987
Mercedes-Benz	300TE	1988 to 1993
Mercedes-Benz	E300	1995 to 1995
Mercedes-Benz	E320	1994 to 1995
