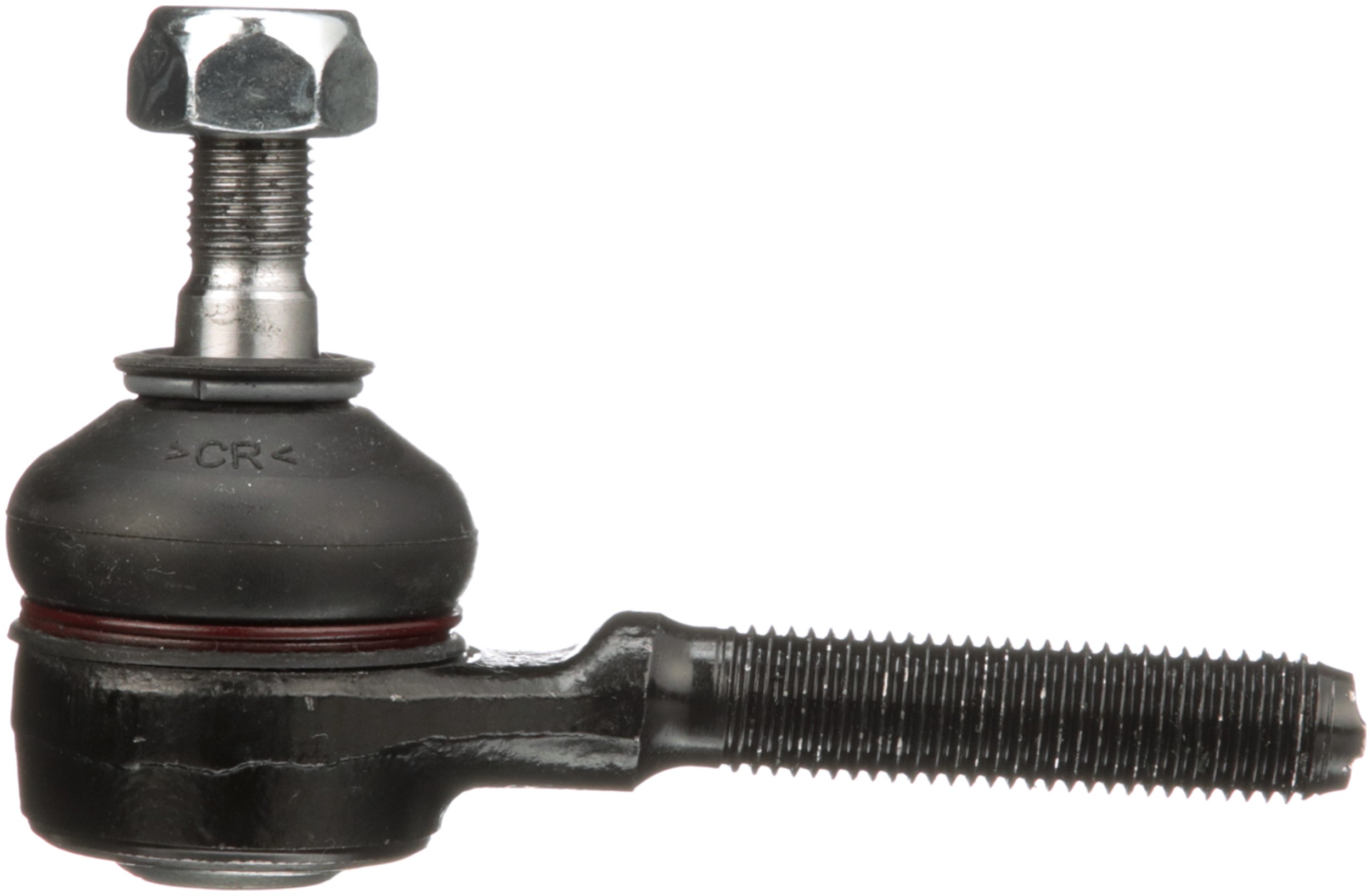

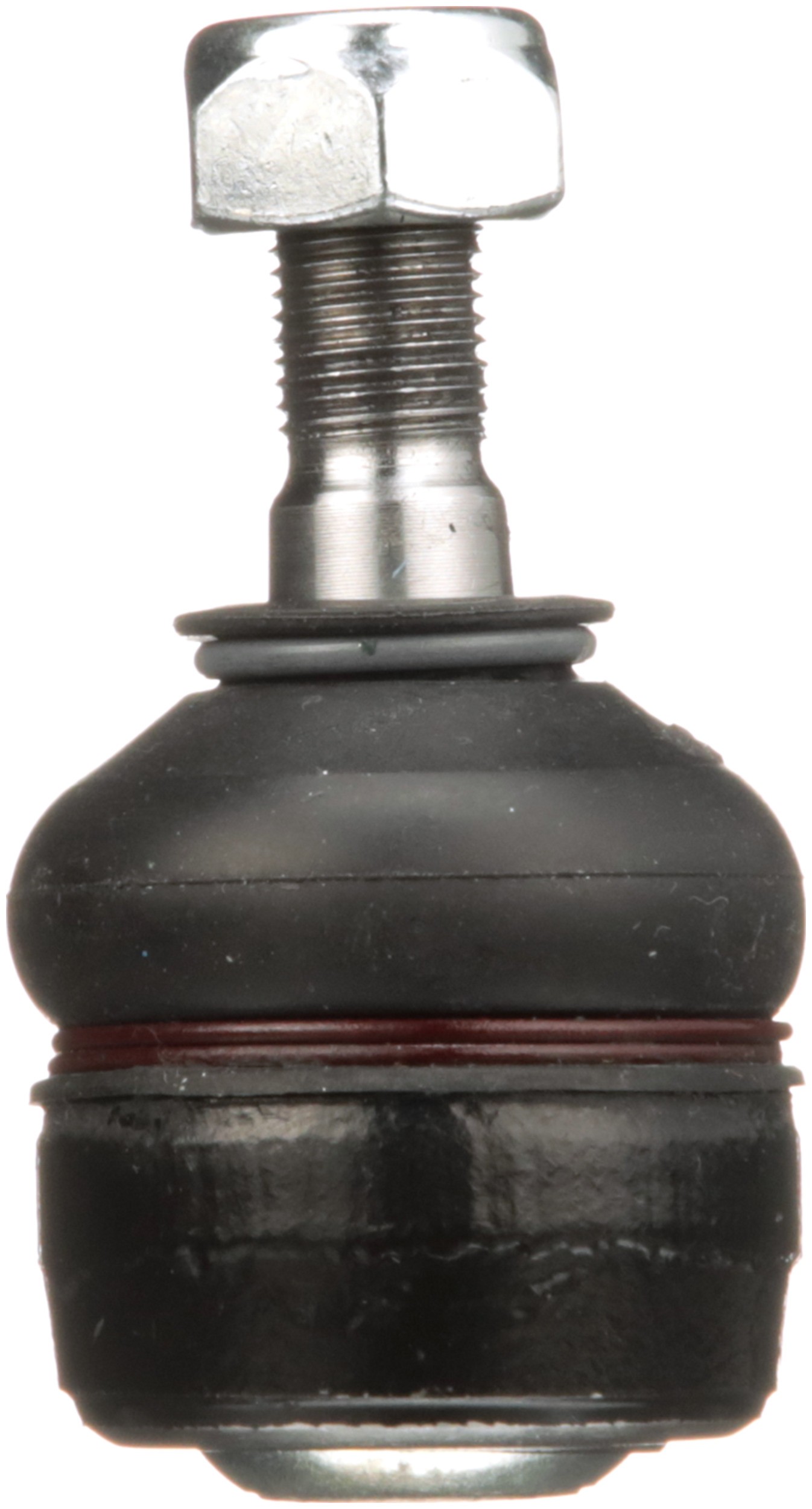

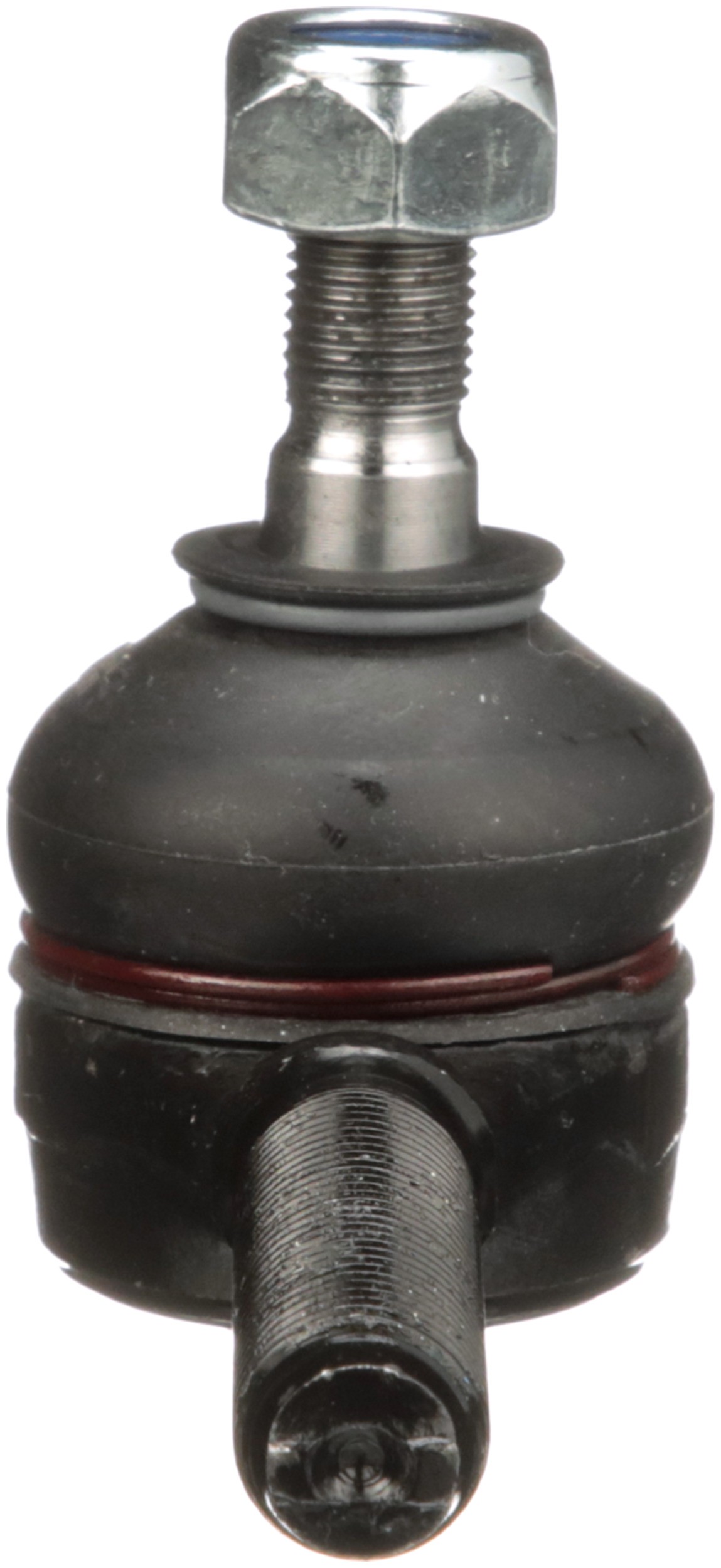

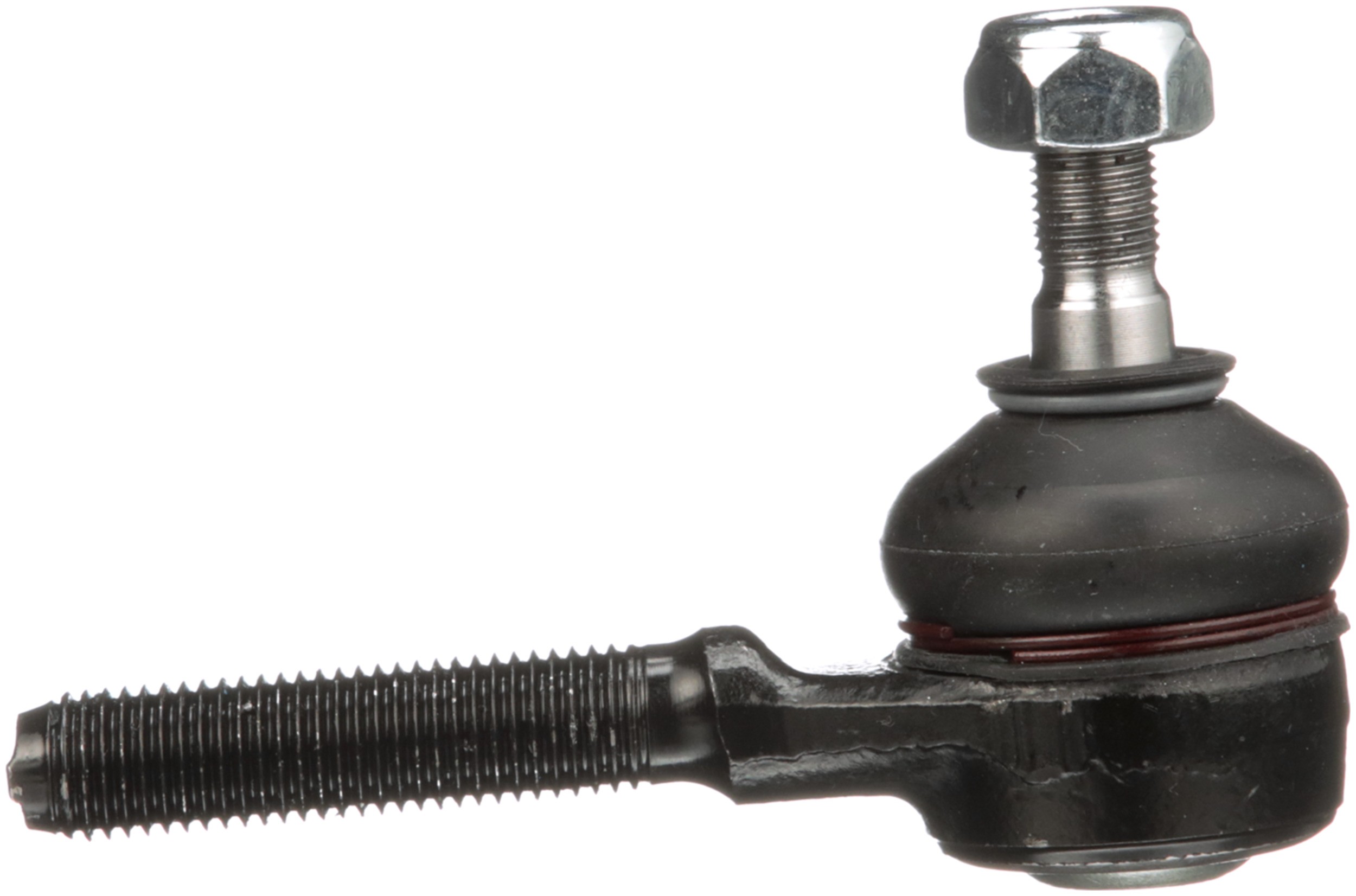

Delphi TA1187 Steering Tie Rod End

Delphi TA1187 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

1786	0.492 IN
End 2 Thread Direction	Counterclockwise (Left)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Stud Length	0.492 IN
Stud Length	12.50 MM
Width	34 MM
Height	64.00 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Length – Stud Centre to End	3.346 IN
Length – Stud Centre to End	85.00 MM
662	12.50 MM
662	0.492 IN
627	0.59 LB
36	12.00 MM
36	0.472 IN
1786	12.50 MM
Position(s)	Outer
9091	Steel
9090	Rubber
881	Threaded
