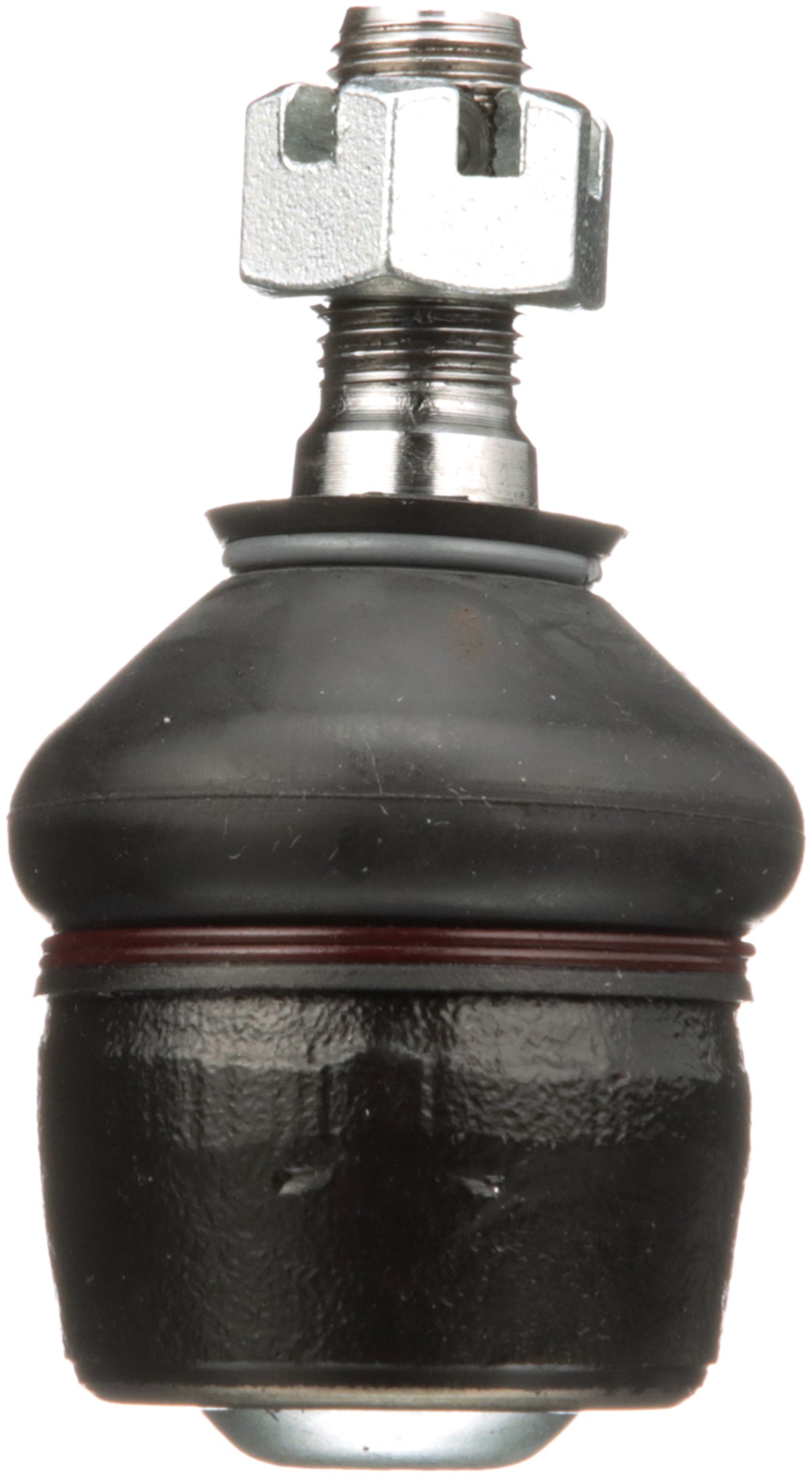

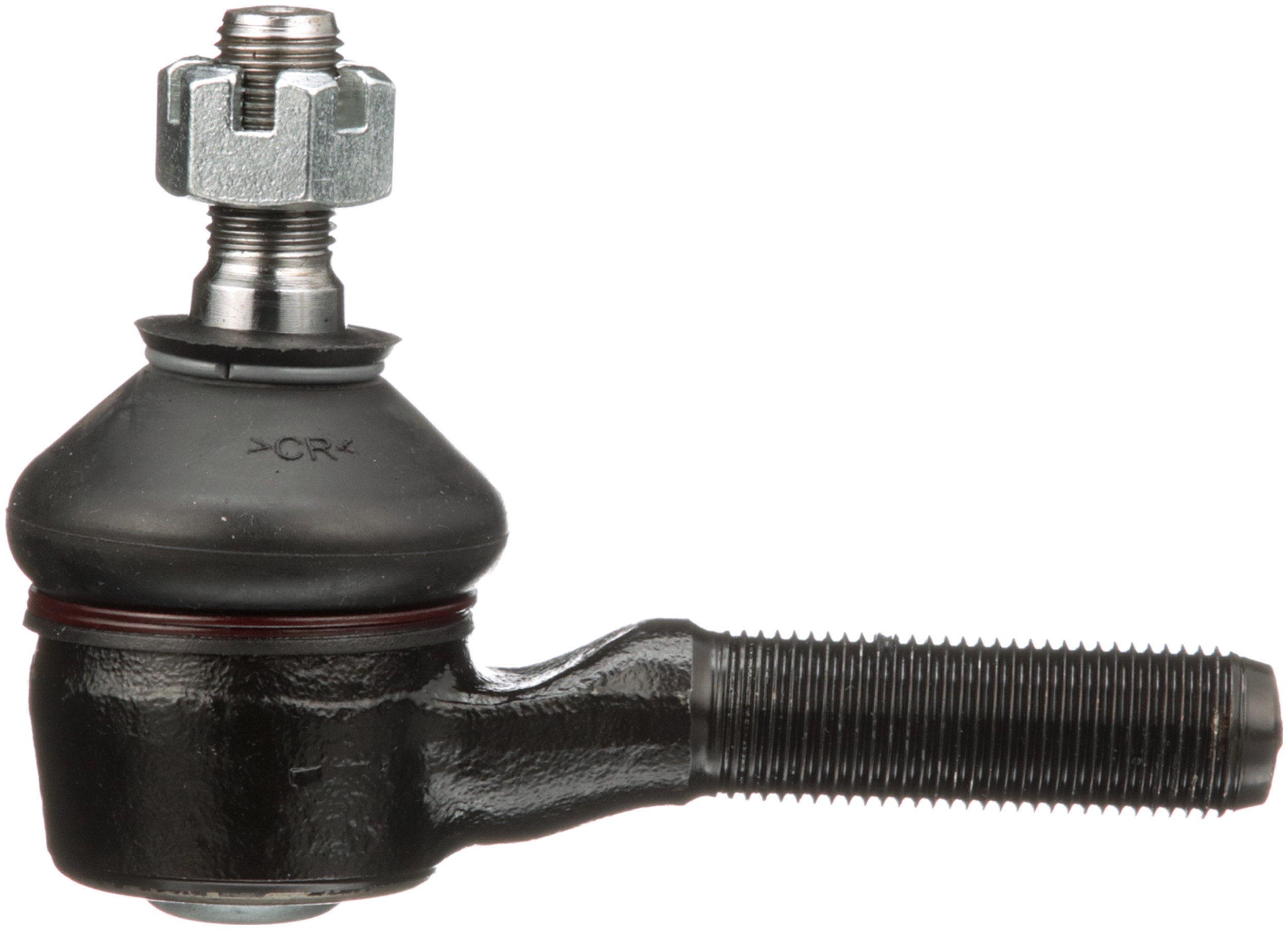

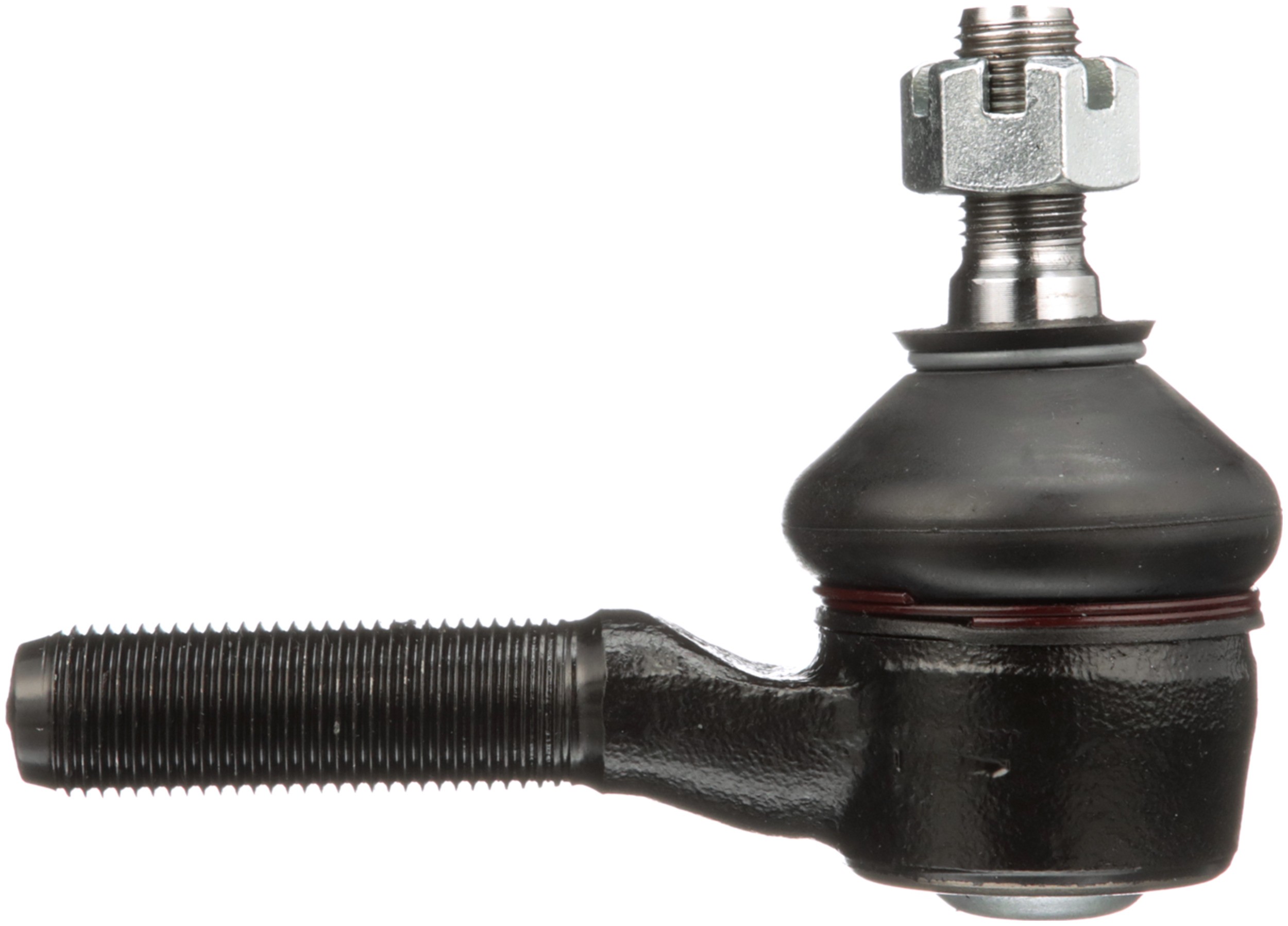

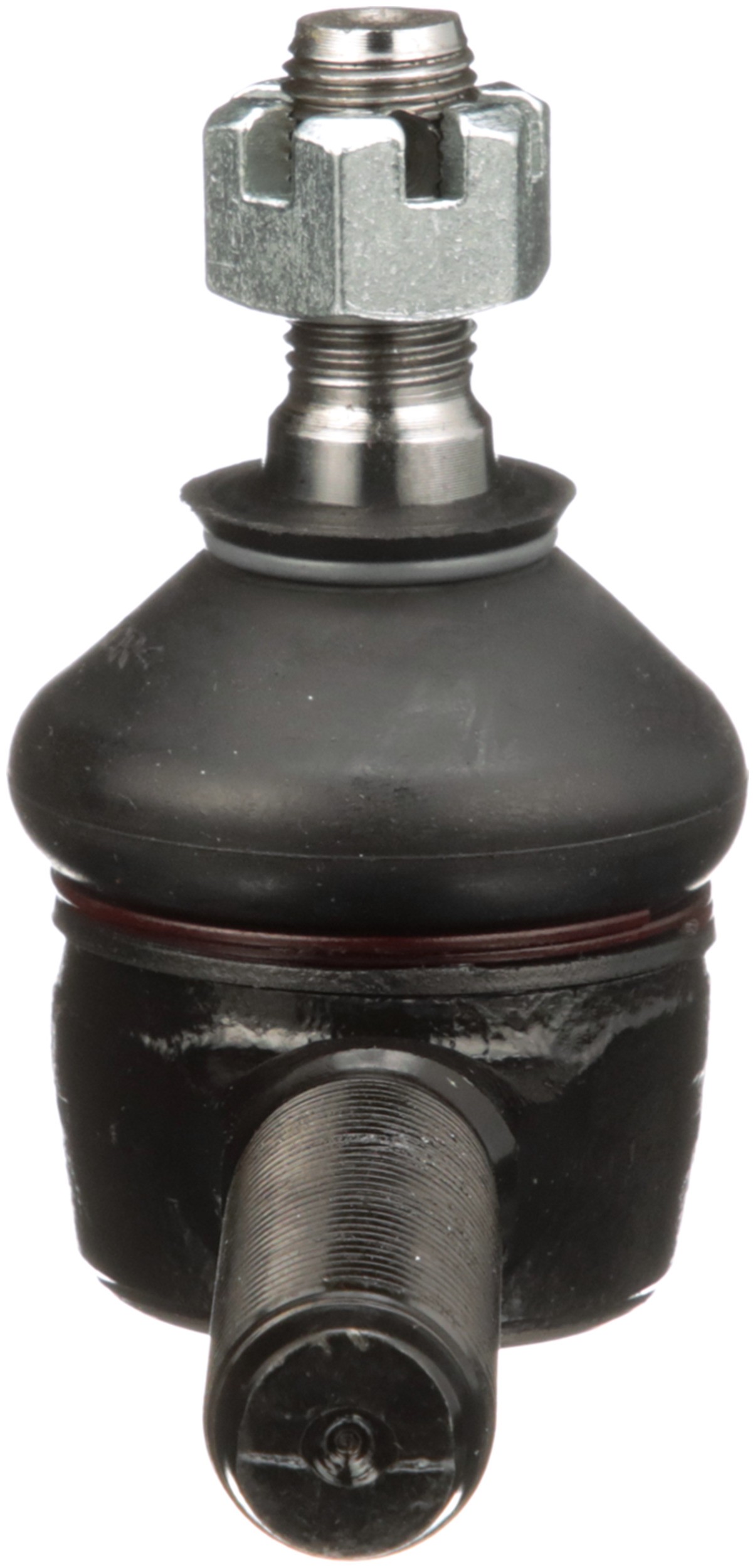

Delphi TA1196 Steering Tie Rod End

Delphi TA1196 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

36	0.630 IN
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Counterclockwise (Left)
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Outer
Width	40 MM
1786	0.632 IN
1786	16.05 MM
36	16.00 MM
627	0.96 LB
662	0.632 IN
662	16.05 MM
Length – Stud Centre to End	91.00 MM
Length – Stud Centre to End	3.583 IN
Height	80.00 MM
Stud Length	16.05 MM
Stud Length	0.632 IN

Vehicle Applications:

Make	Model	Years
Dodge	Power Ram 50	1983 to 1986
Dodge	Raider	1987 to 1989
Dodge	Ram 50	1983 to 1993
Mitsubishi	Mighty Max	1983 to 1994
Mitsubishi	Montero	1983 to 1991
