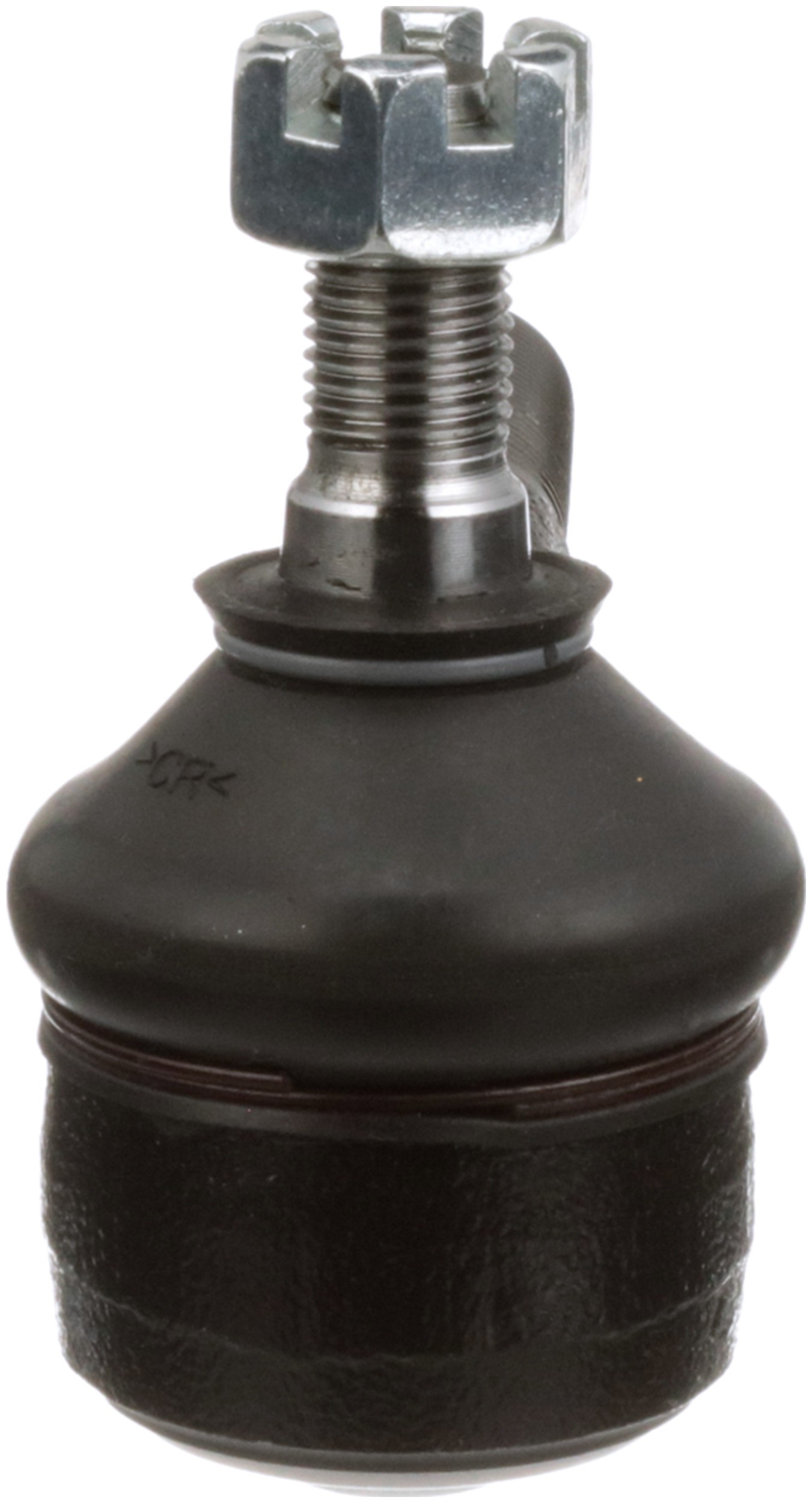

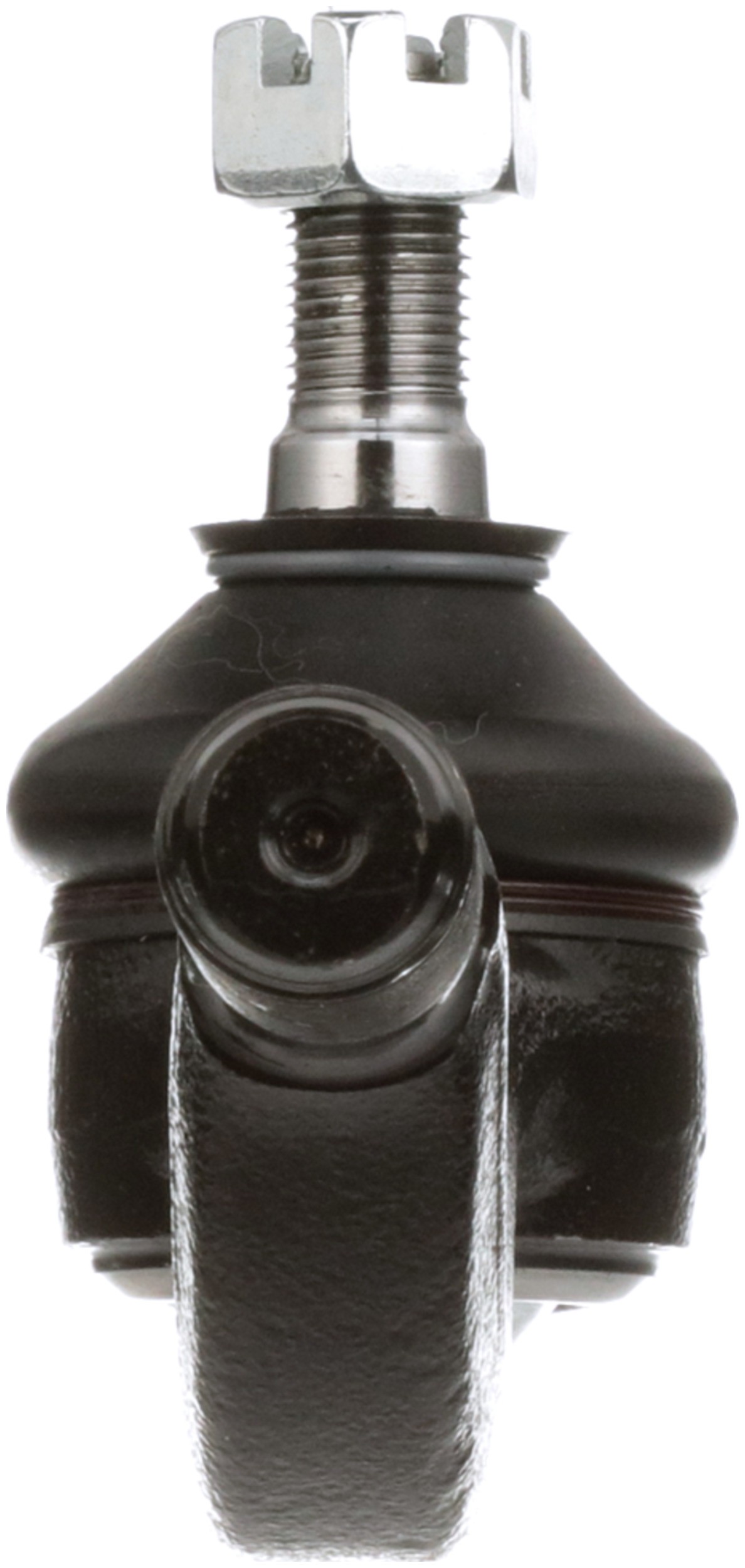

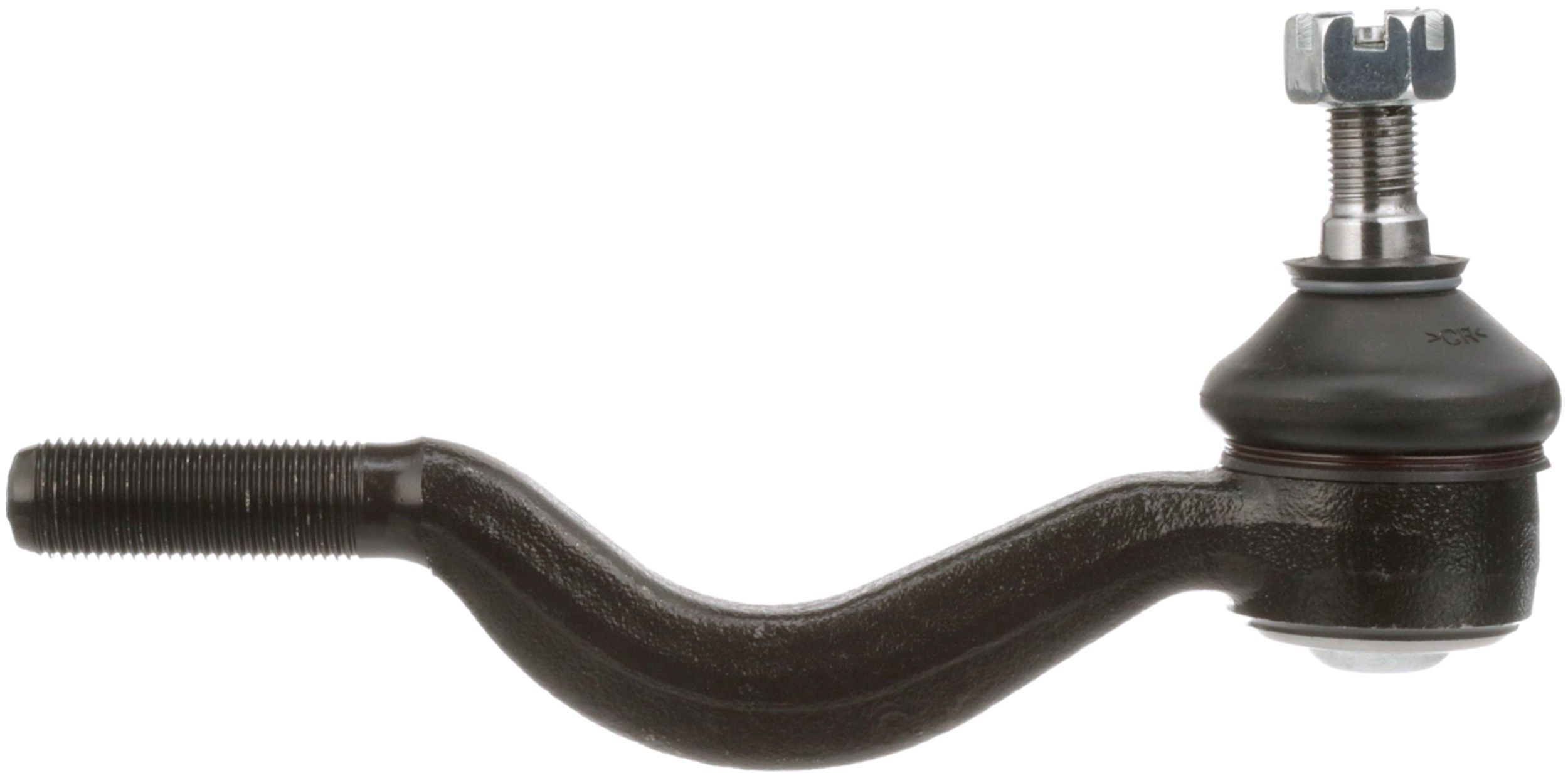

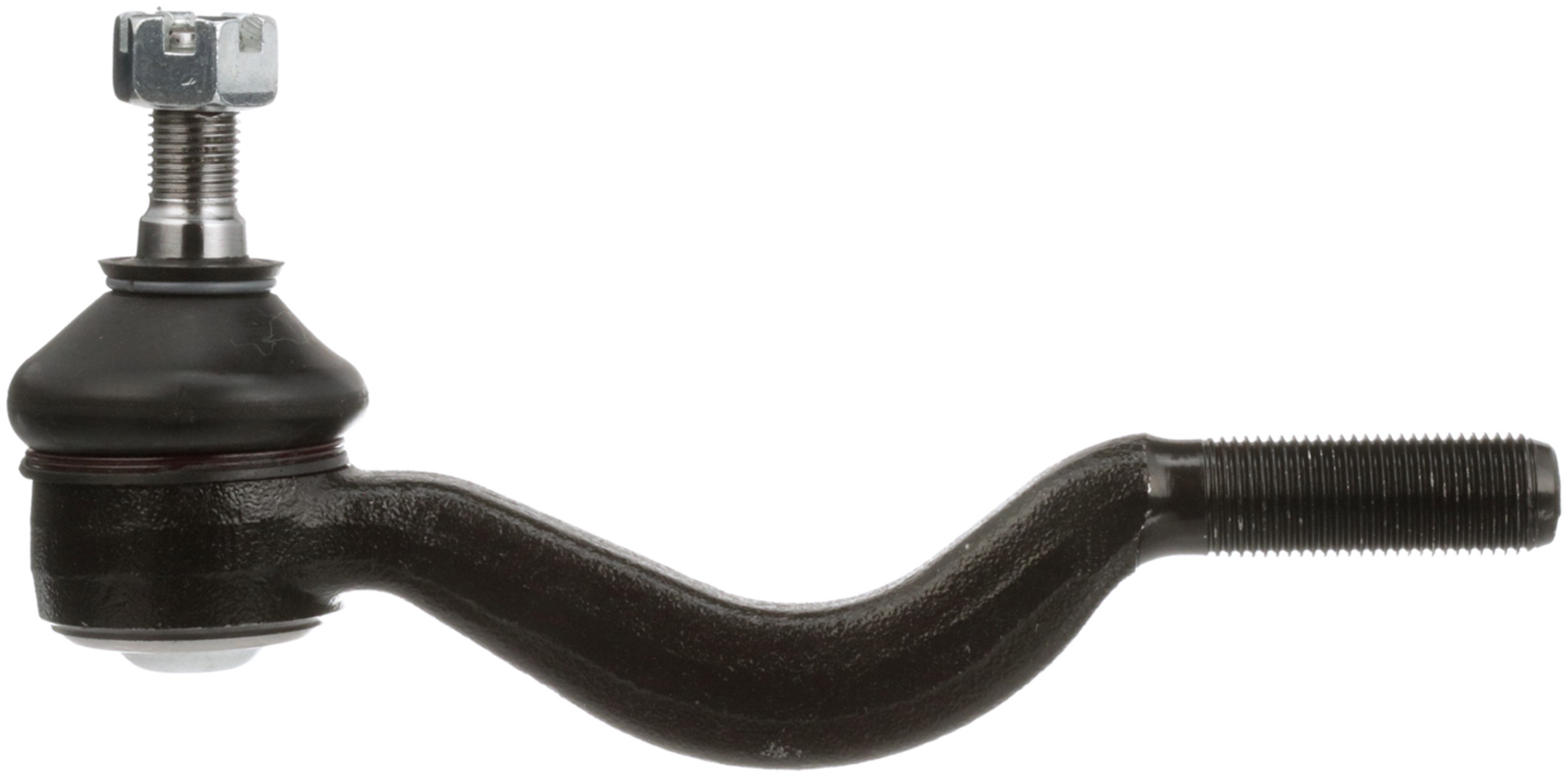

Delphi TA1197 Steering Tie Rod End

Delphi TA1197 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

36	0.709 IN
1786	16.05 MM
Mounting Hardware Included	Yes
Type	Bent
1786	0.632 IN
Length – Stud Centre to End	6.811 IN
Position(s)	Front Inner
9090	Rubber
9091	Steel
Length – Stud Centre to End	173.00 MM
Height	93.00 MM
Width	41 MM
Stud Length	16.05 MM
Stud Length	0.632 IN
Dust Boot Included	Yes
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Color	Black
881	Threaded
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Adjustable	No
End 2 Thread Direction	Clockwise (Right)
Housing Material	Steel
Grade Type	Standard Replacement
662	16.05 MM
662	0.632 IN
627	1.55 LB
36	18.00 MM

Vehicle Applications:

Make	Model	Years
Dodge	D50	1982 to 1982
Dodge	Power Ram 50	1983 to 1986
Dodge	Raider	1987 to 1989
Dodge	Ram 50	1987 to 1993
Mitsubishi	Mighty Max	1983 to 1994
Mitsubishi	Montero Sport	1997 to 2004
Mitsubishi	Montero	1983 to 1991
