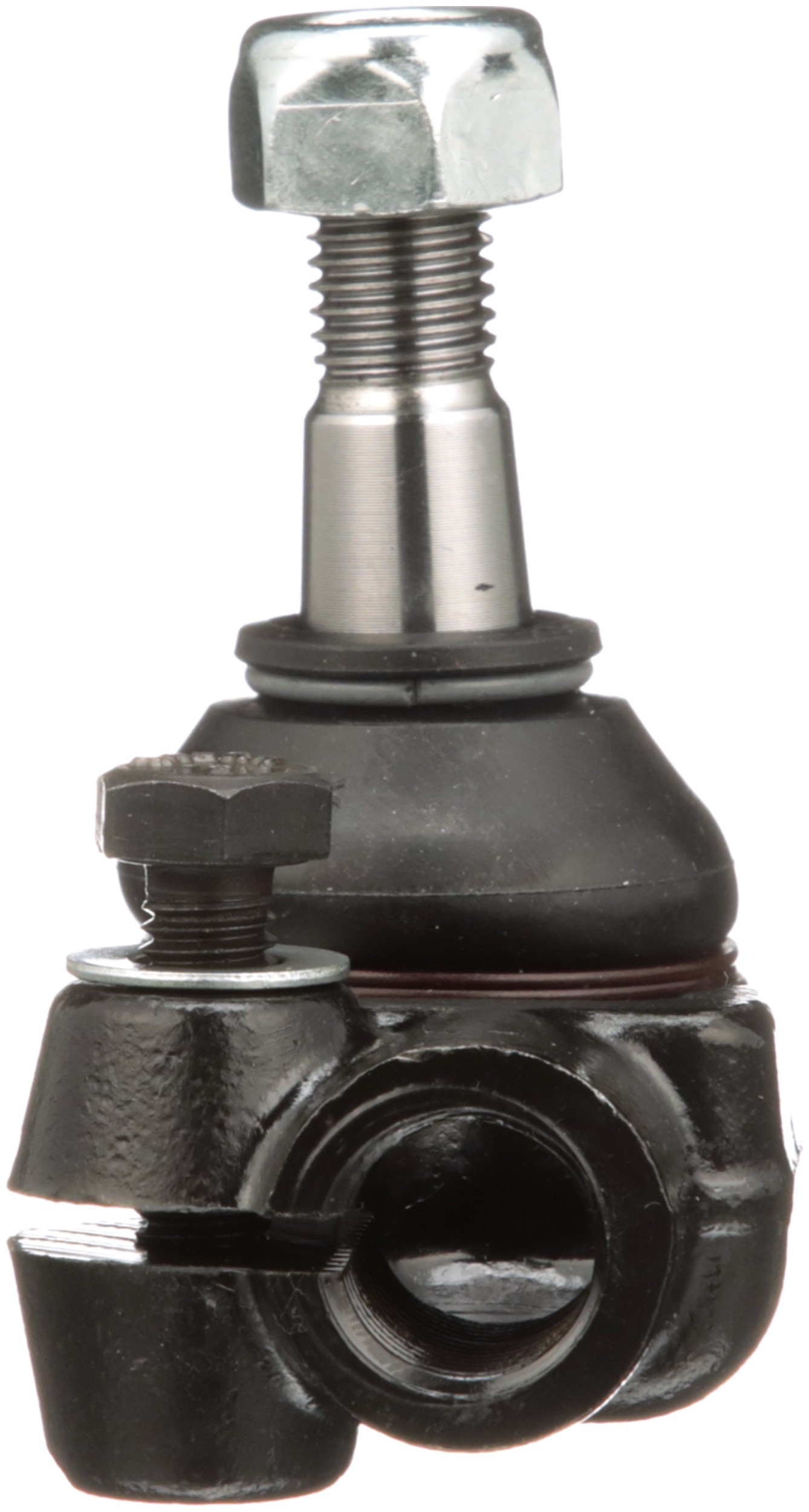

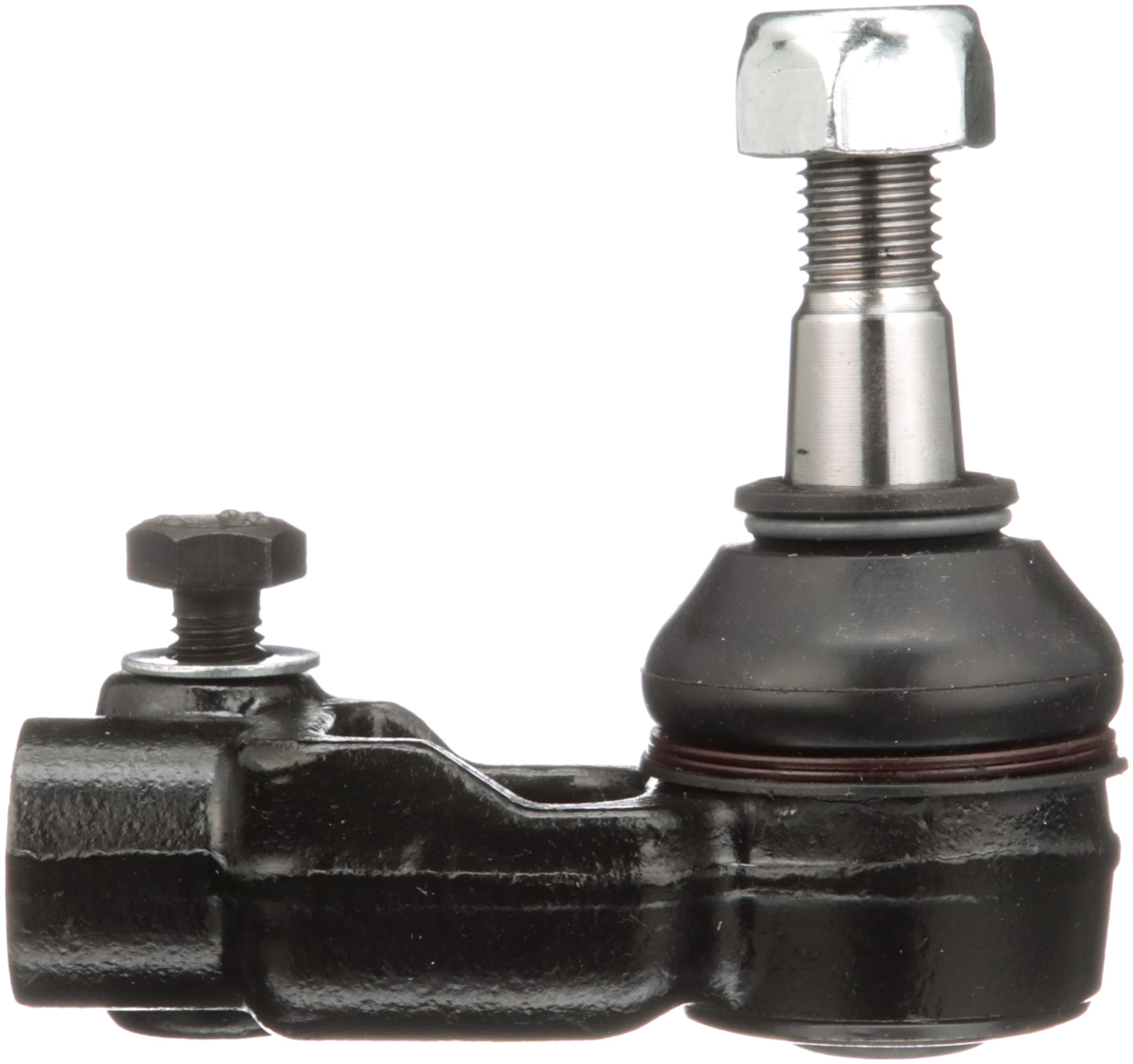

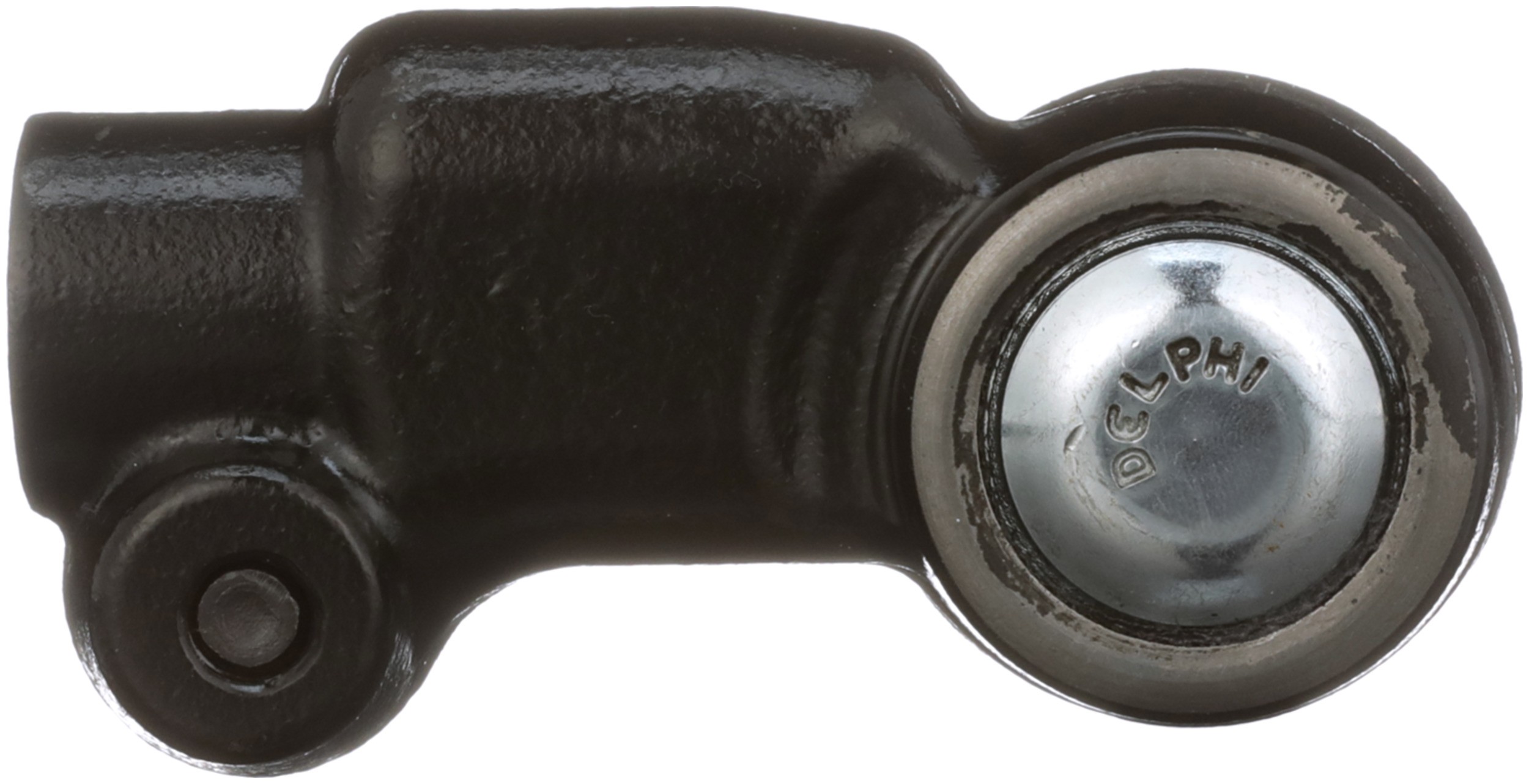

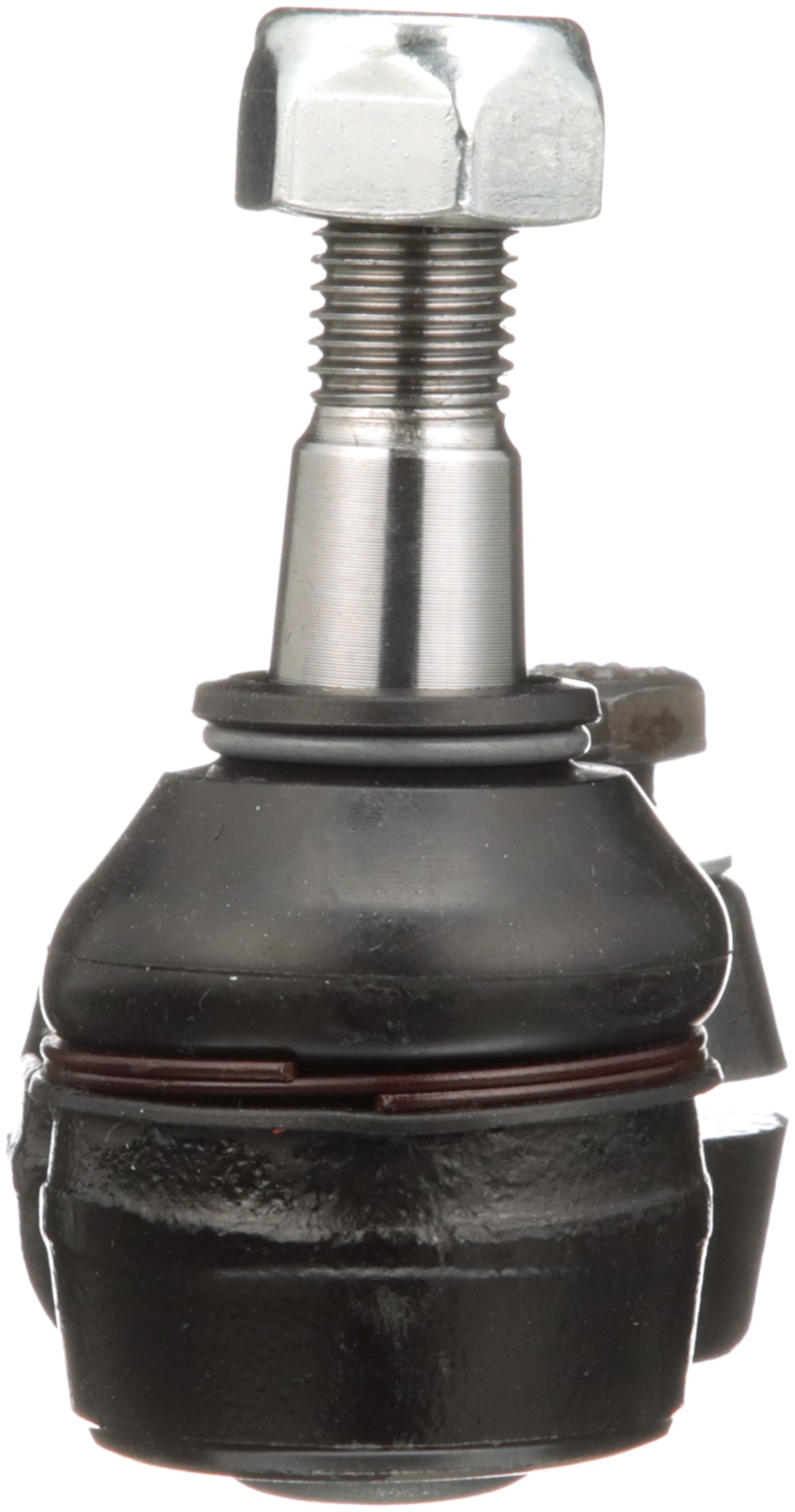

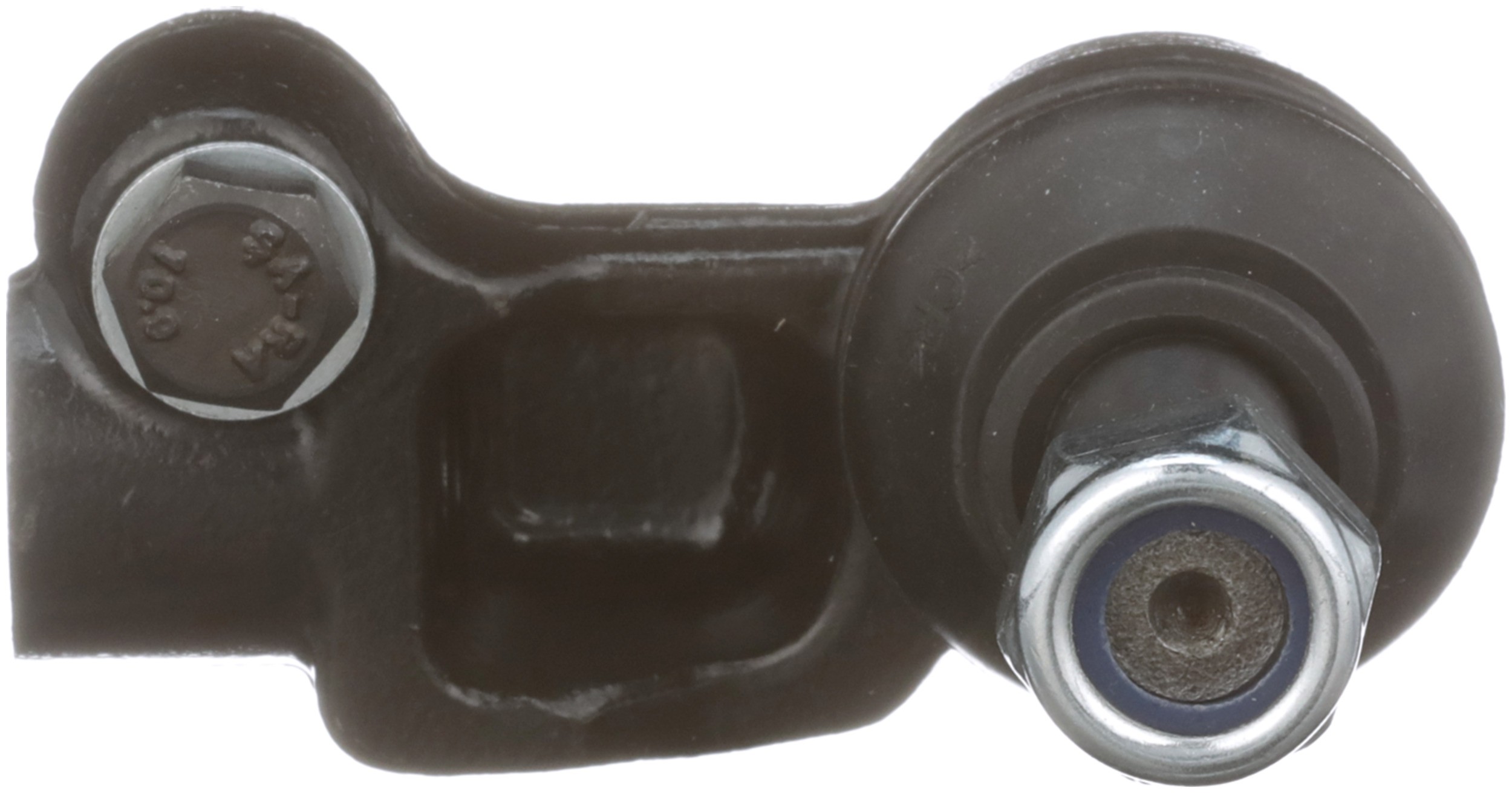

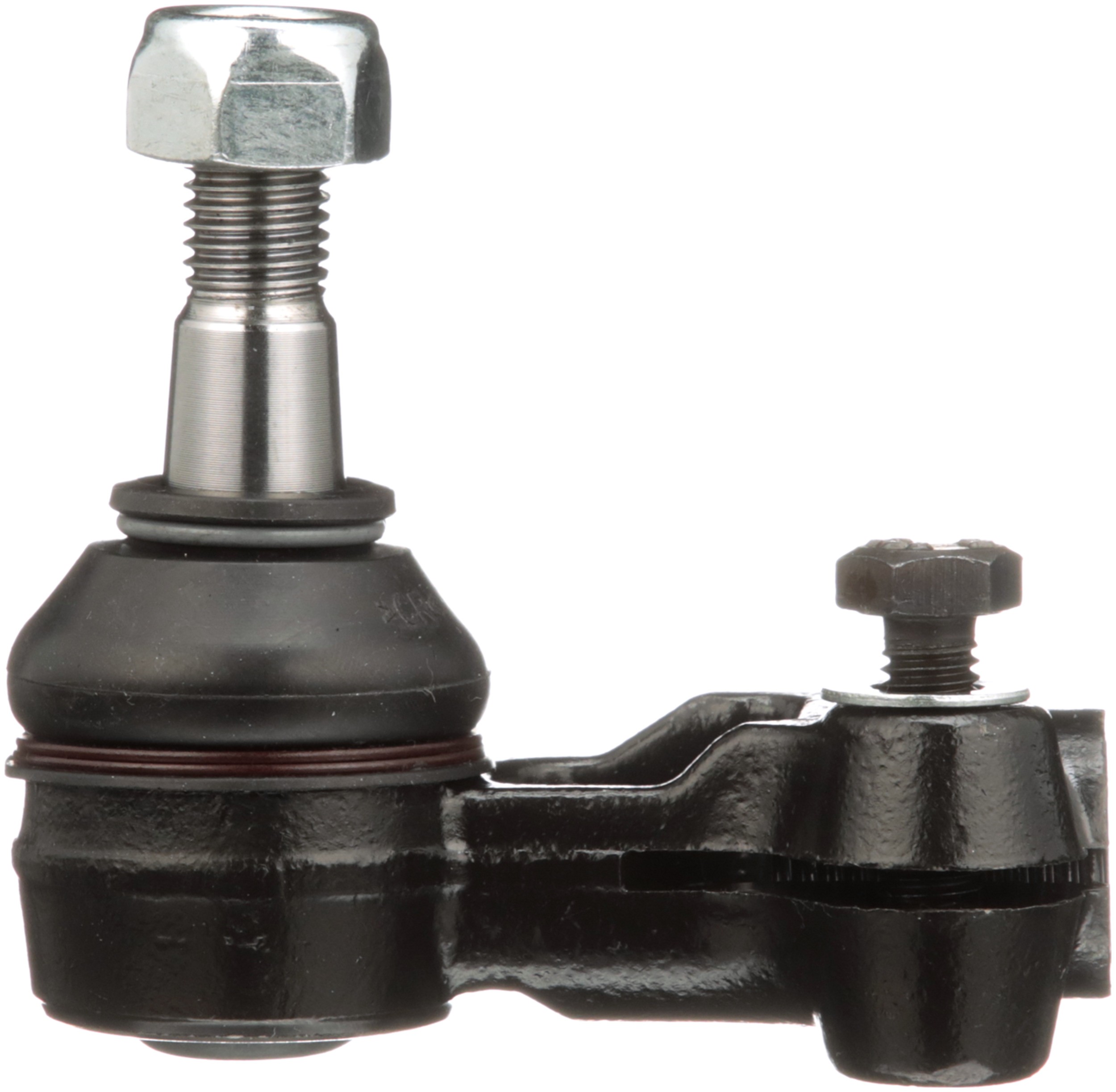

Delphi TA1210 Steering Tie Rod End

Delphi TA1210 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hardware Included	Yes
Type	Bent
Pre-greased	Yes
End 2 Gender	Female
Color	Black
Length – Stud Centre to End	2.638 IN
Dust Boot Included	Yes
Grease Fitting Included	No
Length – Stud Centre to End	67.00 MM
Position(s)	Right Outer
881	Threaded
9090	Rubber
9091	Steel
36	0.906 IN
36	23.00 MM
627	1.06 LB
662	0.610 IN
End 2 Thread Direction	Counterclockwise (Left)
Height	87.80 MM
Width	43 MM
Stud Length	15.50 MM
Stud Length	0.610 IN
1786	0.610 IN
1786	15.50 MM
662	15.50 MM
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
