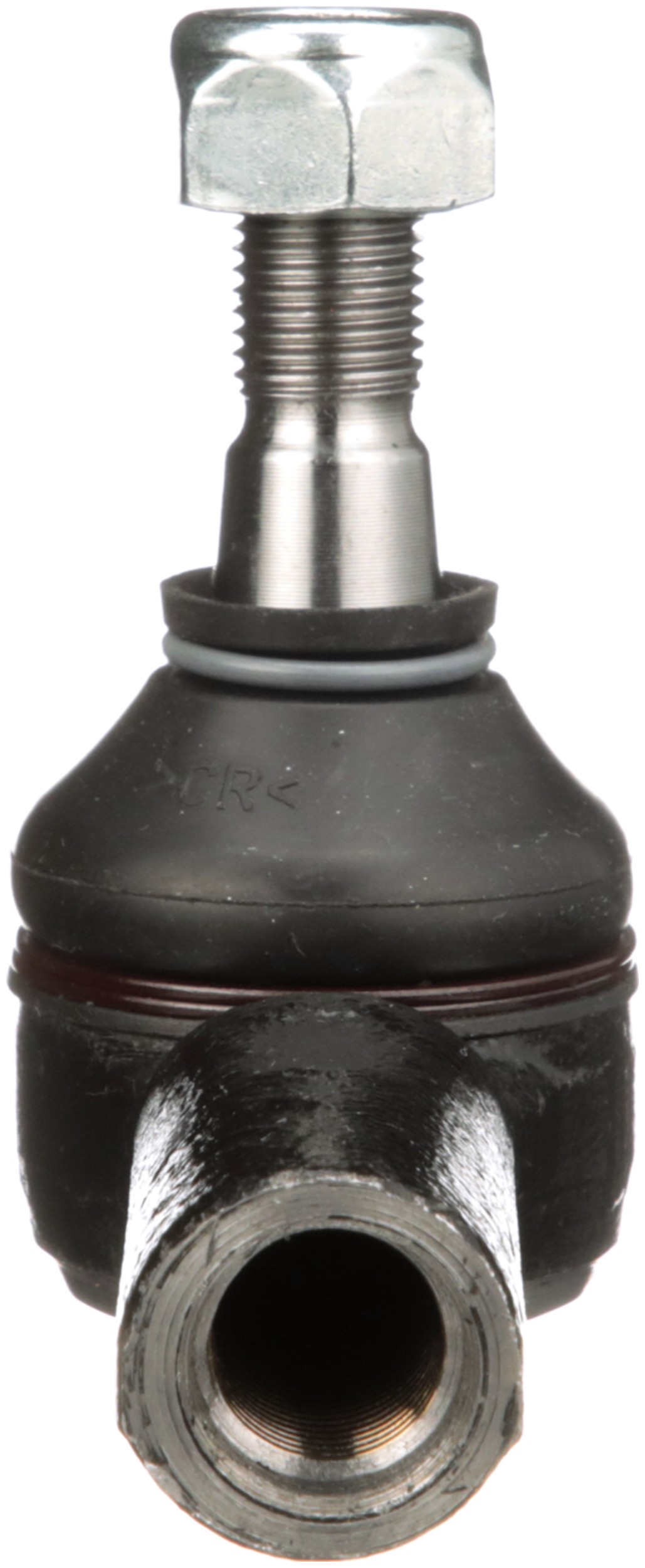

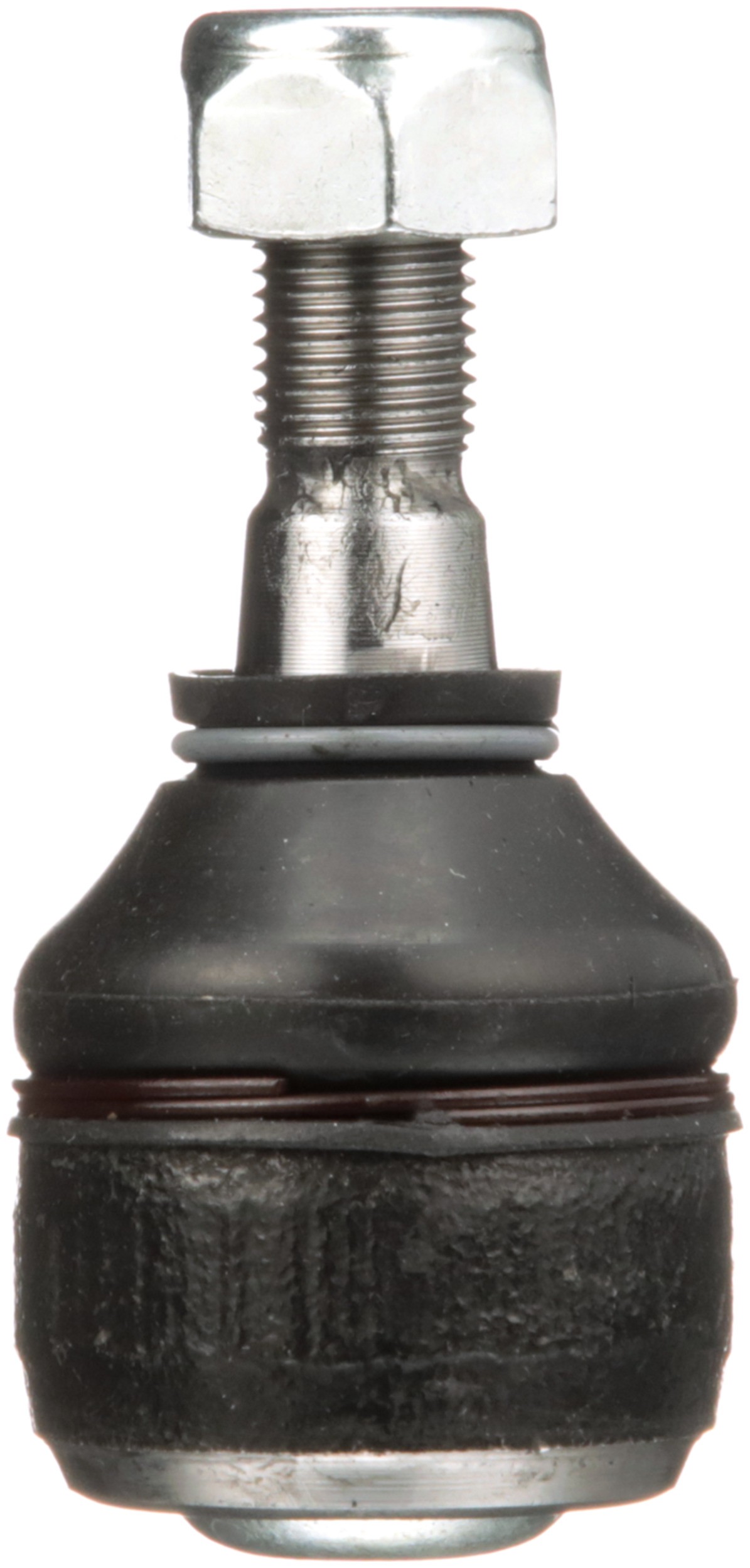

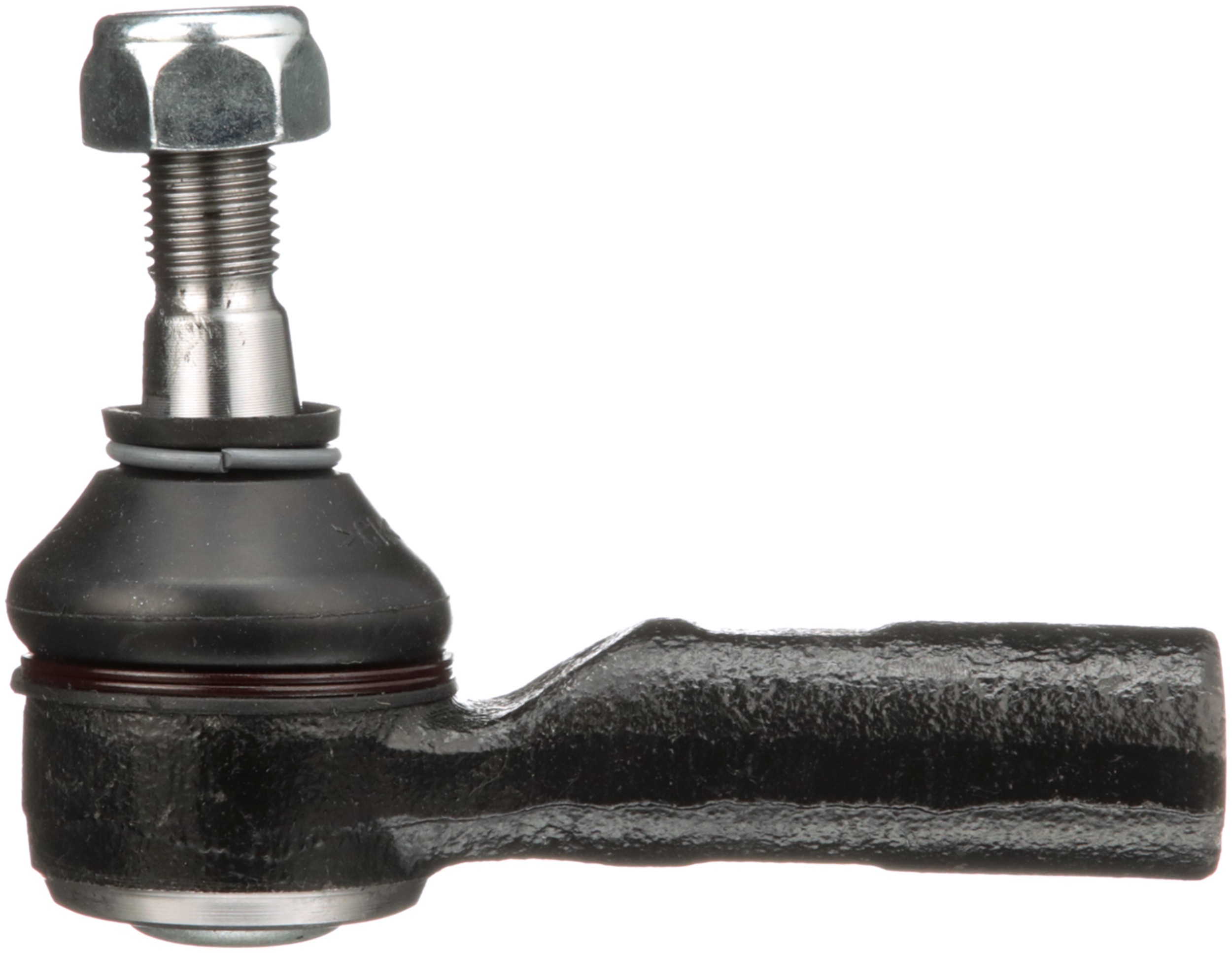

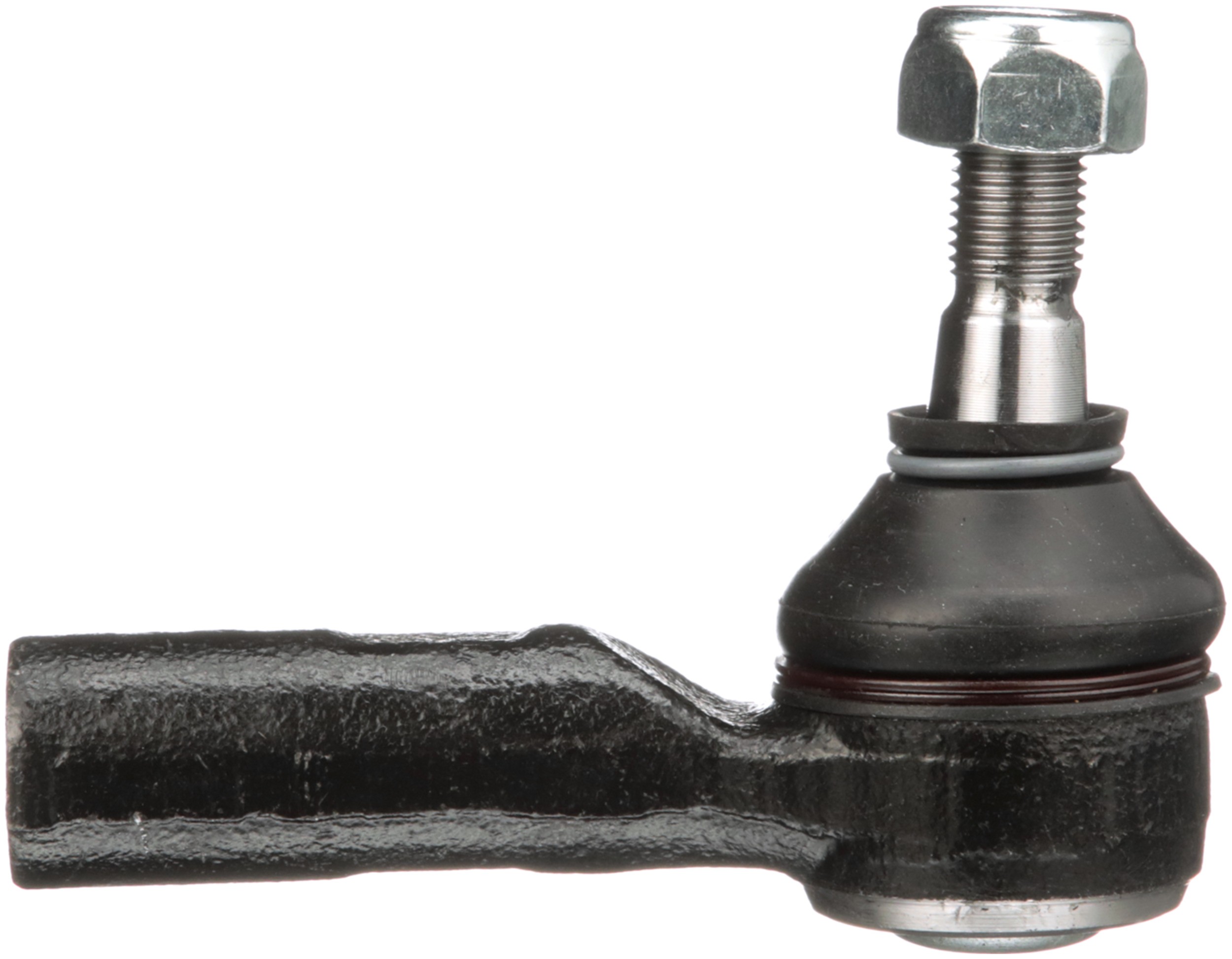

Delphi TA1225 Steering Tie Rod End

Delphi TA1225 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

36	0.866 IN
1786	15.00 MM
1786	0.591 IN
Stud Length	0.591 IN
Stud Length	15.00 MM
Width	38 MM
Height	76.00 MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Boot Colour	Black
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
Color	Black
Length – Stud Centre to End	83.00 MM
9090	Rubber
881	Threaded
Position(s)	Front Outer
Length – Stud Centre to End	3.268 IN
662	15.00 MM
662	0.591 IN
627	0.87 LB
9091	Steel
36	22.00 MM

Vehicle Applications:

Make	Model	Years
Chevrolet	Nova	1985 to 1988
Chevrolet	Prizm	1998 to 2002
Geo	Prizm	1989 to 1997
Lexus	ES250	1990 to 1991
Scion	xA	2004 to 2006
Scion	xB	2004 to 2006
Toyota	Camry	1987 to 1991
Toyota	Celica	1986 to 1999
Toyota	Corolla	1985 to 2002
Toyota	Echo	2002 to 2005
Toyota	RAV4	1996 to 2003
Toyota	Tercel	1987 to 1990
