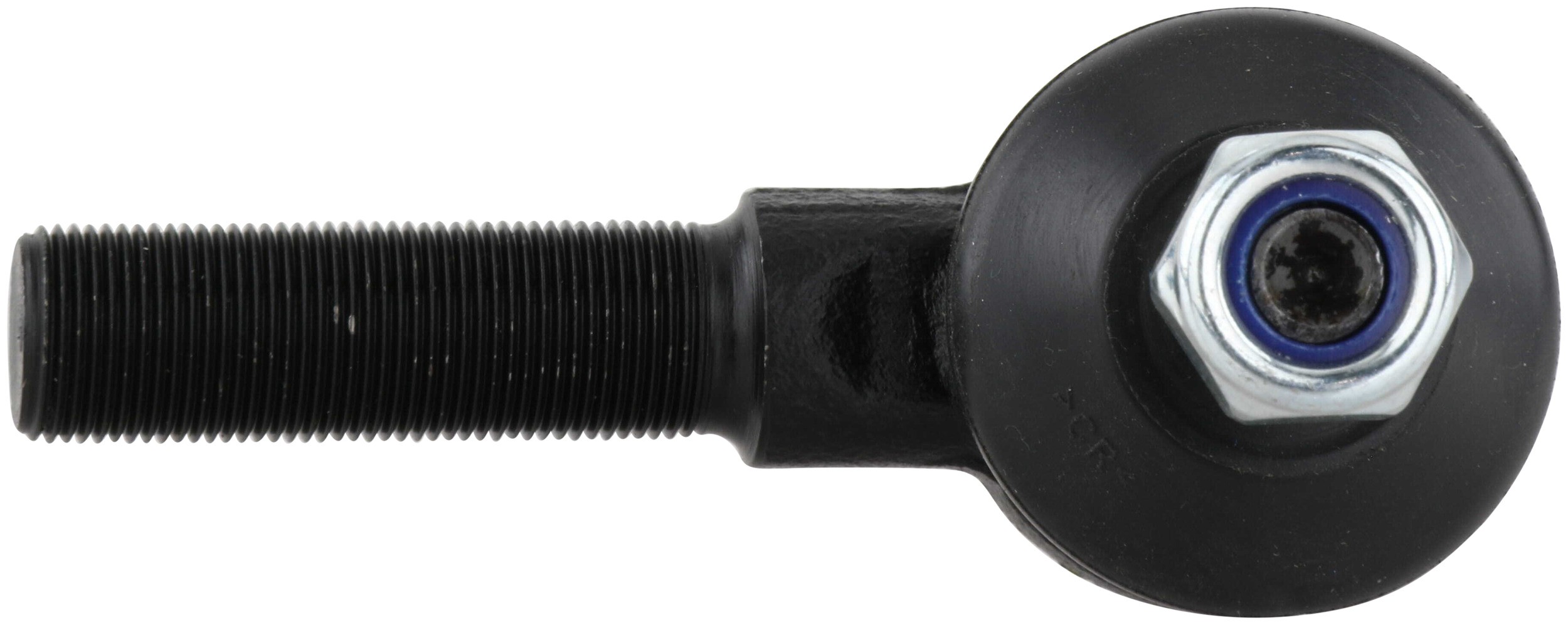

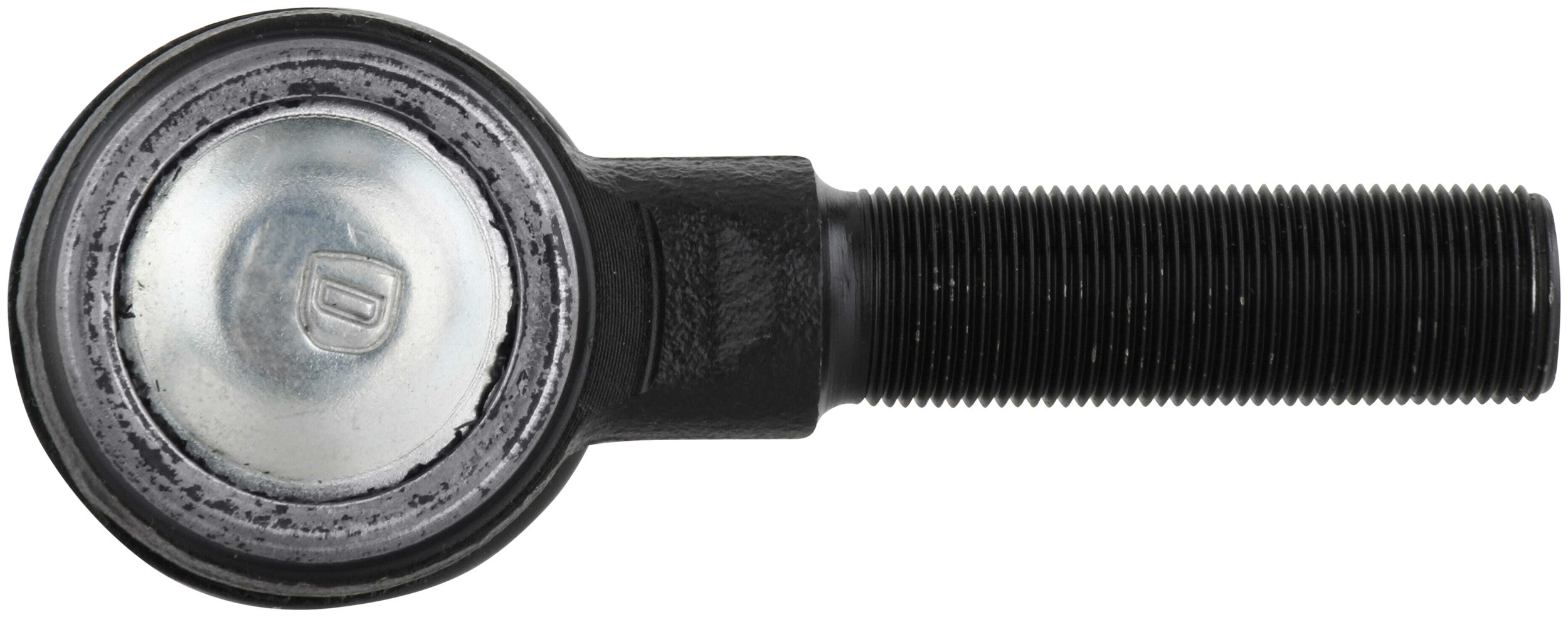

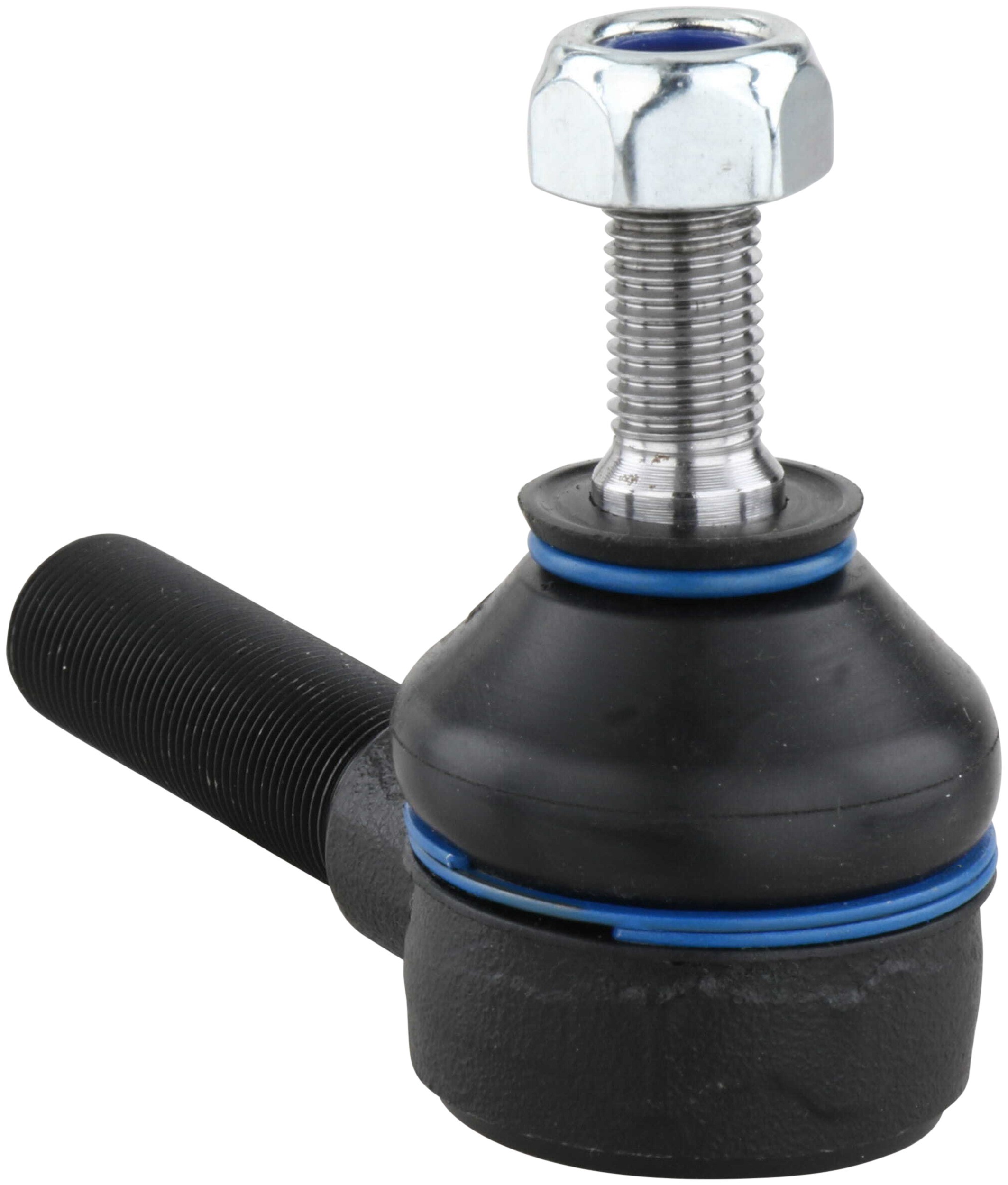

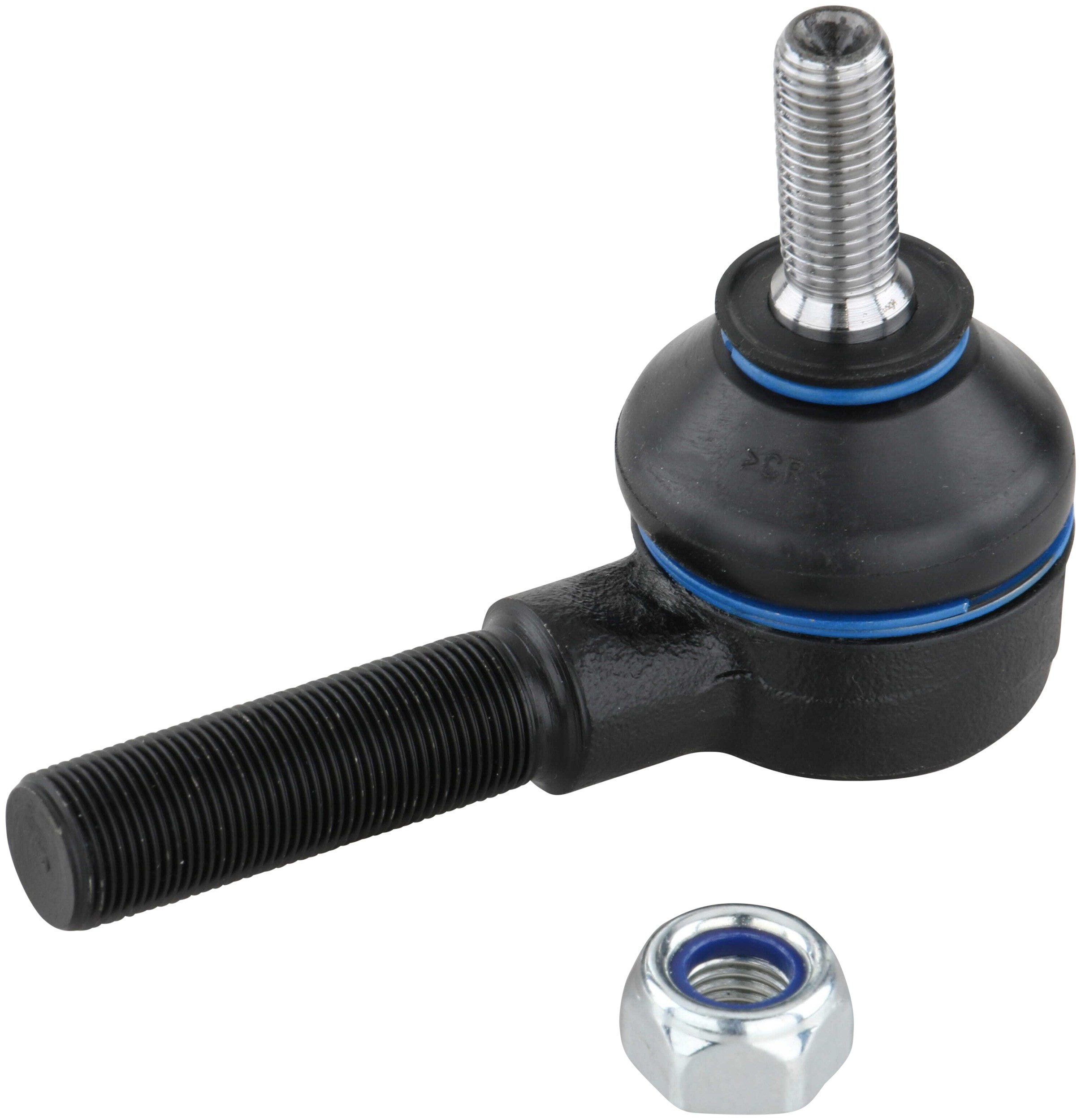

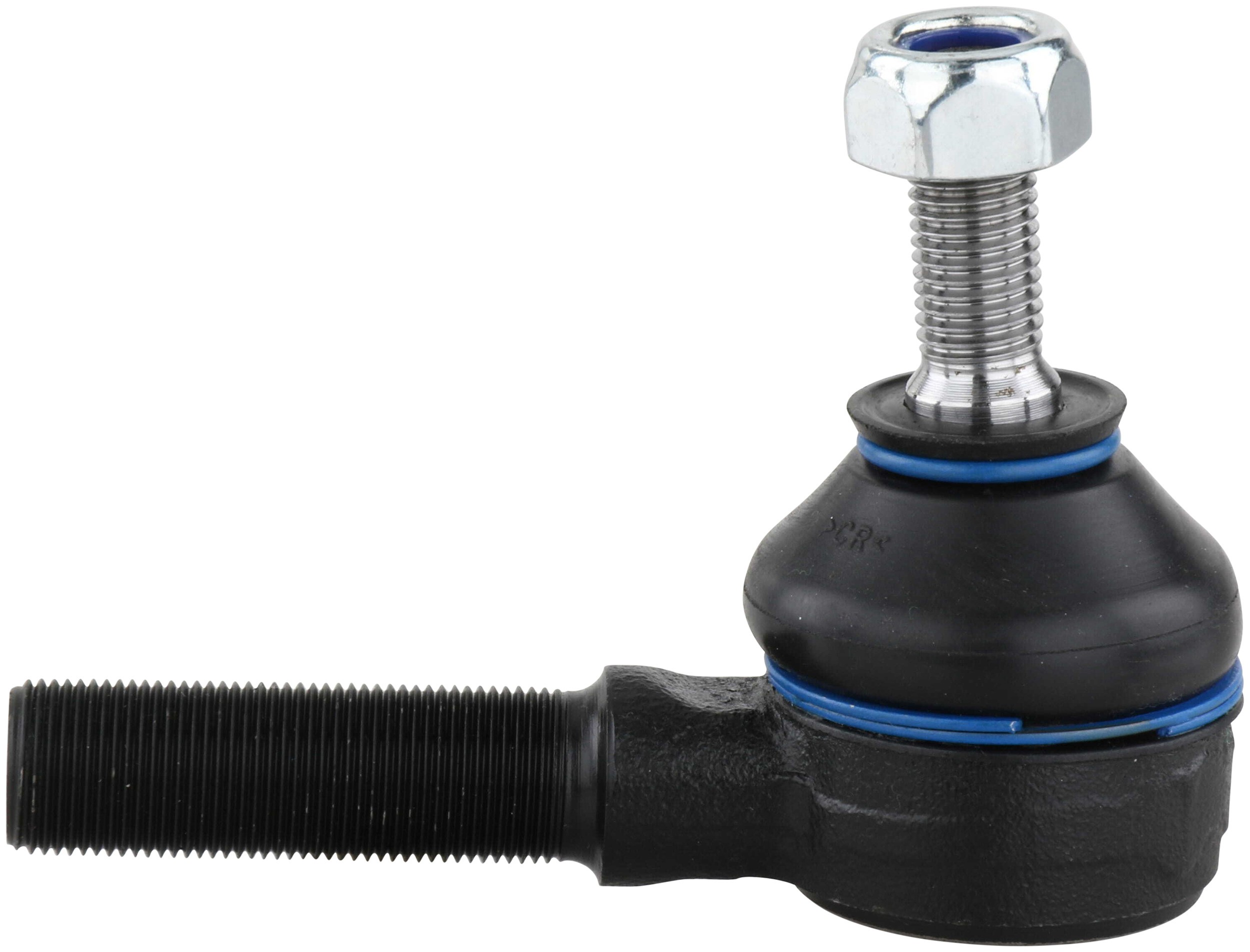

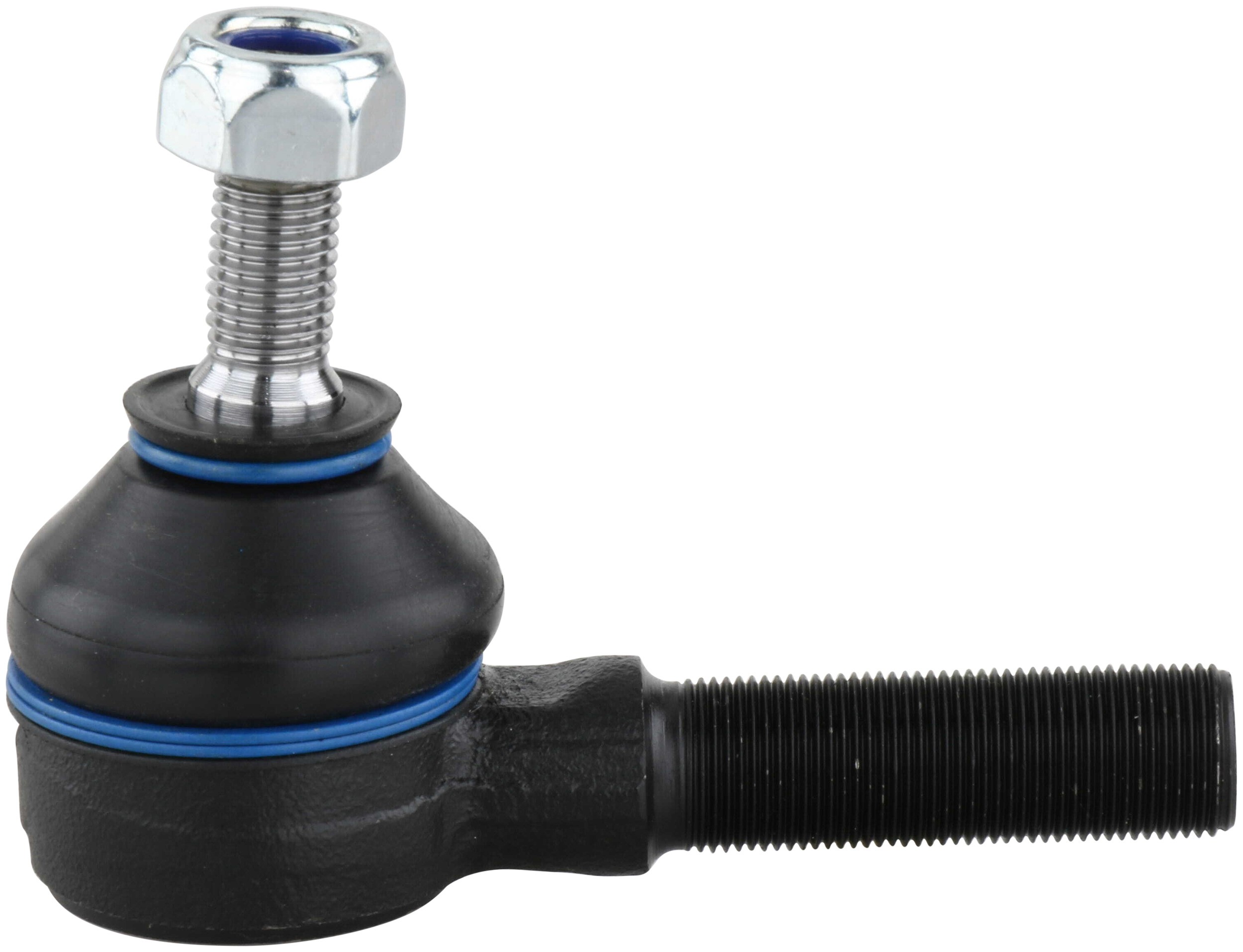

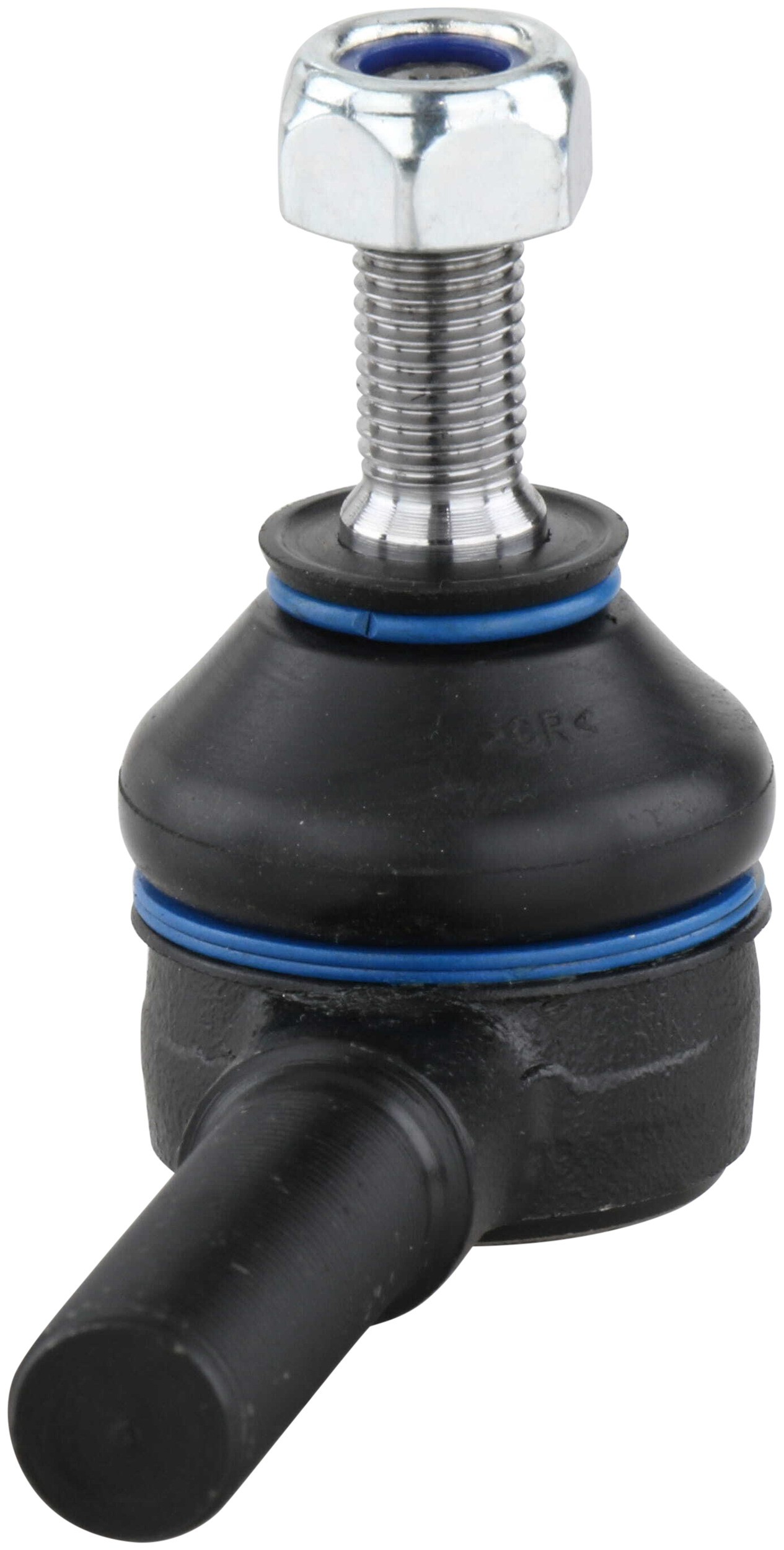

Delphi TA1284 Steering Tie Rod End

Delphi TA1284 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Adjustable	No
Stud Length	13.00 MM
9091	Steel
9090	Chloroprene Rubber (CR)
Stud Length	0.512 IN
Length	101.00 MM
End 1 Gender	Male
881	Threaded
Position(s)	Outer
Color	Black
End 2 Gender	Male
Head Drive Type	Hex
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Counterclockwise (Left)
Bearing Material	Plastic
Length – Stud Centre to End	82.00 MM
Grade Type	Standard Replacement
Finish	Painted
Pre-greased	Yes
Boot Colour	Black
Grease Fitting Included	No
Greaseable	No
662	13.00 MM
662	0.512 IN
36	14.00 MM
36	0.550 IN
1786	13.00 MM
1786	0.512 IN
Length – Stud Centre to End	3.228 IN
Height	71.60 MM
Width	38 MM
Dust Boot Included	Yes
Mounting Hardware Included	No
Housing Material	Steel
