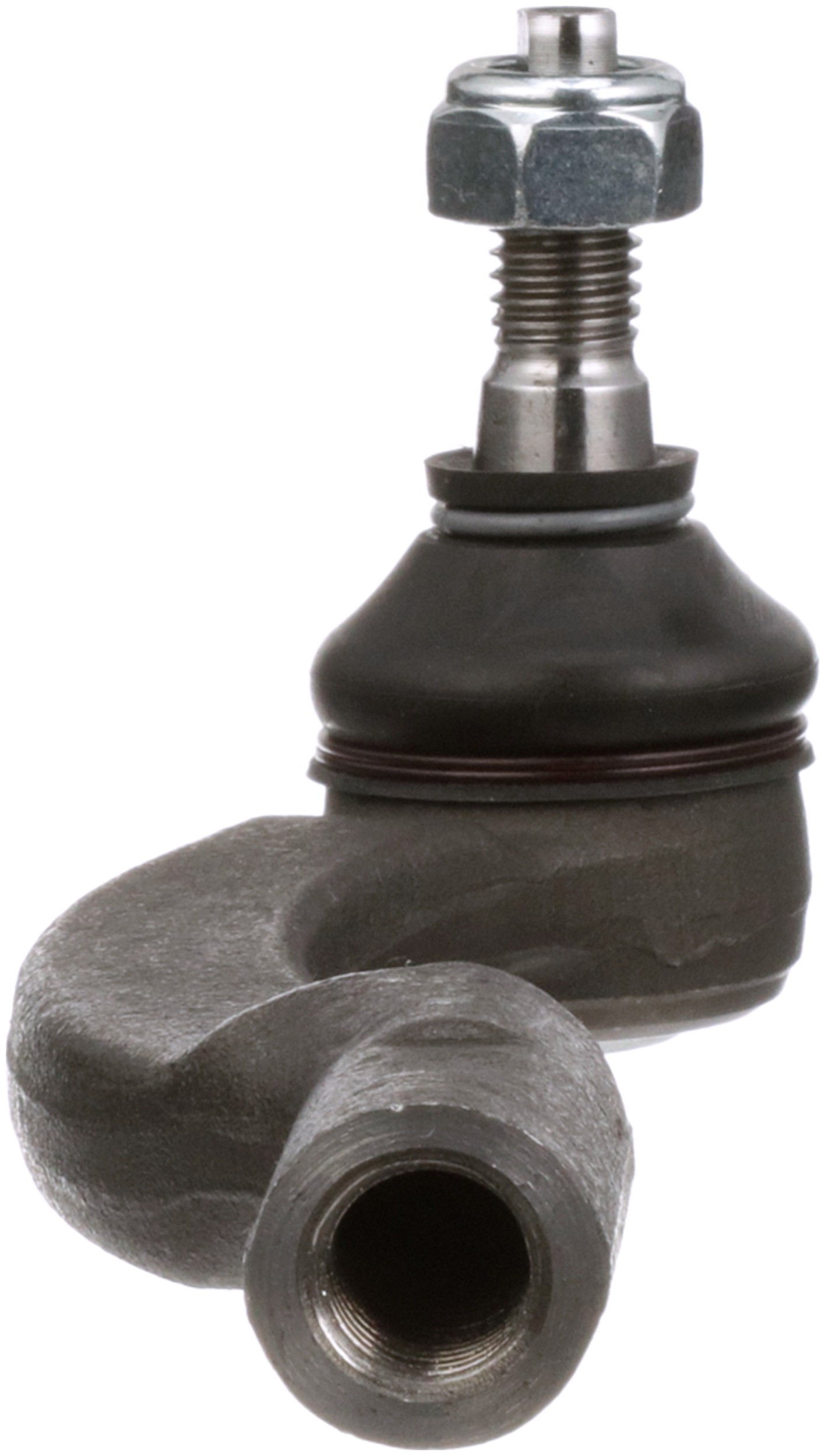

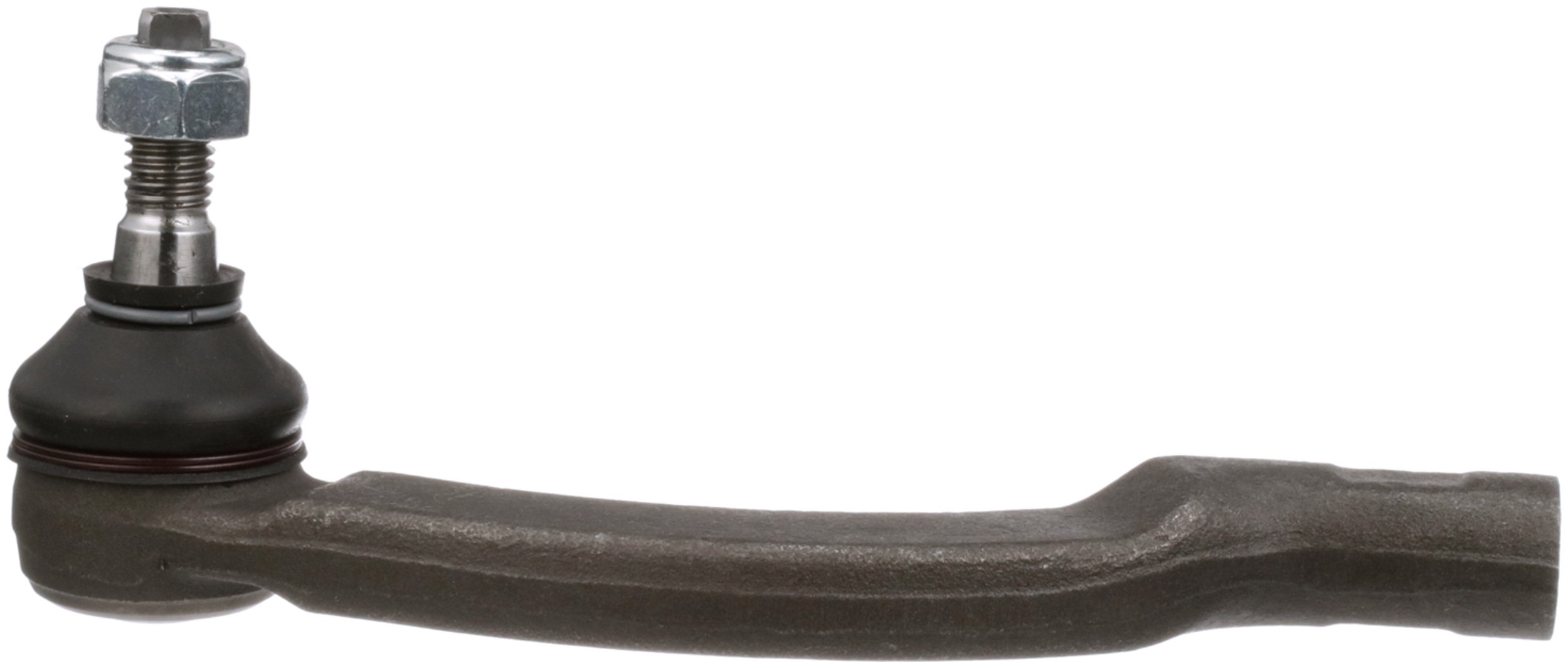

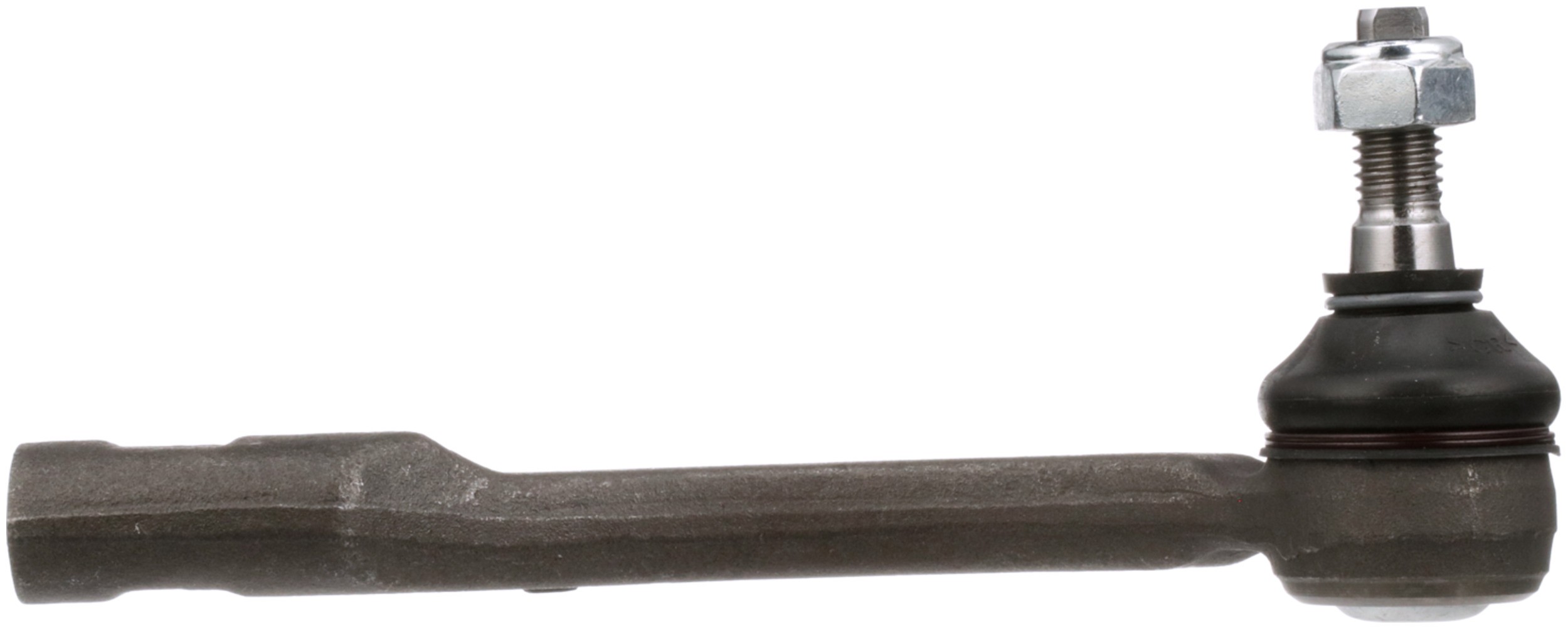

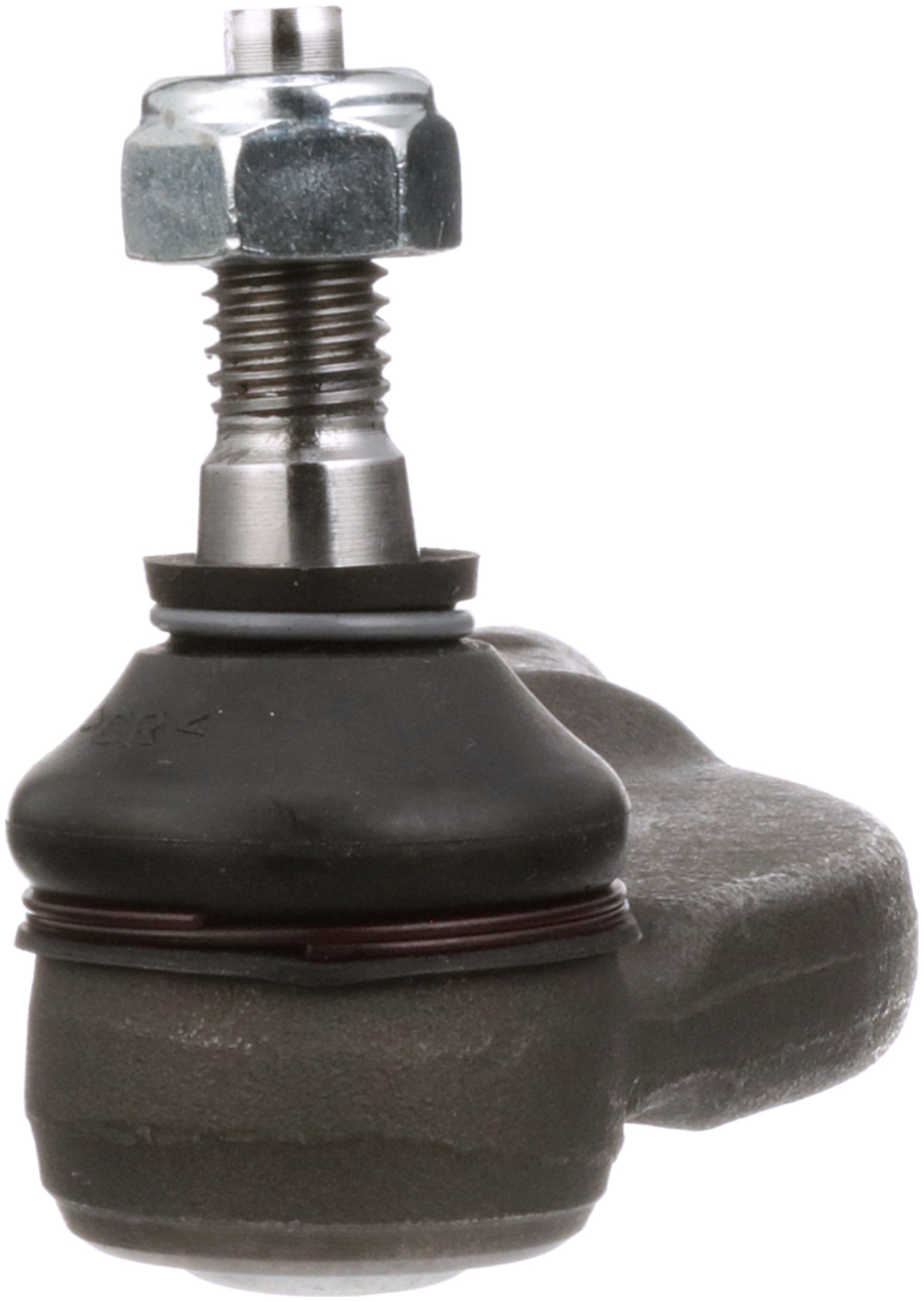

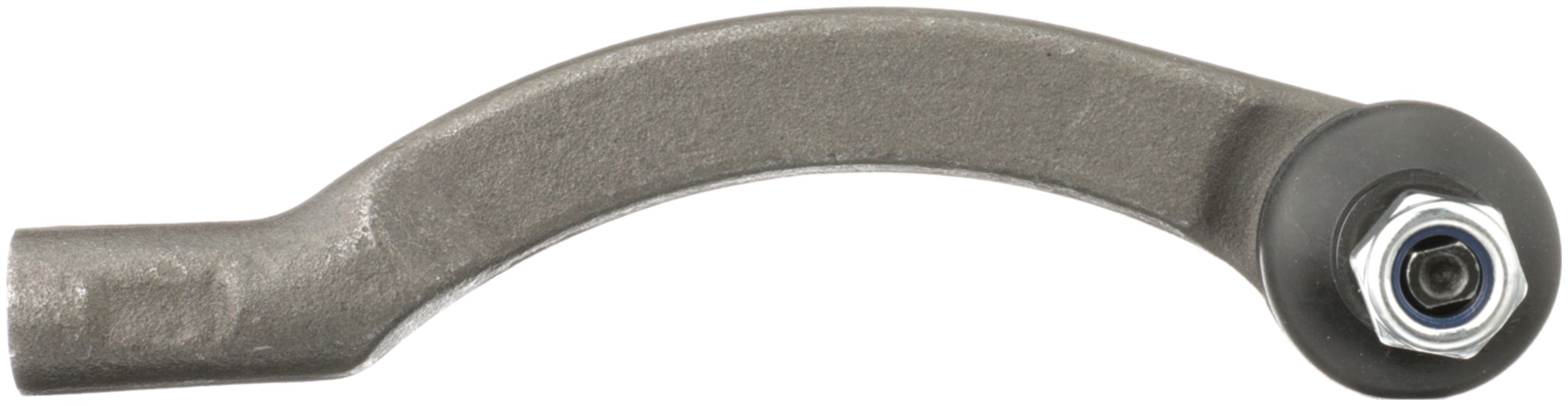

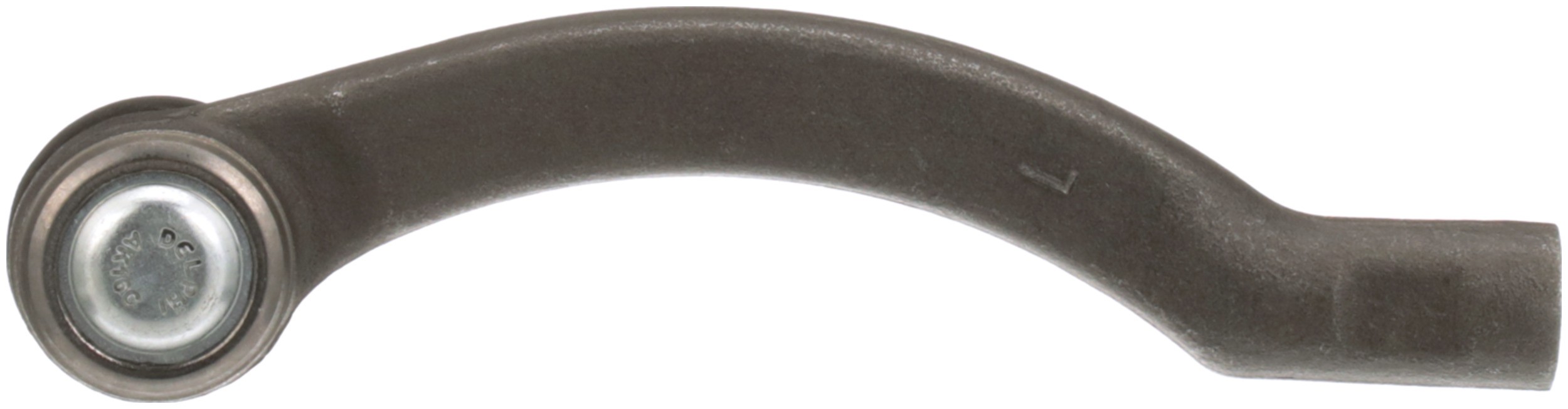

Delphi TA1495 Steering Tie Rod End

Delphi TA1495 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hardware Included	Yes
Type	Bent
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
36	22.00 MM
9090	Rubber
881	Threaded
Position(s)	Left Outer
Greaseable	No
1786	0.630 IN
1786	16.00 MM
36	0.866 IN
End 2 Gender	Female
Length – Stud Centre to End	180.00 MM
Length – Stud Centre to End	7.087 IN
Height	78.10 MM
Width	57 MM
Stud Length	16.00 MM
Stud Length	0.630 IN
Color	Gray
627	1.54 LB
662	0.630 IN
9091	Steel
662	16.00 MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement

Vehicle Applications:

Make	Model	Years
Volvo	850	1993 to 1997
Volvo	960	1995 to 1997
Volvo	C70	1998 to 2004
Volvo	S70	1998 to 2000
Volvo	S90	1997 to 1998
Volvo	V70	1998 to 2000
Volvo	V90	1997 to 1998
