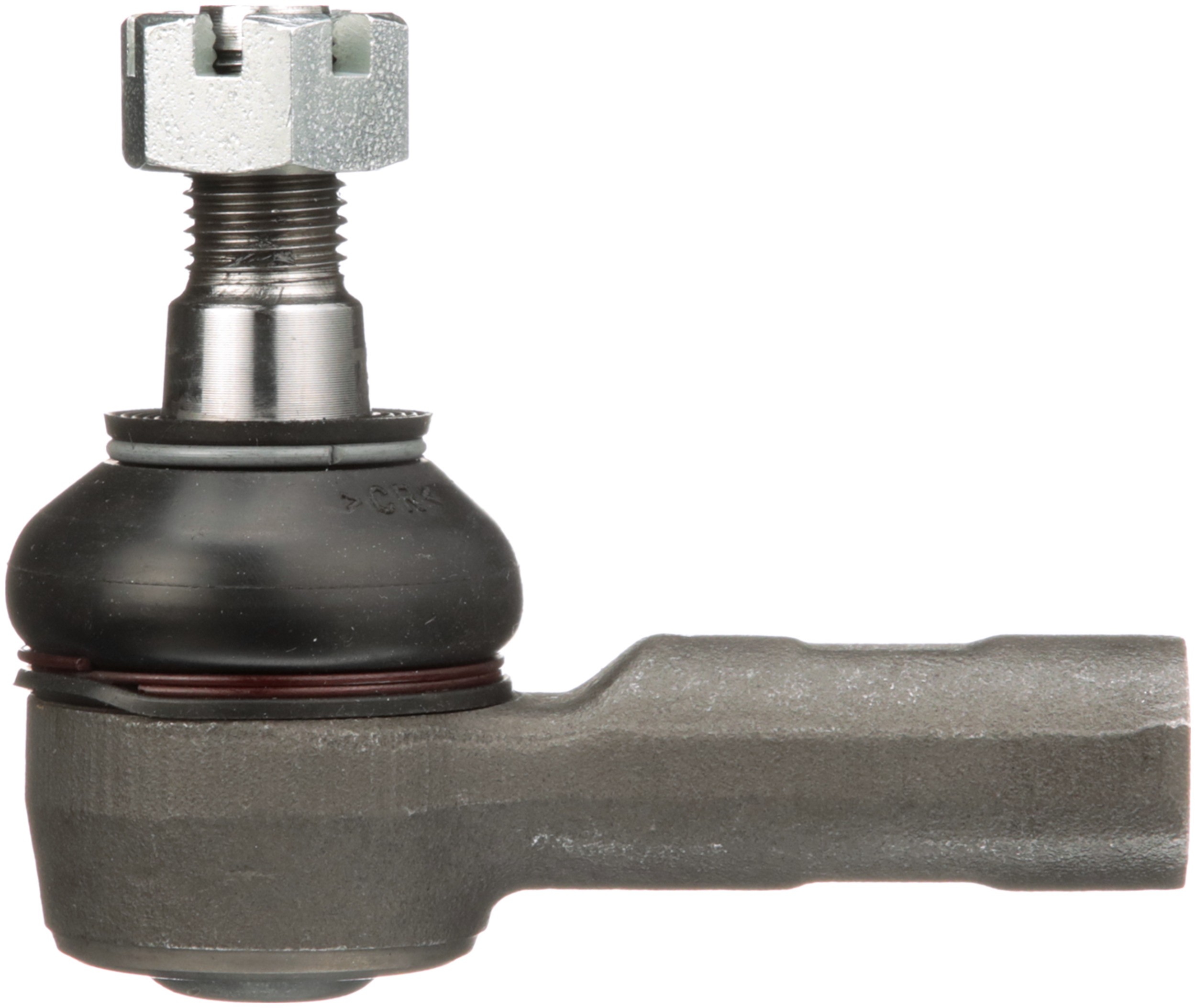

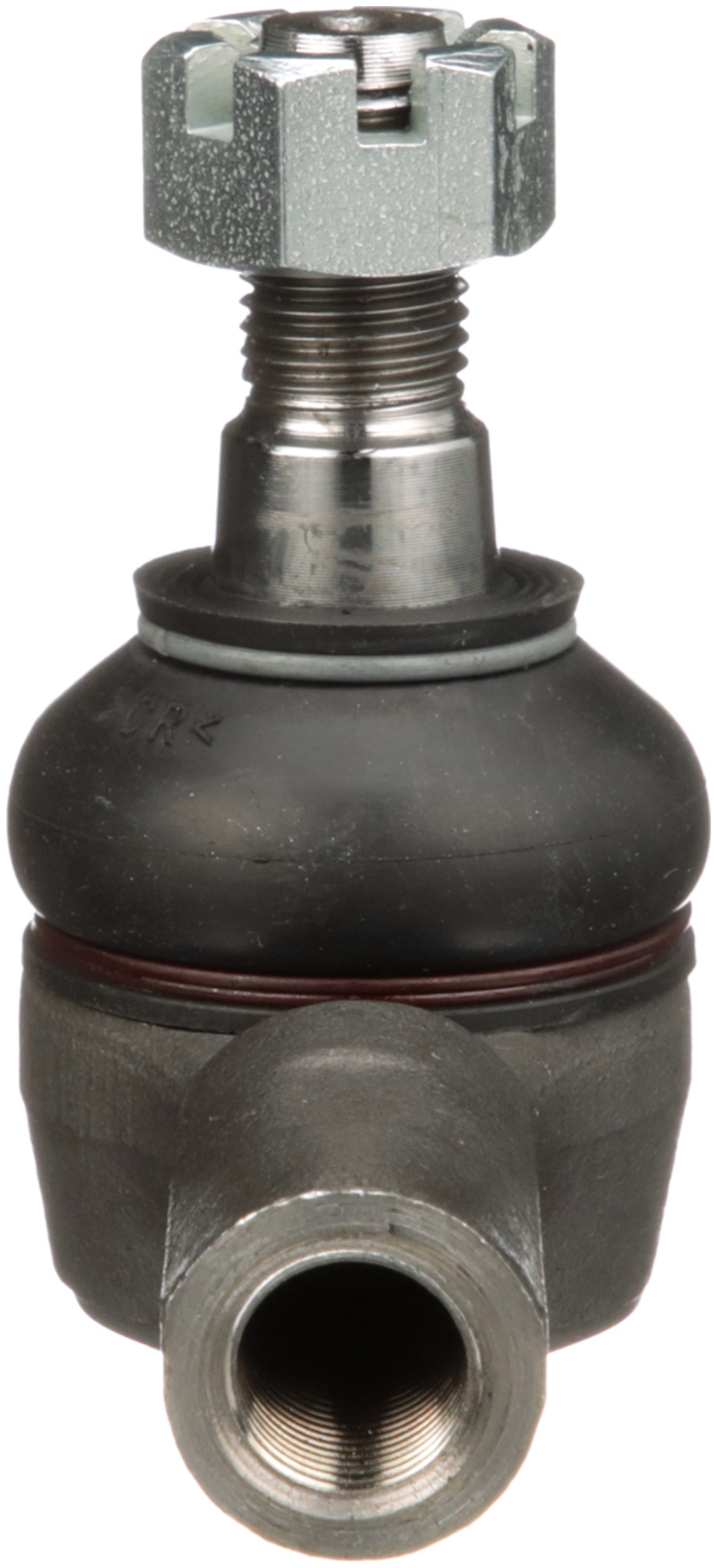

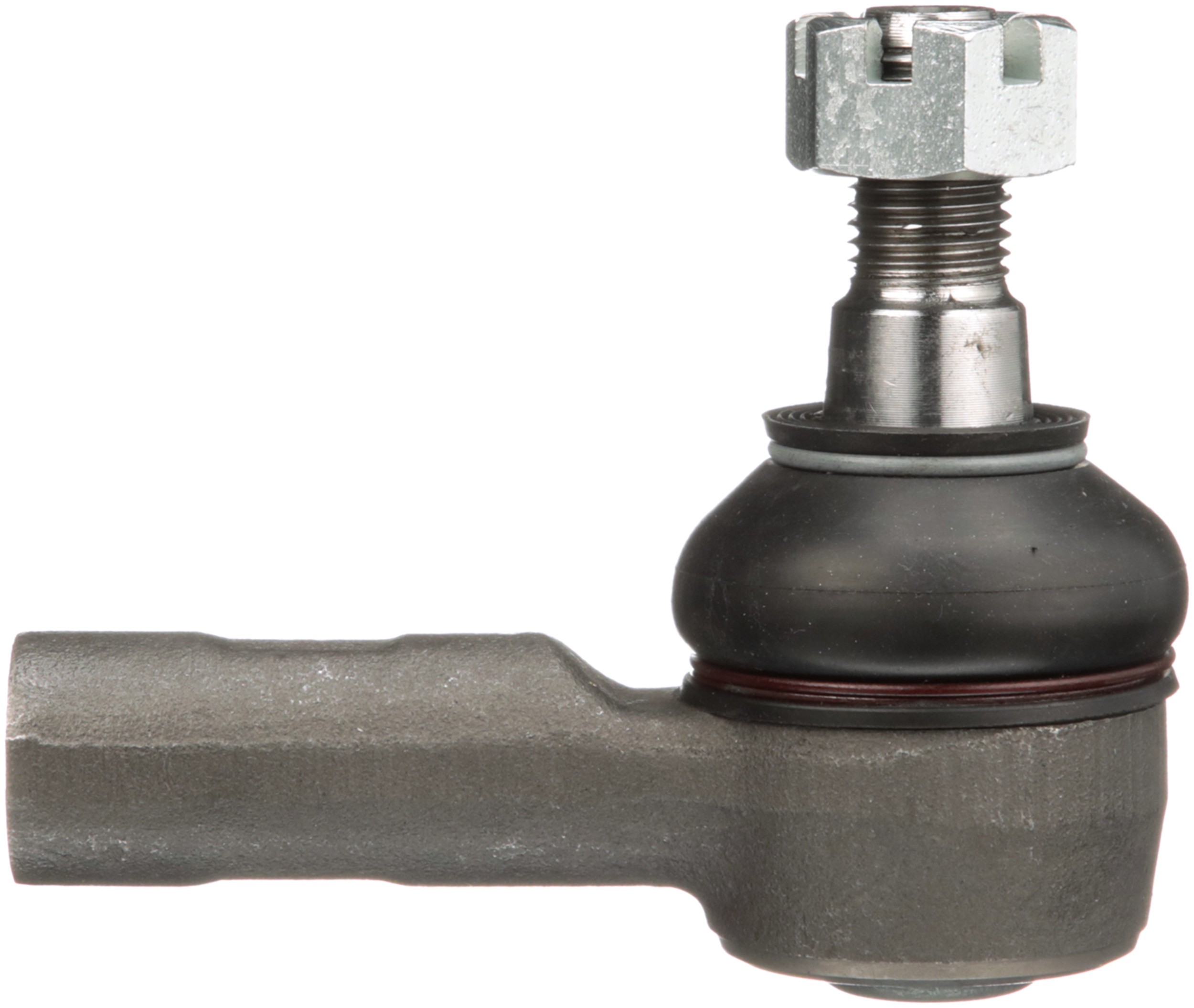

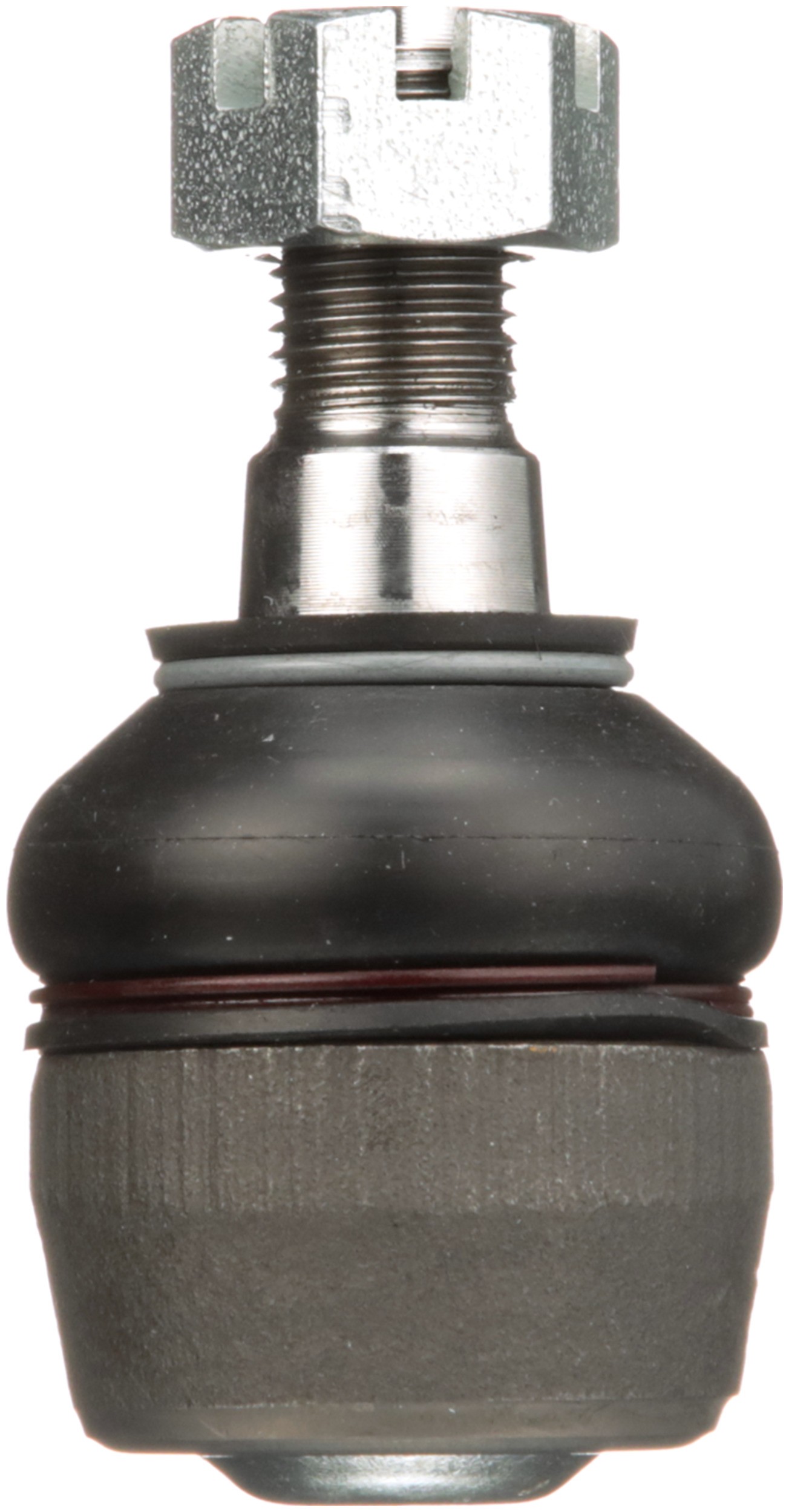

Delphi TA1501 Steering Tie Rod End

Delphi TA1501 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length – Stud Centre to End	2.953 IN
Length – Stud Centre to End	75.00 MM
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Color	Black
Position(s)	Inner, Outer. For the position specific to your vehicle, refer to the Applications.
881	Threaded
9090	Rubber
9091	Steel
Pre-greased	Yes
Stud Length	18.00 MM
End 2 Gender	Female
Width	41 MM
Height	80.00 MM
End 2 Thread Direction	Counterclockwise (Left)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
662	18.00 MM
662	0.709 IN
627	0.97 LB
36	21.00 MM
36	0.827 IN
1786	18.00 MM
1786	0.709 IN
Stud Length	0.709 IN

Vehicle Applications:

Make	Model	Years
Acura	SLX	1996 to 1999
Honda	Passport	1994 to 1997
Isuzu	Amigo	1989 to 1994
Isuzu	Pickup	1988 to 1995
Isuzu	Rodeo	1991 to 1997
Isuzu	Trooper	1987 to 2002
Isuzu	VehiCROSS	1999 to 2001
