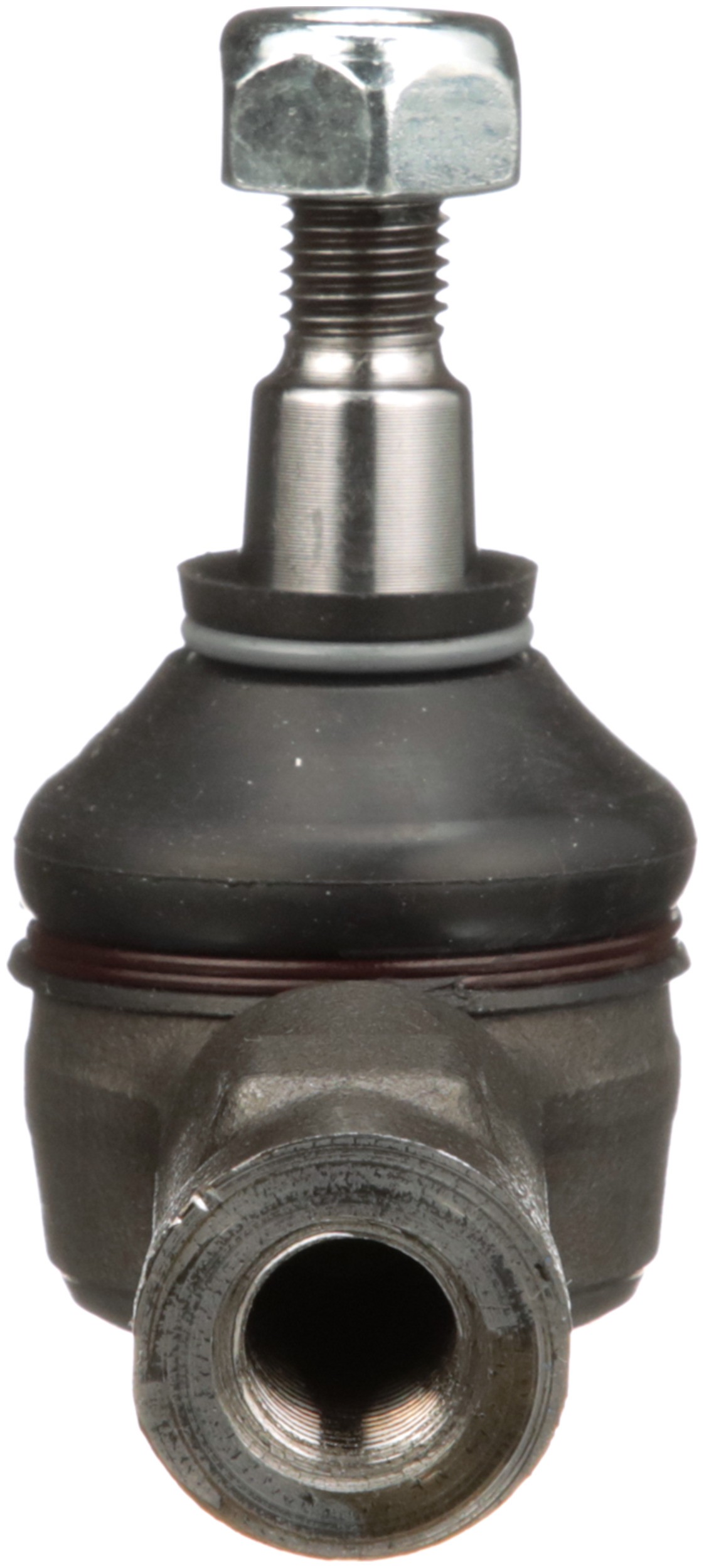

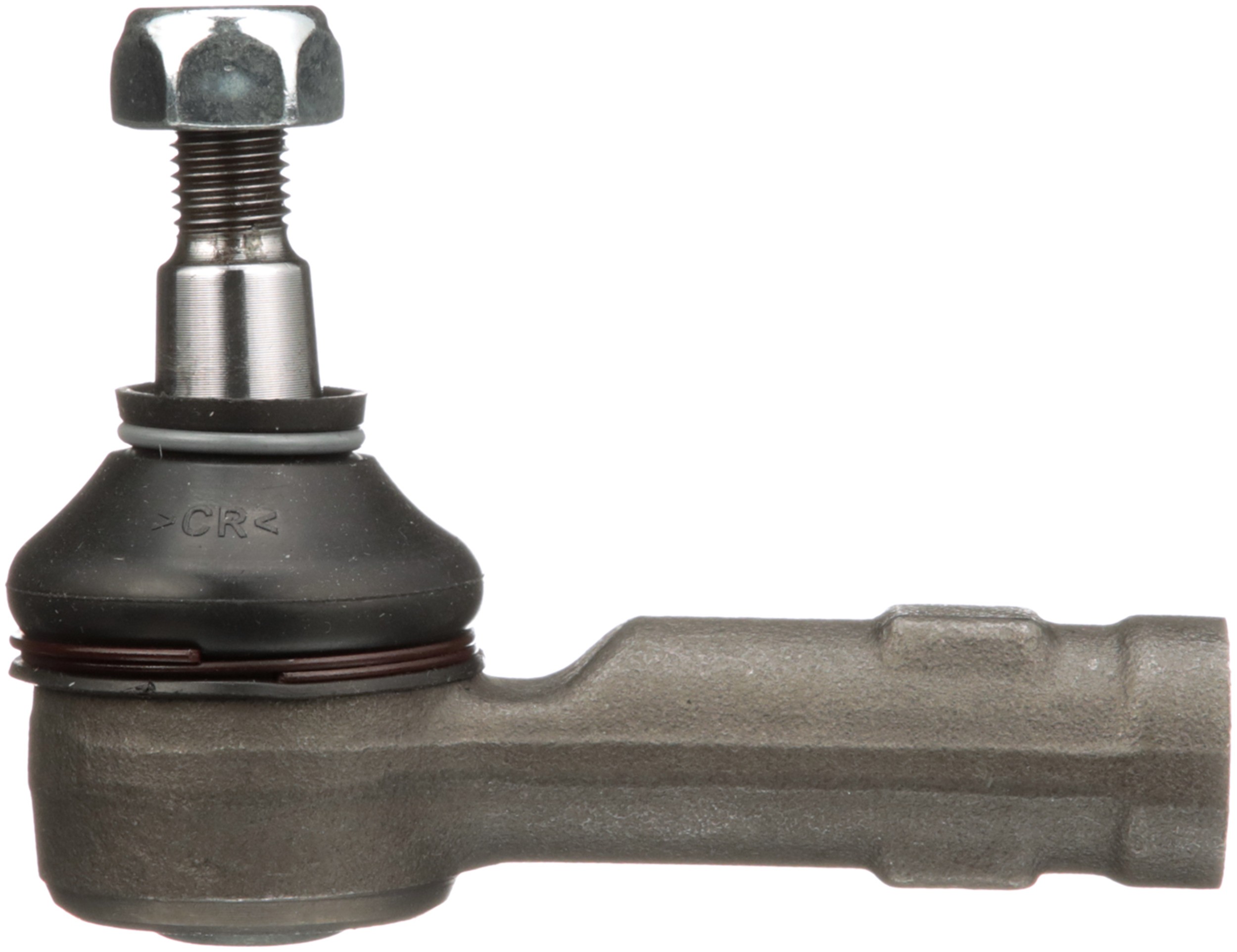

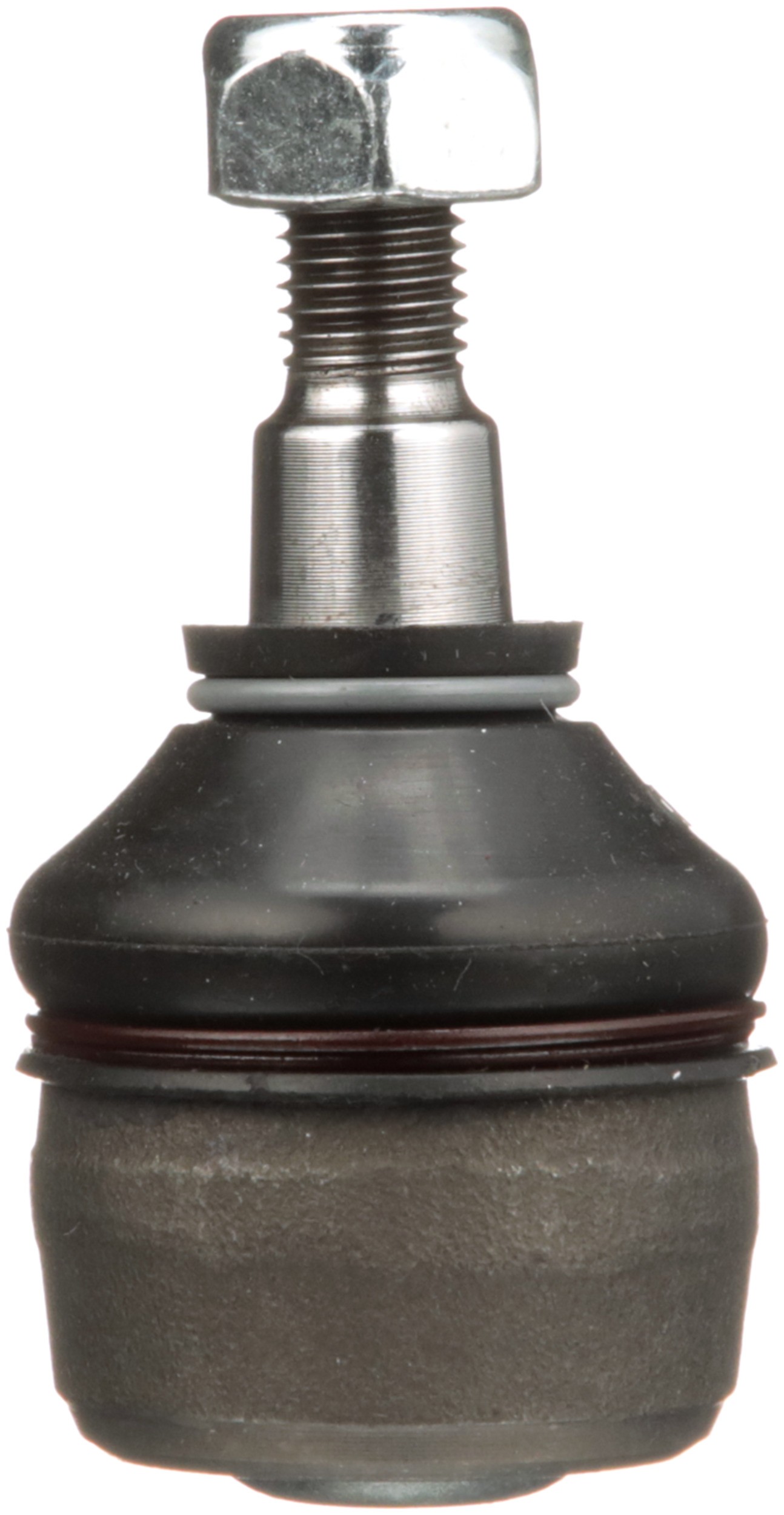

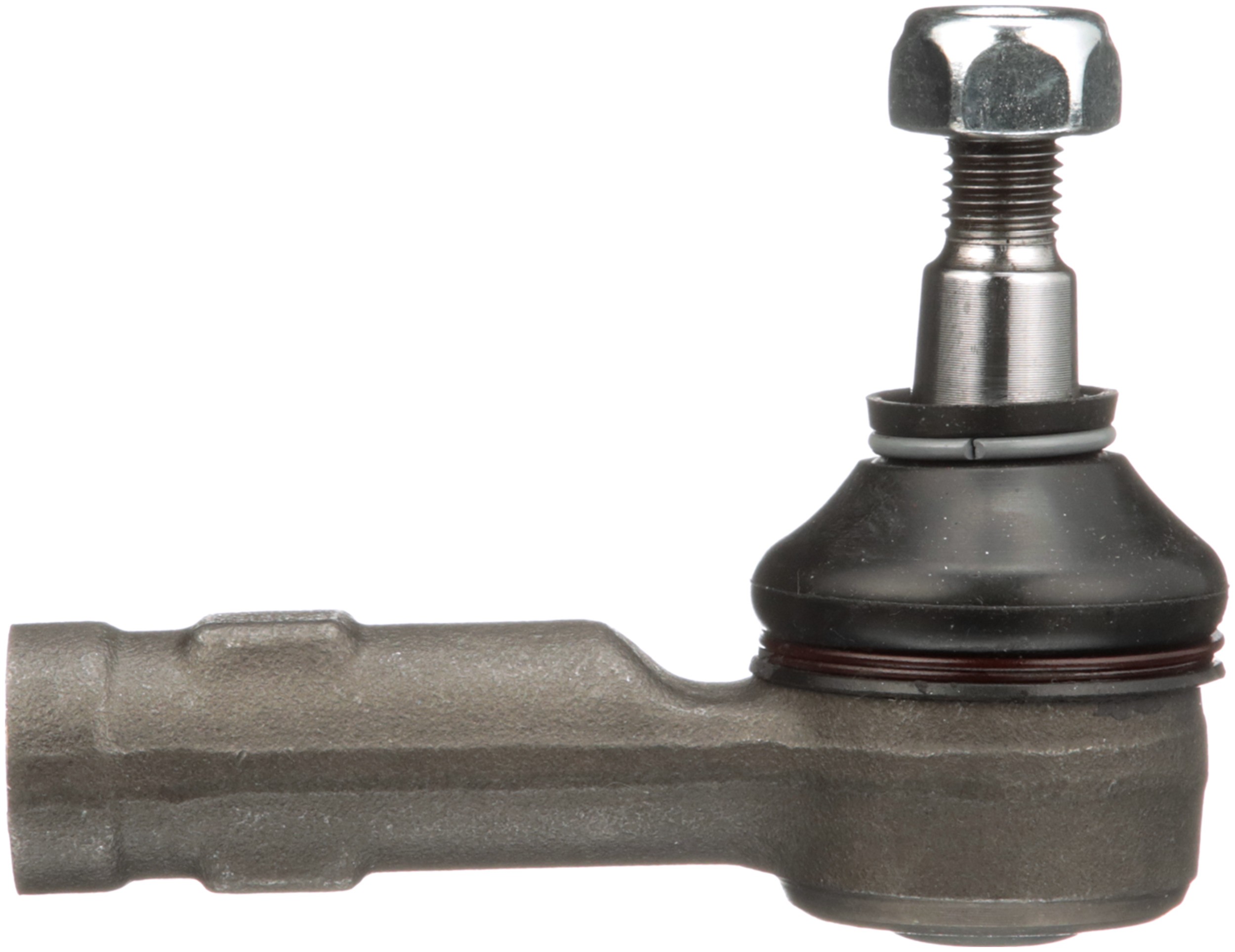

Delphi TA1512 Steering Tie Rod End

Delphi TA1512 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

662	0.559 IN
662	14.20 MM
627	0.7 LB
36	19.80 MM
36	0.780 IN
1786	14.20 MM
1786	0.559 IN
Stud Length	0.559 IN
Stud Length	14.20 MM
Width	37 MM
Height	72.30 MM
Length – Stud Centre to End	3.110 IN
Length – Stud Centre to End	79.00 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Outer
Color	Gray
End 2 Gender	Female
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
