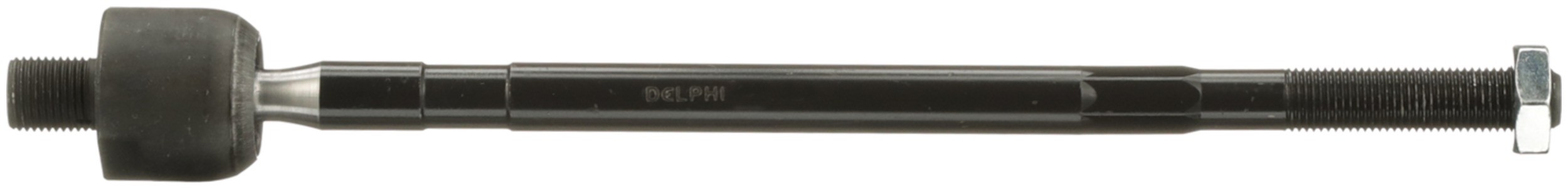

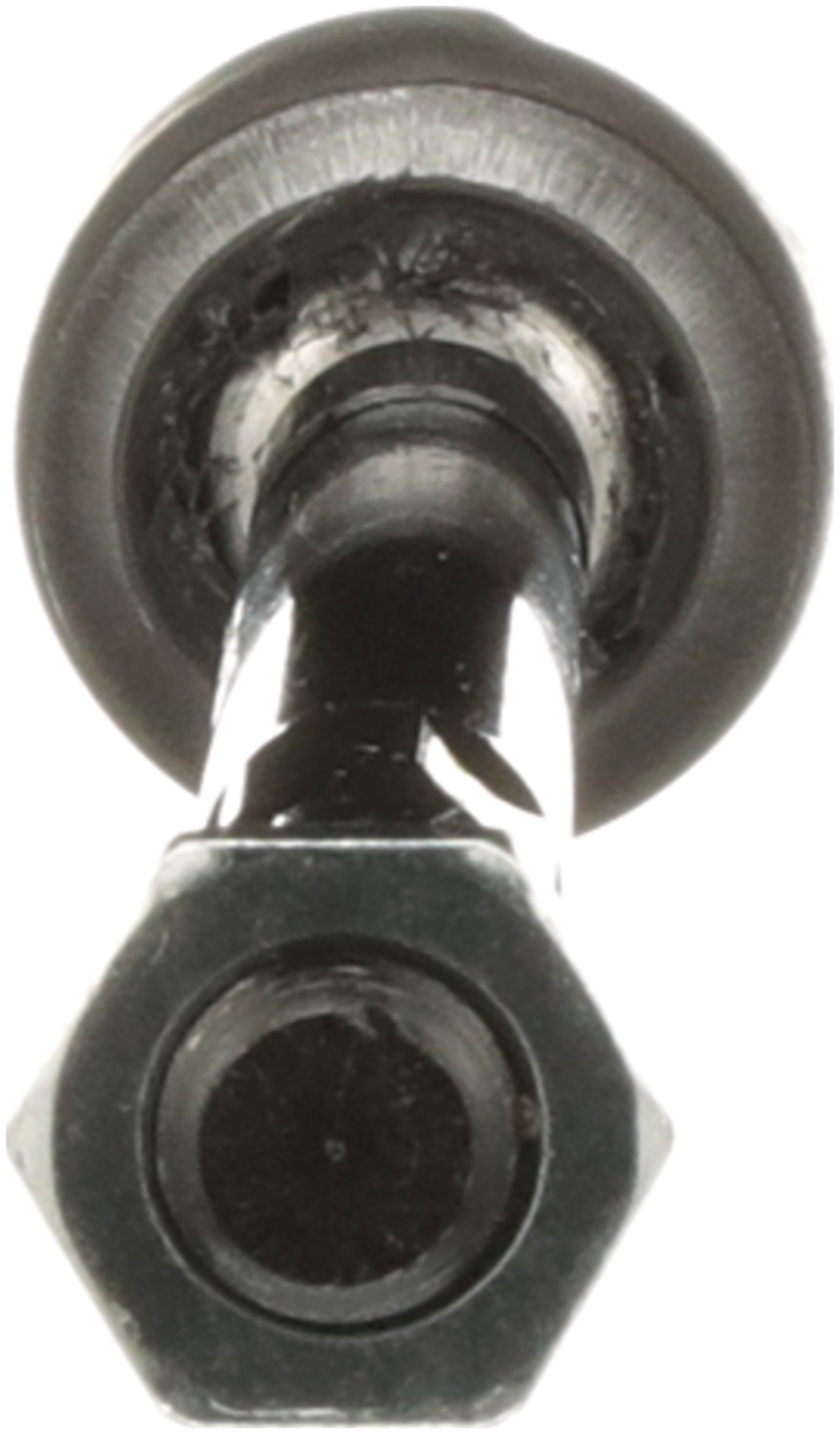

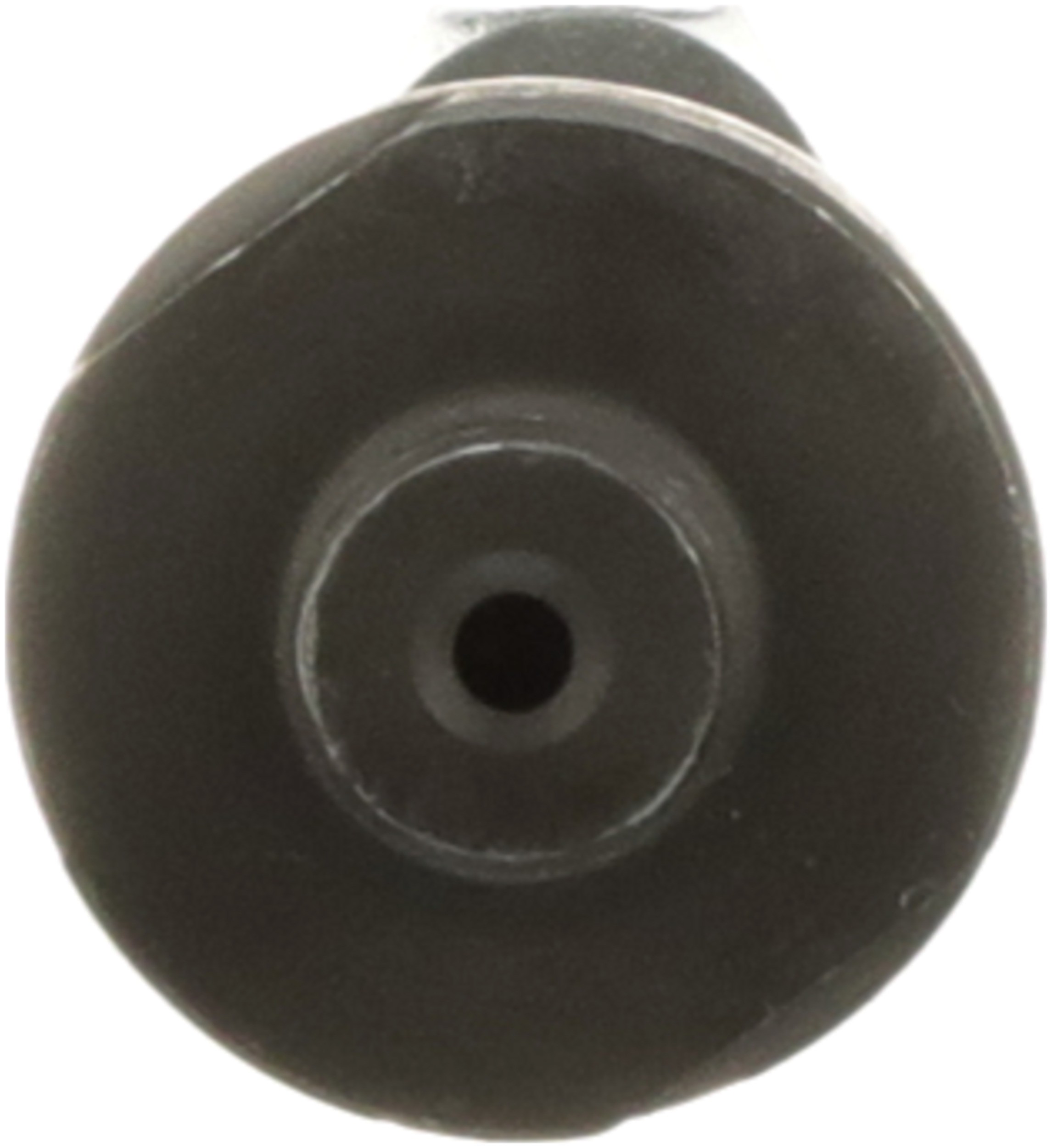

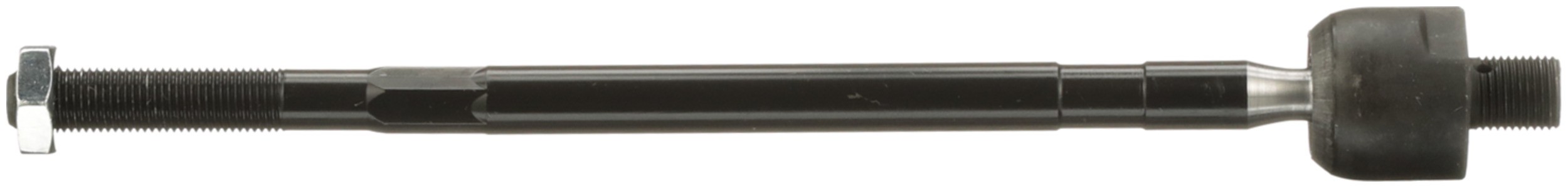

Delphi TA1517 Steering Tie Rod End

Delphi TA1517 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Dust Boot Included	No
36	0.571 IN
36	14.50 MM
627	1.04 LB
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Width	37.9 MM
Height	37.90 MM
Length – Stud Centre to End	10.945 IN
Length – Stud Centre to End	278.00 MM
9091	Steel
4241	Yes
Position(s)	Inner
Pre-greased	Yes
Grease Fitting Included	No
Type	Straight
Color	Black
End 1 Gender	Male
End 2 Gender	Male
