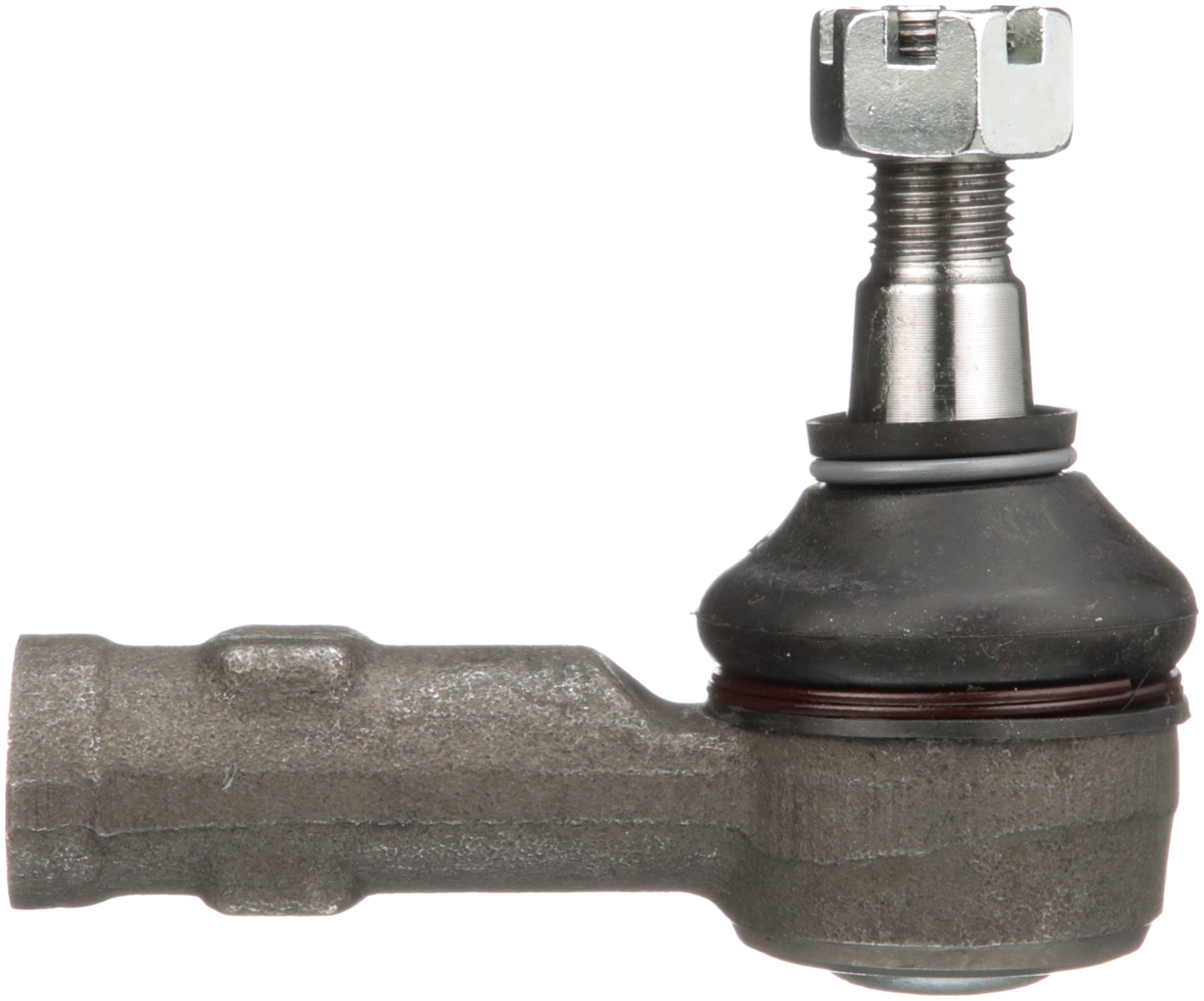

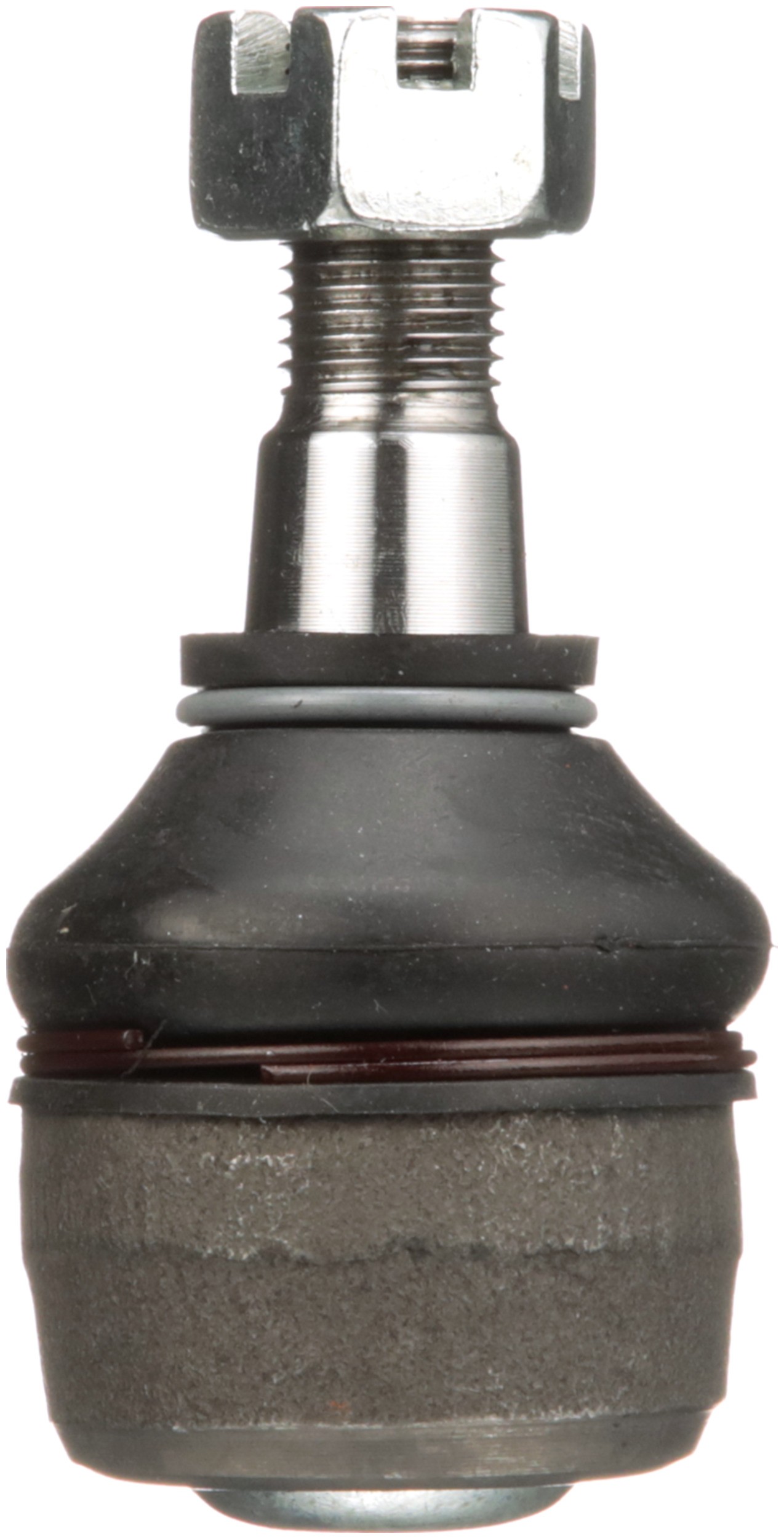

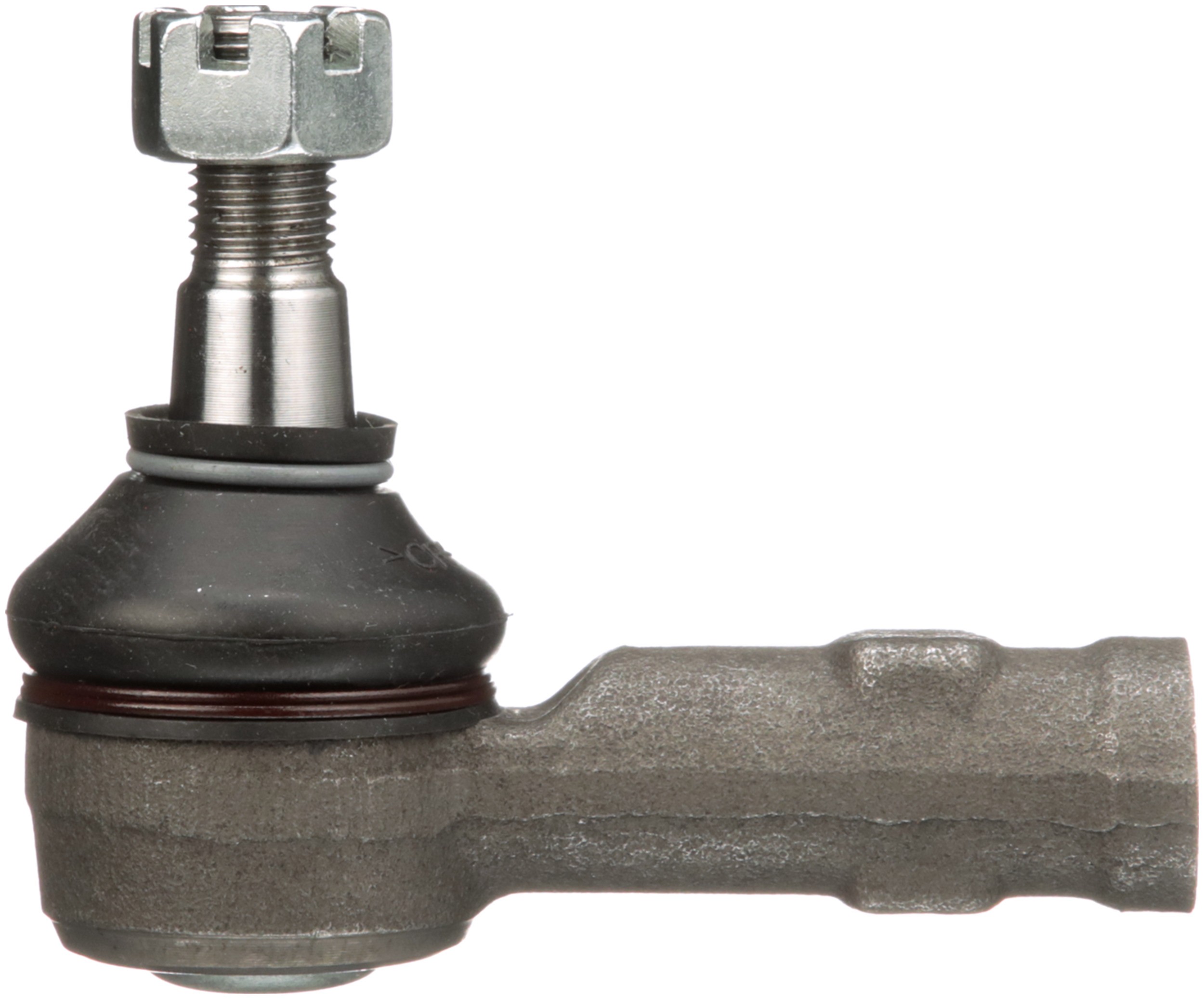

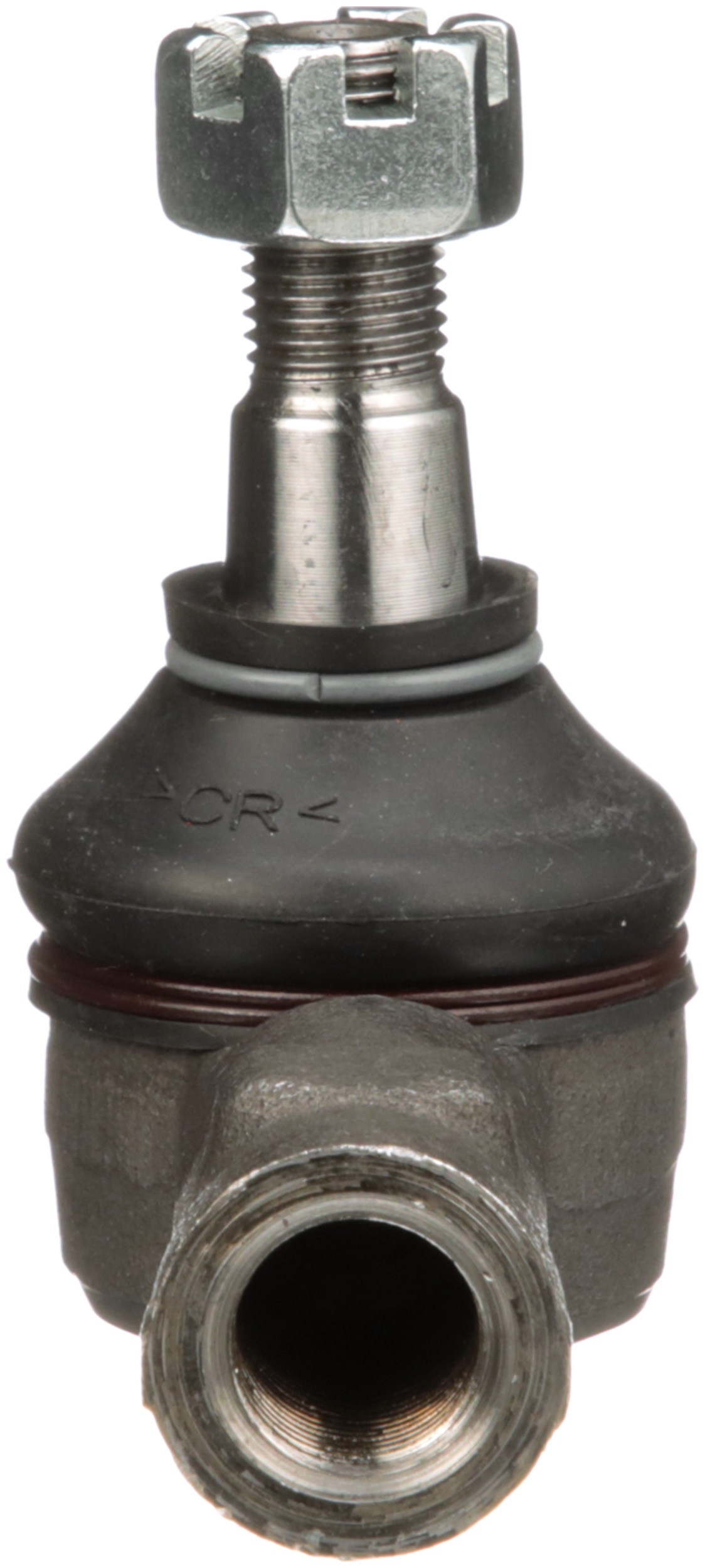

Delphi TA1535 Steering Tie Rod End

Delphi TA1535 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Color	Gray
Adjustable	No
Greaseable	No
Bearing Material	Plastic
Length	95.00 MM
Length – Stud Centre to End	72.00 MM
Stud Length	15.70 MM
Height	75.90 MM
Stud Length	0.618 IN
Width	37 MM
Length – Stud Centre to End	2.835 IN
1786	0.618 IN
1786	15.70 MM
36	0.787 IN
36	20.00 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Outer
627	0.81 LB
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
662	0.618 IN
662	15.70 MM
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
