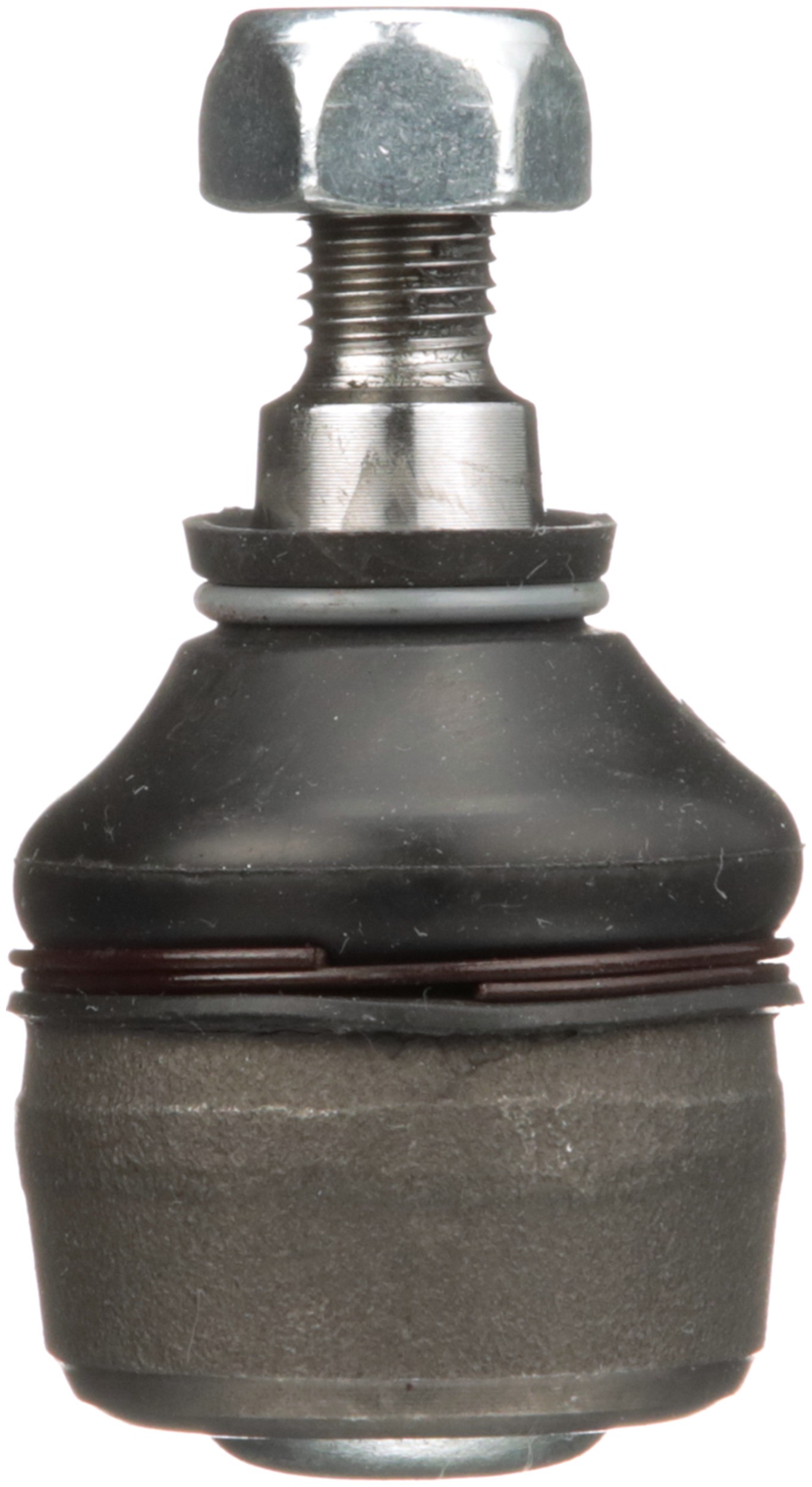

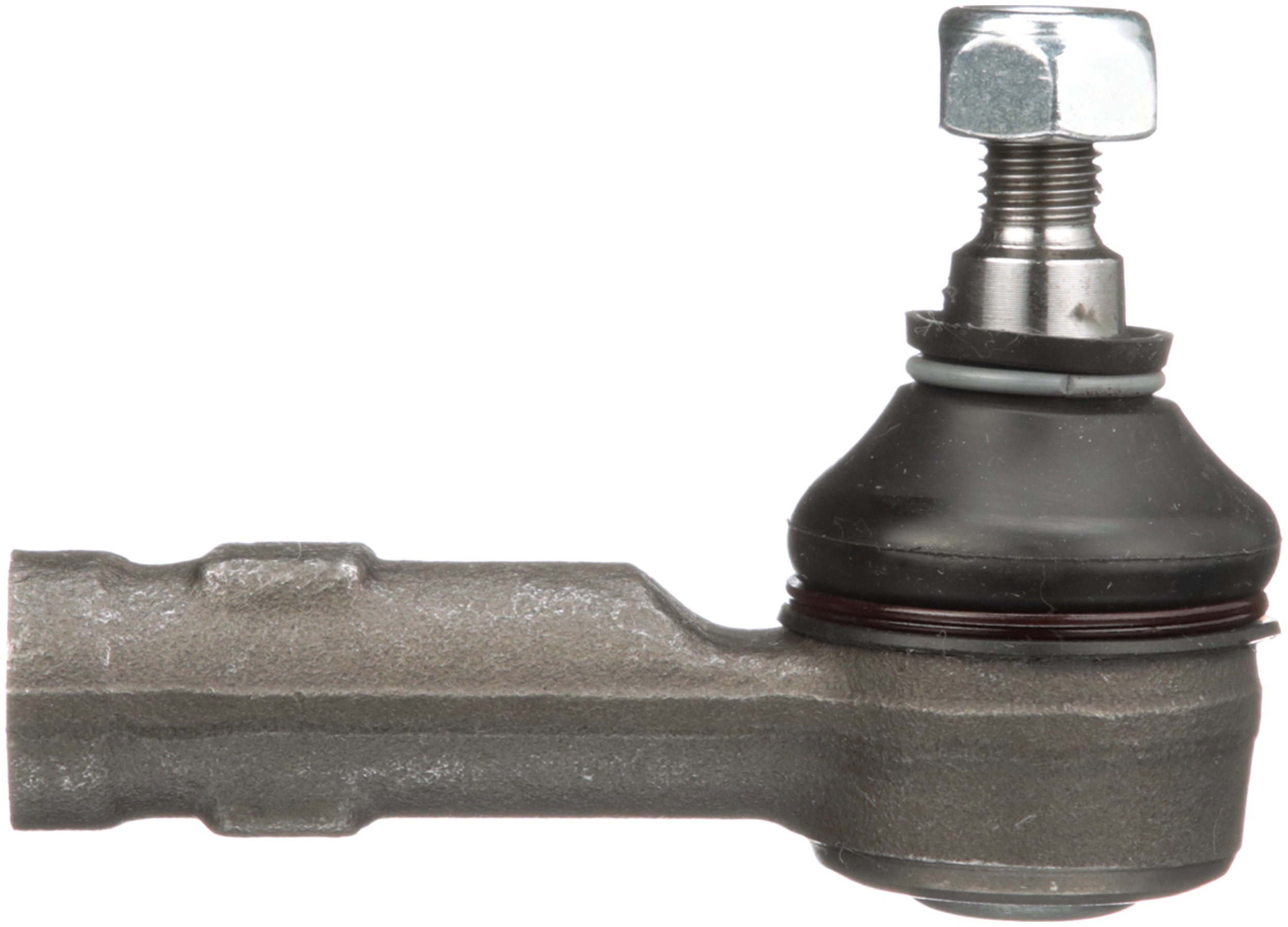

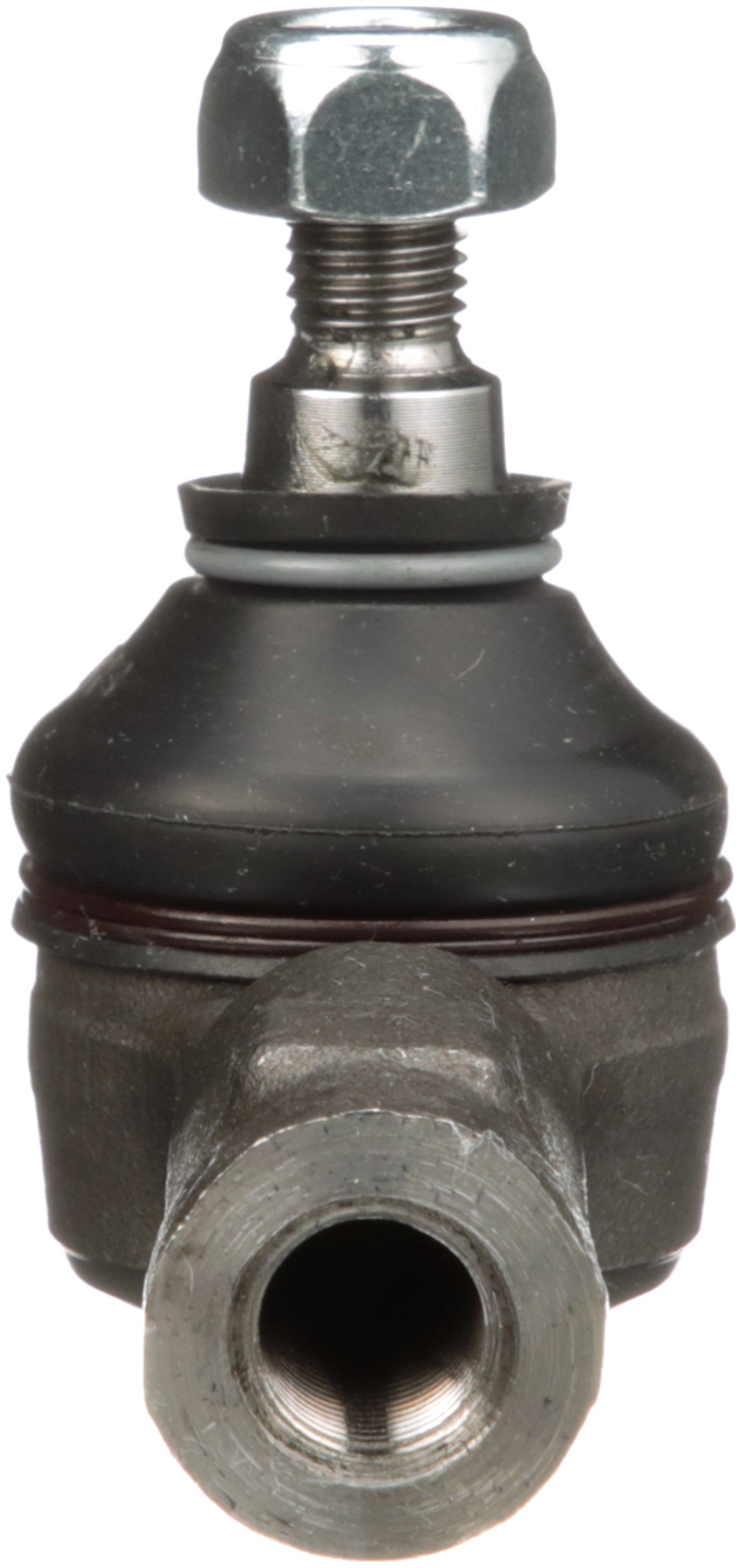

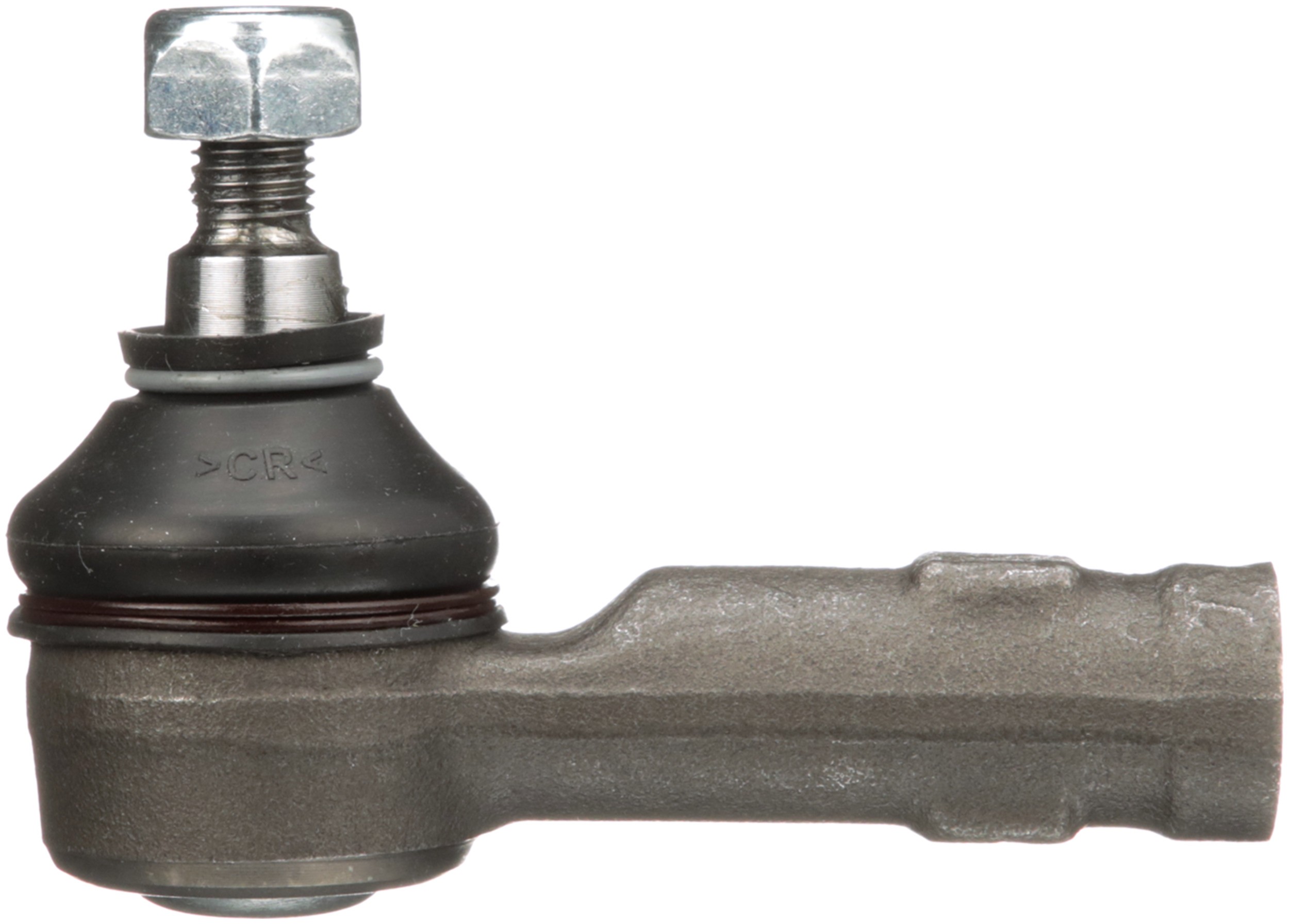

Delphi TA1536 Steering Tie Rod End

Delphi TA1536 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Dust Boot Included	Yes
Length	99.00 MM
Stud Length	0.591 IN
Stud Length	15.00 MM
Width	37 MM
Height	67.80 MM
Length – Stud Centre to End	3.110 IN
Length – Stud Centre to End	79.00 MM
End 1 Gender	Male
End 2 Gender	Female
Pre-greased	Yes
Grease Fitting Included	No
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Color	Gray
662	15.00 MM
662	0.591 IN
627	0.82 LB
36	20.00 MM
36	0.787 IN
1786	15.00 MM
1786	0.591 IN
Position(s)	Outer
881	Threaded
9090	Rubber
9091	Steel

Vehicle Applications:

Make	Model	Years
Dodge	Colt	1986 to 1995
Eagle	Summit	1989 to 1996
Eagle	Vista	1989 to 1991
Mitsubishi	Lancer	2002 to 2007
Mitsubishi	Mirage	1986 to 2002
Mitsubishi	i-MiEV	2012 to 2017
Plymouth	Colt	1986 to 1995
