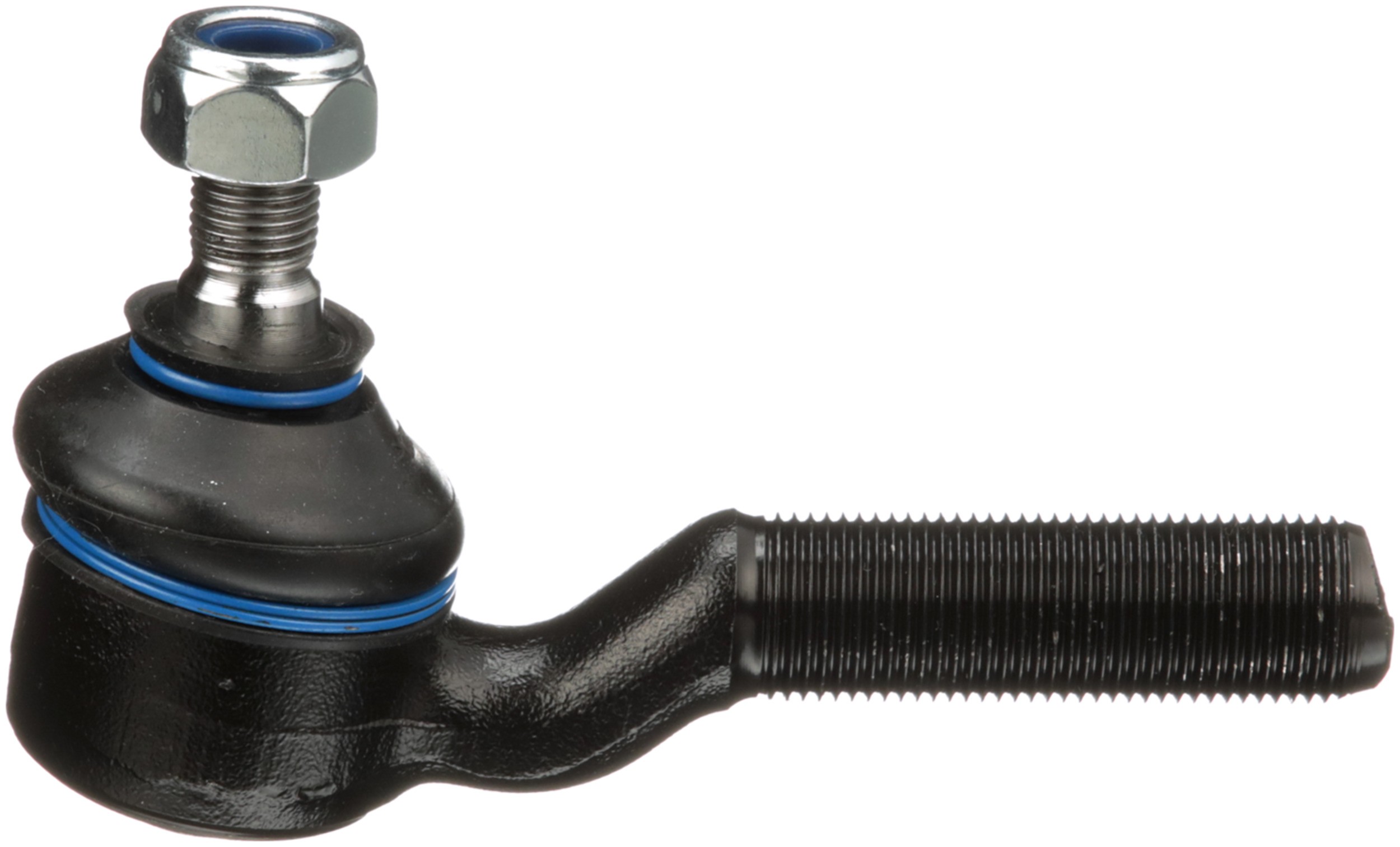

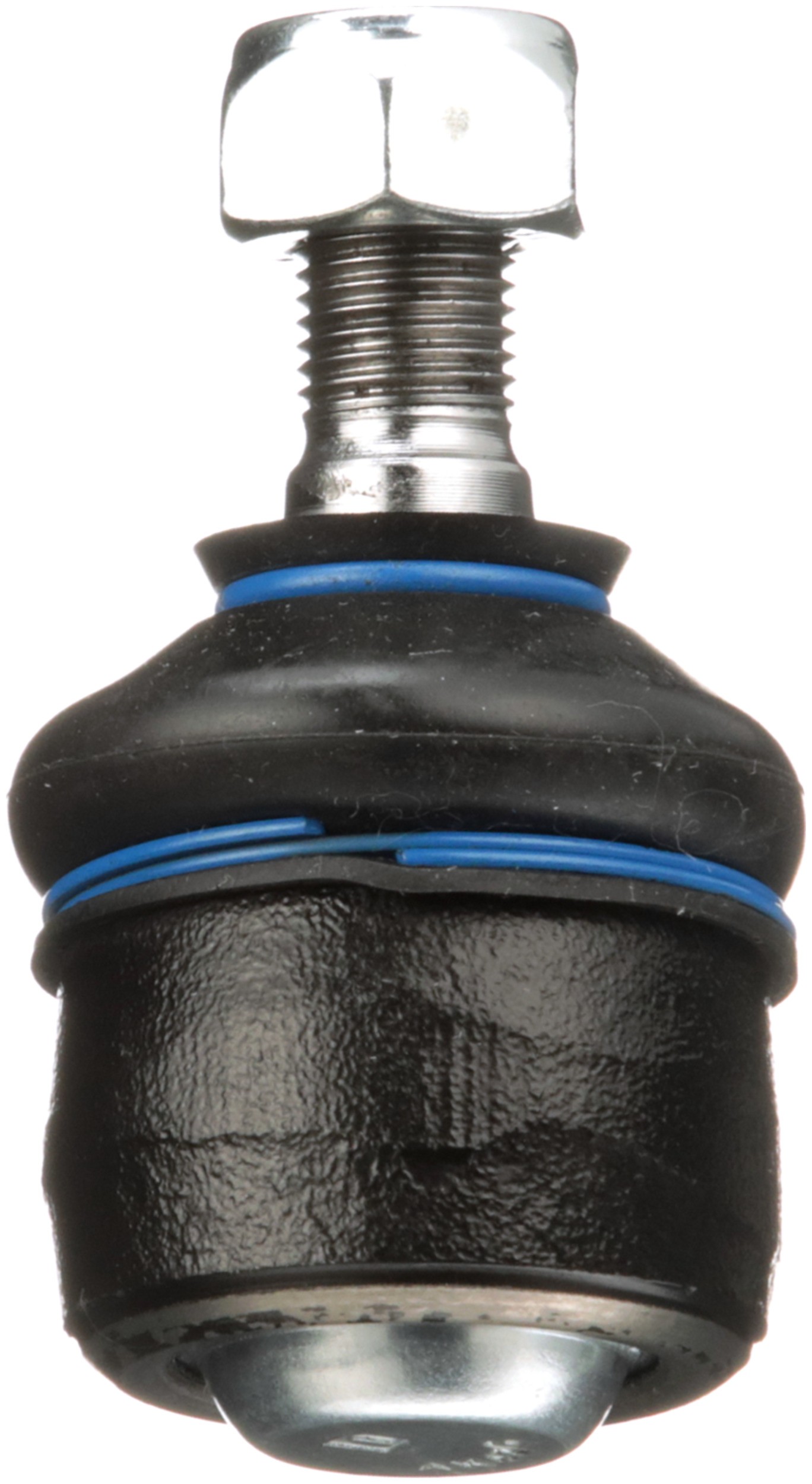

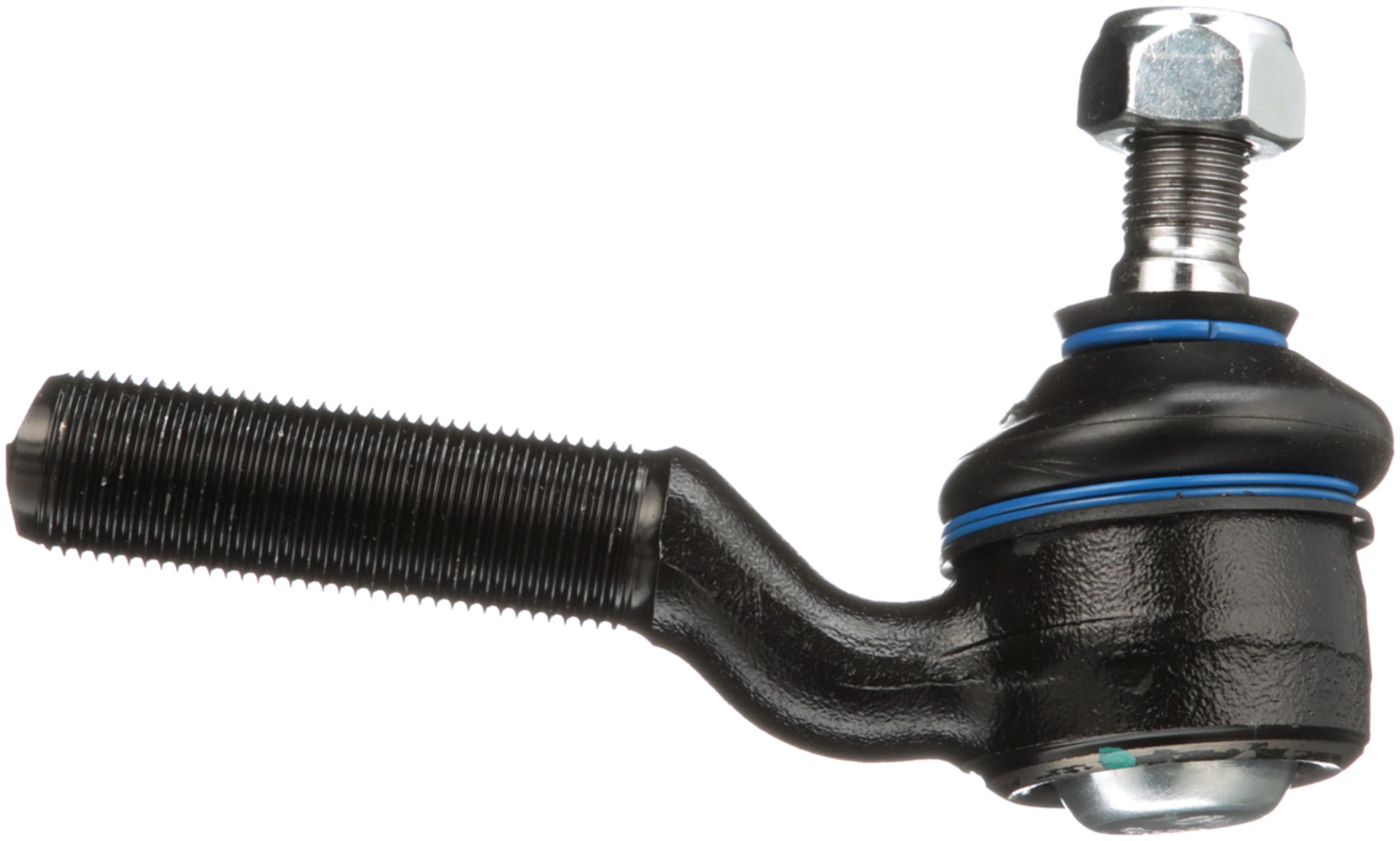

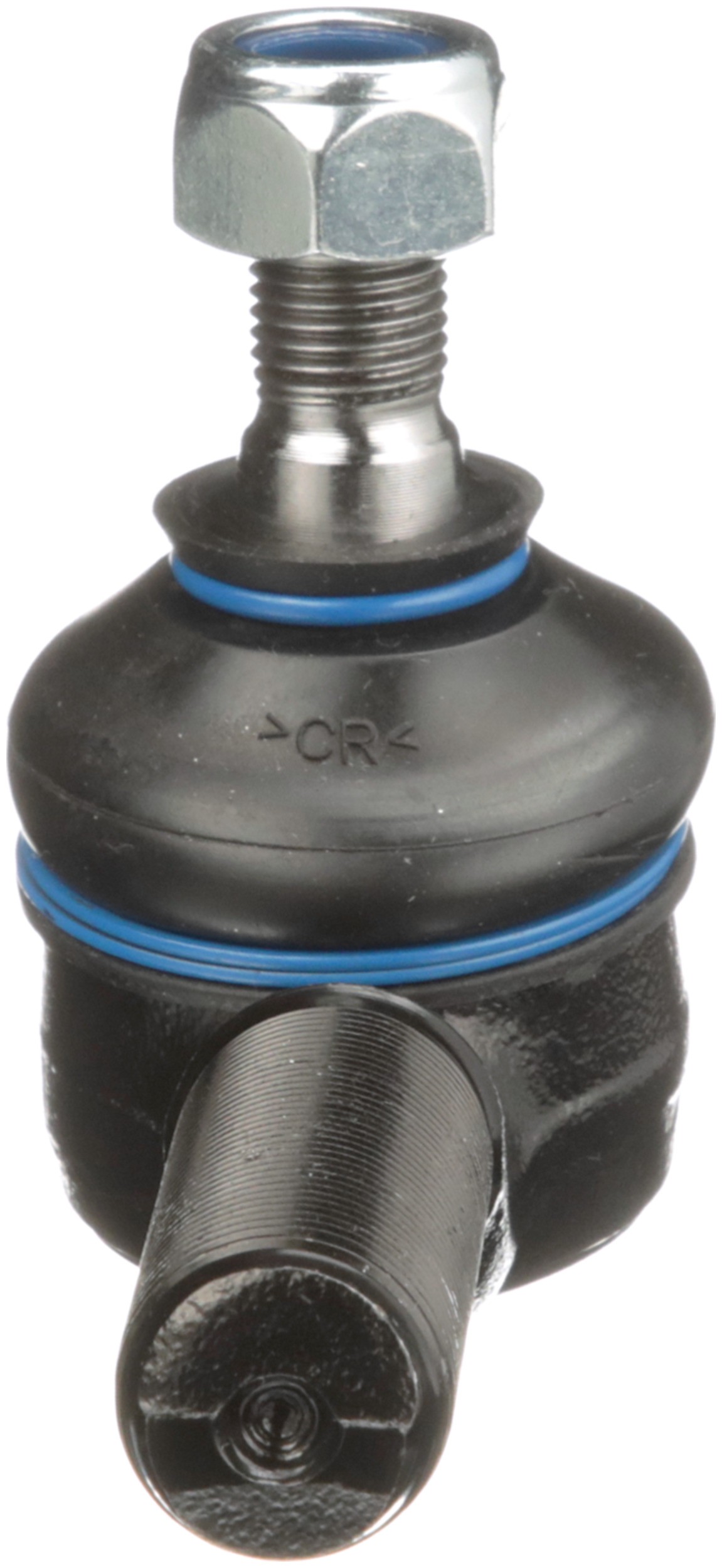

Delphi TA1538 Steering Tie Rod End

Delphi TA1538 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Height	76.30 MM
End 2 Gender	Male
End 1 Gender	Male
Color	Black
Length – Stud Centre to End	106.00 MM
Length – Stud Centre to End	4.173 IN
Width	39 MM
Stud Length	15.00 MM
Stud Length	0.591 IN
Position(s)	Outer
881	Threaded
End 2 Thread Direction	Counterclockwise (Left)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Bent
Dust Boot Included	Yes
Pre-greased	Yes
Grease Fitting Included	No
662	15.00 MM
662	0.591 IN
627	1.03 LB
36	18.00 MM
36	0.709 IN
1786	15.00 MM
1786	0.591 IN
9090	Rubber
9091	Steel
