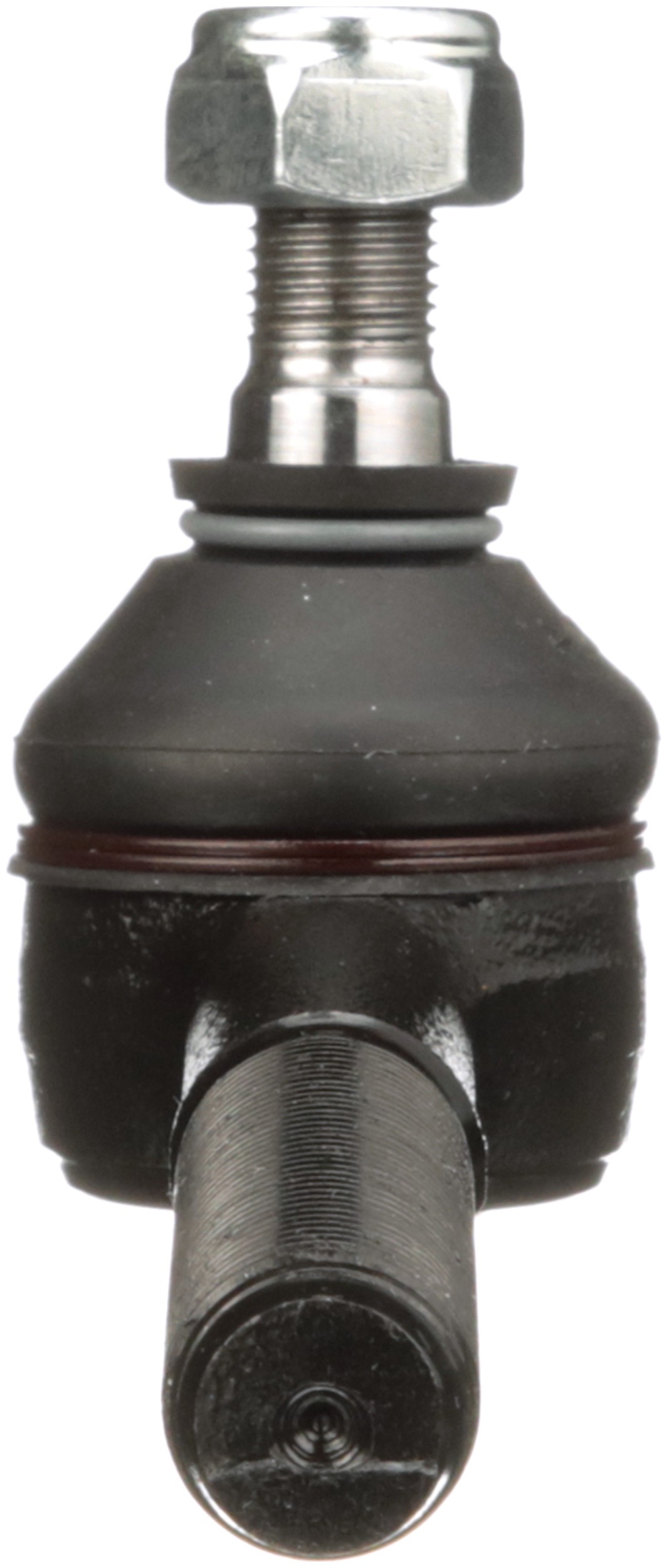

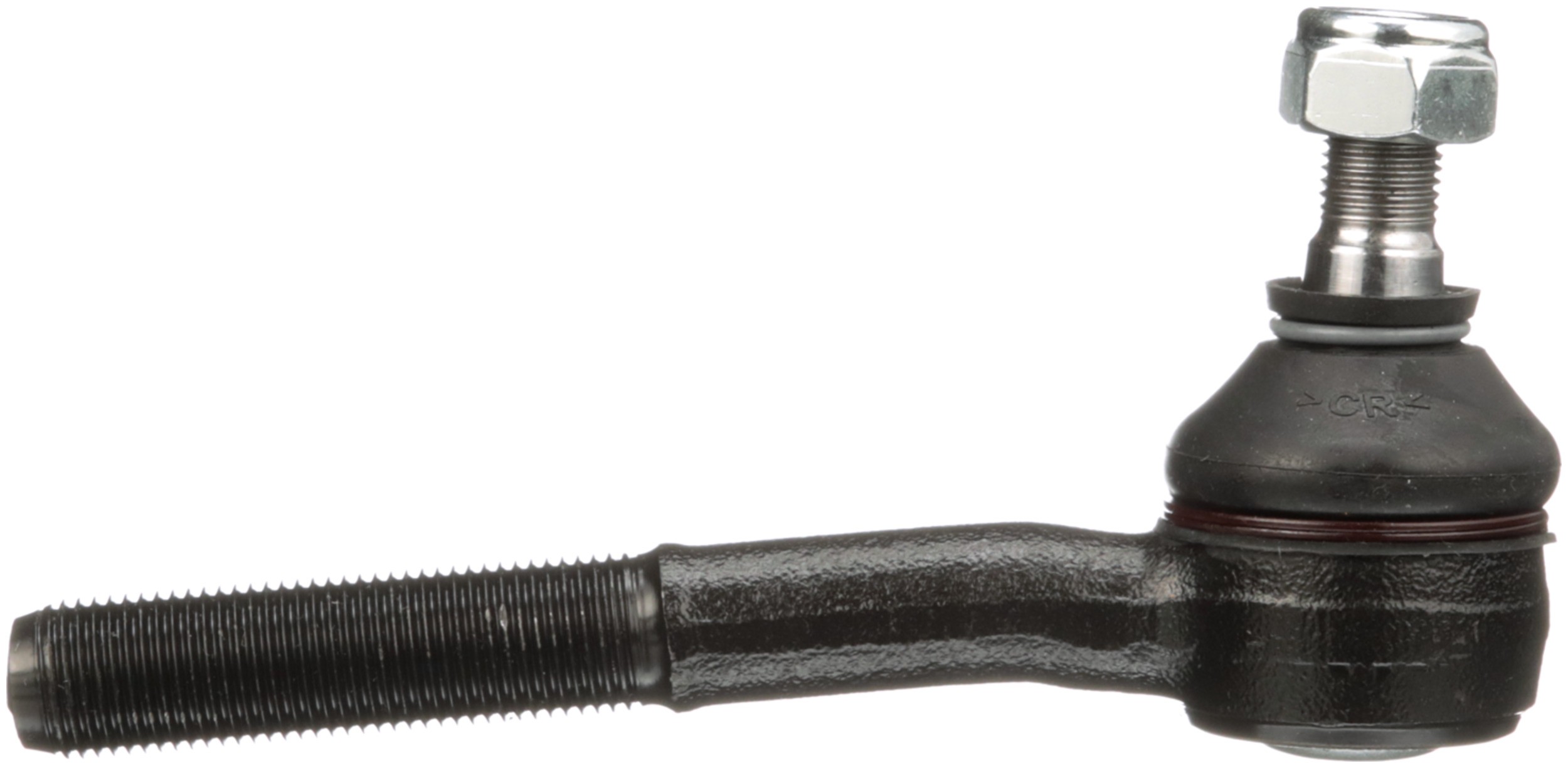

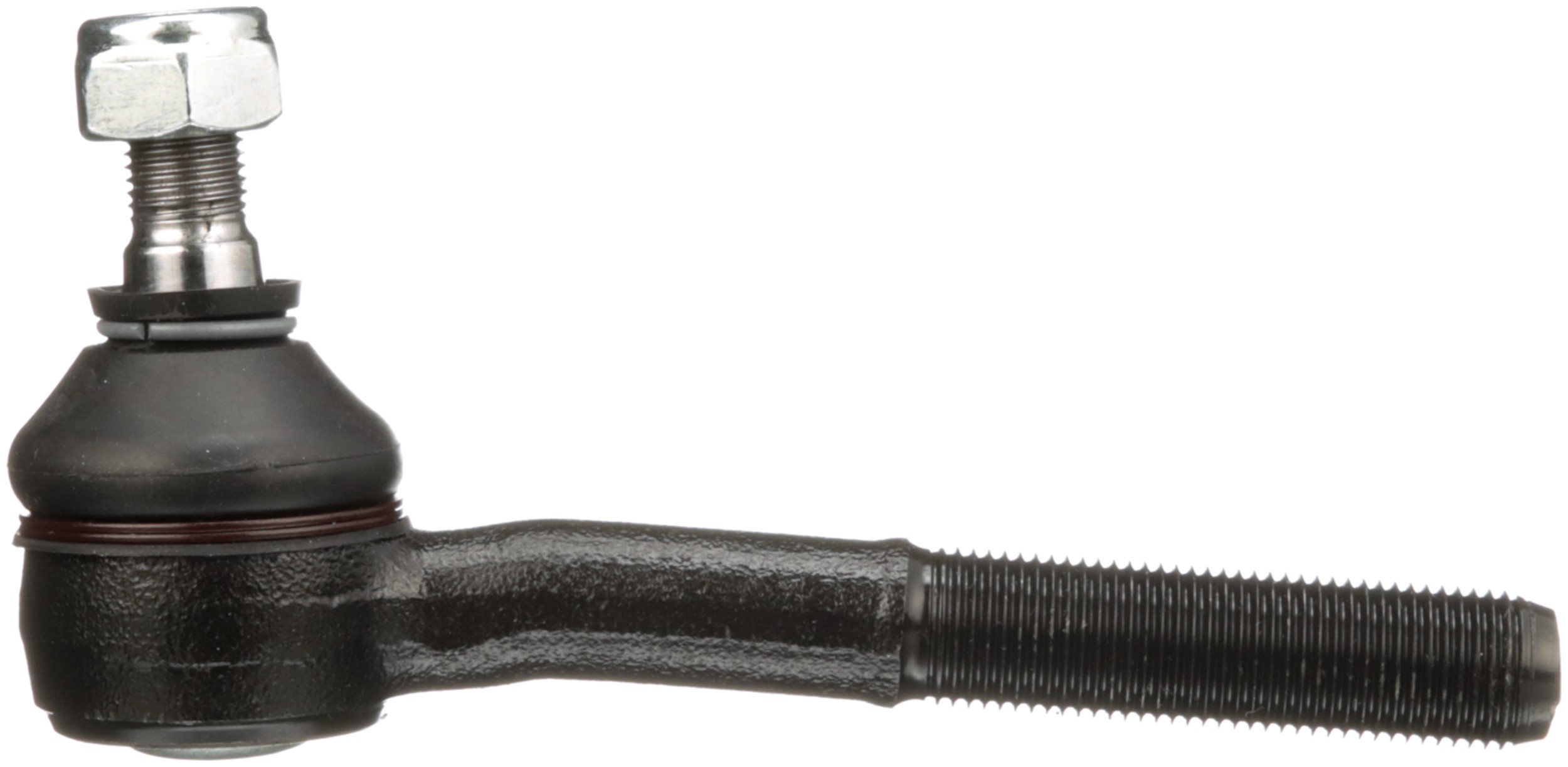

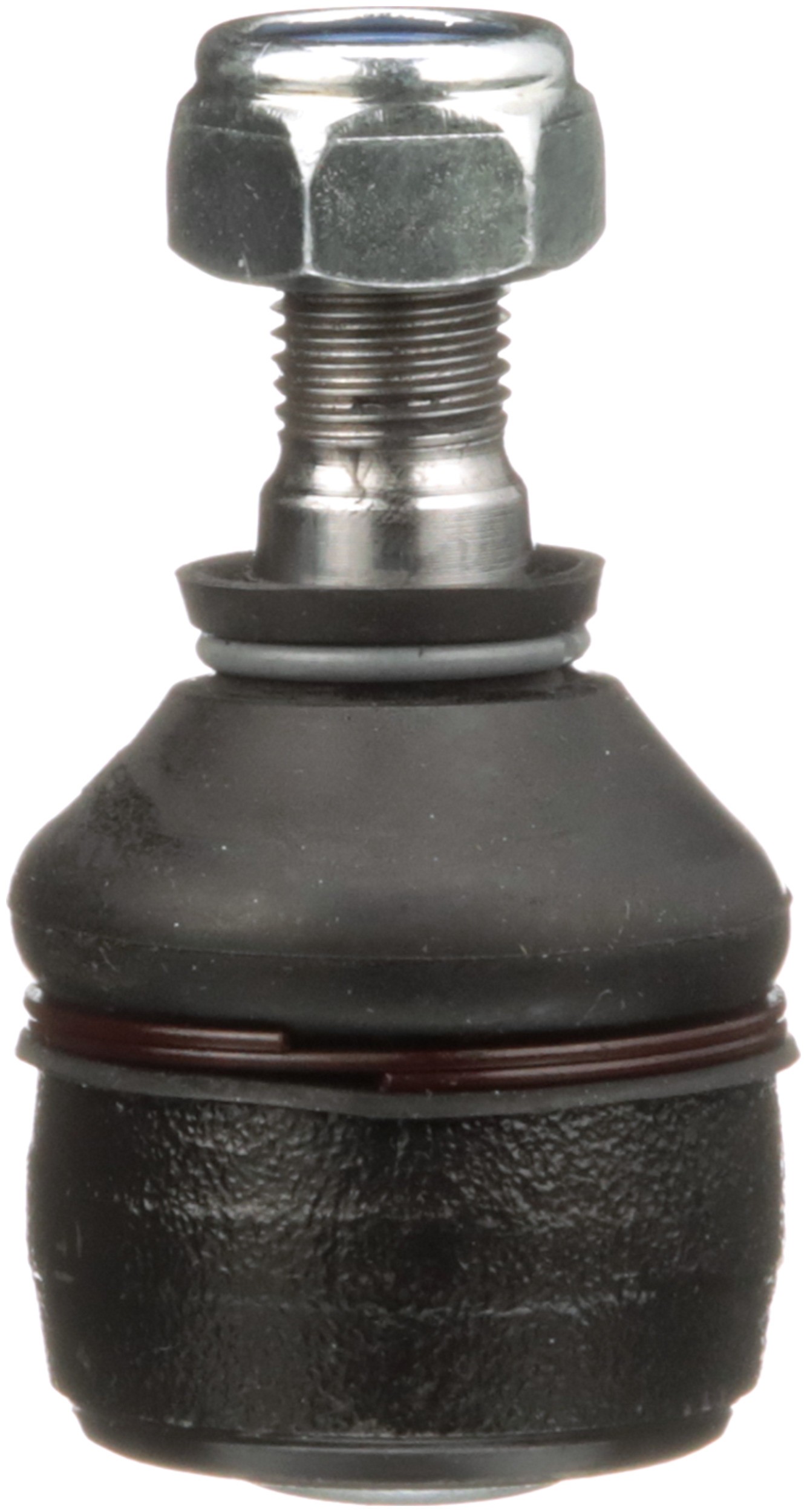

Delphi TA1540 Steering Tie Rod End

Delphi TA1540 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Position(s)	Outer
881	Threaded
9090	Rubber
9091	Steel
662	15.30 MM
Length – Stud Centre to End	129.00 MM
Length – Stud Centre to End	5.079 IN
Width	37.5 MM
Stud Length	15.30 MM
Stud Length	0.602 IN
Height	68.60 MM
1786	0.602 IN
Grade Type	Standard Replacement
1786	15.30 MM
36	0.630 IN
36	16.00 MM
627	1 LB
662	0.602 IN
