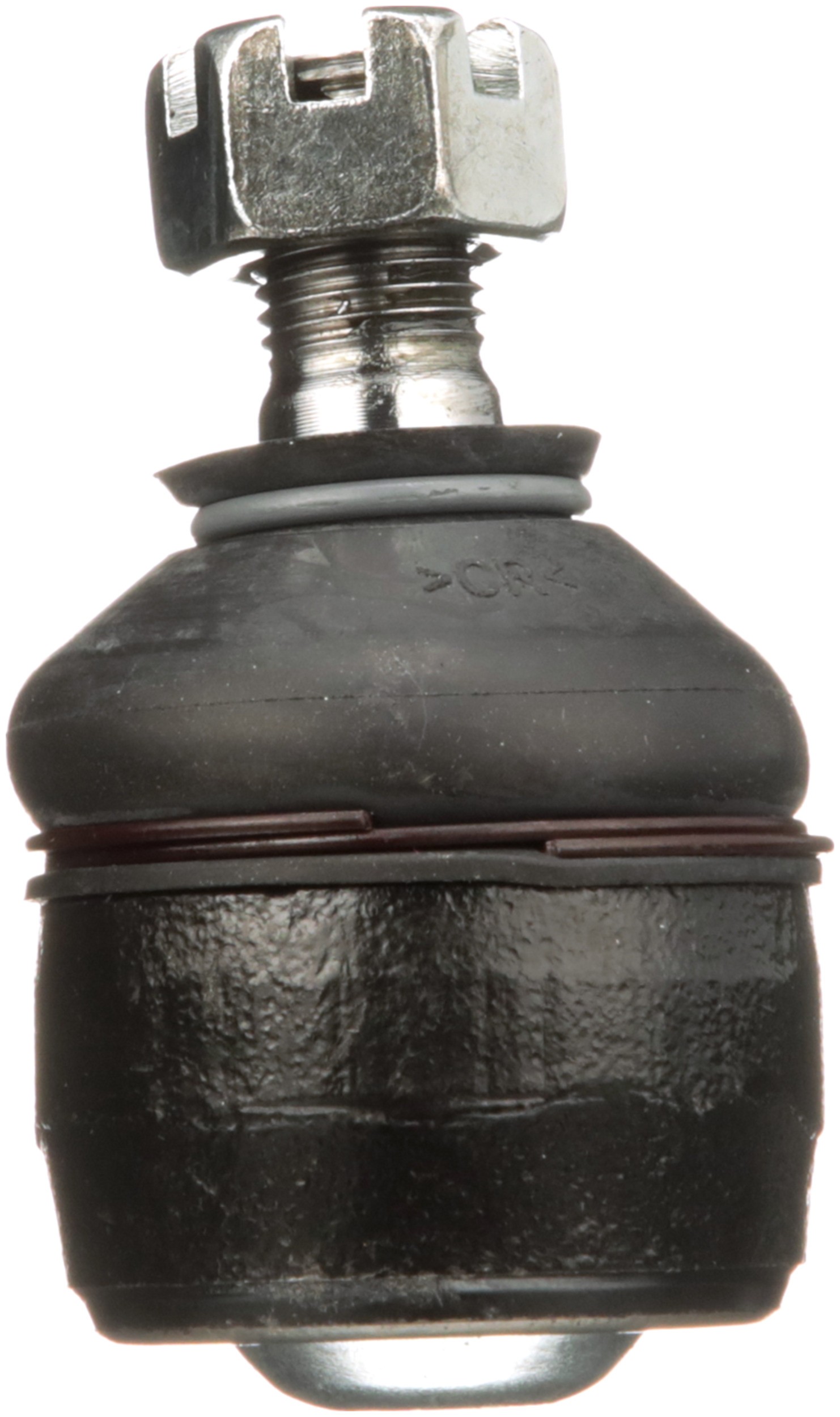

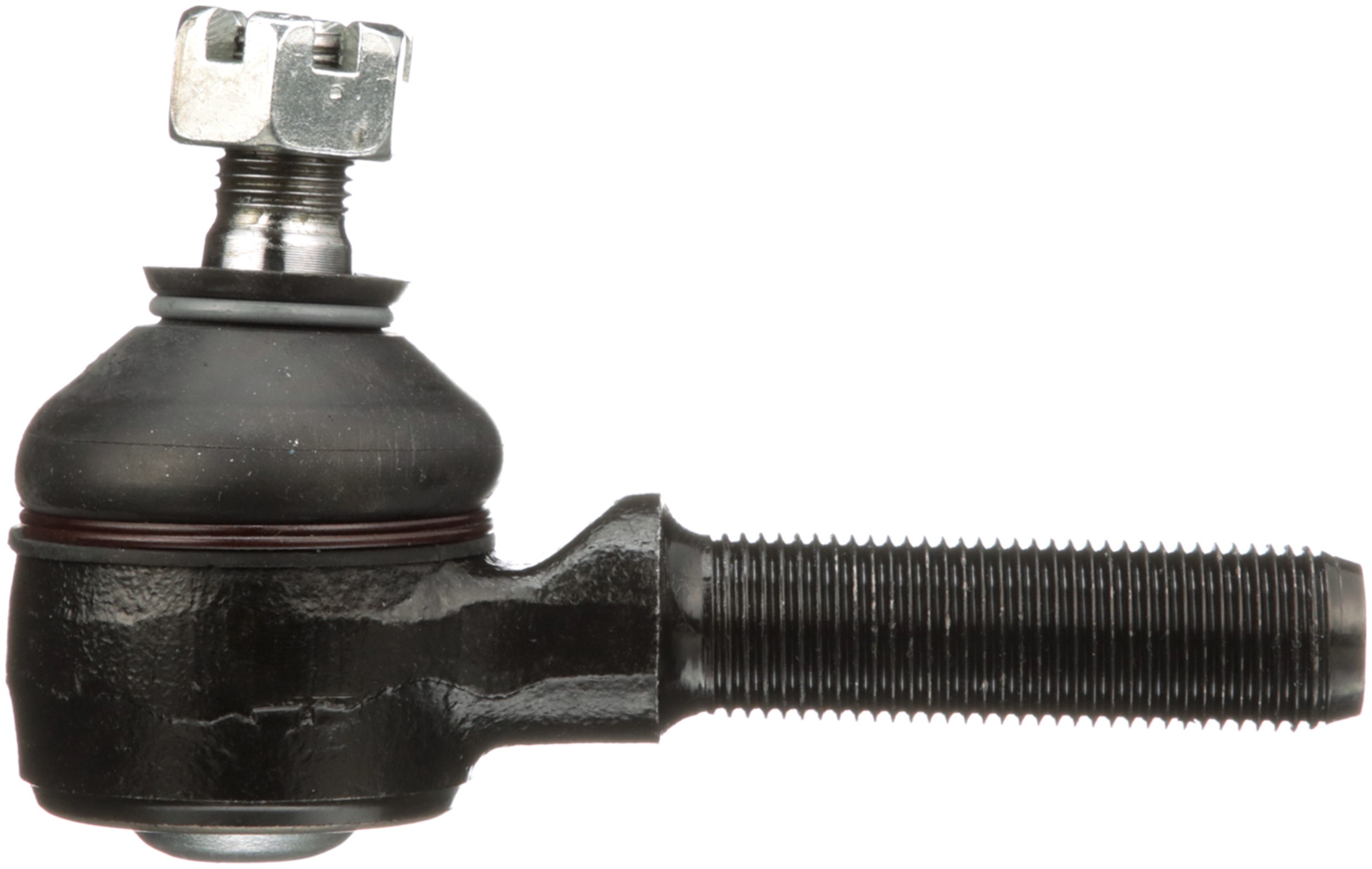

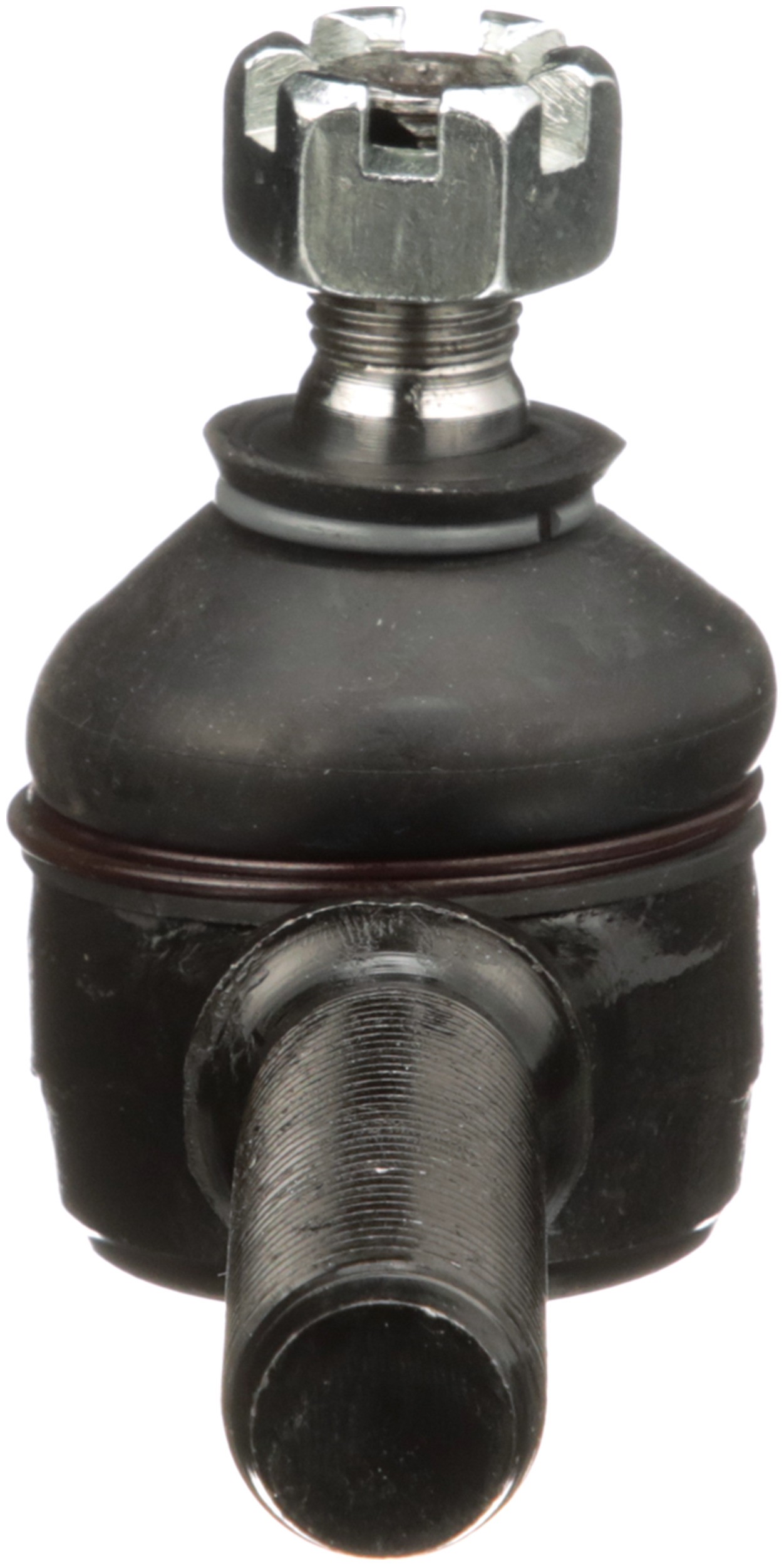

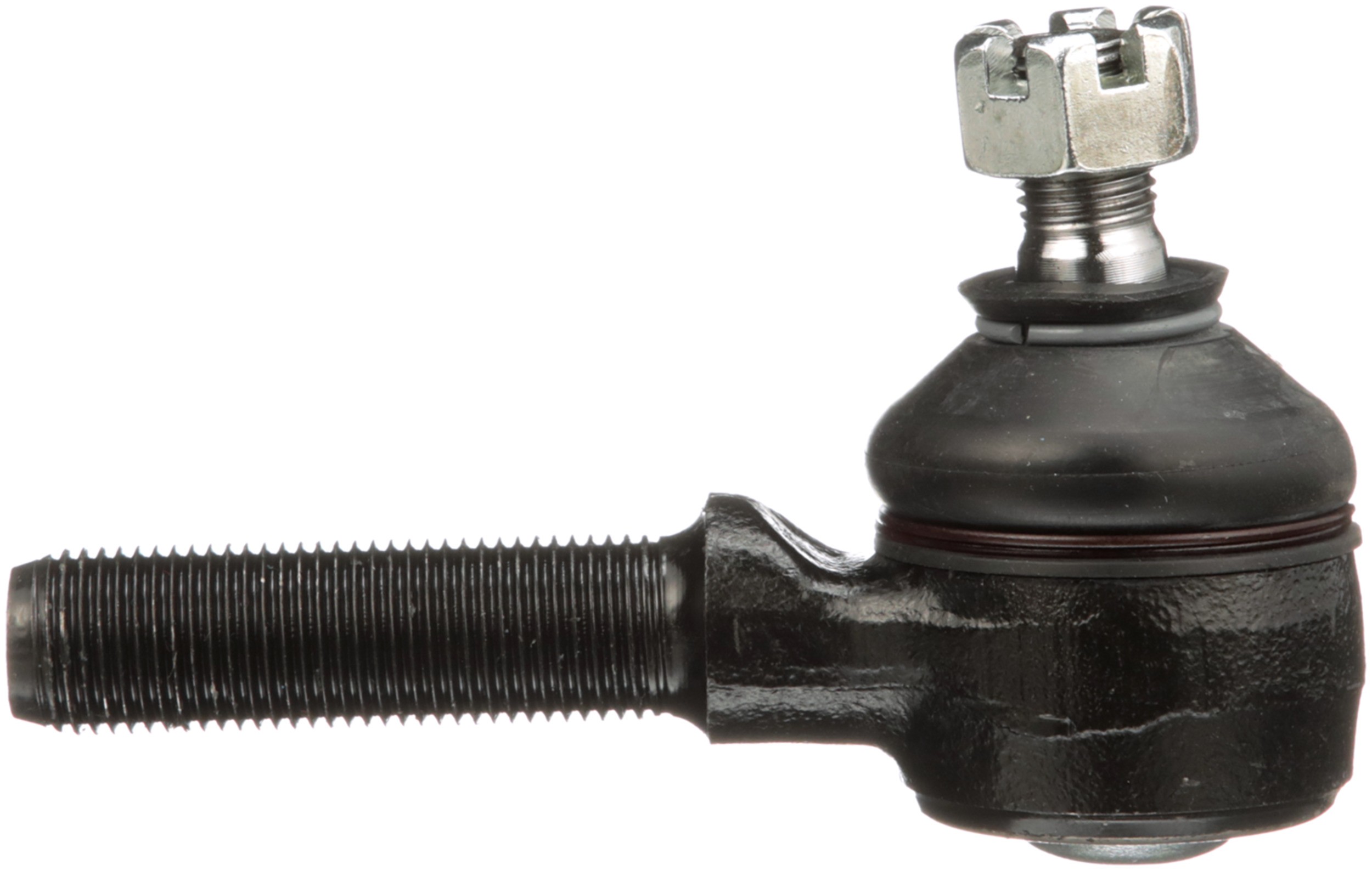

Delphi TA1544 Steering Tie Rod End

Delphi TA1544 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 1 Gender	Male
Height	67.50 MM
Width	40 MM
Stud Length	14.00 MM
Position(s)	Left Outer (Steering Arm To Steering Arm), Outer. For the position specific to your vehicle, refer to the Applications.
881	Threaded
9090	Rubber
9091	Steel
Stud Length	0.551 IN
Color	Black
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
627	0.92 LB
36	16.00 MM
36	0.630 IN
1786	14.00 MM
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
1786	0.551 IN
662	0.551 IN
Length – Stud Centre to End	92.00 MM
Length – Stud Centre to End	3.622 IN
Adjustable	No
662	14.00 MM
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)

Vehicle Applications:

Make	Model	Years
Asuna	Sunrunner	1993 to 1993
Chevrolet	Tracker	1989 to 1998
GMC	Tracker	1989 to 1991
Geo	Tracker	1989 to 1997
Suzuki	Samurai	1986 to 1995
Suzuki	Sidekick	1989 to 1998
Suzuki	Vitara	1999 to 2002
Suzuki	X-90	1996 to 1998
