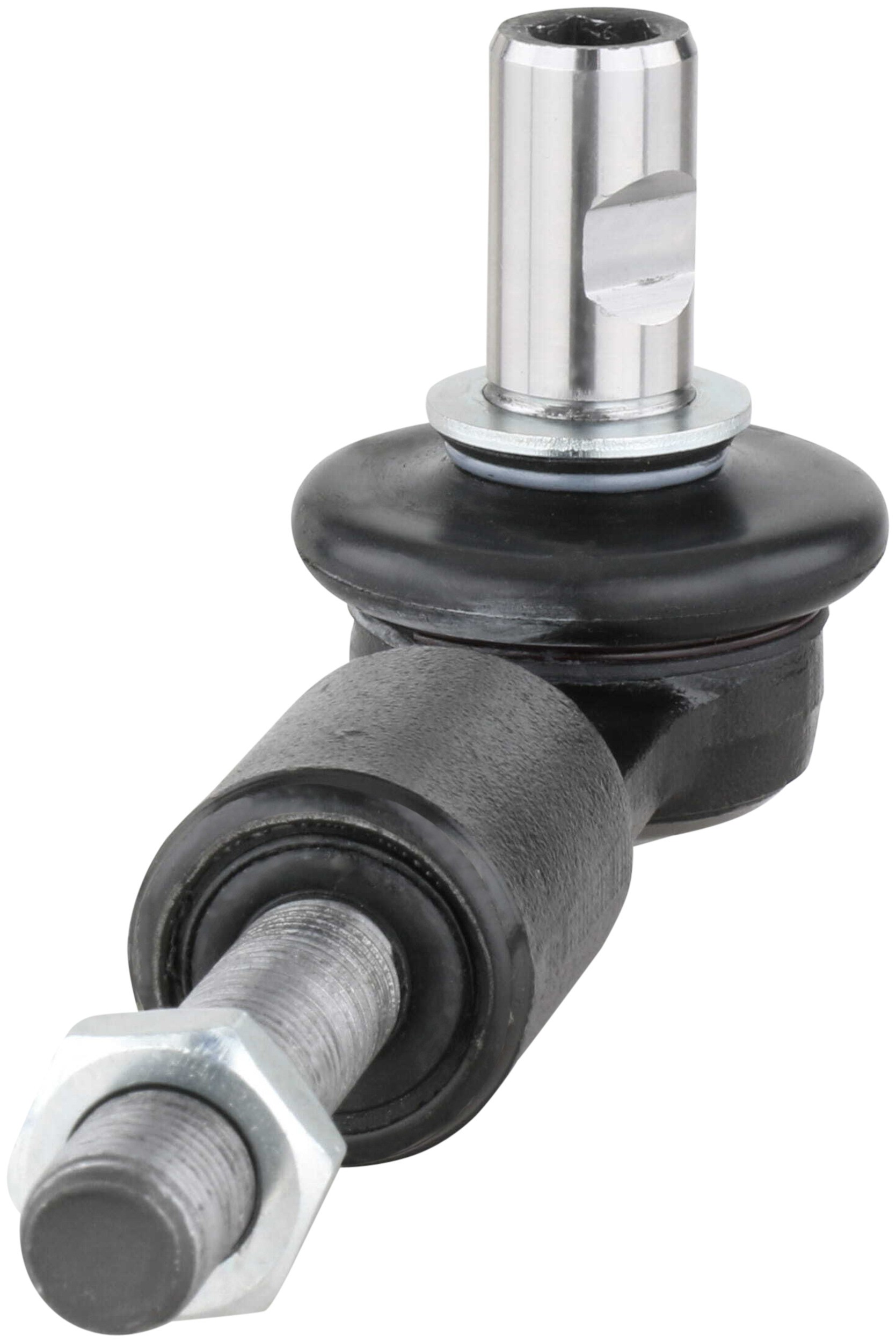

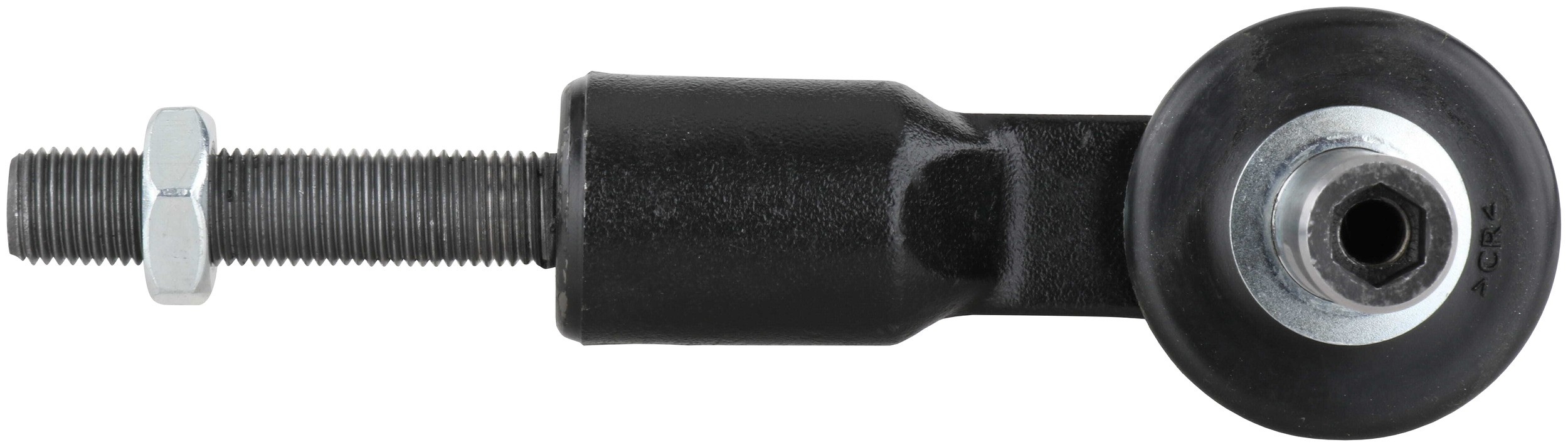

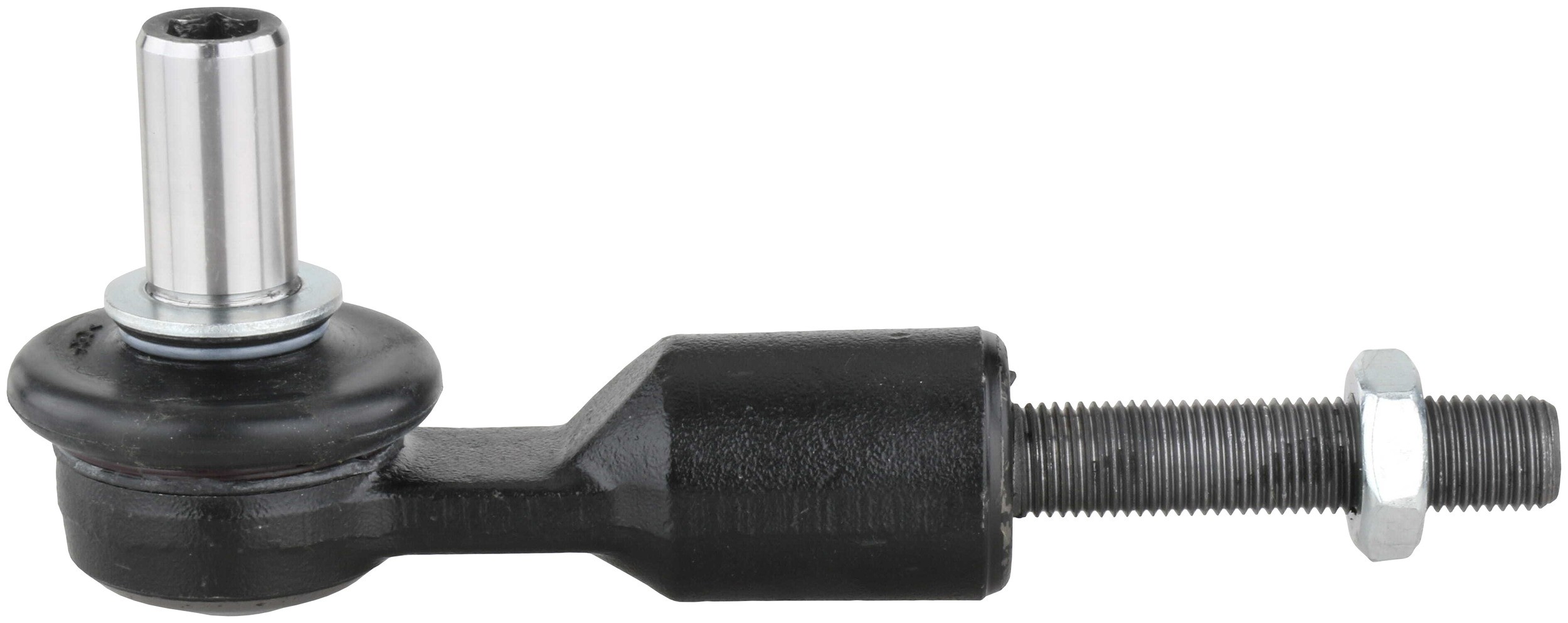

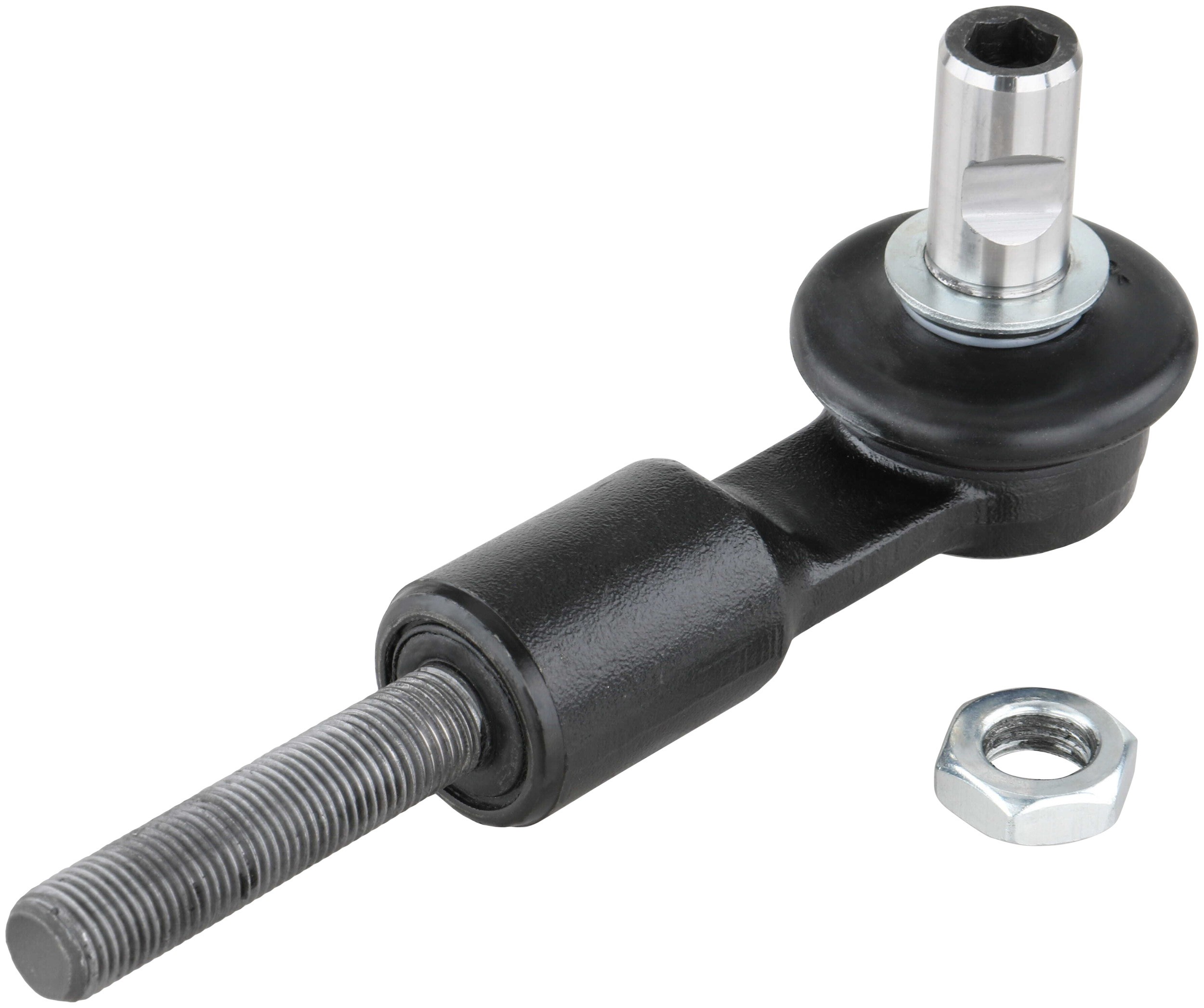

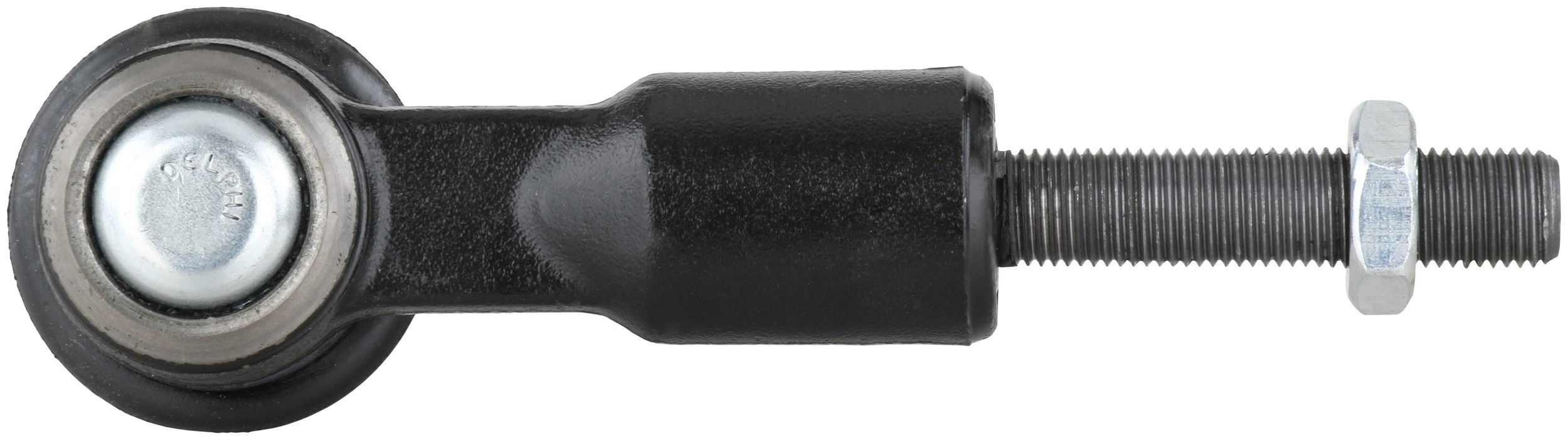

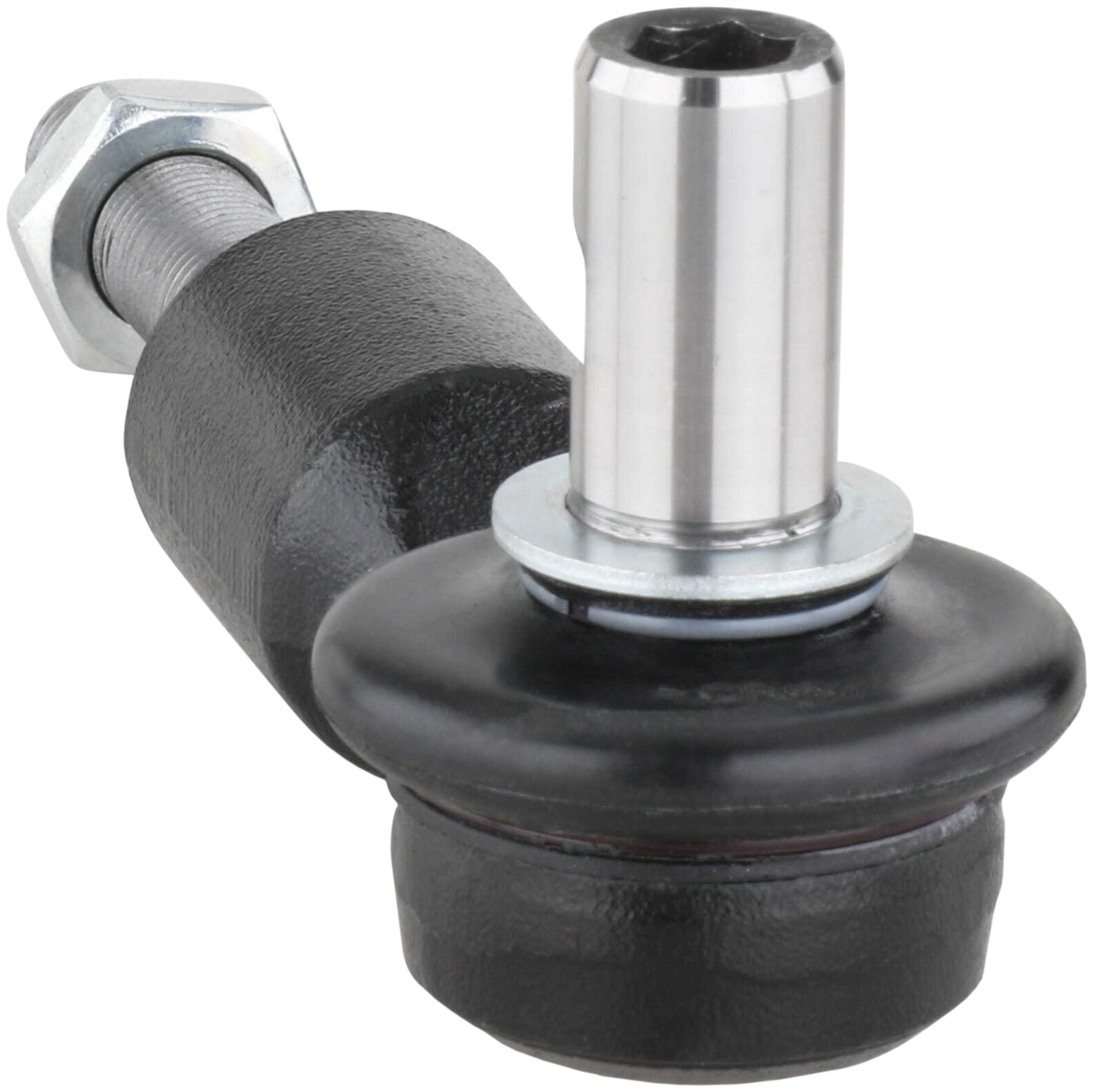

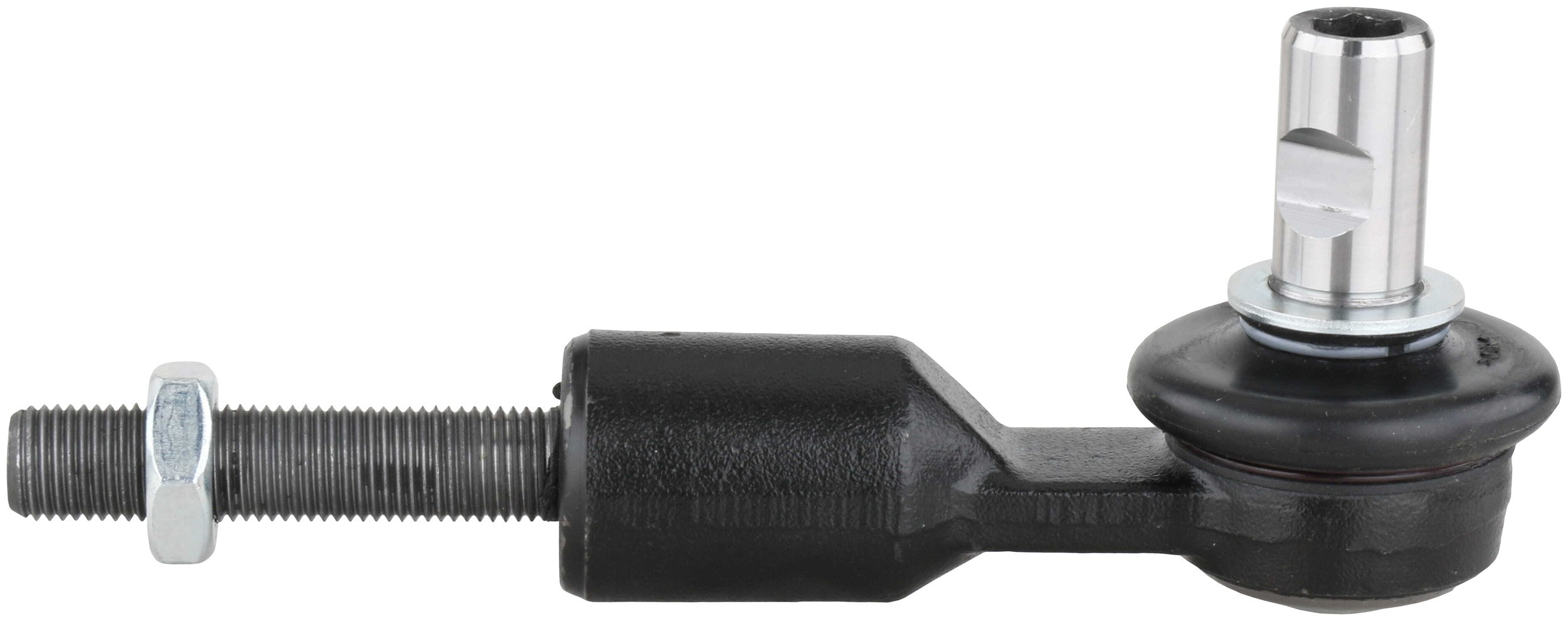

Delphi TA1583 Steering Tie Rod End

Delphi TA1583 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hardware Included	Yes
Stud Length	0.687 IN
Stud Length	17.45 MM
Width	31 MM
Height	70.20 MM
Length – Stud Centre to End	6.142 IN
Length – Stud Centre to End	156.00 MM
1786	0.687 IN
1786	17.45 MM
36	1.220 IN
36	31.00 MM
Position(s)	Outer
881	Non-Threaded
9090	Rubber
9091	Steel
662	17.45 MM
662	0.687 IN
627	0.84 LB
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Straight
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 2 Thread Direction	Clockwise (Right)
