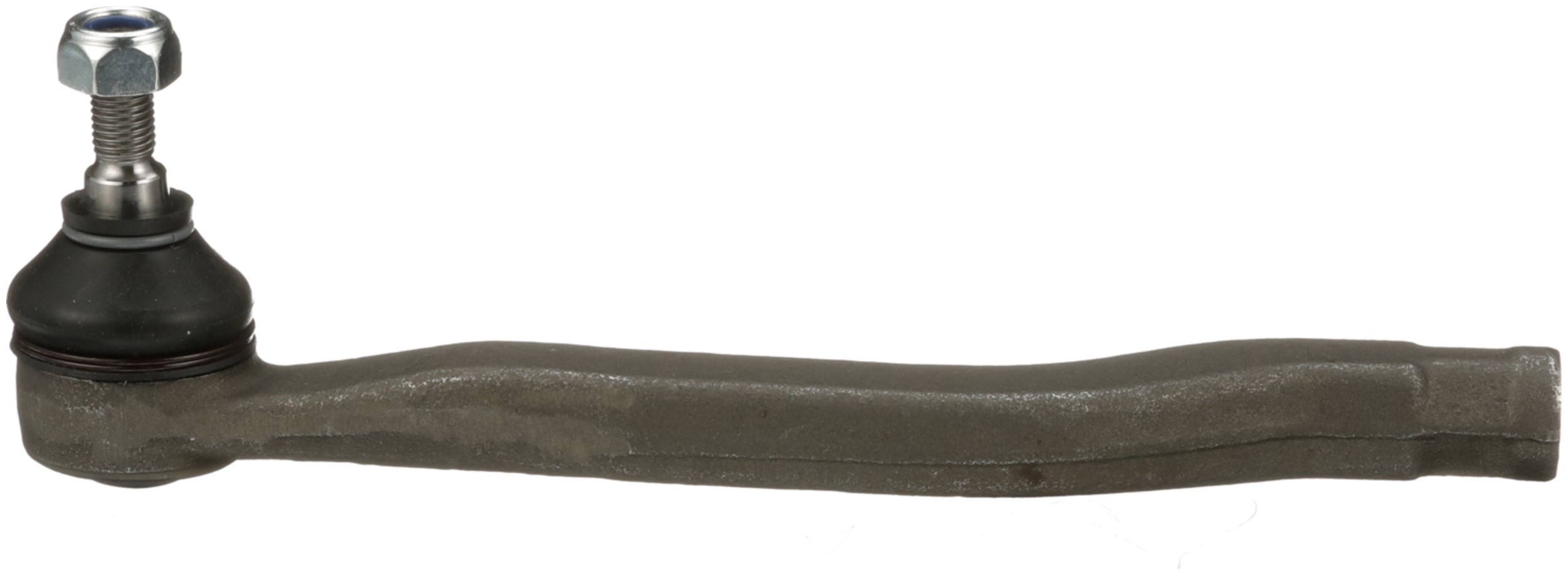

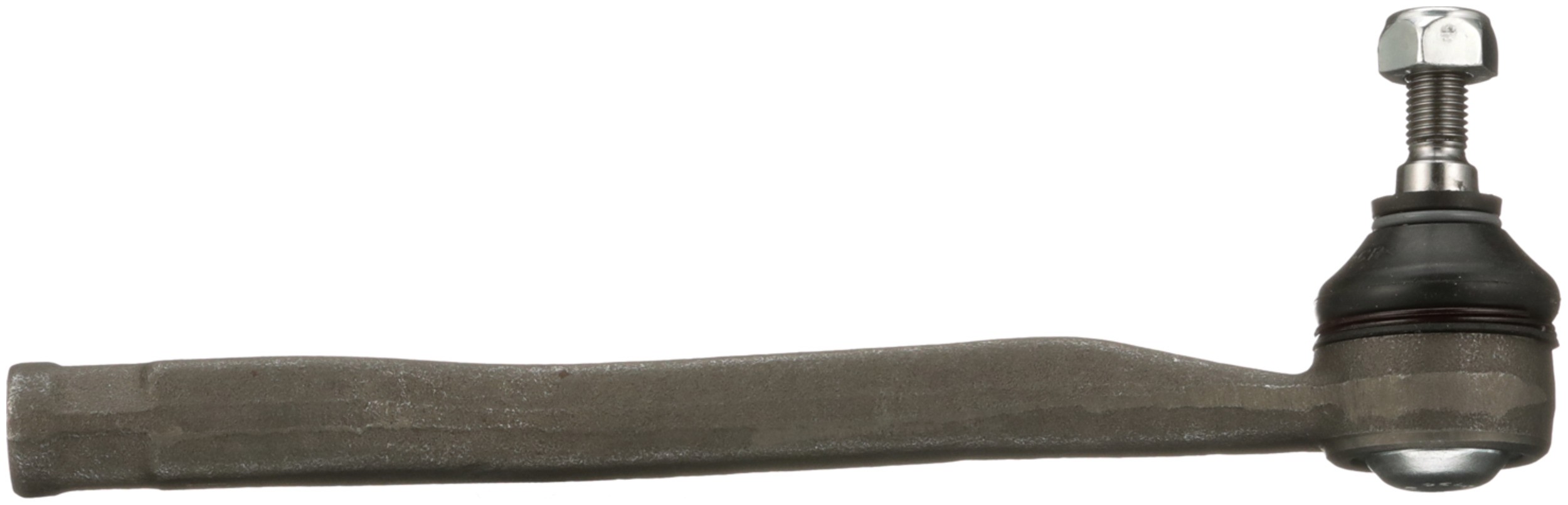

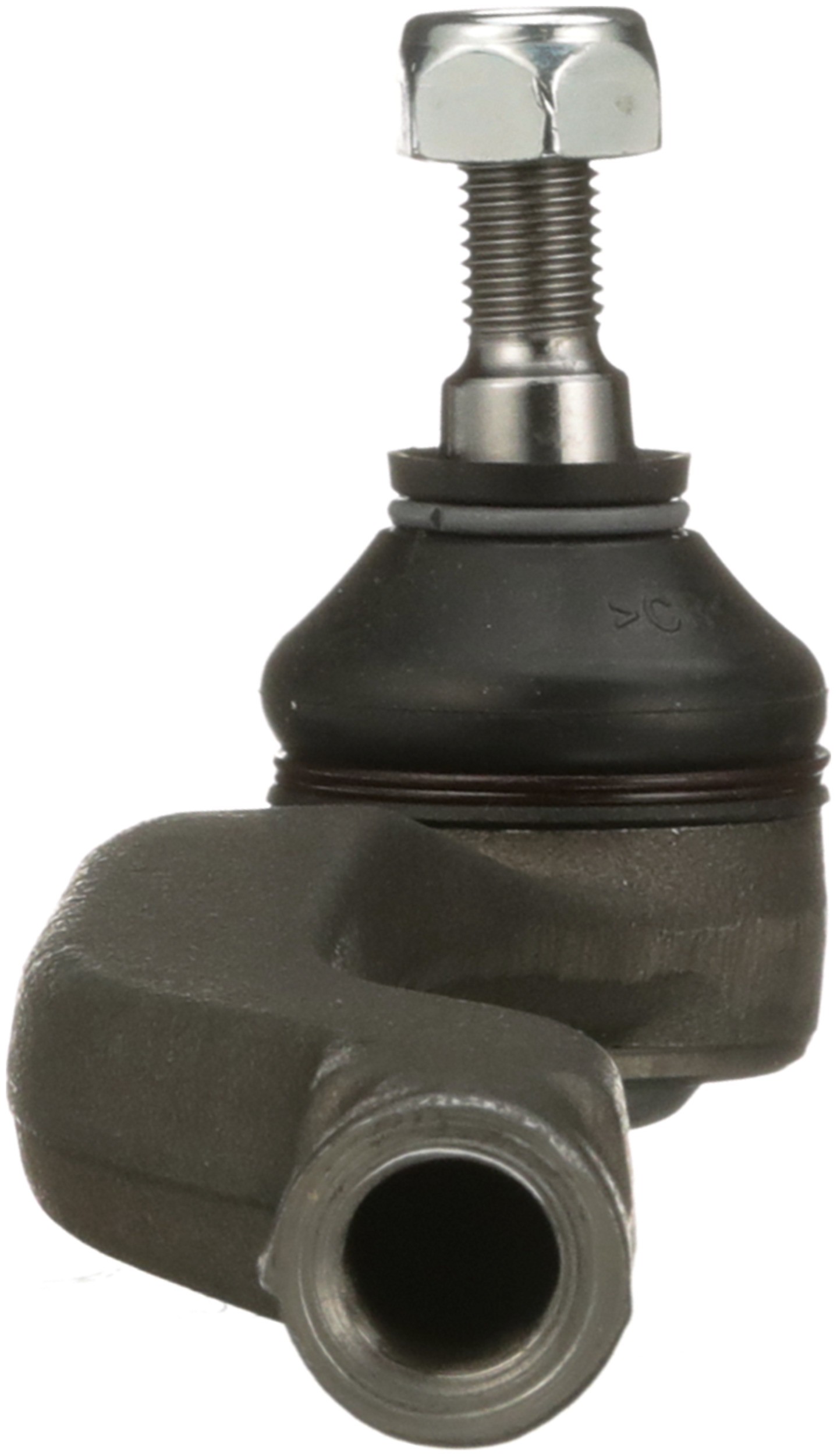

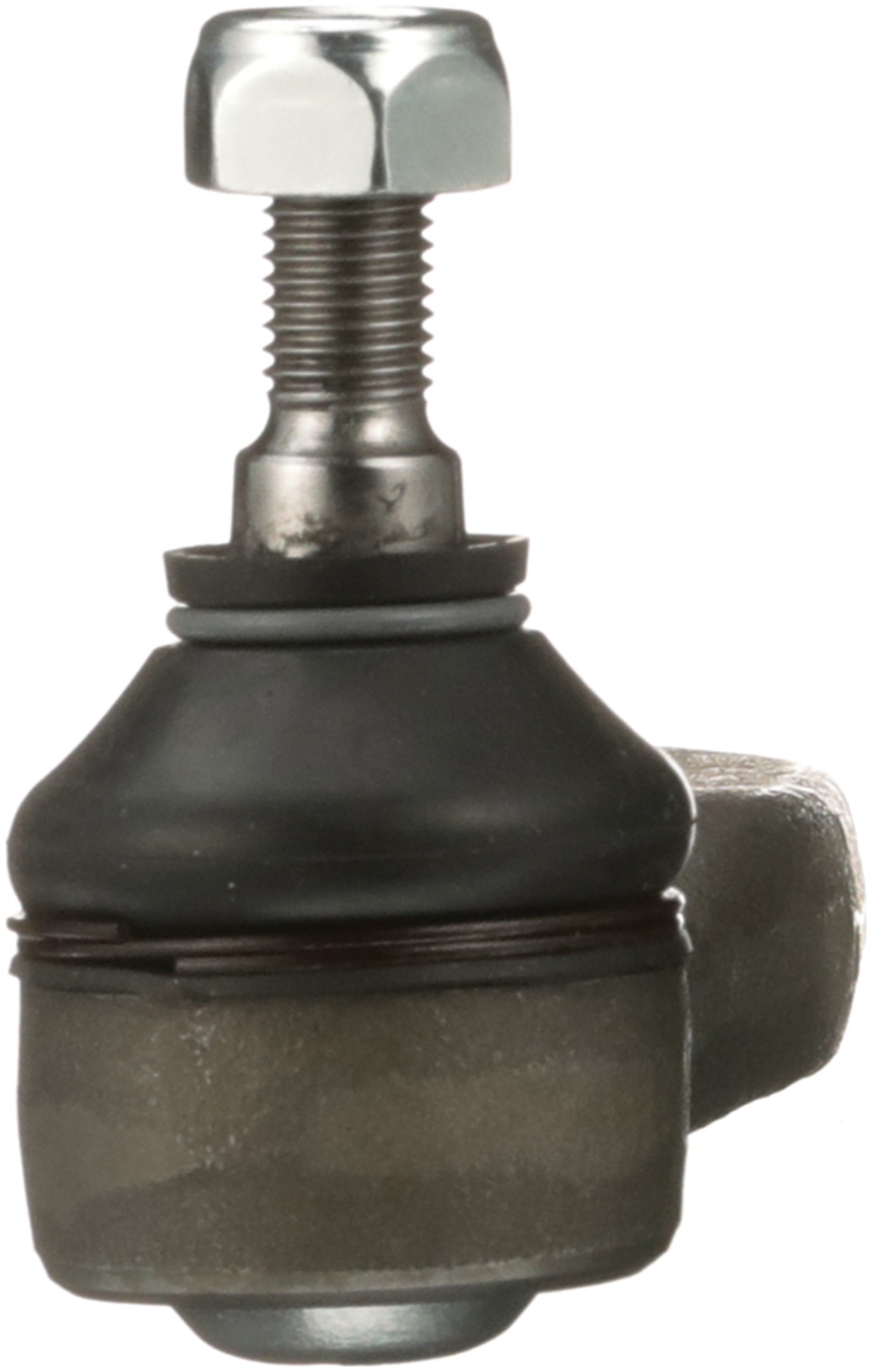

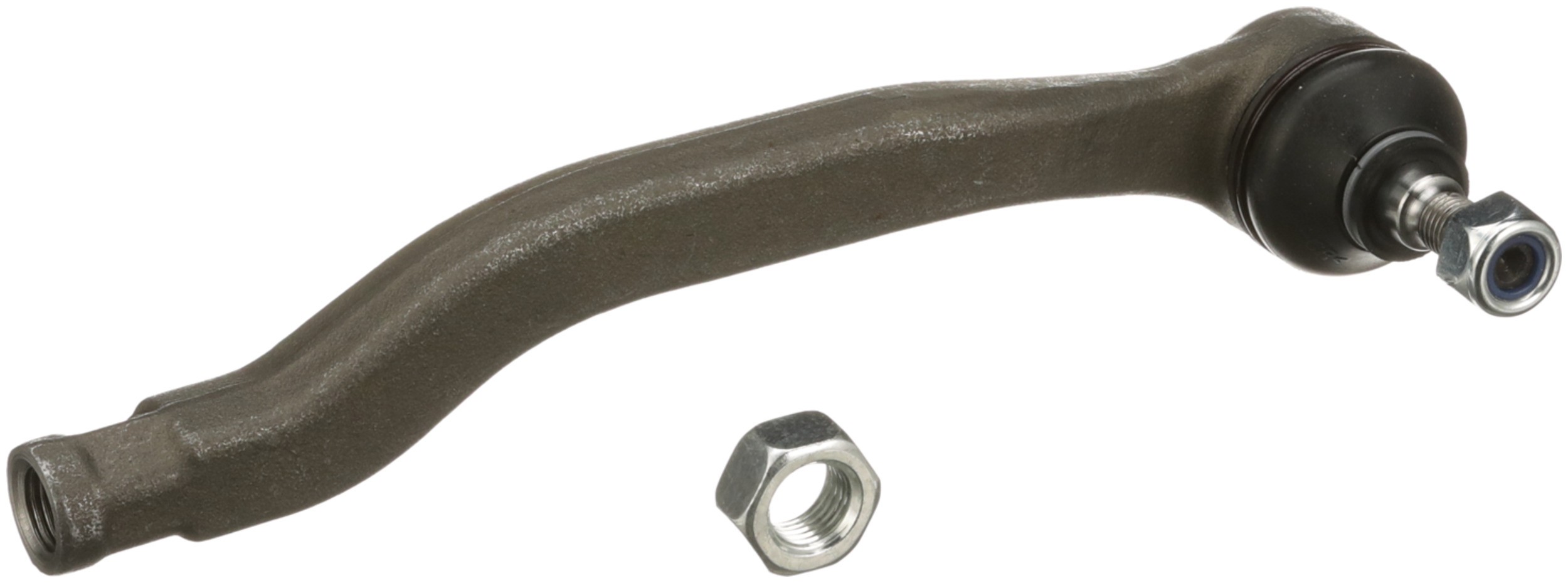

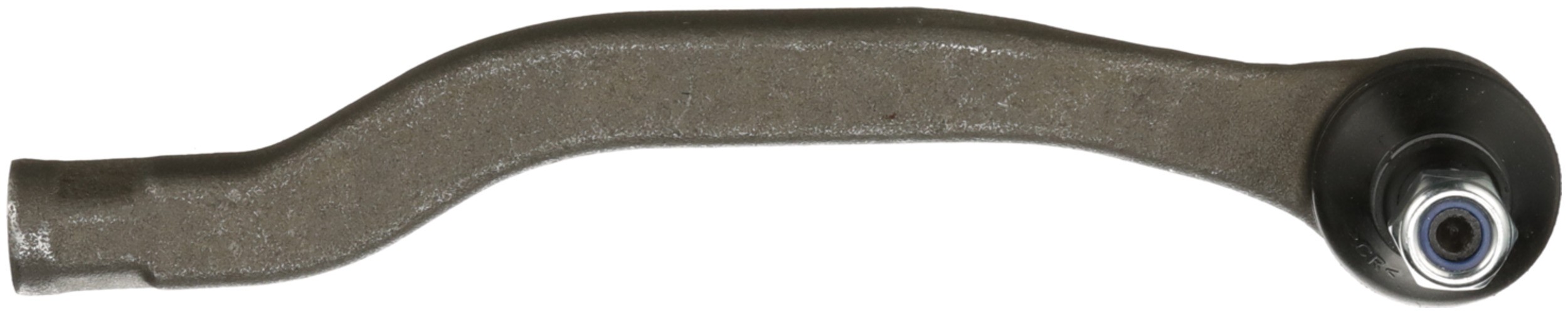

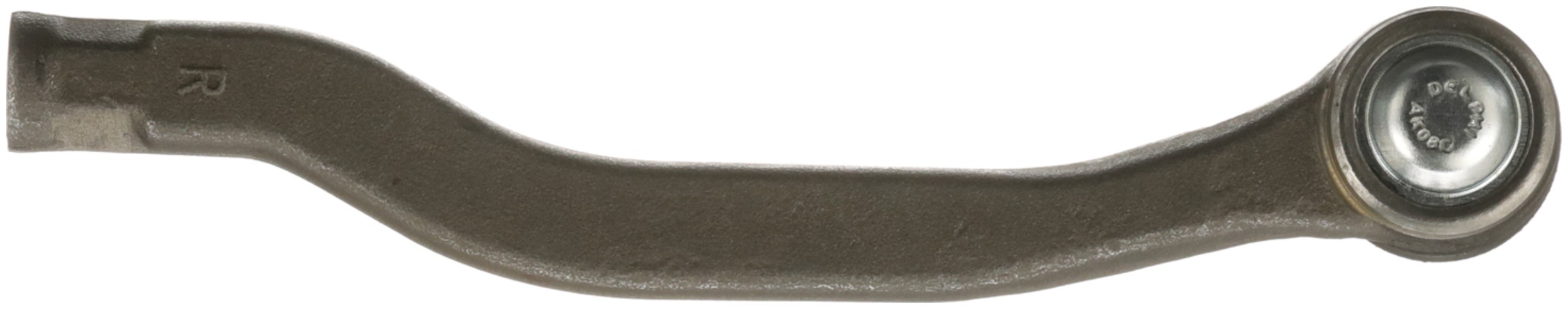

Delphi TA1588 Steering Tie Rod End

Delphi TA1588 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Color	Gray
End 2 Gender	Female
Pre-greased	Yes
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Dust Boot Included	Yes
9091	Steel
Type	Bent
Adjustable	No
Mounting Hardware Included	Yes
Greaseable	No
Length – Stud Centre to End	216.00 MM
Length – Stud Centre to End	8.504 IN
Height	68.50 MM
Width	50.8 MM
Stud Length	14.10 MM
Stud Length	0.555 IN
9090	Rubber
881	Threaded
Position(s)	Right Outer
Bearing Material	Plastic
Grade Type	Standard Replacement
Housing Material	Steel
662	14.10 MM
662	0.555 IN
627	1.74 LB
36	17.00 MM
36	0.669 IN
Grease Fitting Included	No
1786	14.10 MM
1786	0.555 IN
