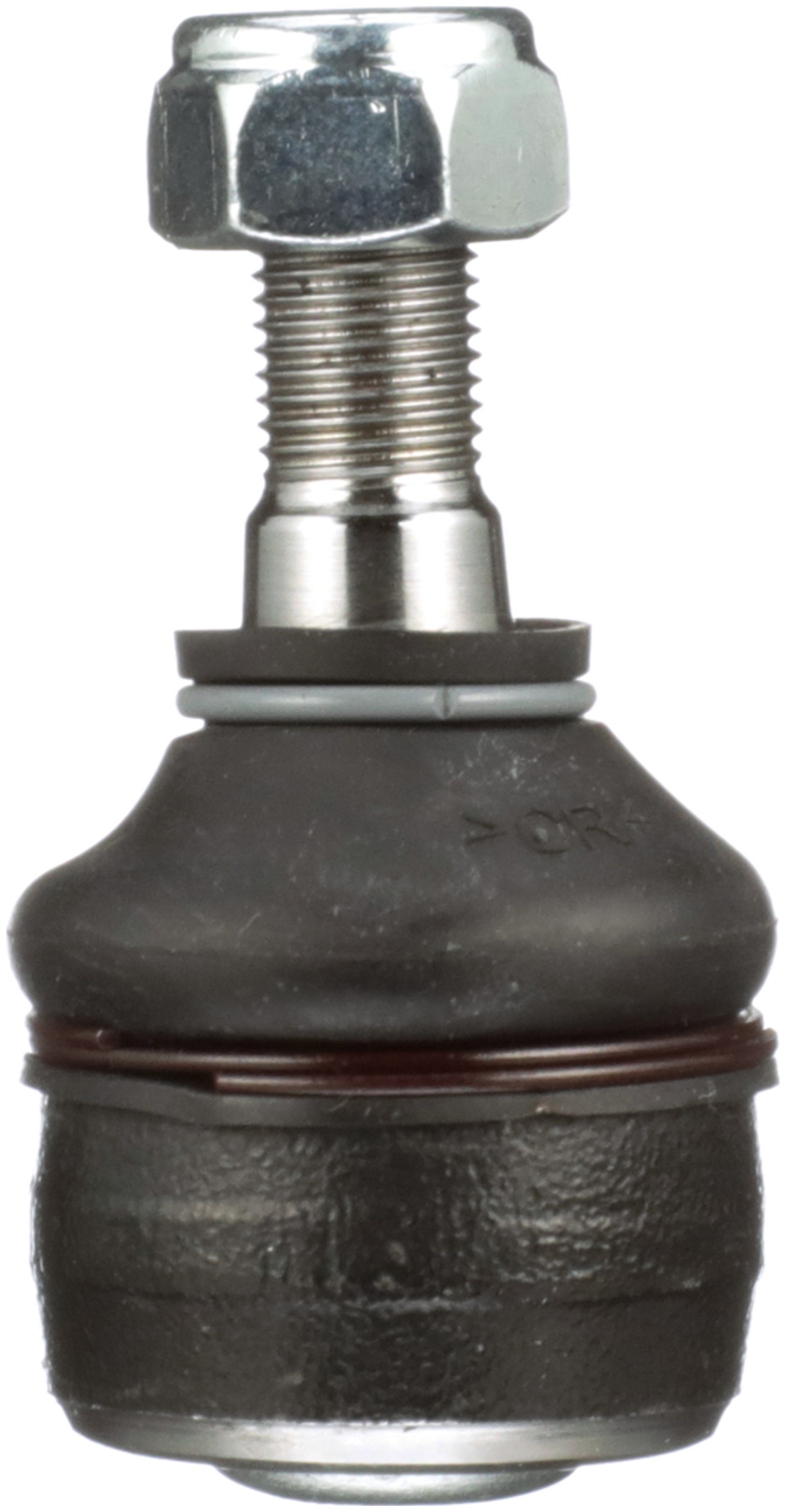

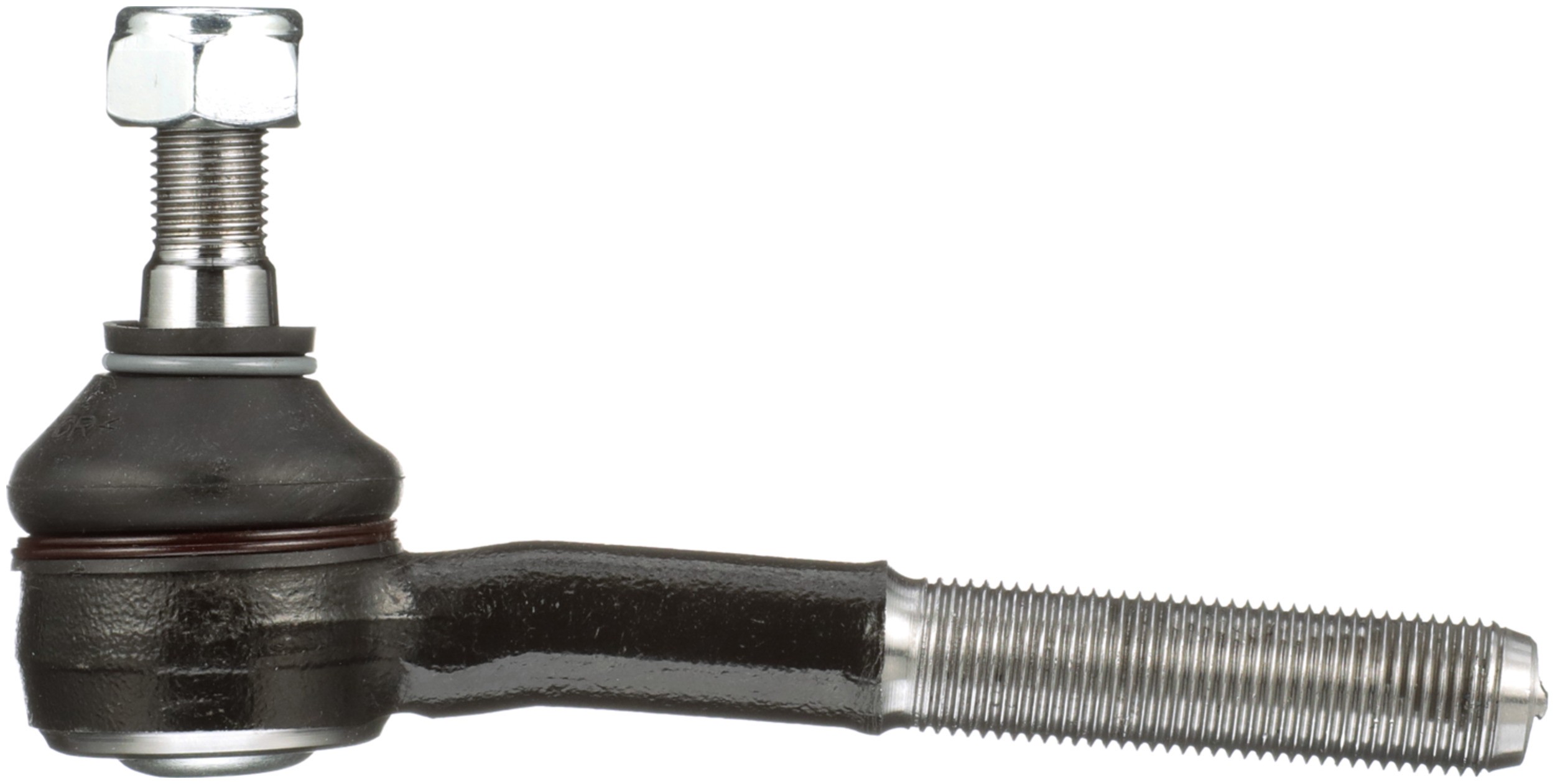

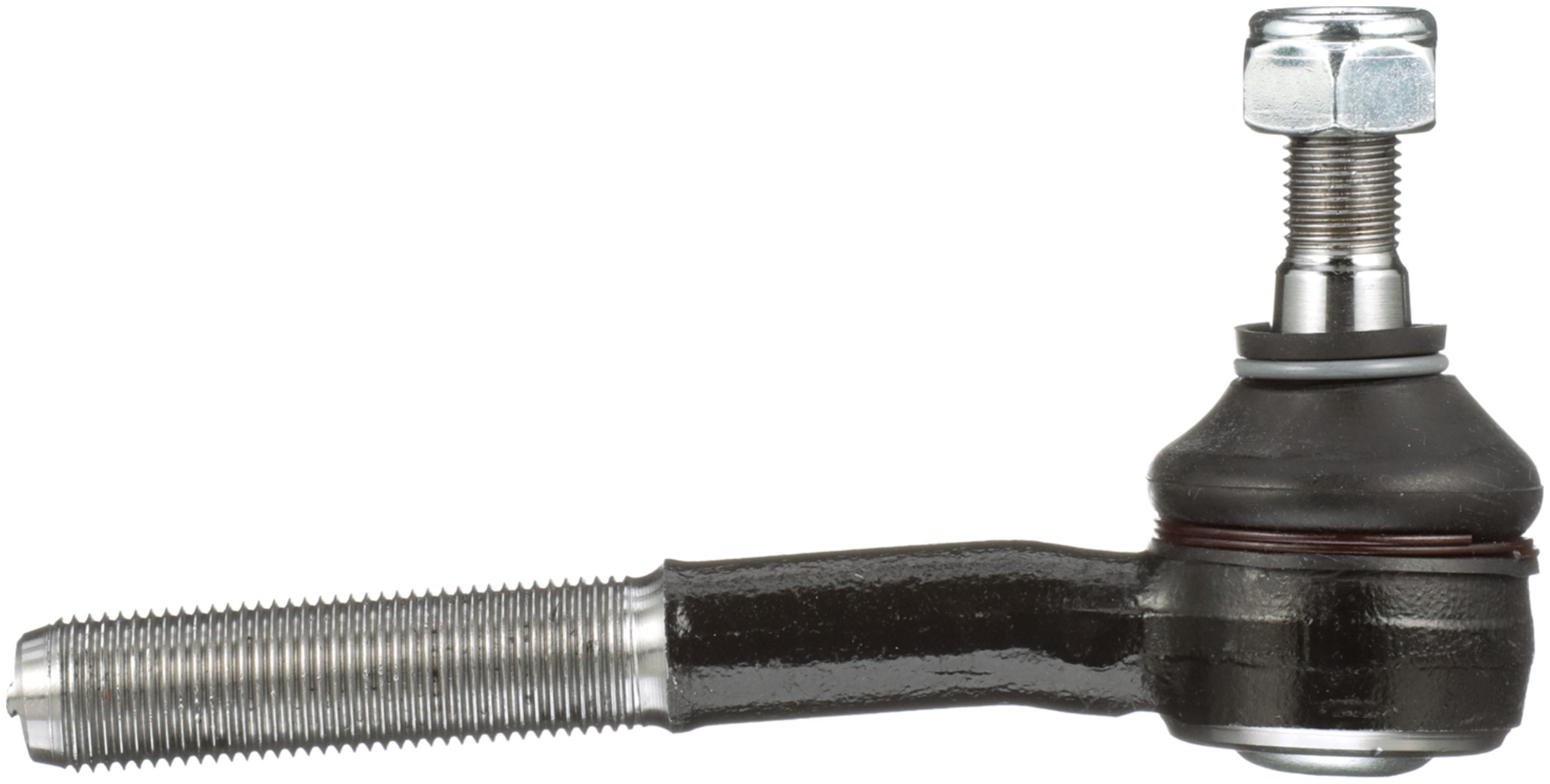

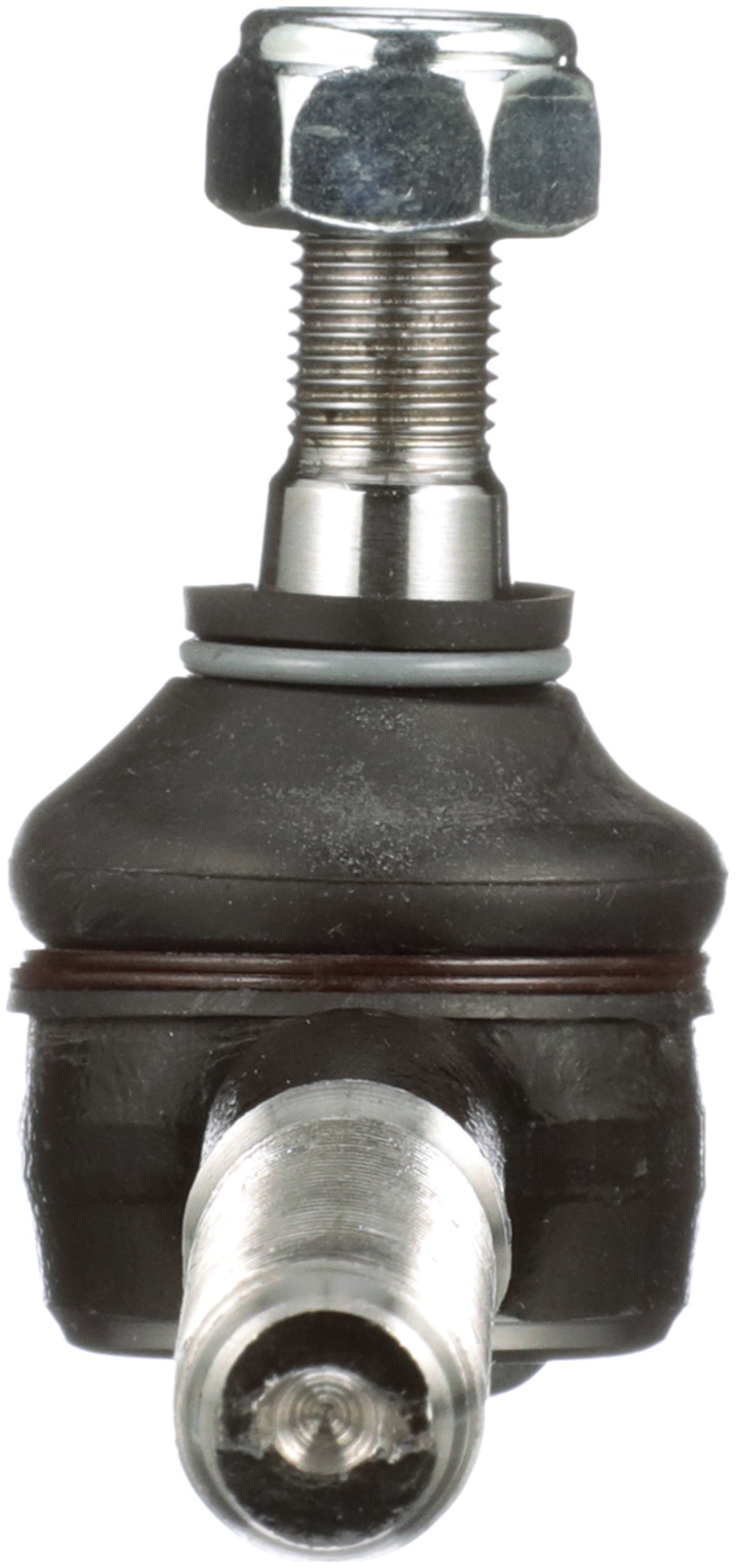

Delphi TA1617 Steering Tie Rod End

Delphi TA1617 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

1786	15.30 MM
End 2 Thread Direction	Counterclockwise (Left)
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
End 1 Thread Direction	Clockwise (Right)
Length – Stud Centre to End	129.00 MM
Length – Stud Centre to End	5.079 IN
Height	68.50 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Inner
Width	38 MM
Stud Length	15.30 MM
Stud Length	0.602 IN
36	0.630 IN
36	16.00 MM
627	0.98 LB
662	0.602 IN
662	15.30 MM
1786	0.602 IN
Housing Material	Steel
Adjustable	No
Bearing Material	Plastic
