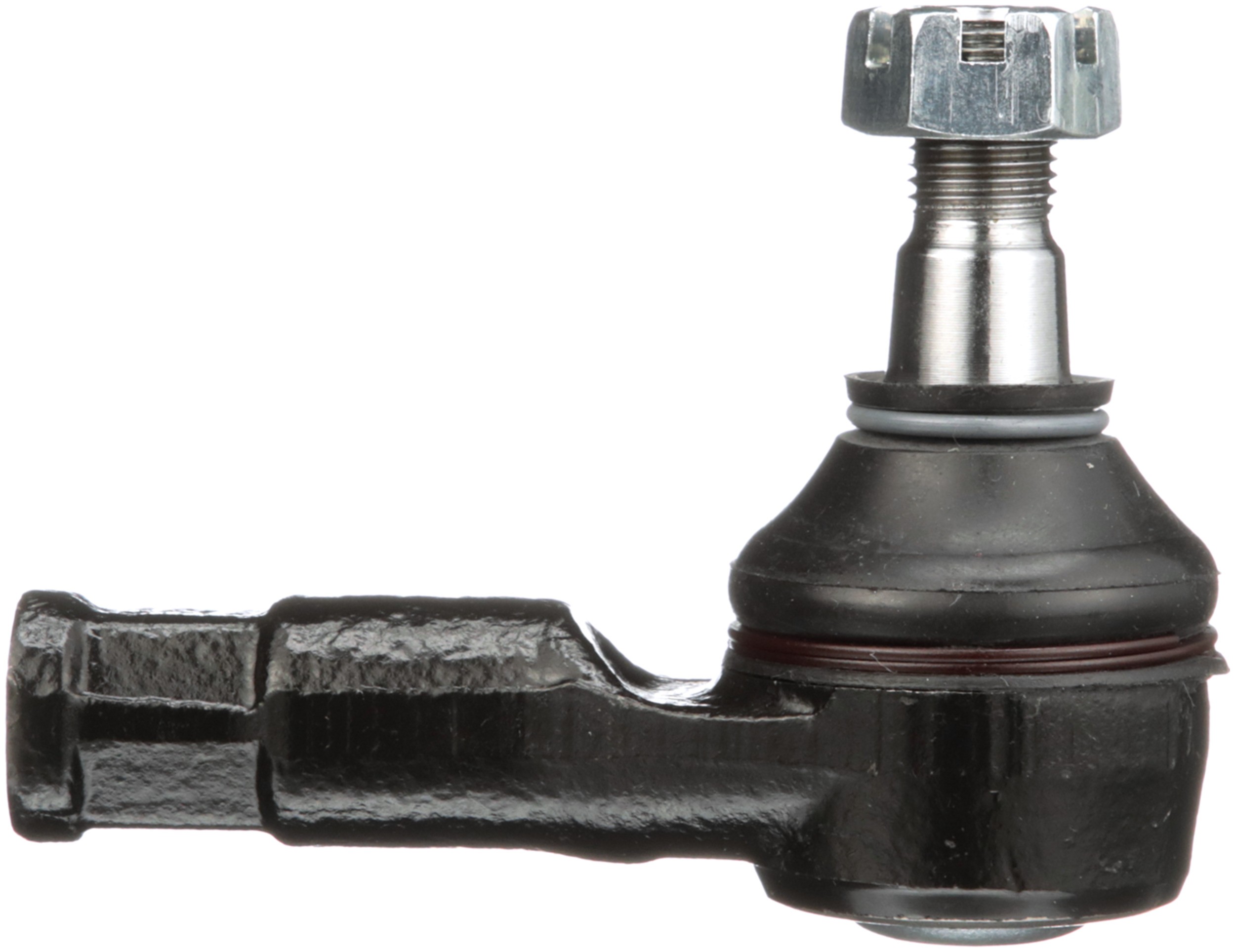

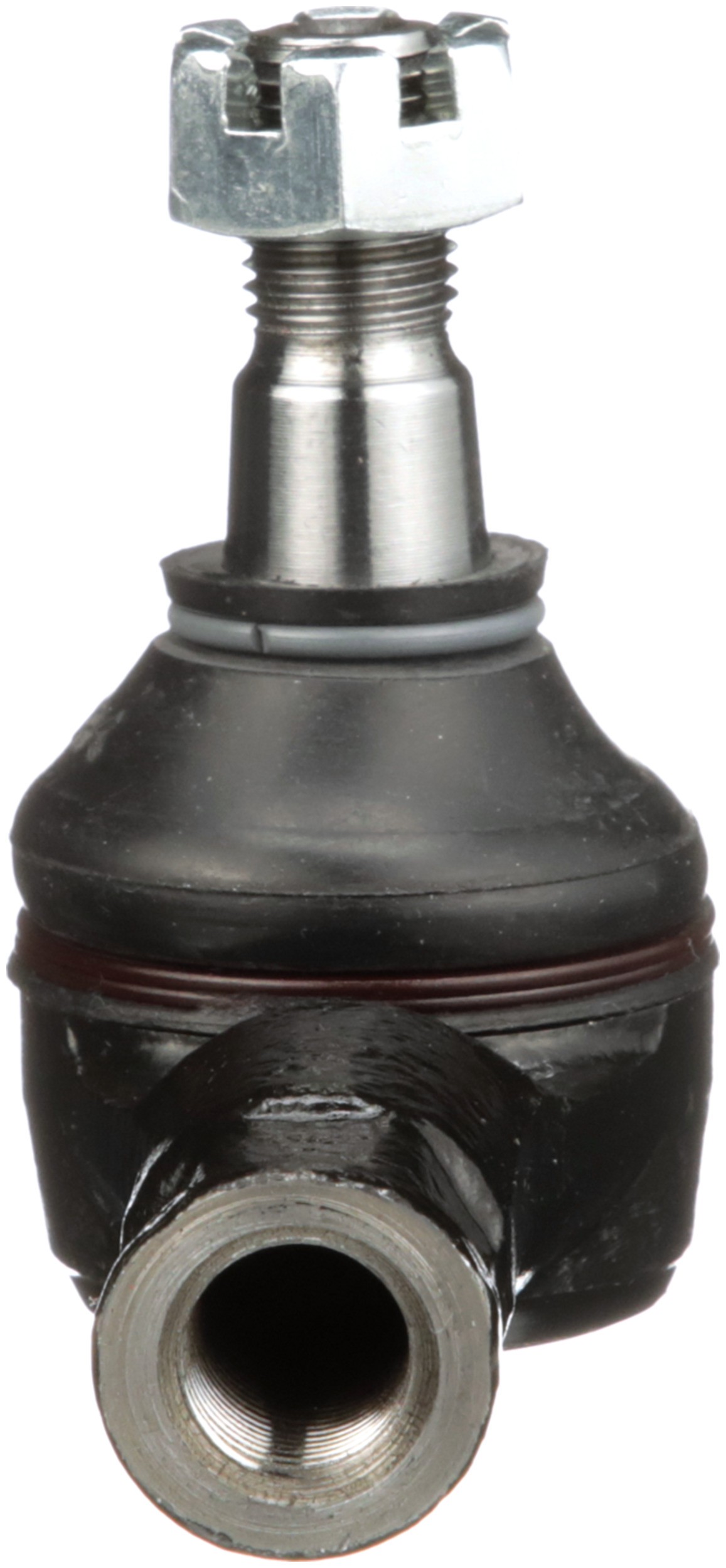

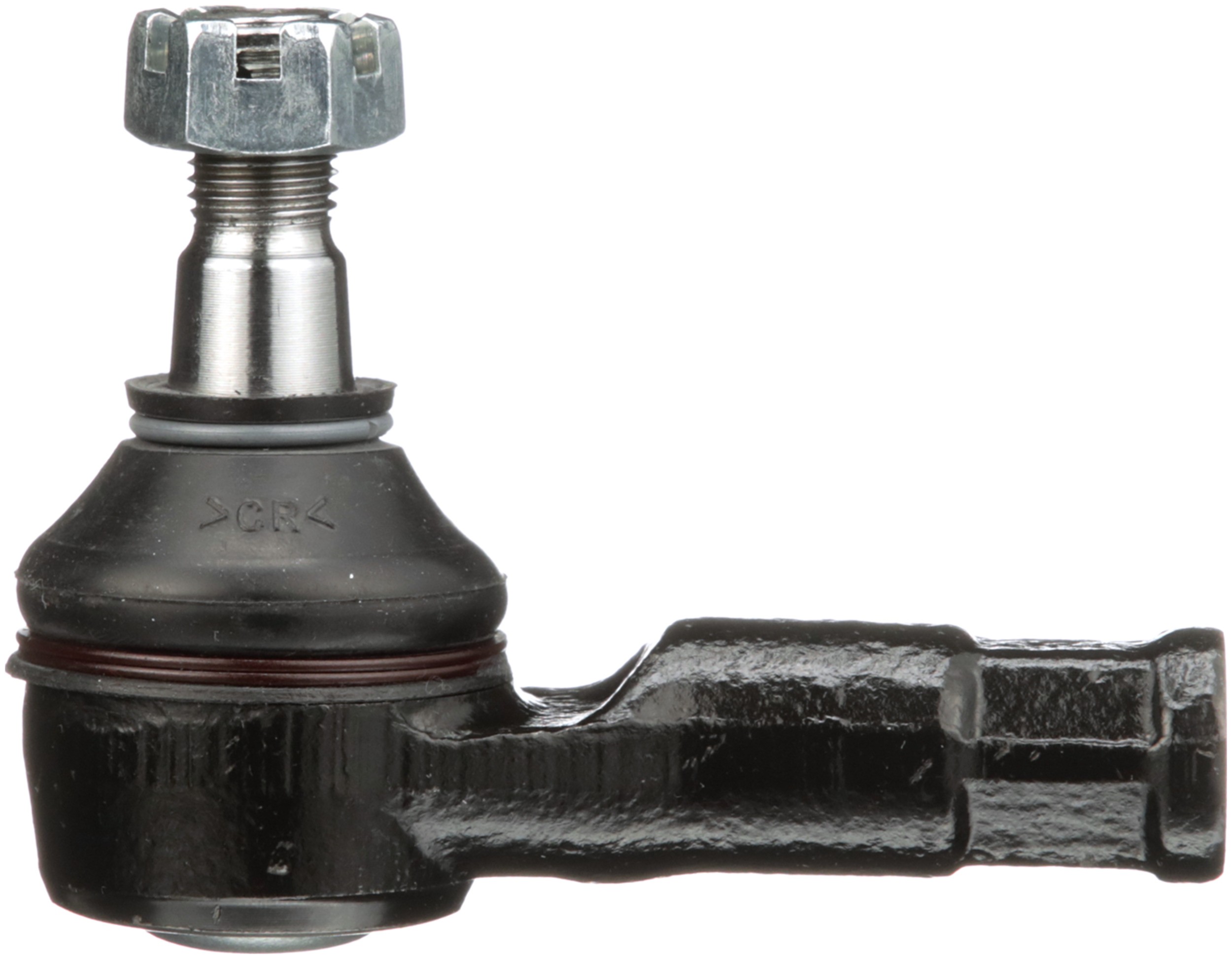

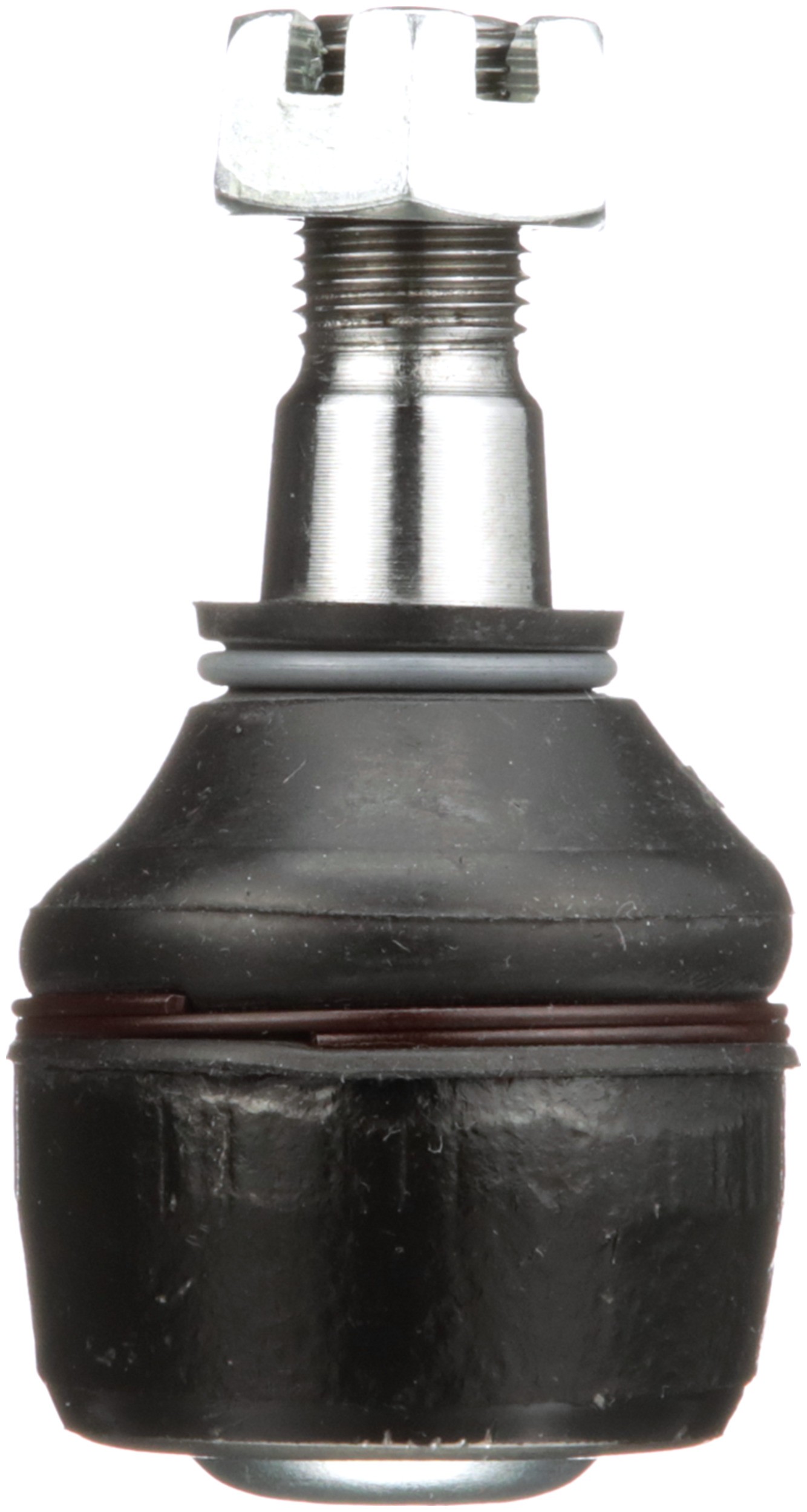

Delphi TA1624 Steering Tie Rod End

Delphi TA1624 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9090	Rubber
662	15.10 MM
662	0.594 IN
627	0.82 LB
9091	Steel
881	Threaded
Position(s)	Outer
Stud Length	0.594 IN
Stud Length	15.10 MM
Width	38.0 MM
Height	71.10 MM
Length – Stud Centre to End	2.913 IN
Length – Stud Centre to End	74.00 MM
Dust Boot Included	Yes
Mounting Hardware Included	Yes
Type	Straight
1786	0.594 IN
1786	15.10 MM
36	0.787 IN
36	20.00 MM
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
Color	Black
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Boot Colour	Black
Greaseable	No
Housing Material	Steel
Grade Type	Standard Replacement
Adjustable	No
