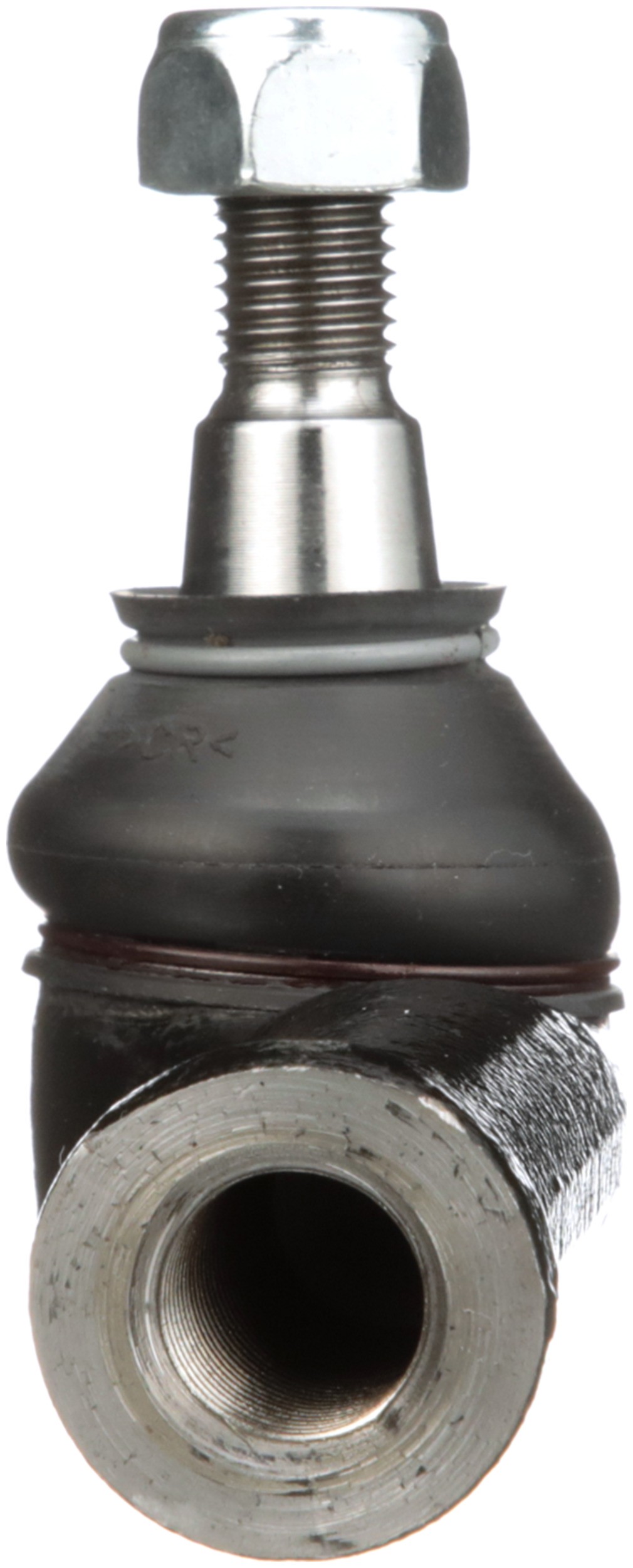

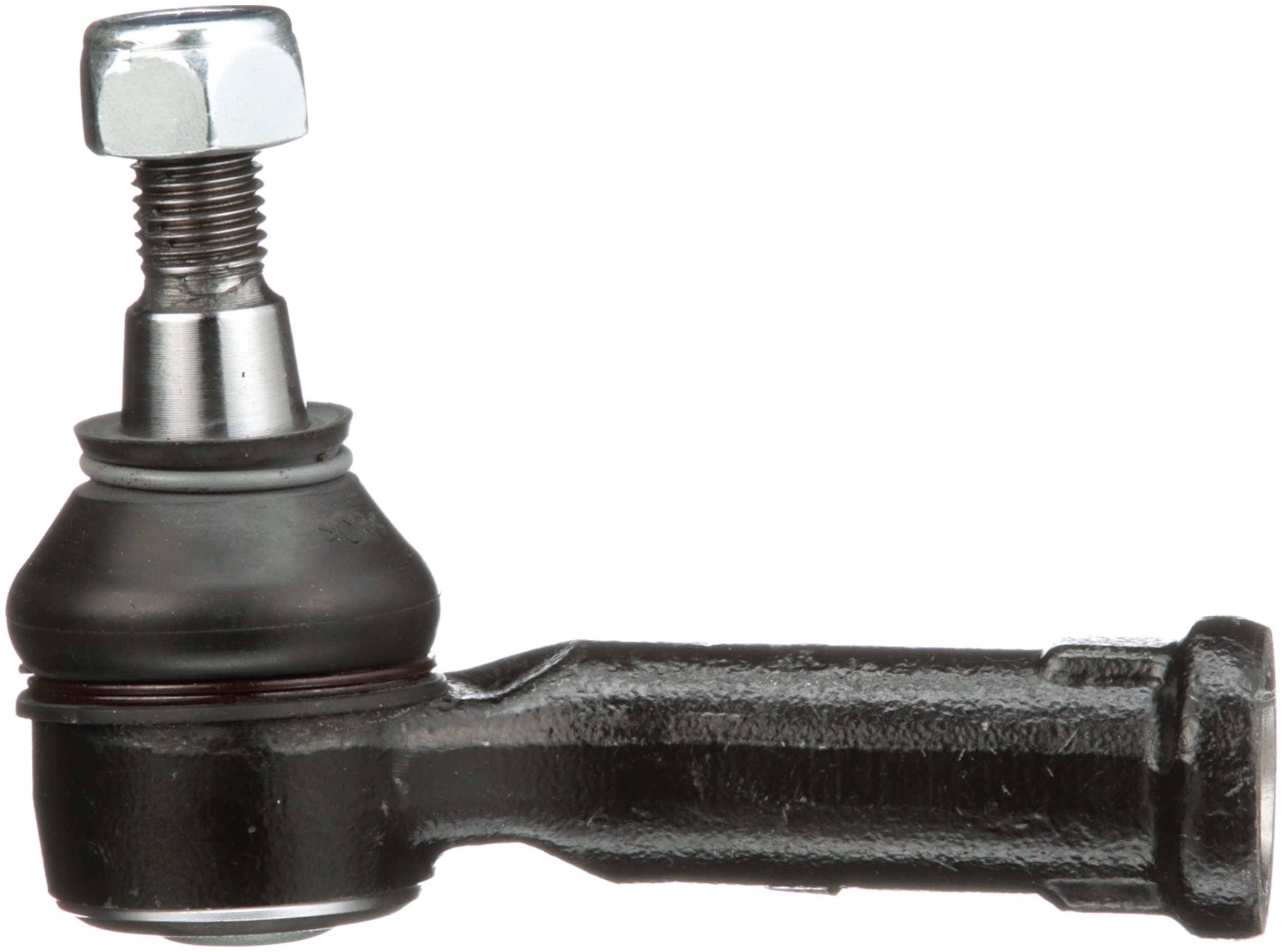

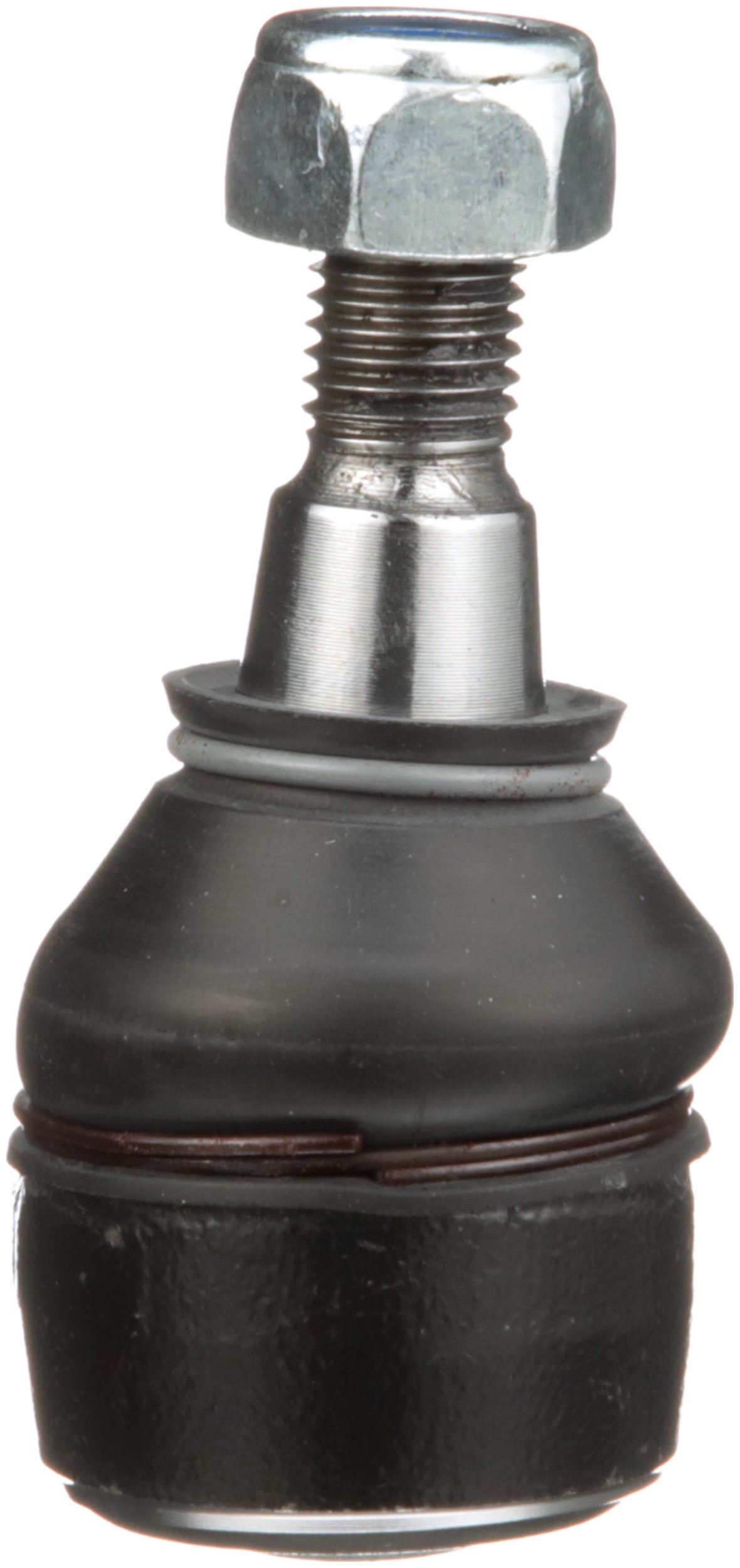

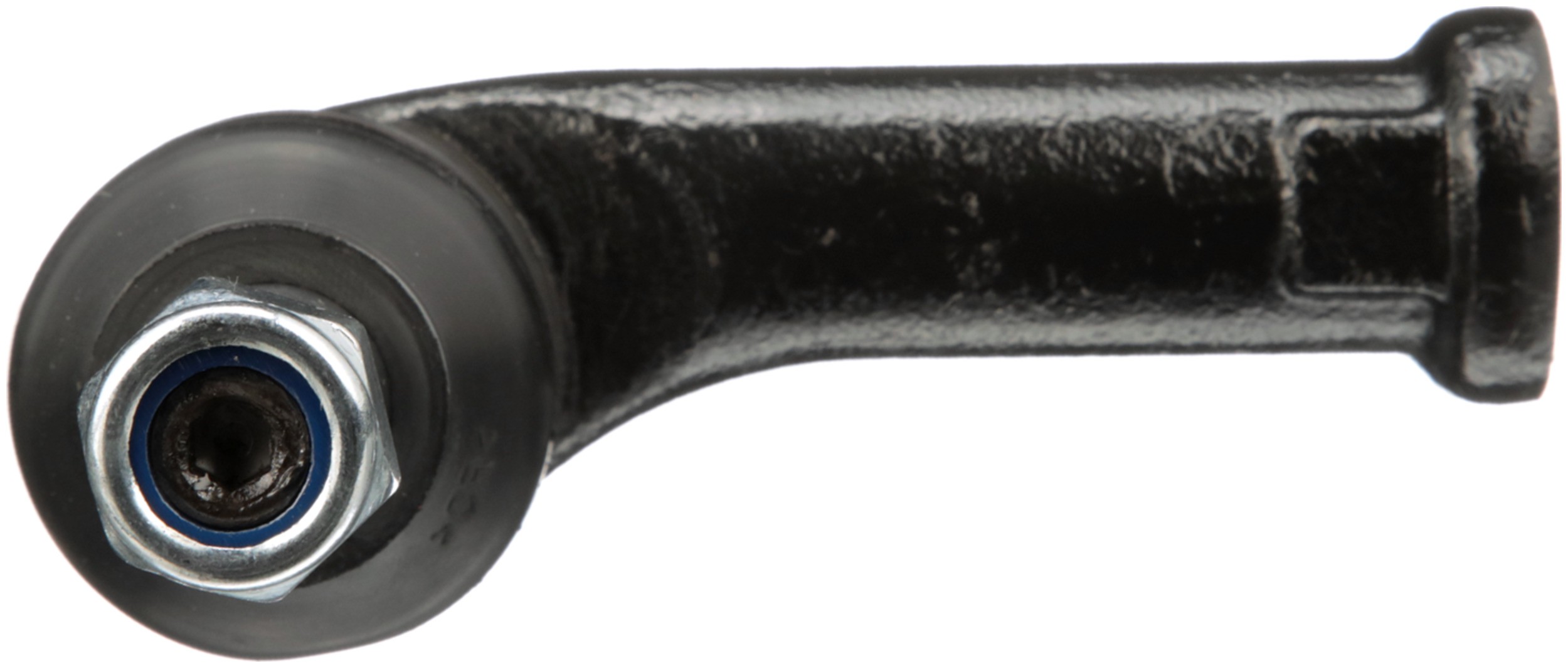

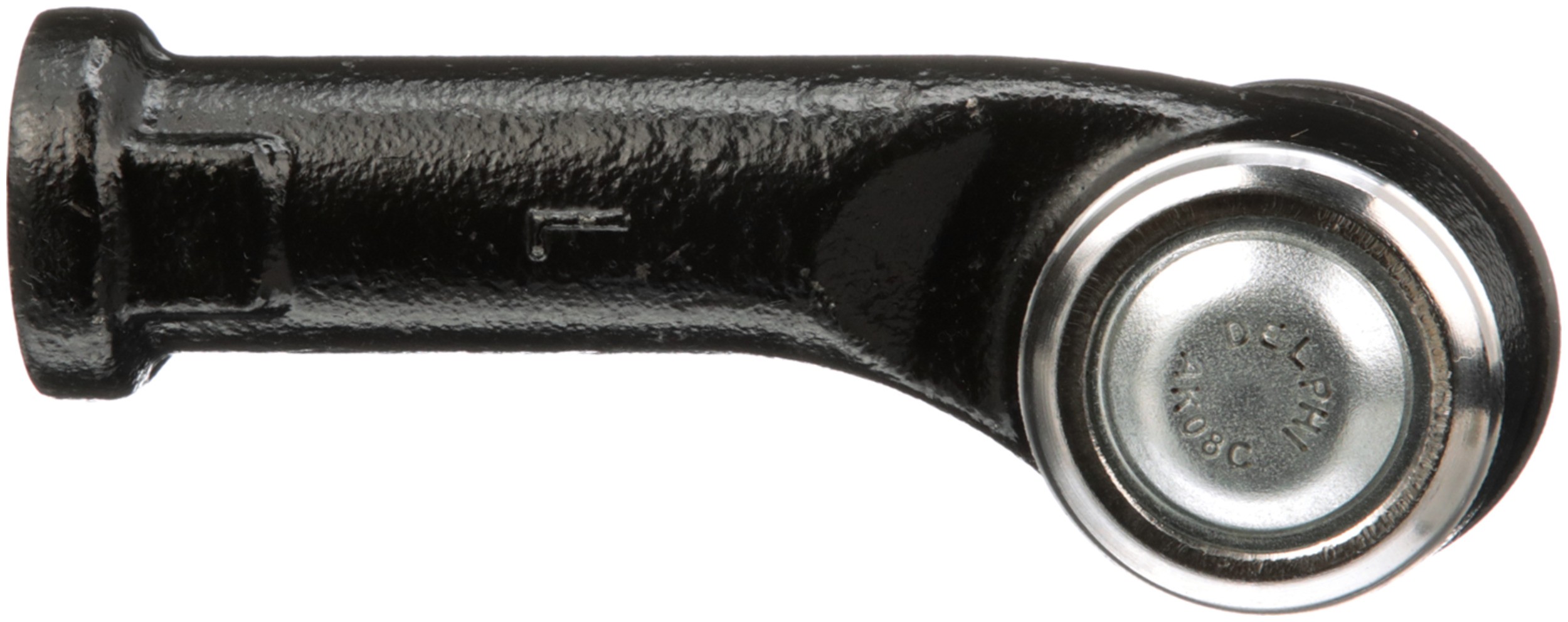

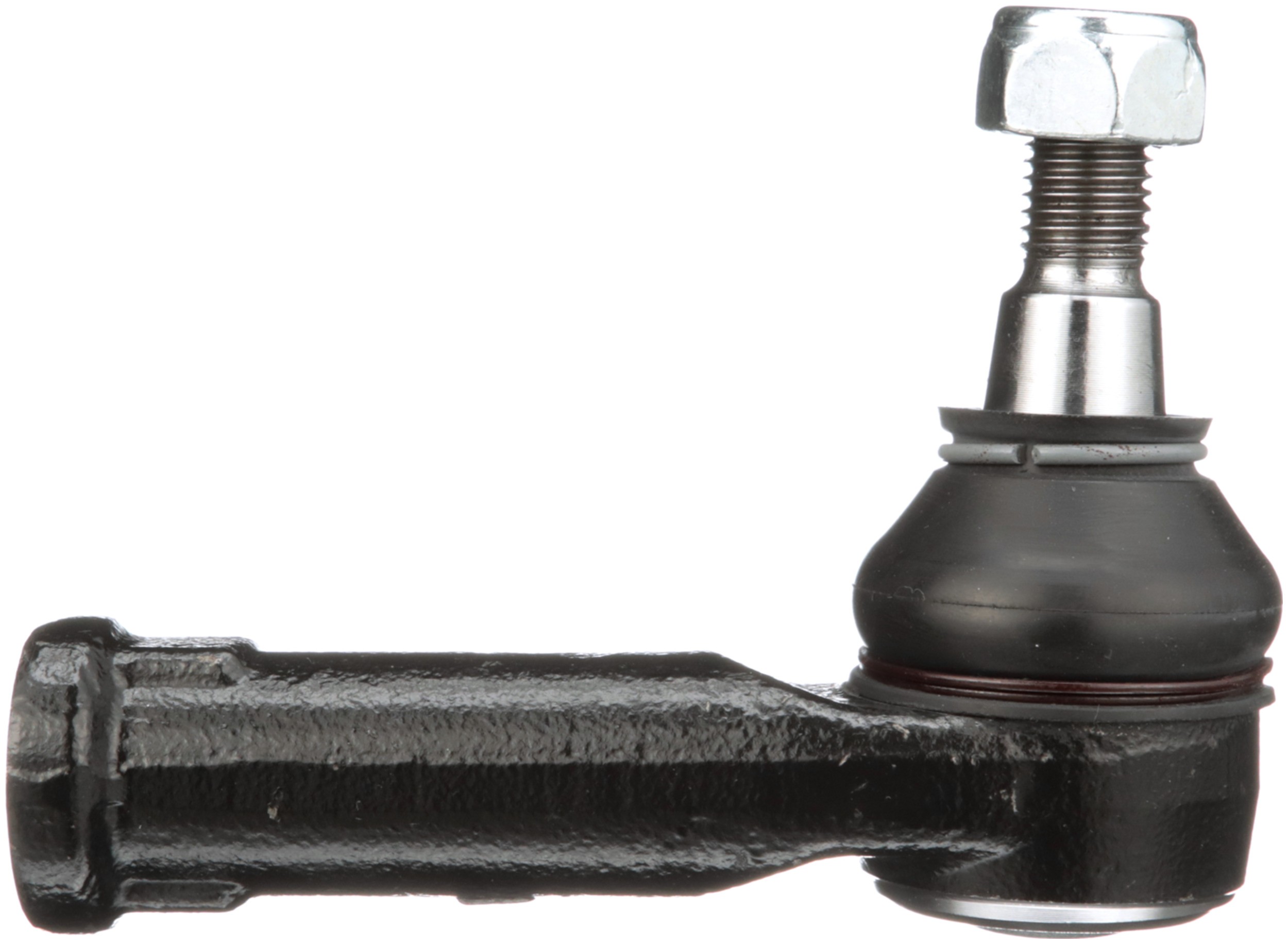

Delphi TA1640 Steering Tie Rod End

Delphi TA1640 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 2 Gender	Female
Color	Black
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Left Outer
662	18.20 MM
662	0.717 IN
627	1.05 LB
36	22.00 MM
36	0.866 IN
1786	18.20 MM
1786	0.717 IN
Stud Length	0.717 IN
Stud Length	18.20 MM
Width	38 MM
Height	82.10 MM
Length – Stud Centre to End	3.543 IN
Length – Stud Centre to End	90.00 MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Bent
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
