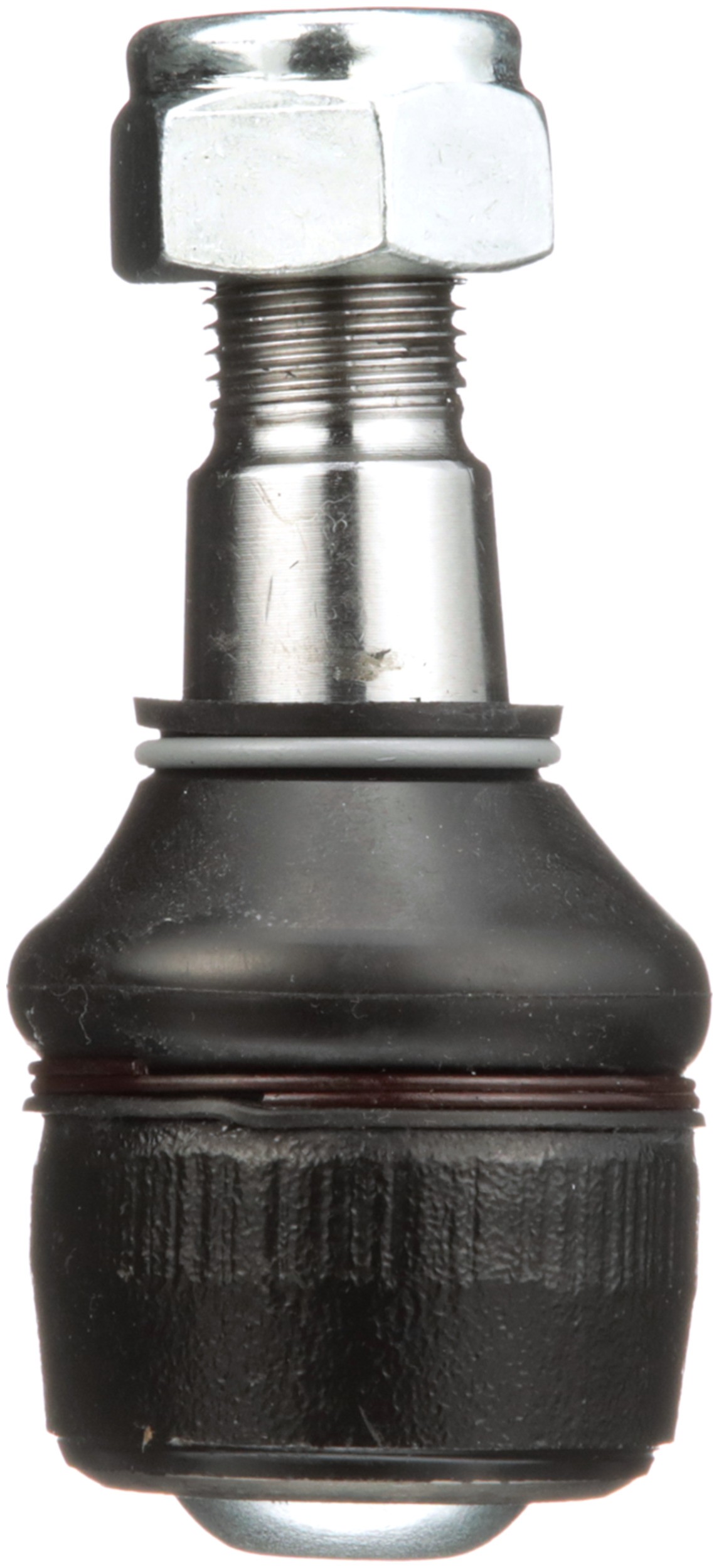

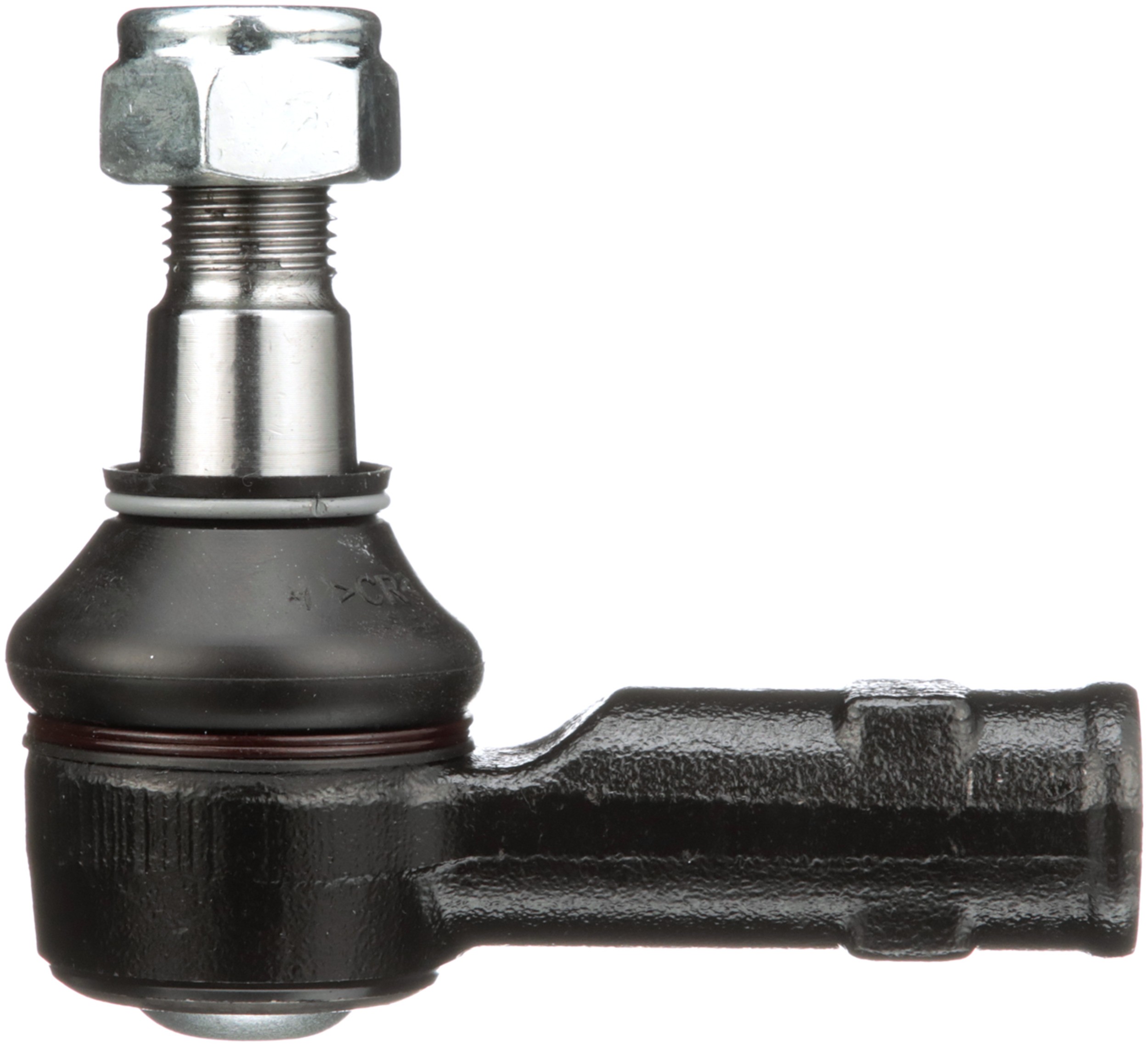

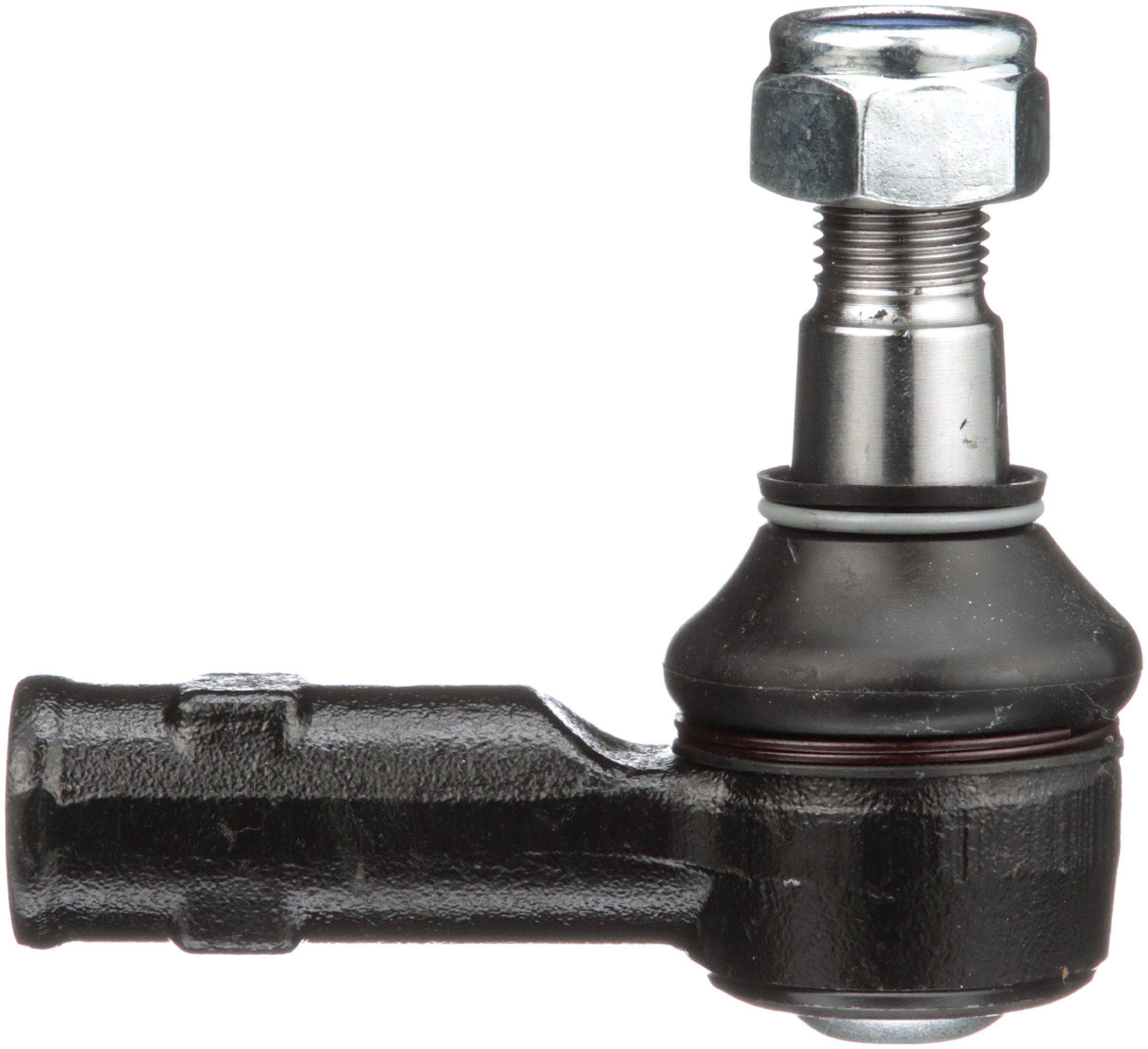

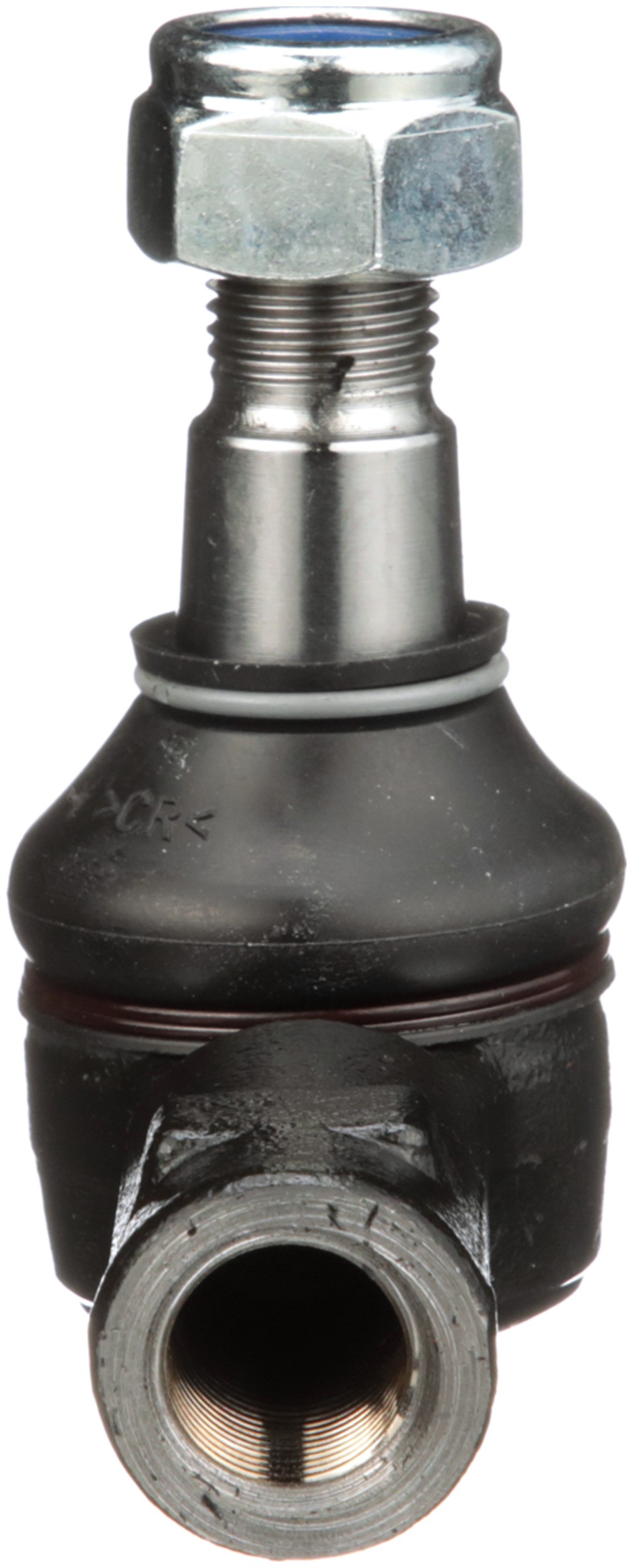

Delphi TA1683 Steering Tie Rod End

Delphi TA1683 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
Color	Black
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Outer
Length – Stud Centre to End	78.00 MM
Length – Stud Centre to End	3.071 IN
Height	86.40 MM
Width	40 MM
Stud Length	20.50 MM
Stud Length	0.807 IN
1786	0.807 IN
662	20.50 MM
627	1.16 LB
662	0.807 IN
36	23.50 MM
36	0.925 IN
1786	20.50 MM
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
