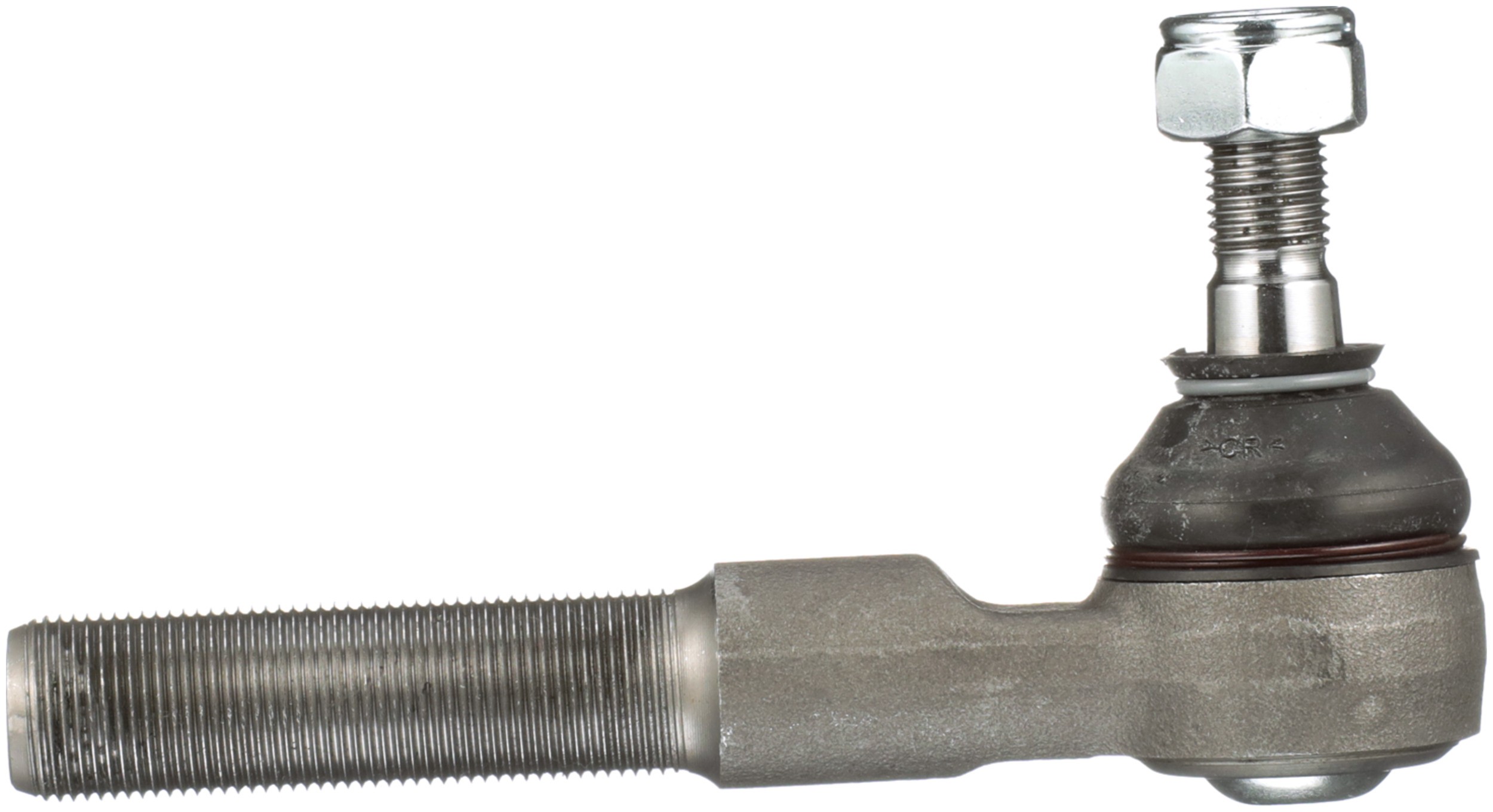

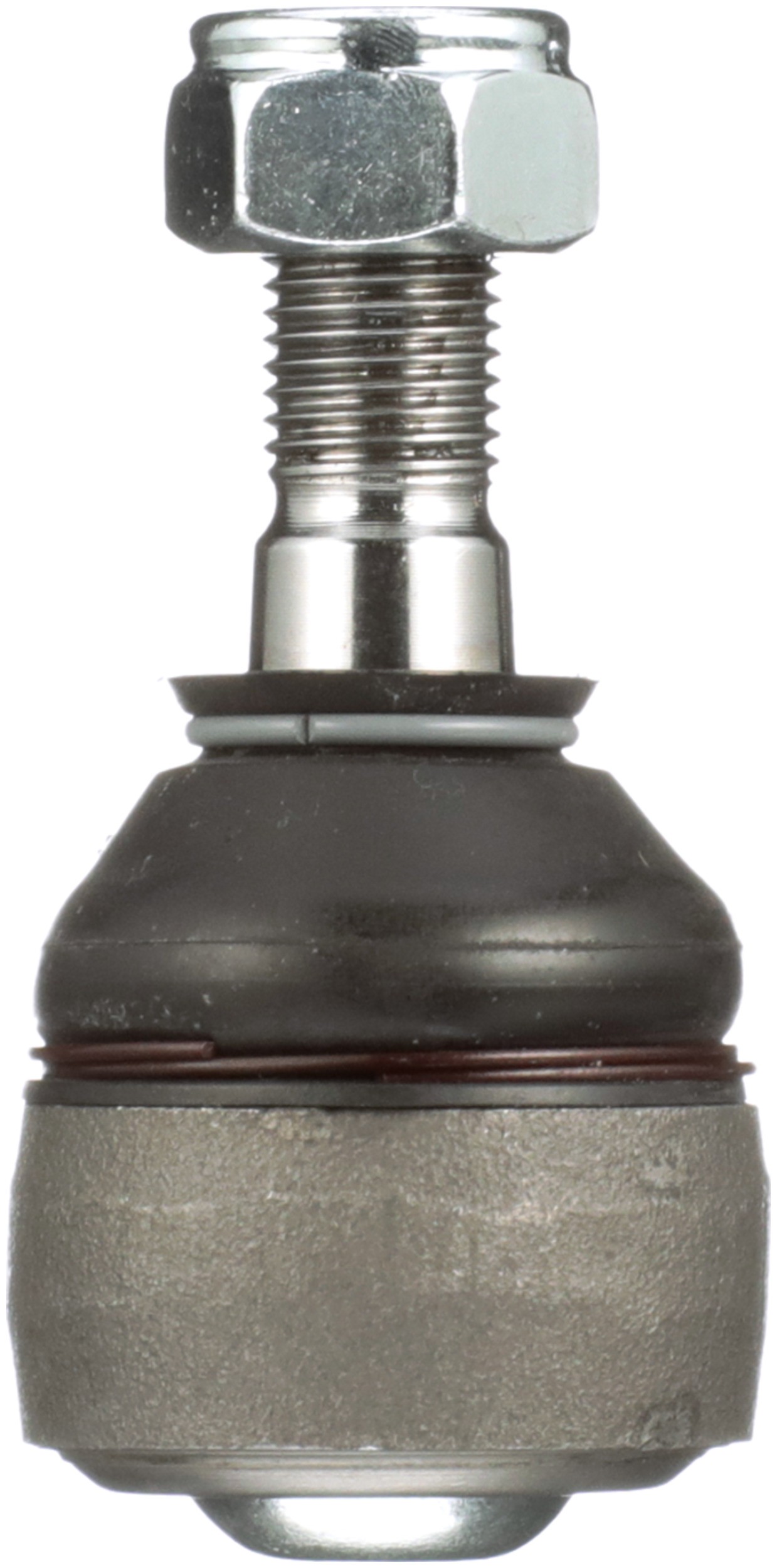

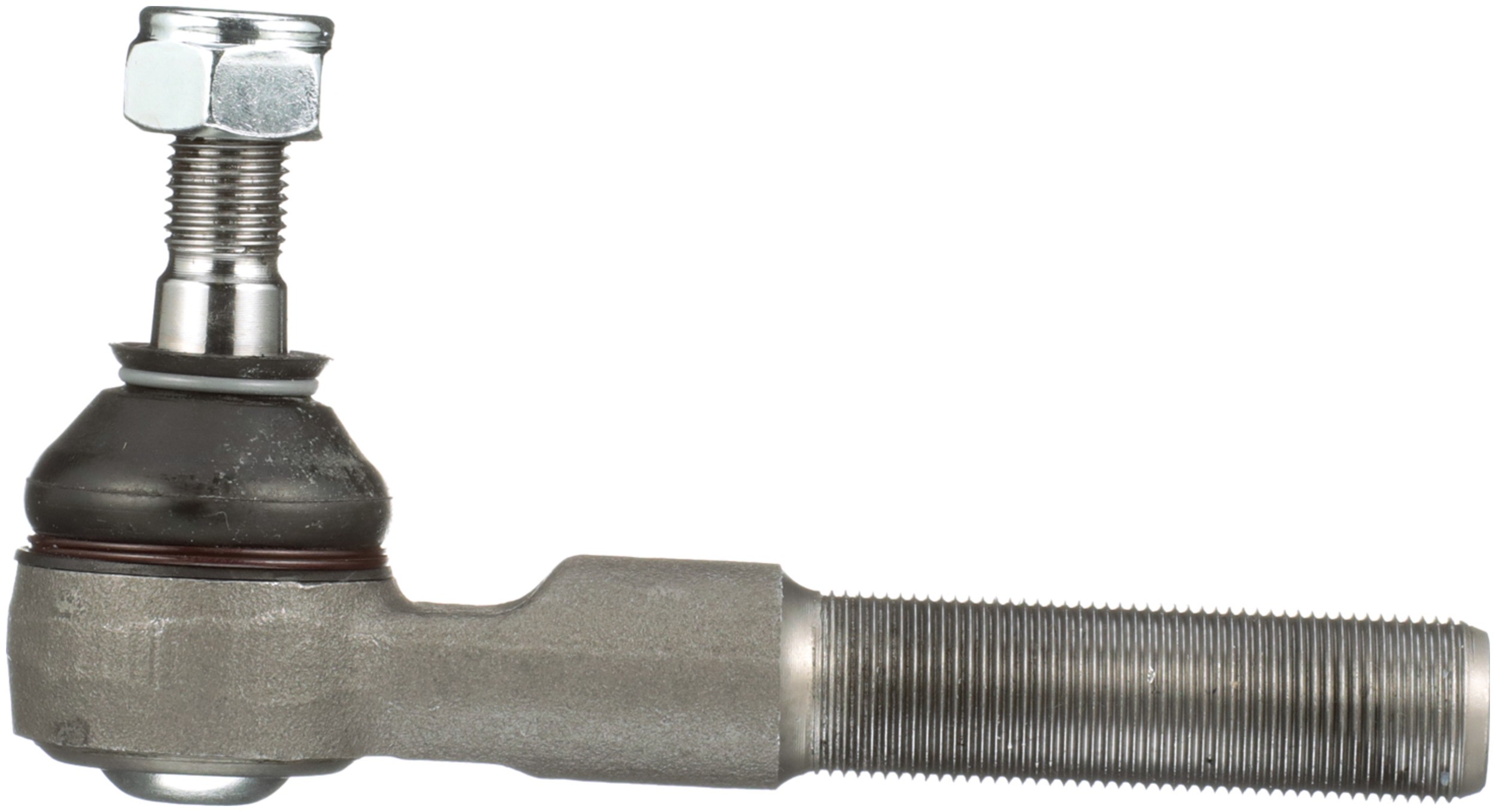

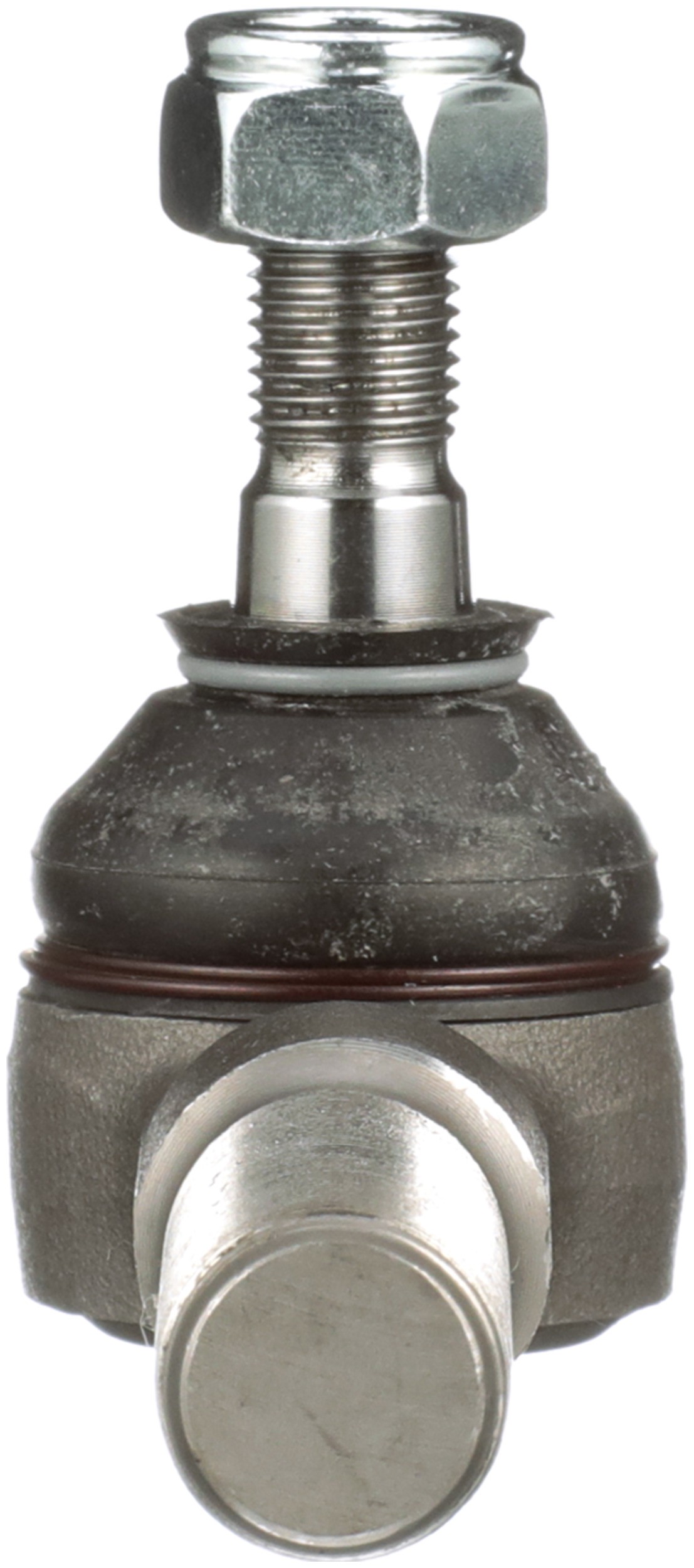

Delphi TA1699 Steering Tie Rod End

Delphi TA1699 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9091	Steel
9090	Rubber
881	Threaded
Length – Stud Centre to End	140.50 MM
Length – Stud Centre to End	5.531 IN
Height	82.00 MM
Width	43.5 MM
662	16.00 MM
Position(s)	Front Left, Front Left Inner. For the position specific to your vehicle, refer to the Applications.
Color	Gray
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
662	0.630 IN
627	1.66 LB
36	25.50 MM
1786	0.630 IN
1786	16.00 MM
36	1.004 IN
Stud Length	0.630 IN
Stud Length	16.00 MM
